  1. Task 4- Data Analysis

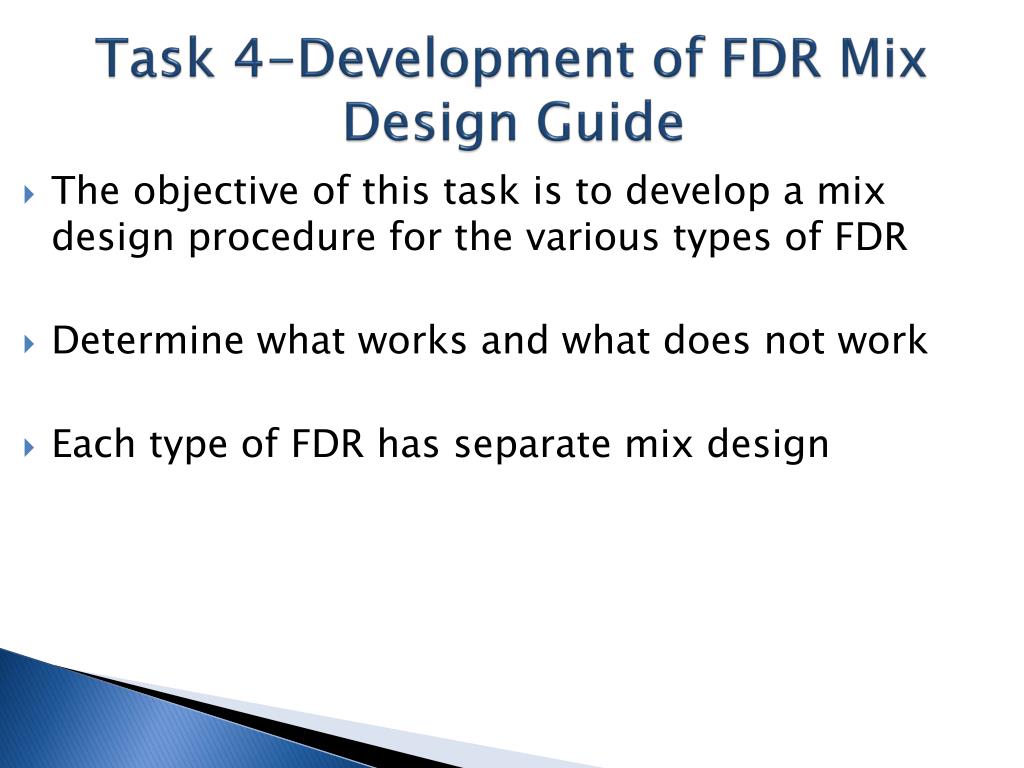

  2. Task 4-Development of FDR Mix Design Guide • The objective of this task is to develop a mix design procedure for the various types of FDR • Determine what works and what does not work • Each type of FDR has separate mix design

  3. Types of FDR • Unstabilized • Mechanically stabilized: add virgin aggregate • Stabilized FDR with Portland Cement • Stabilized FDR with Fly Ash • Stabilized FDR with Asphalt Emulsion • Stabilized FDR with Asphalt Emulsion with 1% Lime • Stabilized FDR with Foamed Asphalt with 1% Portland Cement

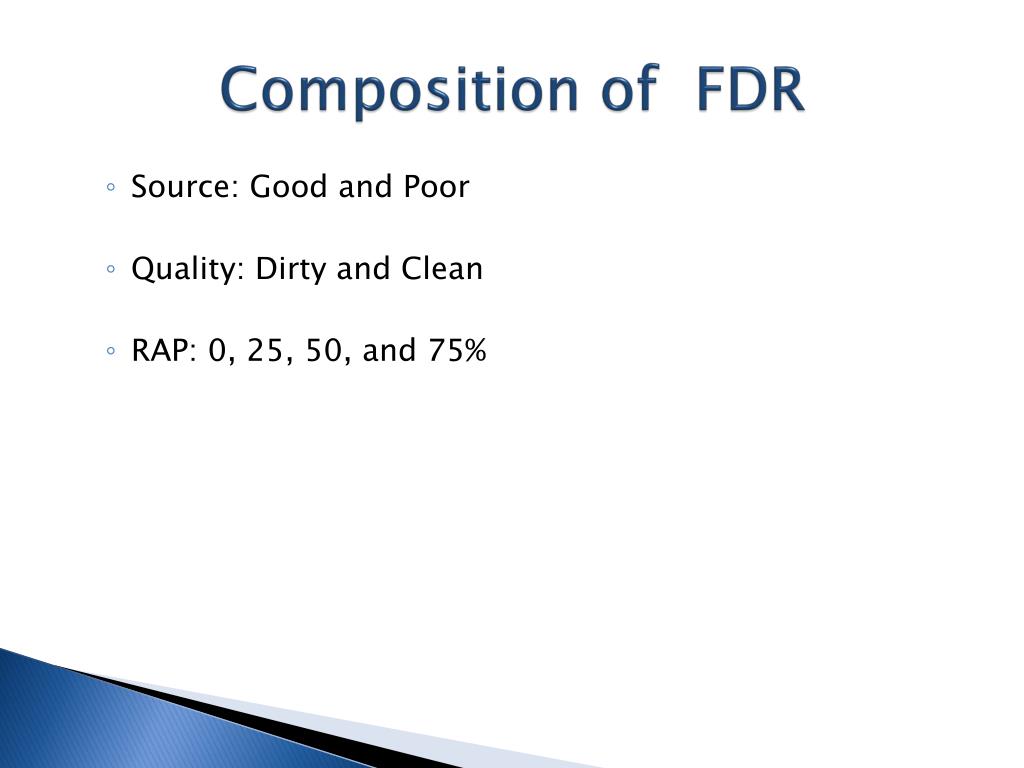

  4. Composition of FDR • Source: Good and Poor • Quality: Dirty and Clean • RAP: 0, 25, 50, and 75%

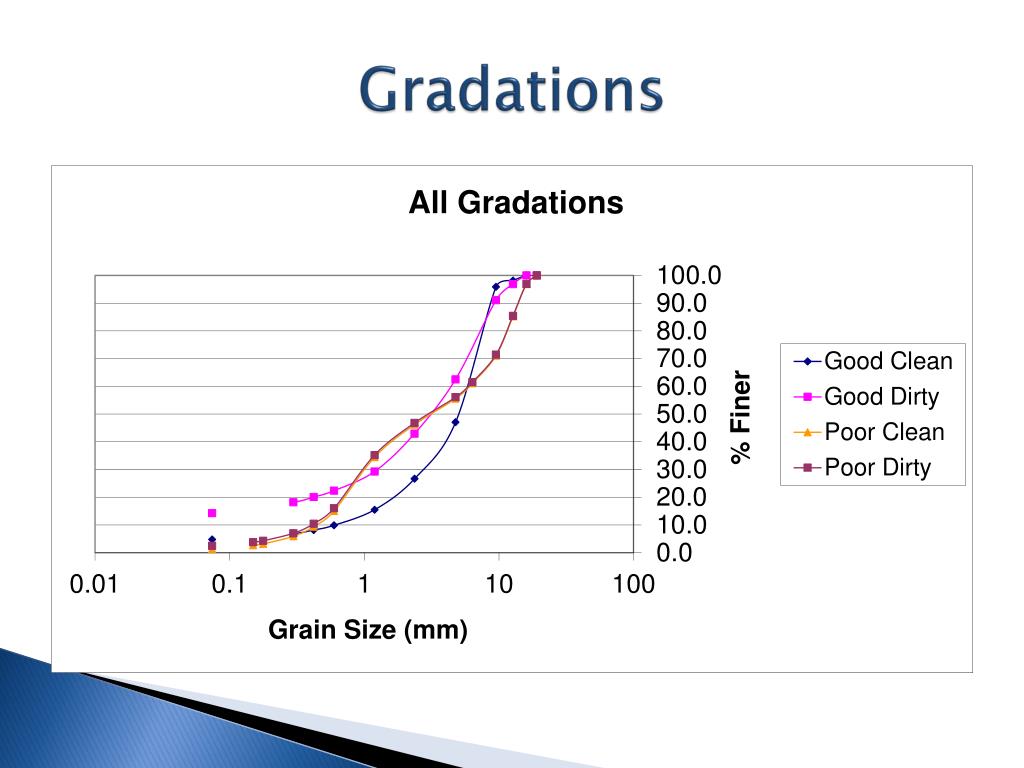

  5. Gradations

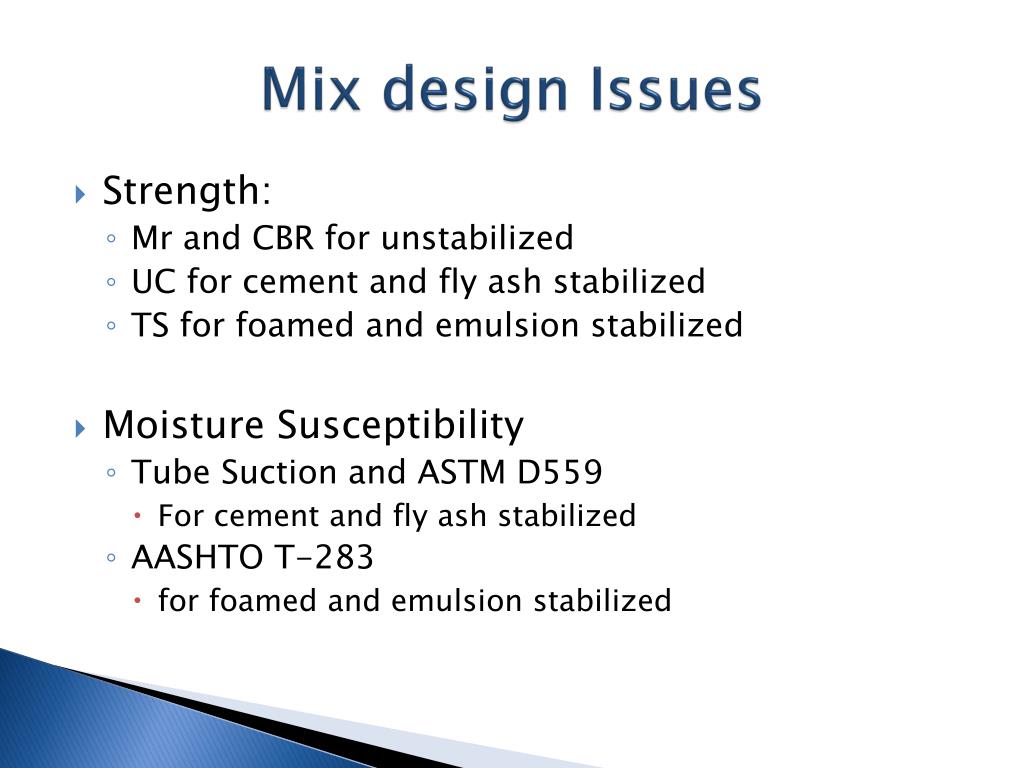

  6. Mix design Issues • Strength: • Mr and CBR for unstabilized • UC for cement and fly ash stabilized • TS for foamed and emulsion stabilized • Moisture Susceptibility • Tube Suction and ASTM D559 • For cement and fly ash stabilized • AASHTO T-283 • for foamed and emulsion stabilized

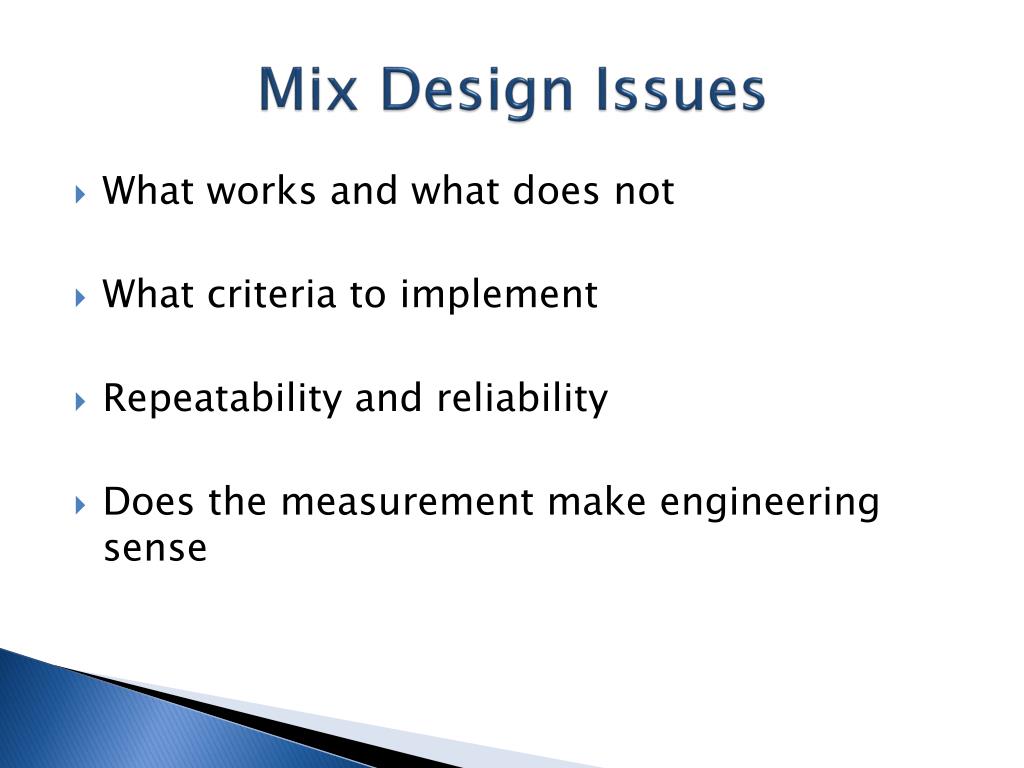

  7. Mix Design Issues • What works and what does not • What criteria to implement • Repeatability and reliability • Does the measurement make engineering sense

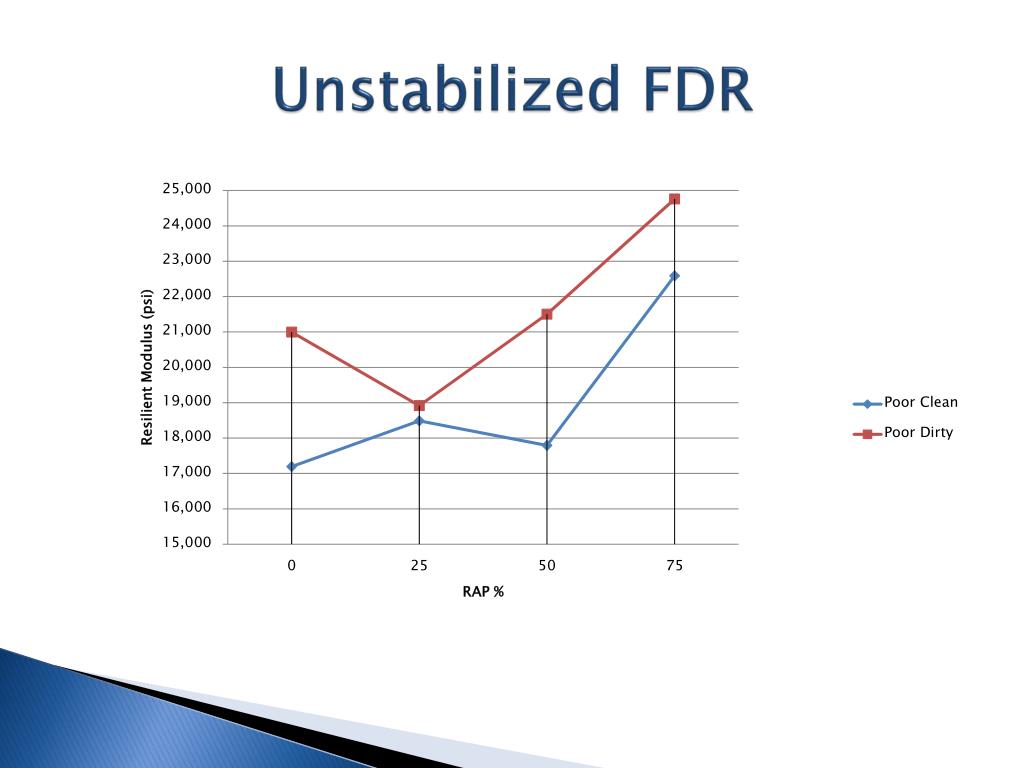

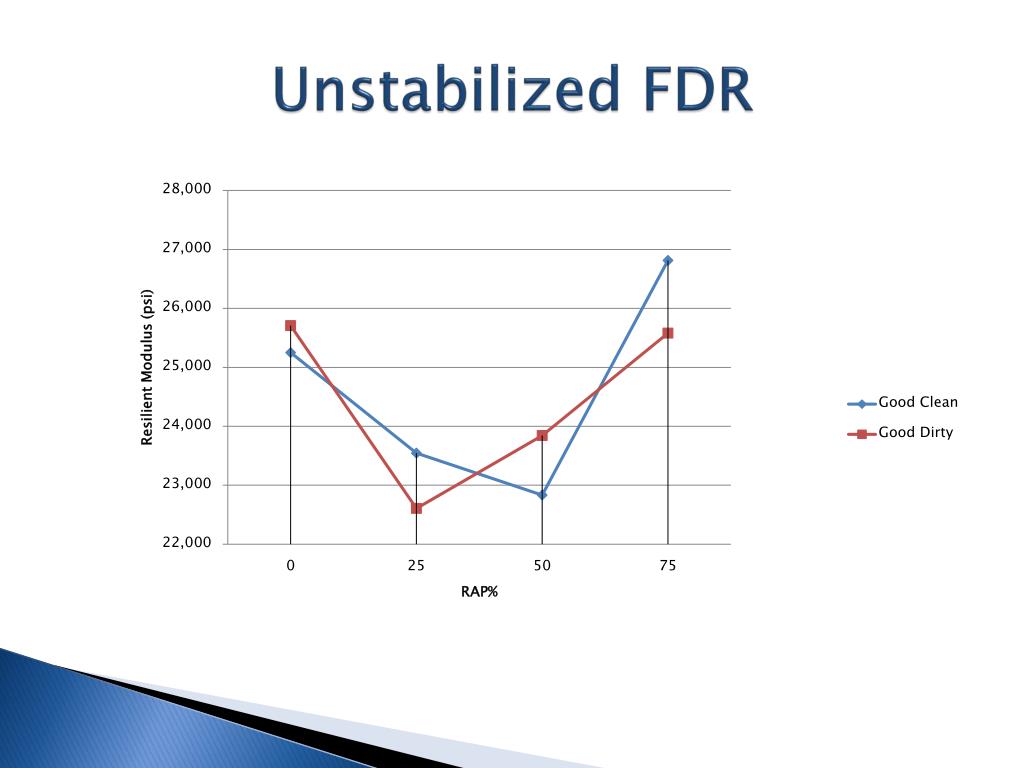

  8. Unstabilized FDR

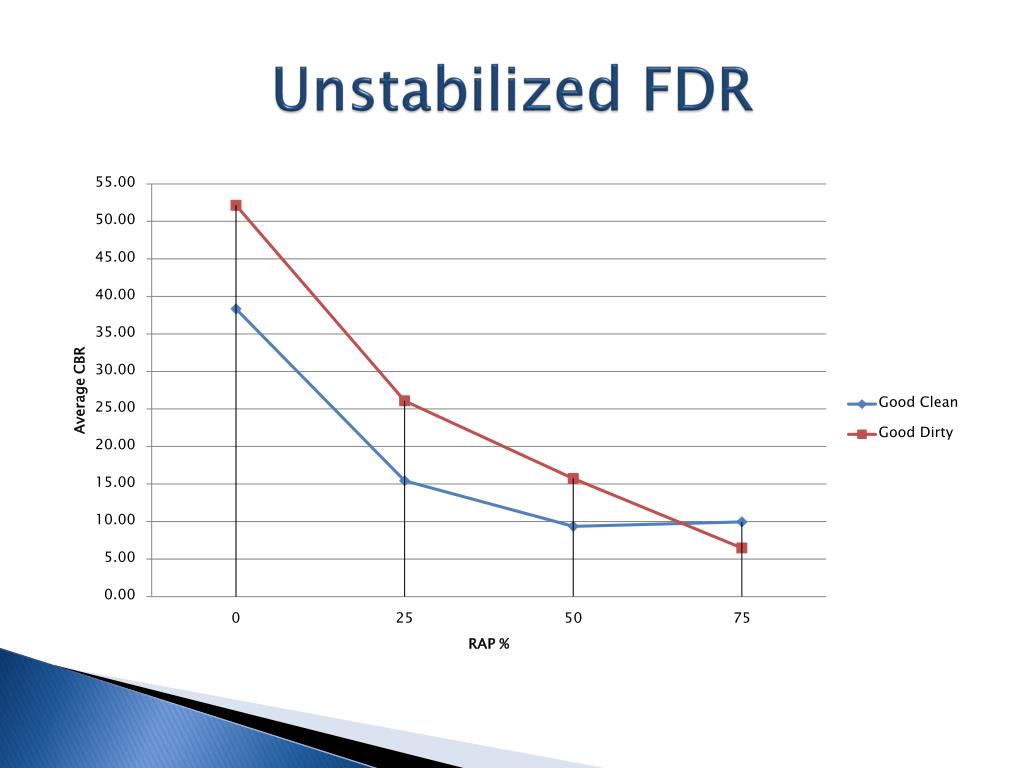

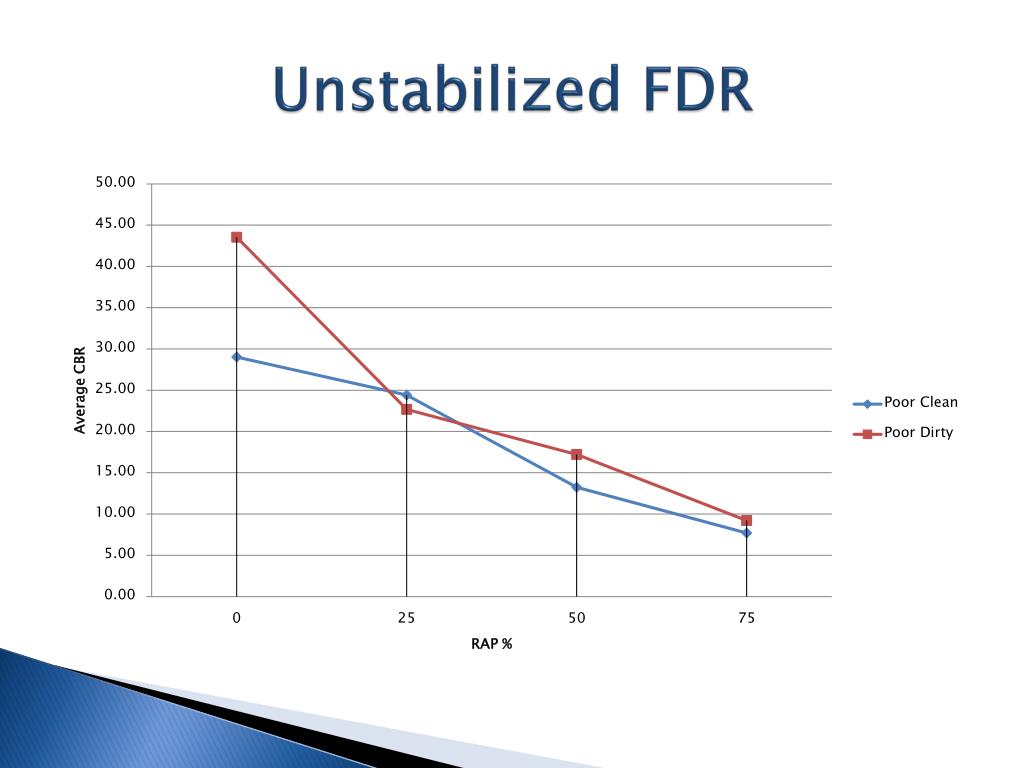

  9. Unstabilized FDR

  10. Unstabilized FDR

  11. Unstabilized FDR

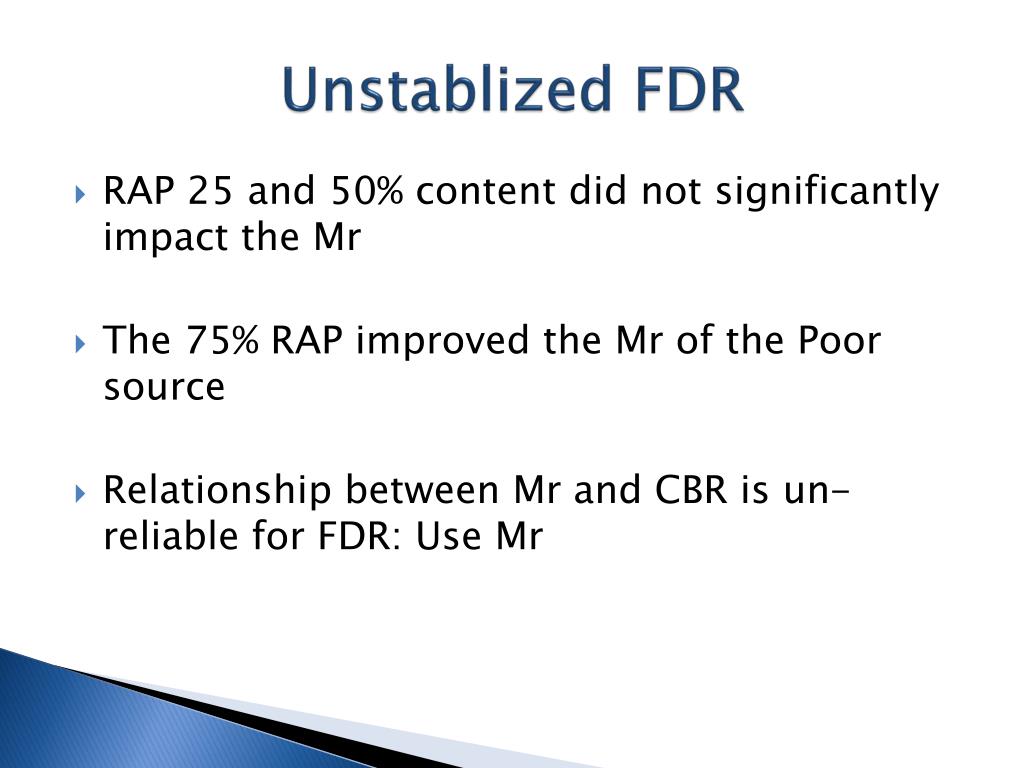

  12. Unstablized FDR • RAP 25 and 50% content did not significantly impact the Mr • The 75% RAP improved the Mr of the Poor source • Relationship between Mr and CBR is un-reliable for FDR: Use Mr

  13. Mix Design Criteria • FDR+PC & FDR+FA • Dry UC: 300 – 400 psi • Tube Suction: max 9 • FDR+Foamed & FDR+Emulsion • Dry TS at 77F: min 30 psi • TS Ratio: min. 70%

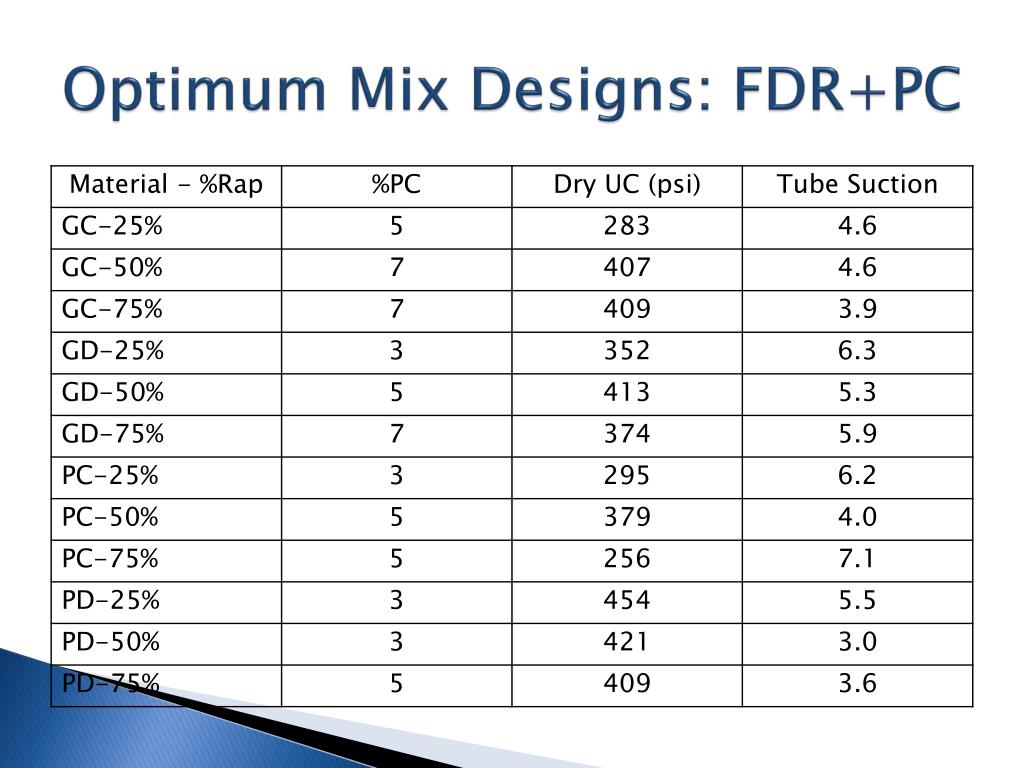

  14. Optimum Mix Designs: FDR+PC

  15. Stabilized with PC • UC strength between 300 and 400 psi is achievable in most cases • Higher UC with higher PC content in all cases • Variability of the UC test is acceptable • Tube Suction test maybe applicable

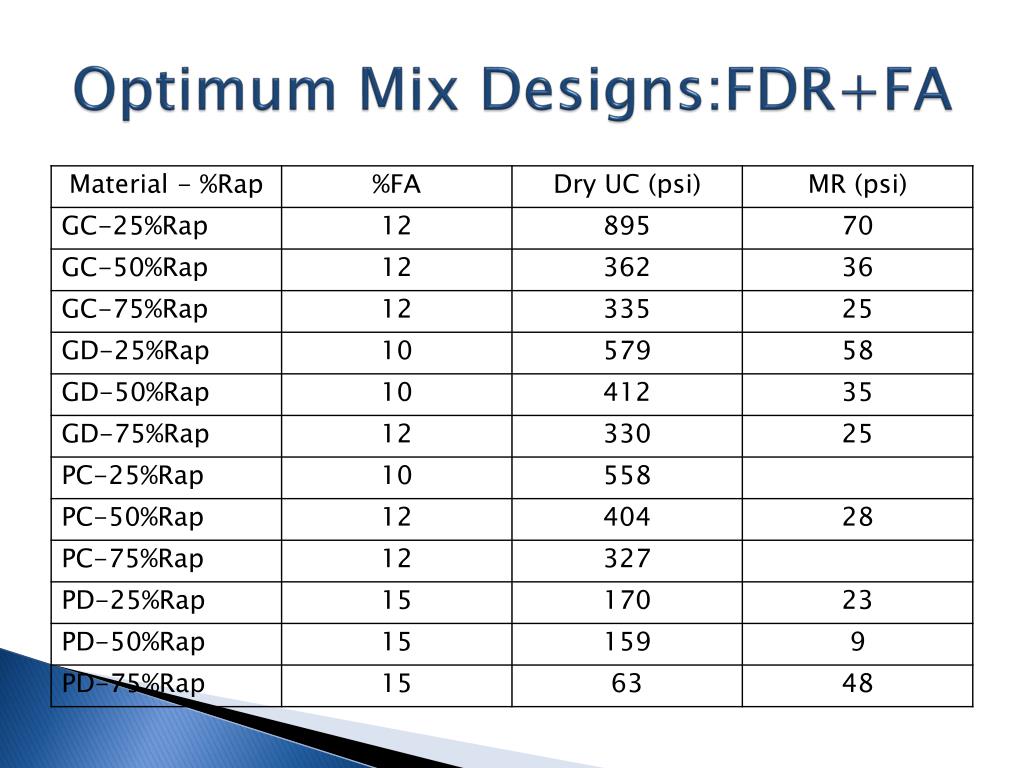

  16. Optimum Mix Designs:FDR+FA

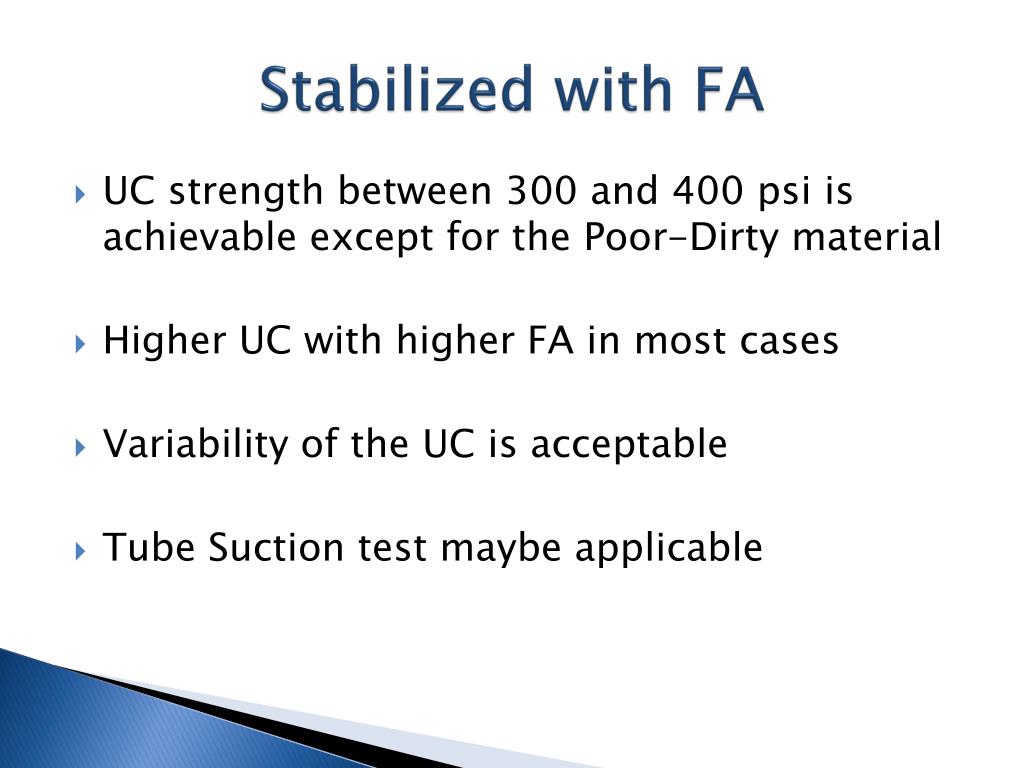

  17. Stabilized with FA • UC strength between 300 and 400 psi is achievable except for the Poor-Dirty material • Higher UC with higher FA in most cases • Variability of the UC is acceptable • Tube Suction test maybe applicable

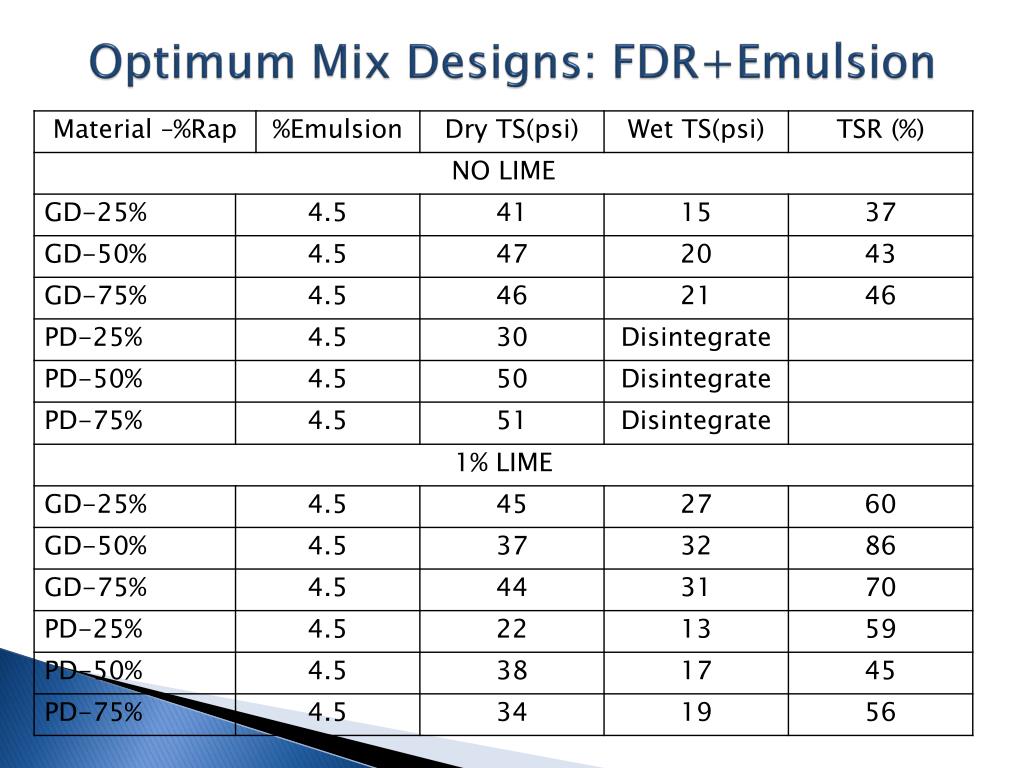

  18. Optimum Mix Designs: FDR+Emulsion

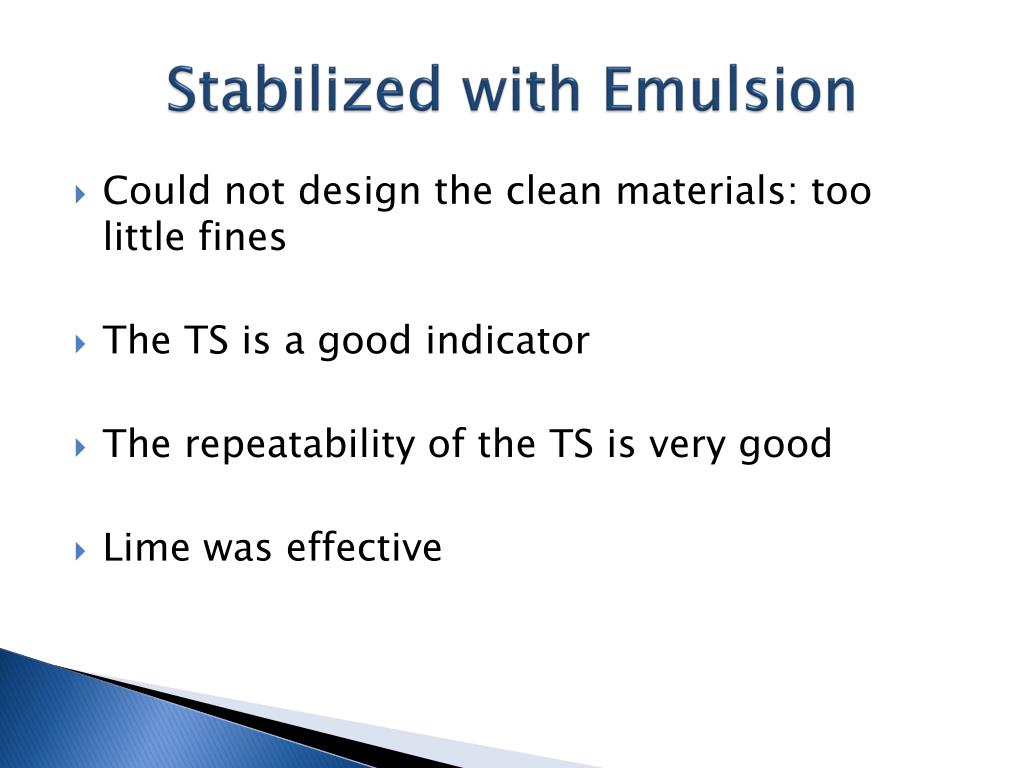

  19. Stabilized with Emulsion • Could not design the clean materials: too little fines • The TS is a good indicator • The repeatability of the TS is very good • Lime was effective

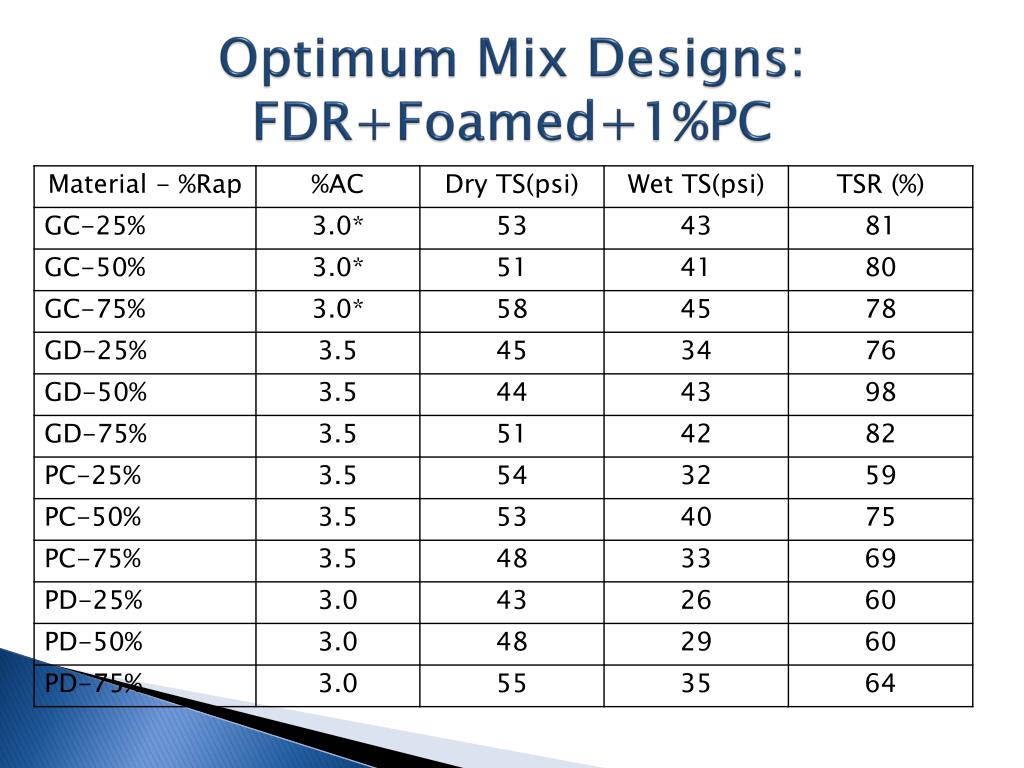

  20. Optimum Mix Designs:FDR+Foamed+1%PC

  21. Stabilized with Foamed Asphalt • Could not design without the PC • The TS is a good indicator • The repeatability of the TS is very good

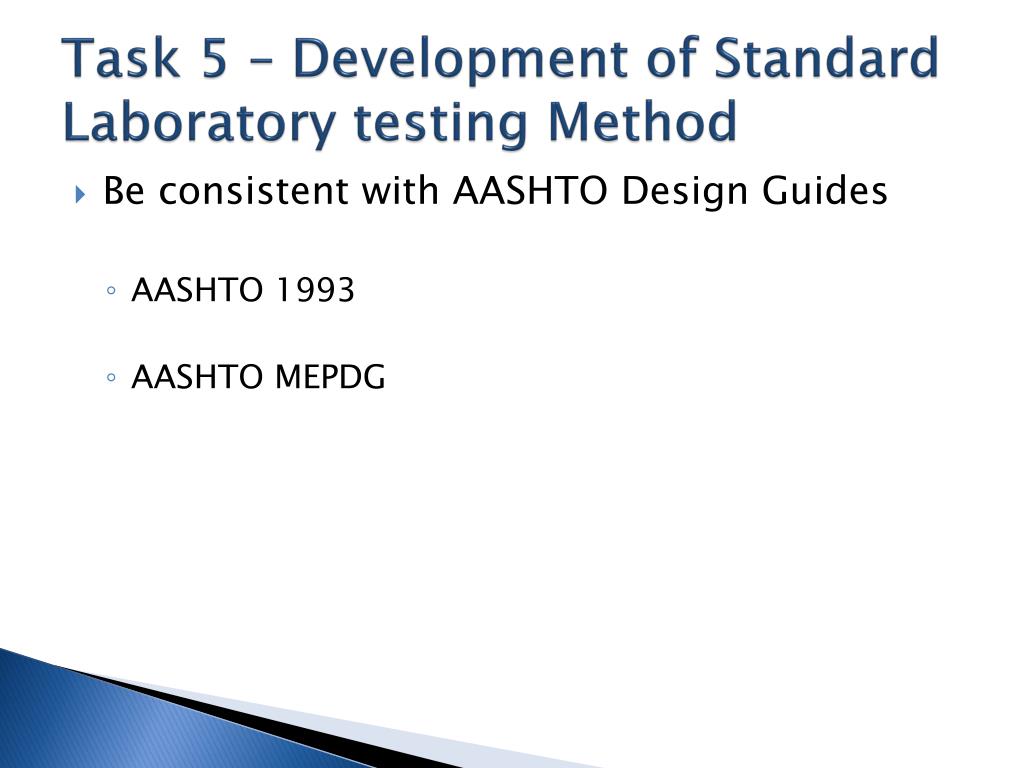

  22. Task 5 – Development of Standard Laboratory testing Method • Be consistent with AASHTO Design Guides • AASHTO 1993 • AASHTO MEPDG

  23. Task 5 – Development of Standard Laboratory testing Method • Unstablised: • Resilient modulus (Mr) • FDR+PC & FDR+FA: • Modulus of Rupture (MR) • FDR+Foamed & FDR+Emuslion: • Dynamic Modulus (E*)

  24. Optimum Mix Designs: FDR+PC

  25. Optimum Mix Designs:FDR+FA

  26. Dynamic Modulus (E*) • |E*| master curve: Modulus of HMA at any combination of loading rate & temperature .  = 0sin(ωt) 0 Stress Time time shift = /  = 0sin(ωt-) 0 Strain |E*| = σ0/ε0 Time
