Trigonometry Sine Rule

Trigonometry Sine Rule. R. B. q. c. a. p. Mr Porter. C. A. P. Q. r. b. Definition : The Sine Rule In any triangle ABC ‘ The ratio of each side to the sine of the opposite angle is CONSTANT. R. B. q. c. a. p. C. A. P. Q. r. b. For triangle ABC. For triangle PQR.

keisha
Télécharger la présentation

Trigonometry Sine Rule

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. TrigonometrySine Rule R B q c a p Mr Porter C A P Q r b

  2. Definition: The Sine Rule In any triangle ABC ‘The ratio of each side to the sine of the opposite angle is CONSTANT. R B q c a p C A P Q r b For triangle ABC For triangle PQR

  3. Example 1: Use the sine rule to find the value of x correct to 2 decimal places. Example 2: Find the size of α in ∆PQR in degrees and minutes. When to apply the sine rule: Is there 2 sides and 2 angles (or more)? YES, then use the Sine Rule. When to apply the sine rule: Is there 2 sides and 2 angles (or more)? YES, then use the Sine Rule. C P q 14 cm 118°27’ a x r b 8.3 cm Q α R 81° 43° p 22.4 cm A B c Write down the sine rule for this triangle Write down the sine rule for this triangle Label the triangle. Substitute P, p, R and r. We do not need the ‘Q’ ratio. Label the triangle. We do not need the ‘C’ ratio. Rearrange to make sinα the subject. Substitute A, a, B and b. Rearrange to make x the subject. Evaluate RHS To FIND angle, use sin-1 (..) Use calculator. Convert to deg. & min.

  4. Ambiguous Case – Angles (Only) But, could the triangle be drawn a different way? The answer is YES! Example 1 : Use the sine rule to find the size of angle θ. C C 14.5 cm a When to apply the sine rule: Is there 2 sides and 2 angles (or more)? YES, then use the Sine Rule. 9.8 cm 14.5 cm b 9.8 cm 9.8 cm θ θ 41° B θ 41° A A c A B By supplementary angles: Write down the sine rule for this triangle to find an angle Label the triangle. Which is correct, test the angle sum to 180°, to find the third angle, α. We do not need the ‘C’ ratio. Substitute A, a, B and b. Rearrange to make sin θ the subject. Case 1: Evaluate RHS Case 2: To FIND angle, use sin-1 (..) Hence, both answers are correct!

  5. Ambiguous Case – Angles (Only) But, could the triangle be drawn a different way? The answer is NO! Example 1 : Use the sine rule to find the size of angle θ. Lets check the supplementary angle METHOD. R θ q When to apply the sine rule: Is there 2 sides and 2 angles (or more)? YES, then use the Sine Rule. 17 cm p 122° P Q Which is correct, test the angle sum to 180°, to find the third angle, α. 8.5 cm r Write down the sine rule for this triangle Label the triangle. We do not need the ‘P’ ratio. Substitute Q, R, q and r. Rearrange to make sin θ the subject. Case 1: Evaluate RHS Case 2: Hence, the ONLY answer is correct! To FIND angle, use sin-1 (..)

  6. 4000 m L Example 3: Points L and H are two lighthouses 4 km apart on a dangerous rocky shore. The shoreline (LH) runs east–west. From a ship (B) at sea, the bearing of H is 320° and the bearing of L is 030°. a)Find the distance from the ship (B) to the lighthouse (L), to the nearest metre. b)What is the bearing of the ship (B) from the lighthouse at H? H N 0° N 0° N 0° b 50° 60° When to apply the sine rule: Is there 2 sides and 2 angles (or more)? YES, then use the Sine Rule. l H h 4 km L d 70° B (a) 30° Label the triangle. 50° 60° B (ship) 30° Write down the (side) sine rule for this triangle 320° 70° 40° We do not need the ‘L’ ratio. Substitute B, H, b and d, (h). 50° Rearrange to make d the subject. (b) From the original diagram : Use basic alternate angles in parallel line, Bearing and angle sum of a triangle to find all angles with the ∆BHL. Use calculator. Bearing of Ship from Lighthouse H: H = 90°+50° H = 140° Re-draw diagram for clarity

  7. Example 4: To measure the height of a hill a surveyor took two angle of elevation measurements from points X and Y, 200 m apart in a straight line. The angle of elevation of the top of the hill from X was 5° and from Y was 8°. What is the height of the hill, correct to the nearest metre? T To find h, use the right angle triangle ratio’s i.e. sin θ. To find ‘h’, we need either length BY or TY! 3° 82° When to apply the sine rule: Is there 2 sides and 2 angles (or more)? YES, then use the Sine Rule to find TY= x. h x 172° Write down the (side) sine rule for this triangle 5° 8° B X 200 m Y Use basic angle sum of a triangle, exterior angle of a triangle and supplementary angles to find all angles with the ∆AYT And ∆YTB. Hence, the hill is 46 m high (nearest metre). We do not need the ‘Y’ ratio. Substitute X, T, t and x. Rearrange to make x the subject. Use calculator Do NOT ROUND OFF!

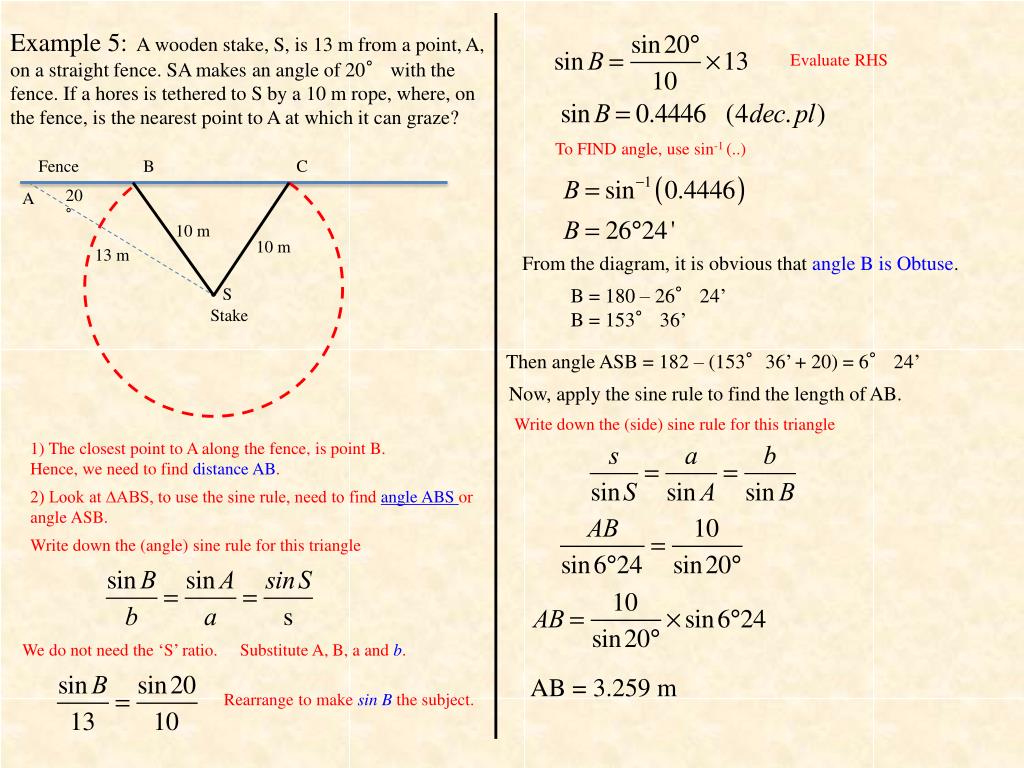

  8. Example 5: A wooden stake, S, is 13 m from a point, A, on a straight fence. SA makes an angle of 20° with the fence. If a hores is tethered to S by a 10 m rope, where, on the fence, is the nearest point to A at which it can graze? To FIND angle, use sin-1 (..) Fence B C 20° A 10 m 10 m 13 m From the diagram, it is obvious that angle B is Obtuse. B = 180 – 26° 24’ B = 153° 36’ S • Stake Then angle ASB = 182 – (153°36’ + 20) = 6° 24’ Write down the (side) sine rule for this triangle Write down the (angle) sine rule for this triangle Now, apply the sine rule to find the length of AB. 1) The closest point to A along the fence, is point B. Hence, we need to find distance AB. We do not need the ‘S’ ratio. Substitute A, B, a and b. 2) Look at ∆ABS, to use the sine rule, need to find angle ABS or angle ASB. Rearrange to make sin B the subject. Evaluate RHS AB = 3.259 m

  9. Example 6: Q, A and B (in that order) are in a straight line. The bearings of A and B from Q is 020°T. From a point P, 4 km from Q in a direction NW, the bearing of A and B are 112°T and 064°T respectively. Calculate the distance from A to B. In ∆POA, N 0° N 0° N 0° N 0° Not to scale! 64° x 44° B P 112° d 48° write down the (side) sine rule for this triangle 23° 88° y 45° In ∆PAB, write down the (side) sine rule. For this triangle. 92° A 4 km 45° 20° We do not need the ‘P’ ratio. We do not need the ‘A’ ratio. Substitute P, B, y and d. Substitute Q, A, q and y. Q Rearrange to make d the subject. Rearrange to make y the subject. Use basic alternate angles in parallel line, Bearing and angle sum of a triangle to find all angles in the diagram. Use calculator Do NOT ROUND OFF! Use calculator and y = 3.6274 Do NOT ROUND OFF! To find ‘d’, we need to work backward using the sine rule, meaning that we must find either x or y first. [There are several different solution!]
