SDN Performance & Architecture Evaluation Vijay Seshadri Cloud Platform Engineering (CPE), Symantec Jason Venner Mirantis

Agenda CPE Overview 1 SDN Objectives and Test Plan 2 Test Setup and Framework 3 Test Results 4 Key Findings/Insights 5 2

CPE Overview • CPE Charter • Build a consolidated cloud infrastructure that offers platform services to host Symantec cloud applications • Symantec cloud infrastructure already hosting diverse (security, data management) workloads • Analytics – Reputation based security, managed security services • Storage – Consumer and Enterprise backup/archival • Network – Hosted email & web security • We are building an OpenStack based platform that provides additional storage and analytics services • Secure multi-tenancy a core objective for all services

CPE Platform Architecture CLIs Cloud Applications Scripts Web Portal REST/JSON API Supporting Services Core Services Identity & Access (Keystone) Monitoring Compute (Nova) SDN (Neutron) Object Store Batch Analytics Msg Queue User Mgmt Image (Glance) Load Balancing K/V Store Stream Processing Mem Cache Logging Authn DNS SQL Email Relay Metering Roles SSL Deployment Tenancy Compute Networking Storage Big Data Messaging Quotas

CPE Overview 1 SDN Objectives and Test Plan 2 Test Setup and Framework 3 Test Results 4 Key Findings/Insights 5 2

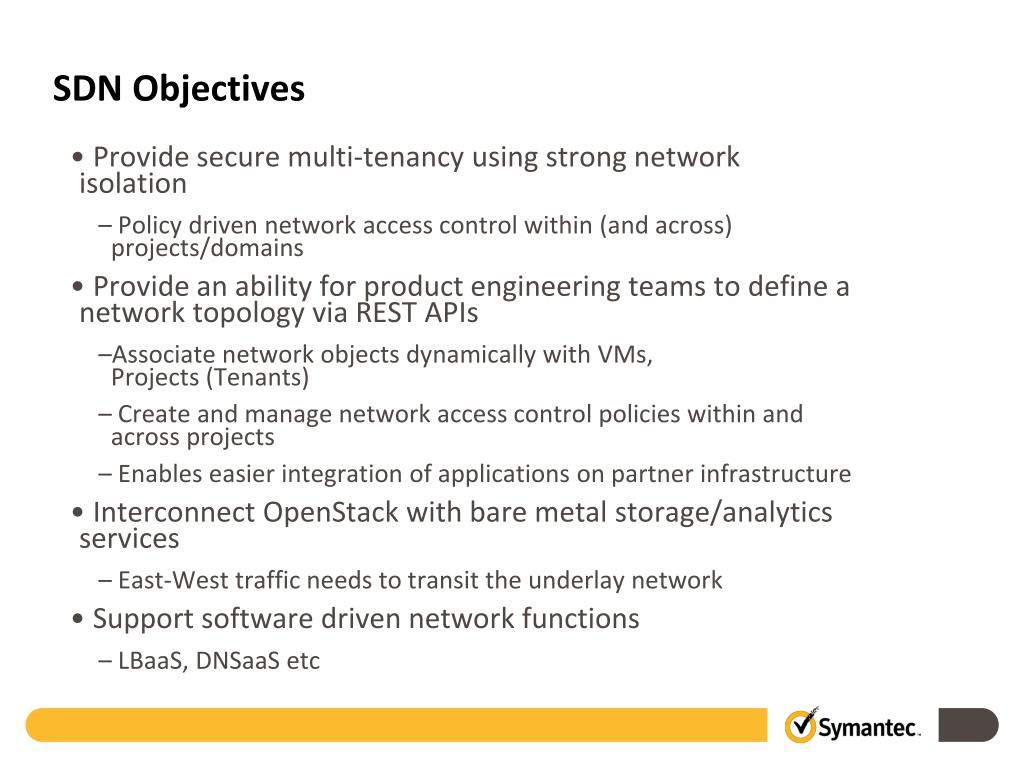

SDN Objectives • Provide secure multi-tenancy using strong network isolation • Policy driven network access control within (and across) projects/domains • Provide an ability for product engineering teams to define a network topology via REST APIs • Associate network objects dynamically with VMs, Projects (Tenants) • Create and manage network access control policies within and across projects • Enables easier integration of applications on partner infrastructure • Interconnect OpenStack with bare metal storage/analytics services • East-West traffic needs to transit the underlay network • Support software driven network functions • LBaaS, DNSaaSetc

Test Plan • Secure Multi Tenancy • Test network isolation under various configurations • Same Subnet • Same network, different subnets • Different networks, different tenants • Different networks, identical IP addresses • Test enforcement of network policies • “Deny All” works and is the default • “Allow Specific” works • Removal of an “Allow Specific” works • Data Plane Performance • OpenStack Internal • N x N Inter VM communication • Client-Server TCP mesh using Iperf3

Test Plan – Cont’d • Egress/Ingress • Simulate data ingress/egress to non-OpenStack services (E.g Bare metal Hadoop cluster) • Control Plane scalability • Where does the solution break? Verify correct operation at the limit • Test rate of creation and resource limits for neutron objects • Number of Network Ports – VNIC’s • Number of Networks and Subnets • Number of Routers • Number of active flows • Number of connections through the external Gateway (Ingress/Egress)

Overview of SDN solutions • OpenStack is about networking • OVS/VLAN • 4k limit on VLANS • Many VLAN’s spanning many TORs are operationally challenging, especially in rapidly changing environments • No Failure Isolation Domain • Overlay • Simple Physical Network, each TOR L2 island • L3 between the TORS • Packet encapsulation for VM Traffic • Controllers orchestrate tunnel mesh for VM traffic

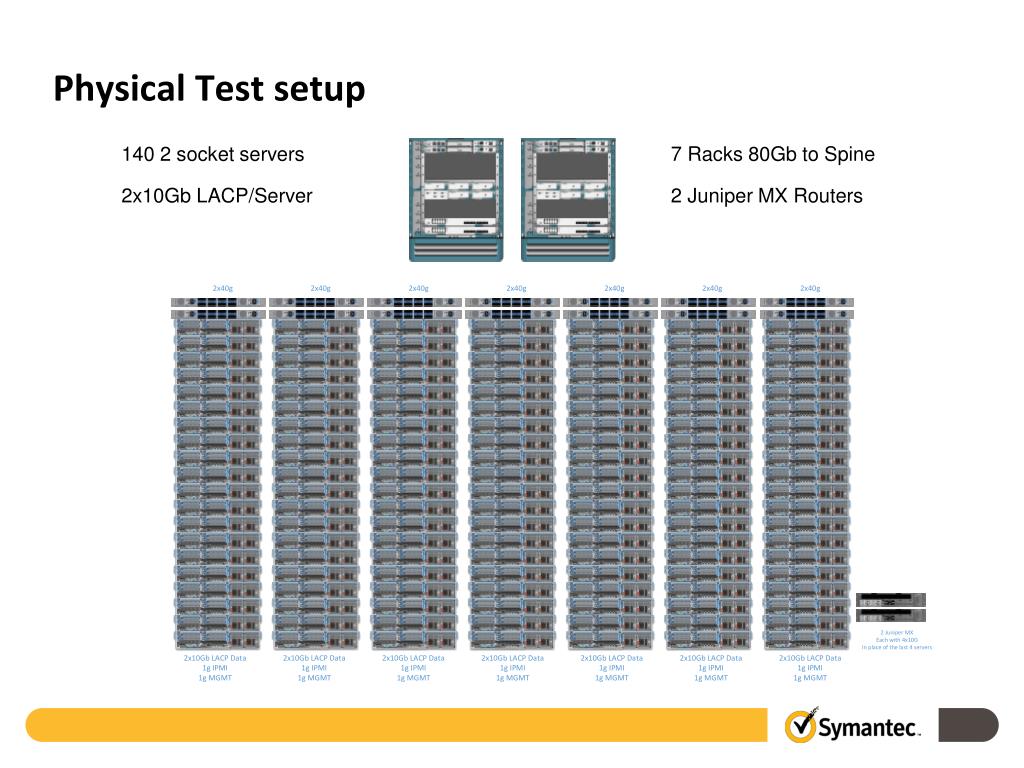

Physical Test setup

Test Framework Overview • We build a pool of VM’s each placed into a specific Rack • We have a control network we use to launch test cases and collect results

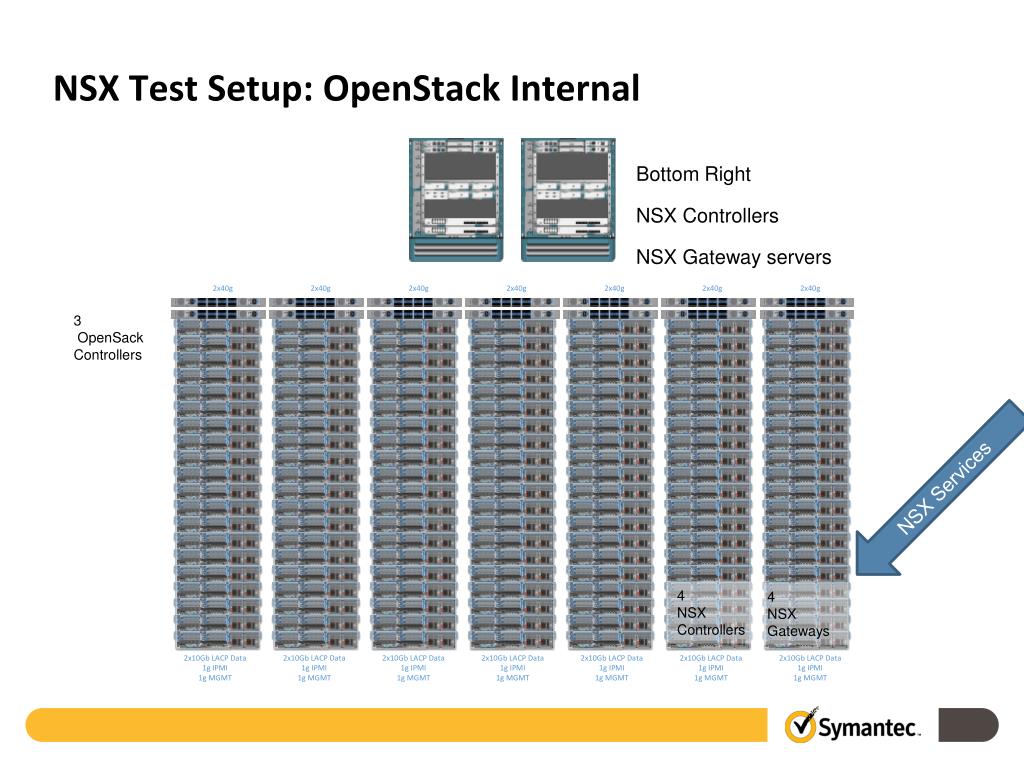

NSX Test Setup: OpenStack Internal 3 OpenSack Controllers NSX Services 4 NSX Controllers 4 NSX Gateways

NSX Test Setup: Ingress/Egress 3 OpenSack Controller 20 NSX Gateways Not Hypervisors 20 Outsiide hosts Traffic Source Sink 4 NSX Controllers

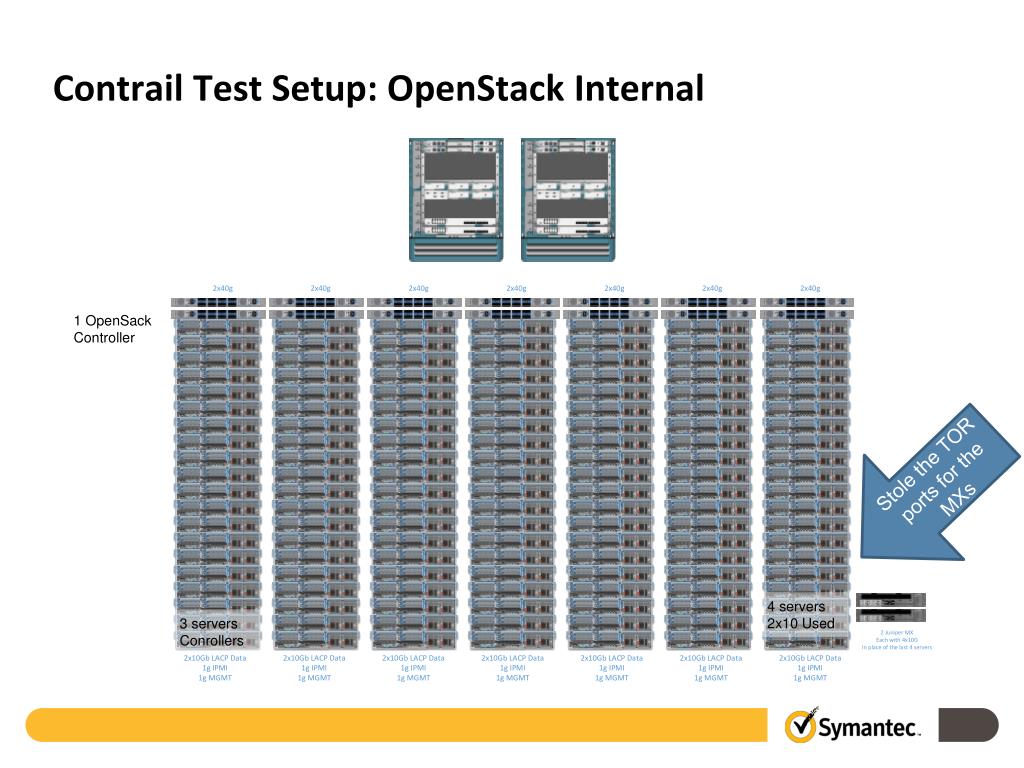

Contrail Test Setup: OpenStack Internal 1 OpenSack Controller Stole the TOR ports for the MXs 4 servers 2x10 Used 3 servers Conrollers

Contrail Test Setup: Ingress/Egress 1 OpenSack Controller 20 OutSide Traffic Source Sink Hypervisors 4 servers 2x10 Ports Used

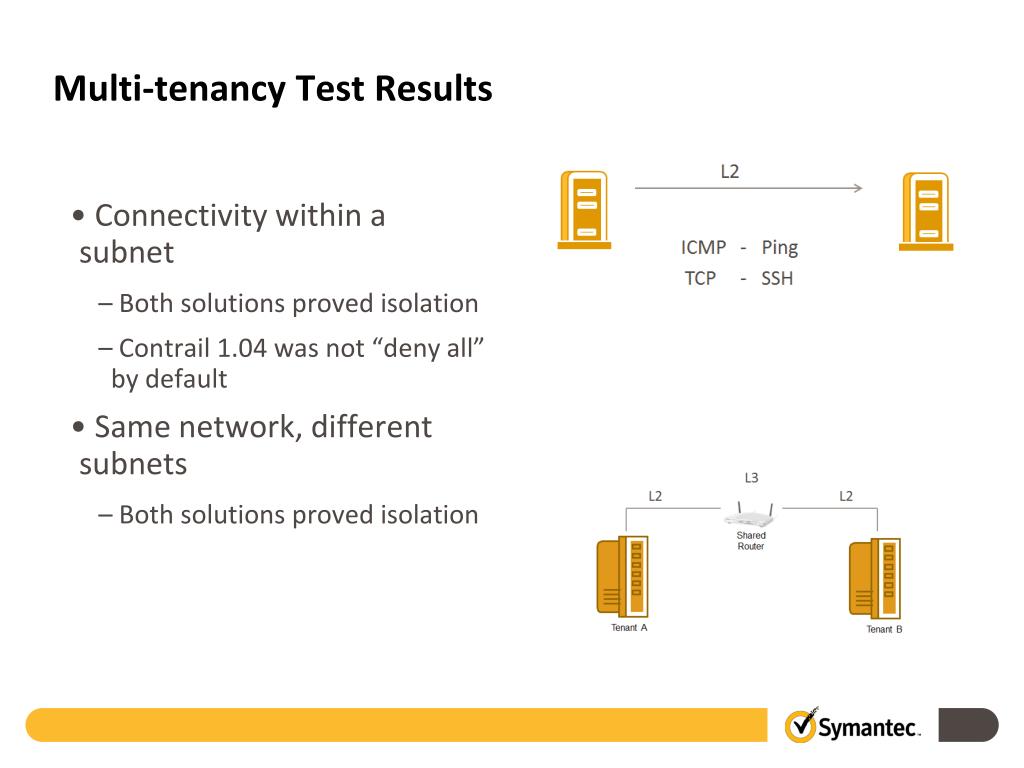

Multi-tenancy Test Results • Connectivity within a subnet • Both solutions proved isolation • Contrail 1.04 was not “deny all” by default • Same network, different subnets • Both solutions proved isolation

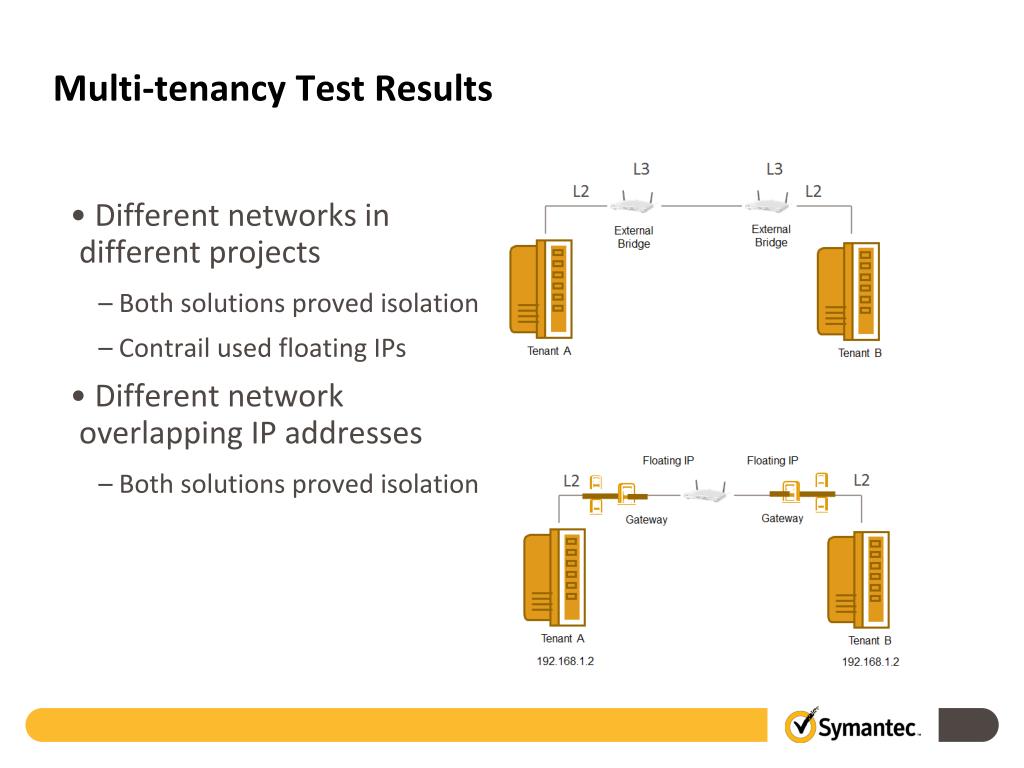

Multi-tenancy Test Results • Different networks in different projects • Both solutions proved isolation • Contrail used floating IPs • Different network overlapping IP addresses • Both solutions proved isolation

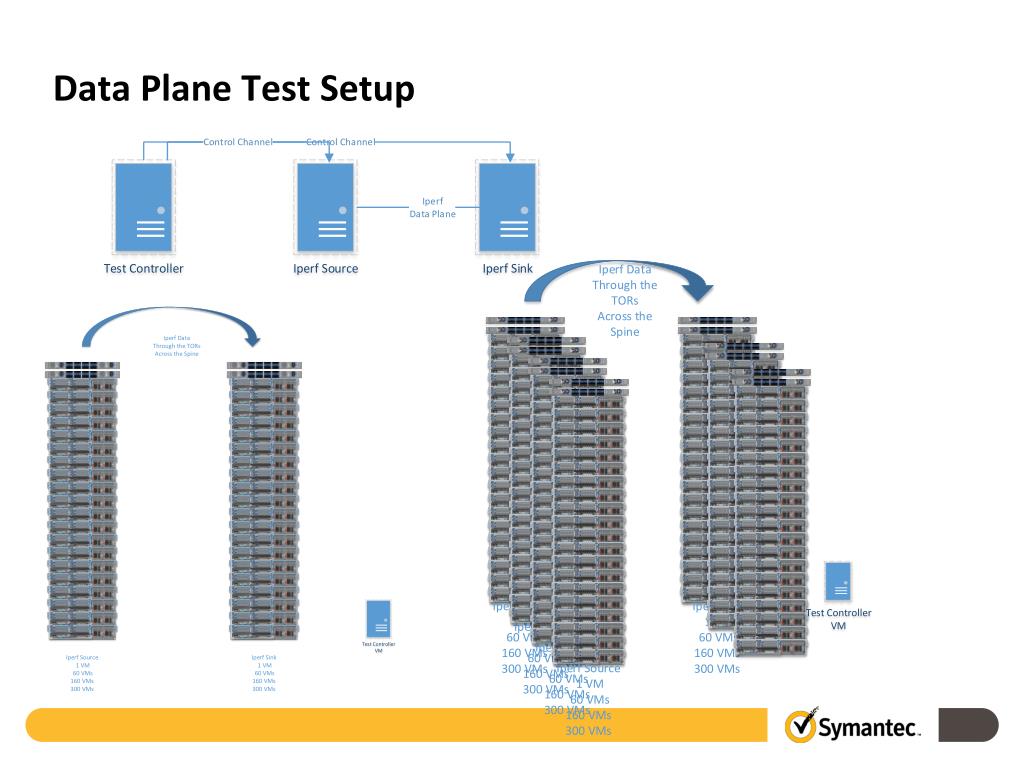

Data Plane Test Setup

Data Plane Test Results: OpenStack Internal • Both overlay solutions added 4 % payload overhead • This is in addition to 3% underlay frame overhead • Both solutions ran close to ‘virtual’ wire speed. • We hit 75Gb/sec per TOR out of 80Gb/sec • Peak across the TORS 225Gb/sec out of 240Gb/sec • Traversing SDN routers had little impact on peak performance • Neutron OVS/VLAN required jumbo frames to hit wire speed

Data Plane Test Results: Ingress/Egress • On a Per VM Basis we ran at virtual wire speed to/from our external hosts • OVS bugs in OVS 2.1 limited the performance of individual connections under high concurrency (>10,000) • Saturation of our TOR to Spine connection was the principle performance limit • Gateway traffic required 2 passes through our Gateway TOR – one busy TOR • Saturated the Gateway TOR, data payload at 37 Gb/sec • Tested up to 100,000 concurrent connections • OVS performance fell off after 10,000 • vRouter was able to scale till 100,000

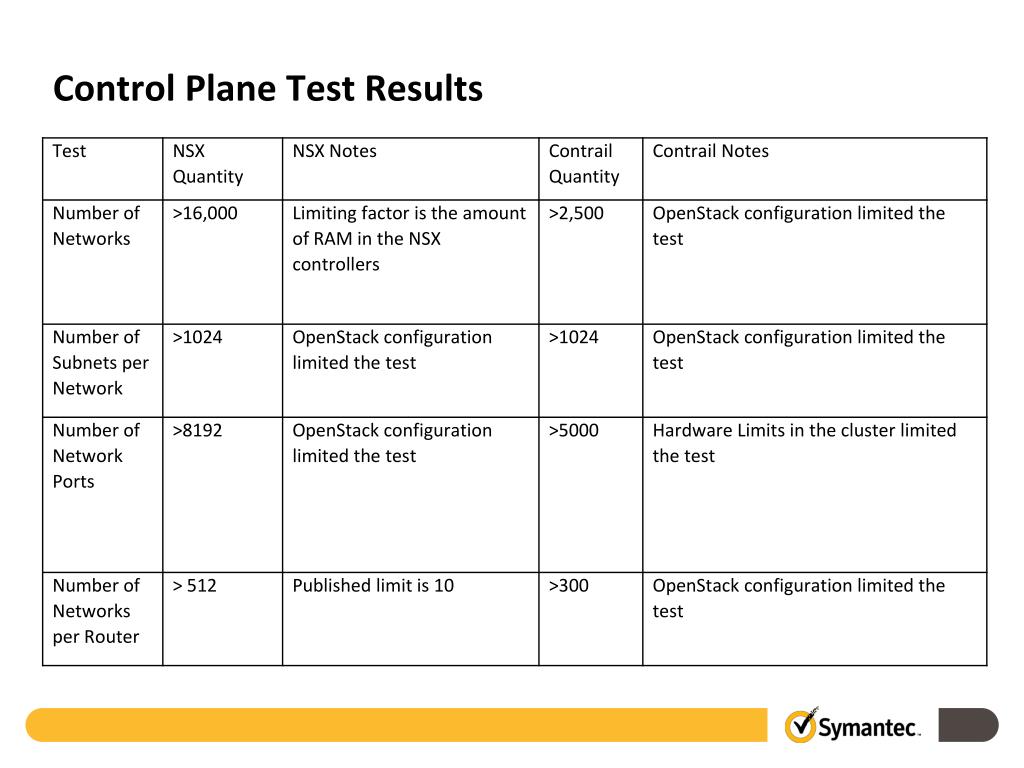

Control Plane Test Results

Key Findings: OpenStack configuration • Building a 100+ node OpenStack cluster requires extensive config tuning • Host OS, MySQL, DB Indexes and Rabbit tuning • Horizontal scaling of API servers • API service thread counts, connection pools and queues • Python REST servers are not the ideal for handling 10,000’s of requests per second • Keystone configuration • Memory cache for tokens • Short lived tokens with regular purge • Havana Neutron implementation does not meet our scalability goals • 8 minutes+ to turn up a network port, on a network with a few hundred VM’s • Long delays with the query API’s when there are a few thousand VM’s

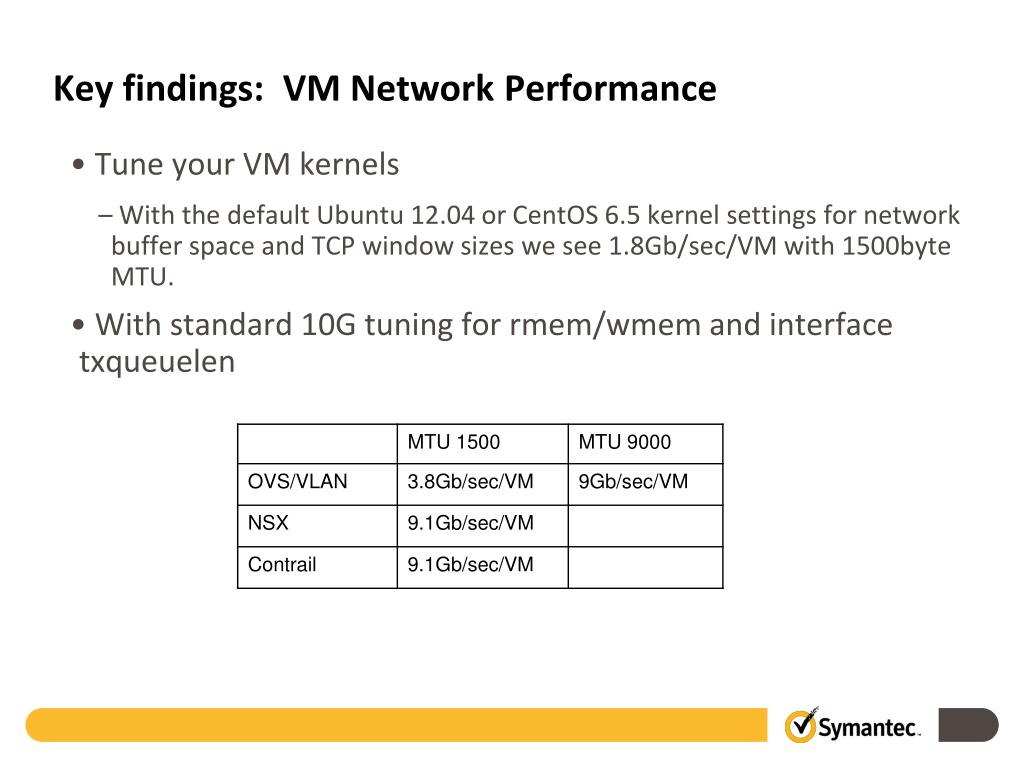

Key findings: VM Network Performance • Tune your VM kernels • With the default Ubuntu 12.04 or CentOS 6.5 kernel settings for network buffer space and TCP window sizes we see 1.8Gb/sec/VM with 1500byte MTU. • With standard 10G tuning for rmem/wmem and interface txqueuelen

Conclusion • SDN is a core capability for us to offer a secure multi-tenant cloud platform • Overlay solutions provide a strong network isolation and access control • Our use case requires extensive traffic into and out of the SDN zone • NSX requires host servers and additional network configuration • Contrail uses MPLS enabled routers, more integrated with underlay infrastructure • Both overlay solutions met our short term performance and scalability goals • We will continue to evaluate the SDN space for solutions that meet our long term goals
