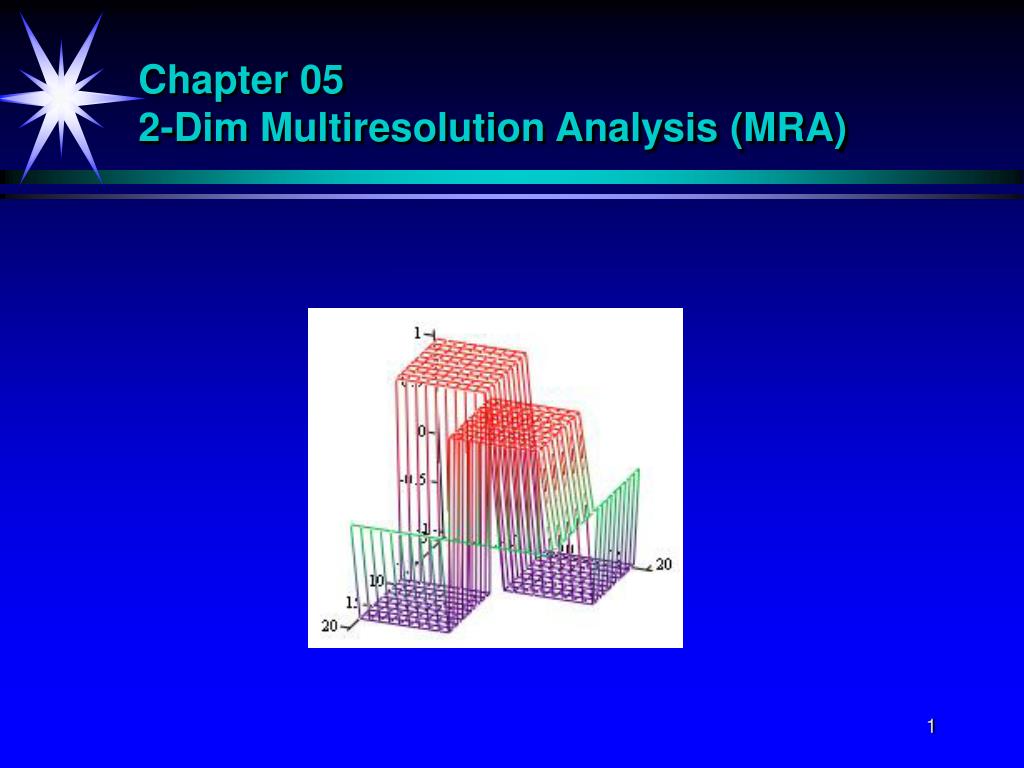

  1. Chapter 052-Dim Multiresolution Analysis (MRA)

  2. Haar Wavelet Transform - 1dimmain

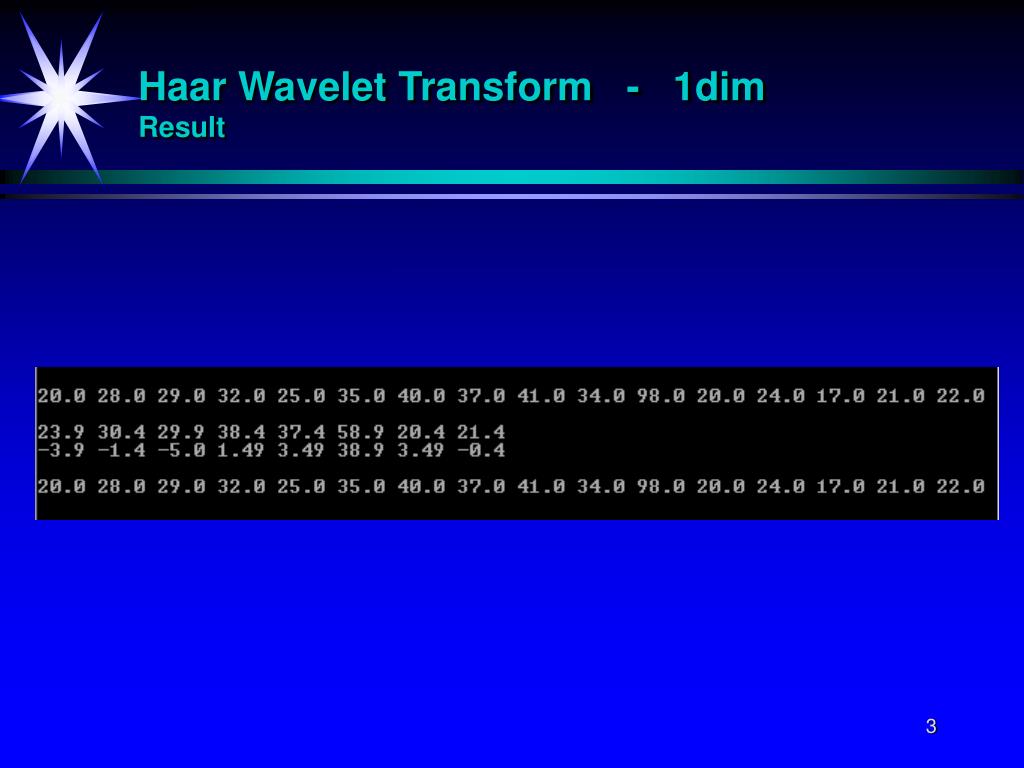

  3. Haar Wavelet Transform - 1dimResult

  4. Haar Wavelet Transform - 1dimprintArray

  5. Haar Wavelet Transform - 1dimCompute g-coefficients

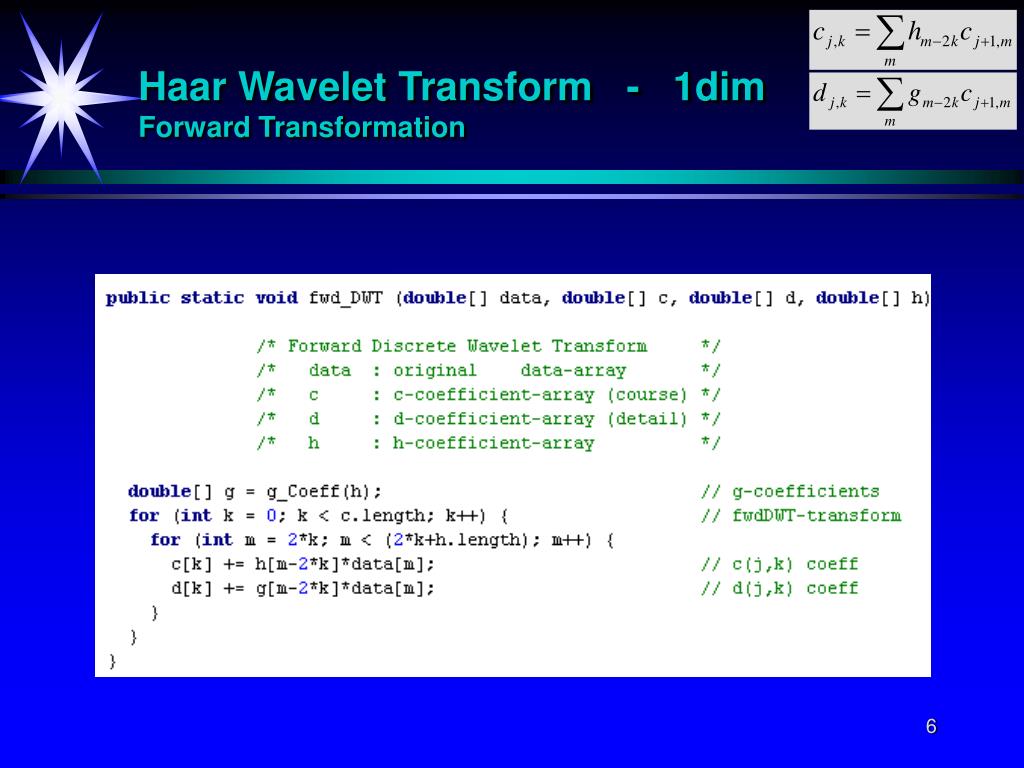

  6. Haar Wavelet Transform - 1dimForward Transformation

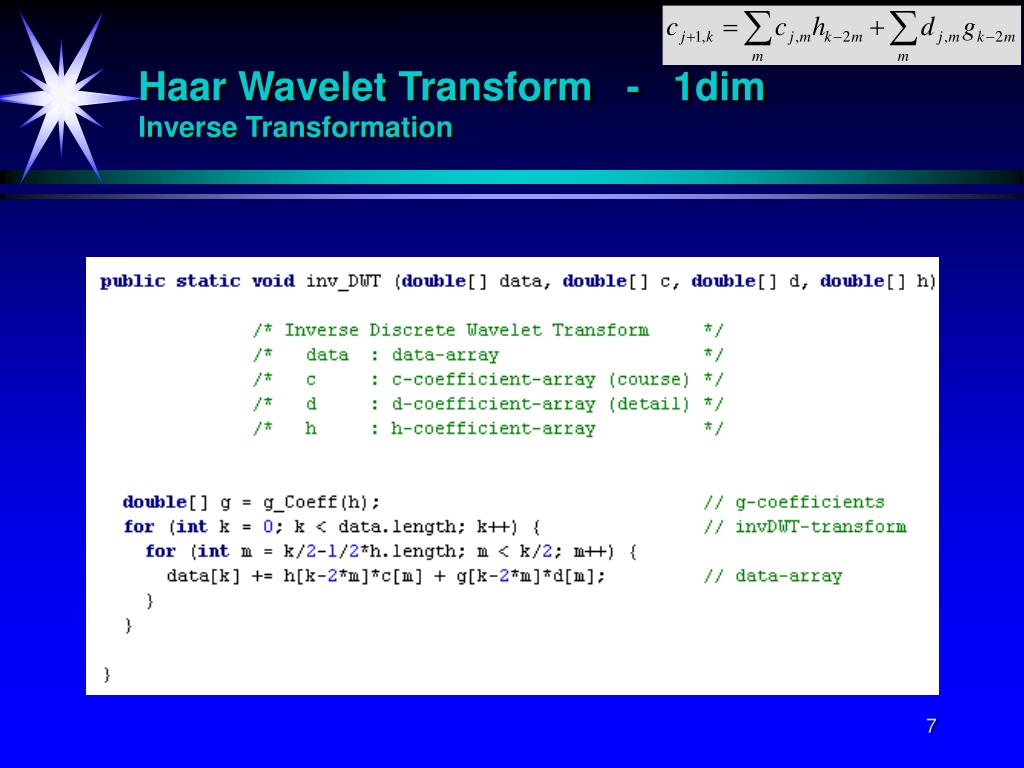

  7. Haar Wavelet Transform - 1dimInverse Transformation

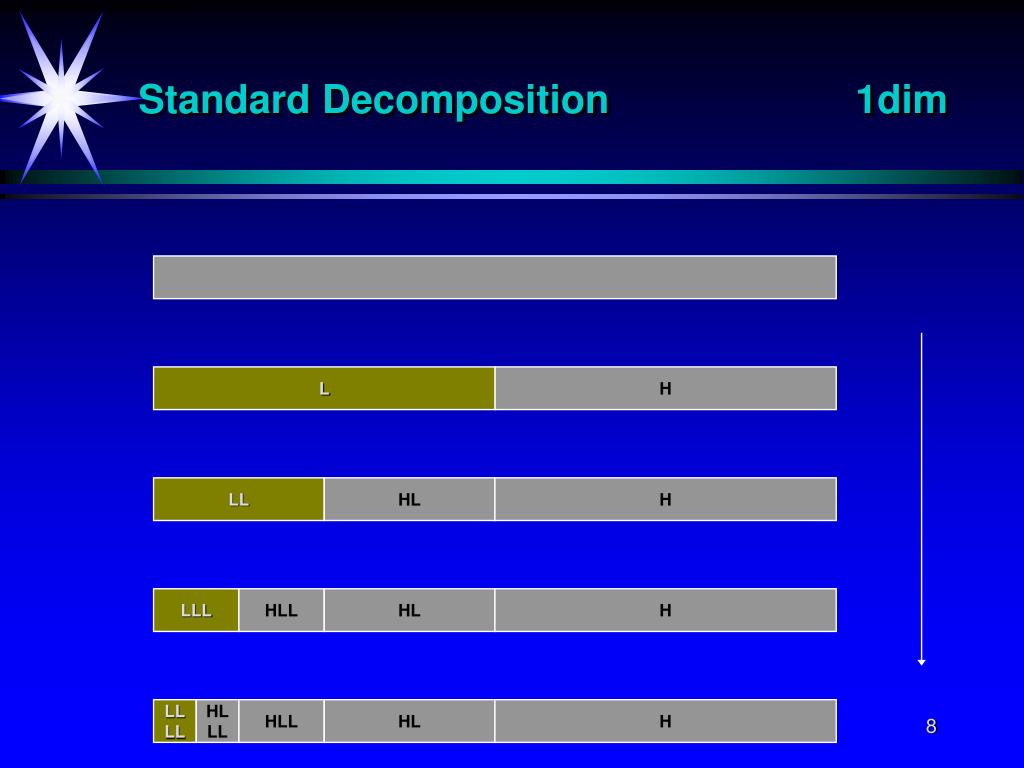

  8. Standard Decomposition 1dim L H LL HL H LLL HLL HL H LL LL HL LL HLL HL H

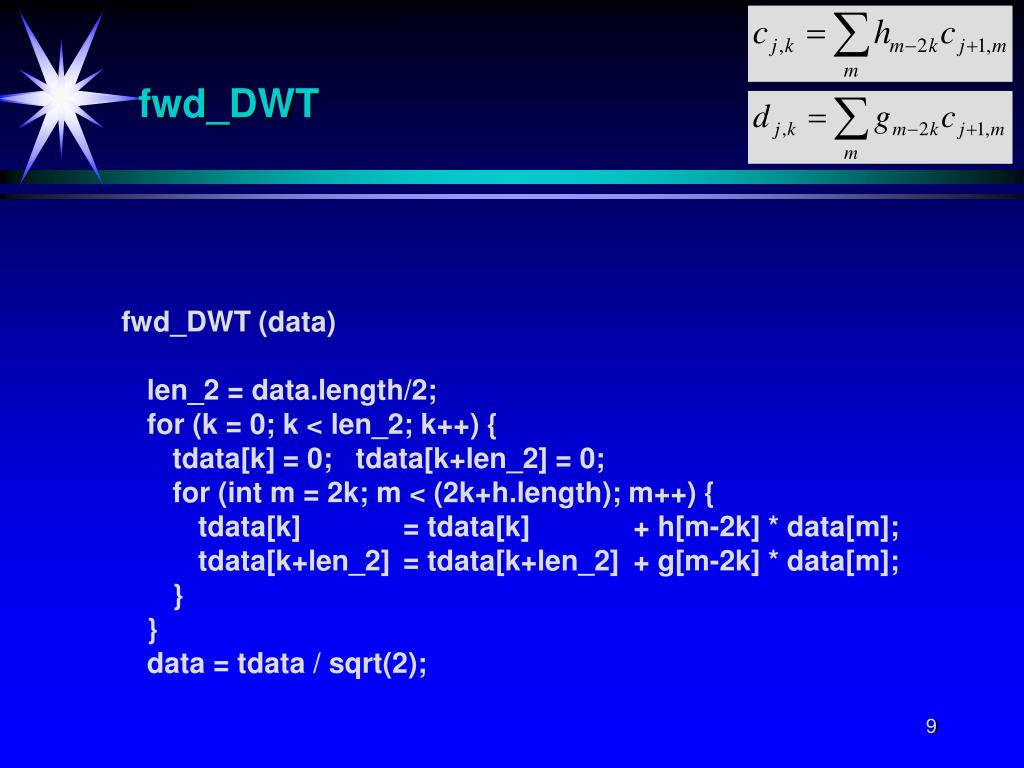

  9. fwd_DWT fwd_DWT (data) len_2 = data.length/2; for (k = 0; k < len_2; k++) { tdata[k] = 0; tdata[k+len_2] = 0; for (int m = 2k; m < (2k+h.length); m++) { tdata[k] = tdata[k] + h[m-2k] * data[m]; tdata[k+len_2] = tdata[k+len_2] + g[m-2k] * data[m]; } } data = tdata / sqrt(2);

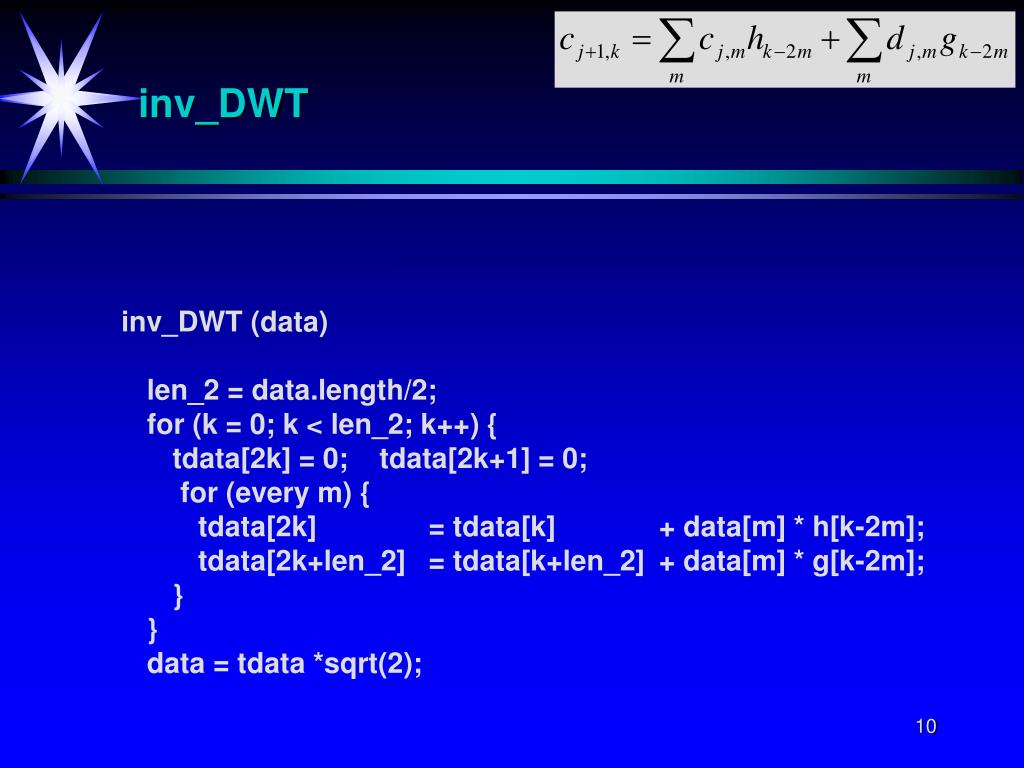

  10. inv_DWT inv_DWT (data) len_2 = data.length/2; for (k = 0; k < len_2; k++) { tdata[2k] = 0; tdata[2k+1] = 0; for (every m) { tdata[2k] = tdata[k] + data[m] * h[k-2m]; tdata[2k+len_2] = tdata[k+len_2] + data[m] * g[k-2m]; } } data = tdata *sqrt(2);

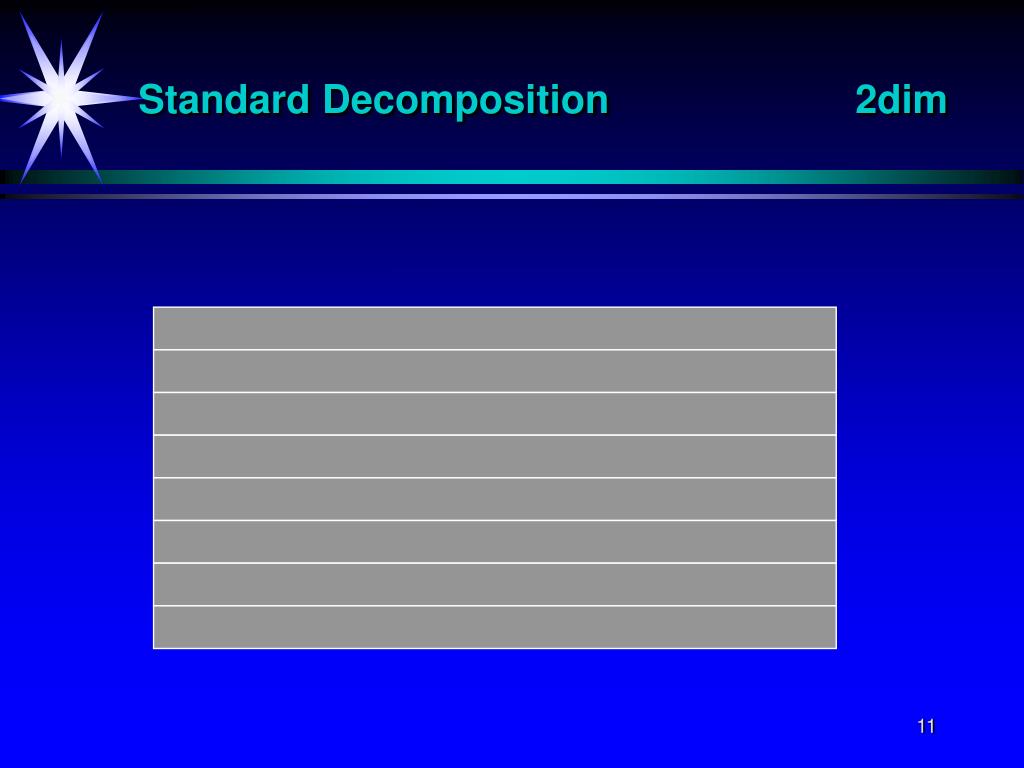

  11. Standard Decomposition 2dim

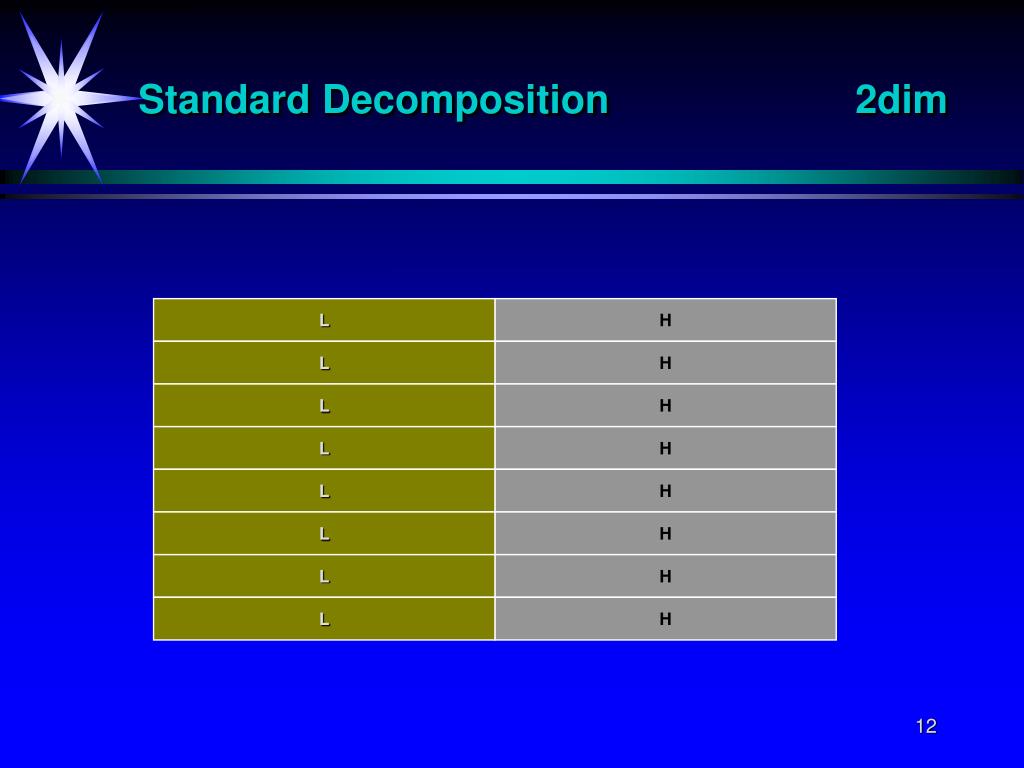

  12. Standard Decomposition 2dim L H L H L H L H L H L H L H L H

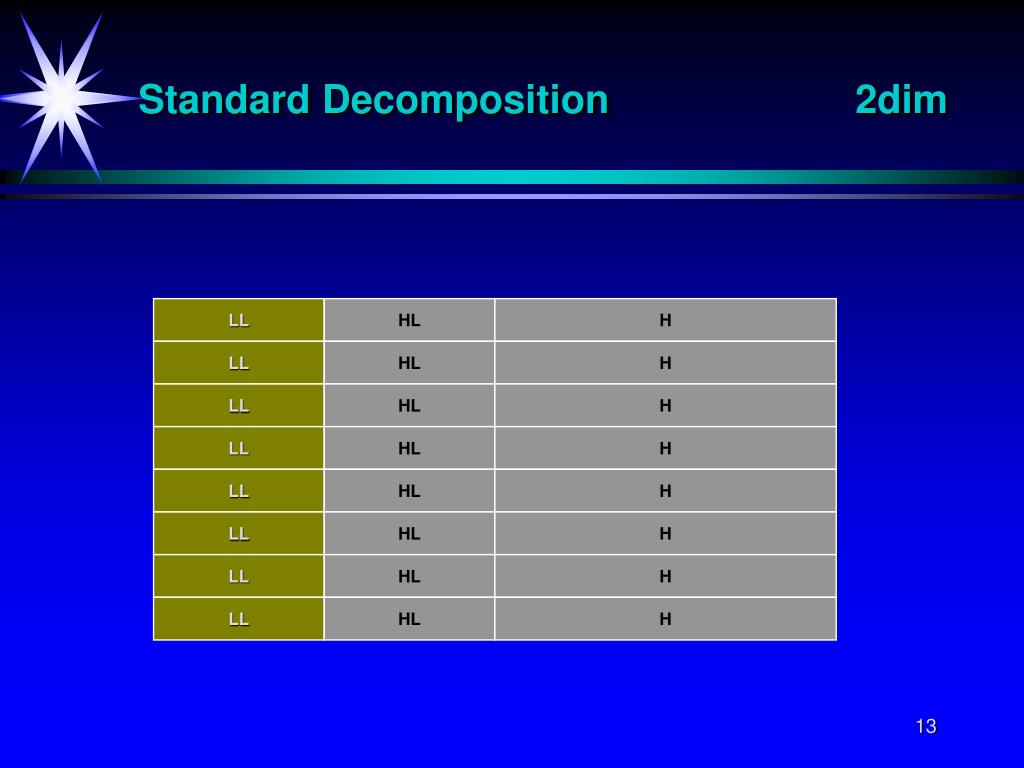

  13. Standard Decomposition 2dim LL HL H LL HL H LL HL H LL HL H LL HL H LL HL H LL HL H LL HL H

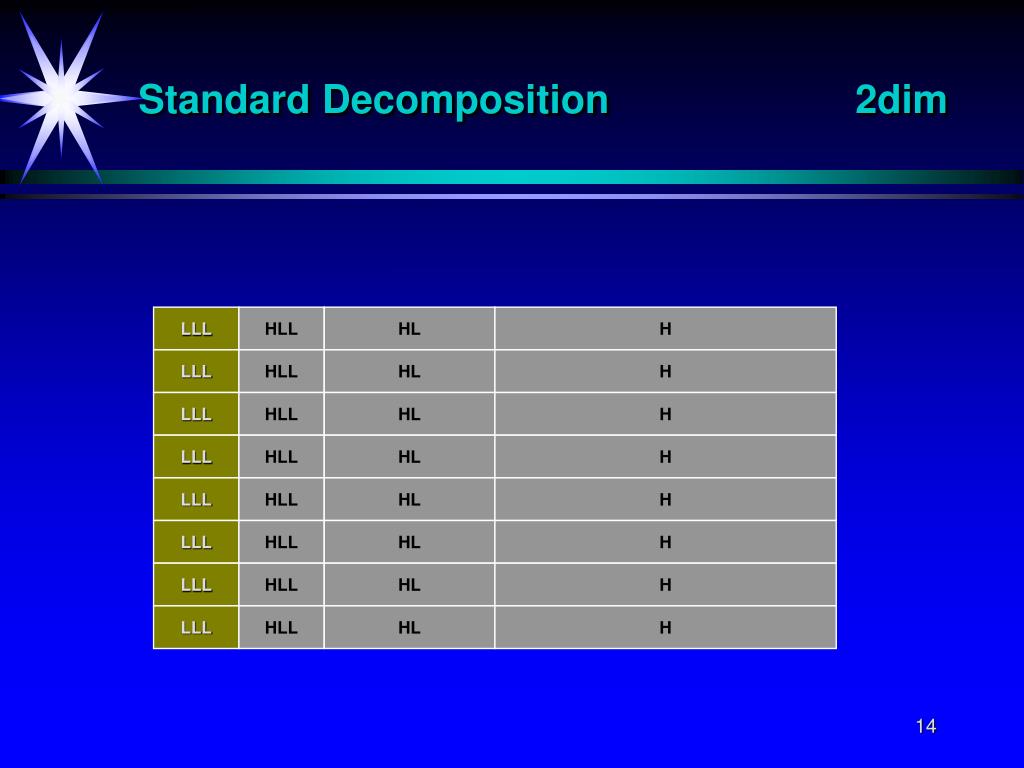

  14. Standard Decomposition 2dim LLL HLL HL H LLL HLL HL H LLL HLL HL H LLL HLL HL H LLL HLL HL H LLL HLL HL H LLL HLL HL H LLL HLL HL H

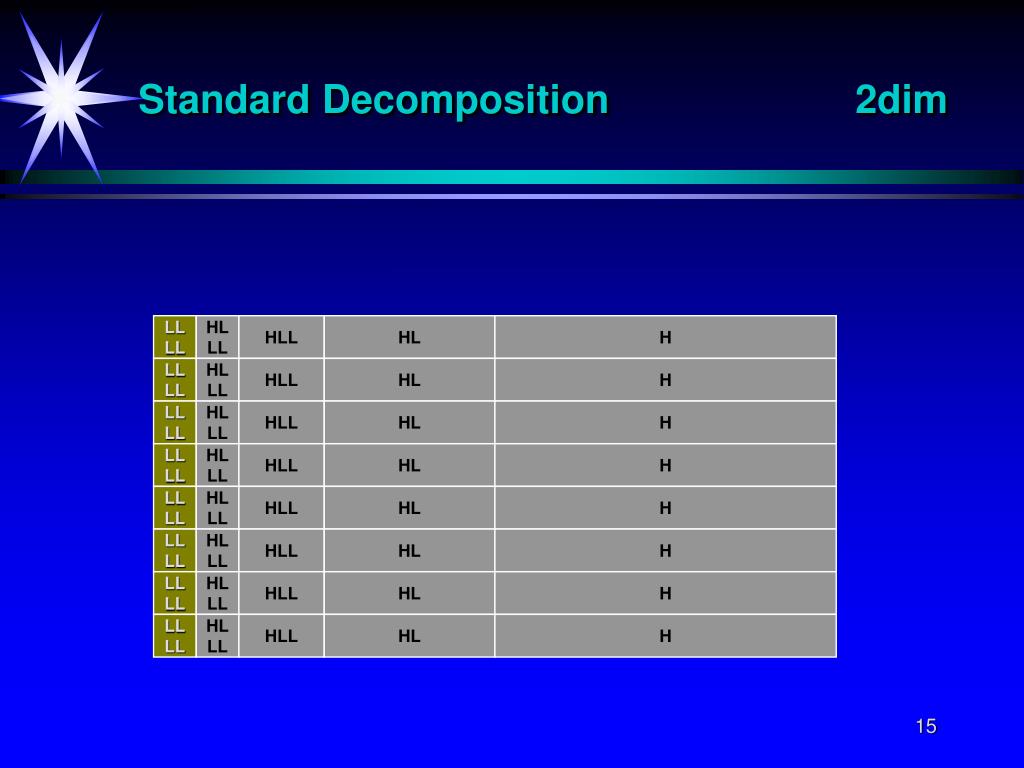

  15. Standard Decomposition 2dim LL LL HL LL HLL HL H LL LL HL LL HLL HL H LL LL HL LL HLL HL H LL LL HL LL HLL HL H LL LL HL LL HLL HL H LL LL HL LL HLL HL H LL LL HL LL HLL HL H LL LL HL LL HLL HL H

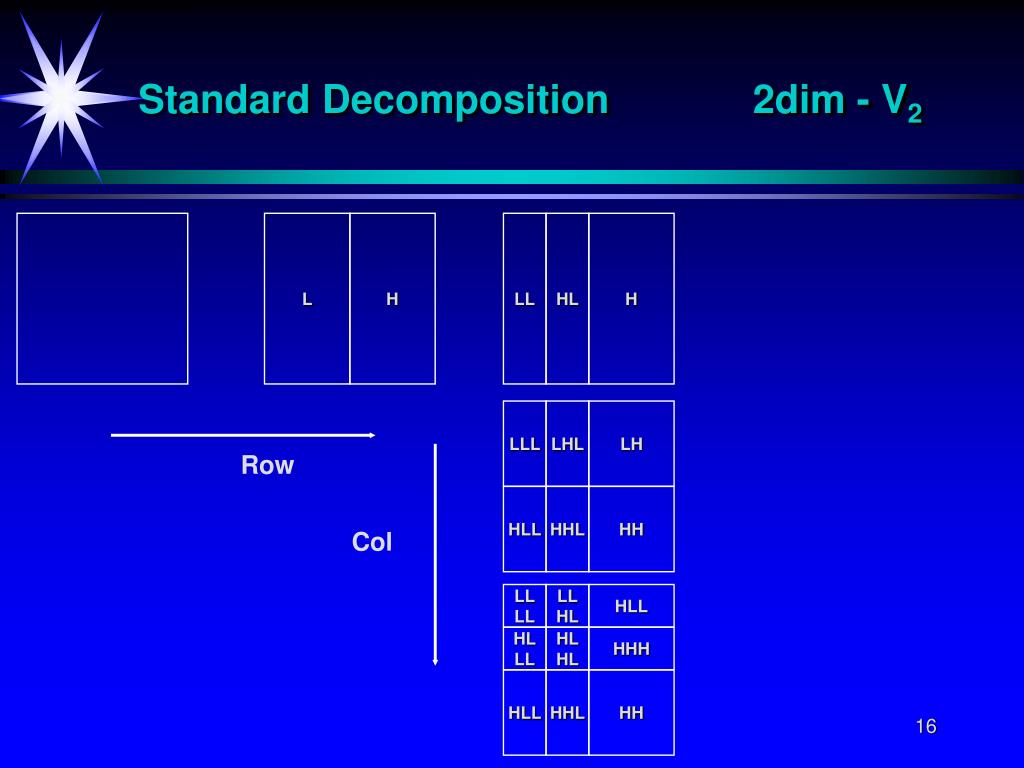

  16. Standard Decomposition 2dim - V2 L H LL HL H LLL LHL LH Row HLL HHL HH Col LL LL LL HL HLL HL LL HL HL HHH HLL HHL HH

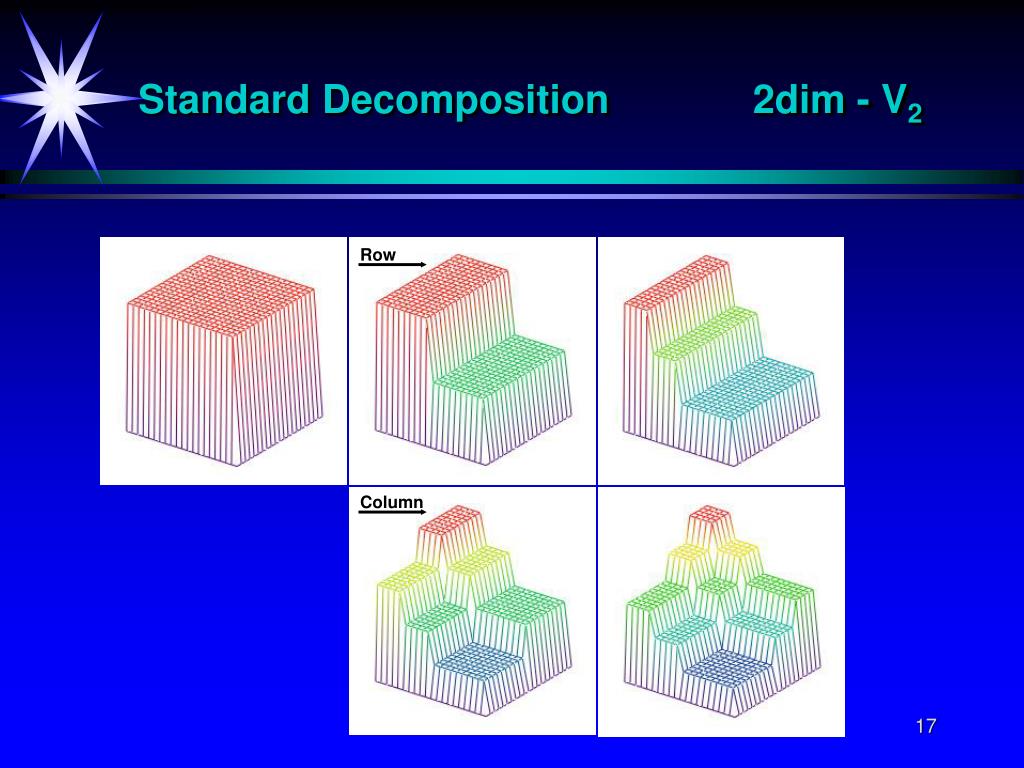

  17. Standard Decomposition 2dim - V2 Row Column

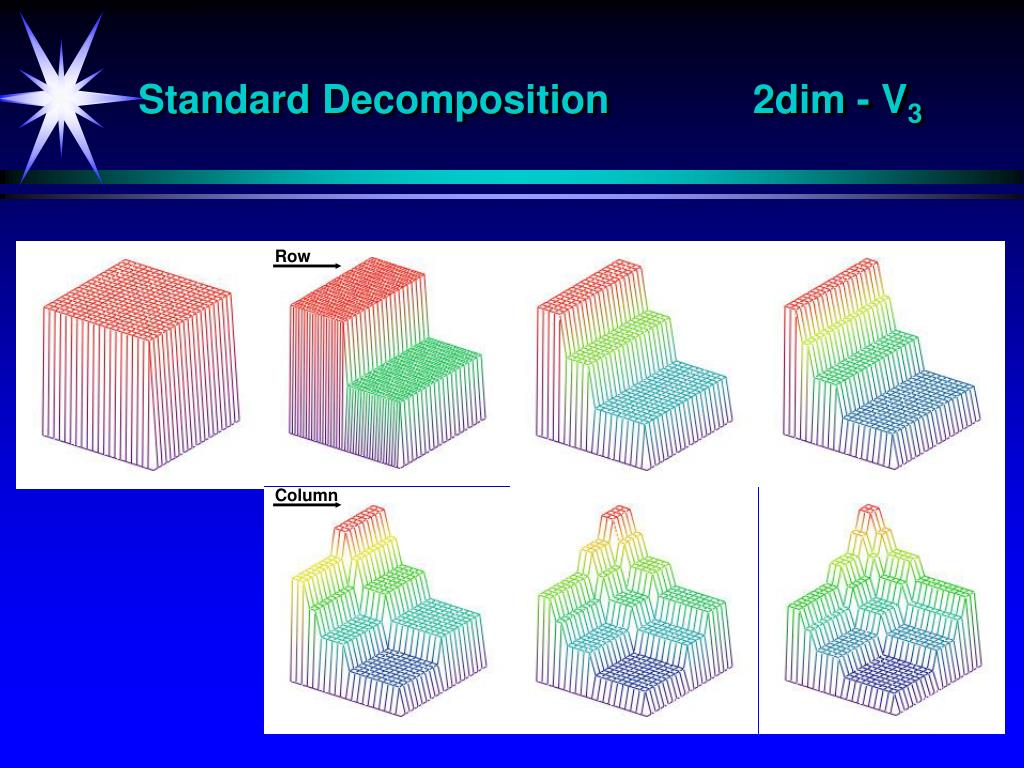

  18. Standard Decomposition 2dim - V3 Row Column

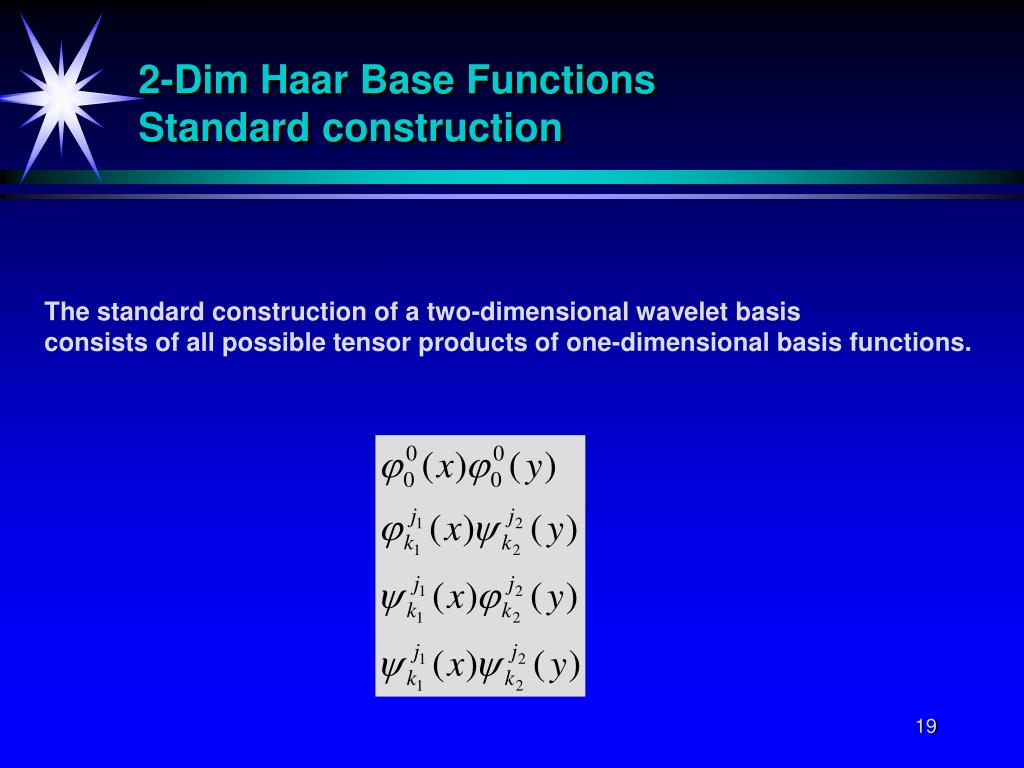

  19. 2-Dim Haar Base FunctionsStandard construction The standard construction of a two-dimensional wavelet basis consists of all possible tensor products of one-dimensional basis functions.

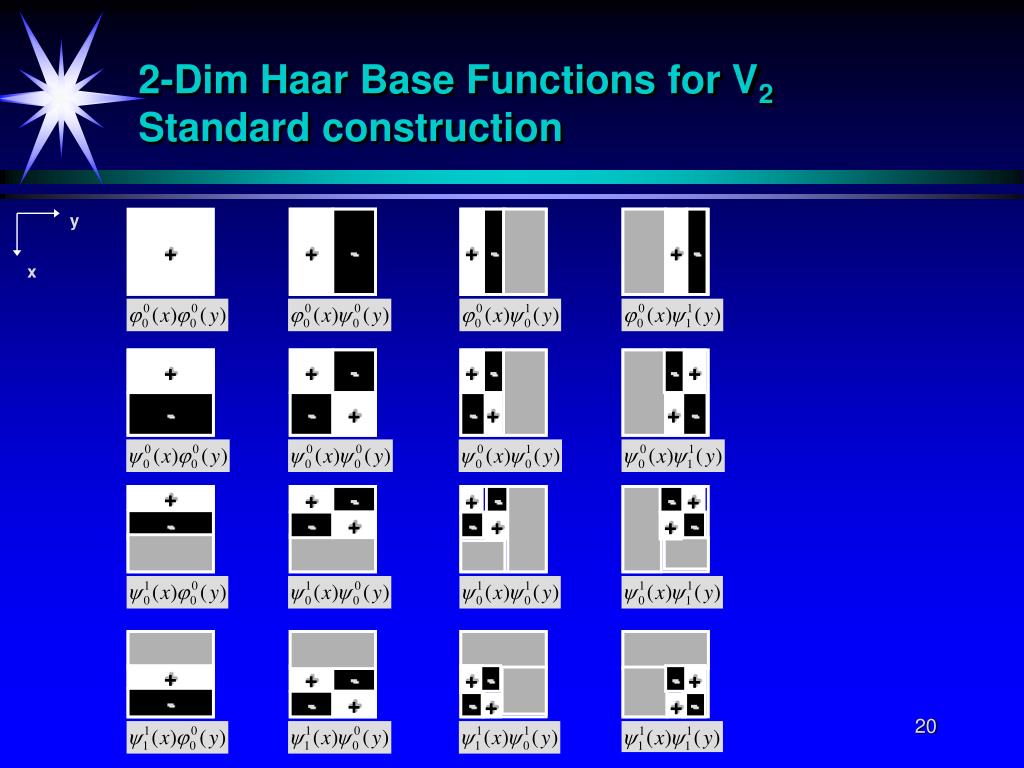

  20. 2-Dim Haar Base Functions for V2Standard construction y + + - + - + - x + + - + - - + - - + - + + - + + - + - - + - - + - + + - + + - + + - - + + - - + - - + +

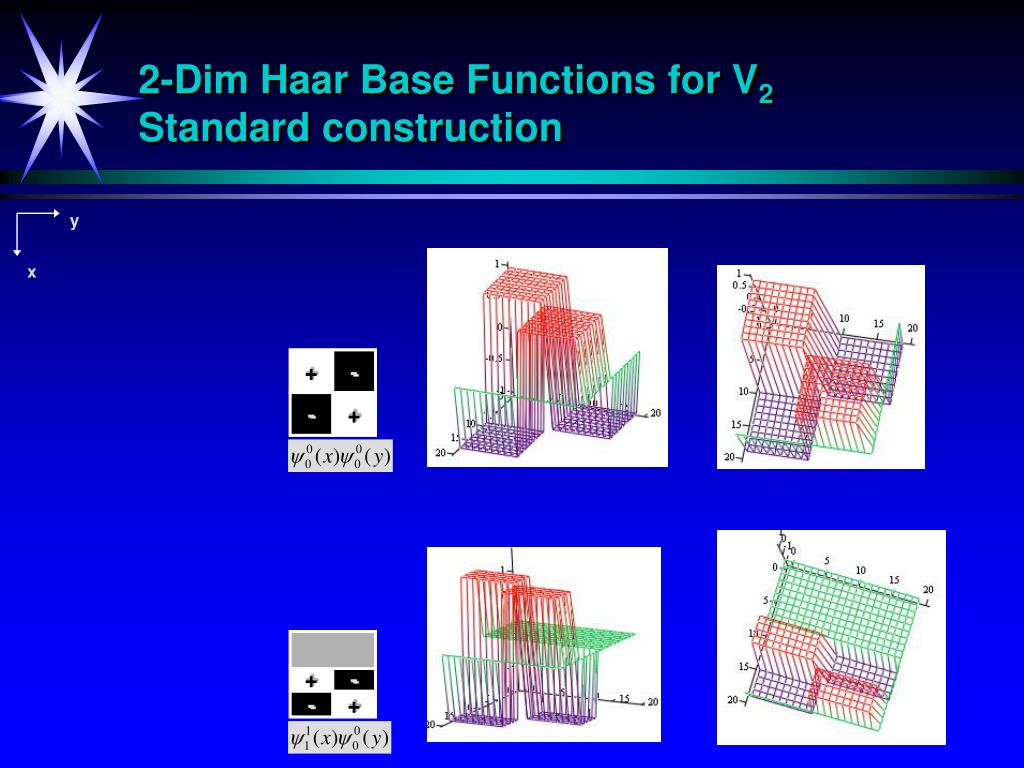

  21. 2-Dim Haar Base Functions for V2Standard construction y x + - - + + - - +

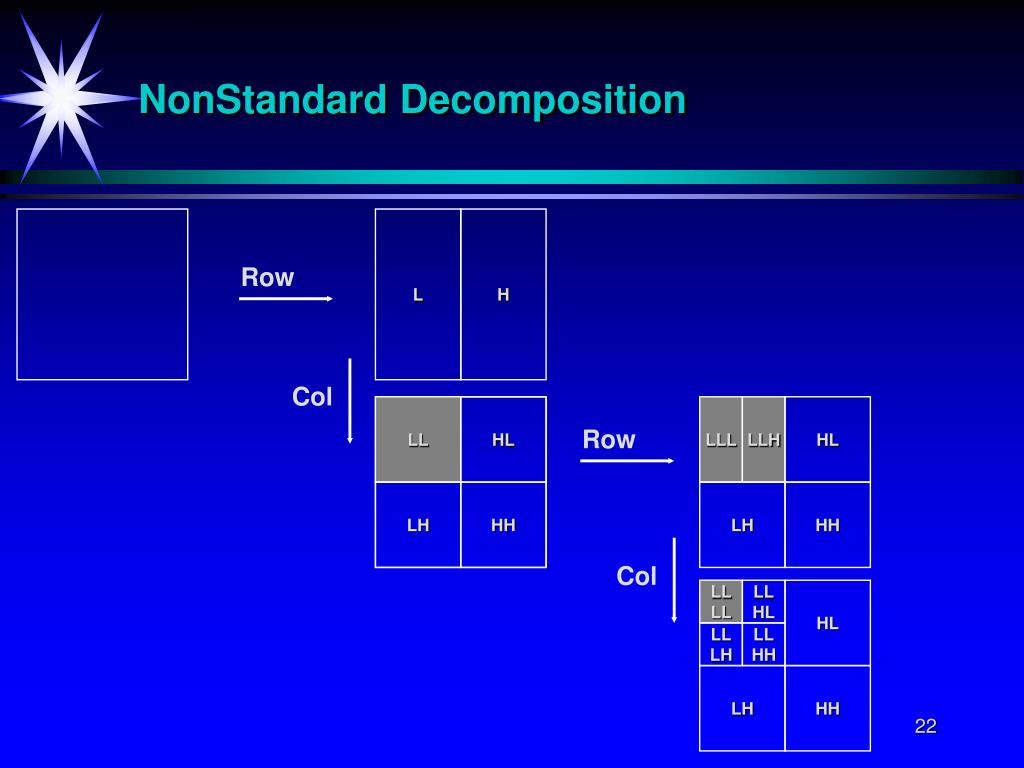

  22. NonStandard Decomposition L H Row Col LL HL LLL LLH HL Row LH HH LH HH Col LL LL LL HL HL LL LH LL HH LH HH

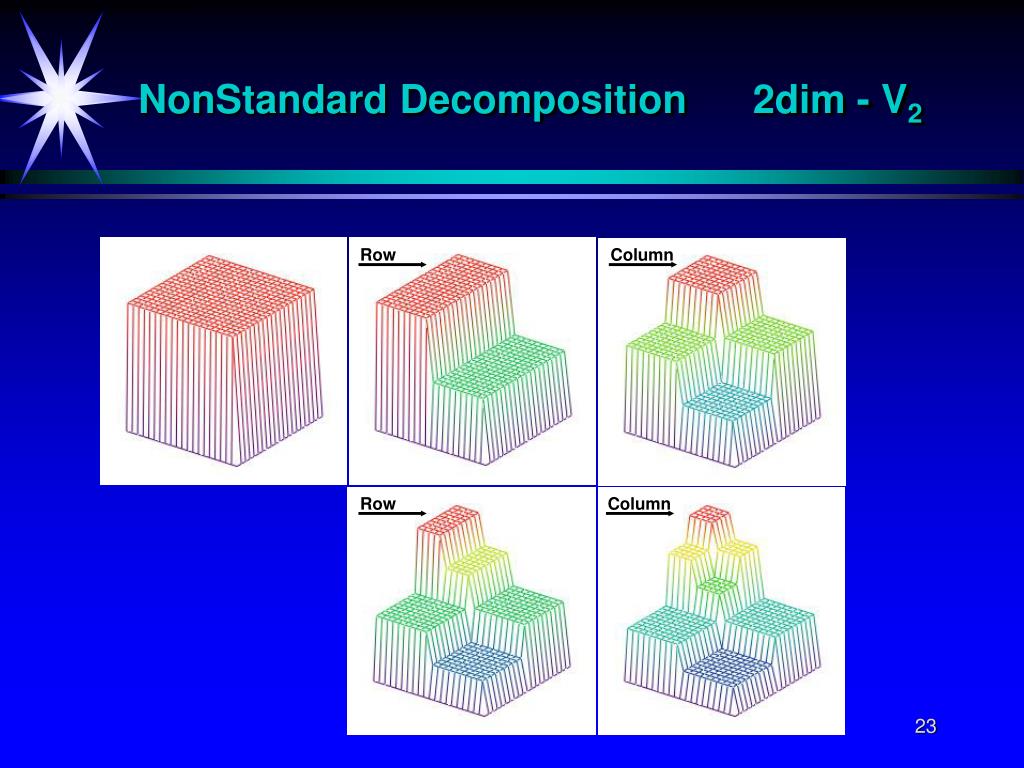

  23. NonStandard Decomposition 2dim - V2 Row Column Row Column

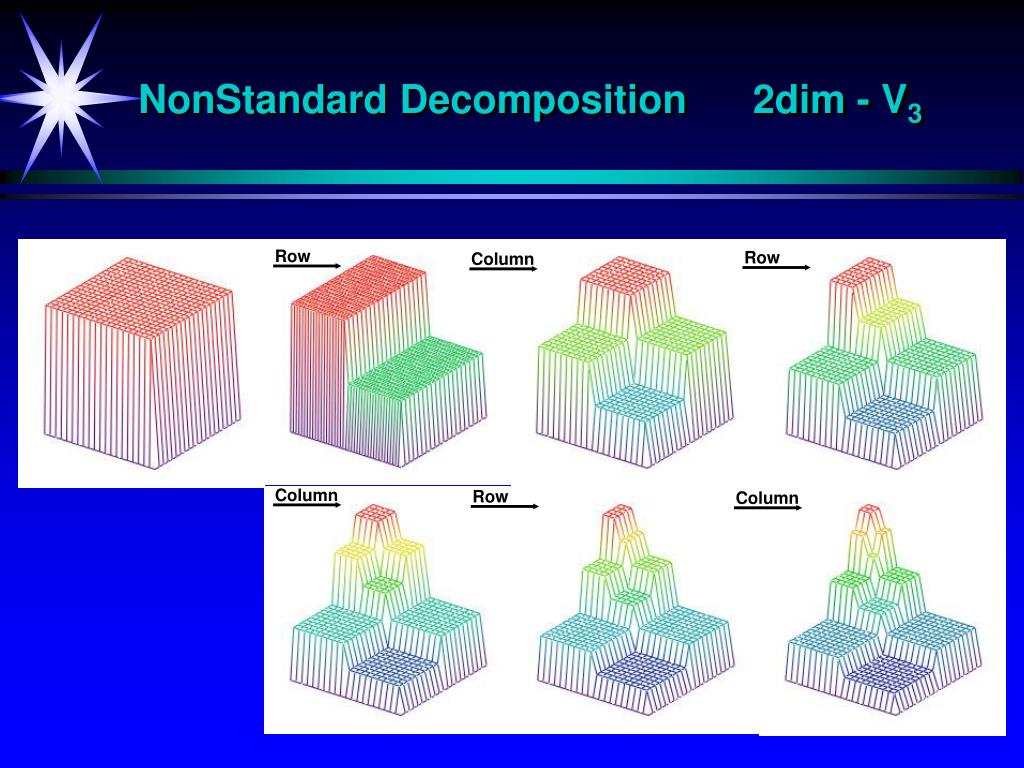

  24. NonStandard Decomposition 2dim - V3 Row Row Column Column Row Column

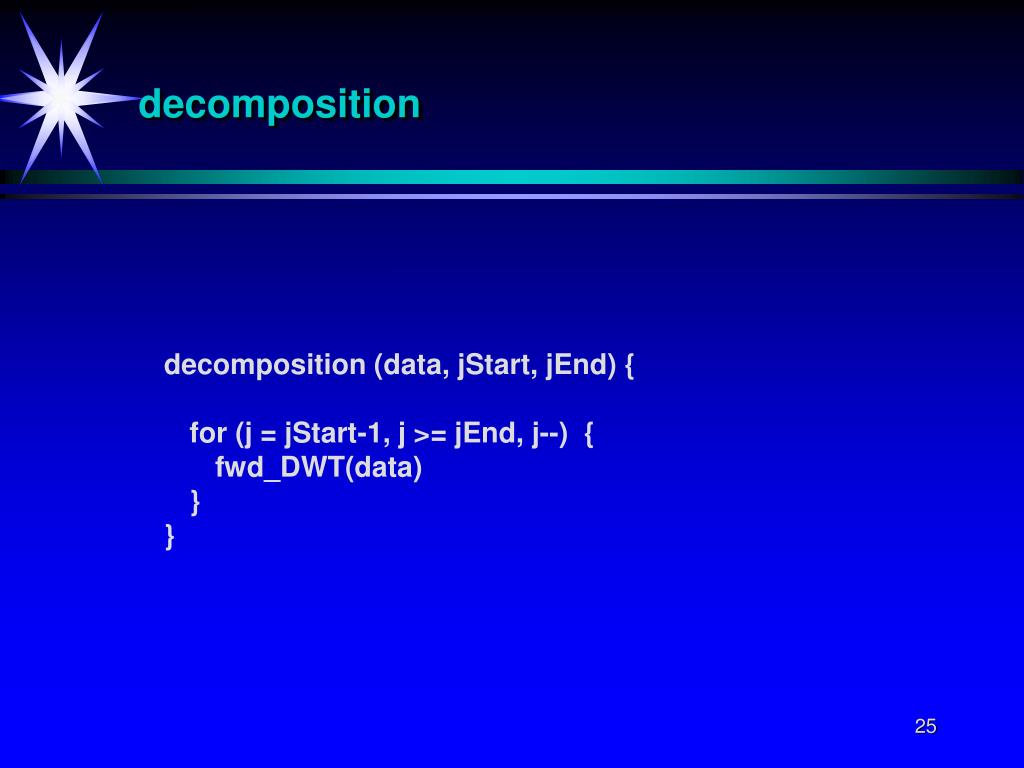

  25. decomposition decomposition (data, jStart, jEnd) { for (j = jStart-1, j >= jEnd, j--) { fwd_DWT(data) } }

  26. decomposition_NonStandard decomposition_NonStandard (data, jStart, jEnd) { for (j = jStart-1, j >= jEnd, j--) { fwd_DWT_2D(data) } }

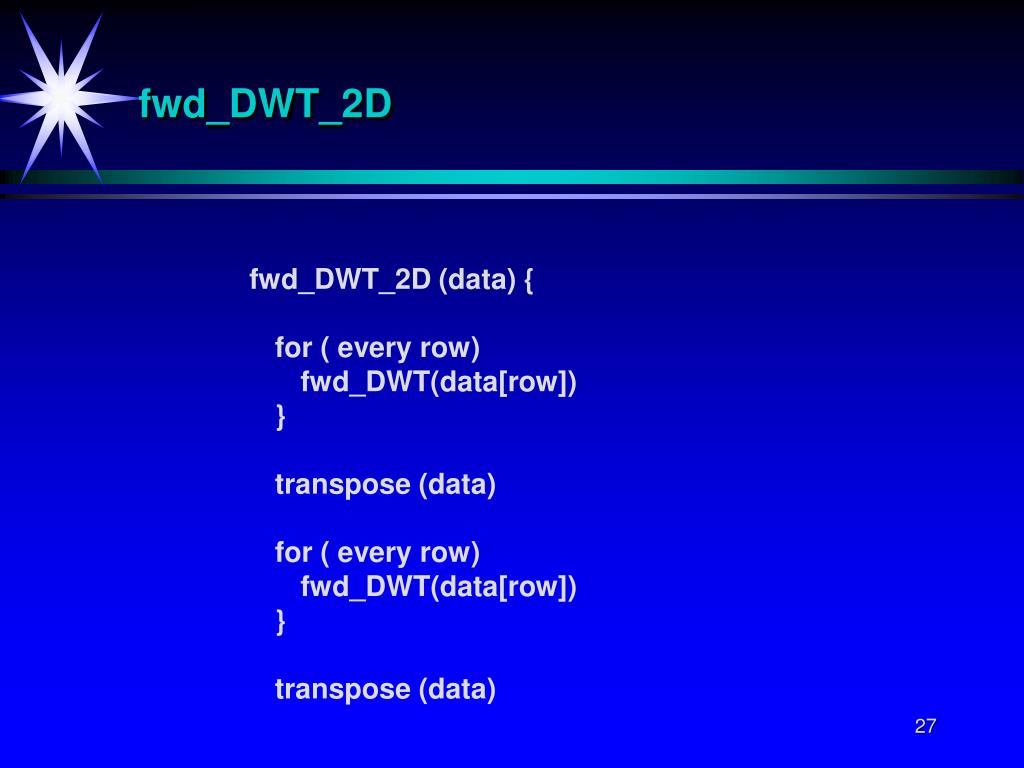

  27. fwd_DWT_2D fwd_DWT_2D (data) { for ( every row) fwd_DWT(data[row]) } transpose (data) for ( every row) fwd_DWT(data[row]) } transpose (data)

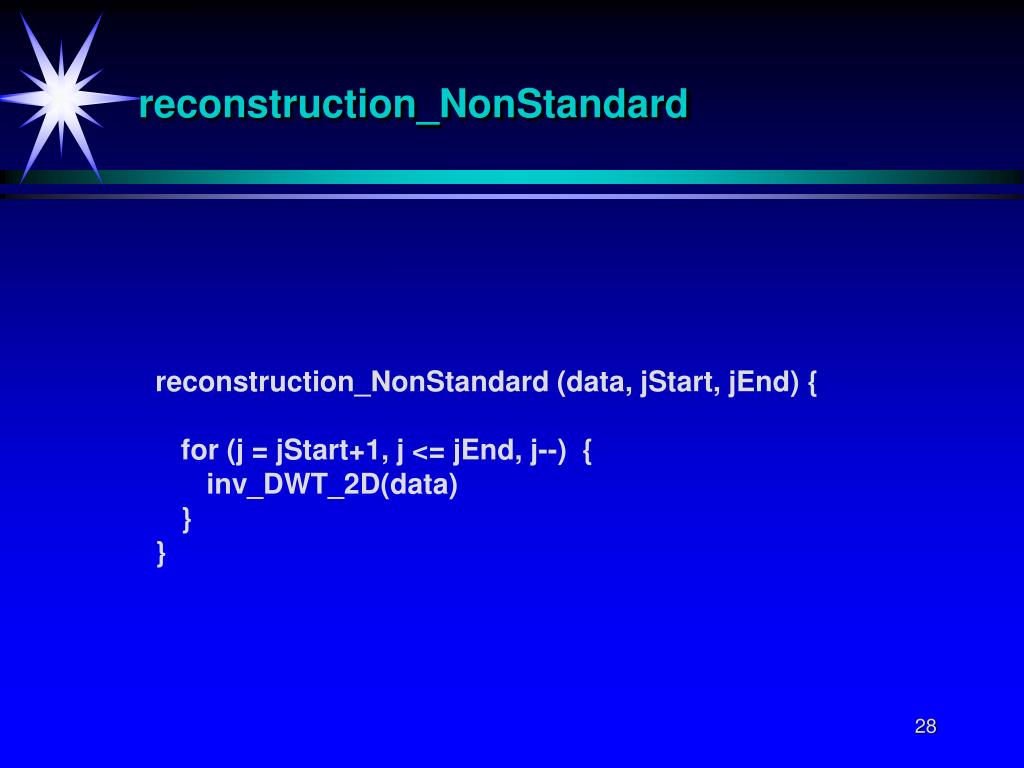

  28. reconstruction_NonStandard reconstruction_NonStandard (data, jStart, jEnd) { for (j = jStart+1, j <= jEnd, j--) { inv_DWT_2D(data) } }

  29. inv_DWT_2D inv_DWT_2D (data) { transpose (data) for ( every row) inv_DWT(data[row]) } transpose (data) for ( every row) inv_DWT(data[row]) }

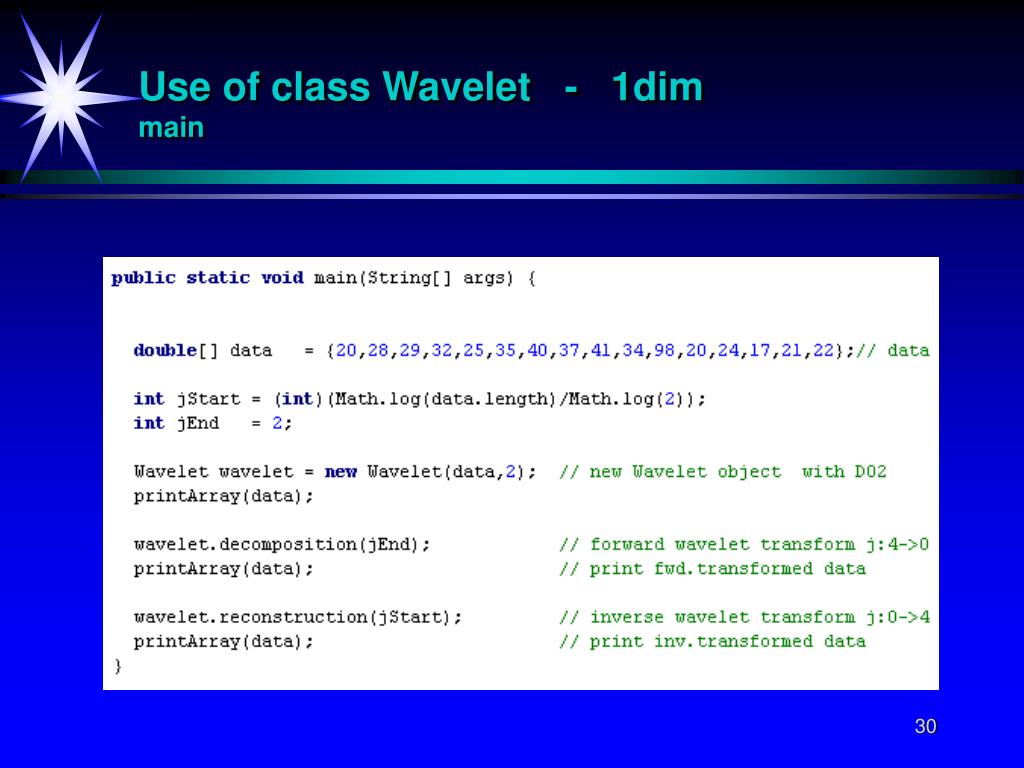

  30. Use of class Wavelet - 1dimmain

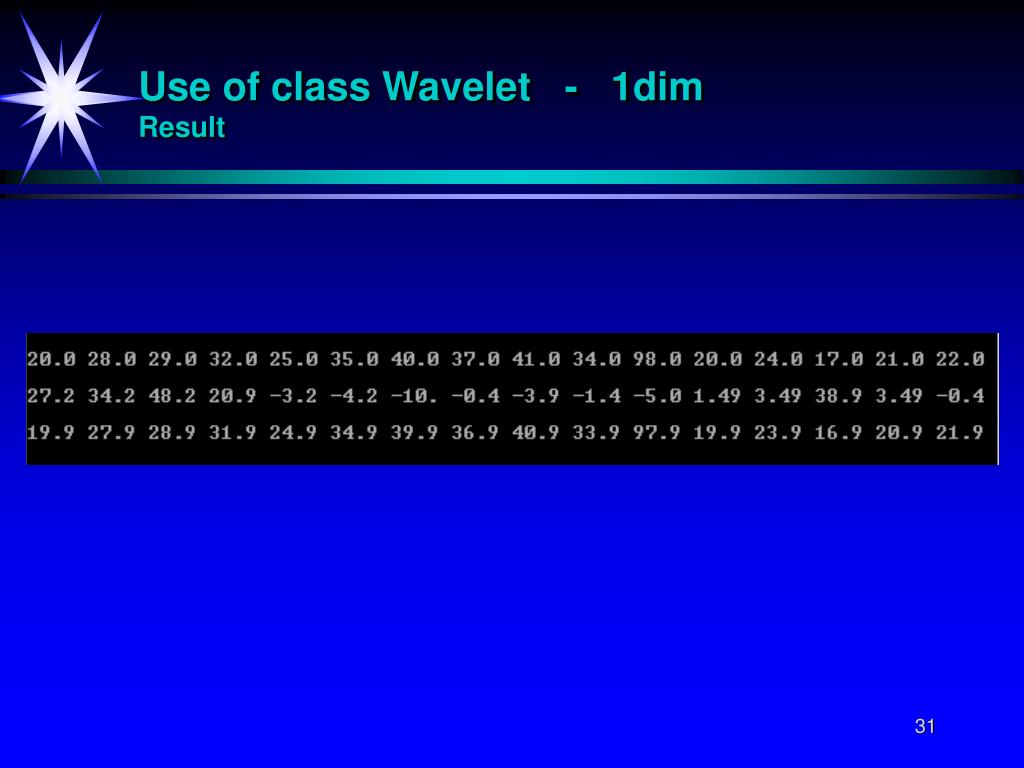

  31. Use of class Wavelet - 1dimResult

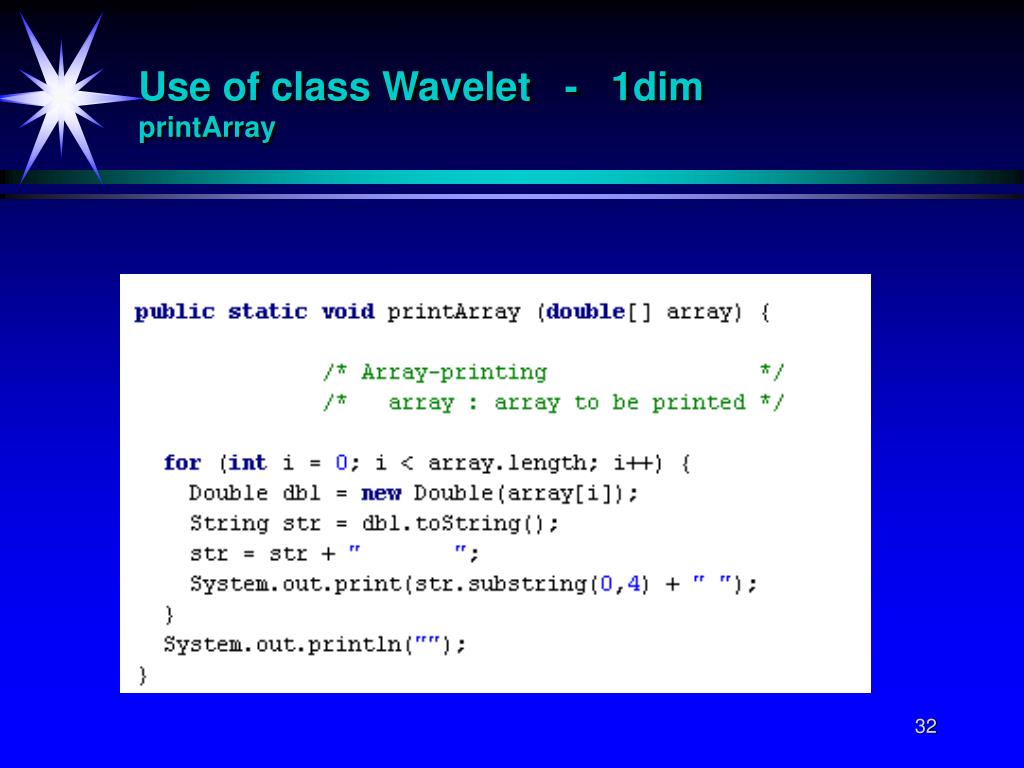

  32. Use of class Wavelet - 1dimprintArray

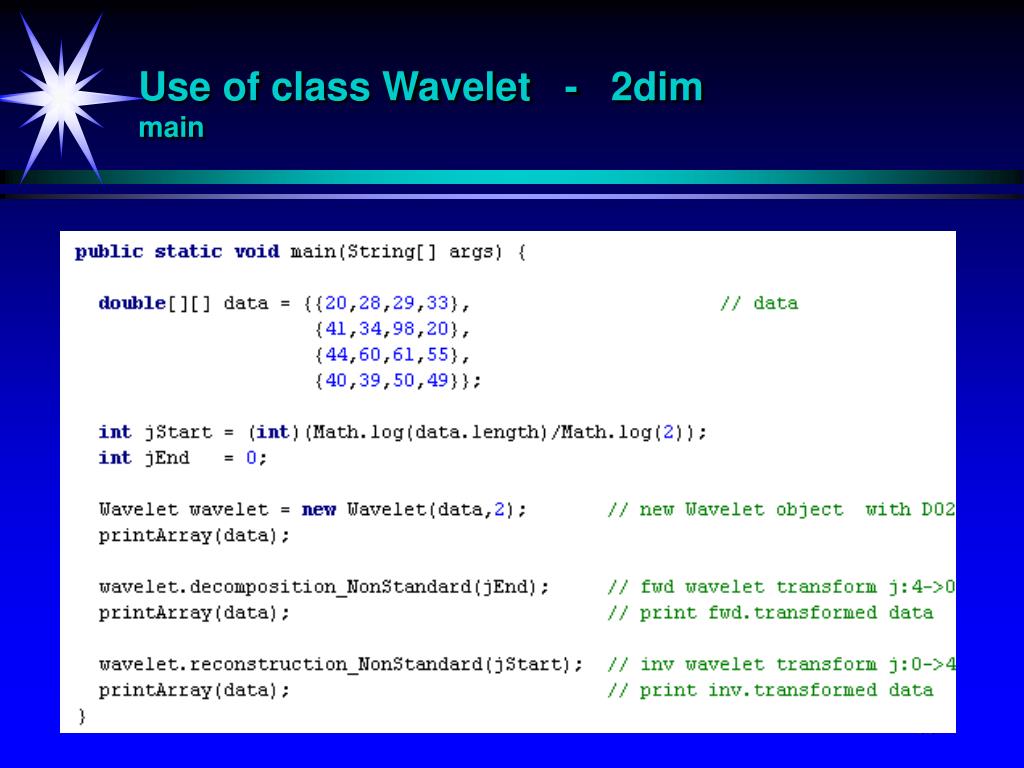

  33. Use of class Wavelet - 2dimmain

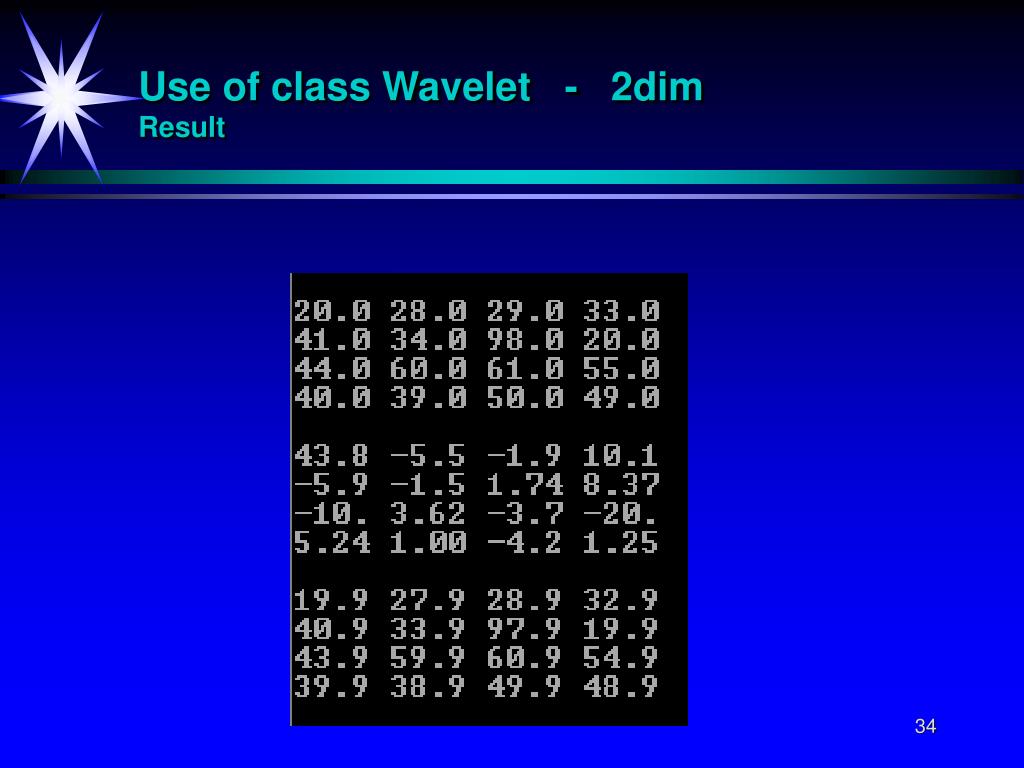

  34. Use of class Wavelet - 2dimResult

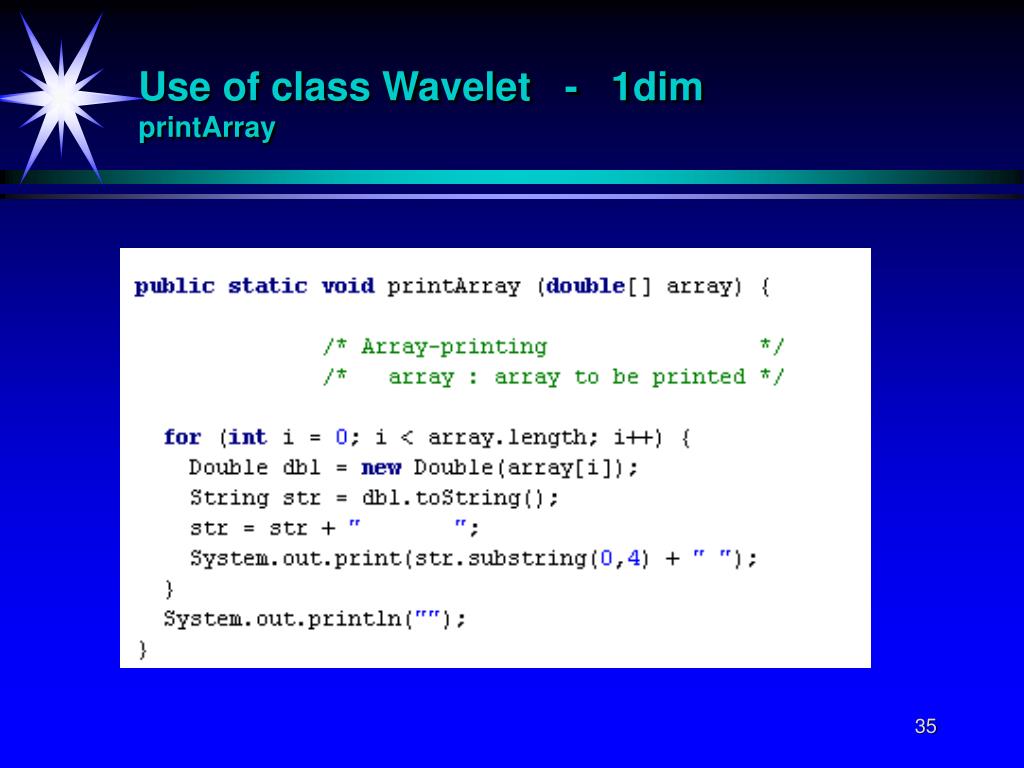

  35. Use of class Wavelet - 1dimprintArray

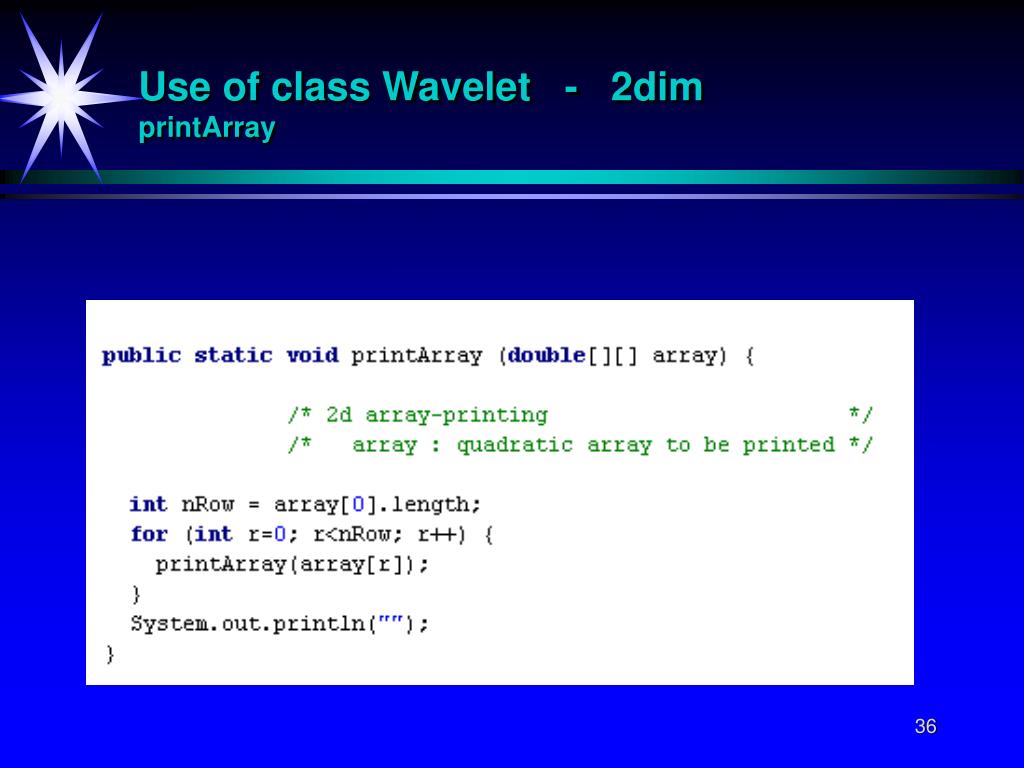

  36. Use of class Wavelet - 2dimprintArray

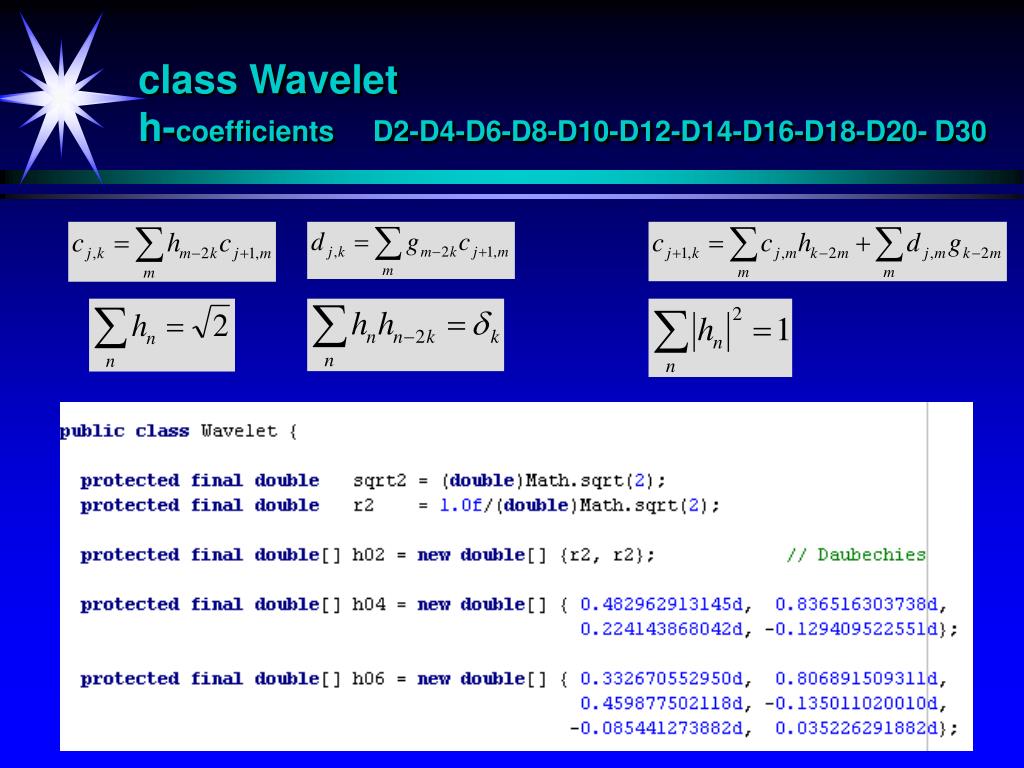

  37. class Waveleth-coefficients D2-D4-D6-D8-D10-D12-D14-D16-D18-D20- D30

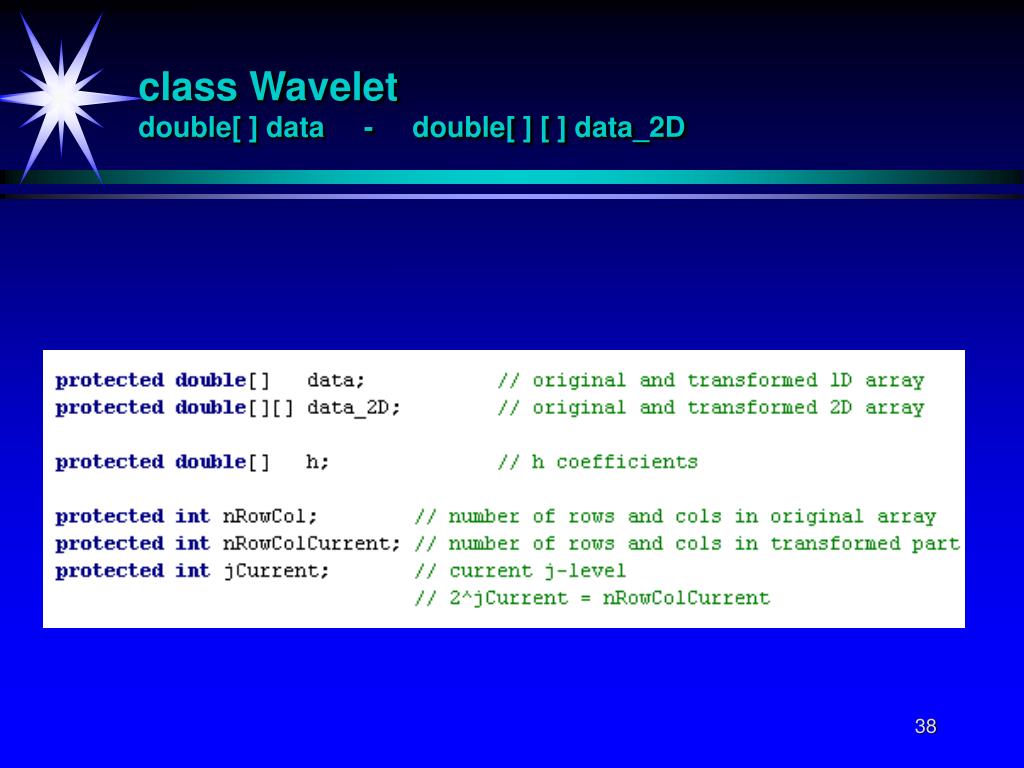

  38. class Waveletdouble[ ] data - double[ ] [ ] data_2D

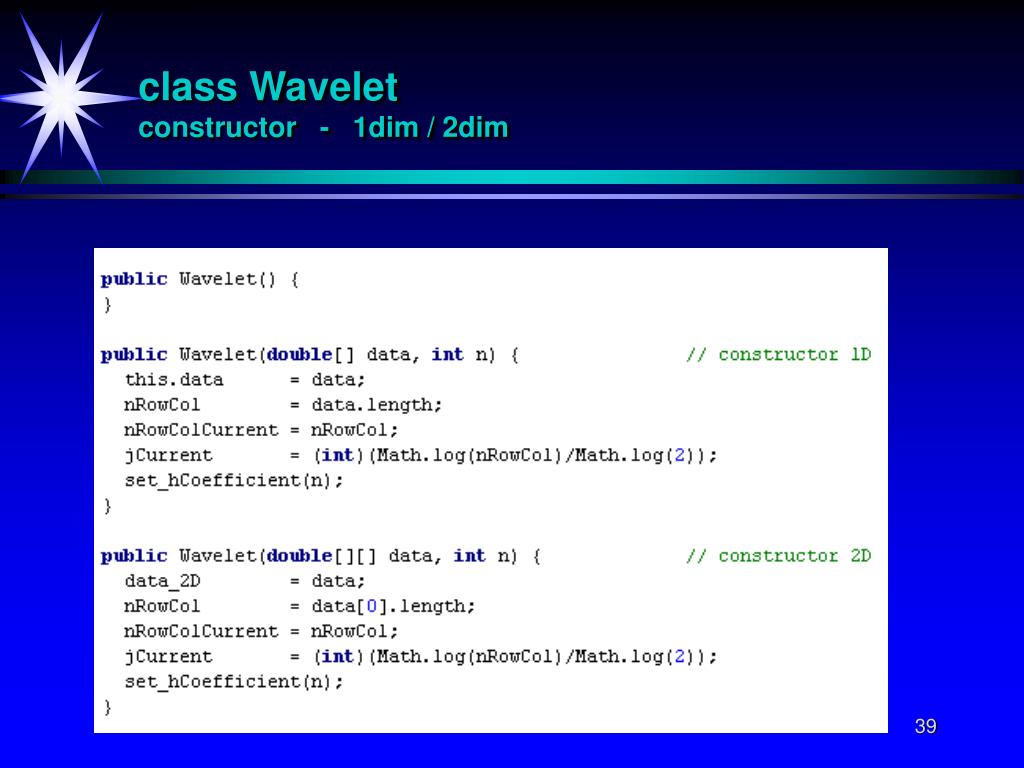

  39. class Waveletconstructor - 1dim / 2dim

  40. class WaveletD2 - D4 - D6 - D8 - D10 - D12 - D14 - D16 - D18 - D20 - D30

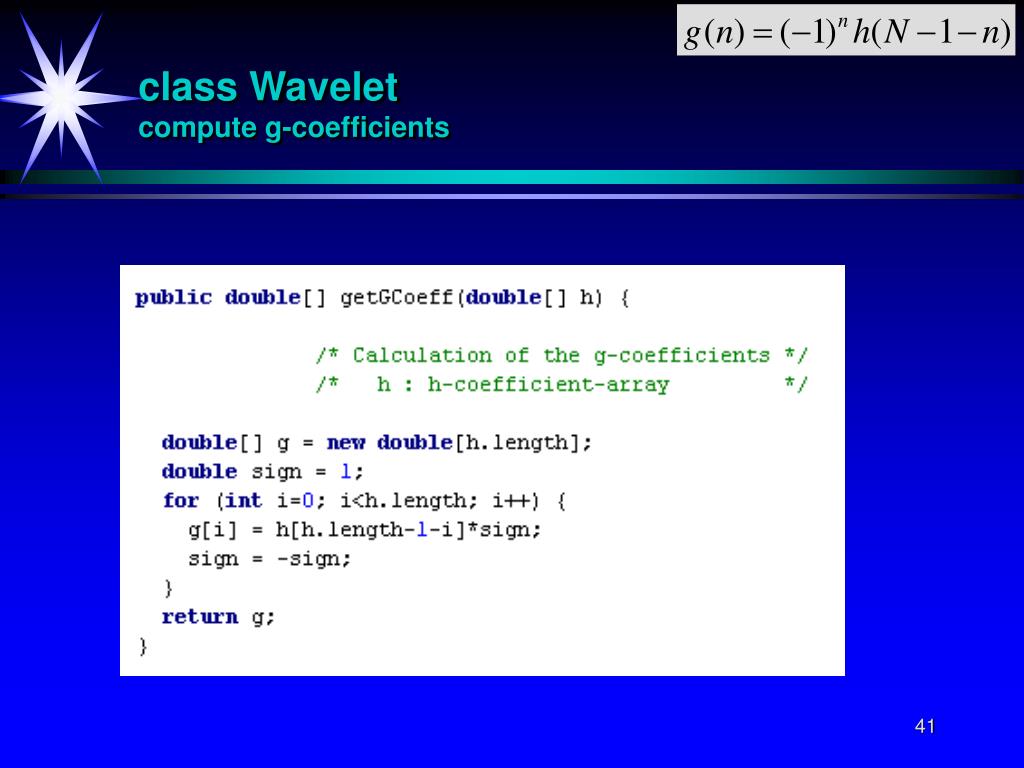

  41. class Waveletcompute g-coefficients

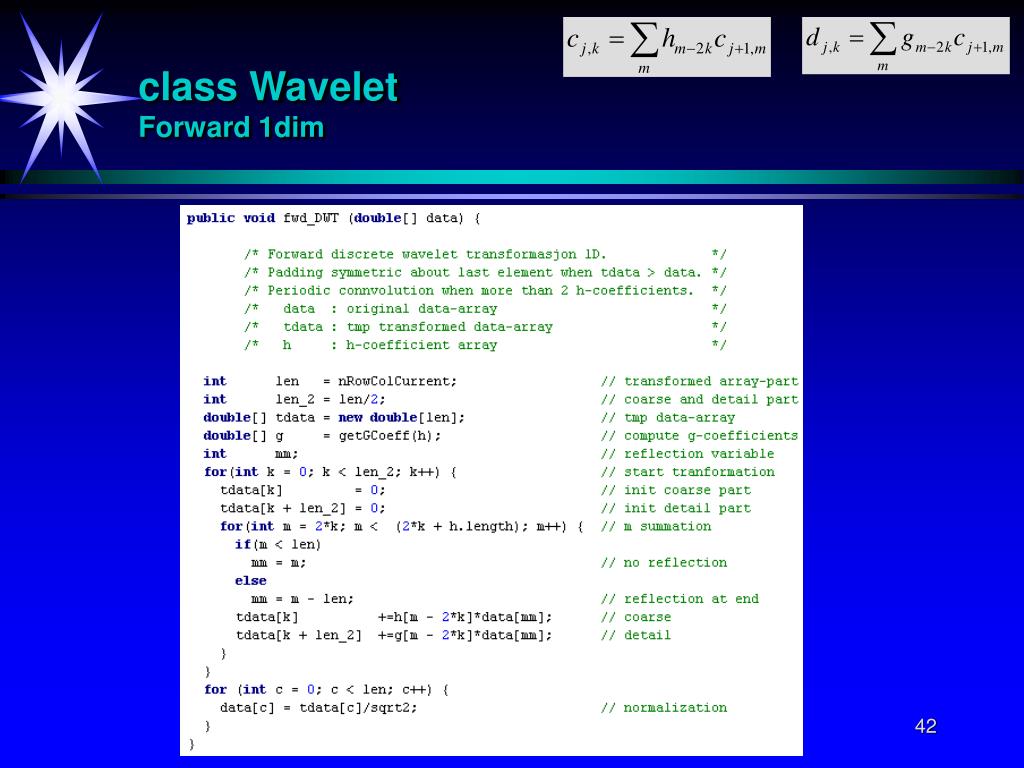

  42. class WaveletForward 1dim

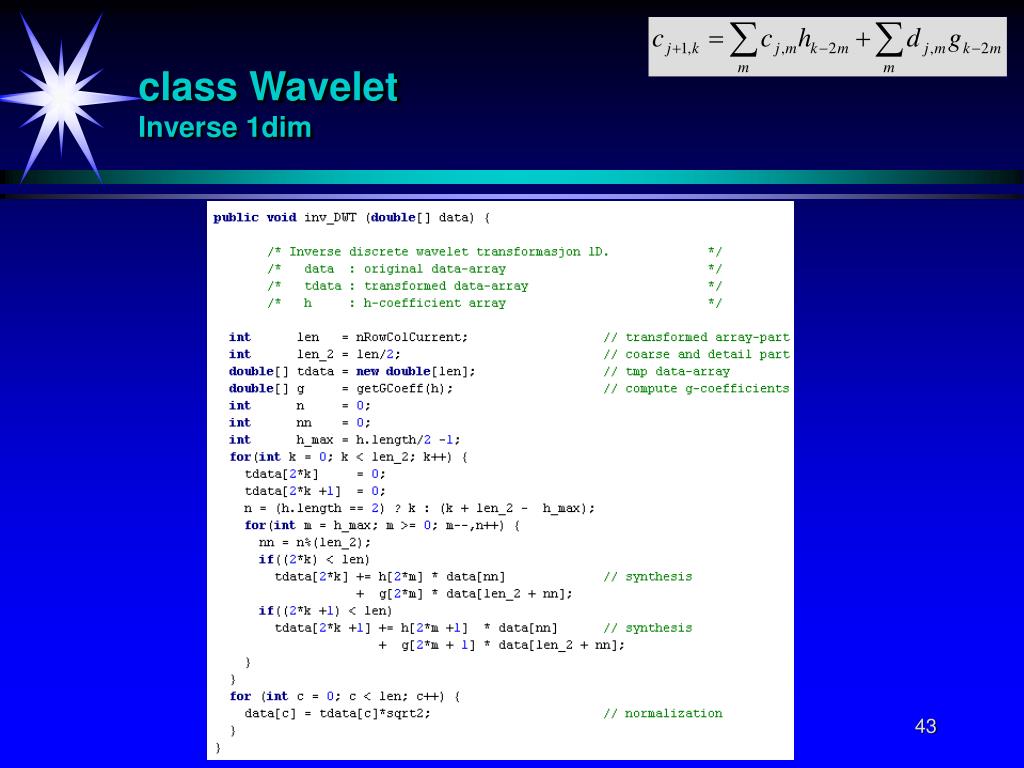

  43. class WaveletInverse 1dim

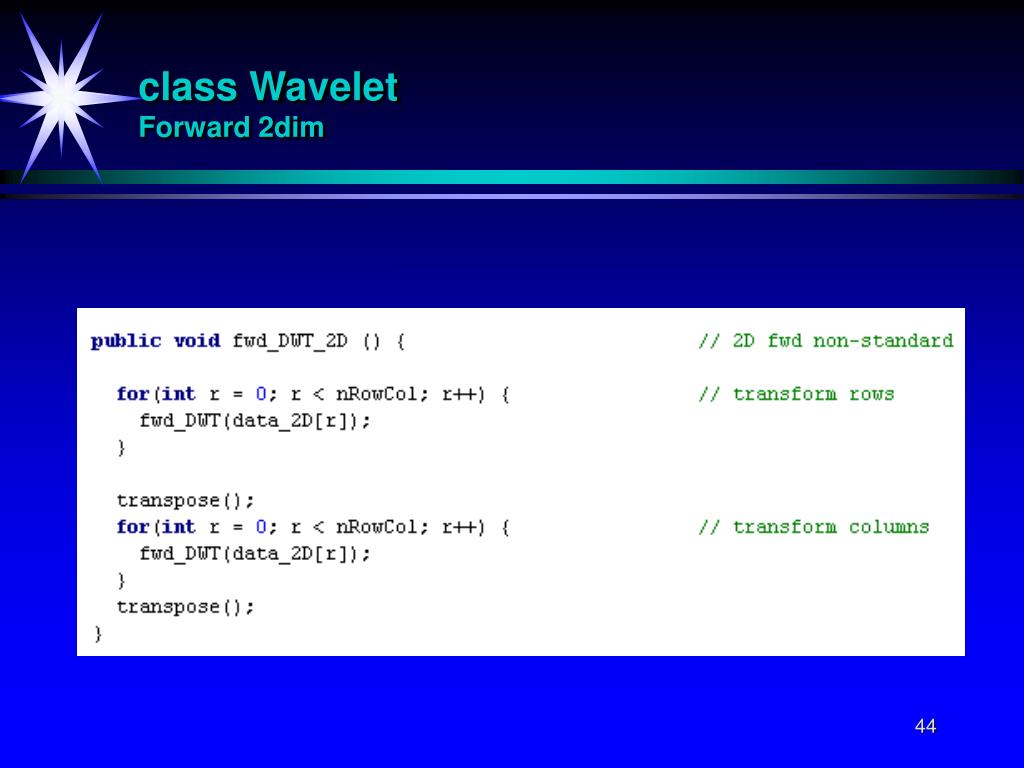

  44. class WaveletForward 2dim

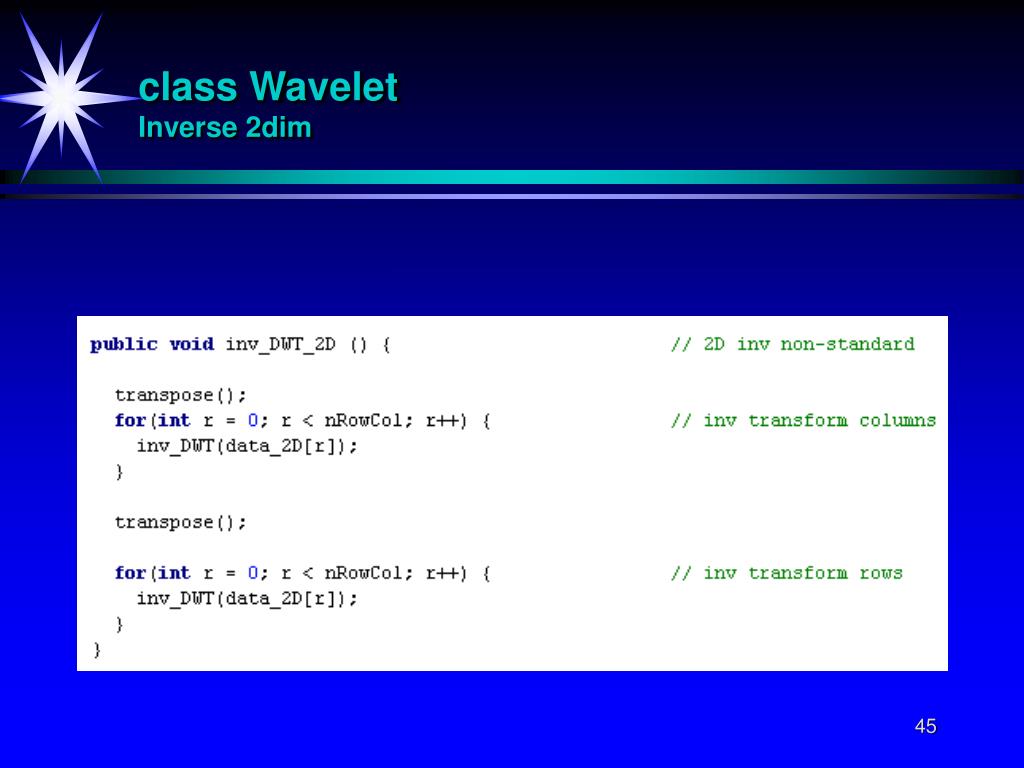

  45. class WaveletInverse 2dim

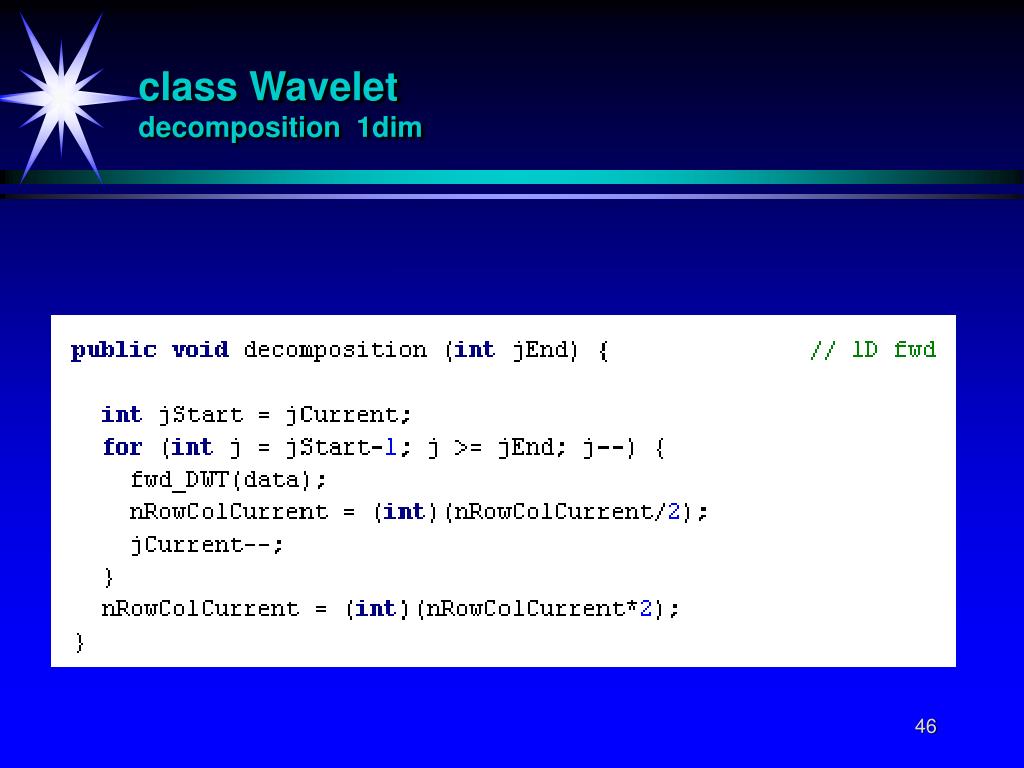

  46. class Waveletdecomposition 1dim

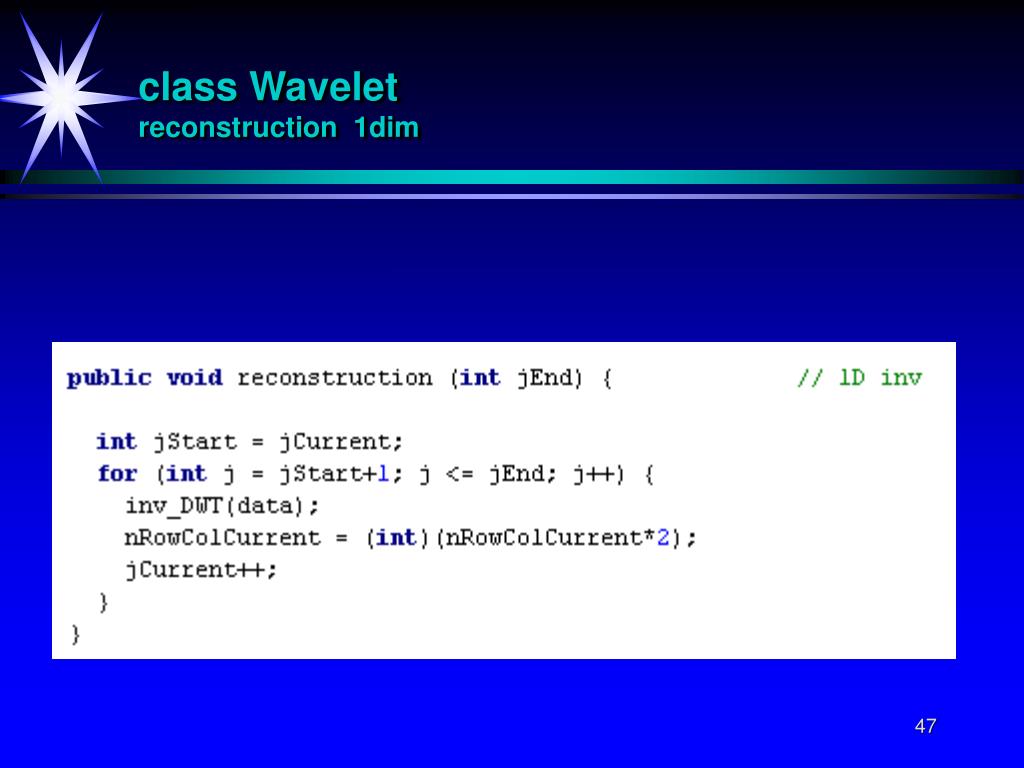

  47. class Waveletreconstruction 1dim

  48. class Waveletdecomposition_NonStandard 2dim

  49. class Waveletreconstruction_NonStandard 2dim

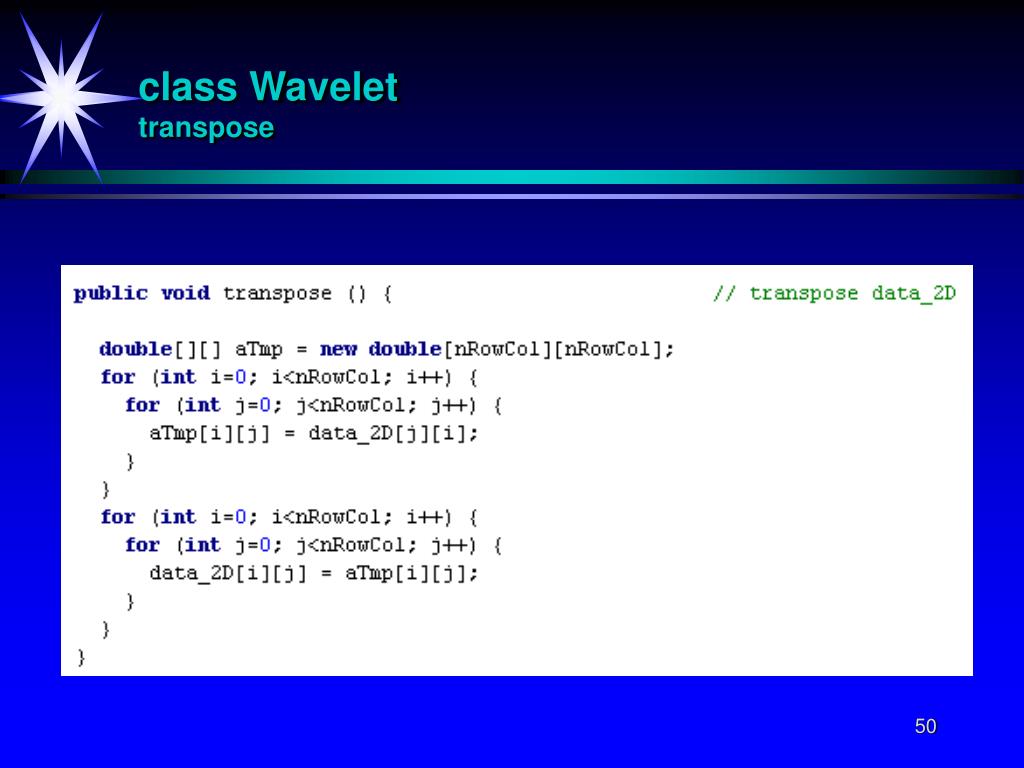

  50. class Wavelettranspose
