  1. Christian Schulte cschulte@kth.se Software and Computer Systems School of Information and Communication Technology KTH – Royal Institute of Technology Stockholm, Sweden Mini Erlang ID1218 Lecture 03 2009-11-02

  2. Reminder & Overview ID1218, Christian Schulte

  3. Roadmap: MiniErlang • What to compute with • MiniErlang expressions and programs • What are the results • MiniErlang Values • What are the instructions • for compound value construction and function call • How are functions called • parameters are passed by substitution • considers only matching clauses • clauses have patterns (we ignore guards) ID1218, Christian Schulte

  4. Evaluating Values ID1218, Christian Schulte

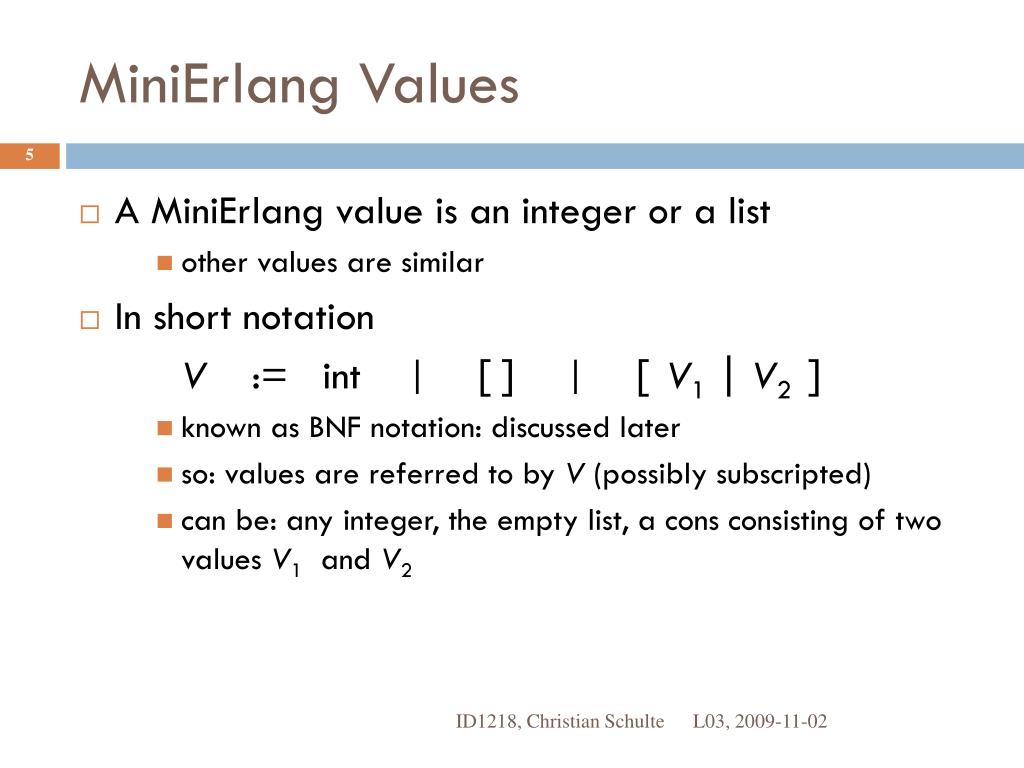

  5. MiniErlang Values • A MiniErlang value is an integer or a list • other values are similar • In short notation V := int | [] | [V1|V2] • known as BNF notation: discussed later • so: values are referred to by V (possibly subscripted) • can be: any integer, the empty list, a cons consisting of two values V1 and V2 ID1218, Christian Schulte

  6. MiniErlang Expressions • A MiniErlang expression is a value, a variable, or a function call E := int | [] | [E1|E2] | X | F(E1,…, En) • expressions referred to by E • variables referred to by X • function names referred to by F ID1218, Christian Schulte

  7. MiniErlang Machine • MiniErlang machine Es ; Vs→ Es’ ; Vs’ transforms a pair (separated by ;) of • expression stack Es and value stack Vs into a new pair of • expression stack Es’ and value stack Vs’ • Initial configuration: • expression we want to evaluate on expression stack • Final configuration: • single value as result on value stack ID1218, Christian Schulte

  8. Stacks • We write stacks as X1 …  Xn Xr • top of stack X1 • n-th element Xn • more elements Xr • empty stack  • Pushing X to stack Xr: X  Xr • Popping X from stack X  Xr: Xr ID1218, Christian Schulte

  9. MiniErlang Execution Idea • Simple case: an integer evaluates to itself • the result of an integer expression… …is an integer value • MiniErlang machine i  Er ; Vs→ Er ; i Vs • if the expression stack has the integer i as top of stack… • execution yields: the expression i is popped from the expression stack and pushed on to the value stack • same for empty list ID1218, Christian Schulte

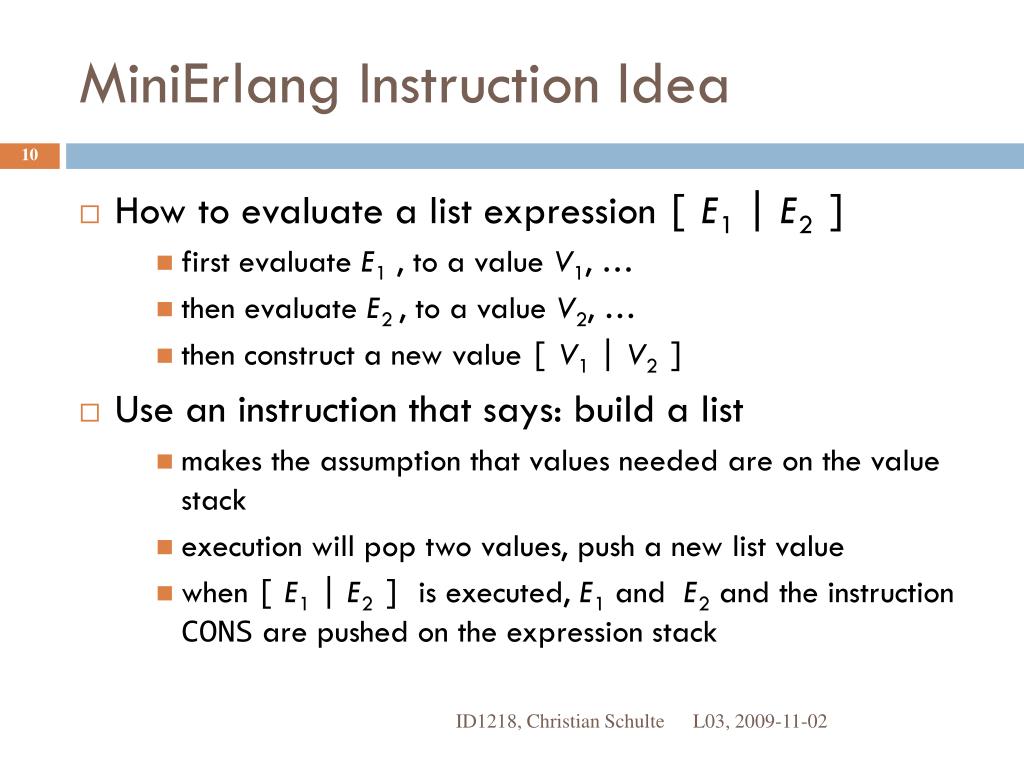

  10. MiniErlang Instruction Idea • How to evaluate a list expression [E1|E2] • first evaluate E1 , to a value V1, … • then evaluate E2 , to a value V2, … • then construct a new value [V1|V2] • Use an instruction that says: build a list • makes the assumption that values needed are on the value stack • execution will pop two values, push a new list value • when [E1|E2] is executed, E1 andE2 and the instruction CONS are pushed on the expression stack ID1218, Christian Schulte

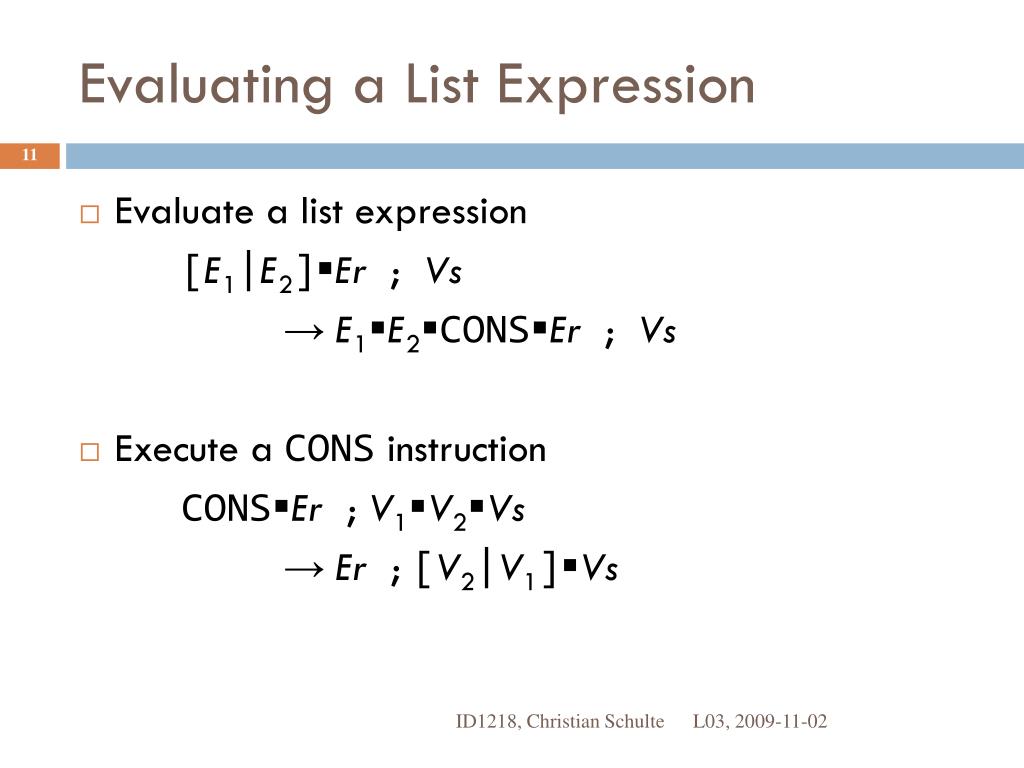

  11. Evaluating a List Expression • Evaluate a list expression [E1|E2]Er ; Vs → E1E2CONSEr ; Vs • Execute a CONS instruction CONSEr ; V1V2Vs → Er ; [V2|V1]Vs ID1218, Christian Schulte

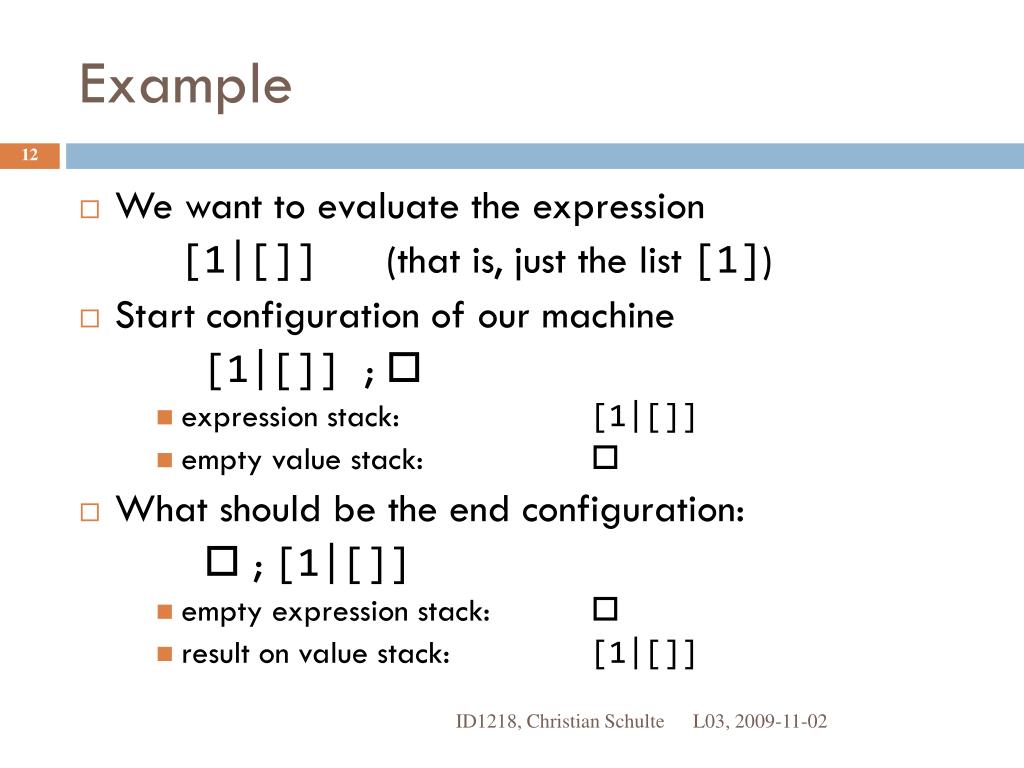

  12. Example • We want to evaluate the expression [1|[]] (that is, just the list [1]) • Start configuration of our machine [1|[]] ;  • expression stack: [1|[]] • empty value stack:  • What should be the end configuration:  ; [1|[]] • empty expression stack:  • result on value stack: [1|[]] ID1218, Christian Schulte

  13. Let’s Do It! [1|[]] ;  → … [E1|E2]Er ; Vs → E1E2CONSEr ; Vs ID1218, Christian Schulte

  14. Let’s Do It! [1|[]] ;  → 1 []CONS ;  → … i Er ; Vs→ Er ; iVs ID1218, Christian Schulte

  15. Let’s Do It! [1|[]] ;  → 1 []CONS ;  → []CONS ;1 → … i Er ; Vs→ Er ; iVs ID1218, Christian Schulte

  16. Let’s Do It! [1|[]] ;  → 1 []CONS ;  → []CONS ;1 → CONS ;[]1 → … CONSEr ; V1V2Vs → Er ; [V2|V1]Vs ID1218, Christian Schulte

  17. Let’s Do It! [1|[]] ;  → 1 []CONS ;  → []CONS ;1 → CONS ;[]1 → ;[1|[]] ID1218, Christian Schulte

  18. Summary • MiniErlang • values • expressions • MiniErlang machine • operates on expression and value stack • evaluates topmost expression on expr stack • executes topmost instruction on expr stack • Start state: single expr on expr stack • Final state: single value on value stack ID1218, Christian Schulte

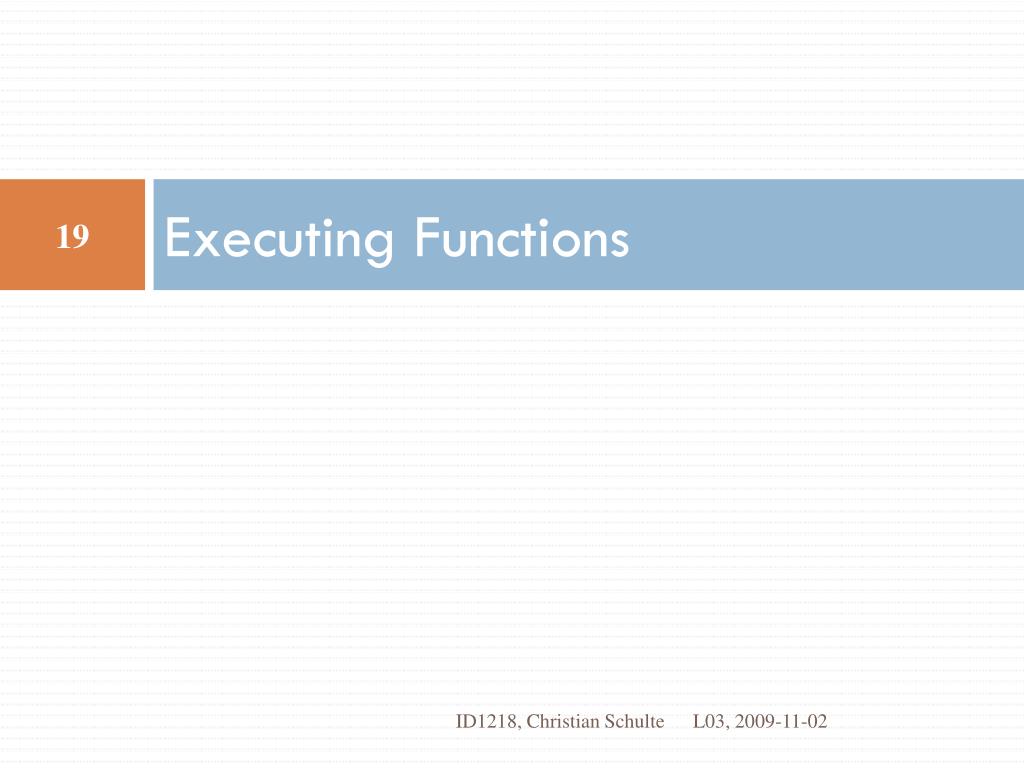

  19. Executing Functions ID1218, Christian Schulte

  20. Roadmap • How to evaluate arguments before executing function… • shuffle arguments on expression stack • have a call instruction • executing call instruction picks values from value stack • How to find the right clause • explain matching • How to pass parameters • replace variables by substitution ID1218, Christian Schulte

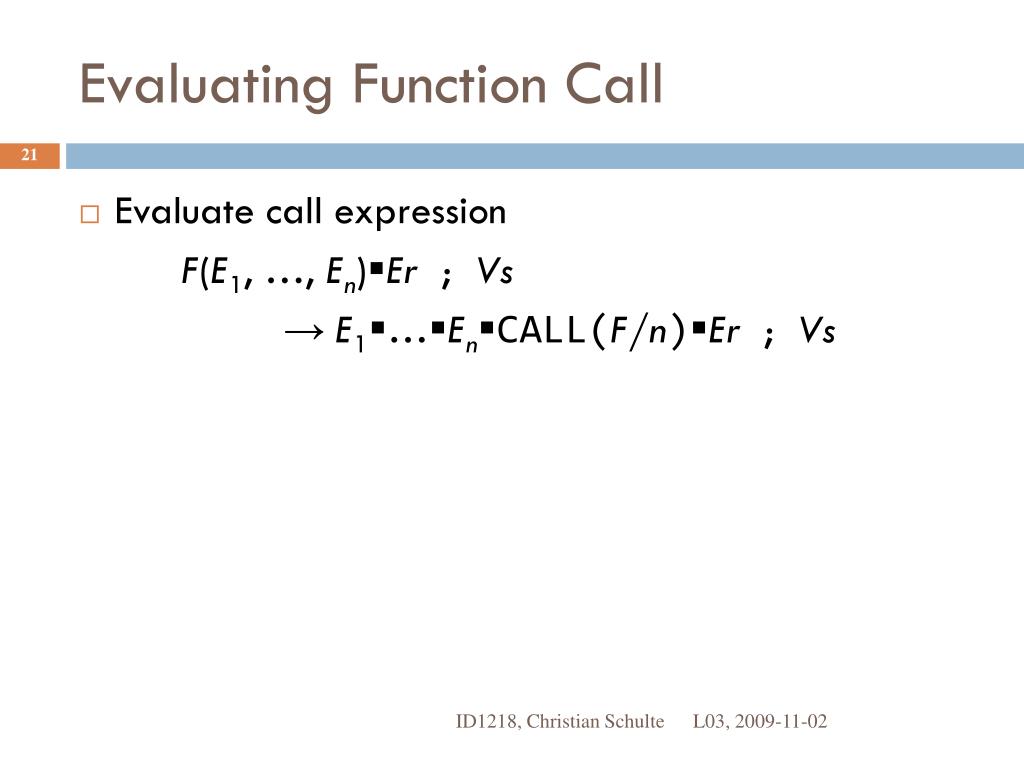

  21. Evaluating Function Call • Evaluate call expression F(E1, …, En)Er ; Vs → E1…EnCALL(F/n)Er ; Vs ID1218, Christian Schulte

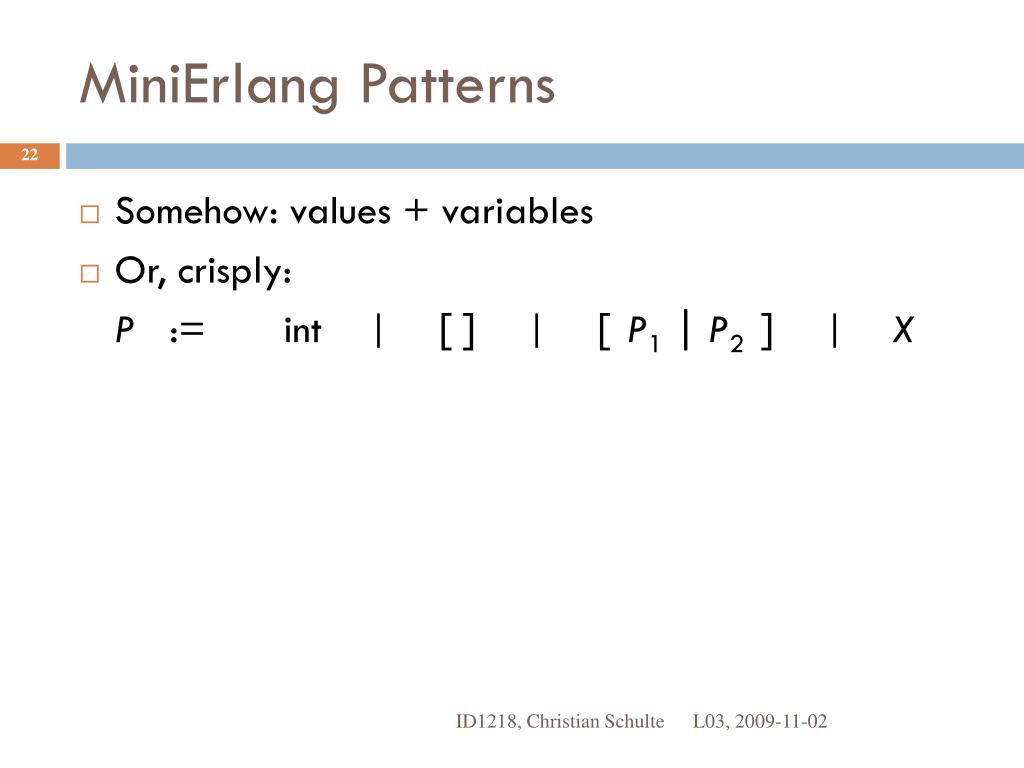

  22. MiniErlang Patterns • Somehow: values + variables • Or, crisply: P := int | [] | [P1|P2] | X ID1218, Christian Schulte

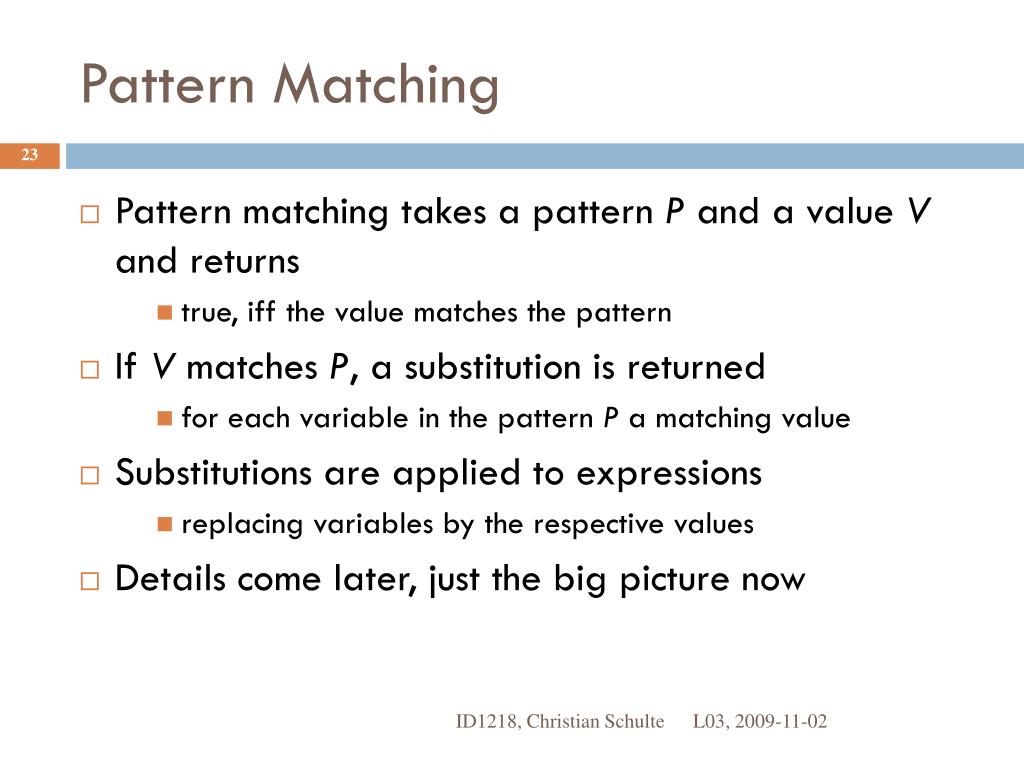

  23. Pattern Matching • Pattern matching takes a pattern P and a value V and returns • true, iff the value matches the pattern • If V matches P, a substitution is returned • for each variable in the pattern P a matching value • Substitutions are applied to expressions • replacing variables by the respective values • Details come later, just the big picture now ID1218, Christian Schulte

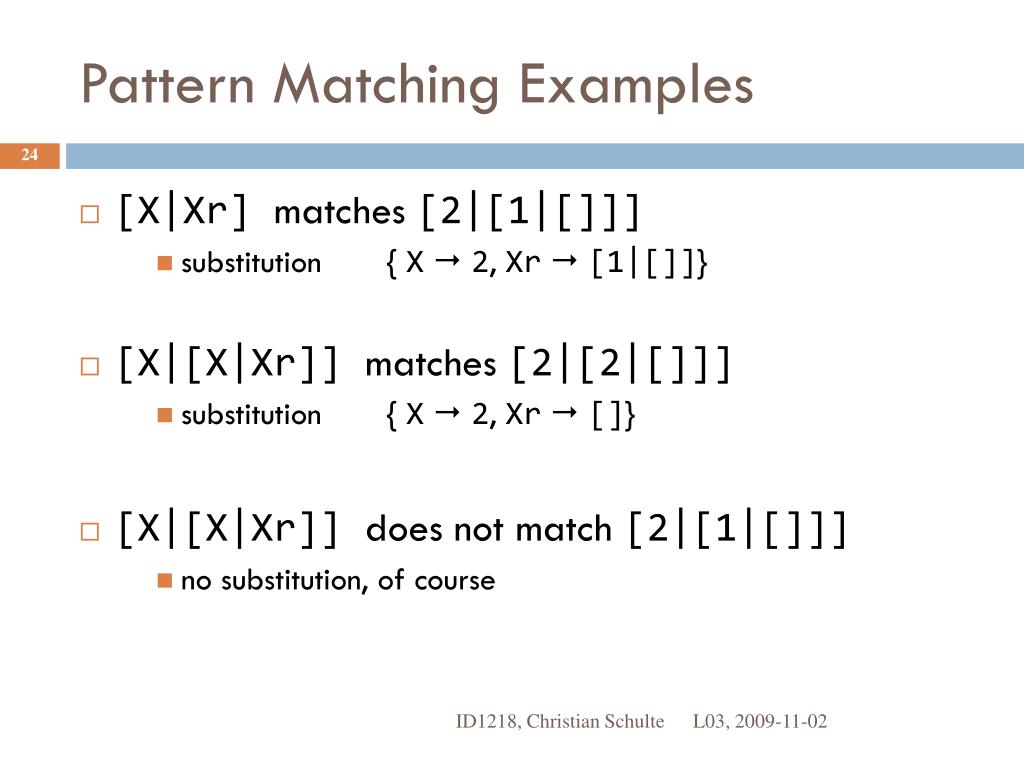

  24. Pattern Matching Examples • [X|Xr] matches [2|[1|[]]] • substitution { X 2, Xr [1|[]]} • [X|[X|Xr]] matches [2|[2|[]]] • substitution { X 2, Xr []} • [X|[X|Xr]] does not match [2|[1|[]]] • no substitution, of course ID1218, Christian Schulte

  25. Substitution Examples • Application of • substitution { X 2, Xr [1|[]]} to • expression X+len(Xr) yields • yields 2+len([1|[]]) • We refer to • substitutions by s • application to expression E by s(E) ID1218, Christian Schulte

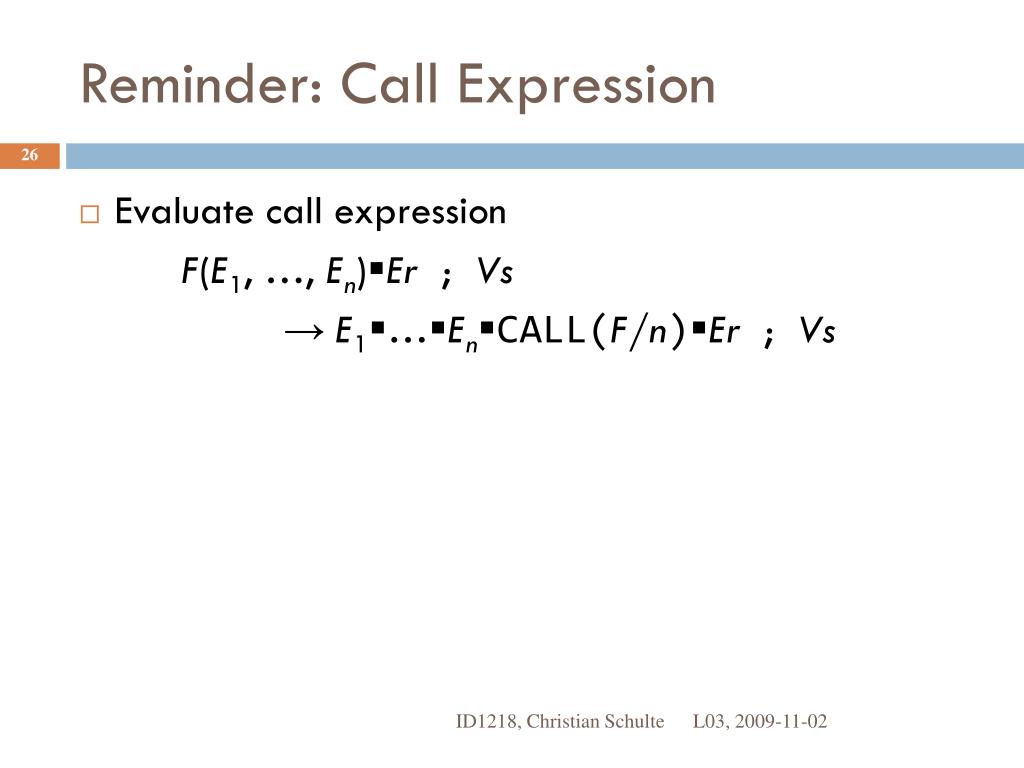

  26. Reminder: Call Expression • Evaluate call expression F(E1, …, En)Er ; Vs → E1…EnCALL(F/n)Er ; Vs ID1218, Christian Schulte

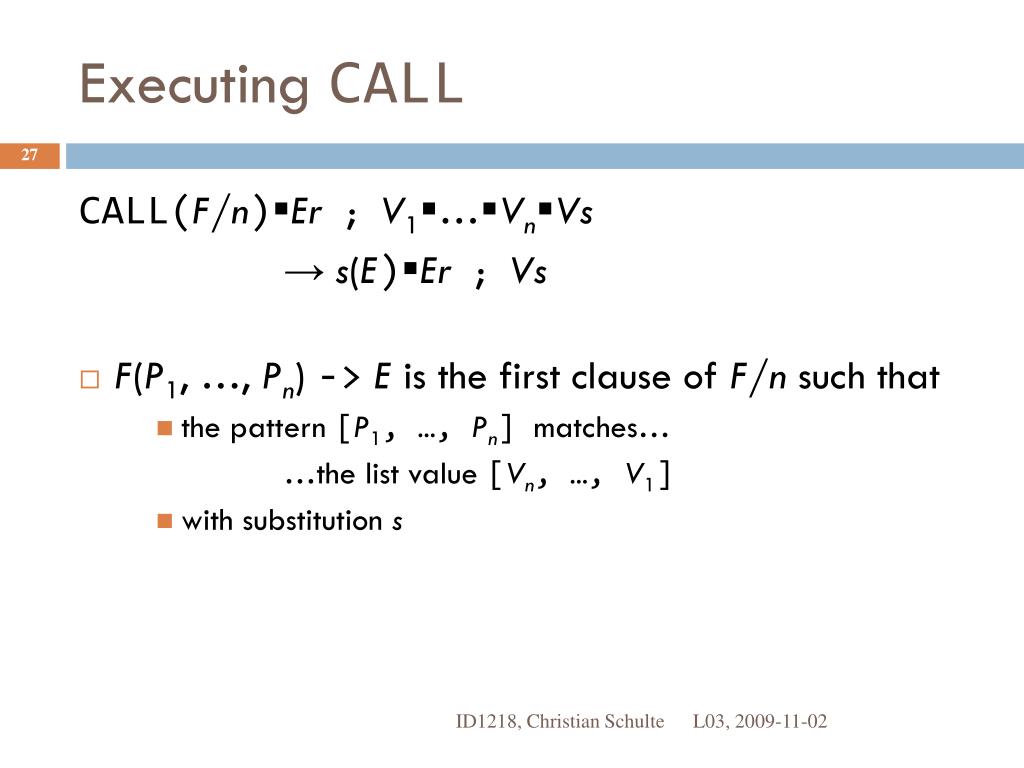

  27. Executing CALL CALL(F/n)Er ; V1…VnVs → s(E)Er ; Vs • F(P1, …, Pn) ->E is the first clause of F/n such that • the pattern [P1, …, Pn] matches… …the list value [Vn, …, V1] • with substitution s ID1218, Christian Schulte

  28. Example • Assume we want to evaluate f([1|[]]) where f/1 is defined by the single clause f([X|Xr]) -> [X|f(Xr)]. ID1218, Christian Schulte

  29. Let’s Do It! f([1|[]]) ;  → [1|[]]CALL(f/1) ;  → 1[]CONSCALL(f/1) ;  → []CONSCALL(f/1) ;1 → CONSCALL(f/1) ;[]1 → CALL(f/1) ;[1|[]] → [1|f([])] ;  → … ID1218, Christian Schulte

  30. What Do We Ignore? • Runtime errors • what if no clause matches • Simplistic values • No un-nesting • No guards • simple: just check guards on values • No case and if expressions • rewrite to additional functions ID1218, Christian Schulte

  31. An Important Fact… • The expressions on the expression stack must have an essential property… hmmm… Look to the example again! ID1218, Christian Schulte

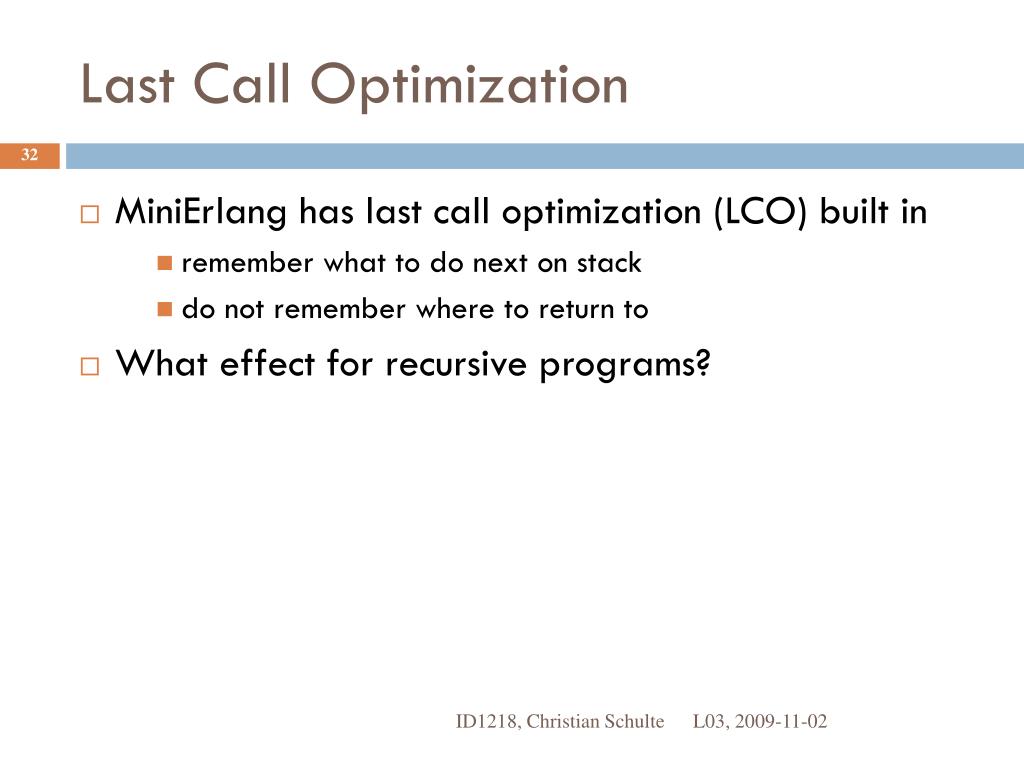

  32. Last Call Optimization • MiniErlang has last call optimization (LCO) built in • remember what to do next on stack • do not remember where to return to • What effect for recursive programs? ID1218, Christian Schulte

  33. MiniErlang Full Picture ID1218, Christian Schulte

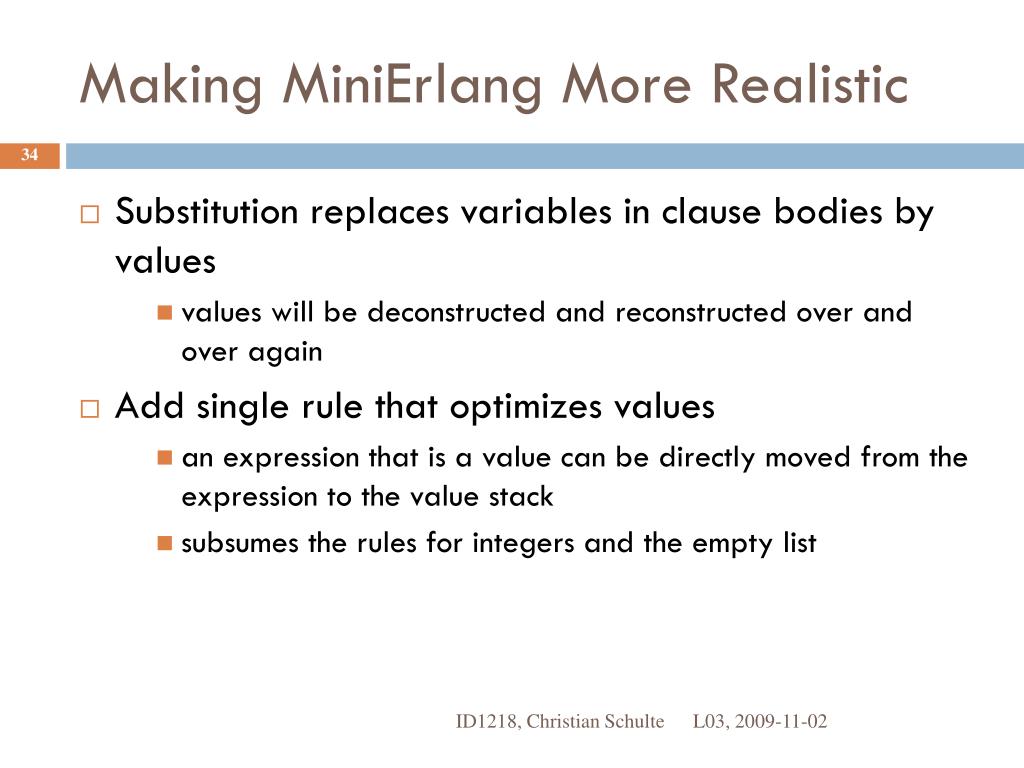

  34. Making MiniErlang More Realistic • Substitution replaces variables in clause bodies by values • values will be deconstructed and reconstructed over and over again • Add single rule that optimizes values • an expression that is a value can be directly moved from the expression to the value stack • subsumes the rules for integers and the empty list ID1218, Christian Schulte

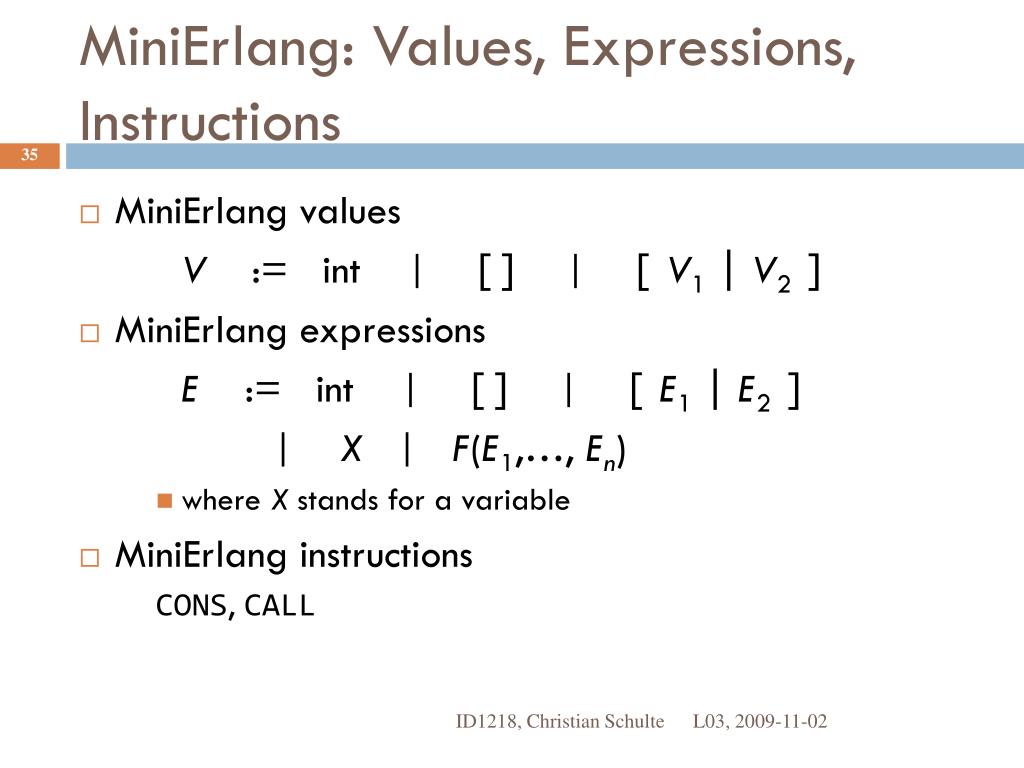

  35. MiniErlang: Values, Expressions, Instructions • MiniErlang values V := int | [] | [V1|V2] • MiniErlang expressions E := int | [] | [E1|E2] | X | F(E1,…, En) • where X stands for a variable • MiniErlang instructions CONS, CALL ID1218, Christian Schulte

  36. MiniErlang: Expressions • Evaluate values V Er ; Vs→ Er ; VVs • provided V is a value • Evaluate list expression [E1|E2]Er ; Vs → E1E2CONSEr ; Vs • Evaluate function call F(E1, …, En)Er ; Vs → E1…EnCALL(F/n)Er ; Vs ID1218, Christian Schulte

  37. MiniErlang: Instructions • CONS instruction CONSEr ; V1V2Vs → Er ; [V2|V1]Vs • CALL instruction CALL(F/n)Er ; V1…VnVs → s(E)Er ; Vs • F(P1, …, Pn) ->E first clause of F/n such that [P1, …, Pn] matches [Vn, …,V1] with substitution s ID1218, Christian Schulte

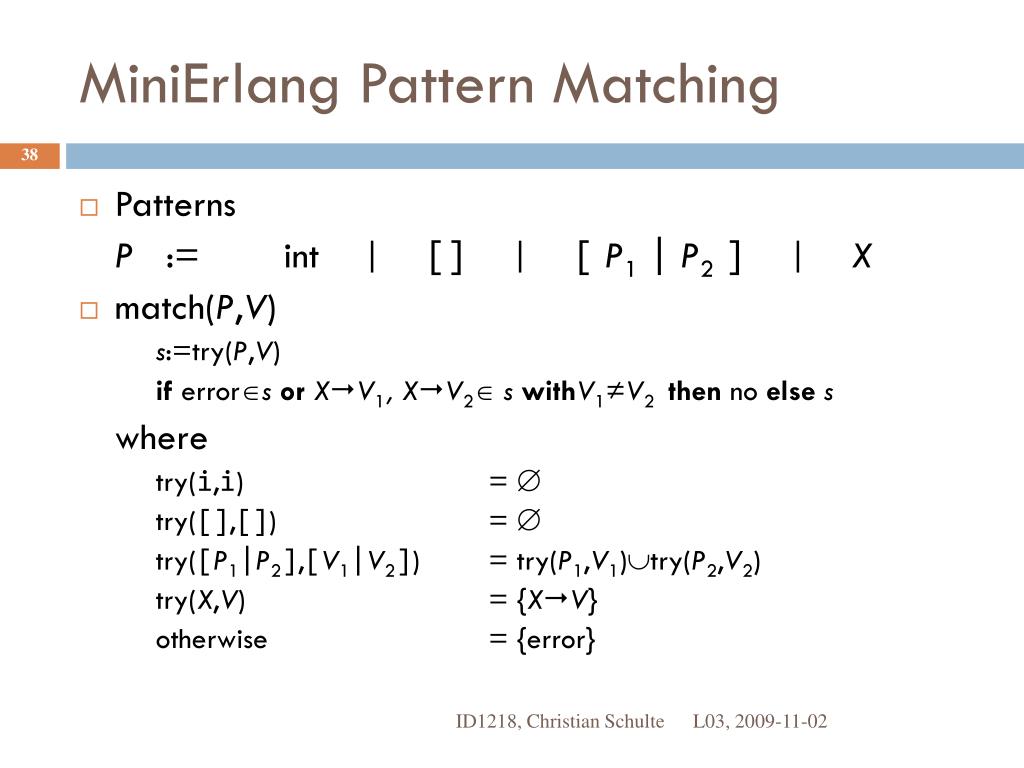

  38. MiniErlang Pattern Matching • Patterns P := int | [] | [P1|P2] | X • match(P,V) s:=try(P,V) iferrorsorXV1,XV2 s withV1≠V2 thenno elses where try(i,i) =  try([],[]) =  try([P1|P2],[V1|V2]) = try(P1,V1)try(P2,V2) try(X,V) = {XV} otherwise = {error} ID1218, Christian Schulte

  39. Pattern Matching • Example match([A,A|[B|B]],[1,1,[]]) • Uniform list notation match([A|[A|[B|B]]],[1|[1|[[]|[]]]]) • Evaluate try try([A|[A|[B|B]]],[1|[1|[[]|[]]]]) ID1218, Christian Schulte

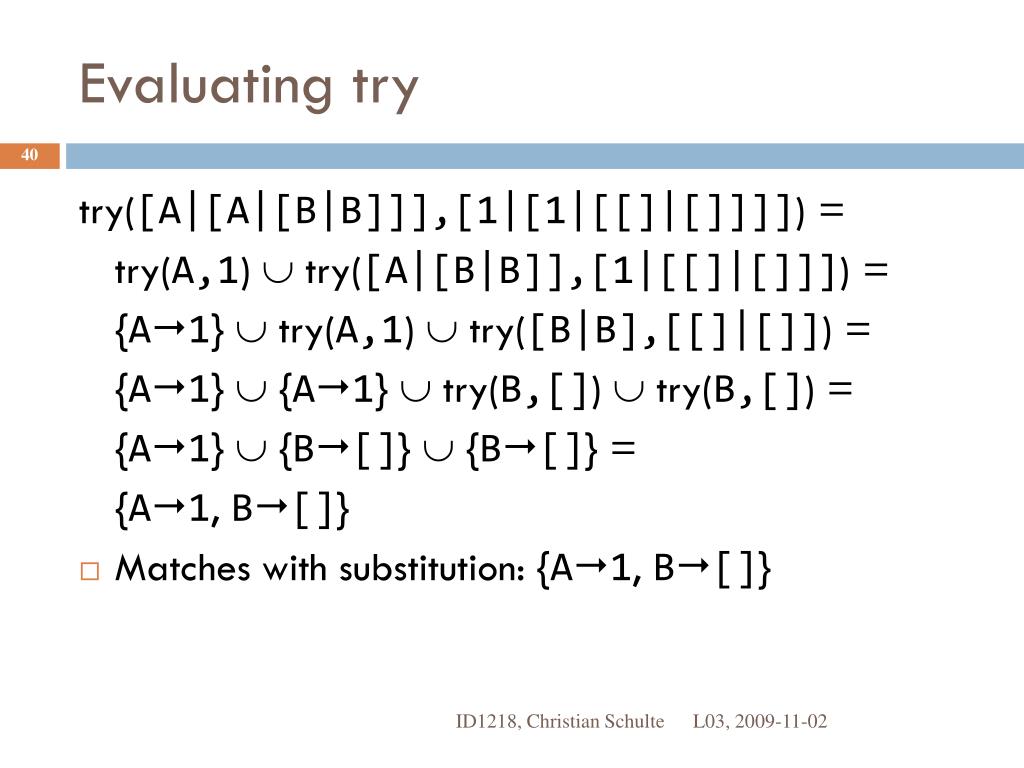

  40. Evaluating try try([A|[A|[B|B]]],[1|[1|[[]|[]]]]) = try(A,1)  try([A|[B|B]],[1|[[]|[]]]) = {A1}  try(A,1)  try([B|B],[[]|[]]) = {A1}  {A1}  try(B,[])  try(B,[]) = {A1}  {B[]}  {B[]} = {A1, B[]} • Matches with substitution: {A1, B[]} ID1218, Christian Schulte

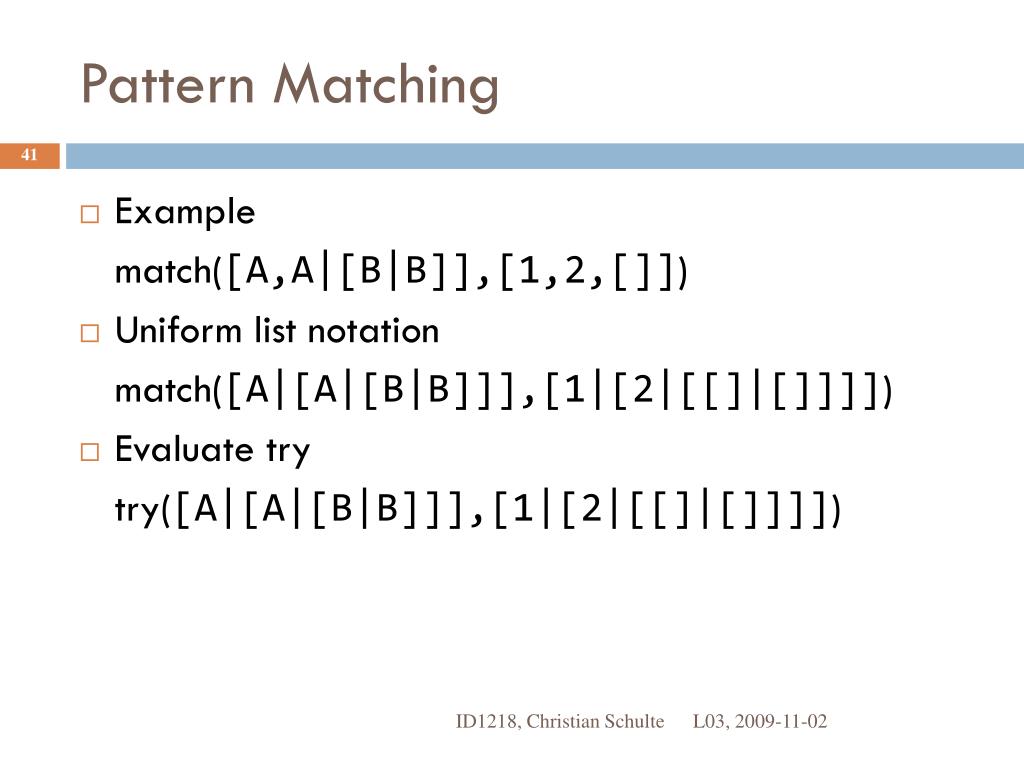

  41. Pattern Matching • Example match([A,A|[B|B]],[1,2,[]]) • Uniform list notation match([A|[A|[B|B]]],[1|[2|[[]|[]]]]) • Evaluate try try([A|[A|[B|B]]],[1|[2|[[]|[]]]]) ID1218, Christian Schulte

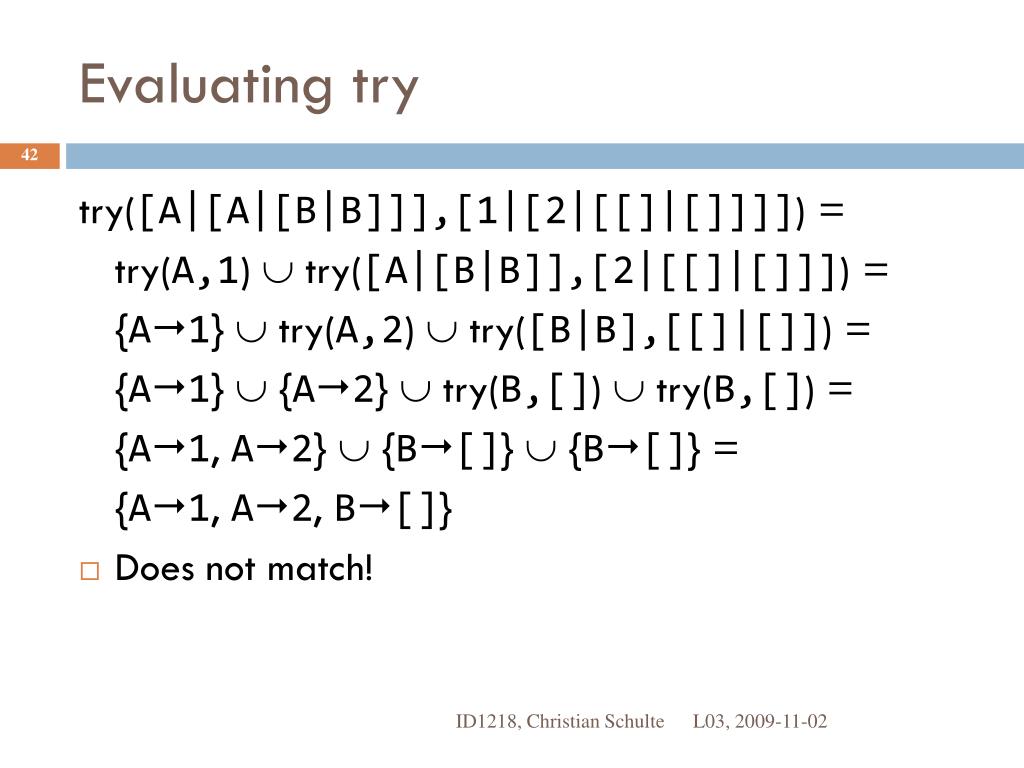

  42. Evaluating try try([A|[A|[B|B]]],[1|[2|[[]|[]]]]) = try(A,1)  try([A|[B|B]],[2|[[]|[]]]) = {A1}  try(A,2)  try([B|B],[[]|[]]) = {A1}  {A2}  try(B,[])  try(B,[]) = {A1, A2}  {B[]}  {B[]} = {A1, A2, B[]} • Does not match! ID1218, Christian Schulte

  43. Substitution • Defined over structure of expressions s(i) = i s([]) = [] s([E1|E2]) = [s(E1)|s(E2)] s(F(E1, …, En)) = F(s(E1), …, s(En)) s(X) = ifXV  s thenVelse X ID1218, Christian Schulte

  44. Matching and Substitutions • If P matches V with substitution s s=match(P,V) then s(P)=V ID1218, Christian Schulte

  45. Substitution • Assume s= {A1, B[]} • s([A|[A|[B|B]]]) = [s(A)|s([A|[B|B]])] = [1|[s(A)|s([B|B])]] = [1|[1|[s(B)|s(B)]]] = [1|[1|[[]|[]]]] ID1218, Christian Schulte

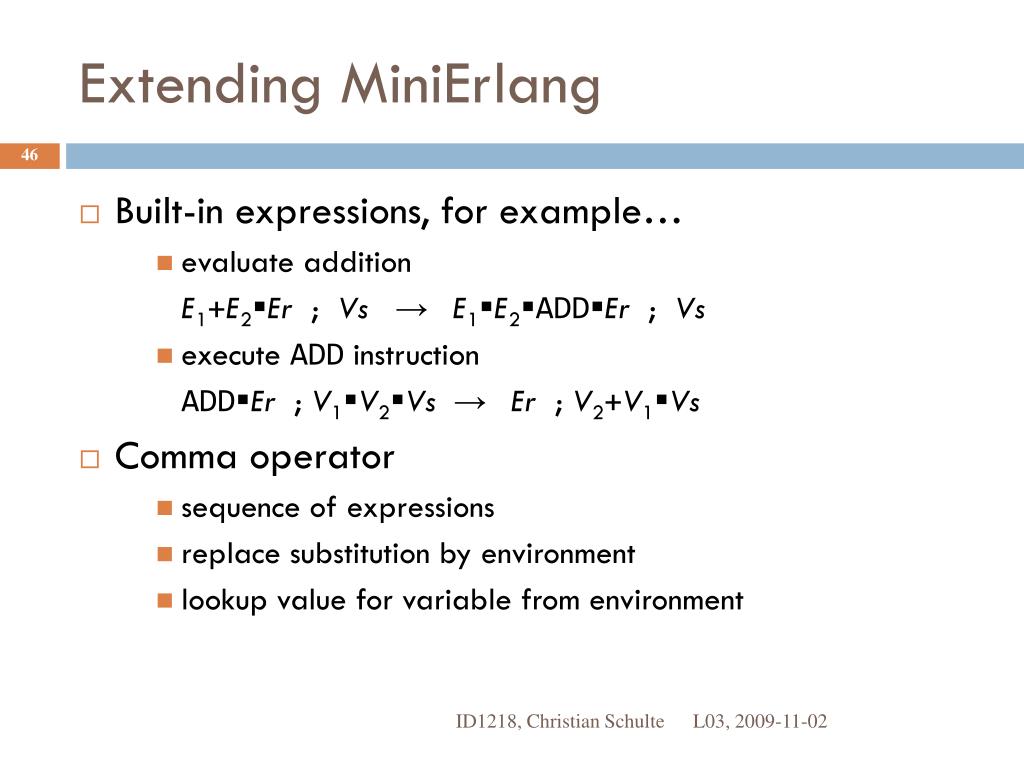

  46. Extending MiniErlang • Built-in expressions, for example… • evaluate addition E1+E2Er ; Vs → E1E2ADDEr ; Vs • execute ADD instruction ADDEr ; V1V2Vs → Er ; V2+V1Vs • Comma operator • sequence of expressions • replace substitution by environment • lookup value for variable from environment ID1218, Christian Schulte

  47. What Did We Actually Do? • Blueprint of MiniErlang implementation • operational semantics • capable of explaining how calls are handelled • stack machine • A real implementation • would statically replace (compilation) call and list construction to the respective instructions • would replace substitution by environments (registers) • …of a stack machine is the JVM! ID1218, Christian Schulte

  48. What Can We Answer • Faithful model for runtime • measure: number of function calls • all remaining operations are constant wrt function calls • Faithful model for memory • MiniErlang does not use heap memory: value stack • stack space: number of entries on either stack • space: size of entries on either stack ID1218, Christian Schulte

  49. Homework • Hand execute app/2 in MiniErlang! • Try all examples ID1218, Christian Schulte
