  1. CSCE 790E Generalized Fuzzy Clustering Modelwith Fuzzy C-Means Hong JiangComputer Science and Engineering, University of South Carolina,Columbia, SC 29208, US

  2. Abstract • Introduction • Generalized Fuzzy Clustering Model • Realization • Experiment results • Conclusion

  3. Introduction • What is Cluster Analysis? -- The classification of objects into categories. • Applications of Cluster Analysis: -- Pattern recognition, the classification of documents in information retrieval, social groupings based on various criteria, etc. • Why Fuzzy Clustering? -- Weaker requirements are desirable.

  4. Fuzzy c-means

  5. Original Objects Feature Information Cluster Information Goal Objects Feature Extractor Fuzzy Cluster Analyzer Post Treatment Generalized FuzzyClustering Model

  6. (Cont.) • Original Objects:the representation of input data obtained by measurements on objects that are to be recognized. It may be any kind of data information in any kind of data structure. • Feature Information: characteristic features extracted from the input data in terms of which the dimensionality of pattern vectors can be reduced. The features should be characterizing attributes by which the given pattern classes are well discriminated. • Cluster Information: category information obtained through cluster analysis. • Goal Objects: Final desired result, it may not be necessary.

  7. Feature Data Cluster Number Exponent (c_n) (expo) (f_n x d) (f_n) U Initialize U^expo E-step C (c_n x d) Distance Compute D (c_n x f_n) Cost M-step U (c_n x f_n) U: fuzzy partition matrix; C: center matrix; D: distance matrix. FuzzyCluster Analyzer

  8. Realization • Initialization: Generate initial fuzzy partition matrix for clustering. • U^expo: Get the matrix after exponential modification. • E-step: Get new center matrix. • Distance compute: Calculate the distance between center and input feature data. Default: Euclidean distance. • M-step: Get new fuzzy partition matrix, and cost function value (used to control the iterations).

  9. Experiment resultsexample 1

  10. Feature Data: -0.0429 -5.8091 0.0421 -6.9078 0.6455 -5.8091 -0.2485 -6.2146 -0.5465 -6.9078 -5.8091 -2.2538 -6.9078 0.5585 -4.2687 0.6092 -4.9618 0.0208 -5.5215 -1.5418 -0.5108 0 -0.1054 0.2624 0.4055 -0.3567 -1.2040 -0.1054 -0.2231 -0.5108

  11. Step: 0

  12. Step: 1

  13. Step: 10

  14. Step: 15

  15. Step: 20

  16. Step: 25

  17. Result: 0.0031 0.9952 0.0017 0.0161 0.9735 0.0105 0.0230 0.9650 0.0120 0.0006 0.9991 0.0004 0.0175 0.9701 0.0124 0.0856 0.0562 0.8583 0.0829 0.0365 0.8806 0.1562 0.0343 0.8096 0.0272 0.0083 0.9645 0.0362 0.0185 0.9453 0.9942 0.0023 0.0035 0.9660 0.0141 0.0200 0.9308 0.0347 0.0345 0.9777 0.0072 0.0151 0.9788 0.0097 0.0114

  18. Experiment resultsexample 2

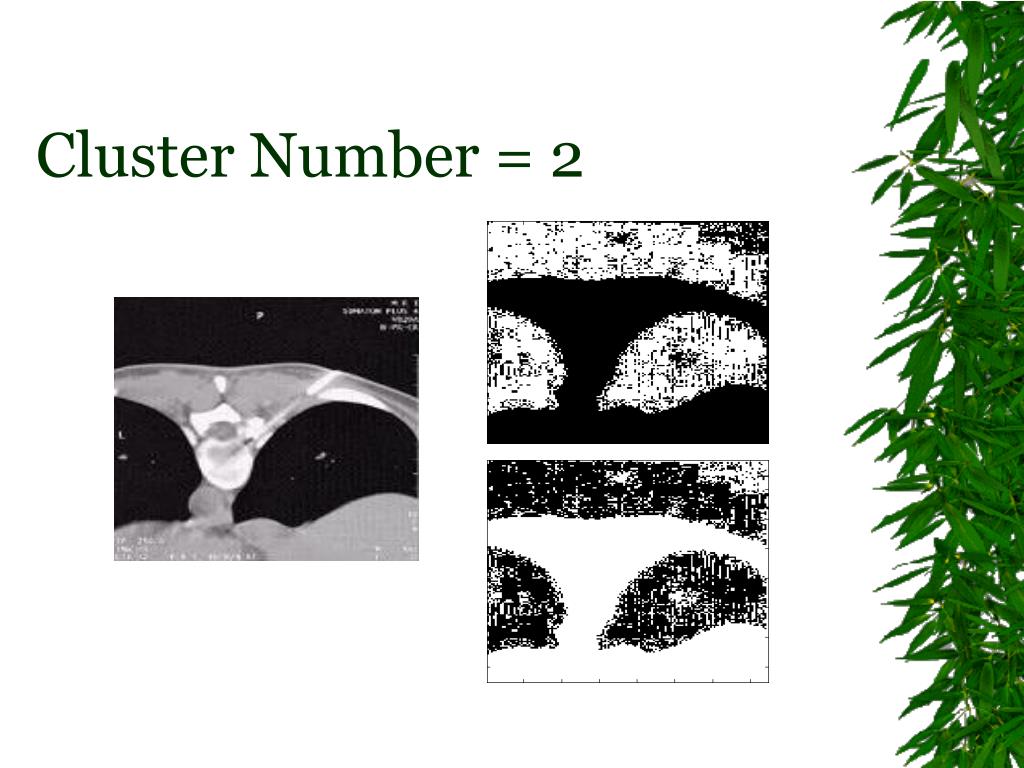

  19. Cluster Number = 2

  20. Cluster Number = 4

  21. Experiment resultsexample 3

  22. Original Image Feature data(6000x3) are obtained based on texture http://vulcan.ee.iastate.edu/~dickerson/classes/ee571x/homework/hw4soln/hw4.html

  23. Clustering Result

  24. Conclusion • Model evaluation: • Easy to understand. • Extend applications. • Independent. • Convenient to improve. • Possible improvement involved: • Obtain Feature Data (normalization, well discriminated?) • Determine Cluster Number • U^expo (time consuming, other representation) • Distance Computation (other kind of distance)

  25. Original Objects Feature Information Cluster Information Goal Objects Feature Extractor Fuzzy Cluster Analyzer Post Treatment Generalized FuzzyClustering Model

  26. Feature Data Cluster Number Exponent (c_n) (expo) (f_n x d) (f_n) U Initialize U^expo E-step C (c_n x d) Distance Compute D (c_n x f_n) Cost M-step U (c_n x f_n) U: fuzzy partition matrix; C: center matrix; D: distance matrix. FuzzyCluster Analyzer
