  1. ‘L’ Work ShopElectrical Testing

  2. 440V 440V ER1-1-2 ER1-1-1 440V ER1-1 ER1-1-1 ER1-1-2 ER1-1-3 Via Tx 115V ER1-1-3 5A SOCKETS 2E ER1-1-3-1 ER1-1-3-2 115V ER1-1-3-2 Lights 2E Lights 2E Red Lighting

  3. RN FUSE PANEL

  4. Test Points RN FUSE PANEL

  5. 440v 0v POTENTIAL DIFFERNCE 440v 440v 440v 440v 0v 0v

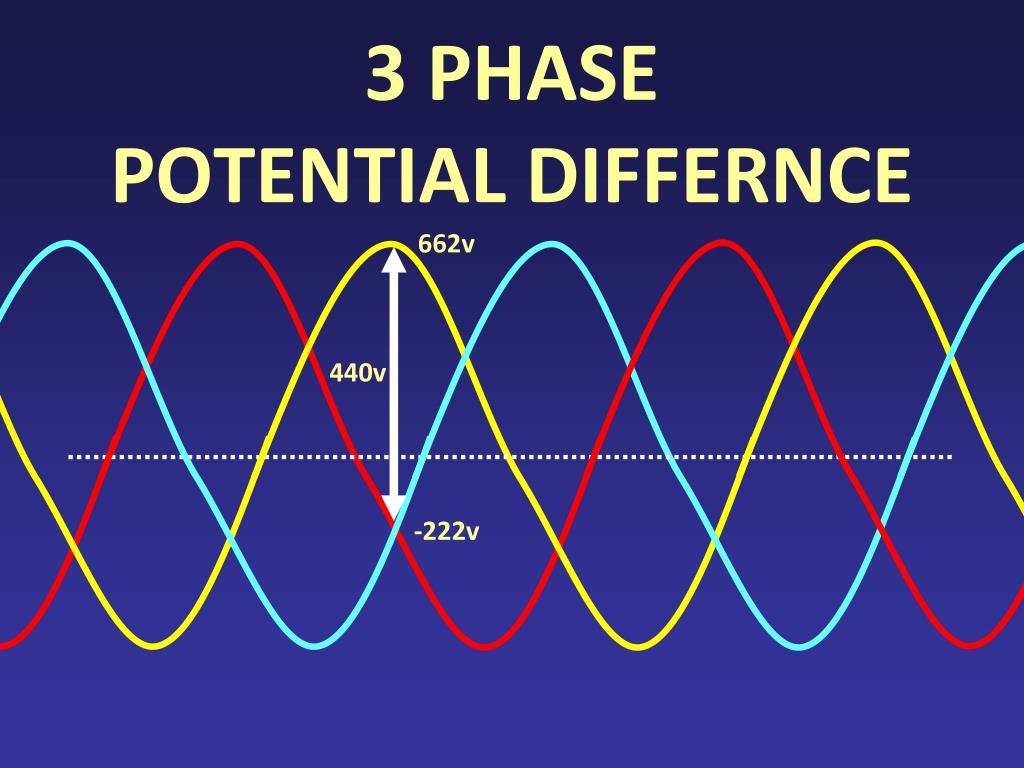

  6. 662v 3 PHASEPOTENTIAL DIFFERNCE 440v -222v

  7. UNITESTER

  8. UNITESTER OFFLOAD

  9. UNITESTER OFFLOAD

  10. UNITESTER OFFLOAD

  11. UNITESTER OFFLOAD

  12. UNITESTER OFFLOAD

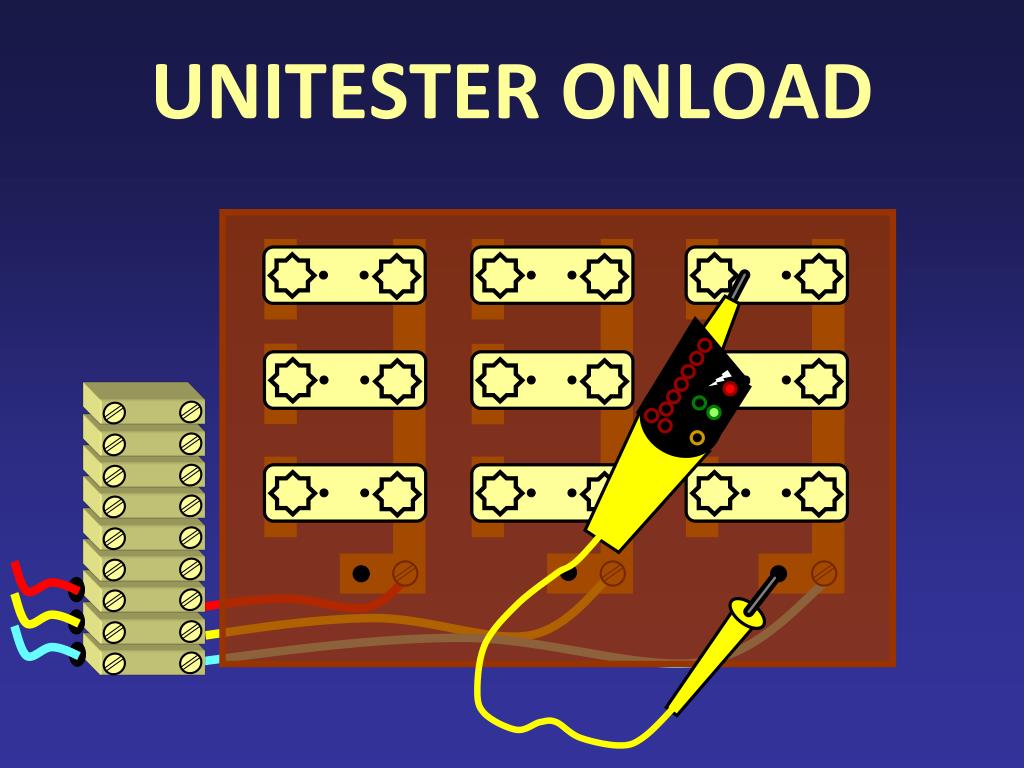

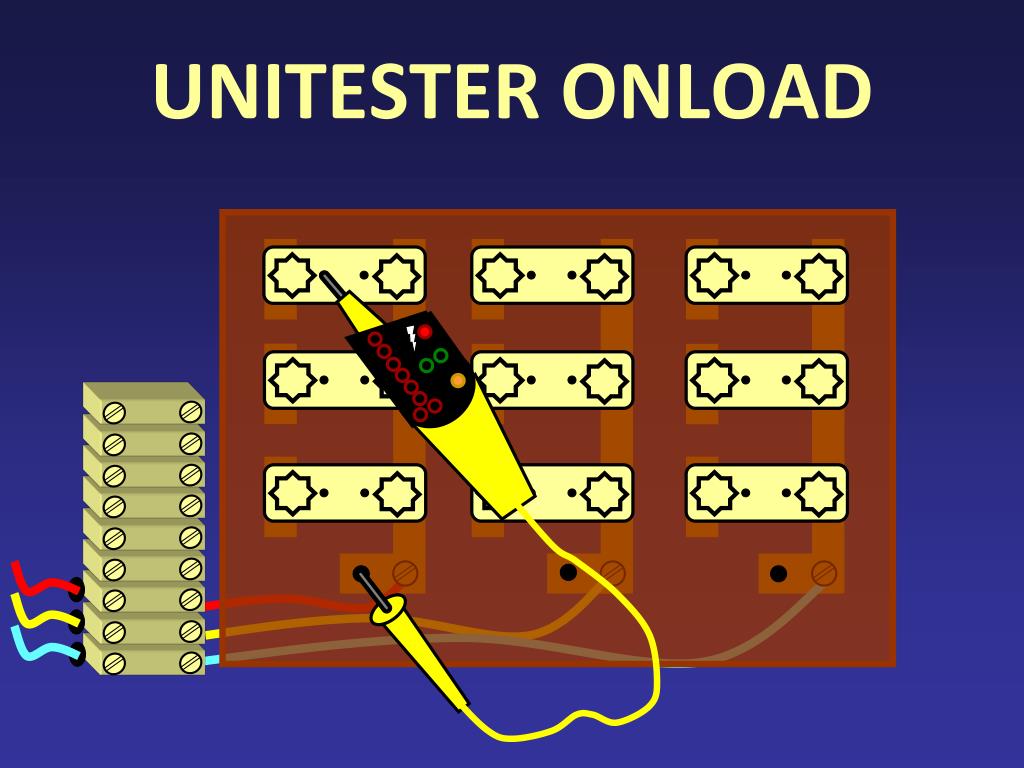

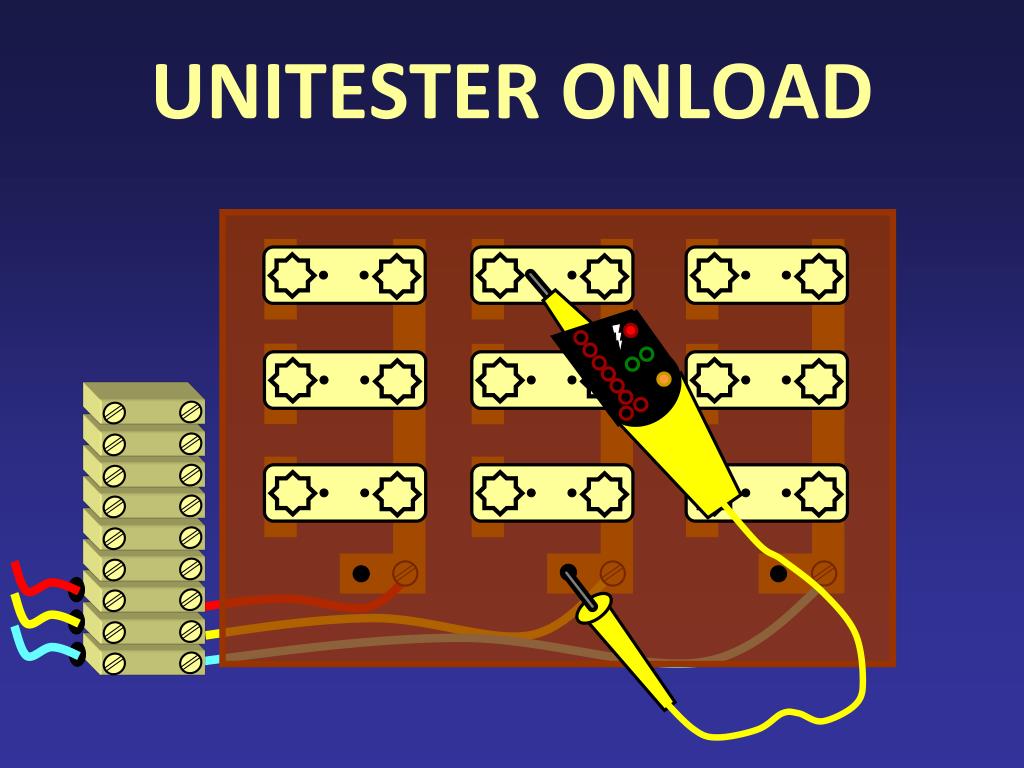

  13. UNITESTER ONLOAD

  14. UNITESTER ONLOAD

  15. UNITESTER ONLOAD

  16. UNITESTER ONLOAD

  17. FLUKE 89 IV -|(- Ω °C A mV mA V ŲA mV A mA V ŲA OFF View MEM FLUKE

  18. FLUKE 89 IV 440.27 AC V FLUKE OFFLOAD | | | | |AUTO -|(- Ω °C A mV mA V ŲA mV A mA V ŲA OFF

  19. FLUKE 89 IV 0.0038 AC V FLUKE ONLOAD | | | | |AUTO -|(- Ω °C A mV mA V ŲA mV A mA V ŲA OFF

  20. FLUKE 89 IV 0.0027 AC V FLUKE OFFLOAD | | | | |AUTO -|(- Ω °C A mV mA V ŲA mV A mA V ŲA OFF

  21. FLUKE 89 IV 440.38 AC V FLUKE ONLOAD | | | | |AUTO -|(- Ω °C A mV mA V ŲA mV A mA V ŲA OFF

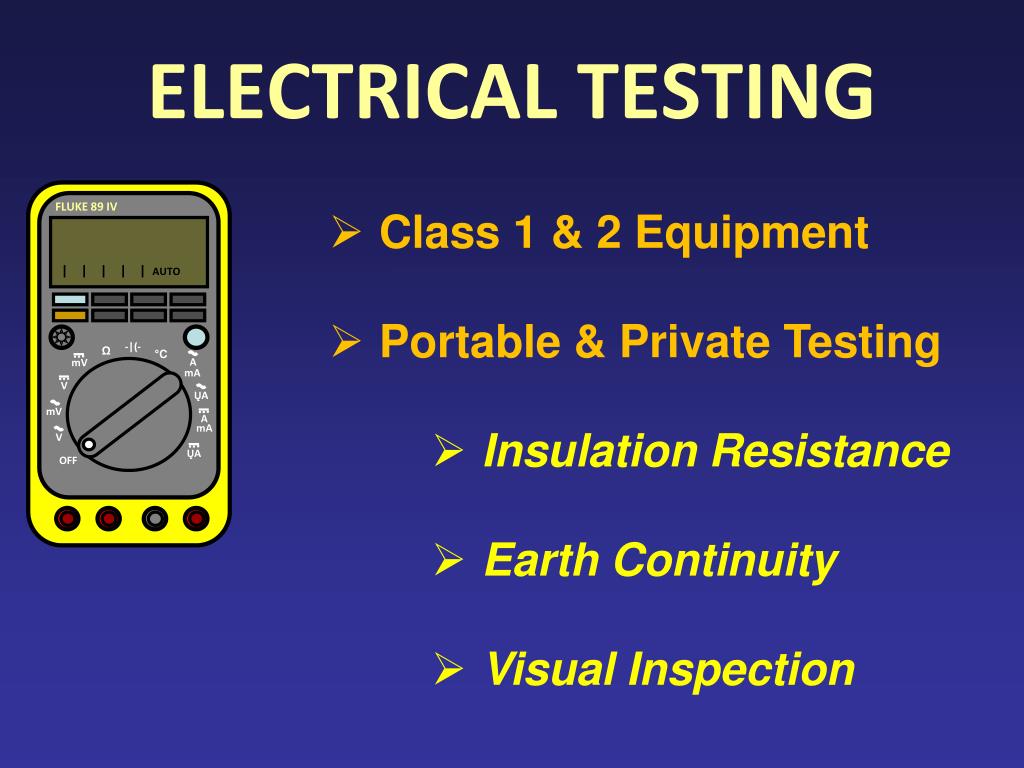

  22. FLUKE 89 IV • Class 1 & 2 Equipment • Portable & Private Testing • Insulation Resistance • Earth Continuity • Visual Inspection ELECTRICAL TESTING | | | | |AUTO -|(- Ω °C A mV mA V ŲA mV A mA V ŲA OFF

  23. FLUKE 89 IV • Class 1 • Fitted with METAL cases • 0.25Ω Earth Continuity • Class 2 • Safety depends on insulation • Doesn’t require Earth Continuity CLASS 1&2 EQUIPMENT | | | | |AUTO -|(- Ω °C A mV mA V ŲA mV A mA V ŲA OFF

  24. Portable • Class 1 (Earthed) or Class 2 • 115V Only • Draws Less than 20A • 6 Monthly or 24 Monthly • Private • Class 1 (Earthed) or Class 2 • 115V or 240V (if plugged into an amenity panel) • Draws less than 13A (at 240V) 15A (at 115V) • Once Passed becomes a • 6 Monthly Visual Inspection PORTABLE & PRIVATE

  25. Double Insulated Cable FLUKE 89 IV OL MΩ INSULATION RESISTANCE | | | | |AUTO -|(- Ω °C A mV mA V ŲA mV A mA • Single Insulated • Cables V ŲA OFF

  26. FLUKE 89 IV 0.02 Ω EARTH CONTINUITY | | | | |AUTO -|(- Ω °C A mV mA V ŲA mV A mA V ŲA OFF

  27. VISUAL INSPECTION

  28. ‘L’ Work Shop ☺
