  1. Refuting Untrue Verification Conditions Diego S. Zaccai - The Ohio State University

  2. Introduction • Most of the focus has been on proving VCs we assume to be right. • Most programmers will make mistakes • Our current tools time out most of the time when faced with a VC that is not true True False Provable Refutable

  3. An Example procedureMultiply (updates n: Natural, restores m: Natural) decreasesm variablezero: Natural ifAreEqual (m, zero) then Clear (n) else variableone: Natural Increment (one) ifIsGreater (m, one) then variablenCopy: Natural nCopy:= Replica (n) Decrement (m) Multiply (n, m) // Increment (m) Add (n, nCopy) endif endif endMultiply

  4. An Example (Cont.)

  5. A Sample Untrue VC Verification Condition #5 (state index: 14, parameter mode) ⌚ Prove m0– 1 = m0 Given • 0 ≤ n0 • 0 ≤ m0 • 0 ≤ 0 • 0 ≤ 0 + 1 • 0 ≤ m0 – 1 • 0 ≤ n0 × (m0 – 1) • 0 ≤ n0 × (m0 – 1) + n0 • 0 + 1 < m0 • m0 ≠ 0

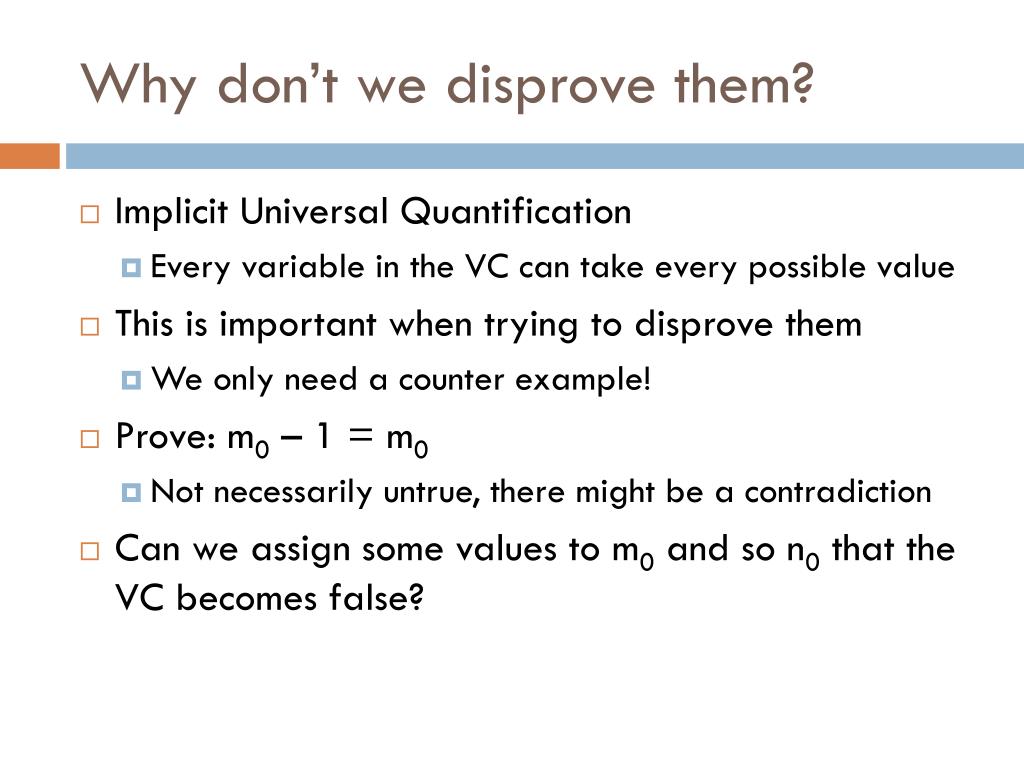

  6. Why don’t we disprove them? • Implicit Universal Quantification • Every variable in the VC can take every possible value • This is important when trying to disprove them • We only need a counter example! • Prove: m0 – 1 = m0 • Not necessarily untrue, there might be a contradiction • Can we assign some values to m0 and so n0 that the VC becomes false?

  7. Small Scope Hypothesis • A high proportion of the bugs in code can be found by testing the program for all “small” inputs • Easy enough for Integers and Naturals • Start with zero and “count” up in each variable • Not so obvious for more complex types • Text: Create predefined Strings • Sets: The elements inside are usually not part of the VC • ArrayOfIntegerAsStringFacility? • We do have the model in the VC…

  8. Improving the Search of States • Take into account simple enough givens • 0 ≤ n0 • 0 ≤ m0 • No all of them will be useful • 0 ≤ n0 × (m0 – 1) + n0 • Too complex to create a useful relation between the variables • Cannot replace the original test cases • Just improve on them by refining the state spaces we are interested in

  9. Conclusion • We could take small steps towards providing negative answers • Huge step in terms of usability • Could be able to find counter examples • Is it finally the end of debugging as we know it? • Could potentially end up with yet another tool timing out…

  10. Thank You • Questions? • Comments?
