Presentation Transcript


  1. A类ONU

  2. A类ONU-HG810E 尺寸:215×160×30 供电和功率:8W/220V 接口:上行:1EPON,下行:1GE/100M/10M

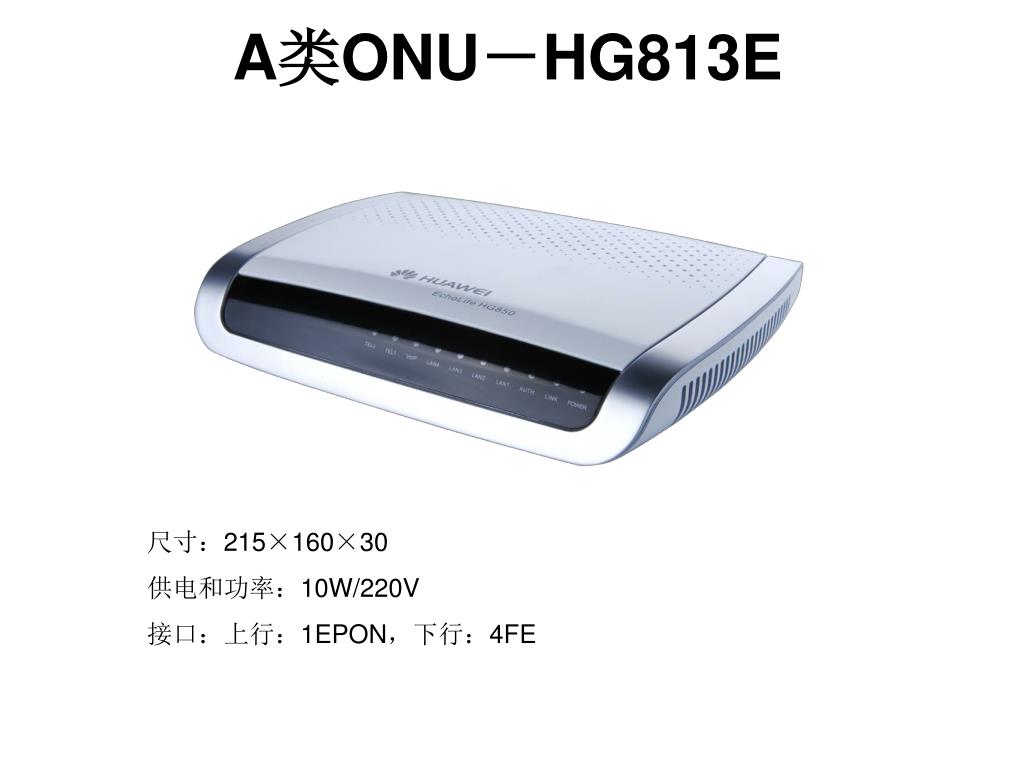

  3. A类ONU-HG813E 尺寸:215×160×30 供电和功率:10W/220V 接口:上行:1EPON,下行:4FE

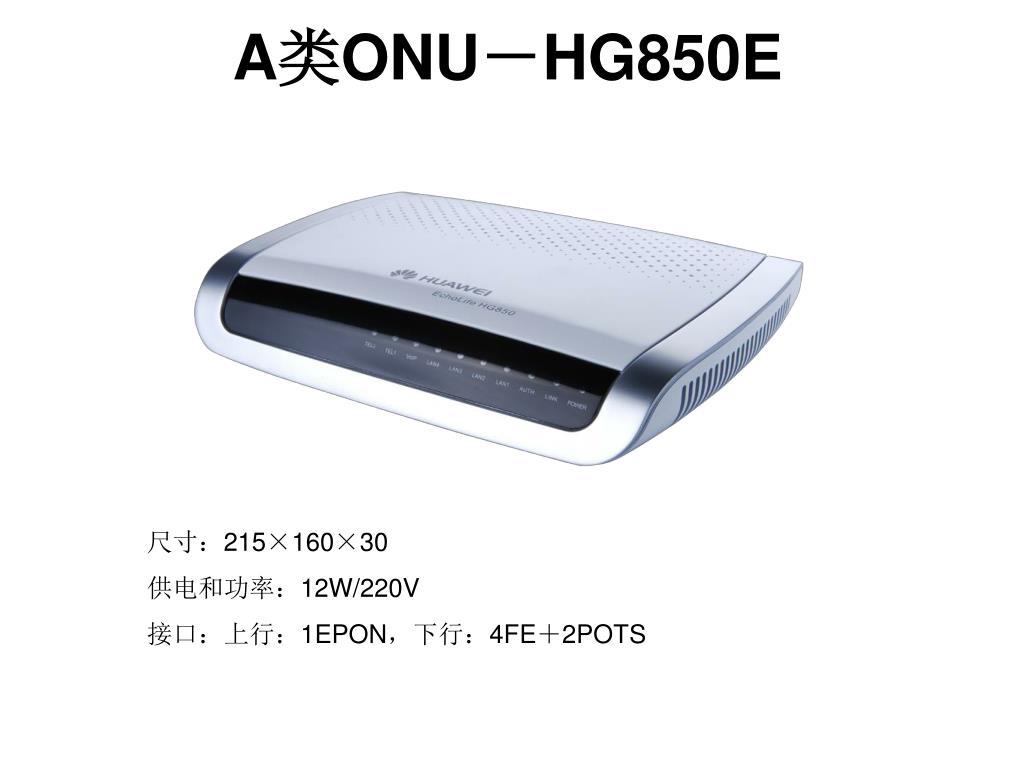

  4. A类ONU-HG850E 尺寸:215×160×30 供电和功率:12W/220V 接口:上行:1EPON,下行:4FE+2POTS

  5. B类ONU

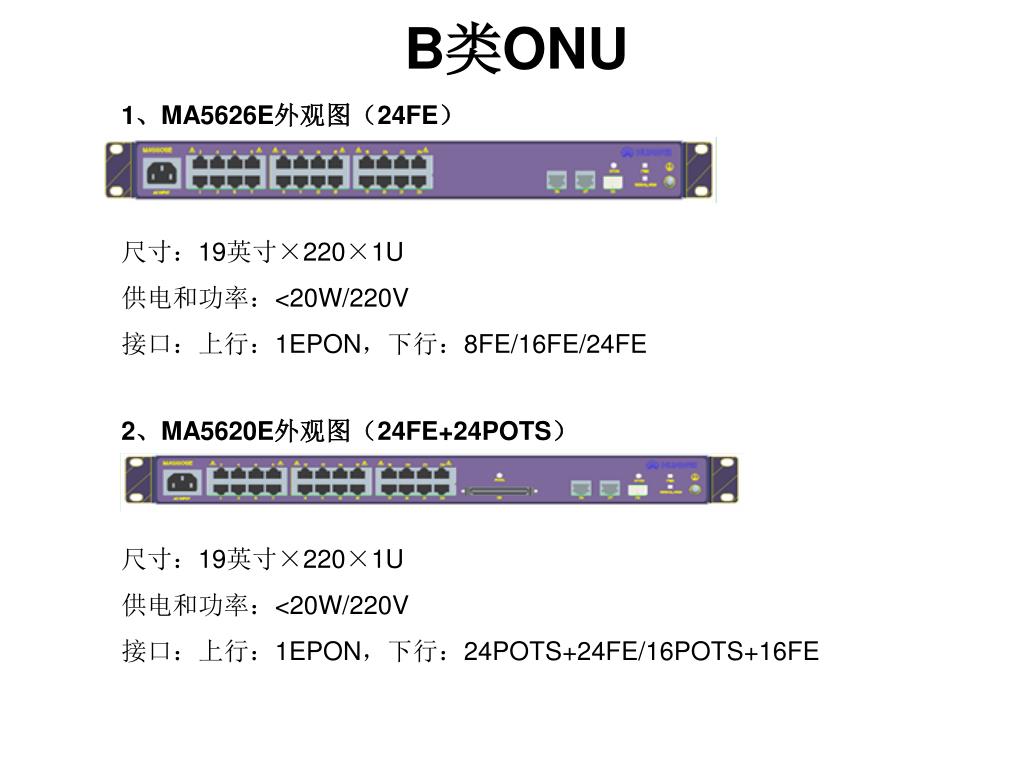

  6. B类ONU 1、MA5626E外观图(24FE) 尺寸:19英寸×220×1U 供电和功率:<20W/220V 接口:上行:1EPON,下行:8FE/16FE/24FE 2、MA5620E外观图(24FE+24POTS) 尺寸:19英寸×220×1U 供电和功率:<20W/220V 接口:上行:1EPON,下行:24POTS+24FE/16POTS+16FE

  7. C类ONU

  8. C类ONU-MA5606T 尺寸:436×300×88.9 供电和功率:120W/220V/48V 接口:上行:1个EPON口,下行:64个ADSL/ADSL2+用户接口 或48个VDSL2用户接口或32个POS用户接口;

  9. 家庭网关

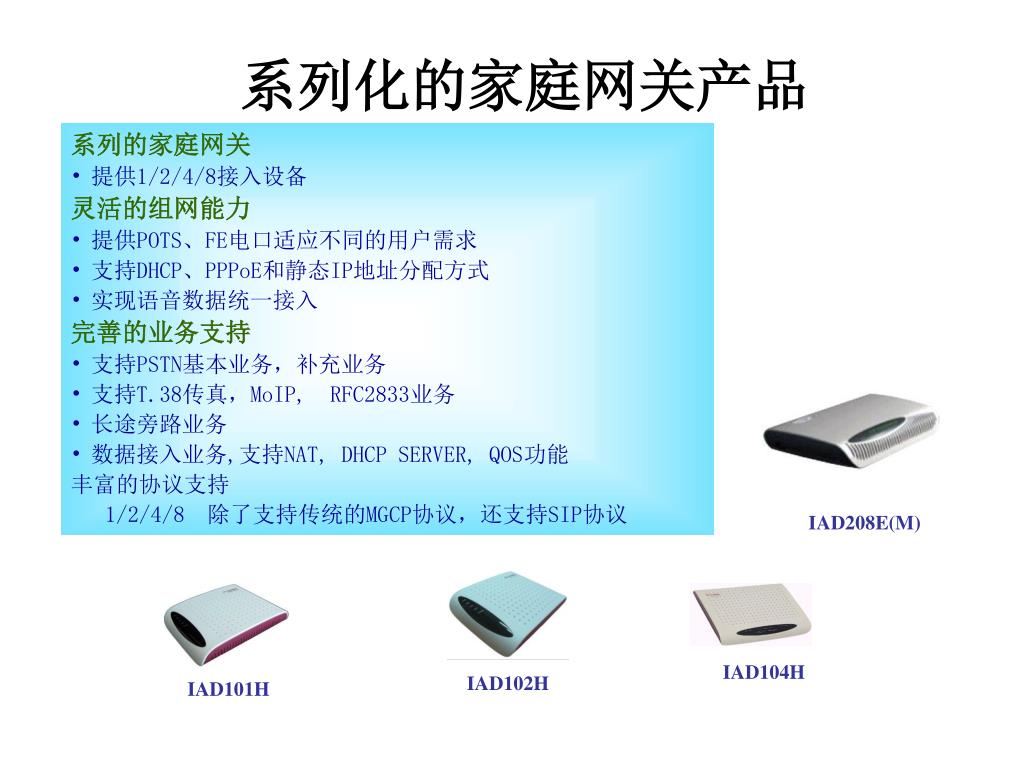

  10. 系列化的家庭网关产品 • 系列的家庭网关 • 提供1/2/4/8接入设备 • 灵活的组网能力 • 提供POTS、FE电口适应不同的用户需求 • 支持DHCP、PPPoE和静态IP地址分配方式 • 实现语音数据统一接入 • 完善的业务支持 • 支持PSTN基本业务,补充业务 • 支持T.38传真,MoIP, RFC2833业务 • 长途旁路业务 • 数据接入业务,支持NAT, DHCP SERVER, QOS功能 • 丰富的协议支持 • 1/2/4/8 除了支持传统的MGCP协议,还支持SIP协议 IAD208E(M) IAD104H IAD102H IAD101H

  11. IAD

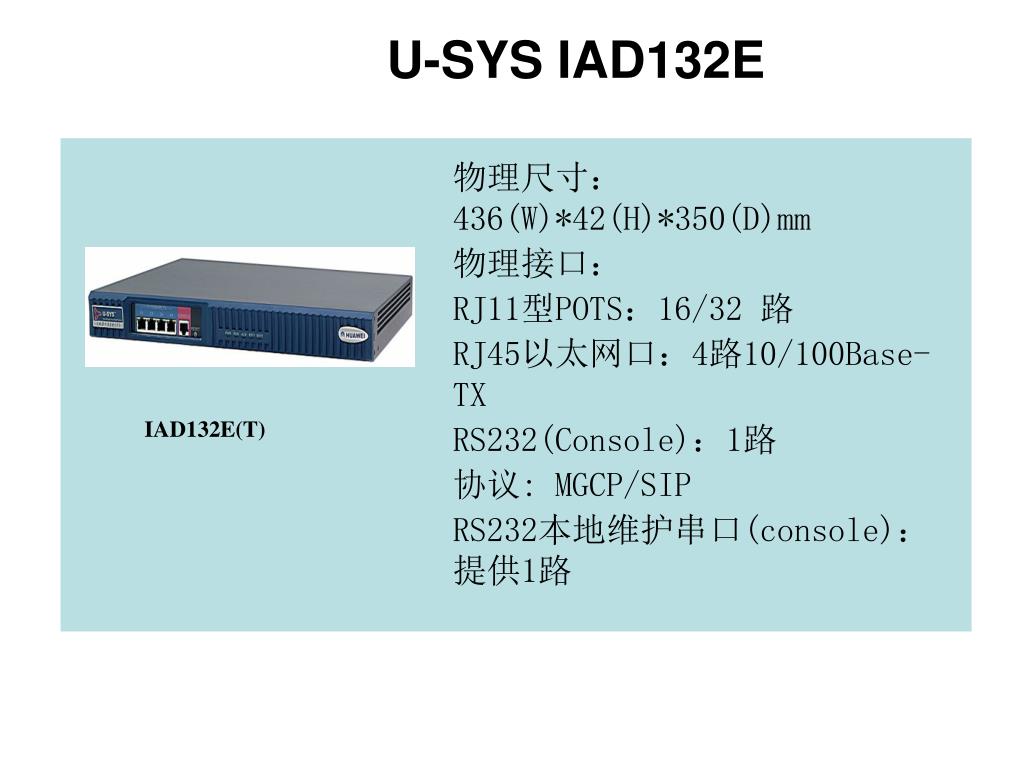

  12. U-SYS IAD132E 物理尺寸: 436(W)*42(H)*350(D)mm 物理接口: RJ11型POTS:16/32 路 RJ45以太网口:4路10/100Base-TX RS232(Console):1路 协议: MGCP/SIP RS232本地维护串口(console):提供1路 IAD132E(T)

  13. 综合接入

  14. F01E200 上行:2个FE,下行:192POTS+64/32DSL,内置电源、电池、配线架、ODF等

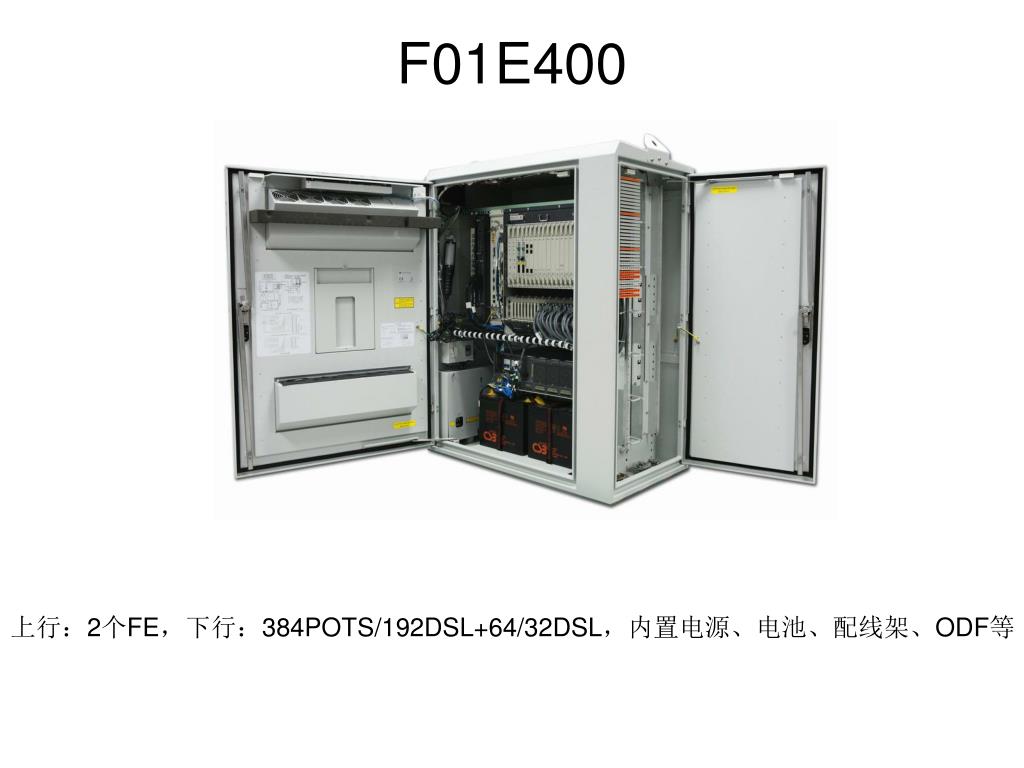

  15. F01E400 上行:2个FE,下行:384POTS/192DSL+64/32DSL,内置电源、电池、配线架、ODF等

  16. F01D200 上行:2个FE,下行:384POTS/192DSL,内置电源、电池、配线架、ODF等

  17. F01D500 上行:2个FE,下行:960POTS/480DSL,内置电源、电池、配线架、ODF等

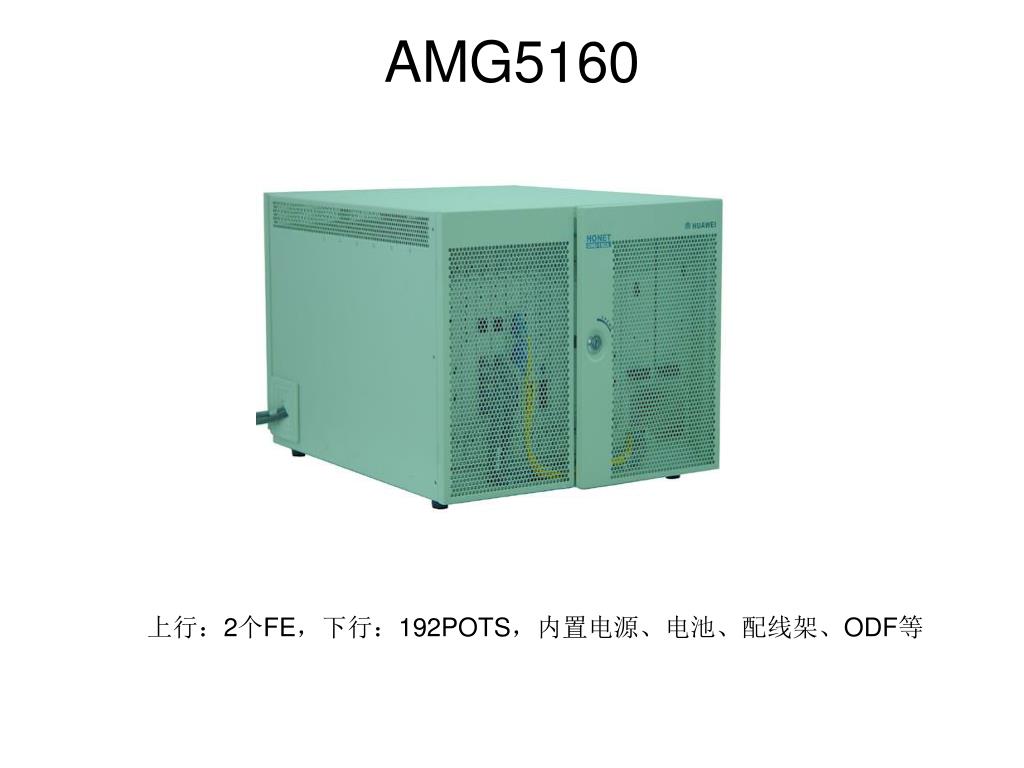

  18. AMG5160 上行:2个FE,下行:192POTS,内置电源、电池、配线架、ODF等

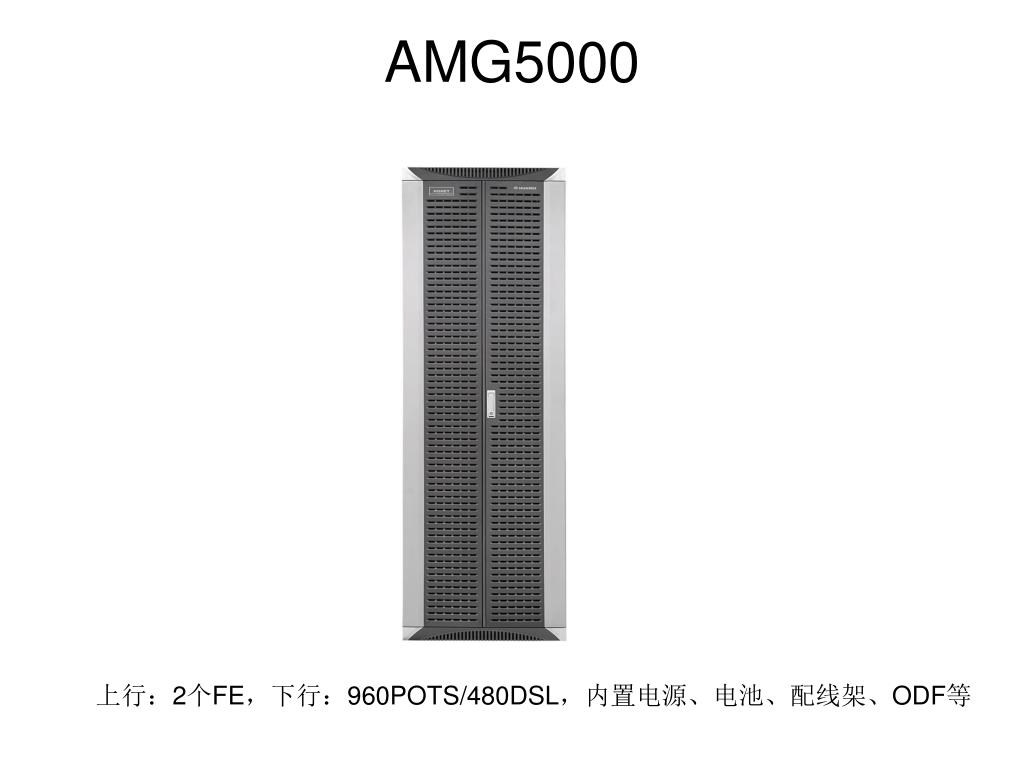

  19. AMG5000 上行:2个FE,下行:960POTS/480DSL,内置电源、电池、配线架、ODF等

  20. 小型DSLAM

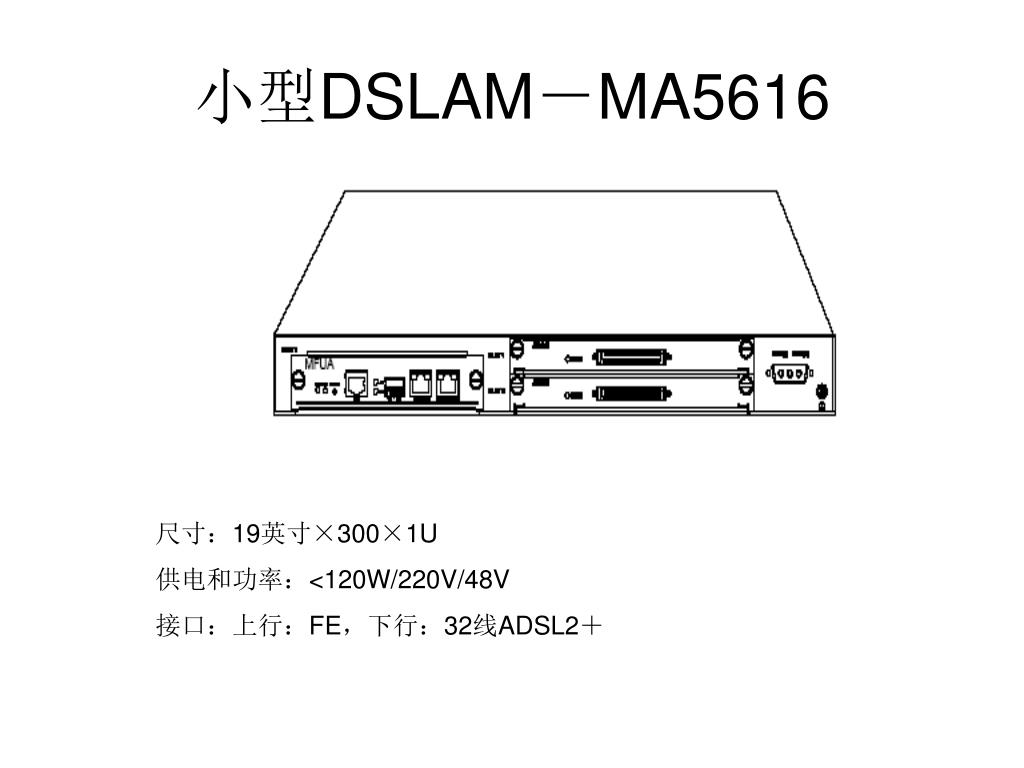

  21. 小型DSLAM-MA5616 尺寸:19英寸×300×1U 供电和功率:<120W/220V/48V 接口:上行:FE,下行:32线ADSL2+
