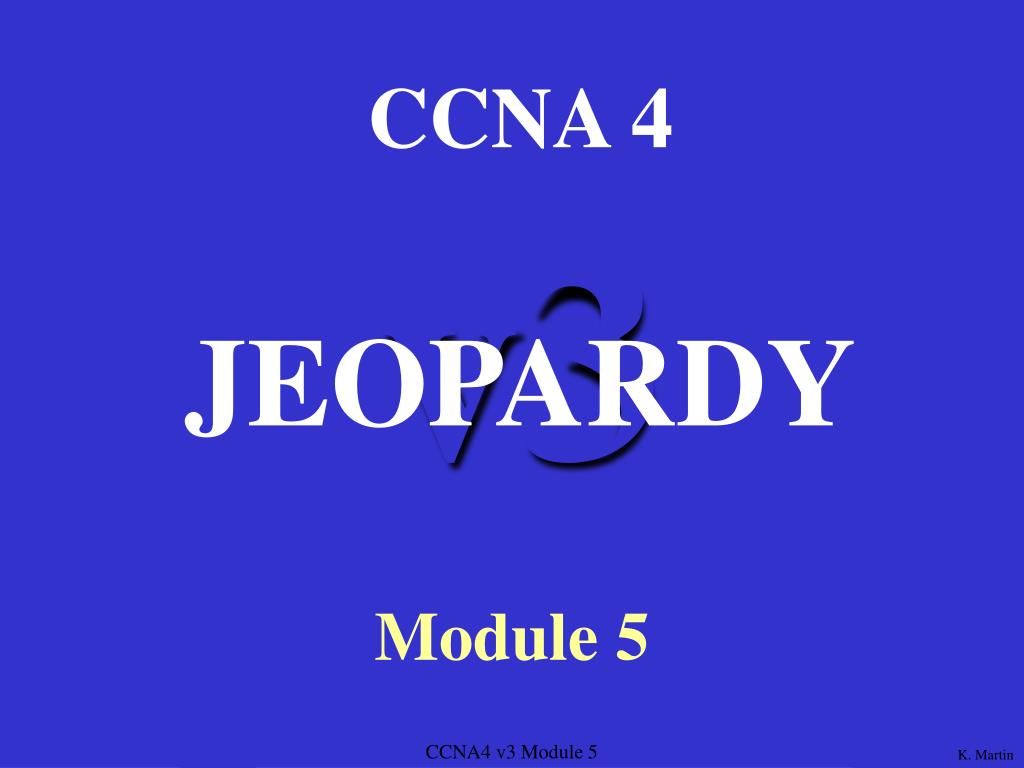

  1. CCNA 4 v3 JEOPARDY Module 5 K. Martin

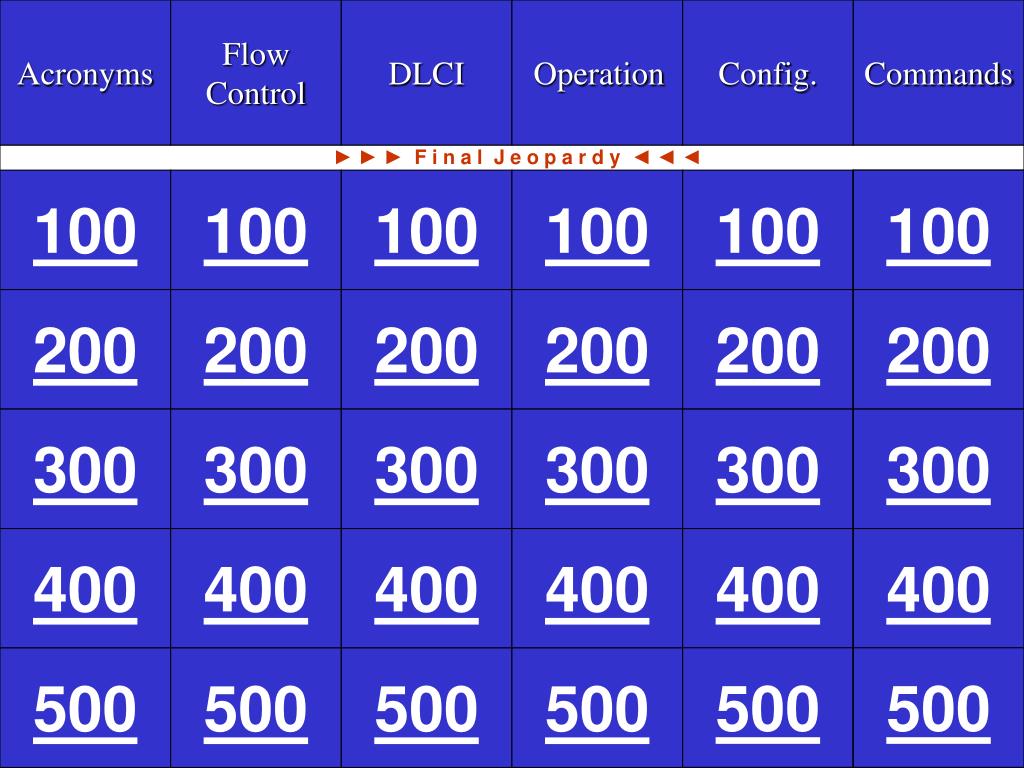

  2. Router Modes Router Modes Acronyms Flow Control WAN Encapsulation WAN Encapsulation DLCI WAN Services WAN Services Operation Router Basics Router Basics Config. Router Commands Router Commands Commands ► ► ► F i n a l J e o p a r d y ◄ ◄ ◄ 100 100 100 100 100 100 100 100 200 200 200 200 200 200 200 200 300 300 300 300 300 300 300 300 400 400 400 400 400 400 400 400 500 500 500 500 500 500 500 500

  3. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms100 EIR A: What is Excess Information Rate? CCNA4 v3 Module 5

  4. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms200 DLCI A: What is Data Link Channel Identifier? CCNA4 v3 Module 5

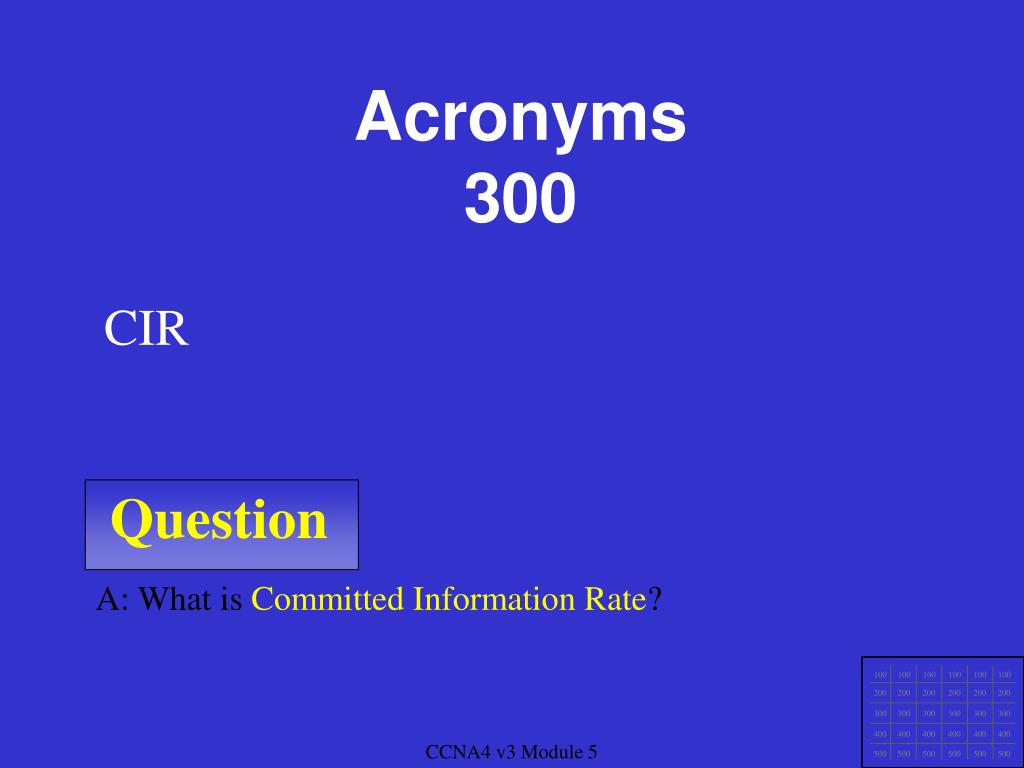

  5. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms300 CIR A: What is Committed Information Rate? CCNA4 v3 Module 5

  6. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms400 DE A: What is Discard Eligibility? CCNA4 v3 Module 5

  7. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Acronyms500 LMI A: What is Link Management Interface? CCNA4 v3 Module 5

  8. 100 100 100 100 100 100 100 100 100 100 100 100 200 200 200 200 200 200 200 200 200 200 200 200 Question 300 300 300 300 300 300 300 300 300 300 300 300 400 400 400 400 400 400 400 400 400 400 400 400 500 500 500 500 500 500 500 500 500 500 500 500 Flow Control 100 The dedicated bandwidth guaranteed to a virtual circuit. A: What is the CIR? CCNA4 v3 Module 5

  9. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Flow Control 200 The time interval over which rates are calculated. A: What is the Committed Time (TC)? CCNA4 v3 Module 5

  10. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Flow Control 300 The amount of possible bandwidth over the CIR. A: What is the EIR? CCNA4 v3 Module 5

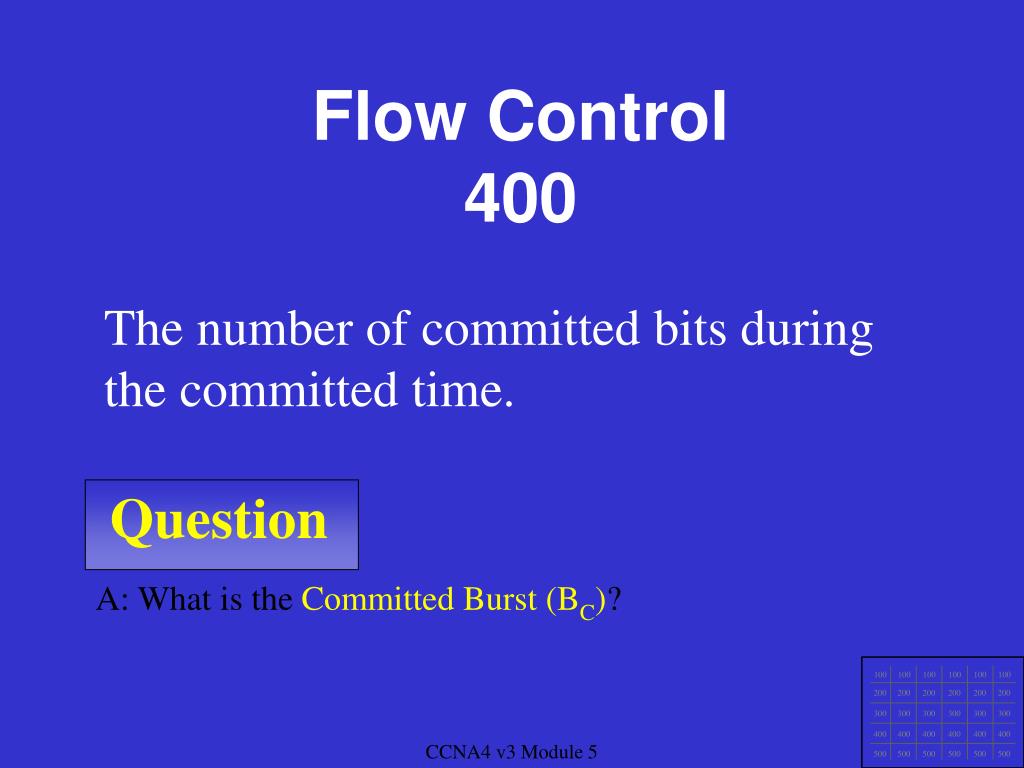

  11. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Flow Control 400 The number of committed bits during the committed time. A: What is the Committed Burst (BC)? CCNA4 v3 Module 5

  12. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Flow Control 500 The extra number of bits allowed on the VC. A: What is the Excess Burst (Be)? CCNA4 v3 Module 5

  13. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DLCI 100 The number of bits in a DLCI address. A: What is 10 bits? CCNA4 v3 Module 5

  14. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DLCI 200 DLCIs are used to identify these. A: What are VCs? CCNA4 v3 Module 5

  15. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DLCI 300 An association between dlci numbers and ip addresses. A: What is a Frame relay map? CCNA4 v3 Module 5

  16. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DLCI 400 The range of DLCI addresses. A: What is 0 - 1023? CCNA4 v3 Module 5

  17. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 DLCI 500 This is meant when it is said that a DLCI is locally significant. A: What is the DLCI only applies to the connection between the local router and the local frame relay switch? CCNA4 v3 Module 5

  18. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Operation 100 Another name for a Frame Relay star topology. A: What is Hub and Spoke? CCNA4 v3 Module 5

  19. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Operation 200 In order to map a network layer address to a VC, a router sends one of these on each VC. A: What is anInverse ARP message? CCNA4 v3 Module 5

  20. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Operation 300 Frame Relay does this with an erroneous frame. A: What isDiscards the frame without notifying the sender? CCNA4 v3 Module 5

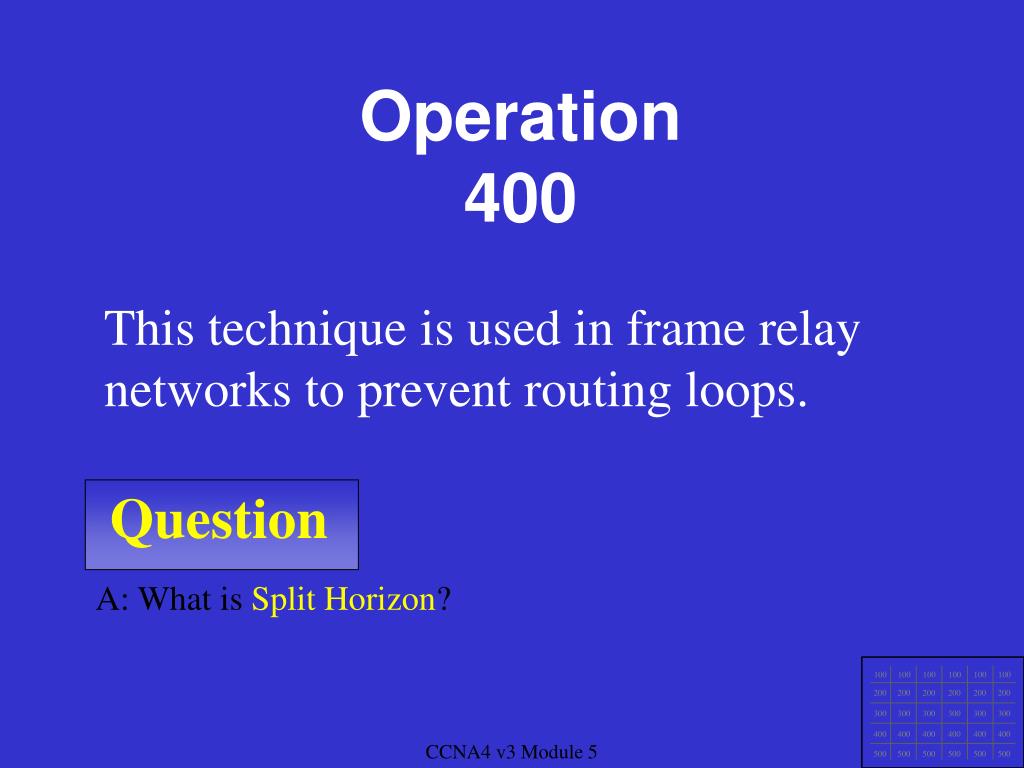

  21. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Operation 400 This technique is used in frame relay networks to prevent routing loops. A: What is Split Horizon? CCNA4 v3 Module 5

  22. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Operation 500 Frame Relay was originally part of this other WAN technology. A: What is ISDN? CCNA4 v3 Module 5

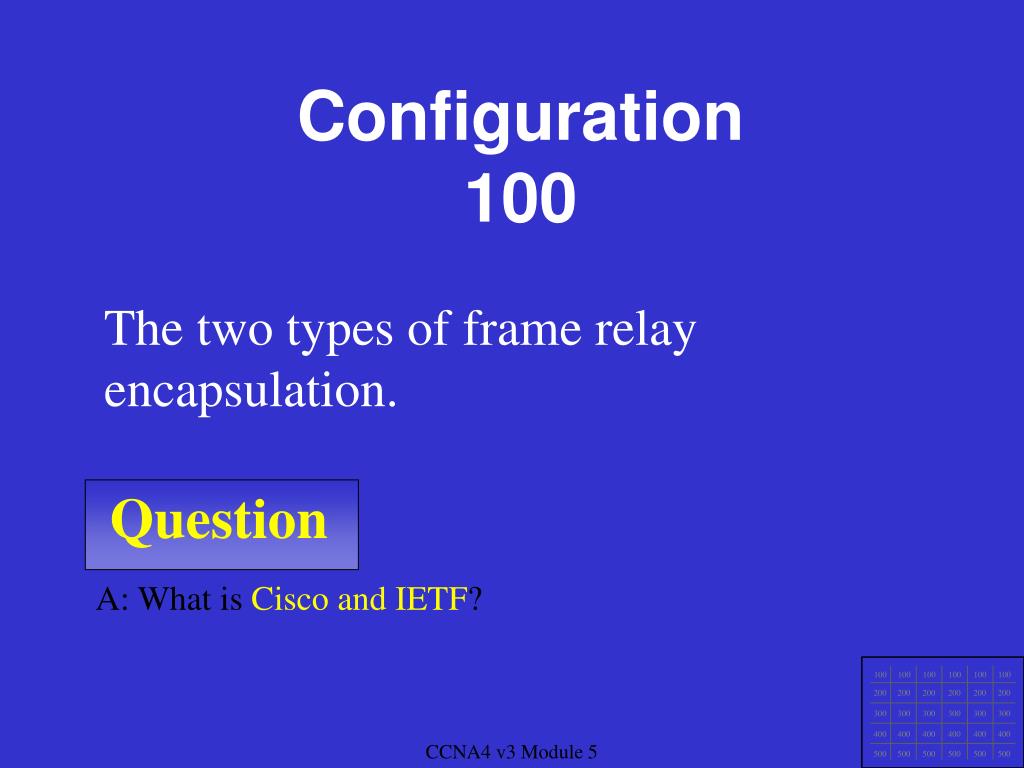

  23. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Configuration 100 The two types of frame relay encapsulation. A: What is Cisco and IETF? CCNA4 v3 Module 5

  24. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Configuration 200 The three lmi types. A: What are Cisco, Ansi, q933a? CCNA4 v3 Module 5

  25. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Configuration 300 In order for one physical interface to have multiple VCs, these must be configured. A: What are multiple sub-interfaces? CCNA4 v3 Module 5

  26. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Configuration 400 This configuration is used when the subinterfaces of a physical interface are each in a different subnet. A: What is Point-to-point? CCNA4 v3 Module 5

  27. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Configuration 500 This configuration is used when the subinterfaces of a physical interface are all in the same subnet. A: What is Multipoint? CCNA4 v3 Module 5

  28. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Commands 100 Use this command to verify that the correct frame relay encapsulation type has been set. A: What is show interfaces serial? CCNA4 v3 Module 5

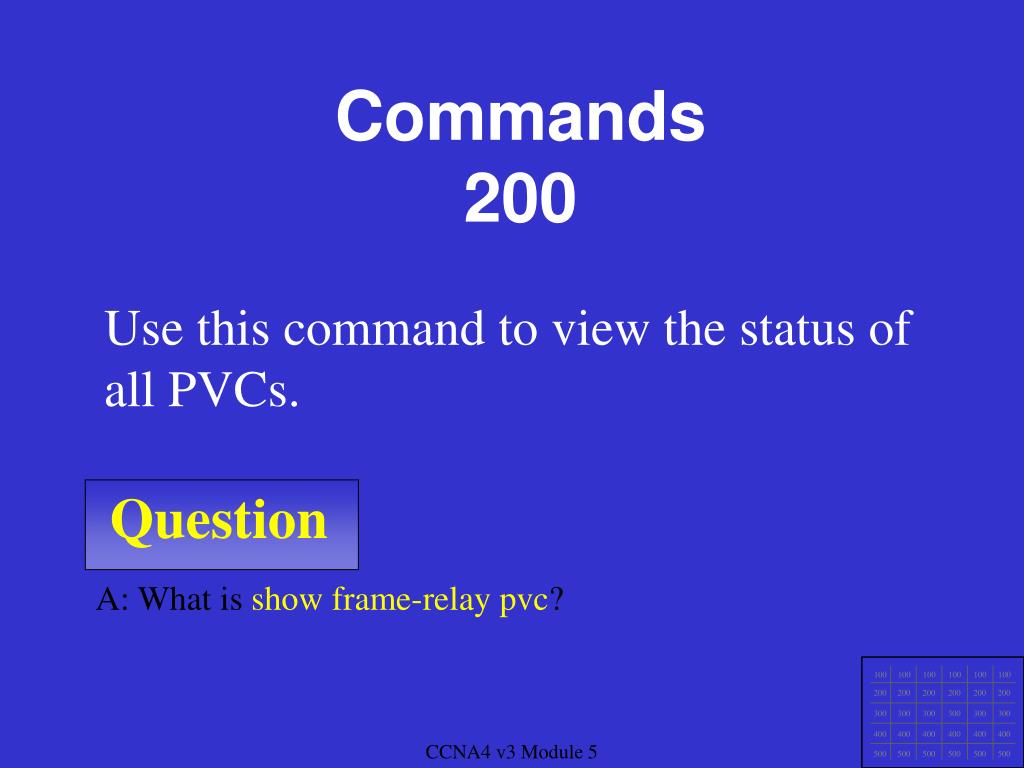

  29. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Commands 200 Use this command to view the status of all PVCs. A: What is show frame-relay pvc? CCNA4 v3 Module 5

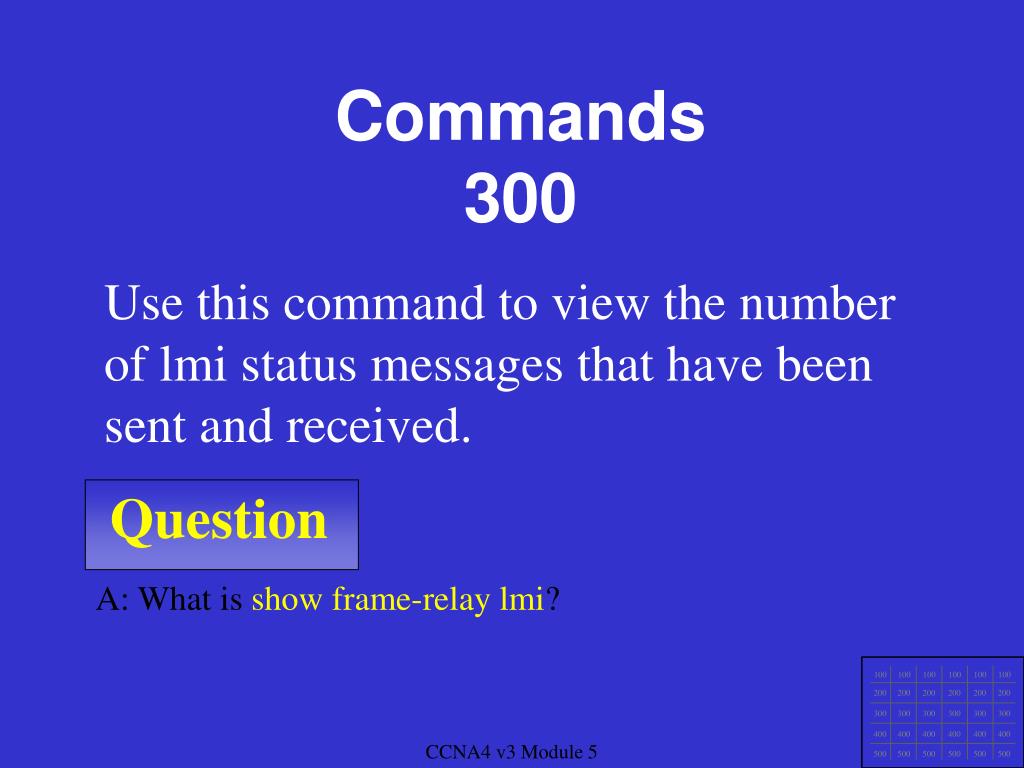

  30. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Commands 300 Use this command to view the number of lmi status messages that have been sent and received. A: What is show frame-relay lmi? CCNA4 v3 Module 5

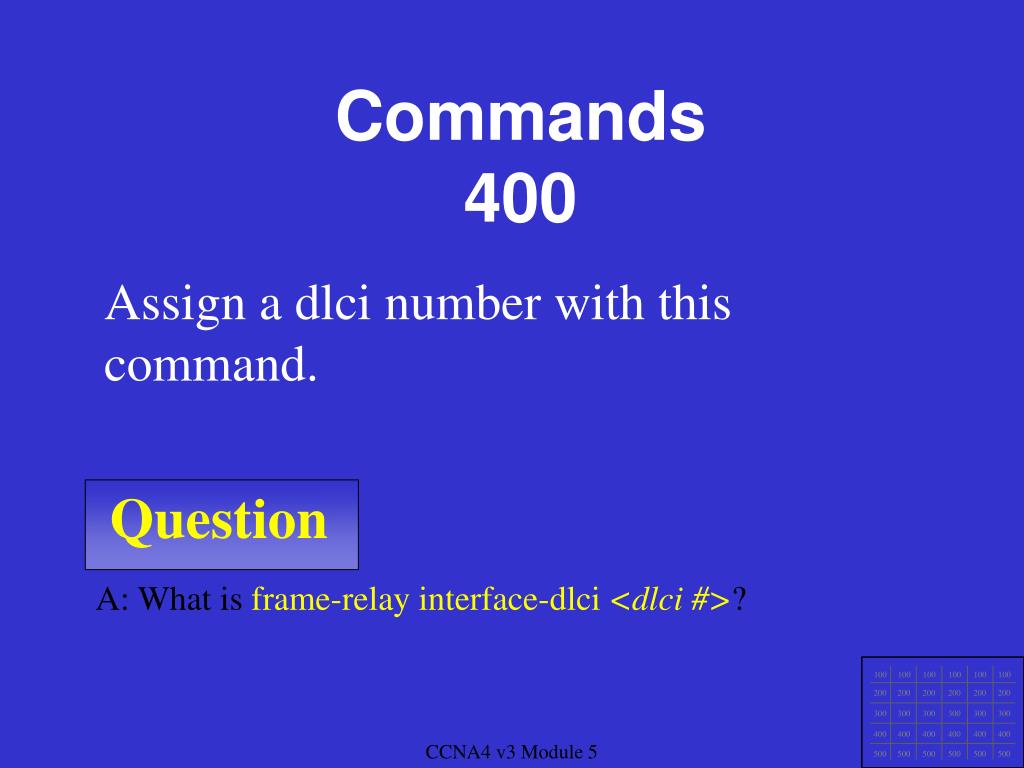

  31. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Commands 400 Assign a dlci number with this command. A: What is frame-relay interface-dlci <dlci #>? CCNA4 v3 Module 5

  32. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Commands 500 Use this command set the lmi type of a pvc to ansi. A: What is frame-relay lmi-type ansi? CCNA4 v3 Module 5

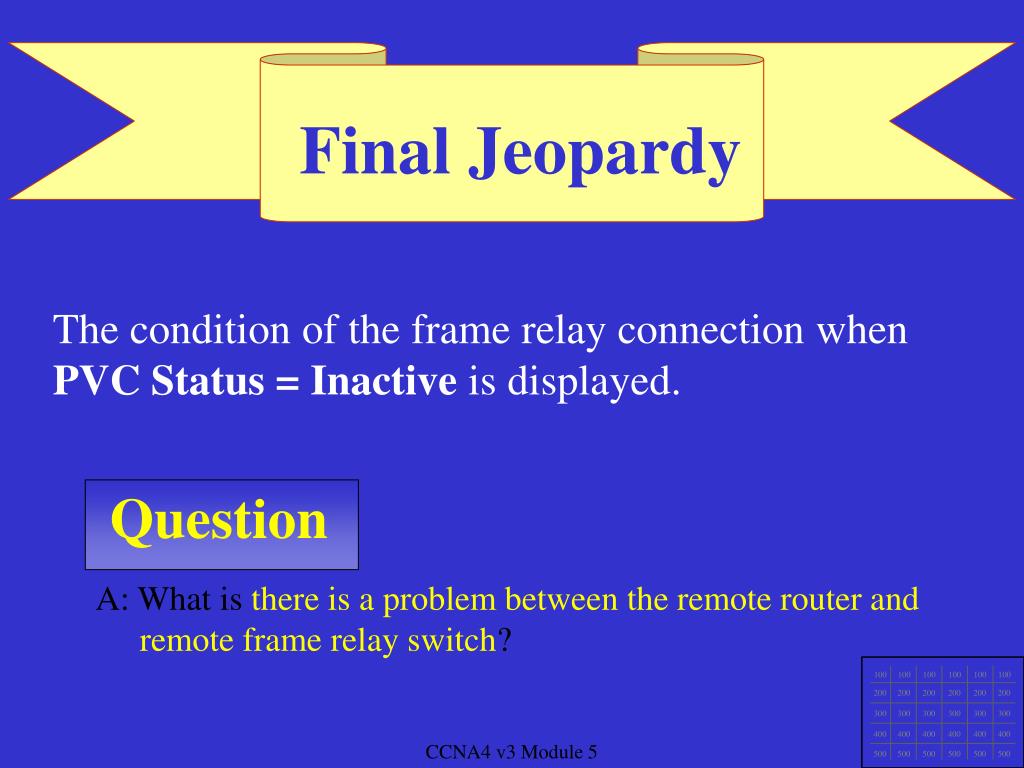

  33. 100 100 100 100 100 100 200 200 200 200 200 200 Question 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500 Final Jeopardy The condition of the frame relay connection when PVC Status = Inactive is displayed. A: What is there is a problem between the remote router and remote frame relay switch? CCNA4 v3 Module 5
