  1. Sewer Modeling Package Selection Process as it Relates to GIS and Usability Olathe Municipal Services

  2. Topics • EPA SWMM Engine • General Requirements of the Software • Design of the Pilot Project • GIS Users vs. Engineers

  3. Storm Water Management Model (SWMM) • SWMM was first developed in 1971 • Analysis and design related to: • Stormwater runoff • Combined sewers • Sanitary sewers • Other drainage systems in both urban and non-urban areas.

  4. Storm Water Management Model (SWMM) • SWMM tracks the quantity and quality of runoff generated within each subcatchment. • Flow rate, flow depth, and quality of water in each pipe and channel during a simulation period is modeled

  5. Significant Value Added From Vendors • Use the SWMM engine as a background option for processing / calculating • Refined for additional processing capabilities • Widen available input formats • Widen available output formats • Improved visualizations like… • Animations, 3D, conduit cross sections • Data quality control tools • Bells & Whistles

  6. General Requirements of the Software • Used for the analysis, design, and operation of the City of Olathe wastewater system. • Simulate natural rainfall-runoff processes in conjunction with the performance of the collection system. • This will allow City staff to better manage our resources and analyze the capacity of the system for future development.

  7. Requirements Evaluation Scale • Model Functionality Max 35 points • Cost Max 20 points • Ease of Use Max 15 points • Data sharing (GIS, CAD) Max 10 points • Output quality Max 10 points • Pilot Test Max 10 points Total 100Points

  8. They’re only 20% of the Evaluation… • Data sharing (GIS, CAD) Max 10 points • Pilot Test Max 10 points • These two areas carried a large portion of the weight, even though they only technically accounted for 20% of the total evaluation points. • Likely the case when GIS serves as the primary data source

  9. Pilot Test Design • Personal Geodatabase containing: • Subset of existing sanitary sewer system • Future lift stations and force main features • DWG containing attribute information for the future lift stations • A definition of the scenarios to be analyzed for the future lift stations. • Rainfall and sewage flow data (Excel). • Outline of the desired sewer model capabilities. • Any firm that did not participate in the Pilot Test was removed from consideration

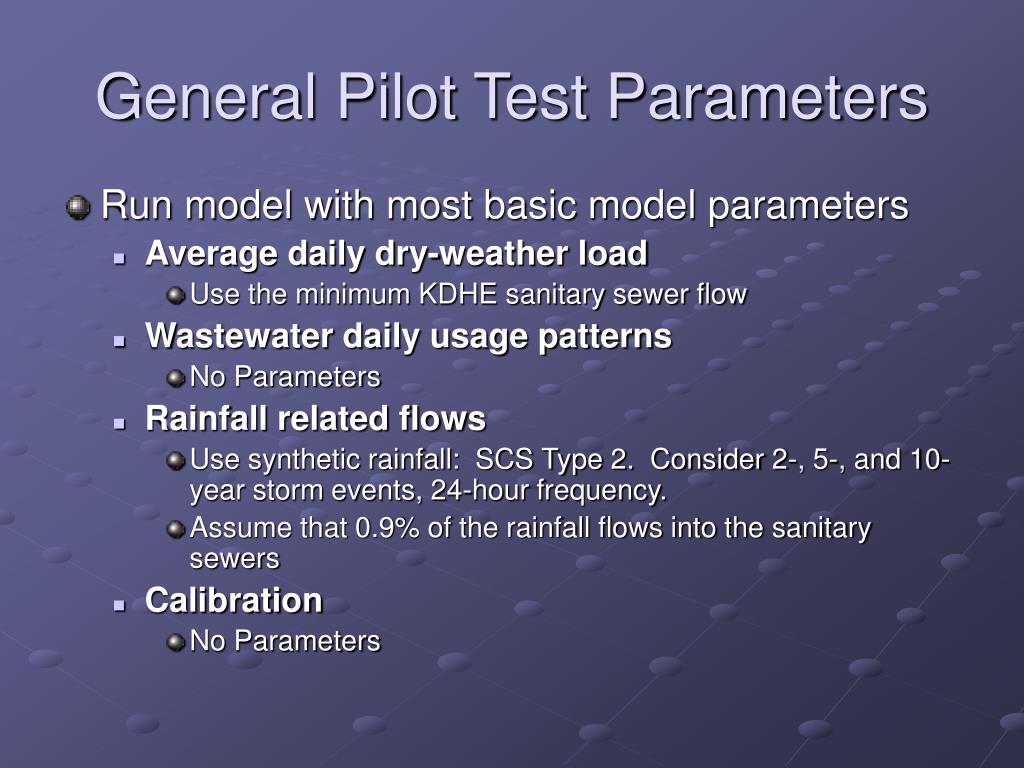

  10. General Pilot Test Parameters • Run model with most basic model parameters • Average daily dry-weather load • Use the minimum KDHE sanitary sewer flow • Wastewater daily usage patterns • No Parameters • Rainfall related flows • Use synthetic rainfall: SCS Type 2. Consider 2-, 5-, and 10-year storm events, 24-hour frequency. • Assume that 0.9% of the rainfall flows into the sanitary sewers • Calibration • No Parameters

  11. Changes To Pilot Data • Disconnected a few lines from manholes to evaluate data quality tools of packages • Intentionally removed a few flowline attributes from line features • Intentionally changed a few manhole rim elevations • Changed flow direction of certain pipe features • Made sure GIS features weren’t perfect

  12. GIS Users vs Engineers • Attribute / geometry information that can be edited outside a GIS is a plus • Engineers don’t want to get modeling information mixed up with GIS. • Extensions to ArcGIS were not necessarily seen as a benefit. • Extension packages require ArcView license • Important to know which type of user will be modeling the system

  13. Questions?
