Data Integration at Microsoft: Technologies and Solution Patterns

1. SESSION CODE: BIE202 Data Integration at Microsoft:Technologies and Solution Patterns Jeff Bernhardt SSIS Product Unit Manager Microsoft Corporation

2. An Ancient Story from India …

3. A Modern Story from Redmond… Integration Services BizTalk Server SQL Server Service Broker SQL Server Replication Others …

4. Data Integration: Two Globs of Ideas, Why and How Replication / Synchronization Data Management Streams - CEP Business Intelligence SOA Federated Views Data Warehousing Migration Message Oriented ETL – Bulk Move CDC Operational Consistency Data Quality Consolidation Master Data B2B Technology Choices Problem/Solution types

5. DI Problem Types: Building a DW and Business Intelligence Text Files Reports My DW ETL My ODS or OLTP System • Alter the shape • Create a Star Schema (de-nomalized for analysis queries) • Surrogate Keys (in place of business keys) • Pre-Aggregations (to support some types of reporting) • Track History • Slowly Changing Dimensions (history of entities) • Manage Partitions (once a month, roll up details and archive) • Take changes from the store • React to Inserts/Updates/Deletes. • Could be a “full refresh” or incremental

6. DI Problem Types: Data Consistency Between Applications New Custom AR system in SQL Old Accounts Receivable on SAP Create Consistency Create Consistency • A long running ‘bridge’ • Existing systems will be left in place and kept in synch. • Reacts to changes in either system. • Needs a way to react to changes or messages to minimize tax on App systems • The systems are different • Often different back ends. • Match schemas, tables, columns • Consistent data domains (like keys) • Detect and resolve duplicates • Create a consistent level of granularity • Aggregate • Allocate

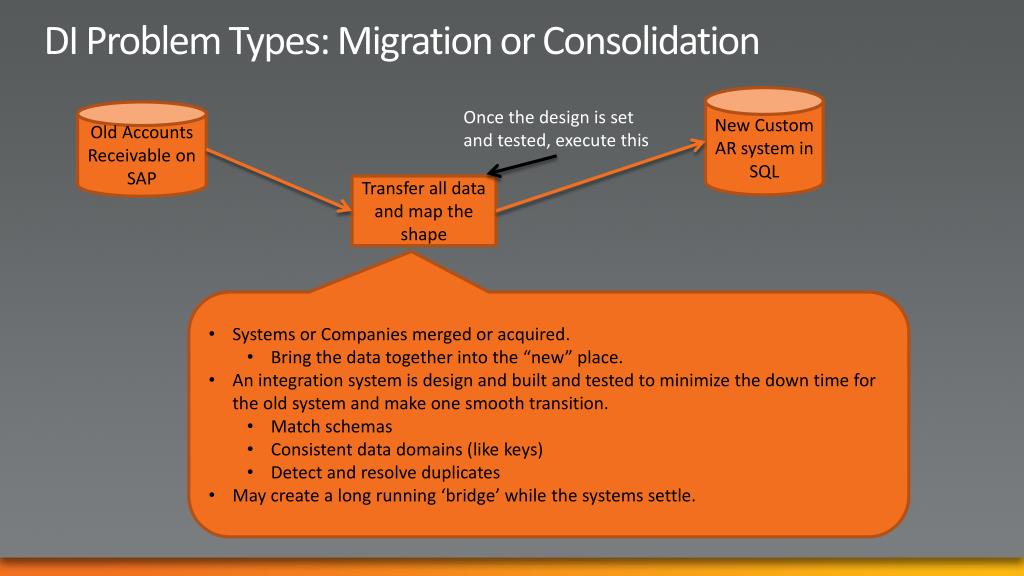

7. DI Problem Types: Migration or Consolidation New Custom AR system in SQL Once the design is set and tested, execute this Old Accounts Receivable on SAP Transfer all data and map the shape • Systems or Companies merged or acquired. • Bring the data together into the “new” place. • An integration system is design and built and tested to minimize the down time for the old system and make one smooth transition. • Match schemas • Consistent data domains (like keys) • Detect and resolve duplicates • May create a long running ‘bridge’ while the systems settle.

8. DI Problem Types: Master Data Management Customers Support Customers Marketing Customers Sales Customers Accounting Customers • Creating ‘One Version of the Truth’ • Data residing in many sources where each source schema is fixed but different. Combined into one store with a consistent schema • Pivot / Unpivot • Type and domain mapping • Key generation • Ensure quality • Remove duplicates • Provide missing data • Hard matching to find duplicates • Bulk update and trickle changes • Changes to central store delivered back to operational system

9. DI Problem Types: B2B (Inter-Enterprise Data Sharing) PartsAreUs EZ Buy Orders Internet / WAN Supplier’s System Order Fulfillment System WeShip Shipper’s System • Contracts • SLAs • Standardized formats • Long running transactions or business process • Loosely coupled • Coordination, message passing • A very specific perspective on Application Integration.

10. Organizing the Problem/Solution Ideas • Data Warehouse and Business Intelligence • Data Consistency Between Applications • Data System Migration and Consolidation • Master Data Management • Inter Enterprise Data Acquisition and Sharing

11. Technology Types: Bulk Movement Point B Point A ETL Text Files RDBMS RDBMS Text Files ELT XML XML • Move a sizeable set of rows from point A to point B • Often • Part of a scheduled process • Transform the shape of the data being moved • Combine many sources or split into many destinations • Two flavors • ETL (Extract Transform Load) • SSIS • AscentialDatastage (IBM) • ELT (Extract Load Transform) • Oracle Warehouse Builder • Bulk Insert

12. Technology Types: Message Oriented Movement C B A Coordinator Line Of Business Application RDBMS D Event XML Text Files • Central ‘Coordinator’ • Guarantees receipt and delivery of messages. • Components are ‘at rest’ until activated by the coordinator or an external event. • Data delivered in packets along with the message. • Terms that might fit in this category: • CDC • Trickle Feed • SOA • Message Bus

13. Technology Types: Replication and Synchronization Repl / Sync Agent • Maintaining equivalent copies of data in different locations • One master, many slaves • Multi-master • High Availability (live backups) • Similarity between systems • Most often table copies on the same brand of RDBMS • Heterogeneous possible • Attunity, Goldengate, etc. • Transformations: Little to none • Terms that might fit in this category: • CDC, Log mining • Merge Replication • Checksum tables

14. Technology Types: Federated Views Reports View Provider • Answers queries directly from many source systems • View Provider may: • Optimize and execute the combined query (Joins, etc.) • Pushes query parts down to the source. • Provide unified security model • Provide unified metadata • Cache source data • Support Heterogeneous Sources

15. Technology Types: Stream Processing Destination Source CEP Engine Event Processing Event Log Event • Monitor a stream of data, Create an event when • Temporal (time based) events occur • Running average or aggregate hits a limit • Interesting sequence of records is detected • Also called CEP (Complex Event Processing) • Different from the other Technology Types??? I Can’t tell yet.

16. Technology Types: Data Management and Quality • A collection of services common to most Data Integration solutions • Shared semantic model • Metadata library • Manage hierarchies • Data artifact level security model • Data Quality • Profile to understand • Merge to resolve duplicates • Find approximate matches • Test and monitor quality. • Version management for data.

17. Organizing the Technology Choice Ideas Bulk Movement • Message Oriented Movement Replication and Synchronization • Federated Views • Data Management and Quality • Stream Processing (CEP)

18. Problems and Technologies • Data Warehouse and Business Intelligence • Data Consistency Between Applications • Data System Migration and Consolidation • Master Data Management • Inter Enterprise Data Acquisition and Sharing Bulk Movement 15% • Message Oriented Movement 10% Replication and Synchronization 60% • Federated Views • Data Management and Quality 15% • Stream Processing (CEP)

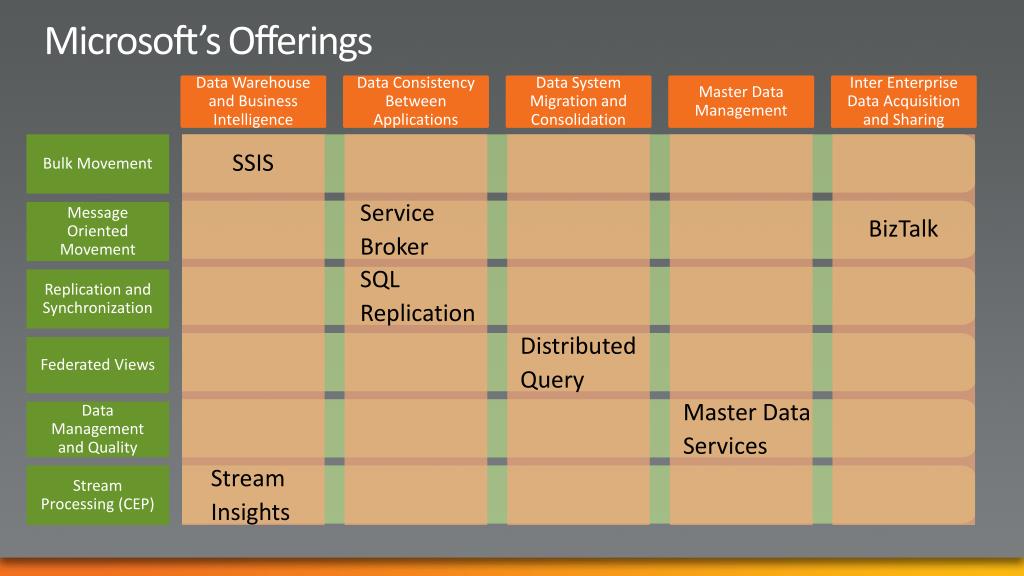

19. Microsoft’s Offerings • Data Warehouse and Business Intelligence • Data Consistency Between Applications • Data System Migration and Consolidation • Master Data Management • Inter Enterprise Data Acquisition and Sharing Bulk Movement SSIS Service Broker • Message Oriented Movement BizTalk SQL Replication Replication and Synchronization Distributed Query • Federated Views Master Data Services • Data Management and Quality • Stream Processing (CEP) Stream Insights

20. What Should You Use and When? It Depends On The Artifacts / Facets / Attributes / “the flavor”:

23. A Brief Tour of the Microsoft Offerings • Integration Services • Service Broker • Replication • Distributed Query • BizTalk Server • StreamInsights

24. Integration Services (SSIS) - Overview

25. Integration Service – Problems / Technologies / Artifacts My ODS or OLTP System Text Files • Constructing a Data Warehouse • Migration / Consolidation • Bulk Movement • ETL My DW SSIS

26. Integration Services – Customer Solution Data Mart (Reporting and Analytics) Inventory Management (Oracle) Attunity CDC for Oracle SSIS Package Lookups, load facts and dimensions, surrogate key generation, … SSIS Package Data Warehouse (SQL Server) SQL Server Source SSIS Package Lookups, slowly changing dimensions, address cleansing, … CRM (SQL Server) Flat File Source SSIS Package Data conversions, parsing, data quality, aggregations, … SSIS Package Manufacturing Data (Flat files) Staging DB Operational Database (Shop Floor Application)

27. Service Broker - Overview

28. Service Broker – Problems / Technologies / Artifacts Database 1 Database 2 • Consistency Between Applications • Master Data Management (?) • Message Oriented Movement conversation Service A Service B Queue A Queue B Database 1 Database 2

29. Service Broker – Customer Solution • Bank, lost loan provisioning • Requires very fast processing and analysis of up to date data. SSIS Service Broker subset 1 (x rows) SSIS server 1 subset 2 (x rows) sproc server 2 … … Result Table Source Table 32 cores subset n (x rows) server n

30. SQL Replication - Overview

31. SQL Replication – Problems / Technologies / Artifacts • Data Warehousing • Data consistency between Applications • Migration / Consolidation • Replication and Synchronization Reporting and Staging Enterprisee Information Management

32. SQL Replication – Customer Solution Corporate Offices Edcon • 1000 branch offices • One way replication of catalog data from hub to spoke • Catalog downloads are partitioned with complex Dynamic and Join filtering – Catalog/Pricing data per store • Uses merge Replication for downloads • Subscribers located in each store - multi-user server databases • Uses Service Broker for uploads of transacted data – requires guaranteed in order delivery LOB Systems SSIS (daily) ‘Central’ Service Broker Merge Replication Branch Office ‘Branch’ Transactional Replication Online Terminal

33. Distributed Query - Overview

34. Distributed Query – Problems / Technologies / Artifacts Access SQL • Business Intelligence • Master Data Management • Federated Views SQL

35. BizTalk Server - Overview

36. BizTalk Server – Problems / Technologies / Artifacts LOB App Bus OLTP • B2B • Data Consistency Between Applications • Message Oriented Movement XML Docs Orchestration Logic

37. BizTalk Server – Customer Solution Emerging Practice: Loose Coupled Batch • BizTalk Coordinates process • Some traditional data flow through messages • Many SSIS Packages with complicated relationships and dependencies. • Messages control activation of SSIS pieces. • Messages deliver intermediate results or pointers to batch data. • Scale out SSIS execution Bus LOB App Orchestration Logic XML Docs OLTP SSIS Package SSIS Package DW

38. StreamInsights - Overview

39. StreamInsights – Problems / Technologies / Artifacts • Business Intelligence • Data Warehousing • Message Oriented Movement • Stream Processing Data Sources, Operations, Assets, Feeds, Sensors, Devices Input Data Streams Results Operational Data Store & Archive CEP Engine f(x) g(y) f'(x) h(x,y)

40. StreamInsights– Customer Solution Telco • Detect Fraud callbacks • During regular processing of data warehouse facts • Custom SSIS Component encapsulates the CEP engine. • Events detected and sent for follow-up Switch Logs Switch Logs Switch Logs SSIS Fact Processing StreamInsight Component Fraud DW

41. A Bigger Picture?

42. Required Slide Resources Learning • Sessions On-Demand & Community • Microsoft Certification & Training Resources www.microsoft.com/teched www.microsoft.com/learning • Resources for IT Professionals • Resources for Developers • http://microsoft.com/technet • http://microsoft.com/msdn
