  1. Reverse Engineering

  2. Reverse Engineering Engineering: Forward Engineering Reverse Engineering

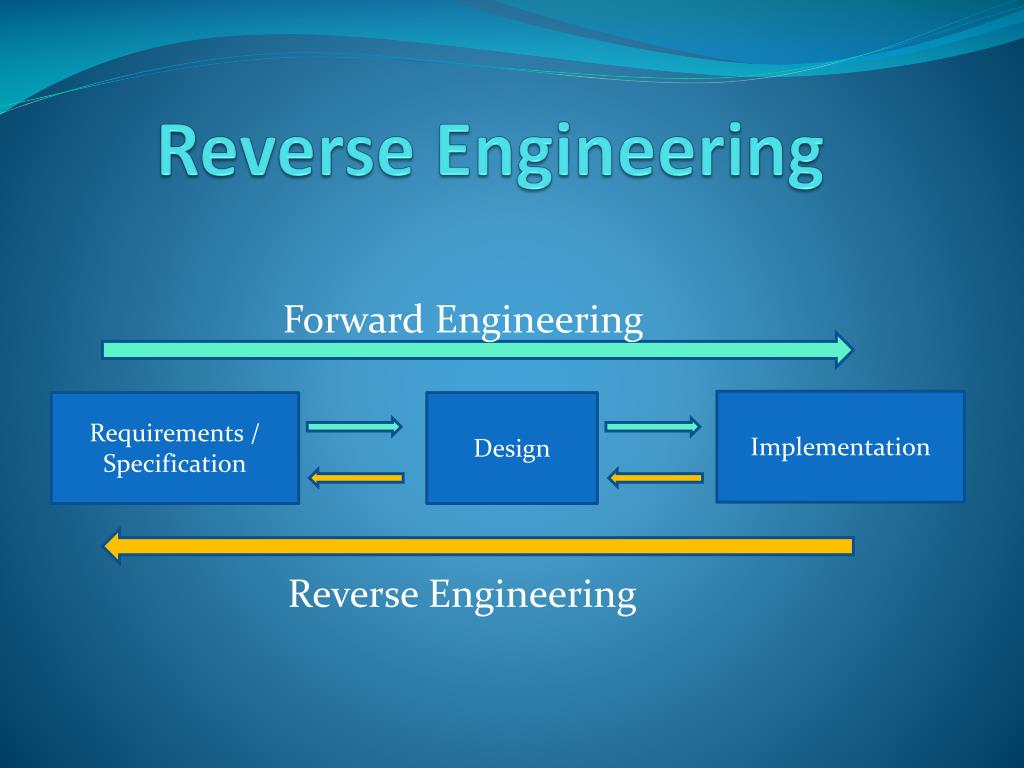

  3. Reverse Engineering Forward Engineering Implementation Requirements / Specification Design Reverse Engineering

  4. Reverse Engineering “กระบวนการพัฒนาโดยใช้การวิเคราะห์สืบกลับไปจากต้นแบบที่มีอยู่เดิม โดยต้องมีการศึกษาและวิเคราะห์ข้อมูลจากชิ้นงานต้นแบบอย่างเป็นระบบ ตั้งแต่วัสดุ คุณสมบัติ จนถึงกรรมวิธีการผลิต”

  5. Reverse Engineering Part 3D Scanning 3D Reversing 3D CAD Modeling

  6. Reverse Engineering 3D Reverse Engineering

  7. Reverse Engineering • Physical Dimension • Material properties • Features

  8. Reverse Engineering • No longer production • Inadequate documentation • Original design lost • Analyze the good and bad features of competitors • CAD Model is not sufficient support
