  1. Chapter Four Making Connections 1

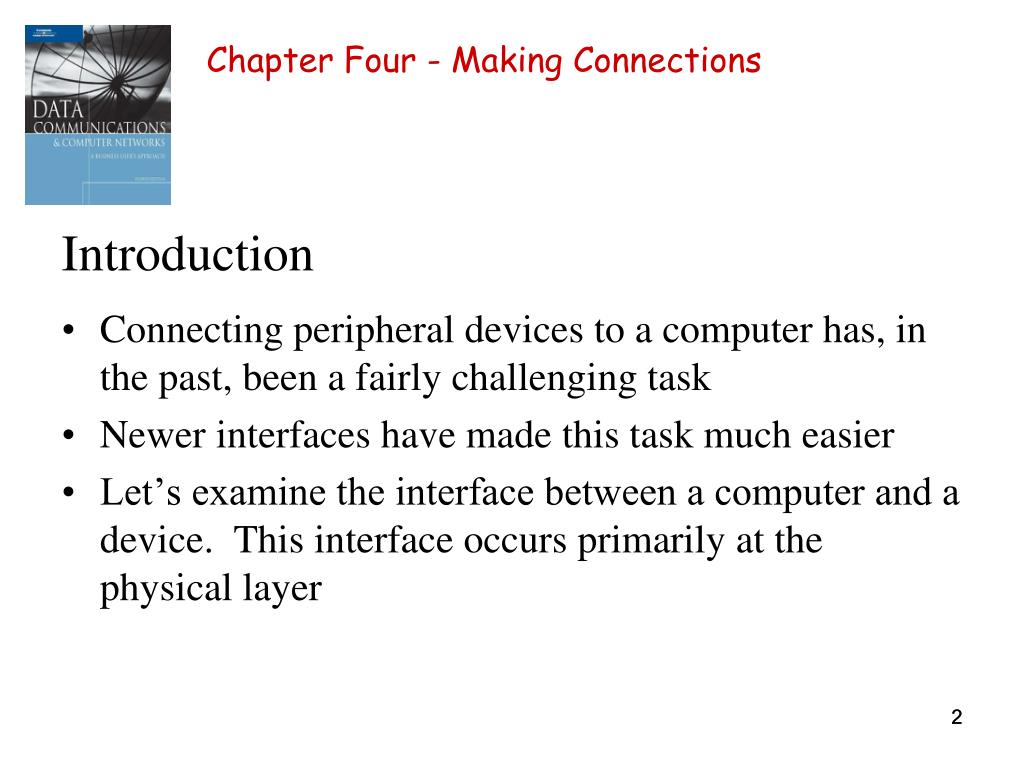

  2. Introduction Chapter Four - Making Connections • Connecting peripheral devices to a computer has, in the past, been a fairly challenging task • Newer interfaces have made this task much easier • Let’s examine the interface between a computer and a device. This interface occurs primarily at the physical layer 2

  3. How do I connect peripheral devices to my computer? • Practical Computer Literacy, 2nd edition Chapter 2 3

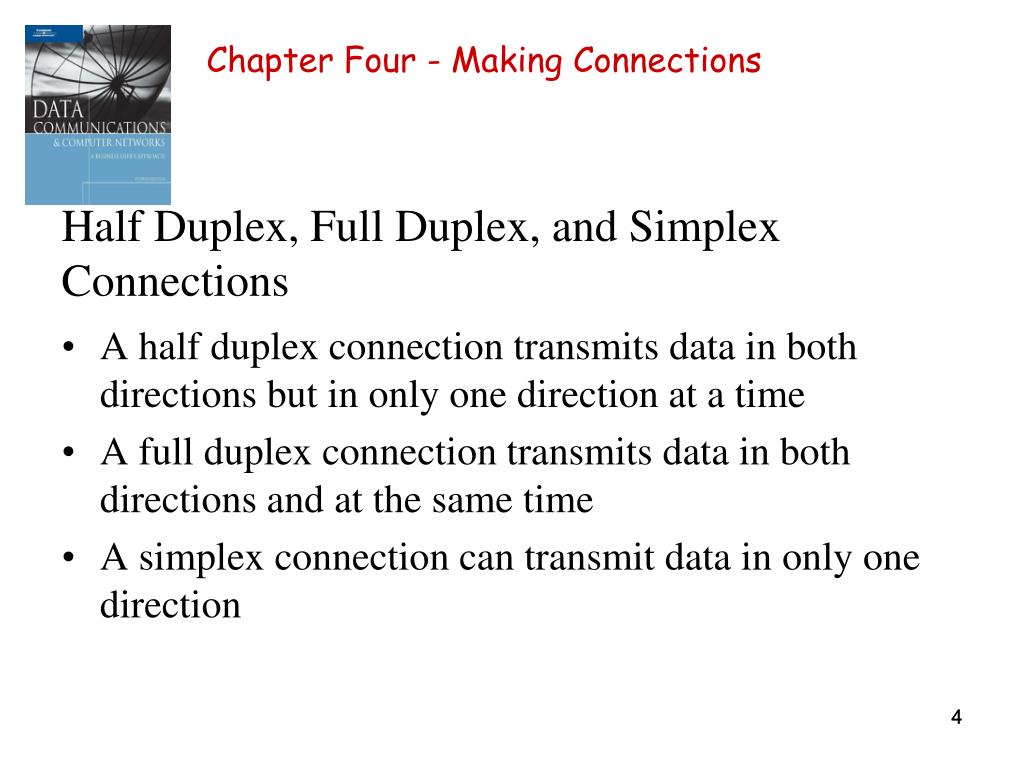

  4. Half Duplex, Full Duplex, and Simplex Connections Chapter Four - Making Connections • A half duplex connection transmits data in both directions but in only one direction at a time • A full duplex connection transmits data in both directions and at the same time • A simplex connection can transmit data in only one direction 4

  5. Interface Standards Chapter Four - Making Connections • There are essentially two types of standards • Official standards, created by standards making organizations such as ITU (International Telecommunications Union), IEEE (Institute for Electrical and Electronics Engineers), EIA (Electronics Industries Association), ISO (International Organization for Standards), and ANSI (American National Standards Institute) • De-facto standards – protocols created by other groups that are not official standards but because of their widespread use, become “almost” standards 5

  6. Interface Standards Chapter Four - Making Connections • There are four possible components to an interface standard: • Electrical component • Mechanical component • Functional component • Procedural component 6

  7. The Four Components Chapter Four - Making Connections • The electrical component deals with voltages, line capacitance, and other electrical characteristics • The mechanical component deals with items such as the connector or plug description. • Ex: size and shape of a connector, How many pins are found on the connector? What is the pin arrangement? And so on. 7

  8. The Four Components Chapter Four - Making Connections • The functional component describes the function of each pin or circuit that is used in a particular interface • The procedural component describes how the particular circuits are used to perform an operation • for example, describe two circuits, such as Request to Send and Clear to Send (functional component ), the procedural component would describe how these two circuits are used so that the computer can transfer data to the peripheral, and vice versa. 8

  9. Example of Interfaces Chapter Four - Making Connections • In order to better understand the four components of an interface, let’s examine the following interface standards • USB (Universal Serial Bus) – a newer standard that is much more powerful than EIA-232F 9

  10. Universal Serial Bus (USB) • USB is a digital interface that uses a standardized connector (plug) for all serial and parallel type devices. • Because USB provides a digital interface, it is not necessary to convert the digital signals of the microcomputer to analog signals for transfer over a connection (conversions usually have more noise ). • is a relatively thin, space-saving cable to which devices can be added and removed while the computer and peripheral are active (hot pluggable). • hot plugging peripheral can simply be plugged in and turned on, and that the computer should dynamically recognize the device and establish the interface.

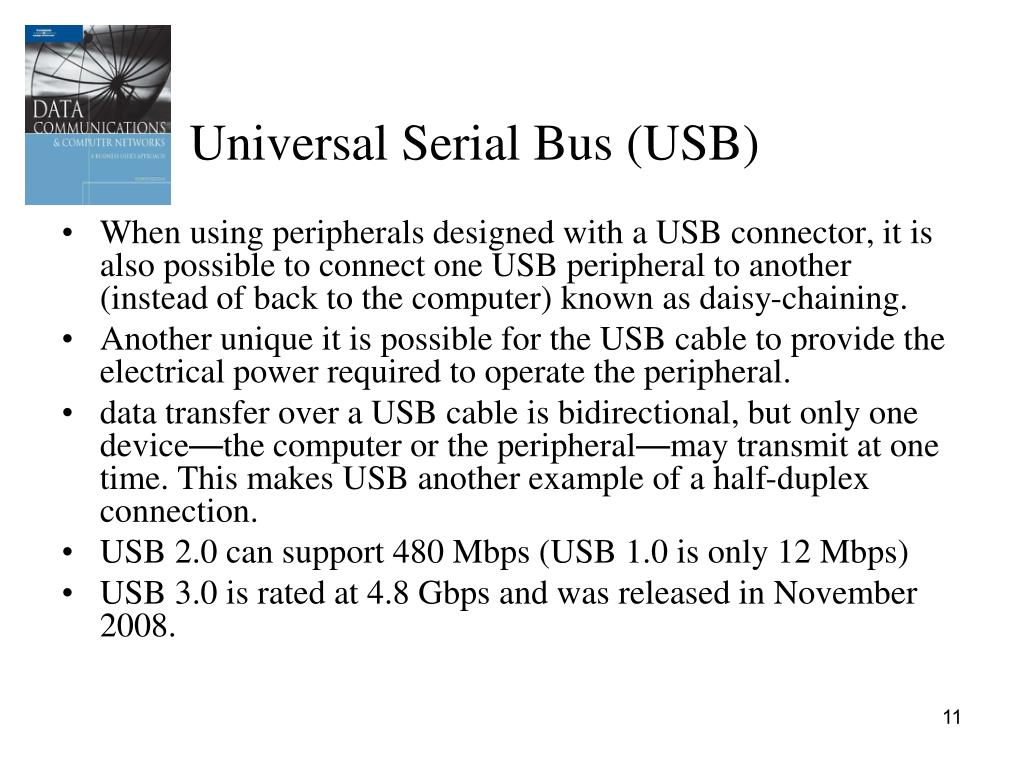

  11. Universal Serial Bus (USB) • When using peripherals designed with a USB connector, it is also possible to connect one USB peripheral to another (instead of back to the computer) known as daisy-chaining. • Another unique it is possible for the USB cable to provide the electrical power required to operate the peripheral. • data transfer over a USB cable is bidirectional, but only one device—the computer or the peripheral—may transmit at one time. This makes USB another example of a half-duplex connection. • USB 2.0 can support 480 Mbps (USB 1.0 is only 12 Mbps) • USB 3.0 is rated at 4.8 Gbps and was released in November 2008.

  12. Universal Serial Bus (USB) Chapter Four - Making Connections • The USB interface defines all four components • The electrical component defines two wires VBUS and Ground to carry a 5 volt signal, while the D+ and D- wires carry the data and signaling information • The mechanical component of USB strictly specifies the exact dimensions of the interface’s connectors and cabling. • Four types of USB connectors are specified: a connector A, a connector B, a mini-connector A, and a mini-connector B. 12

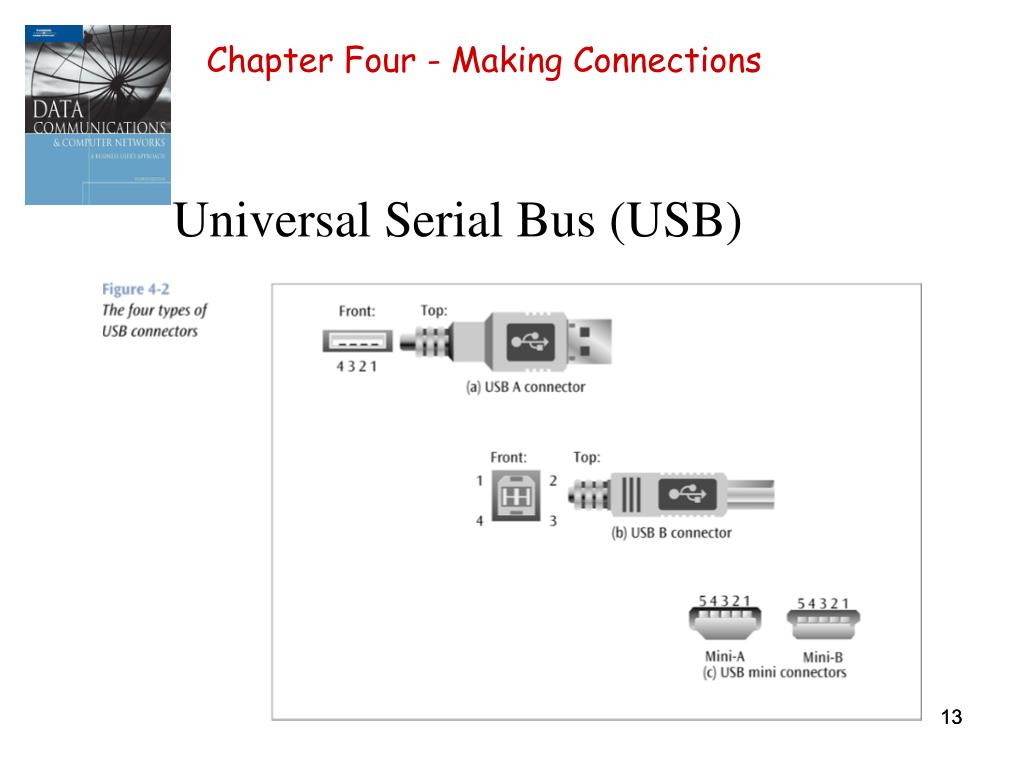

  13. Universal Serial Bus (USB) Chapter Four - Making Connections 13

  14. Universal Serial Bus (USB) Chapter Four - Making Connections • The procedural component: bus and polling. • A bus is simply a high-speed connection to which multiple devices can attach, and polling is a process in which a computer asks a peripheral if it has any data to transmit to the computer. The USB is a polled bus in which the host controller (the USB interface to the host computer) initiates all data transfers. • USB bus recognize when a USB device has been attached or removed. 14

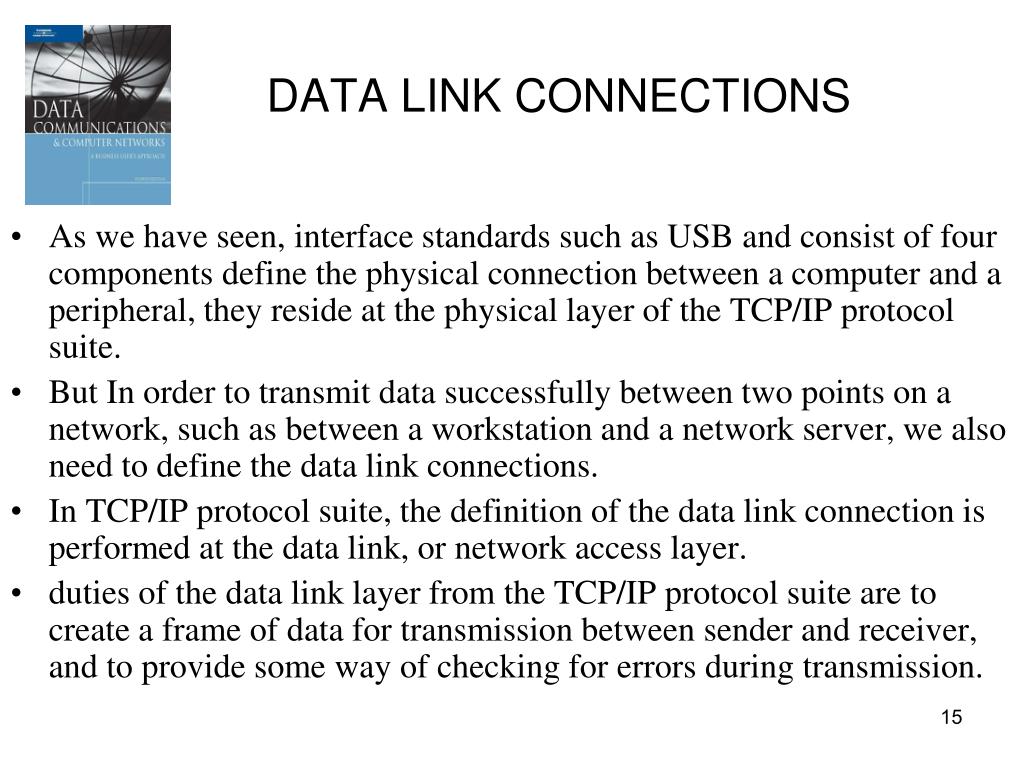

  15. DATA LINK CONNECTIONS • As we have seen, interface standards such as USB and consist of four components define the physical connection between a computer and a peripheral, they reside at the physical layer of the TCP/IP protocol suite. • But In order to transmit data successfully between two points on a network, such as between a workstation and a network server, we also need to define the data link connections. • In TCP/IP protocol suite, the definition of the data link connection is performed at the data link, or network access layer. • duties of the data link layer from the TCP/IP protocol suite are to create a frame of data for transmission between sender and receiver, and to provide some way of checking for errors during transmission.

  16. Asynchronous Connections Chapter Four - Making Connections • A type of connection defined at the data link layer • To transmit data from sender to receiver, an asynchronous connection creates a one-character package called a frame • The sender prepares a data character for transmission, transmits that character, and then begins preparing the next data character for transmission • Added to the front of the frame is a Start bit which is always a logic 0 informs the receiver that an incoming data frame is arriving, allows the receiver to synchronize itself to the character. • a Stop bit always logic 1s, is added to the end of the frame • An optional parity bit can be added which can be used to detect errors 16

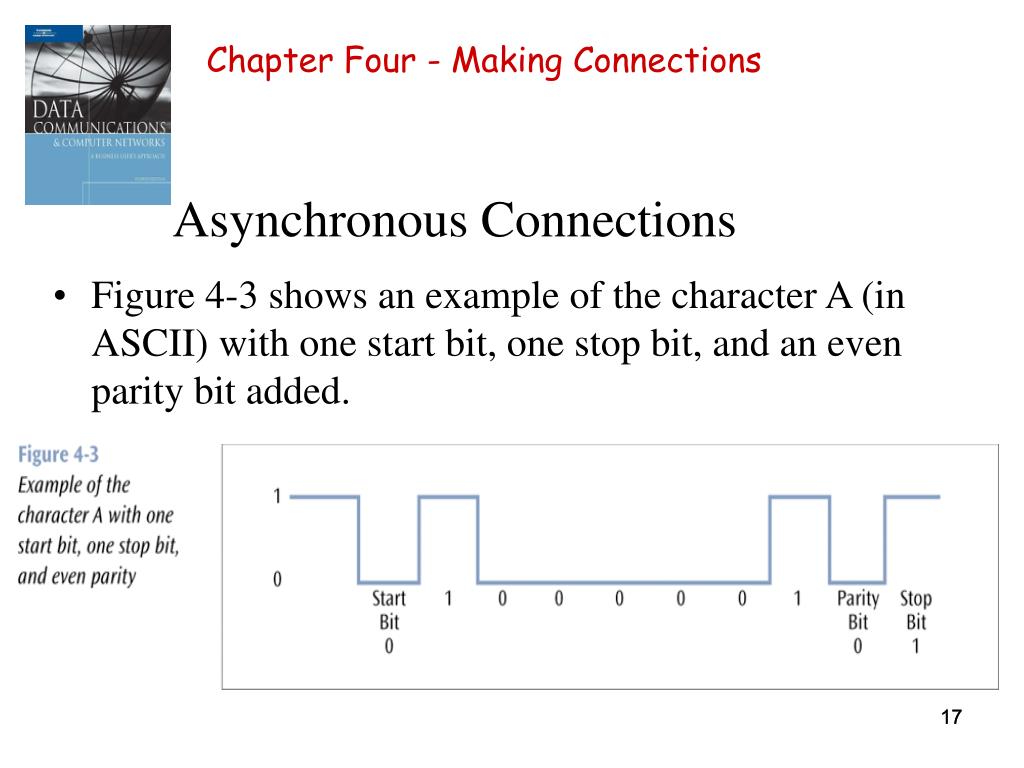

  17. Asynchronous Connections Chapter Four - Making Connections • Figure 4-3 shows an example of the character A (in ASCII) with one start bit, one stop bit, and an even parity bit added. 17

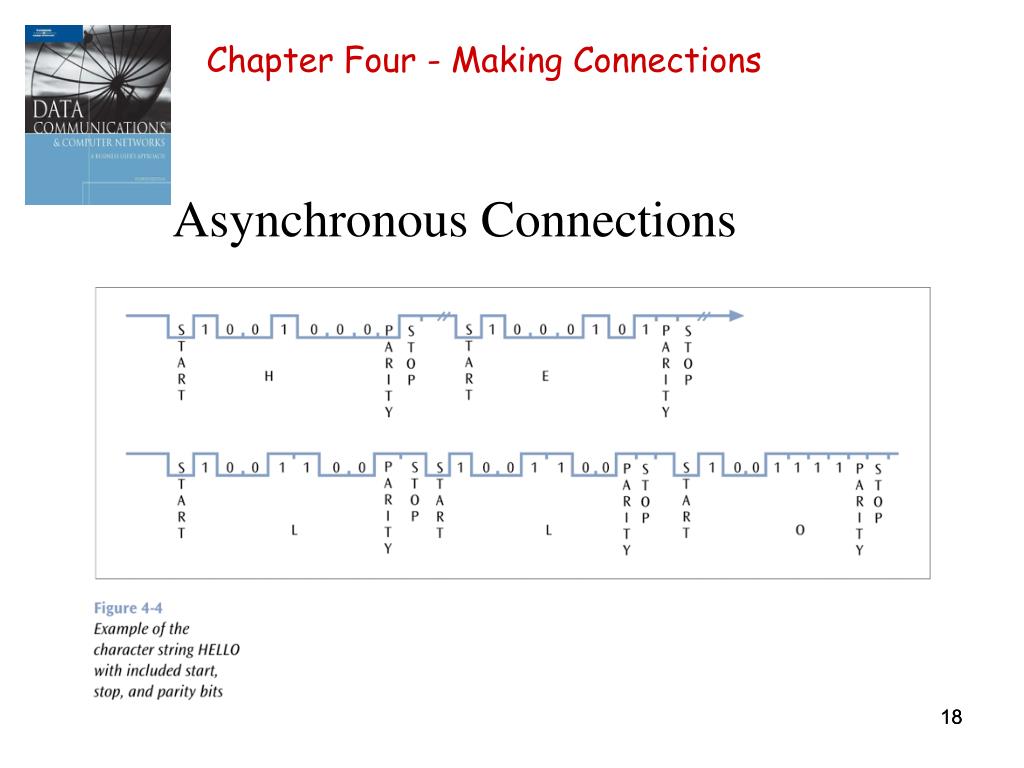

  18. Asynchronous Connections Chapter Four - Making Connections 18

  19. Asynchronous connection • Advantage: start, stop, and parity bits is simple and requires little hardware or software. • Disadvantage: Given that seven data bits (ASCII character code set) are often combined with one start bit, one stop bit, and one parity bit, the resulting transmitted character contains three check bits and seven data bits, for a 3:7 ratio. • 30 percent of the bits are used as check bits. not very efficient for high amounts of data transfer and, therefore, results in slow data transfers.

  20. Asynchronous Connections Chapter Four - Making Connections • The term asynchronous is misleading here because you must always maintain synchronization between the incoming data stream and the receiver • Asynchronous connections maintain synchronization by using: • Frame size—Because each frame in an asynchronous connection is one character plus a few check bits, the receiver will receive only a small amount of information at one time. not, difficult for the receiver to stay synchronized for that short of a period. • Start bit—When the receiver recognizes the start bit, the synchronization begins. 20

  21. Synchronous Connections Chapter Four - Making Connections • A second type of connection defined at the data link layer • the unit of transmission is a sequence of characters. This sequence of characters may be thousands of characters in size. • A synchronous connection creates a large frame that consists of header and trailer flags, control information, optional address information, error detection code, and data • A synchronous connection is more elaborate but transfers data in a more efficient manner 21

  22. Synchronous Connections Chapter Four - Making Connections 22

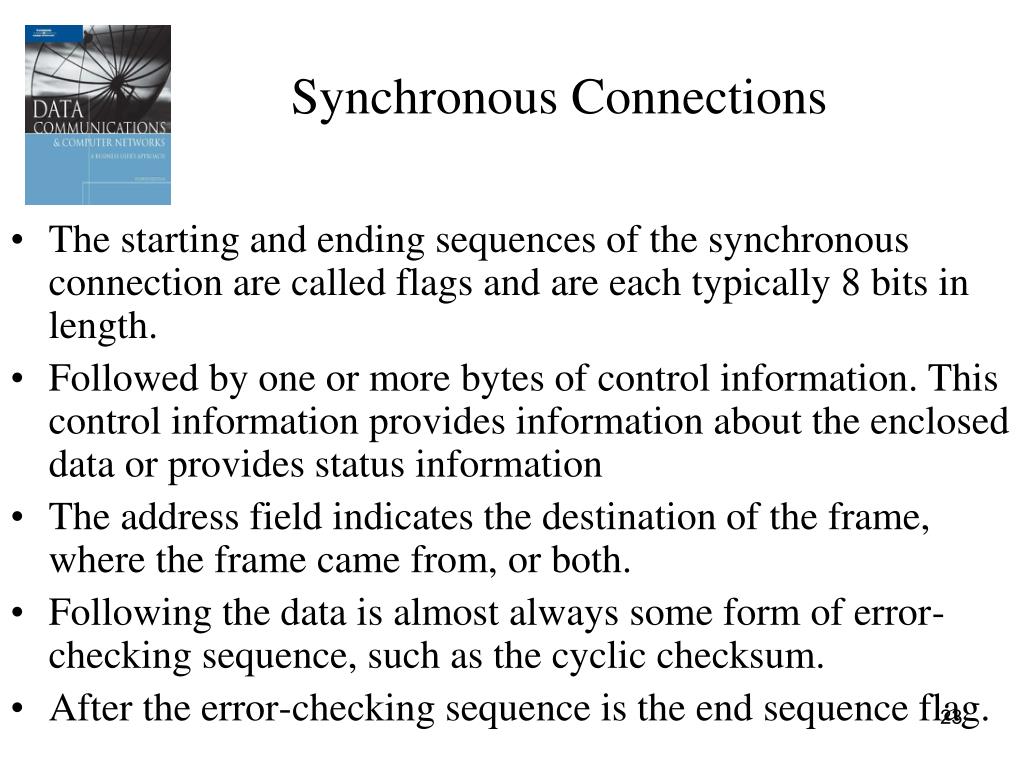

  23. Synchronous Connections • The starting and ending sequences of the synchronous connection are called flags and are each typically 8 bits in length. • Followed by one or more bytes of control information. This control information provides information about the enclosed data or provides status information • The address field indicates the destination of the frame, where the frame came from, or both. • Following the data is almost always some form of error-checking sequence, such as the cyclic checksum. • After the error-checking sequence is the end sequence flag.

  24. Efficiency of Asynchronous Connection • 1 start bit • 7 data bit • 1 parity bit • 1 stop bit • Efficiency:γ=7/(1+7+1+1)=7/10=70%

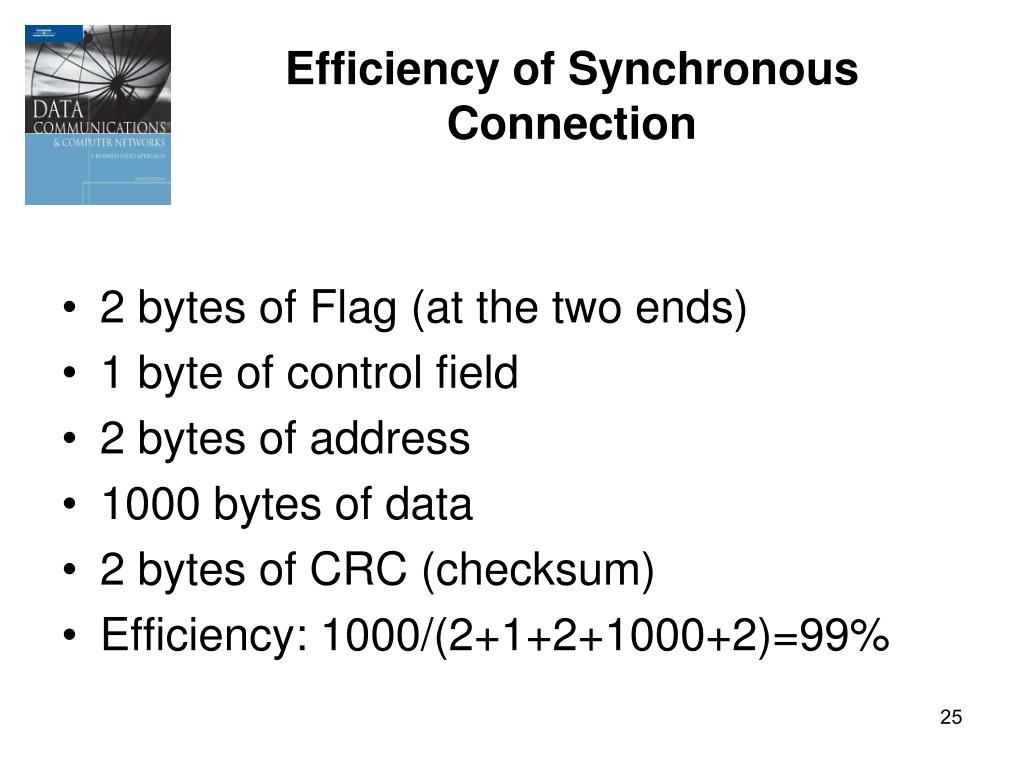

  25. Efficiency of Synchronous Connection • 2 bytes of Flag (at the two ends) • 1 byte of control field • 2 bytes of address • 1000 bytes of data • 2 bytes of CRC (checksum) • Efficiency: 1000/(2+1+2+1000+2)=99%

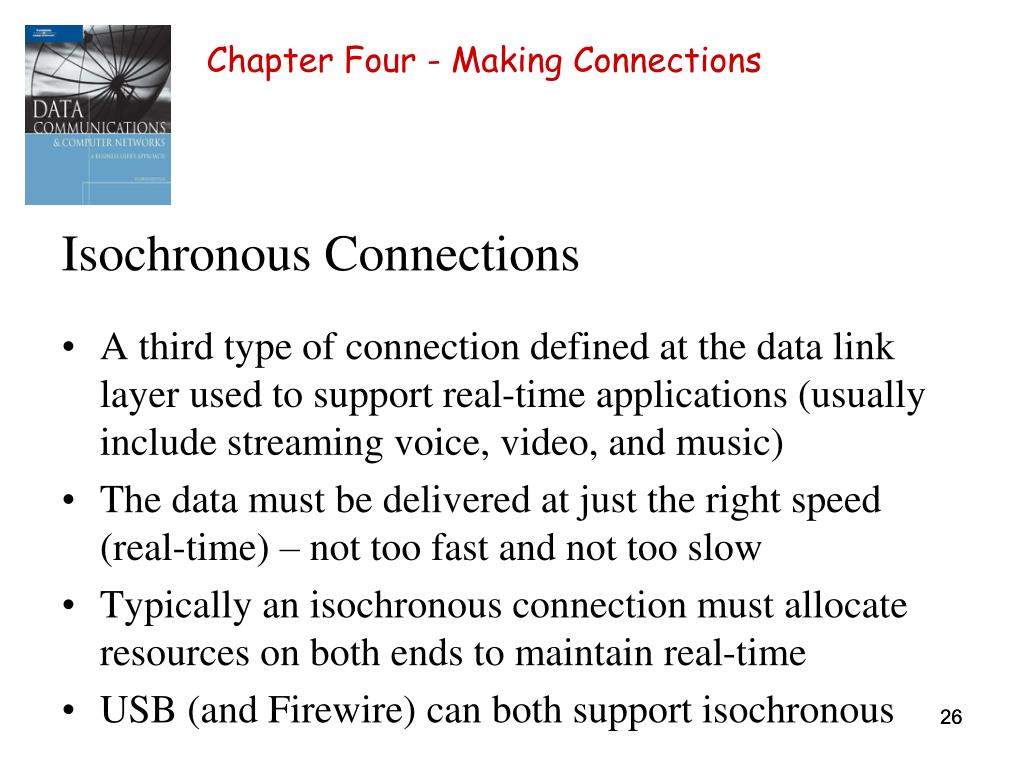

  26. Isochronous Connections Chapter Four - Making Connections • A third type of connection defined at the data link layer used to support real-time applications (usually include streaming voice, video, and music) • The data must be delivered at just the right speed (real-time) – not too fast and not too slow • Typically an isochronous connection must allocate resources on both ends to maintain real-time • USB (and Firewire) can both support isochronous 26

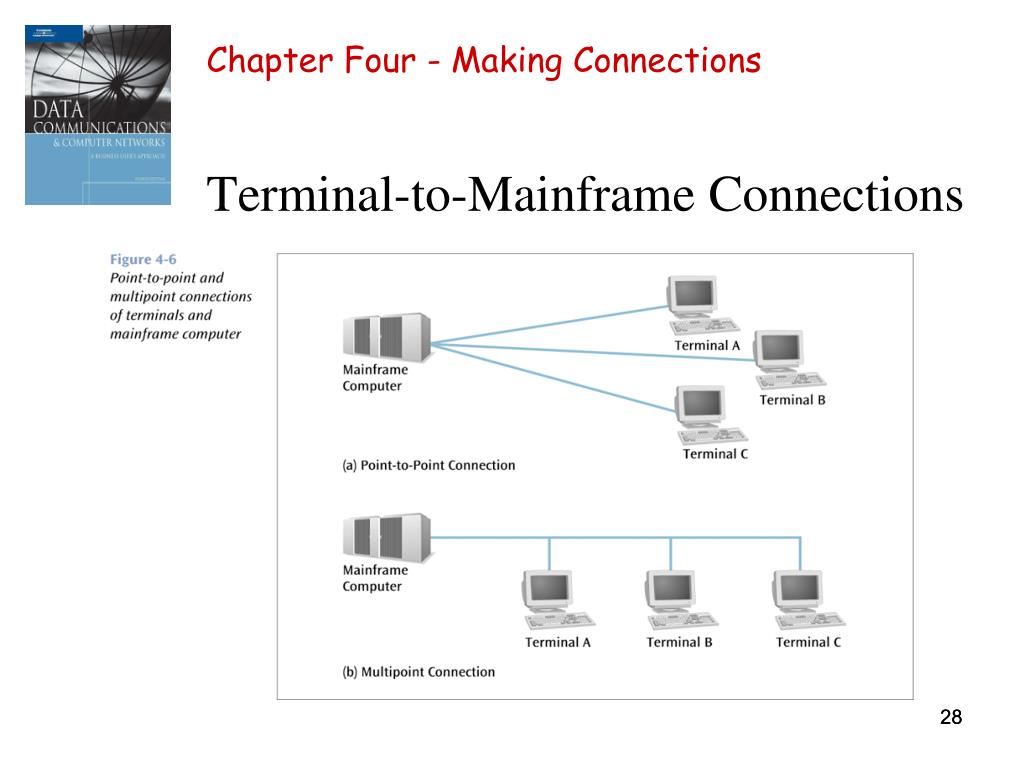

  27. Terminal-to-Mainframe Connections Chapter Four - Making Connections • A point-to-point connection is a direct, unshared connection between a terminal and a mainframe computer • A multipoint connection is a shared connection between multiple terminals and a mainframe computer • The mainframe is the primary and the terminals are the secondaries 27

  28. Terminal-to-Mainframe Connections Chapter Four - Making Connections 28

  29. Terminal-to-Mainframe Connections Chapter Four - Making Connections • To allow a terminal to transmit data to a mainframe, the mainframe must poll the terminal • Polling: allows only one terminal to transmit at one time • Two basic forms of polling: roll-call polling and hub polling • In roll-call polling, the mainframe polls each terminal in a round-robin fashion • If terminals A, B, and C shared one connection, begin by polling terminal A. If A had data to send it would do so. When A was done transmitting, the primary would poll terminal B. If B had nothing to send, it would inform the primary accordingly, and the primary would poll terminal C. When terminal C was finished, the primary would return to terminal A and continue the polling process. 29

  30. Terminal-to-Mainframe Connections • In hub polling, the mainframe polls the first terminal, and this terminal passes the poll onto the next terminal • For example, after being polled by the primary, terminal A, when it is finished responding, passes the poll to terminal B. When terminal B is finished transmitting, it passes the poll to terminal C. • In this scenario, the primary does not need to poll each terminal separately. The process of the primary sending a poll to a terminal and waiting for a response takes time. When large amounts of data are being transmitted, this time might be significant.

  31. Terminal-to-Mainframe Connections Chapter Four - Making Connections • Roll call polling 31

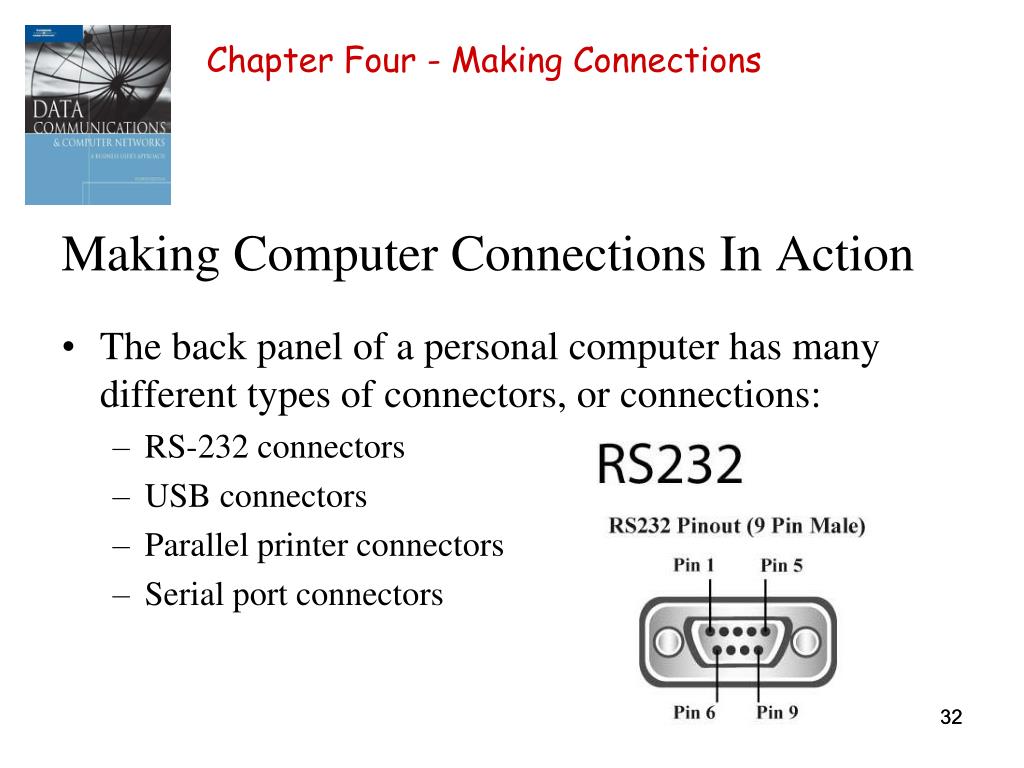

  32. Making Computer Connections In Action Chapter Four - Making Connections • The back panel of a personal computer has many different types of connectors, or connections: • RS-232 connectors • USB connectors • Parallel printer connectors • Serial port connectors 32

  33. Making Computer Connections In Action Chapter Four - Making Connections 33

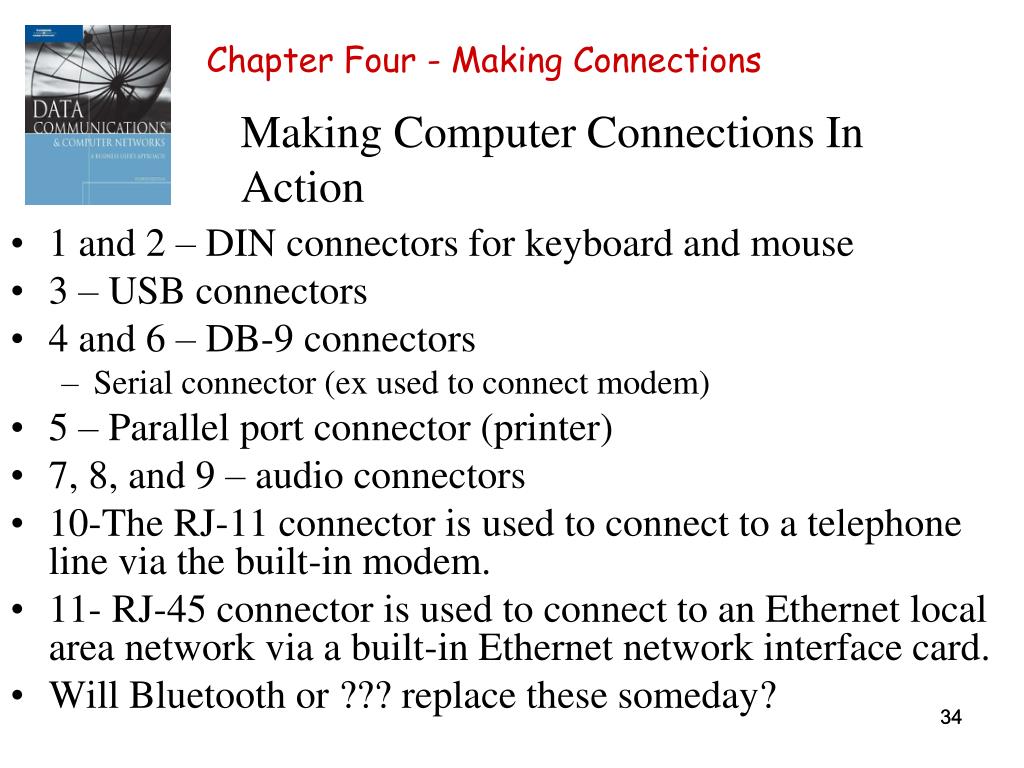

  34. Making Computer Connections In Action Chapter Four - Making Connections • 1 and 2 – DIN connectors for keyboard and mouse • 3 – USB connectors • 4 and 6 – DB-9 connectors • Serial connector (ex used to connect modem) • 5 – Parallel port connector (printer) • 7, 8, and 9 – audio connectors • 10-The RJ-11 connector is used to connect to a telephone line via the built-in modem. • 11- RJ-45 connector is used to connect to an Ethernet local area network via a built-in Ethernet network interface card. • Will Bluetooth or ??? replace these someday? 34

  35. Making Computer Connections In Action Chapter Four - Making Connections • A company wants to transfer files that are typically 700K chars in size • If an asynchronous connection is used, each character will have a start bit, a stop bit, and maybe a parity bit • 700,000 chars * 11 bits/char (8 bits data + start + stop + parity) = 7,700,000 bits 36

  36. Example • 1) If an asynchronous connection: • How many bits needed to transmit 500 bytes? • Note: totals of bits is 11 bits per byte of data when you consider 8 data bits + 1 start bit + 1 stop bit + 1 parity bit.

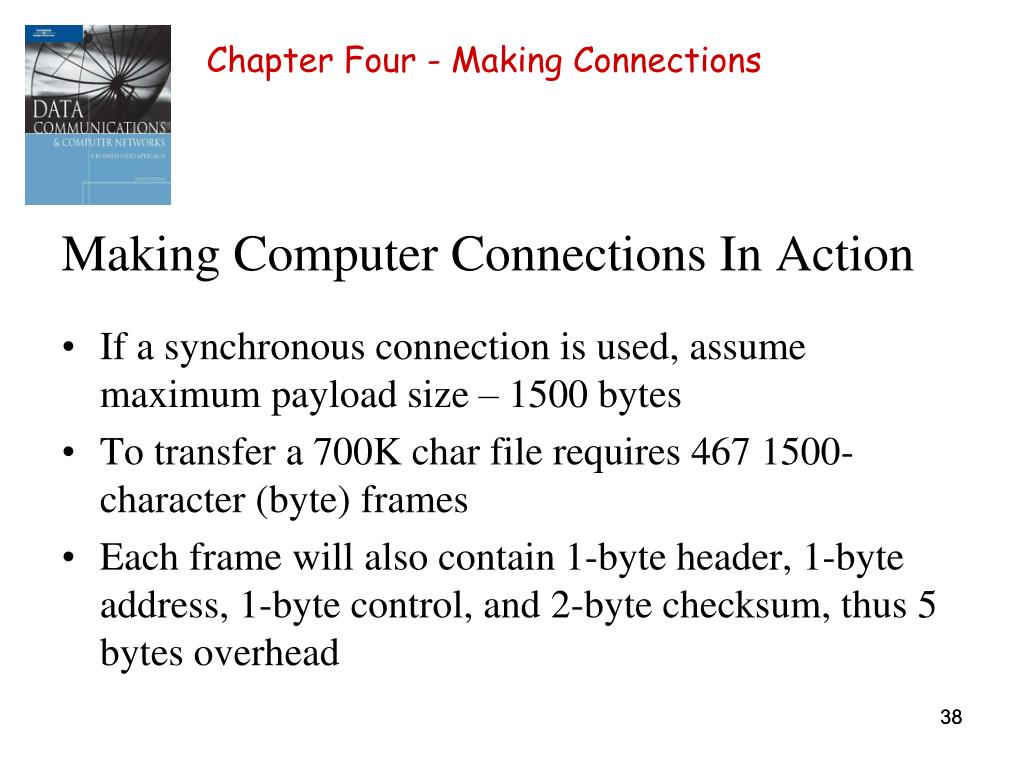

  37. Making Computer Connections In Action Chapter Four - Making Connections • If a synchronous connection is used, assume maximum payload size – 1500 bytes • To transfer a 700K char file requires 467 1500-character (byte) frames • Each frame will also contain 1-byte header, 1-byte address, 1-byte control, and 2-byte checksum, thus 5 bytes overhead 38

  38. Making Computer Connections In Action Chapter Four - Making Connections • 1500 bytes payload + 5 byte overhead = 1505 byte frames • 467 frames * 1505 bytes/frame = 716,380 bytes, or 5,731,040 bits • Significantly less data using synchronous connection 39

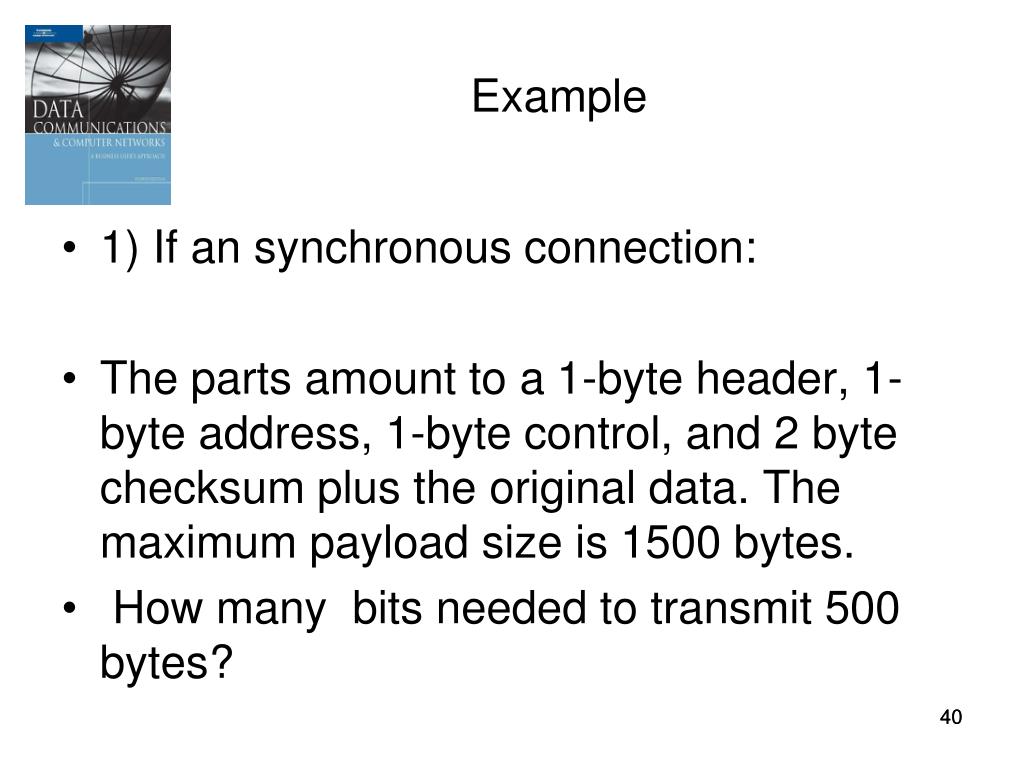

  39. Example • 1) If an synchronous connection: • The parts amount to a 1-byte header, 1-byte address, 1-byte control, and 2 byte checksum plus the original data. The maximum payload size is 1500 bytes. • How many bits needed to transmit 500 bytes? 40
