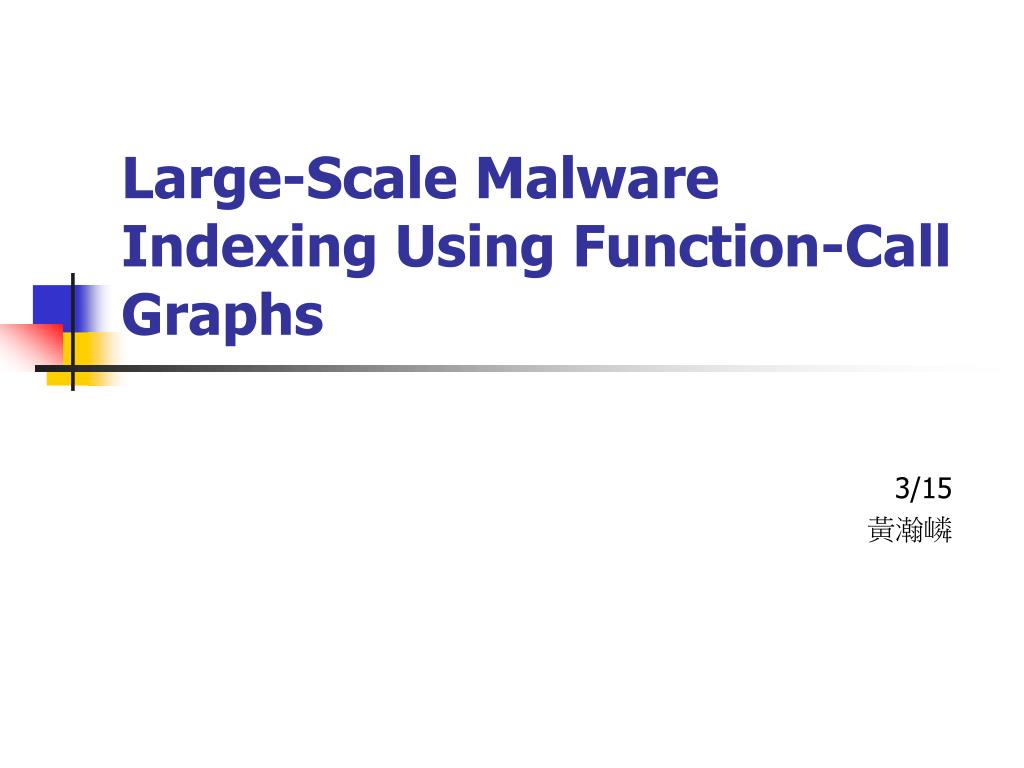

  1. Large-Scale Malware Indexing Using Function-Call Graphs 3/15 黃瀚嶙

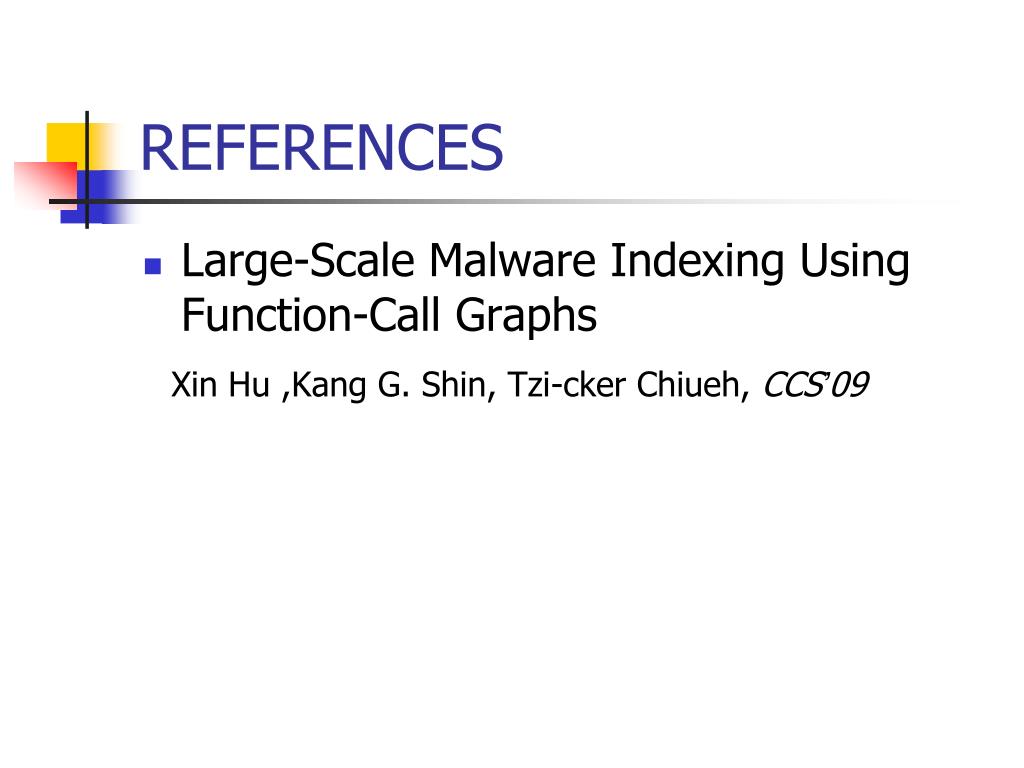

  2. REFERENCES • Large-Scale Malware Indexing Using Function-Call Graphs Xin Hu ,Kang G. Shin, Tzi-cker Chiueh, CCS’09

  3. Outline • Introduction • Function-Call Graph Extraction • Graph-Similarity Metric • Multi-Resolution Indexing • Evaluation • Conclusion

  4. Introduction • SMIT:Symantec Malware Indexing Tree

  5. Function-Call Graph Extraction • Definition(Function-Call Graph): • g = (Vg,Eg, Ig,Lg), -Vg:function -Eg:directed edge -Ig:symbolic function name, mnemonic sequence and CRC value -Lg:labeling function from Vg->Ig

  6. Function-Call Graph Extraction

  7. Graph-Similarity Metric-Graph Edit Distance • Vertex-edit operations -σR : relabel a vertex -σIV :insert an isolated vertex -σRV :remove an isolated vertex • Edge-edit operations -σIE :insert an edge -σRE : remove an edge

  8. Graph-Similarity Metric-Graph Edit Distance • edit path Pg,h:if Pg,h = (σ1, σ2, . . . , σn) then h =σn(σn-1(. . . σ1(g) . . . )) • Cost :C(P)=sum of path cost • edit distance:ed(g,h) =min c(Pg,h).

  9. Multi-Resolution Indexing

  10. Multi-Resolution Indexing-B+-tree Index • feature vector v = (Ni,Nf,Nx,Nm) Ni :total number of instructions Nf :total number of functions Nx :total number of control transfer instructions Nm :median number of instructions per function

  11. Multi-Resolution Indexing-B+-tree Index

  12. Multi-Resolution Indexing-Optimistic Vantage Point Tree • query graph g, KNN search of a VPT with a root pivot p • Prune:high[i] < d(p, q) − δnow or low[i] > d(p, q) + δnow

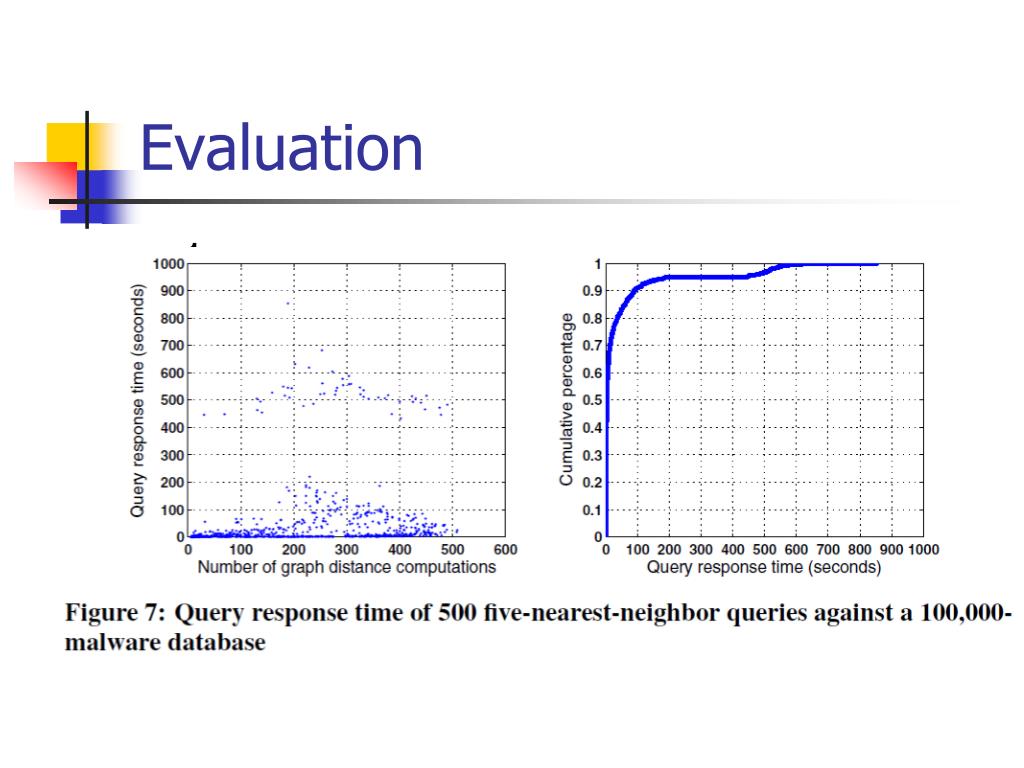

  13. Evaluation • 1

  14. Evaluation • 1

  15. Conclusion • Contributions -efficient graph-distance computation algorithm -multi-resolution indexing -performance
