Presentation Transcript

  1. Wu, Kuan-Yi

  2. Properties of minD/ ParA superfamily • Structurally similar • ATPase activity • Polymerization • Other playes • dynamic oscillation (ParA)

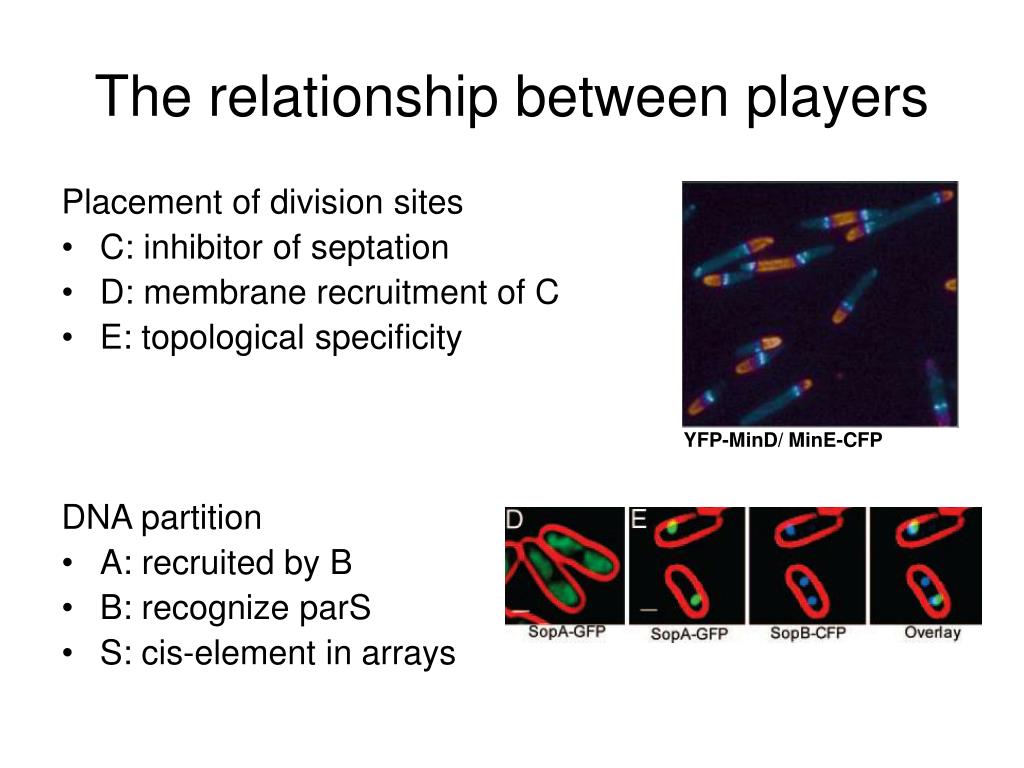

  3. YFP-MinD/ MinE-CFP The relationship between players Placement of division sites • C: inhibitor of septation • D: membrane recruitment of C • E: topological specificity DNA partition • A: recruited by B • B: recognize parS • S: cis-element in arrays

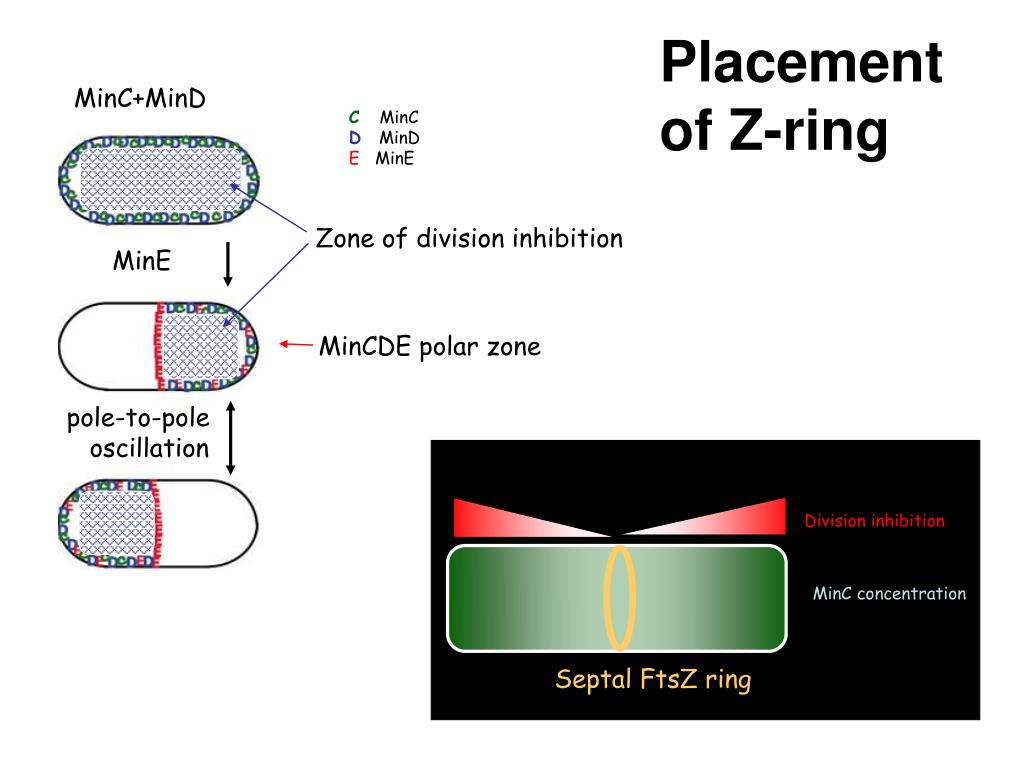

  4. MinC+MinD C MinC DMinD E MinE Division inhibition MinC concentration Zone of division inhibition MinE Septal FtsZ ring MinCDE polar zone pole-to-pole oscillation Placement of Z-ring

  5. 1 ADP MinD MinD - - - + + + 5 P MinC MinE 2 MinE 3 ATP ATP ATP ATP MinC MinE 4 MinC ATP ATP MinD MinD MinD MinD MinD Molecular mechanism of the oscillating Min system C-terminus

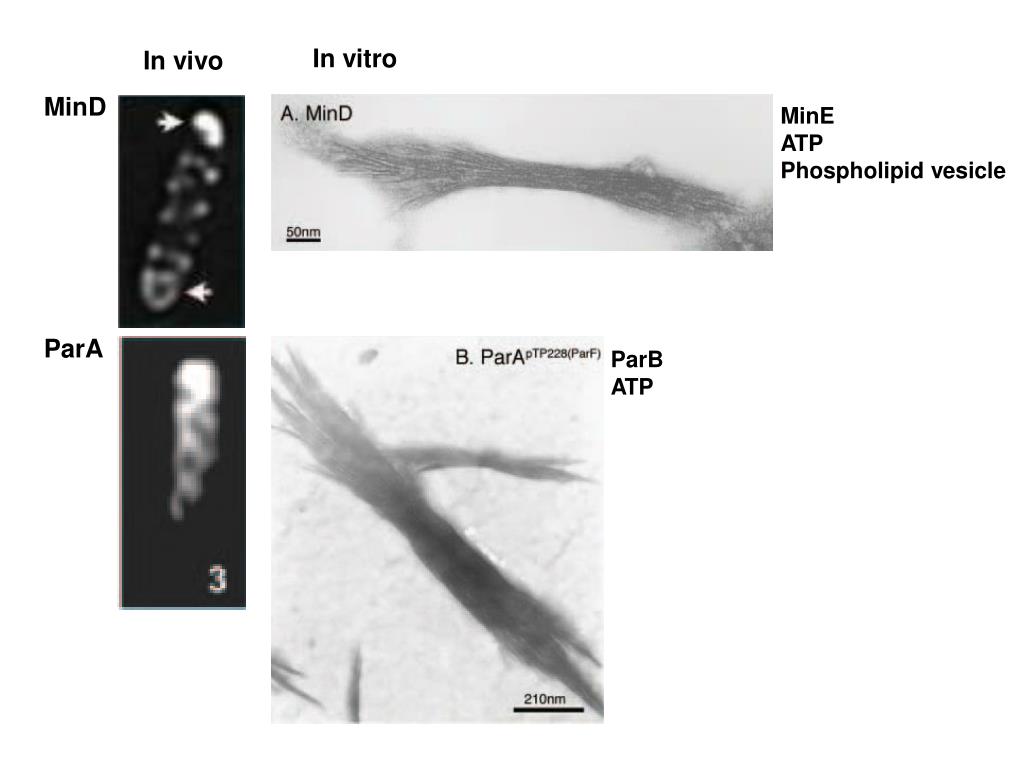

  6. In vitro In vivo MinD MinE ATP Phospholipid vesicle ParA ParB ATP

  7. A22 Localization of parA1scoe in different E.coli strains A22 treatment ΔmreB

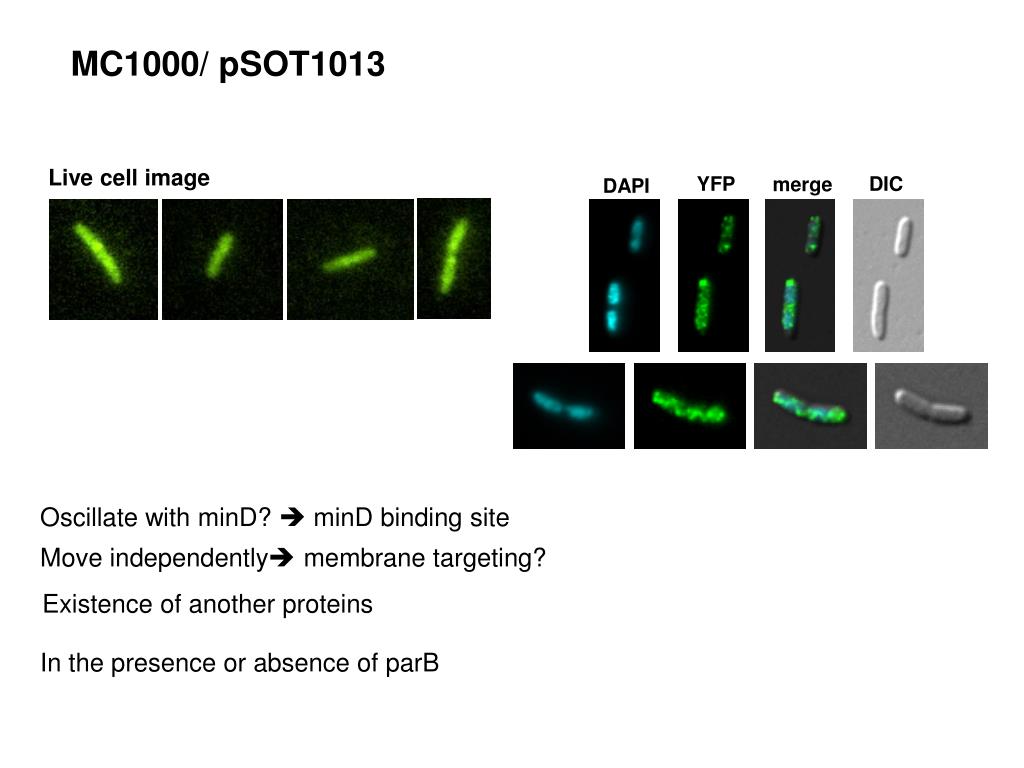

  8. MC1000/ pSOT1013 Live cell image YFP DIC merge DAPI Oscillate with minD?  minD binding site Move independently membrane targeting? Existence of another proteins In the presence or absence of parB

  9. Test on ori/ ter localization YFP DIC-YFP DIC CFP IL2/ pLAU53 YFP DIC-CFP DIC CFP IL29/ pLAU53
