  1. Your Botnet is My Botnet: Analysis of a Botnet Takeover Brett Stone-Gross, Marco Cova, Lorenzo Cavallaro, Bob Gilbert, Martin Szydlowski, Richard Kemmerer, Christopher Kruegel, and Giovanni Vigna Presented by Ryan Genato

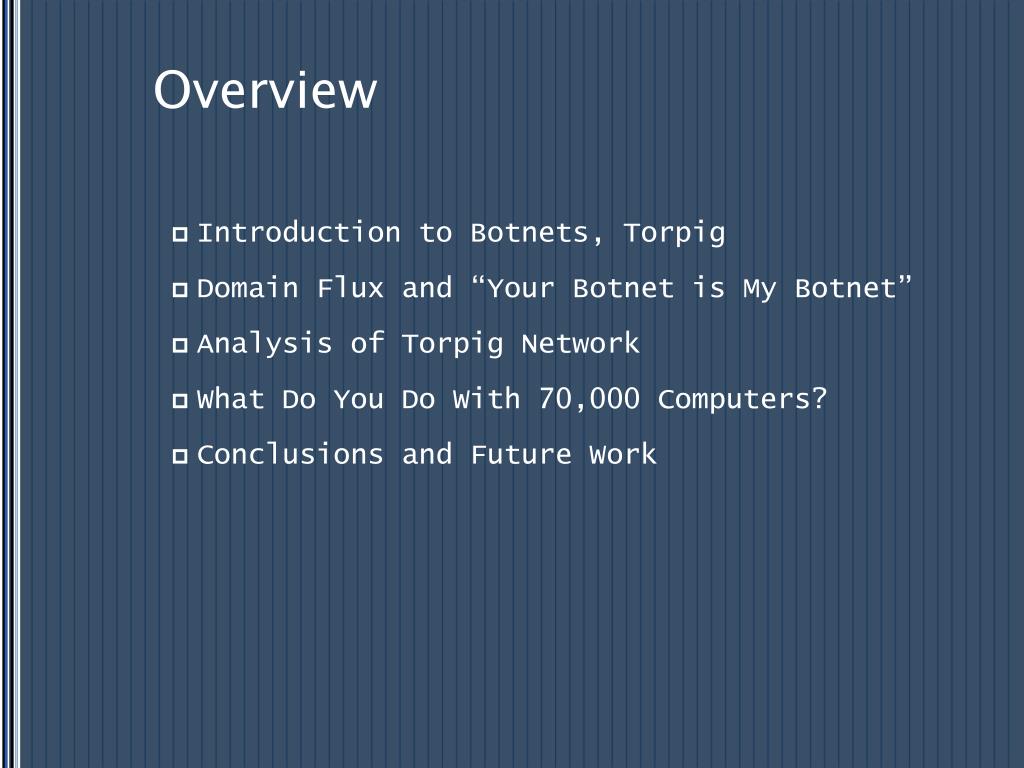

  2. Overview • Introduction to Botnets, Torpig • Domain Flux and “Your Botnet is My Botnet” • Analysis of Torpig Network • What Do You Do With 70,000 Computers? • Conclusions and Future Work

  3. Introduction – Terminology • Bot – An application that performs some action or set of actions on behalf of a remote controller • Botnet – A network of infection machines controlled by a malicious entity • Command and Control (C&C) Channel – Used to send commands to bots, and obtain results and status messages

  4. Introduction – Mebroot • Rootkit distributed by Neosploit exploit kit • Spread via drive-by-downloads: hidden iframe on website executes obfuscated JavaScript to download Mebroot on victim’s machine • Mebroot overwrites the master boot record of the machine, circumventing most anti-virus tools (back then)

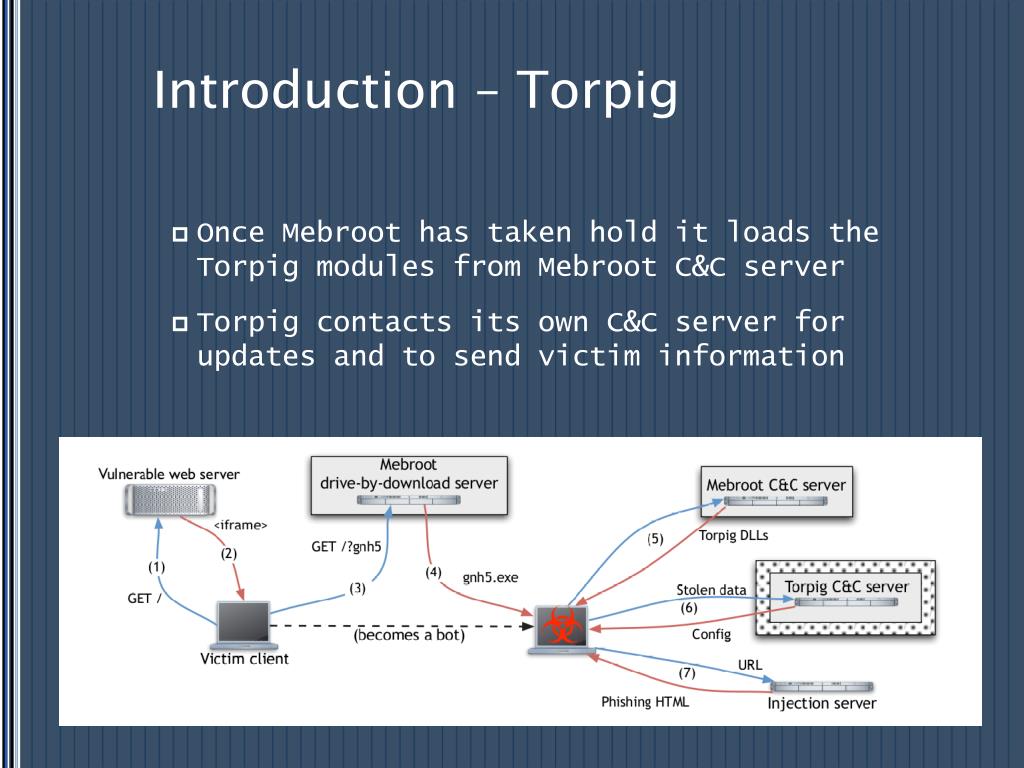

  5. Introduction – Torpig • Once Mebroot has taken hold it loads the Torpig modules from Mebroot C&C server • Torpig contacts its own C&C server for updates and to send victim information

  6. Introduction – Torpig • What kind of information does Torpig record? • Monitoring popular applications • “Man-in-the-browser” attacks

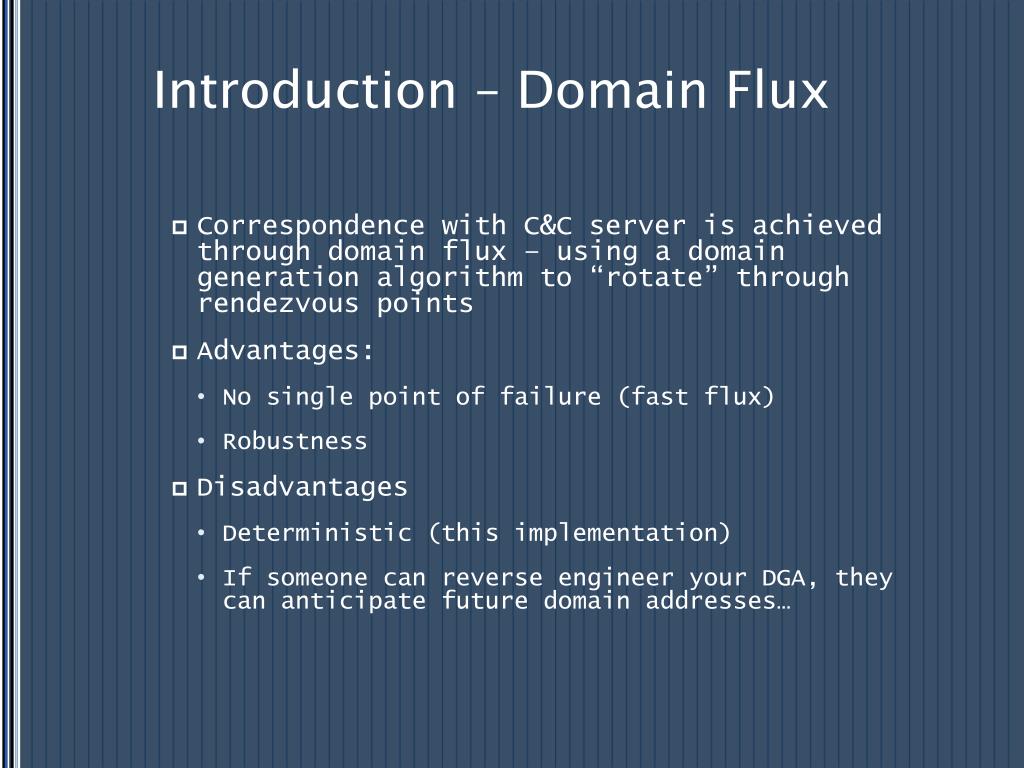

  7. Introduction – Domain Flux • Correspondence with C&C server is achieved through domain flux – using a domain generation algorithm to “rotate” through rendezvous points • Advantages: • No single point of failure (fast flux) • Robustness • Disadvantages • Deterministic (this implementation) • If someone can reverse engineer your DGA, they can anticipate future domain addresses…

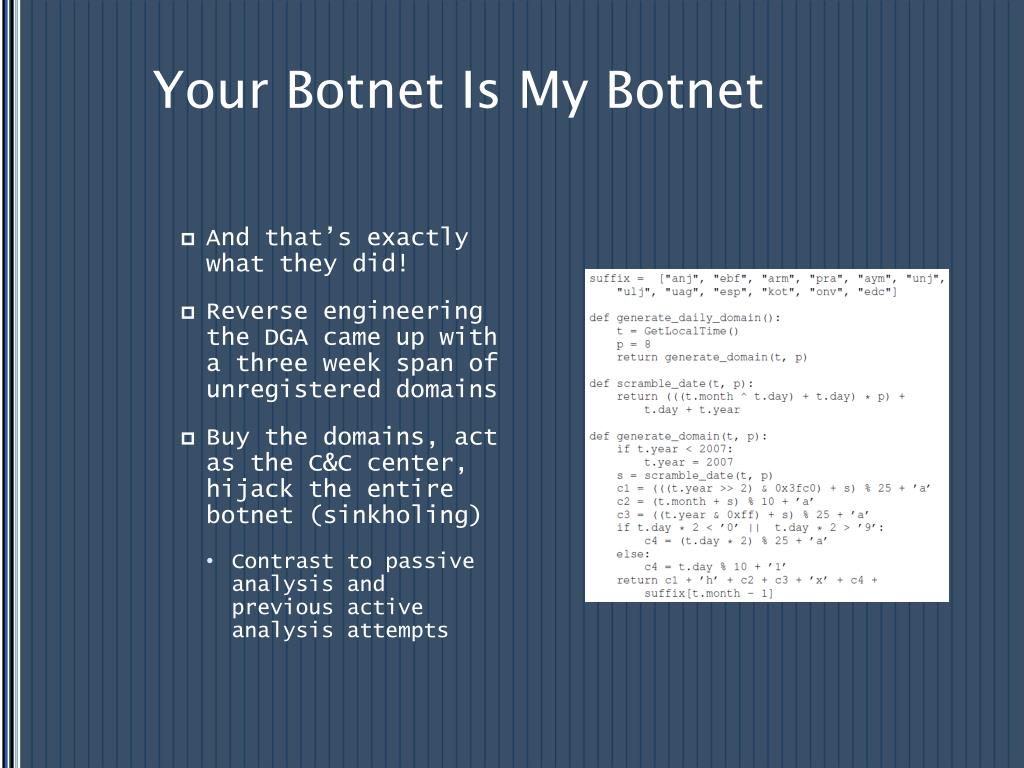

  8. Your Botnet Is My Botnet • And that’s exactly what they did! • Reverse engineering the DGA came up with a three week span of unregistered domains • Buy the domains, act as the C&C center, hijack the entire botnet (sinkholing) • Contrast to passive analysis and previous active analysis attempts

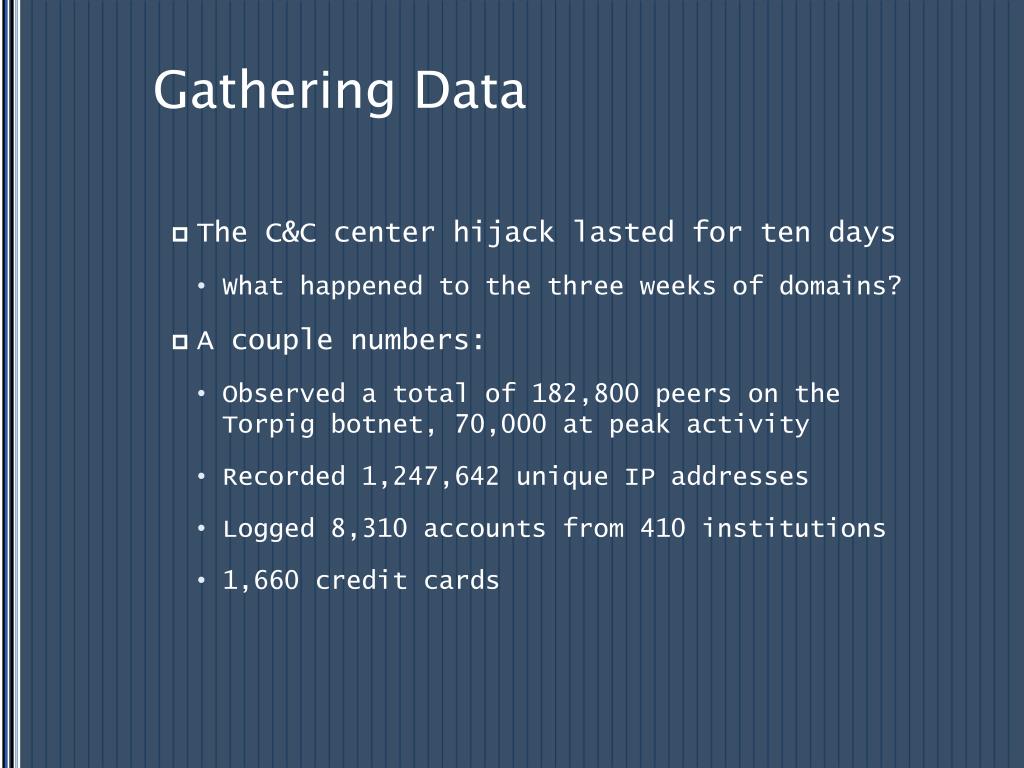

  9. Gathering Data • The C&C center hijack lasted for ten days • What happened to the three weeks of domains? • A couple numbers: • Observed a total of 182,800 peers on the Torpigbotnet, 70,000 at peak activity • Recorded 1,247,642 unique IP addresses • Logged 8,310 accounts from 410 institutions • 1,660 credit cards

  10. Data Analysis + Handling • 173,686 unique passwords recorded, 40% cracked in less than 75 minutes • 28% of users exhibited password reuse • Working with FBI and National Cyber-Forensics to repatriate the stolen information • Need a reputable organization to work things out

  11. What Do You Do With 70,000 Computers? • Take down the government! • 70,000 users, average 435 kbps (in 2008) = 17 Gbps • 5,635 users to take down fbi.gov and justice.gov • 10 Gbps to take down Wikileaks • Distributed password cracking

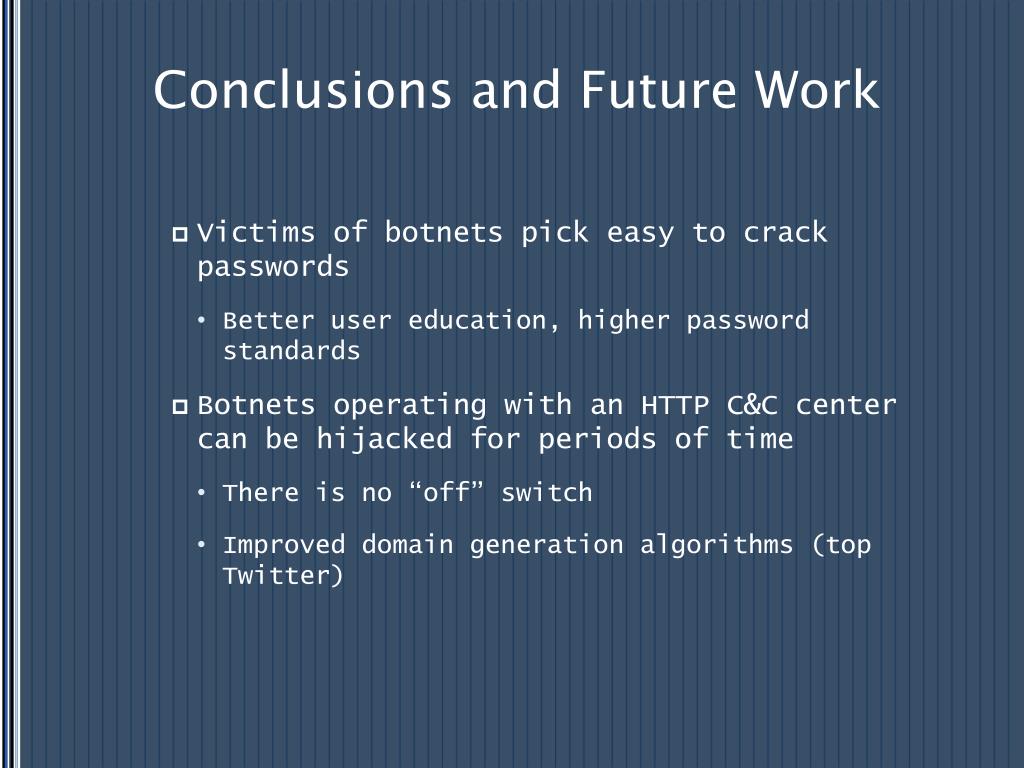

  12. Conclusions and Future Work • Victims of botnets pick easy to crack passwords • Better user education, higher password standards • Botnets operating with an HTTP C&C center can be hijacked for periods of time • There is no “off” switch • Improved domain generation algorithms (top Twitter)

  13. Works Referenced • Chen, Adrian. "The Evil New Tactic Behind Anonymous' Massive Megaupload Revenge Attack." Gawker. N.p., 19 Jan. 2012. Web. 23 Jan. 2012. • Greulich, Andreas. "Torpig/Mebroot Reverse Code Engineering." . N.p., 18 Apr. 2009. Web. 23 Jan. 2012. • Howard, Rick. Cyber Fraud: Tactics, Techniques and Procedures. N.p.: Auerbach Publications, 2009. • Kemmerer, Richard A. "How to Steal a Botnet and What Can Happen When You Do ." YouTube. N.p., n.d. Web. 23 Jan. 2012. <http://www.youtube.com/watch?v=2GdqoQJa6r4>. • Richard, Matt, and Michael Ligh. "making fun of your malware." Defcon 17. N.p., n.d. Web. 23 Jan. 2012. • Stone-Gross, Brett, Marco Cova, Lorenzo Cavallaro, Bob Gilbert, and Martin Szydlowski. "Your botnet is my botnet: Analysis of a botnet takeover." Proceedings of the 16th ACM conference on Computer and communications security. N.p.: ACM, 2009. 635-47. • Vaughn-Nichols, Stephen J. "DDoS: How to take down WikiLeaks, MasterCard or any other Web site." ZDNet. N.p., 9 Dec. 2010. Web. 23 Jan. 2012.

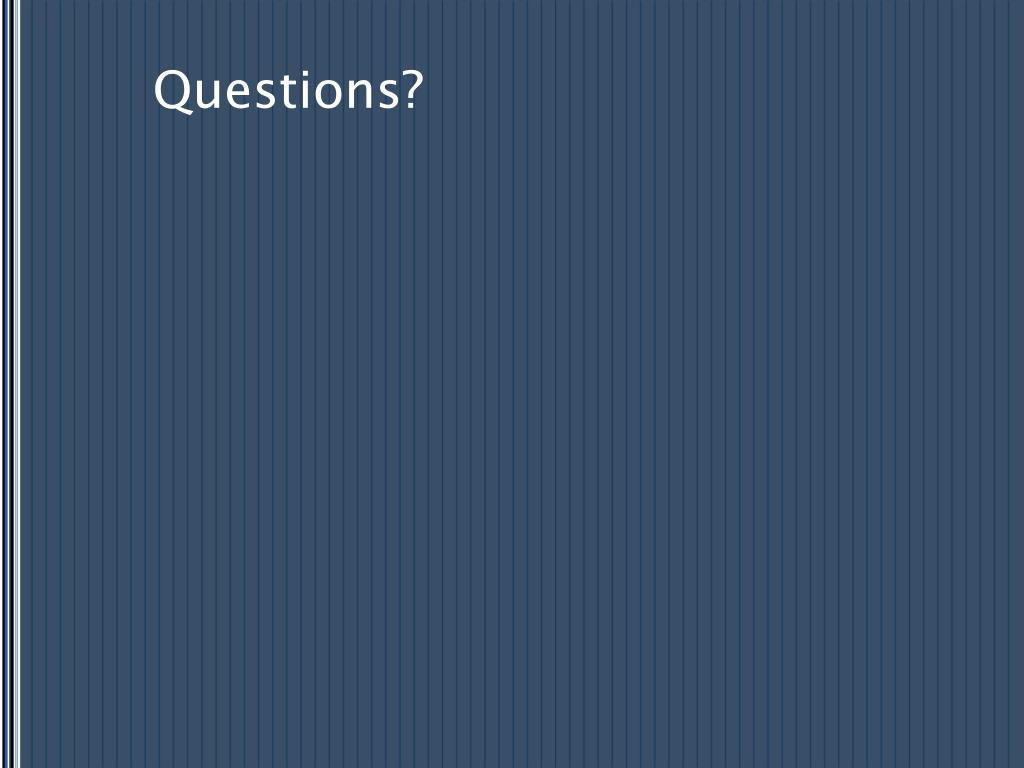

  14. Questions?
