The Microprocessors. The Rockwell 6502 is an 8 bit microprocessor and has a bus system directly compatible with the Motorola 6800 series of integrated circuits. Rockwell 6502. Fig 5.1 shows a functional block diagram of Rockwell 6502 microprocessor, the registers and the pin connections.

kolya
Télécharger la présentation

The Microprocessors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

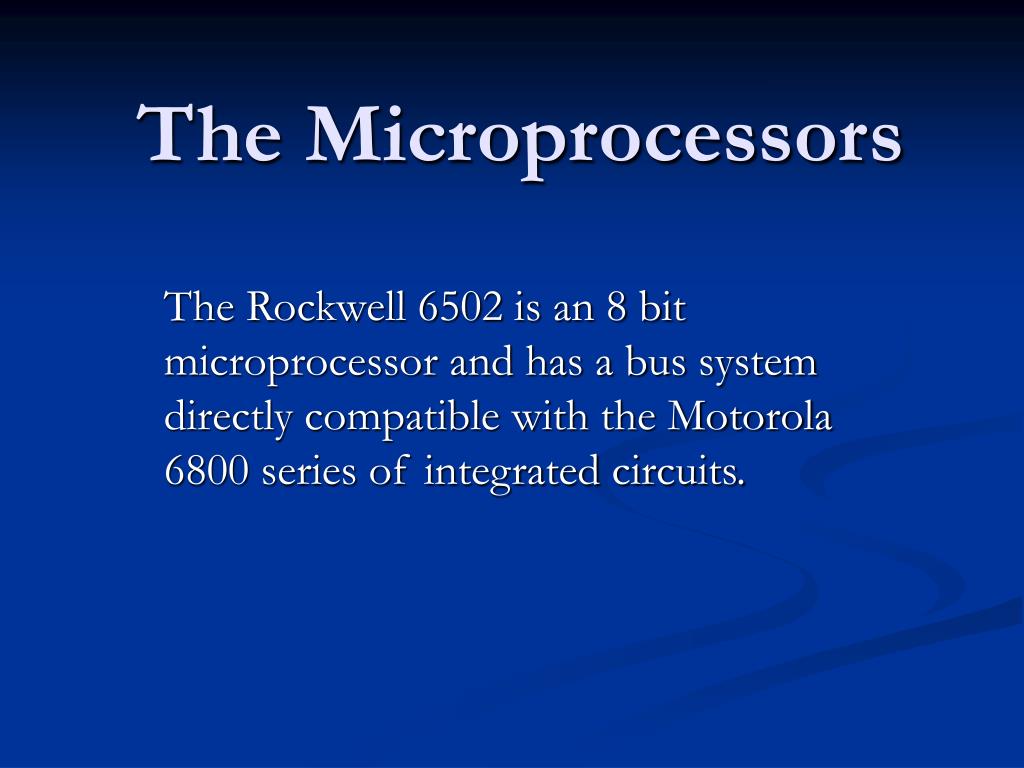

  1. The Microprocessors The Rockwell 6502 is an 8 bit microprocessor and has a bus system directly compatible with the Motorola 6800 series of integrated circuits.

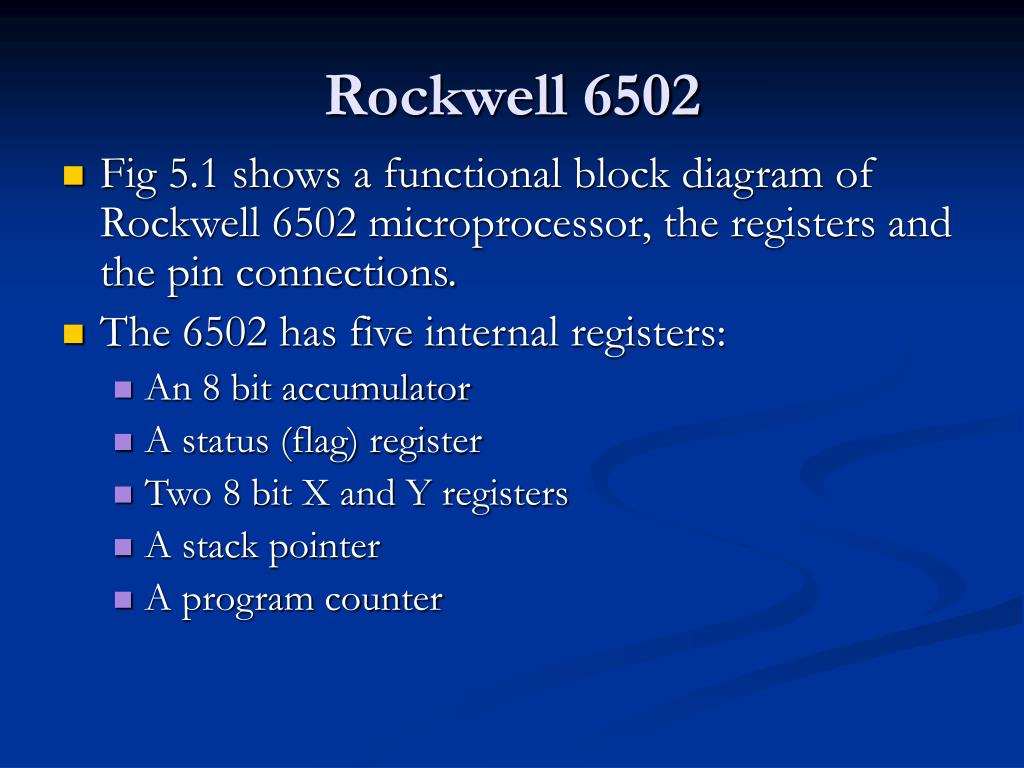

  2. Rockwell 6502 • Fig 5.1 shows a functional block diagram of Rockwell 6502 microprocessor, the registers and the pin connections. • The 6502 has five internal registers: • An 8 bit accumulator • A status (flag) register • Two 8 bit X and Y registers • A stack pointer • A program counter

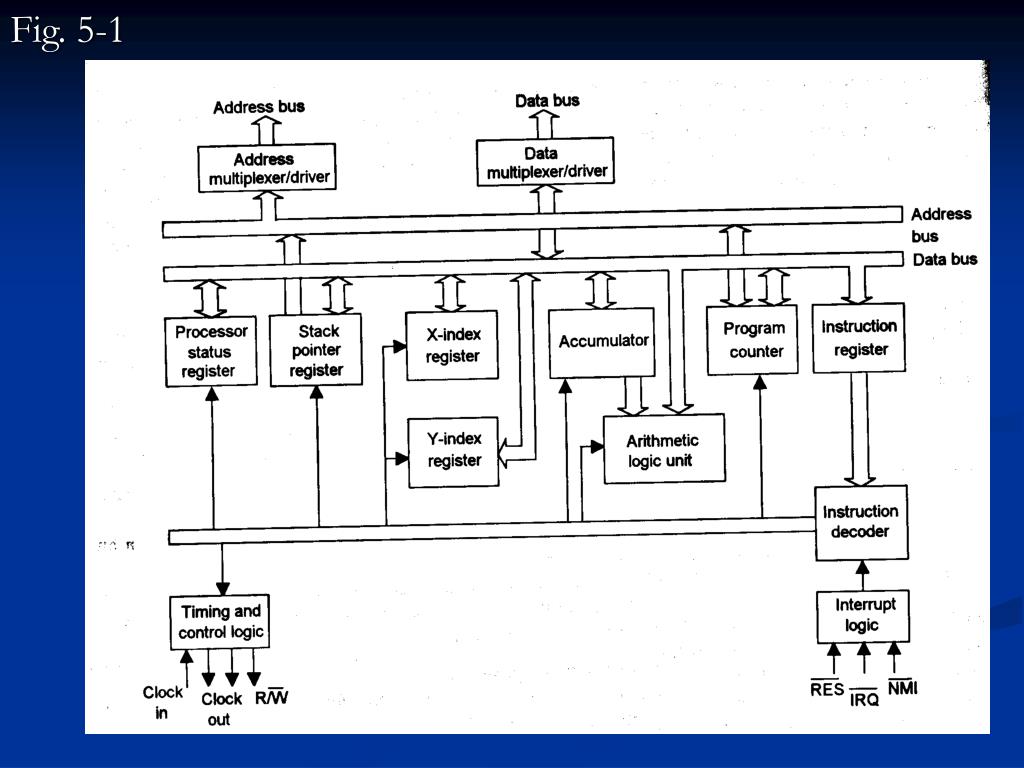

  3. Fig. 5-1

  4. Fig. 5-1 ..

  5. Rockwell 6502 .. • The 6502 is packaged in a standard 40-pin package. • Address Bus – A0 to A15 constitute a 16 bit address bus • Data Bus – D0 to D7 constitute an 8 bit bidirectional data bus • System Control – The R/W pin is taken high, i.e. 1 to read, 0 to write

  6. Rockwell 6502 .. • Processor Control • Three Interrupt lines: • RES line to reset the microprocessor • IRQ is used for interrupt request • NMI (non maskable interrupt) can not be turned off • Clock - Φ0 is for single phase external crystal-controlled oscillator. The Φ1 and Φ2 are used to synchronize operations

  7. Motorola 6800

  8. Motorola 6800

  9. Motorola 6800 • First 8 bit microprocessor from Motorola and needed an external clock generator • The later 6802 incorporates a built-in clock generator • Two accumulator register, a status register, an index register, a stack pointer register and a program counter

  10. Motorola 6800 • The status register has flag bits to show negative N, zero Z, carry C, overflow V, half-carry H, and Interrupt I. The half-carry flag is used in binary coded decimal arithmetic and is set to 1 if a carry is generated between bit 3 and bit 4 of a calculation • Address Bus – A0 to A15 (Tri-state Outputs) • Data Bus – D0 to D7 (Tri-state Outputs)

  11. Motorola 6800 • Control • Pins 40, 6, 2, 4, 39, 36, 7, 5, and 34 are used for control • The valid memory address output on pin 5 signals to memory that there is a valid address on the address bus • The data bus enable input on pin 36 is used to enable other devices to take control of the data bus • A bus available output on pin 7 indicates that the address bus is available
