  1. VIEW SCADAPower of Open System www.institutepupin.com

  2. openview sistem

  3. openview comm • Usage diferent communication standards: • IEC standard protocol–IEC 60870-5 series • IEC 61850 • ASEA protocol (SINDAC 9000) – Končar • DNP 3.0 protocol • MODBUS • BACNET • EASYIP • Specific protocols IMP Automatika Diferent types of communication media can be used from radio to optical.

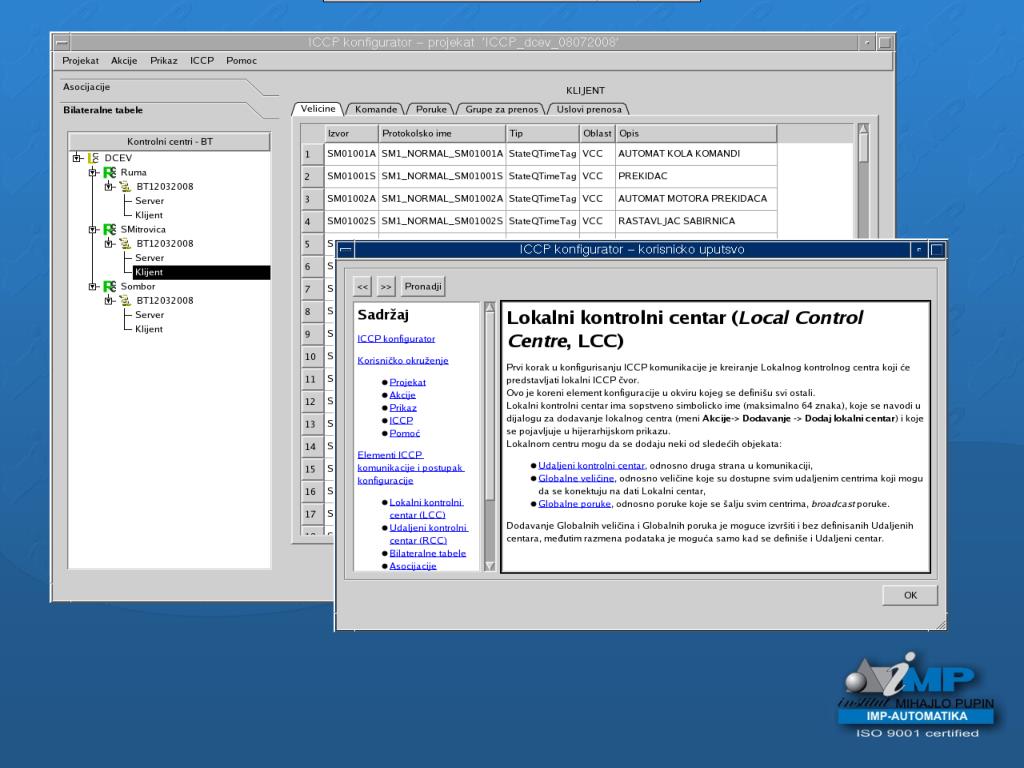

  4. openview data exchange server • data exchange server – connection between any SCADA which can use ICCP TASE.2 • Exchange realtime data • Issuing command and accepting commands • Exchange tags

  5. openview data exchange server 2 • data exchange server – povezivanje centara na standardni način • ICCP TASE.2 • prenos real time podataka • komandovanje • prenos tagova

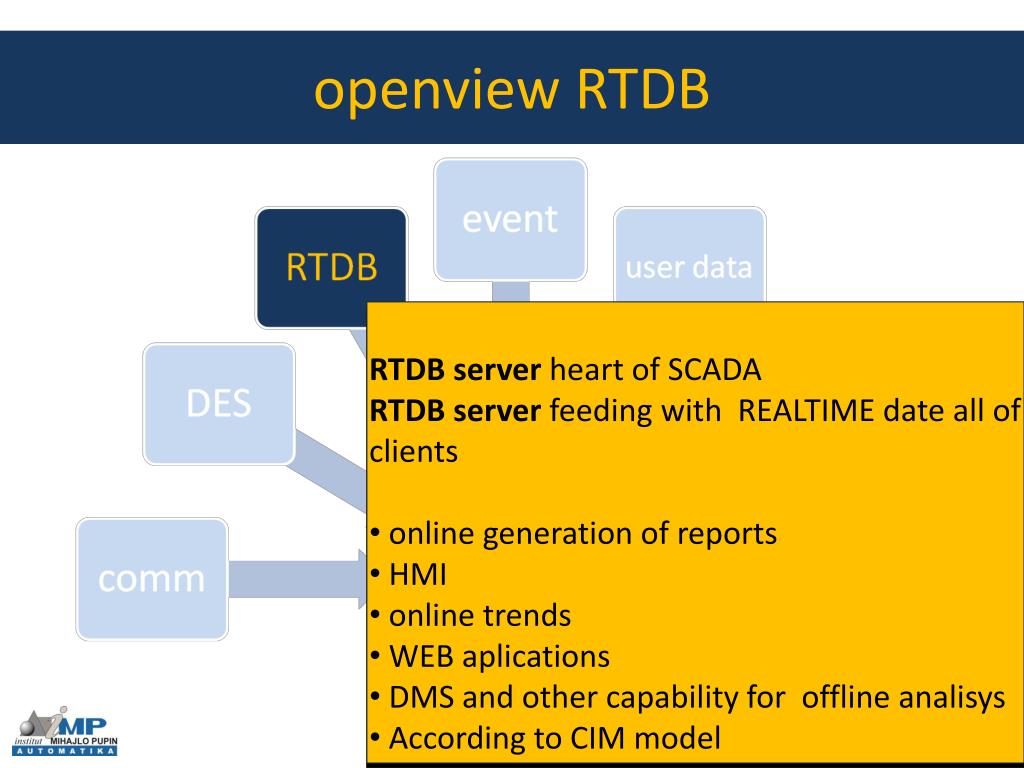

  6. openview RTDB • RTDB server heart of SCADA • RTDB server feeding with REALTIME date all of clients • online generation of reports • HMI • online trends • WEB aplications • DMS and other capability for offline analisys • According to CIM model

  7. openview event • event server collecting and processing all of events in system • event server provide distribution all of events to all of clients • List of last 3 events • List of events • Sound alarm • extern light signalization • online printout

  8. openview user data • Data of all users of SCADA system • Users • Consoles (terminals for access to SCADA System) • Areas of responsibility • Permissions for area of responsibility – permissions on processes • User group – permissions on applications Allow easy integration in corporative network

  9. openview user dataPermissions on processes Controlling large processes have diferent teams with diferent profiles. As system become larger and more complex, that there is more and more information which must be fastly processed and make appropriate decision. Special teams uses data which collected by SCADA system and make decision based on this data. VIEW2 SCADA SYSTEM allow diferent ways to grab data, and online or offline applications which processed this data. One efficiency method to handle rights to access data is to use VIEW 2 PROCESSES PERMISSION SYSTEM.

  10. openview user dataPERMISSIONS ON PROCESSES Using PERMISSIONS to each user we can allow or disallow usage, monitoring and controlling any part of SCADA Permission which is used in VIEW 2 SCADA system is divided in permission for action, command, flashing of nonacknowledged events, and permission for monitoring events. Combining area of responsibility and permissions we can reach better controll and coordination of teams which use SCADA system, and better security of whole system.

  11. openview user dataHMI Configurator VIEW2 HMI CONFIGURATOR allow changing look and behaviour of SCADA HMI application for diferent group of users. Diferent configurations for diferent group of users allow that same application can be used for operator in Dispatch room and Engineers in plan and analisys etc. VIEW2 HMI CONFIGURATOR allow to administrator of system that can easy change look&feel of aplication without stoping SCADA servers. Operator as a key person can get comfortable surrounding to work.

  12. openview sysconf • Real time data about system • servers • RTUs • Communications • printers • LAN, WAN

  13. openview sysconf 2

  14. openview archive • Archived data • instantaneous values • min, max, average, value on beging of interval • events • SOE • statistic of communications dBase for offline analisys of data • view report subsystem – view ips • web aplications • Source of data for local warehouse (BIP) • Source of data for system Perf-IS

  15. openview archiveIPS •data about users •Right of access for users •Right to access local and/or remote SCADA archives •easy and fast method of creating reports (step by step) •possibility of making predefined reports •dinamic generations of reports •tabelar view of data •graphical view of data (line, step, pie charts) •view of formating document •filtering and data mining •exporting reports in format appropriate for other applications (i.e. .csv, .html, .pdf) •using e-mail server to sending reports automatically •reports printout

  16. openview archive 2

  17. openview archiveREPLAY ENGINE VIEW2 REPLAY ENGINE is subsystem which use archive data from VIEW2 SCADA system. For analisys data we can use archive and make whole reply of sequence which is appered in past. It is very usefull tool for training of operator and testing in real cases. Also it is very usefull for making analisys proper work of operators.

  18. openview archiveREPLAY ENGINE VIEW2 REPLAY ENGINE allow that selected time period can be again review over VIEW2 HMI interface. Any data from this period can be seen on dinamic view, and events occured in a proper time, and also occured in the list of events. With VIEW2 REPLAY ENGINE one can choose group of data which will be replied and choosing time interval. VIEW2 REPLAY ENGINE running in separate processes from curently running VIEW2 SCADA system, and there is no interference with normal operation of SCADA. This subsystem is intent to use in plan and analisys.

  19. openview archiveREPLAY ENGINE

  20. openview system • Good communication support • Connectivity with other SCADA • Data availability • Easy connection with other applications
