  1. OmniPulse™ DDC Magnetek Training

  2. OmniPulse™ DDC Training • The objective of this training is to familiarize service and maintenance personnel with • The many resources available to assist in • Start up • Maintenance • Troubleshooting • The training course is designed to provide knowledge on: • The basics of DC motors and DCCP control • The User Manual layout and information

  3. OmniPulse™ DDC Training • The basic operating theory of the technology • Hardware layout, circuit board layout, and circuit board jumper and switch settings • Navigating the display and software menus • Understanding each parameter function and how they interrelate and effect drive performance • Trouble analysis using drive fault messages and trouble flow charts • Loading control and display software

  4. OmniPulse™ DDC Session One Basic DC Background

  5. Quadrants of Operation

  6. In this quadrant the motor must provide the braking Torque to slow the Hoist or plugging in travel motion. The energy is a result from the rotating inertia reflected at the motor shaft. In this quadrant the motor must provide the physical torque to raise the load or move the Trolley or Bridge. In this quadrant the motor must provide the physical torque to overcome frictional forces, such as lowering in open hook. In this quadrant the motor must provide the braking torque to counter act gravity effect when lowering a load at a controlled speed. Quadrants of Operation

  7. Performance Curves DC Motors Hoist Control DCCP Panel

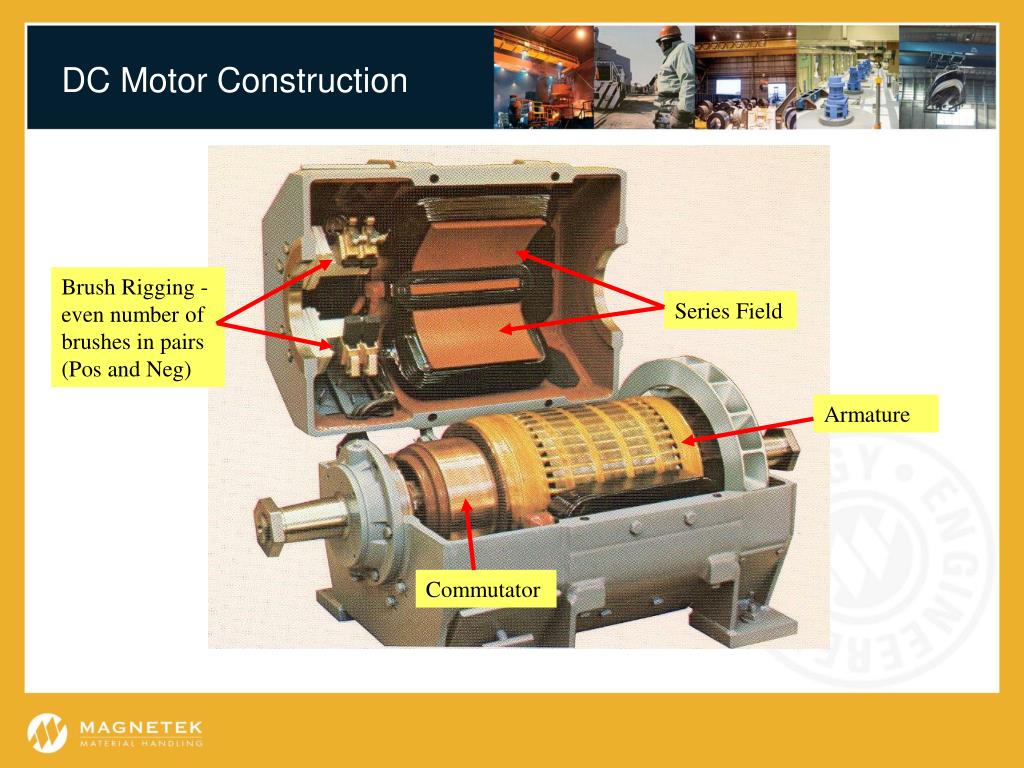

  8. Brush Rigging -even number of brushes in pairs (Pos and Neg) Series Field Armature Commutator DC Motor Construction

  9. DC Motor Connections

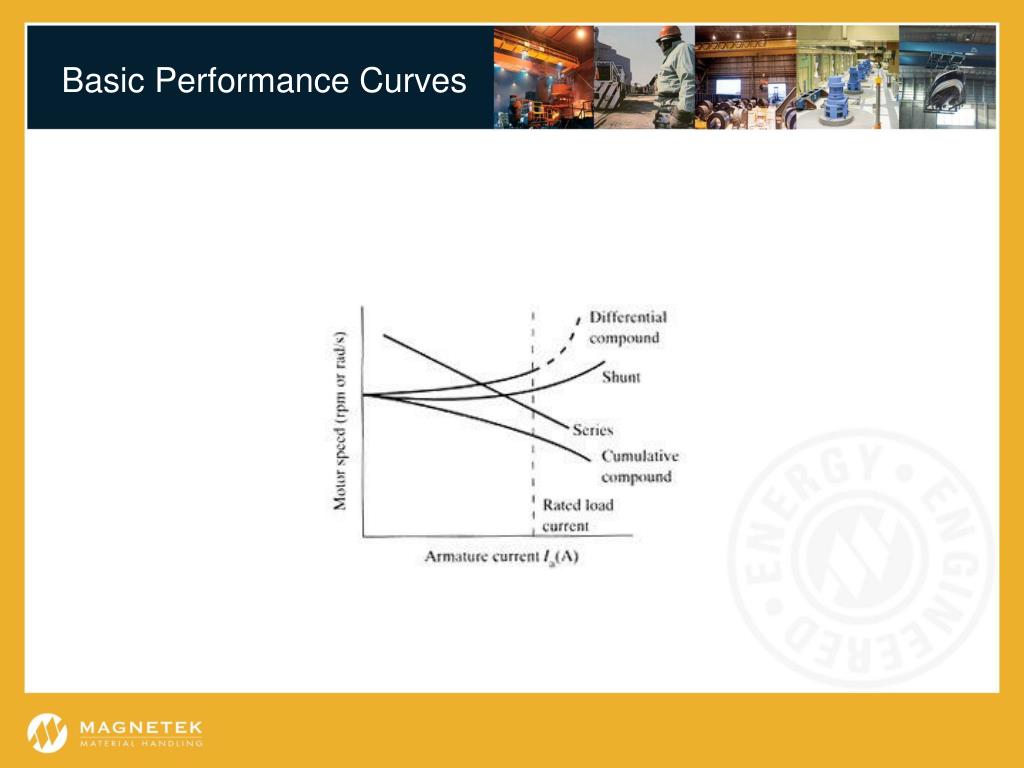

  10. Basic Performance Curves

  11. Typical DCCP Hoisting Performance Curves

  12. Series Resistor Hoist • Hoist connection • High speeds light loads • High torque low speeds • Effect of increasing resistor • Reduced torque • Poorer speed regulation

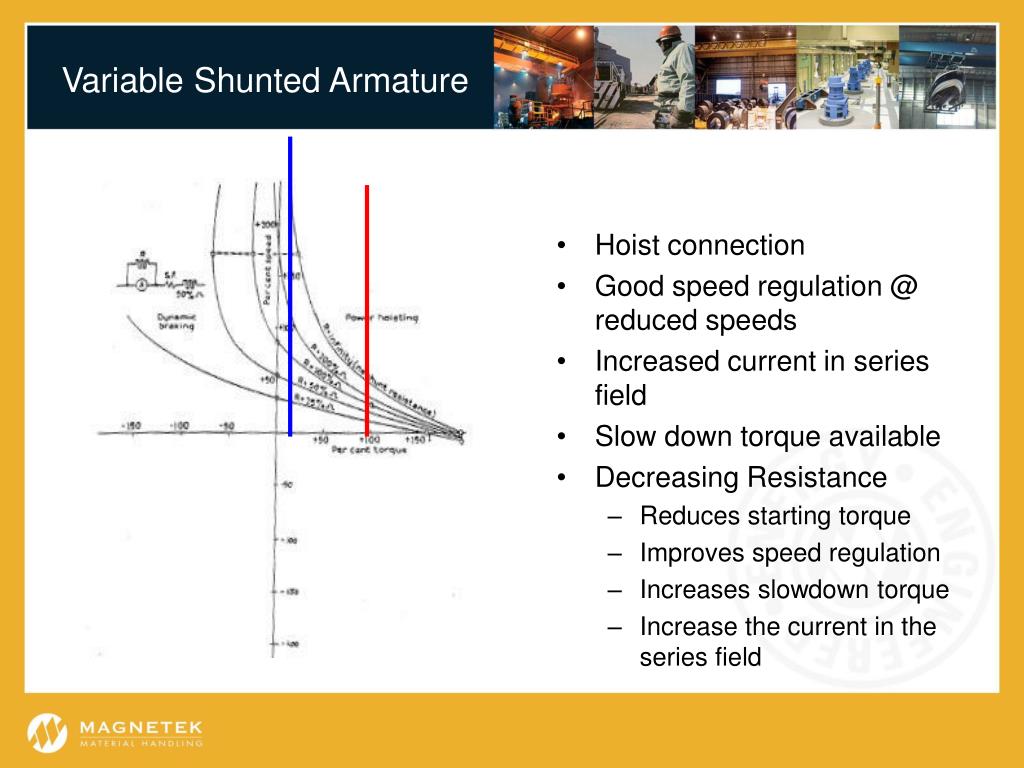

  13. Variable Shunted Armature • Hoist connection • Good speed regulation @ reduced speeds • Increased current in series field • Slow down torque available • Decreasing Resistance • Reduces starting torque • Improves speed regulation • Increases slowdown torque • Increase the current in the series field

  14. Fixed Shunted Armature • Hoist connection • Increasing resistance • Decreases starting torque • Reduces speed regulation • Decreases slowdown torque • Decreases current in the series field

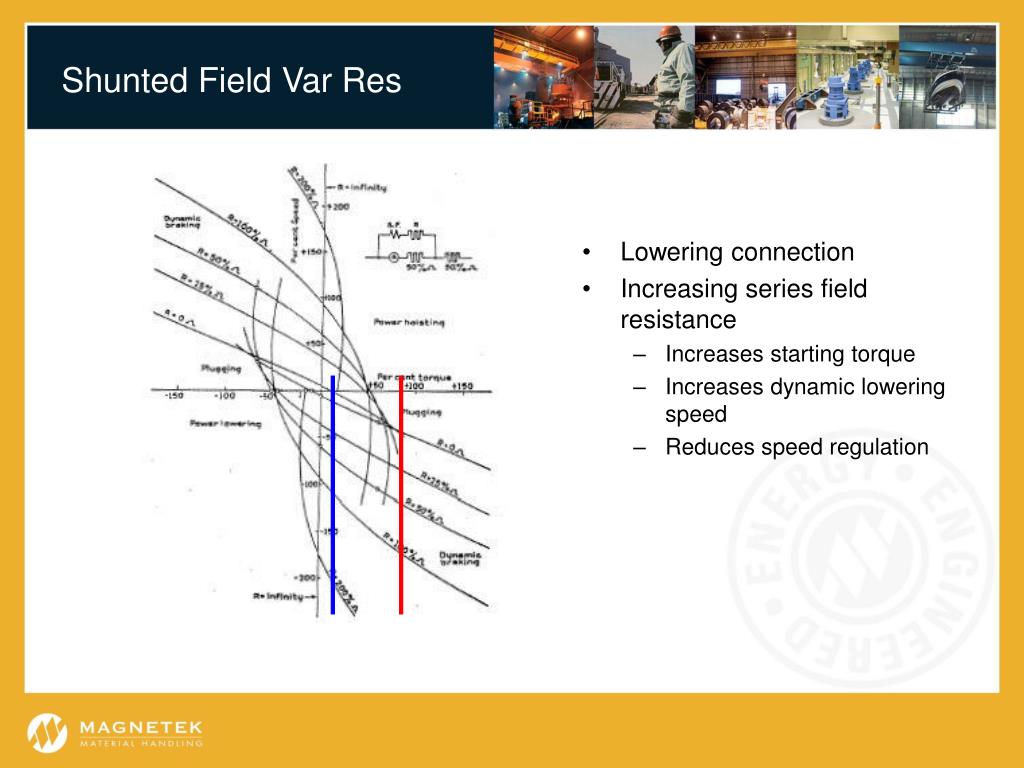

  15. Shunted Field Var Res • Lowering connection • Increasing series field resistance • Increases starting torque • Increases dynamic lowering speed • Reduces speed regulation

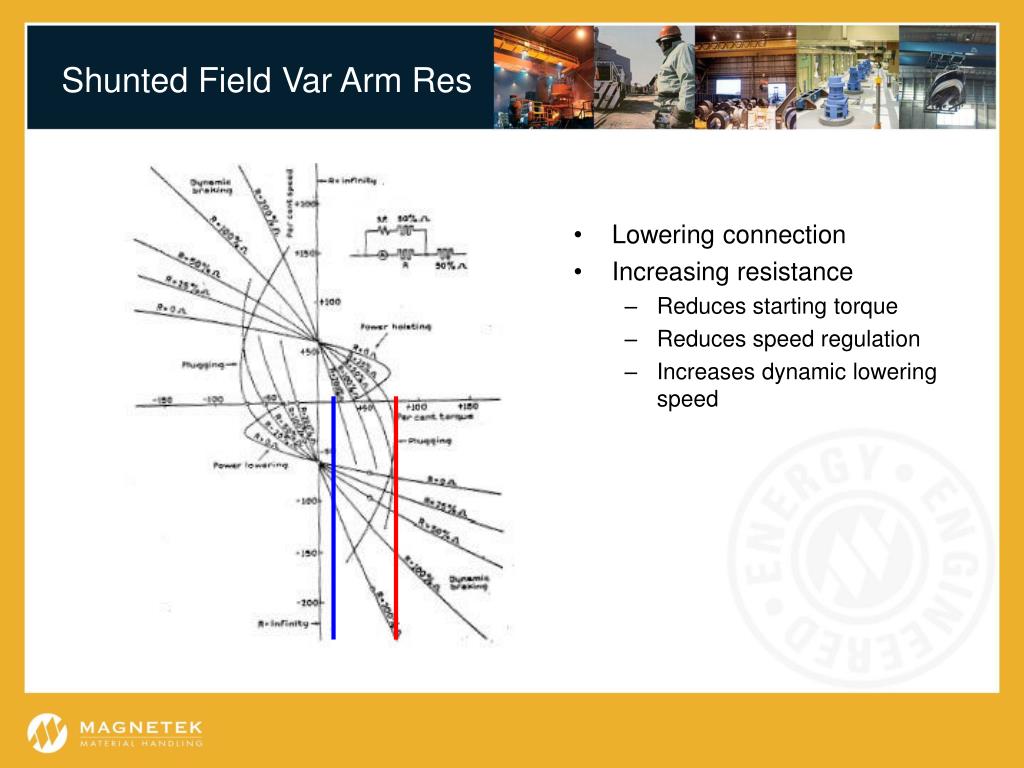

  16. Shunted Field Var Arm Res • Lowering connection • Increasing resistance • Reduces starting torque • Reduces speed regulation • Increases dynamic lowering speed

  17. Off Position DB • Self excited no power required • No starting torque developed • Increasing resistance • Increases speed • Reduces speed regulation • Reduces deceleration torque

  18. Typical One Line Electrical

  19. DCCP Typical Crane Single Wiring Diagram

  20. DCCP Typical Panel & Resistor

  21. DCCP Hoist Diagram

  22. Hoist Steps

  23. Lowering Steps 1 and 2

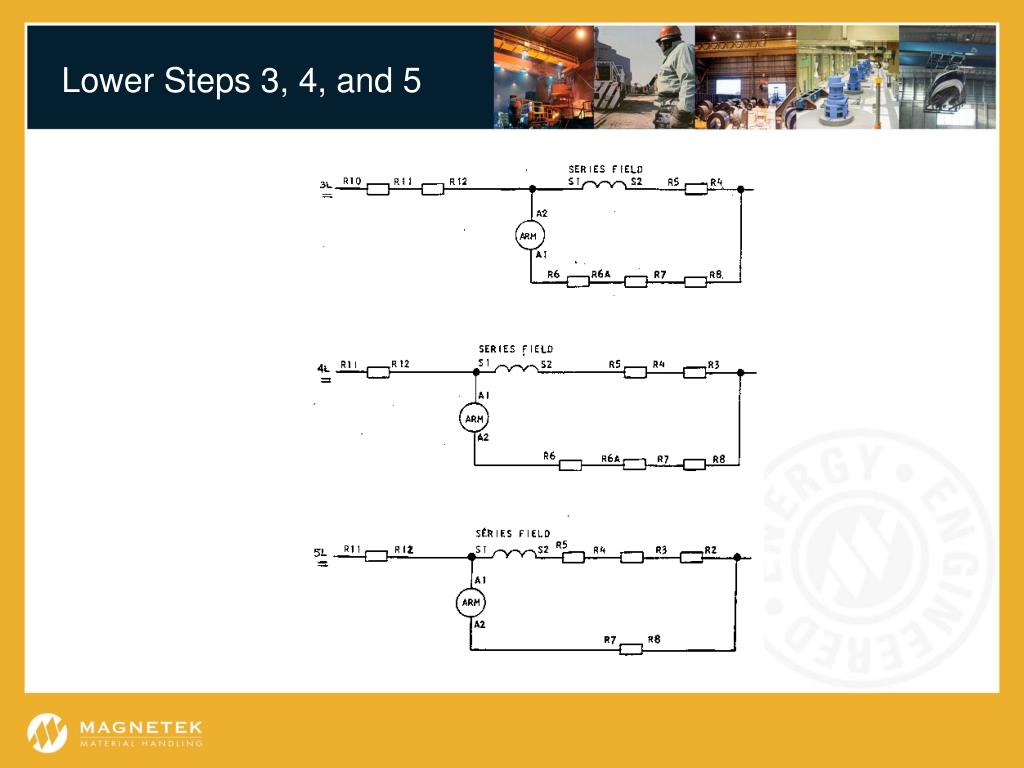

  24. Lower Steps 3, 4, and 5

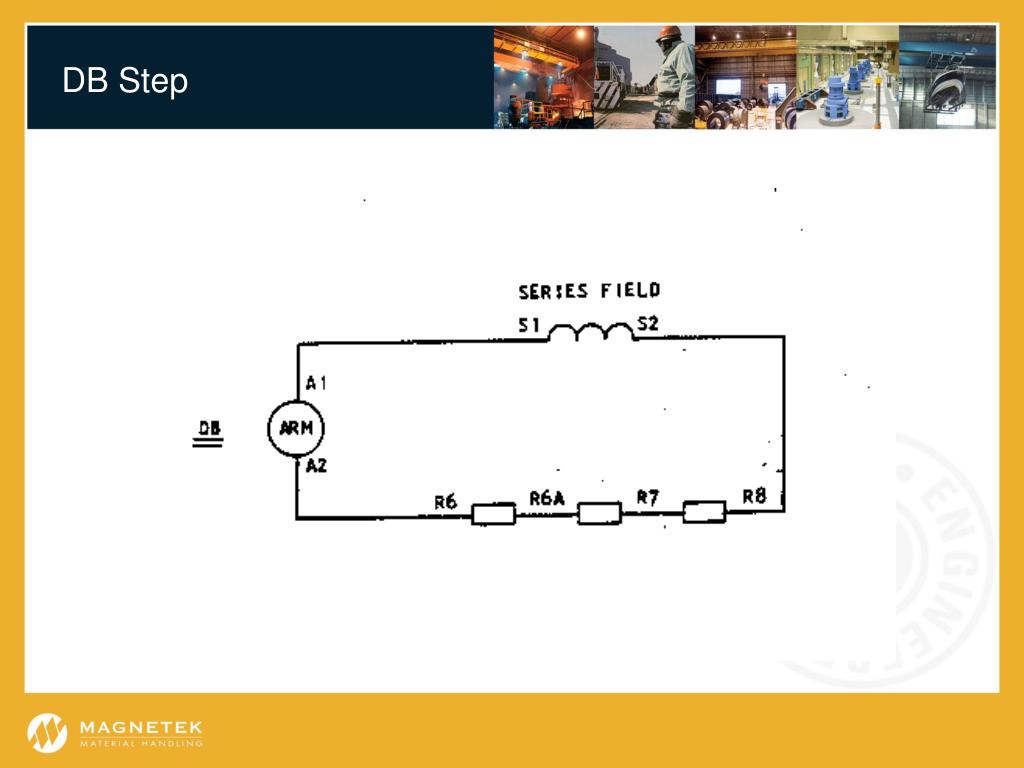

  25. DB Step

  26. End of Session One

  27. Note: All reference to Figures, Page Numbers and Tables are to be found in the OmniPulse DDC Technical Manual

  28. OmniPulse™ DDC Session Two Changing The Rules Operating Principles Pages12-15

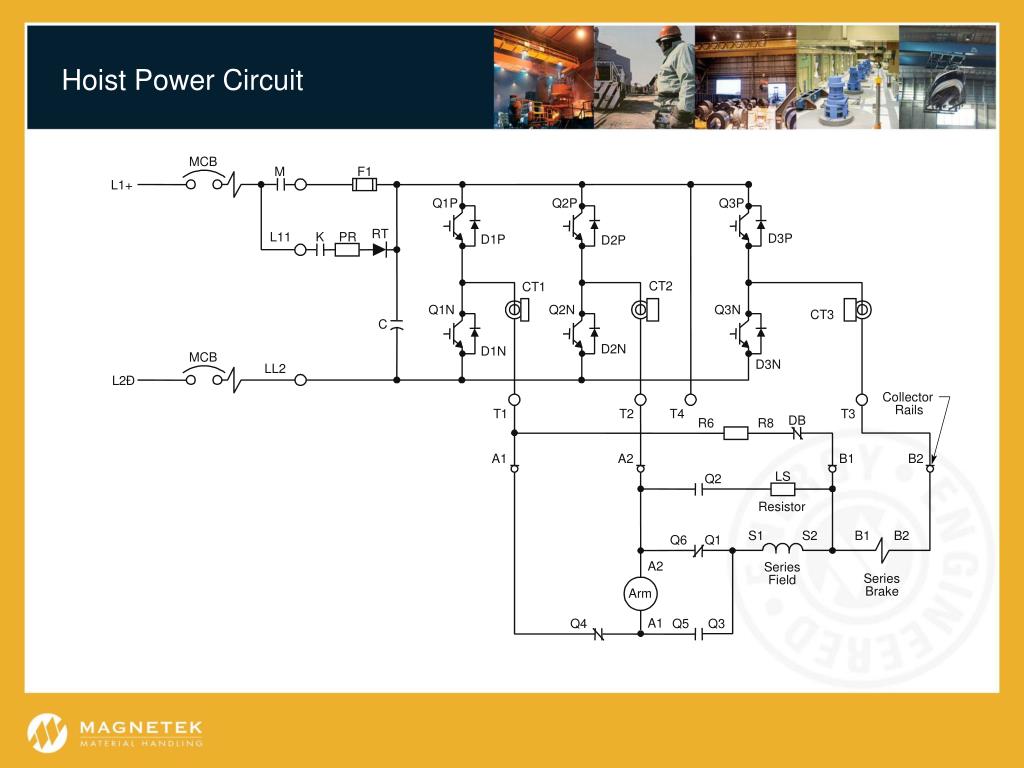

  29. MCB M F1 L1+ Q1P Q2P Q3P RT L11 K PR D3P D1P D2P CT2 CT1 Q1N Q2N Q3N CT3 C D2N D1N MCB D3N LL2 L2 Ð Collector Rails T1 T2 T4 T3 DB R6 R8 A1 A2 B1 B2 LS Q2 Resistor S1 S2 B1 B2 Q6 Q1 A2 Series Series Field Brake Arm A1 Q4 Q5 Q3 Hoist Power Circuit

  30. T1, T2, T3 Voltages Referenced to L2(-) T1 T2 T3 Simplified Motor CircuitSeries Field Hoist Motion

  31. +V Q P 1 T1 0 -V Q N 1 Drive +V Q P 2 Terminal T2 0 Voltage -V Q N 2 +V Q P 3 T3 0 -V Q N 3 +V Motor Armature Voltage 0 Terminals -V T1-T2 Current 0 +V Voltage 0 Series Field -V Terminals T2-T3 Current 0 t t t t 1 2 3 4 PWM Power Hoisting

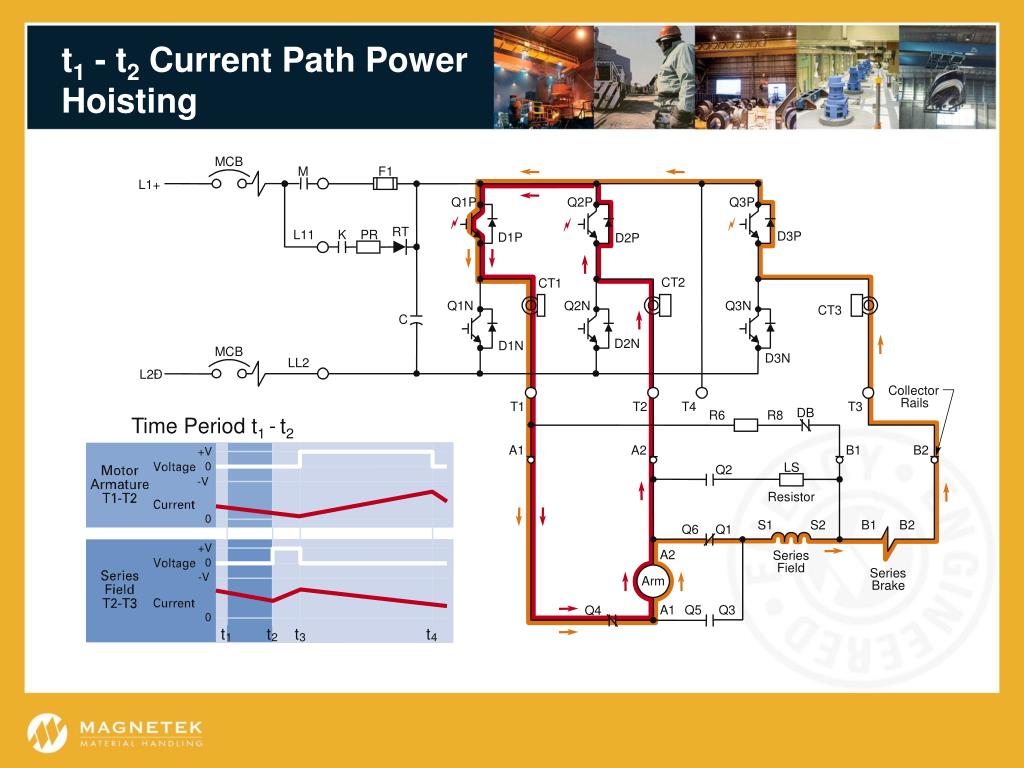

  32. MCB M F1 L1+ Q1P Q2P Q3P RT L11 K PR D3P D1P D2P CT2 CT1 Q1N Q2N Q3N CT3 C D2N D1N MCB D3N LL2 L2 Ð Collector Rails T1 T2 T4 T3 DB R6 R8 Time Period t1 -t2 A1 A2 B1 B2 +V 0 LS Q2 -V Resistor 0 S1 S2 B1 B2 Q6 Q1 +V A2 Series 0 Field Series -V Arm Brake A1 Q5 Q3 Q4 0 t t t t 1 2 3 4 t1 - t2 Current Path Power Hoisting

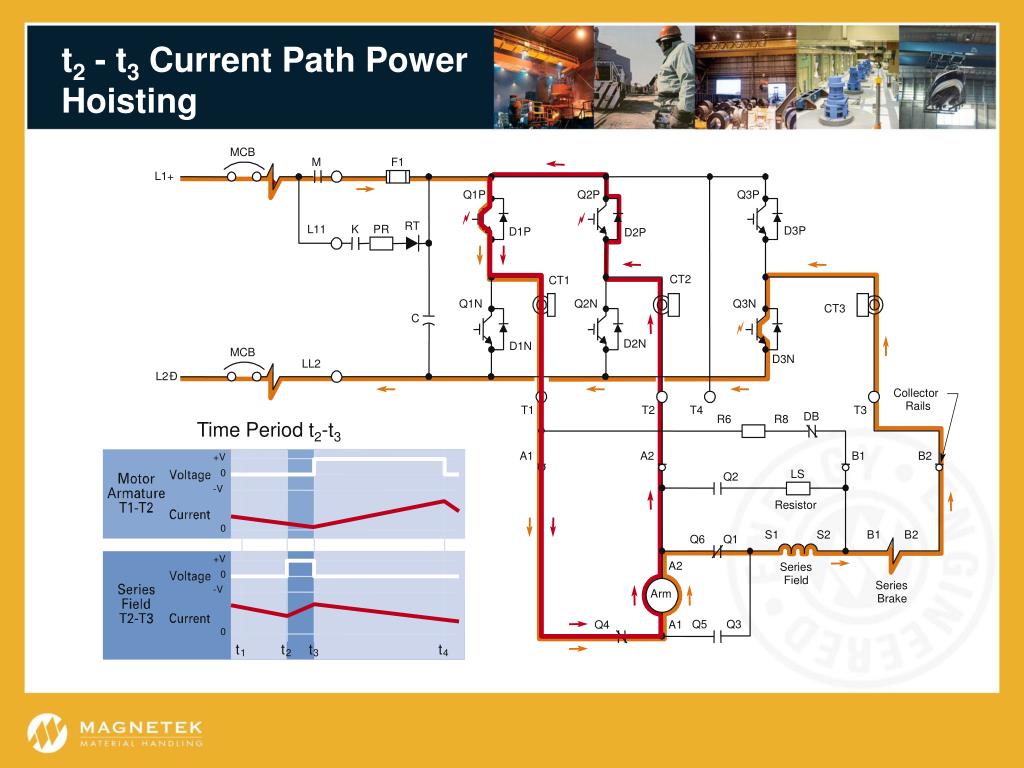

  33. MCB M F1 L1+ Q1P Q2P Q3P RT L11 K PR D3P D1P D2P CT2 CT1 Q1N Q2N Q3N CT3 C D2N D1N MCB D3N LL2 L2 Ð Collector Rails T1 T2 T4 T3 DB R6 R8 Time Period t2-t3 A1 A2 B1 B2 +V 0 LS Q2 -V Resistor 0 S1 S2 B1 B2 Q6 Q1 +V A2 Series 0 Field Series -V Arm Brake Q5 Q3 Q4 A1 0 t t t t 1 2 3 4 t2 - t3 Current Path Power Hoisting

  34. MCB M F1 L1+ Q1P Q2P Q3P RT L11 K PR D3P D1P D2P CT2 CT1 Q1N Q2N Q3N CT3 C D2N D1N MCB D3N LL2 L2 Ð Collector Rails T1 T2 T4 T3 DB Time Period t3-t4 R6 R8 A1 A2 B1 B2 +V 0 LS Q2 -V Resistor 0 S1 S2 B1 B2 Q6 Q1 +V A2 Series 0 Field Series -V Arm Brake Q5 Q3 Q4 A1 0 t t t t 1 2 3 4 t3 - t4 Current Path Power Hoisting

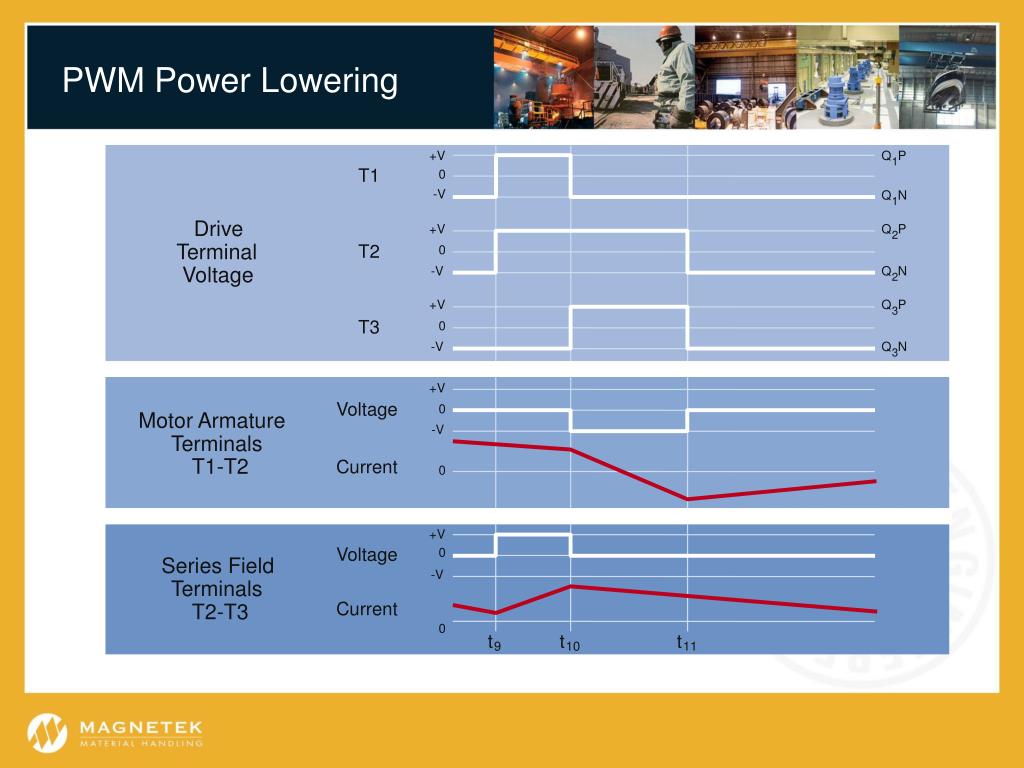

  35. +V Q P 1 T1 0 -V Q N 1 Drive +V Q P 2 Terminal T2 0 Voltage -V Q N 2 +V Q P 3 T3 0 -V Q N 3 +V Voltage 0 Motor Armature -V Terminals T1-T2 Current 0 +V Voltage 0 Series Field -V Terminals Current T2-T3 0 t t t 9 10 11 PWM Power Lowering

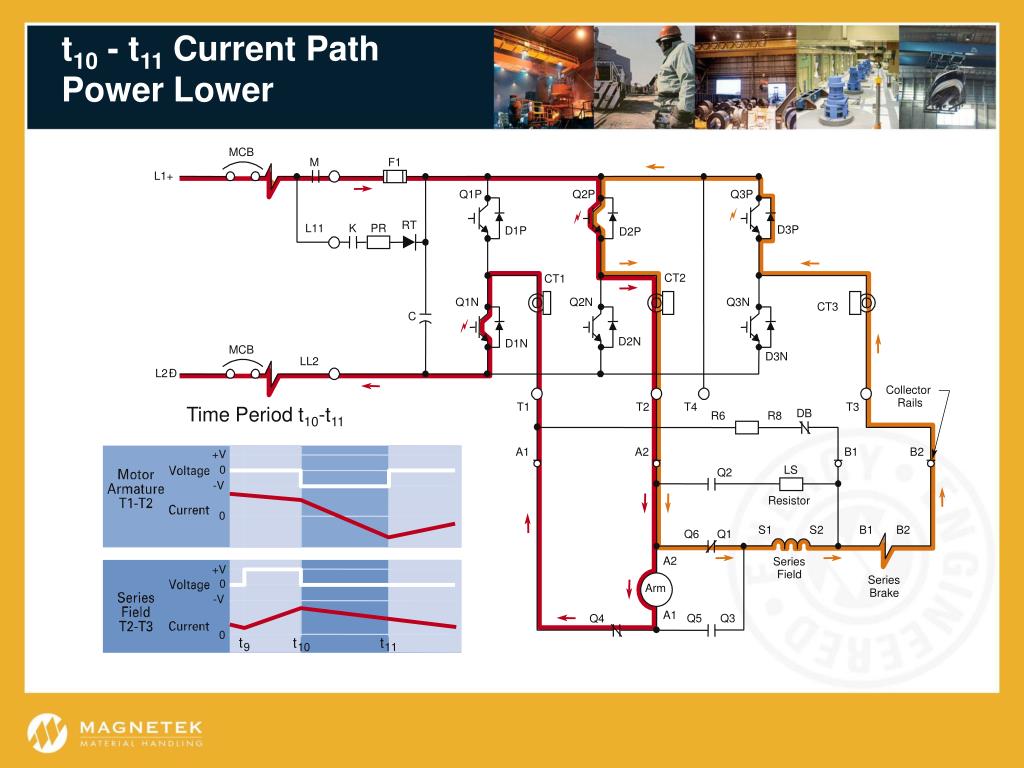

  36. MCB M F1 L1+ Q1P Q2P Q3P RT L11 K PR D3P D1P D2P CT2 CT1 Q1N Q2N Q3N CT3 C D2N D1N MCB D3N LL2 L2 Ð Collector Rails T1 T2 T4 T3 Time Period t10-t11 DB R6 R8 A1 A2 B1 B2 +V 0 LS Q2 -V Resistor 0 S1 S2 B1 B2 Q6 Q1 A2 Series +V Field Series 0 Arm Brake -V A1 Q5 Q3 Q4 0 t t t 9 10 11 t10 - t11 Current Path Power Lower

  37. 10% RPM 151V 125V 122V T1 T2 T3 +26V +3V Power Hoisting

  38. 10% RPM 99V 125V 122V T1 T2 T3 -26V +3V Deceleration Braking

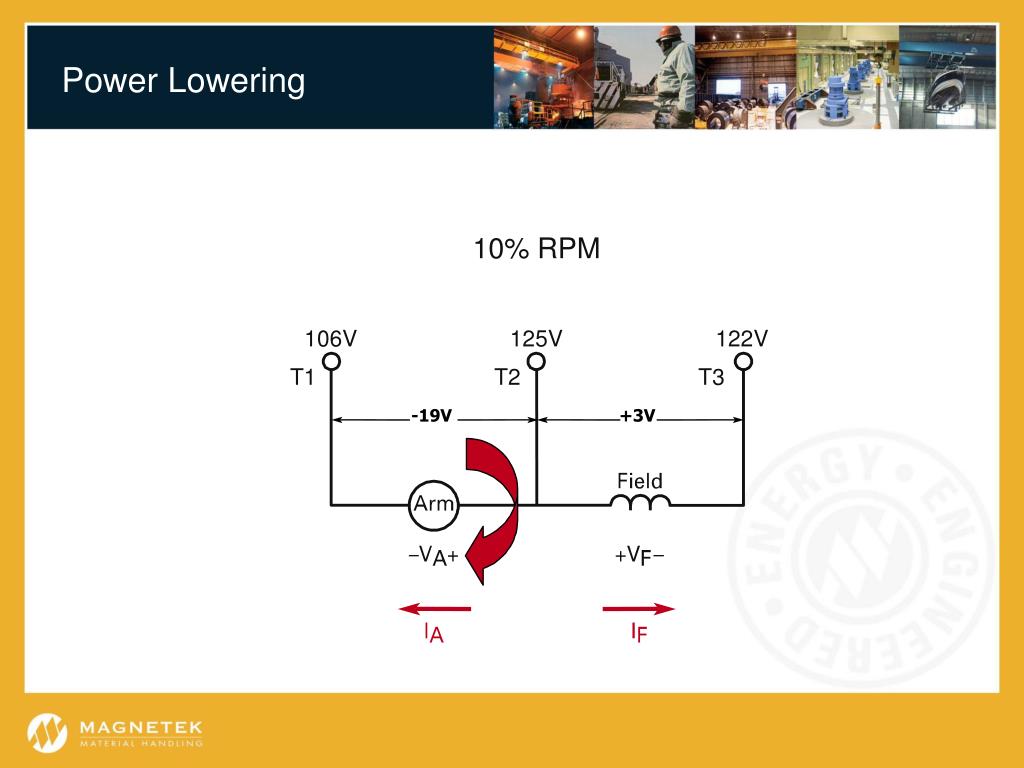

  39. 10% RPM 106V 125V 122V T1 T2 T3 -19V +3V Power Lowering

  40. 10% RPM 144V 125V 122V T1 T2 T3 +3V +19V Dynamic Lowering

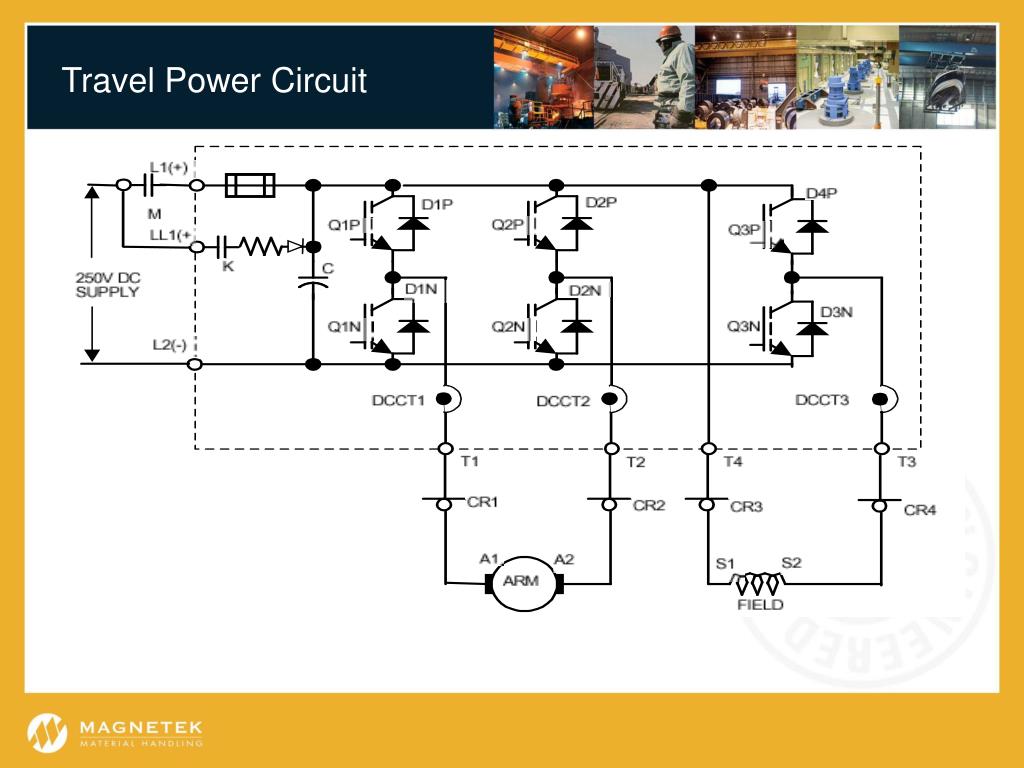

  41. Travel Power Circuit

  42. T1, T2, T3, T4 Voltages T1 T2 T3 T4 4 Simplified Travel Motor Circuit

  43. +V Q P 1 T1 0 -V Q N 1 Drive +V Q P 2 Terminal T2 0 Voltage -V Q N 2 Q P +V 3 0 T3 -V Q N 3 T4 +V +V Motor Armature Voltage 0 Terminals -V T1-T2 Current 0 +V Voltage 0 Series Field -V Terminals T4-T3 Current 0 t t t t 1 2 3 4 PWM Travel Motoring

  44. D3P T1 - T2 =0 T4 - T3 =0 t1 - t2 Current Path Travel Motoring

  45. D3P T1 - T2 =0 T4 - T3 =+V t2 - t3 Current Path Travel Motoring

  46. D3P T1 - T2 =+V T4 - T3 =0 t3 – t4 Current Path Tr avel Motoring

  47. D3P T1 - T2 =-V T4 - T3 =+V Travel Plugging / Braking

  48. End of Session Two Questions?

  49. OmniPulse™ DDC Session Three Hardware

  50. NEMA 3Complete (133A) 144-45004 * Interface 144-45062 Display 144-45063 Control 144-45060 Driver 144-45058 133A Stack NEMA 4Complete (200A) 144-45042 * Interface 144-45062 Display 144-45063 Control 144-45060 Driver144-45059 200A Stack *NOTE: Interface Card 144-45062 mounted separately from module enclosure Modular Drive Design
