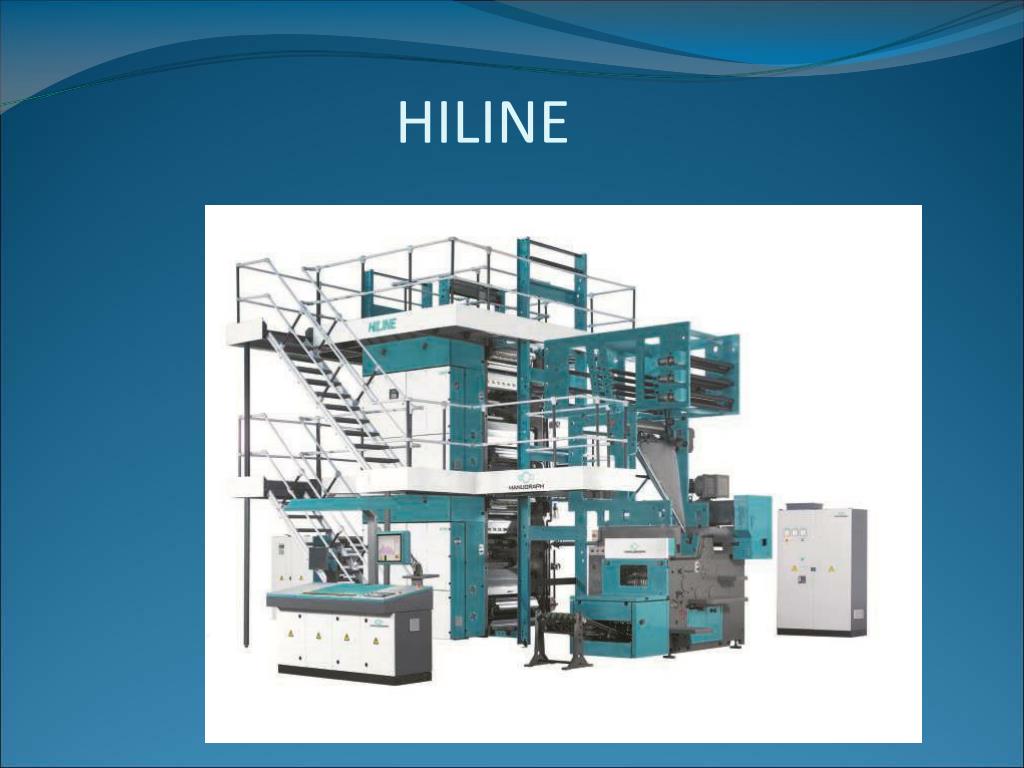

  1. HILINE

  2. I AND Y-TYPE 4- HIGH TOWER HILINE

  3. HILINE • Maximum Printing speed of 50,000 copies per hour. • Combination of vertical and horizontal units in a single pressline. • Horizontal and vertical web lead configuration for multi color paginations. • Medium circulation around 100,000 to 150,000 copies • Modular configuration

  4. HILINE MAIN FEATURES • •50,000 CPH Speed • • Horizontal and vertical web leads • • Brush dampening System • • Taper roller bearings for cylinders • • F 222 / F 1240 / F233 • • Motorized registration as a standard feature • • PLC controls with auto tracking facility • for ink - water balance

  5. HILINE Main Aggregates •I and Y type print units with inbuilt flying splicer for horizontal web lead • H print unit • 4x4 Tower print unit • Folder up to 2nd fold for 6 webs ( 2:2:2) • Standalone flying splicer

  6. HILINE Basic Specifications • • Press Speed CPH : 50,000 • • Cutoff mm. : 533 , 546, 560, 578 • • Web Width Max. mm. : 915 • Min. mm. : 700 • • Web grammage gsm : 38-60 • • Non Printing Gap mm. : 15 • Folders F222 F233 F1240 • Max No: of webs 6webs/45000 upto12webs/45000 upto12 webs/45000 • Quarter Fold 4 webs / 30000 6 webs / 40000 8 webs / 35000 • Double parallel fold 2webs/30000 5webs/40000 not available • Balloon Former 2webs/1 Balloon 4webs/2 Balloons 6webs/2 Balloons

  7. HILINE • Optional Units • • Third fold • • JF 1240 • • Turner bar • • Bay window • • Balloon former

  8. HILINE • Optional Features • • Manucolor remote ink zone control system • • Close loop registration and cut-off control • • Ink replenishment system • • Pneumatic plate punching & bending device • • Detachable shafts between print units or between folder and print unit

  9. HILINE • Standard Accessories • • Plate punching device • • Plate bending device • • Hydraulic / mechanical web trolley • • Screw compressor with air dryer • • Chilled dampening solution circulation system

  10. HILINE PRINT UNIT VERTICAL WEB LEADS I – Type Y - Type PRINT UNIT HORIZONTAL WEB LEADS

  11. HILINE INKING SYSTEM DAMPENING SYSTEM

  12. HILINE FEATURES HORIZONTAL WEB LEAD UNIT •Autopaster is integrated with print unit. • Mechanical clutch for decoupling the drive to print unit. • Bustle wheels to minimise fan-out problems during four colour printing. VERTICAL WEB LEAD UNIT • Reverse stack arrangement for better printability. • Concave roller at the entry of the 4 Hi tower unit to minimise Fan-out. • Motorised bustle wheel to minimise fan-out problem. • Web catchers at the entry and exit of the 4 Hi tower unit. • Easy connectability of vertical web lead and horizontal Web lead units.

  13. HILINE FLYING PASTERS AP 6050 AP 4542 FEATURES • •Two Arm flying paster for automatic reel change • • Pneumatically operated reel clamping shafts • • Stand alone autopaster has a close loop tension control system having digital display facility for actual tension and set tension.

  14. HILINE FOLDERS F 233 F 222 F 1240 Designed upto 12 webs Production – 48 pages broadsheet 96 pages Tabloid. 6webs/2 balloons Designed upto 6 webs Production – 24 pages broadsheet 48 pages Tabloid. 2 webs/1 balloon Designed upto 12 webs Production – 48 pages broadsheet 96 pages Tabloid. 4webs/2 balloons

  15. HILINE INSTALLATION 8 4 Hi Towers 8 standalone Reel splicer 2 Folder (F1240) with Balloon Former Shaftless BFA System 8 4 Hi Towers 8 AR 70 Right Angled Reel Splicer at Drive Side. 2 Folder (2:3:2). Heat Set package. UNITED PRINTING PRESS , ABUDHABI

  16. HILINE INSTALLATION 5 4 Hi Towers 5 standalone AP 2 Folder (2:2:2).

  17. HILINE PRESTIGIOUS INSTALLATIONS

  18. REACH US For more details on the Manugraph presses. Please contact : The Sales Department. MANUGRAPH INDIA LIMITED. Sidhwa House, N. A. Sawant Marg, Colaba, Mumbai – 400 005 INDIA. Tel – 91+022+2287 4815 Fax – 91+022+2287 0702 Email – sales@manugraph.com Website – www.manugraph.com
