Dude, where’s that IP? Circumventing measurement-based IP geolocation Paper Presentation CAP6135: Malware and Software Vulnerability Analysis – Spring 2013 Omar Nakhila

Citation and acknowledgement • Gill, Phillipa, Yashar Ganjali, and Bernard Wong. "Dude, Where’s That IP? Circumventing Measurement-based IP Geolocation." USENIX Security Symposium 19th , Washington DC, August 11-13, 2010. • http://en.wikipedia.org/wiki/Speed_of_electricity

Presentation Agenda • What is IP geolocation? • Why IP geolocation? • IP geolocation classification and attacks. • Paper contribution. • Paper weakness. • Paper improvement. • Questions and answers.

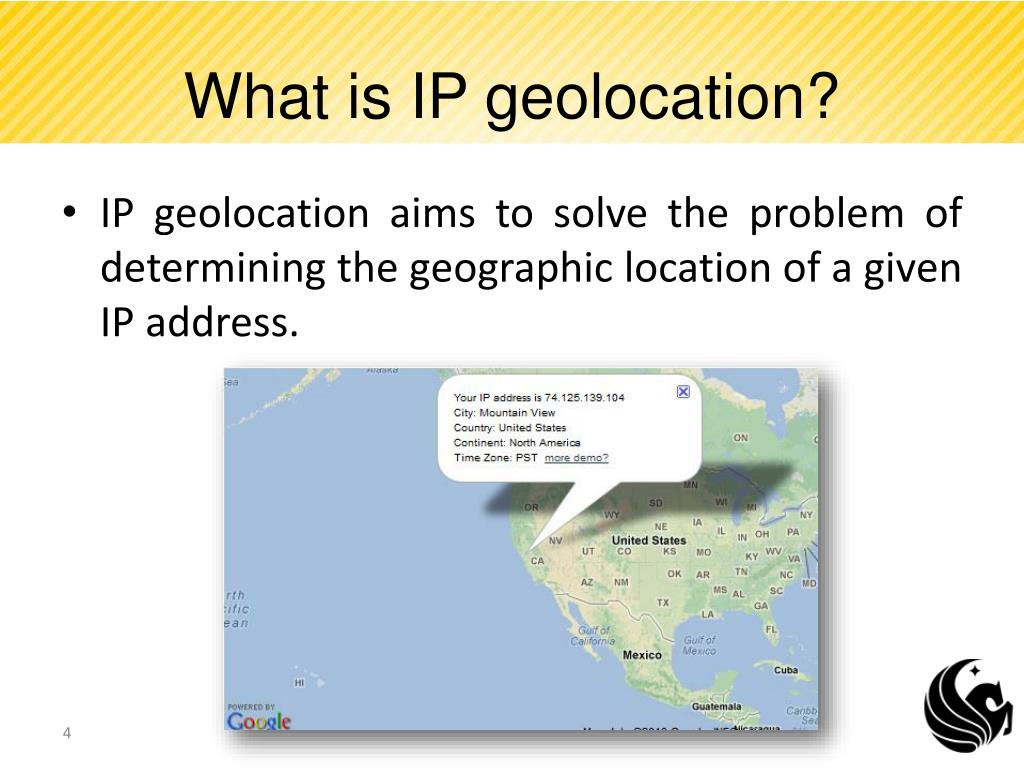

What is IP geolocation? • IP geolocation aims to solve the problem of determining the geographic location of a given IP address.

Why IP geolocation? • Online advertisers and search engines advertise their content based on the client’s location.

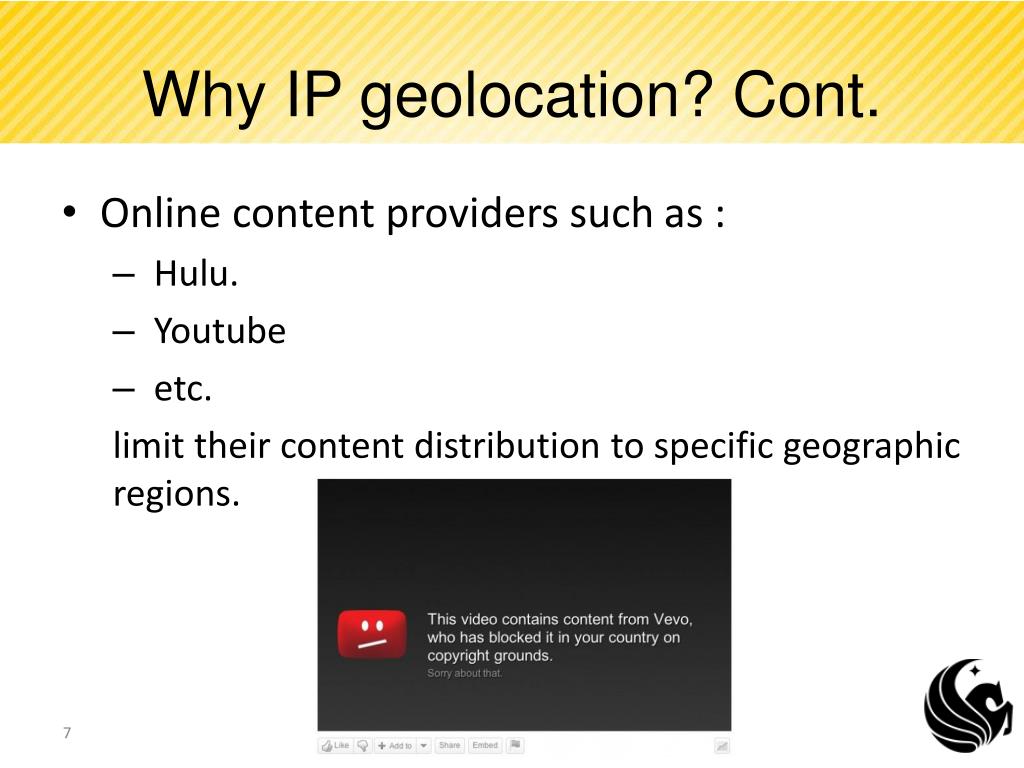

Why IP geolocation? Cont. • Online content providers such as : • Hulu. • Youtube • etc. limit their content distribution to specific geographic regions.

Why IP geolocation? Cont. • Law enforcement.

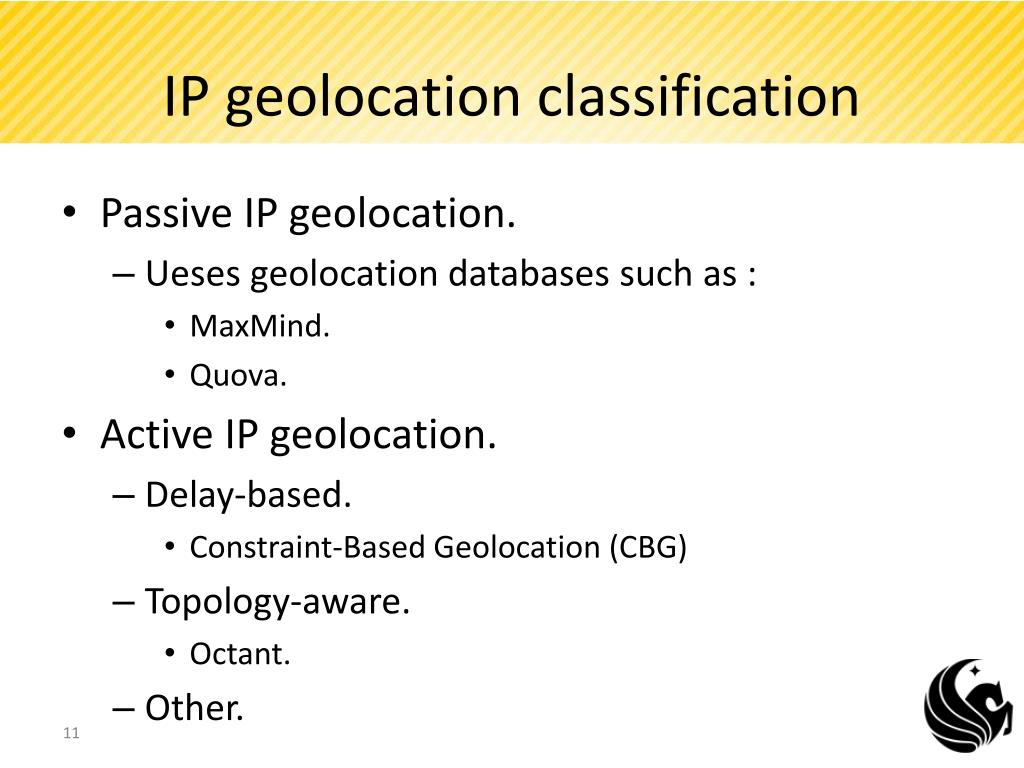

IP geolocation classification • Passive IP geolocation. • Ueses geolocation databases such as : • MaxMind. • Quova. • Active IP geolocation. • Delay-based. • Constraint-Based Geolocation (CBG) • Topology-aware. • Octant. • Other.

Delay-based IP geolocation • Constraint-Based Geolocation (CBG) Landmark B User IP Location (Target) y3 D_AB=x1 x3 D_AC=x2 Best Line Function Landmark A Landmark C Ping Ping Ping

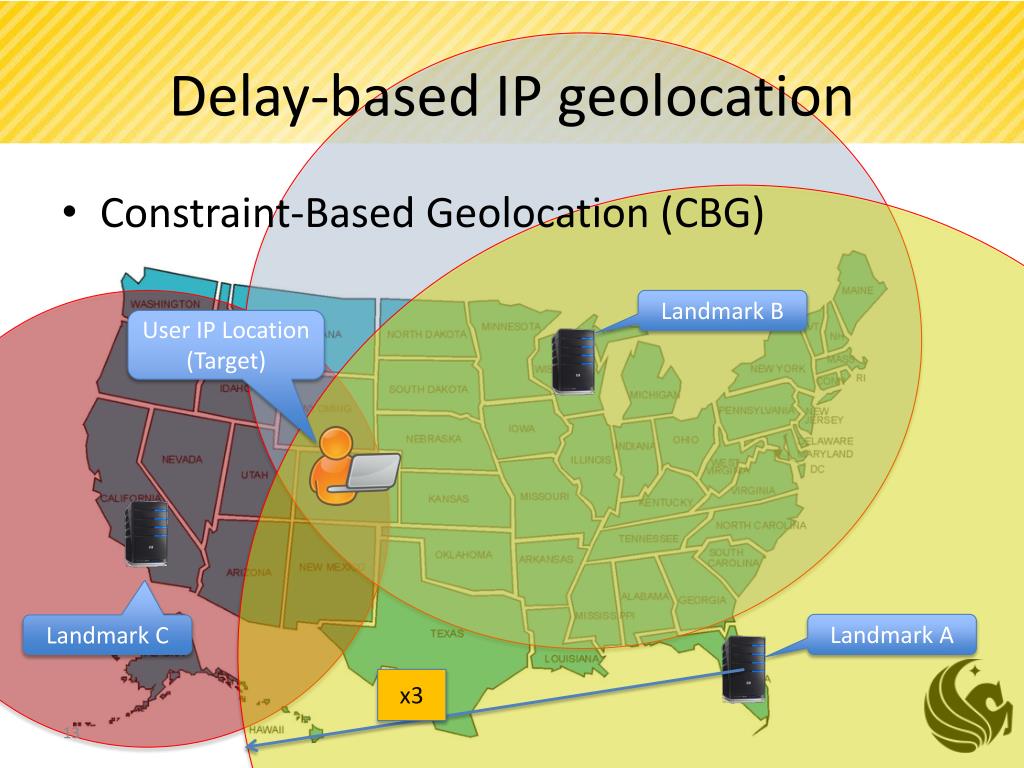

Delay-based IP geolocation • Constraint-Based Geolocation (CBG) Landmark B User IP Location (Target) Landmark A Landmark C x3

Delay-based IP geolocation attack • Constraint-Based Geolocation (CBG) • Speed of light attack. • Delay time = Distance / Speed • Speed of electricity in an unshielded copper conductor ranges 95 to 97% that of the speed of light, while in a typical coaxial cable it is about 66% of the speed of light. • Best line attack. • The attacker has access to the best line function in landmarks! y3 x3

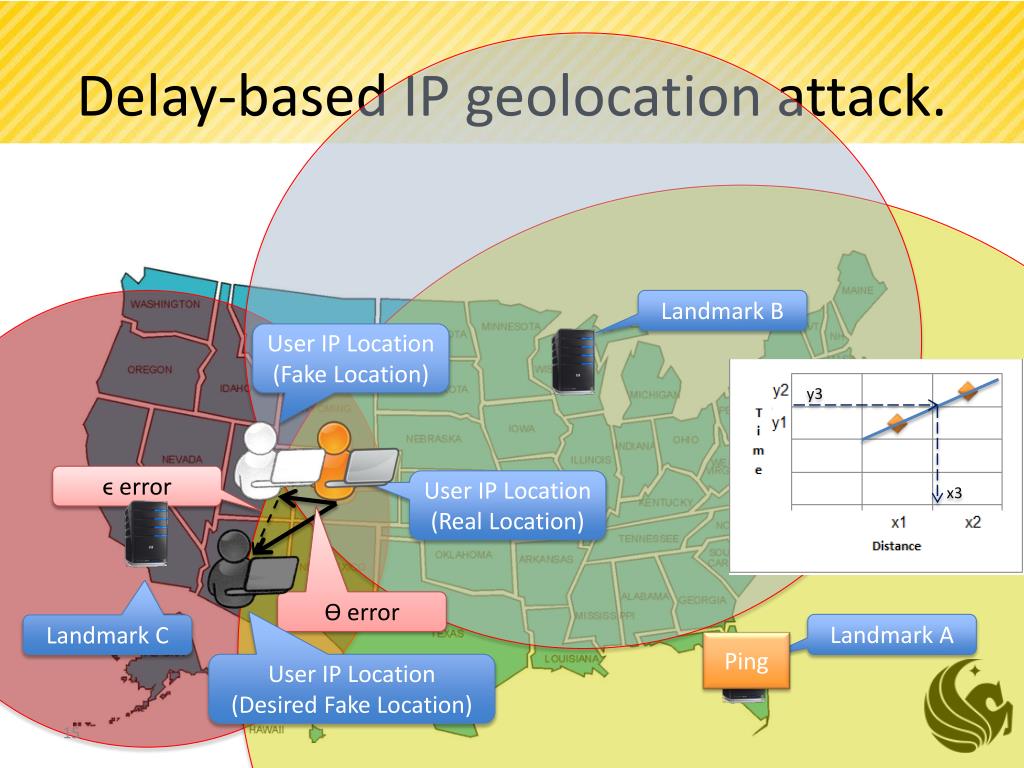

Delay-based IP geolocation attack. Landmark B User IP Location (Fake Location) y3 ϵ error User IP Location (Real Location) x3 ϴ error Landmark A Landmark C Ping User IP Location (Desired Fake Location)

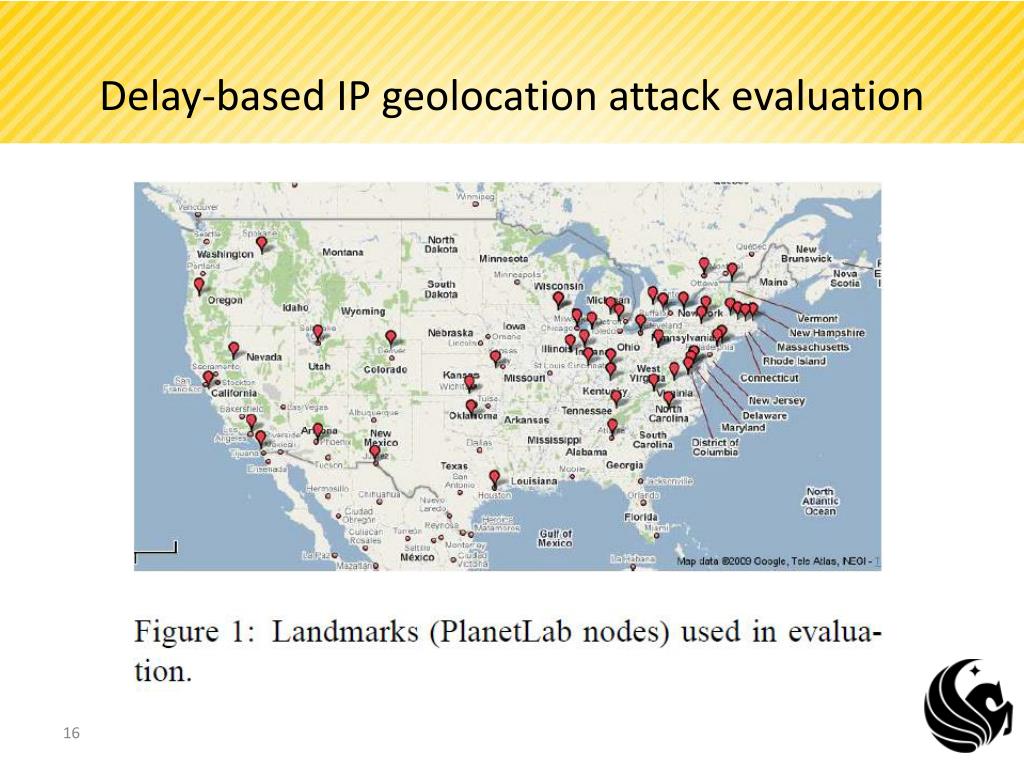

Delay-based IP geolocation attack evaluation

Delay-based geolocation attack evaluation

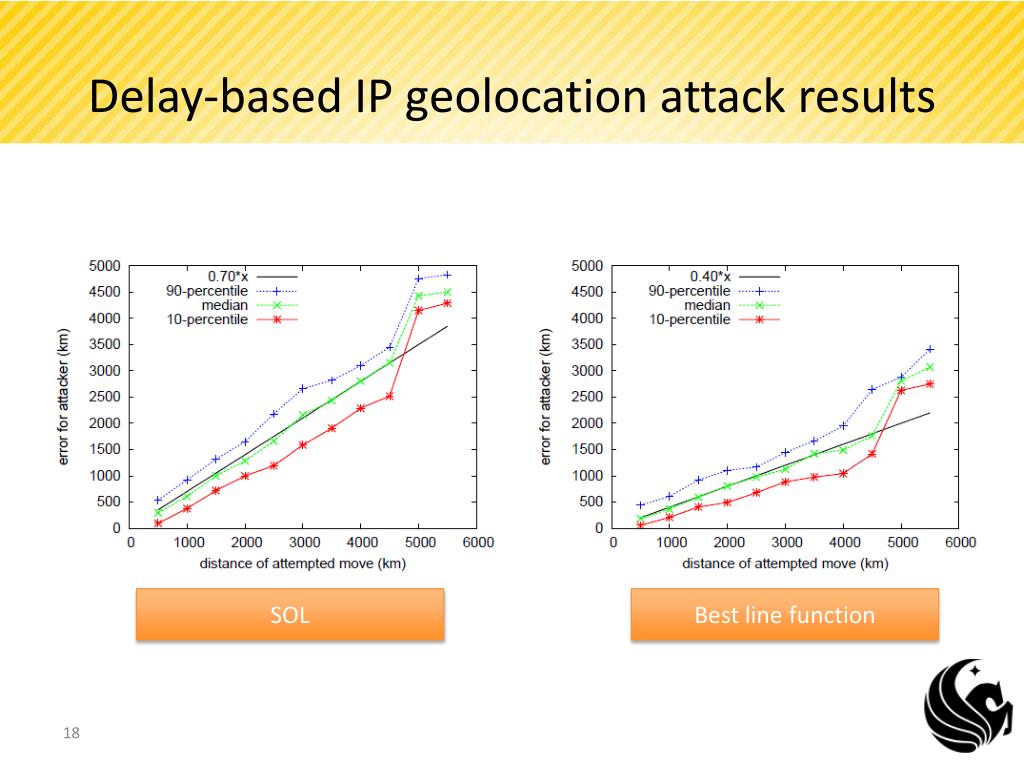

Delay-based IP geolocation attack results SOL Best line function

Delay-based IP geolocation attack results

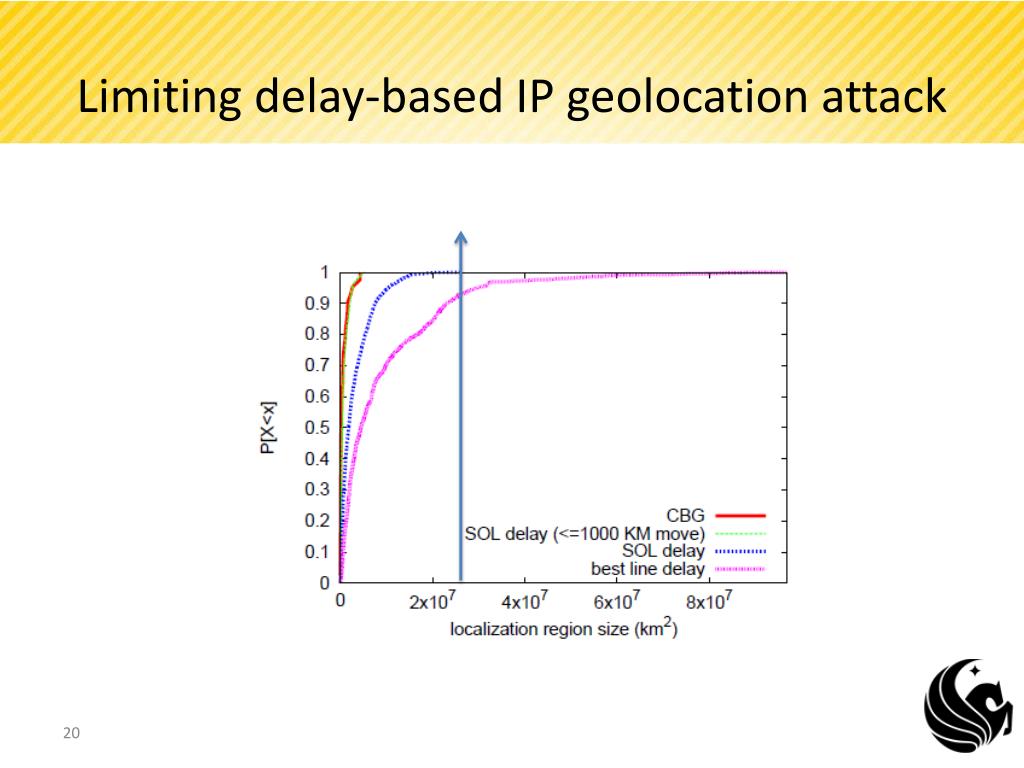

Limiting delay-based IP geolocation attack

Topology-aware IP geolocation • Octant Landmark B User IP Location (Target) Using Tracert And ping Landmark A Landmark C

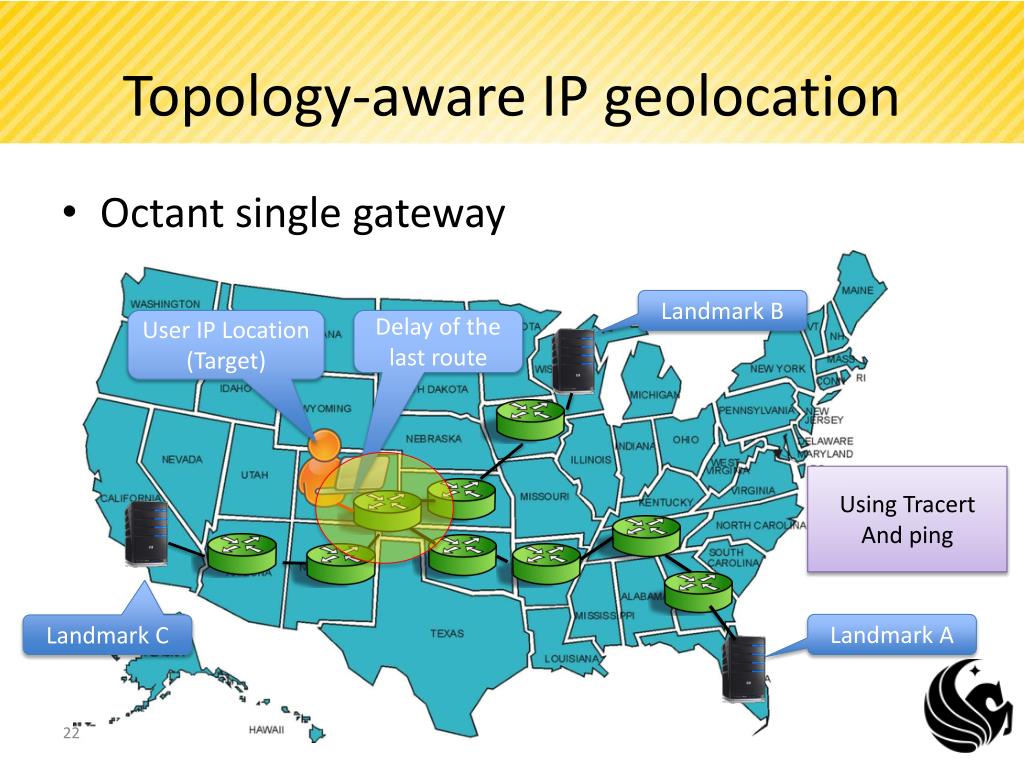

Topology-aware IP geolocation • Octant single gateway Landmark B User IP Location (Target) Delay of the last route Using Tracert And ping Landmark A Landmark C

Topology-aware IP geolocation • Octant single gateway based attack Landmark B User IP Location (Target) Using Tracert And ping Landmark A Landmark C

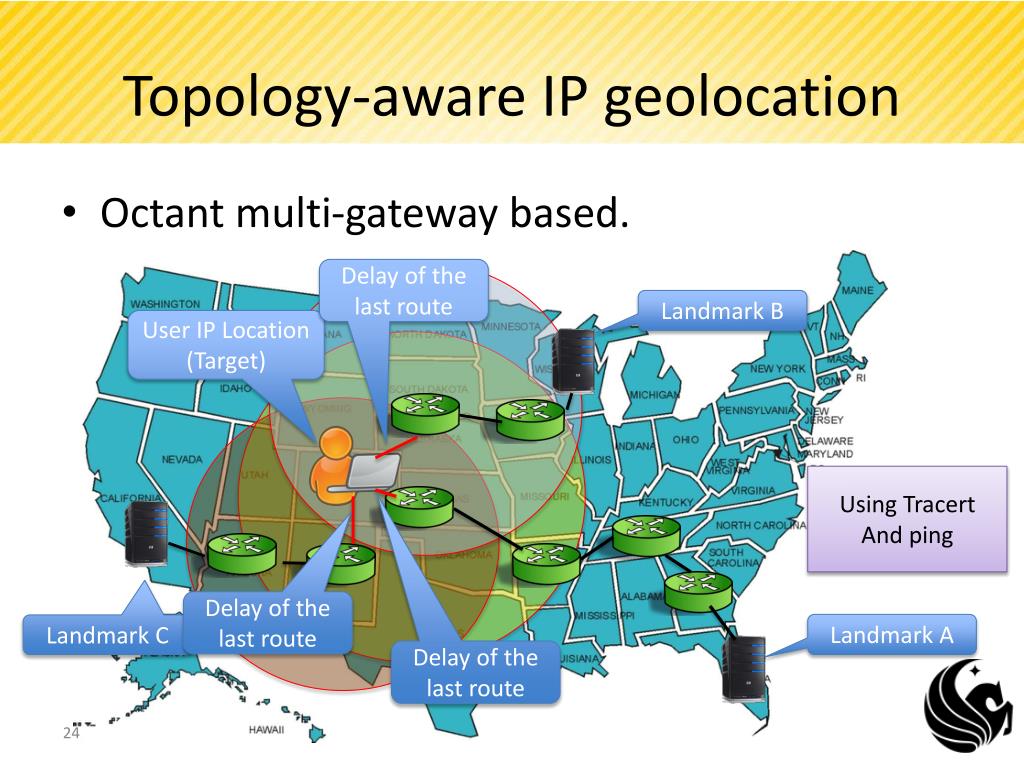

Topology-aware IP geolocation • Octant multi-gateway based. Delay of the last route Landmark B User IP Location (Target) Using Tracert And ping Delay of the last route Landmark A Landmark C Delay of the last route

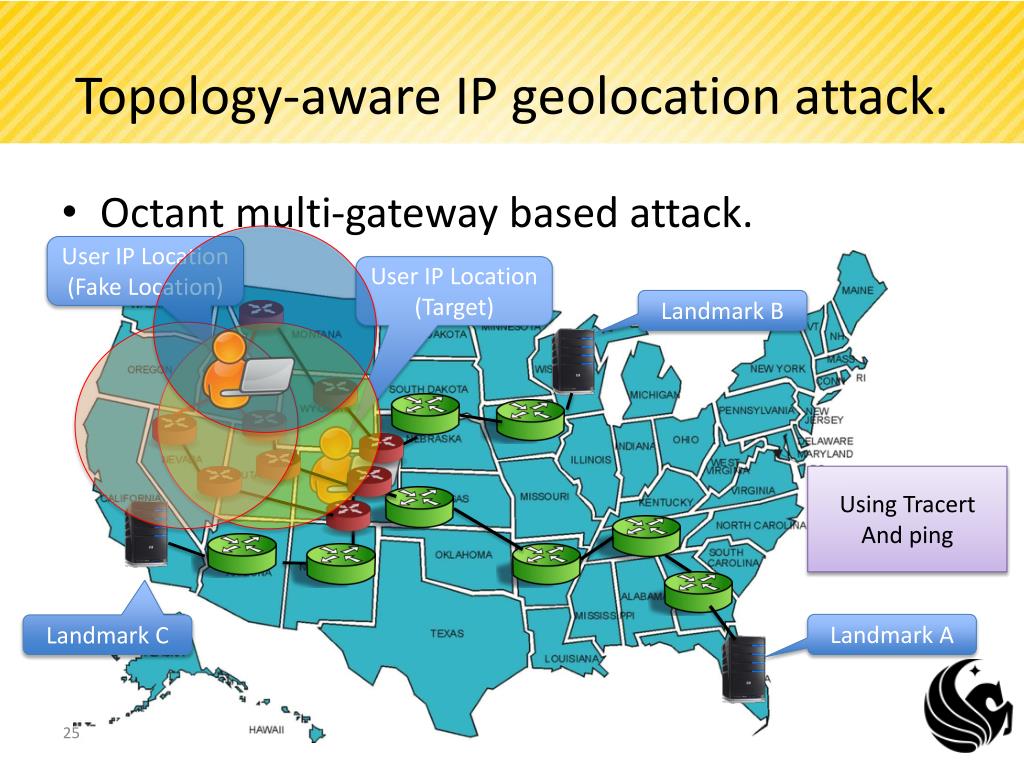

Topology-aware IP geolocation attack. • Octant multi-gateway based attack. User IP Location (Fake Location) User IP Location (Target) Landmark B Using Tracert And ping Landmark A Landmark C

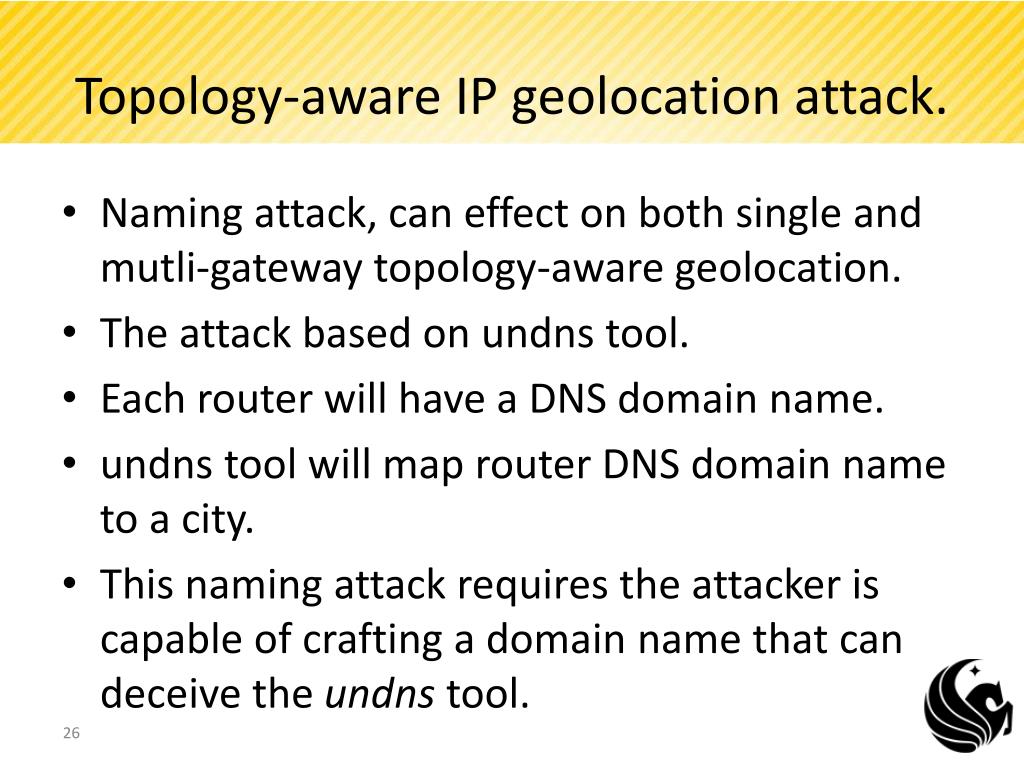

Topology-aware IP geolocation attack. • Naming attack, can effect on both single and mutli-gateway topology-aware geolocation. • The attack based on undns tool. • Each router will have a DNS domain name. • undns tool will map router DNS domain name to a city. • This naming attack requires the attacker is capable of crafting a domain name that can deceive the undns tool.

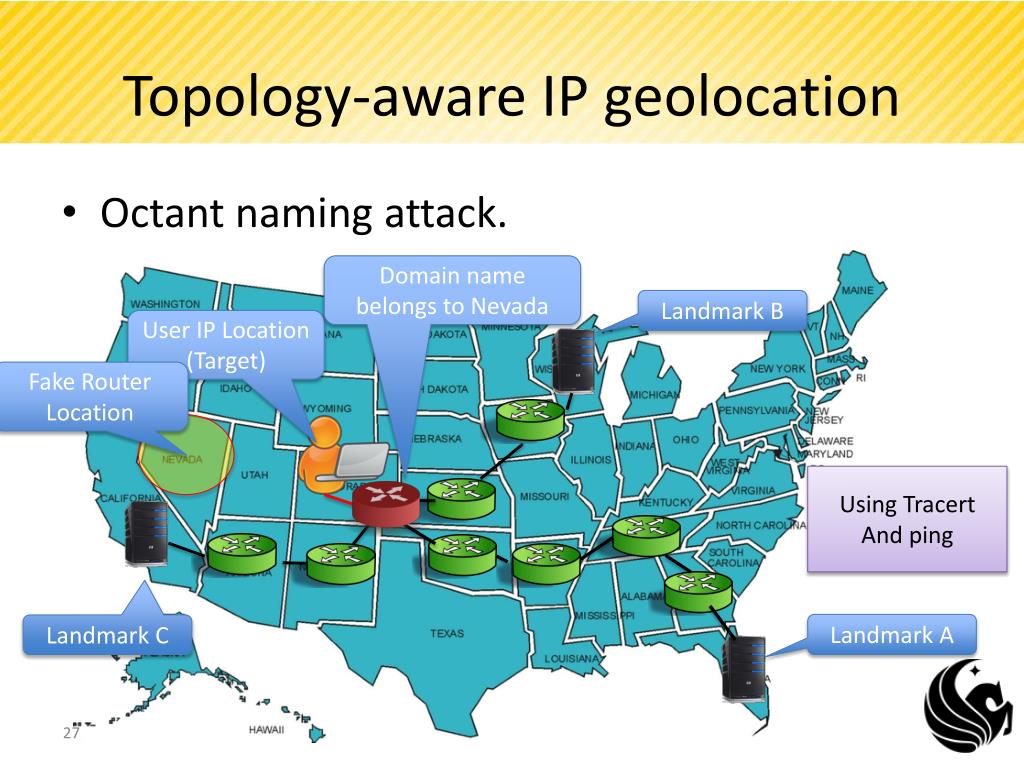

Topology-aware IP geolocation • Octant naming attack. Domain name belongs to Nevada Landmark B User IP Location (Target) Fake Router Location Using Tracert And ping Landmark A Landmark C

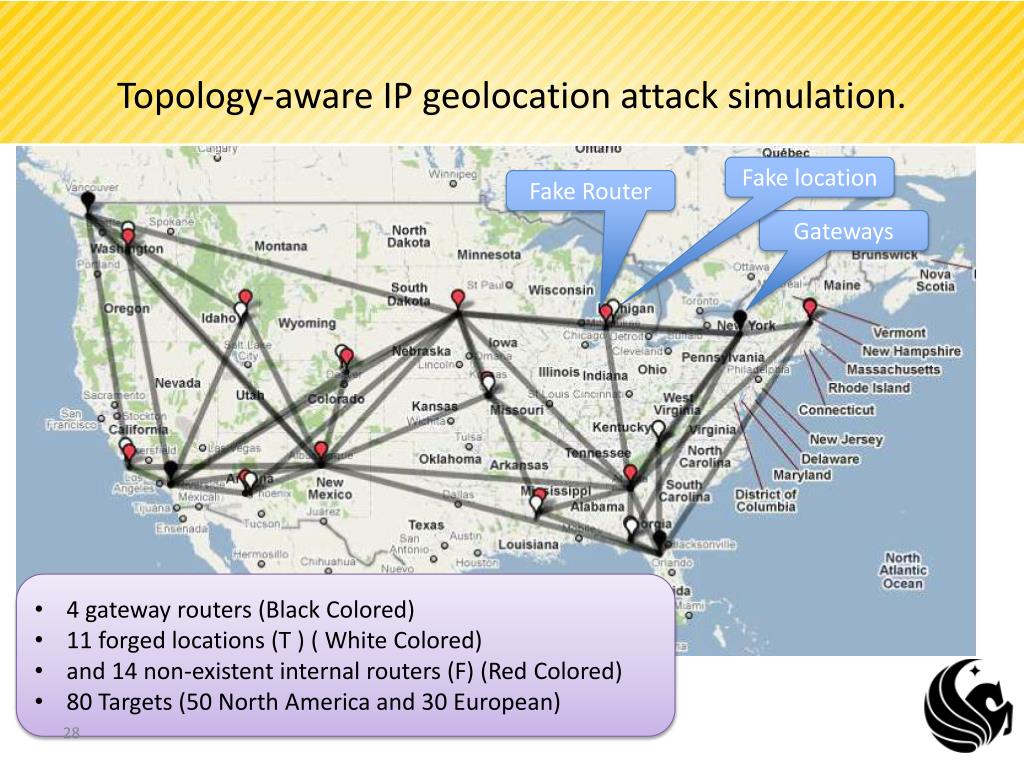

Topology-aware IP geolocation attack simulation. Fake location Fake Router Gateways • 4 gateway routers (Black Colored) • 11 forged locations (T ) ( White Colored) • and 14 non-existent internal routers (F) (Red Colored) • 80 Targets (50 North America and 30 European)

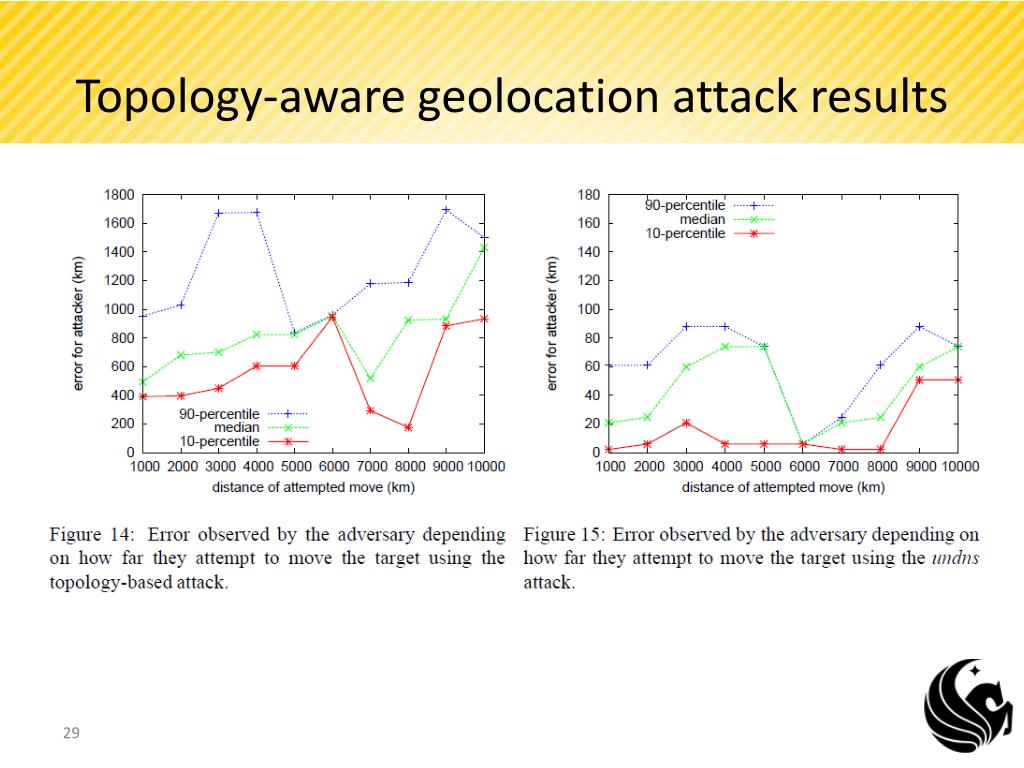

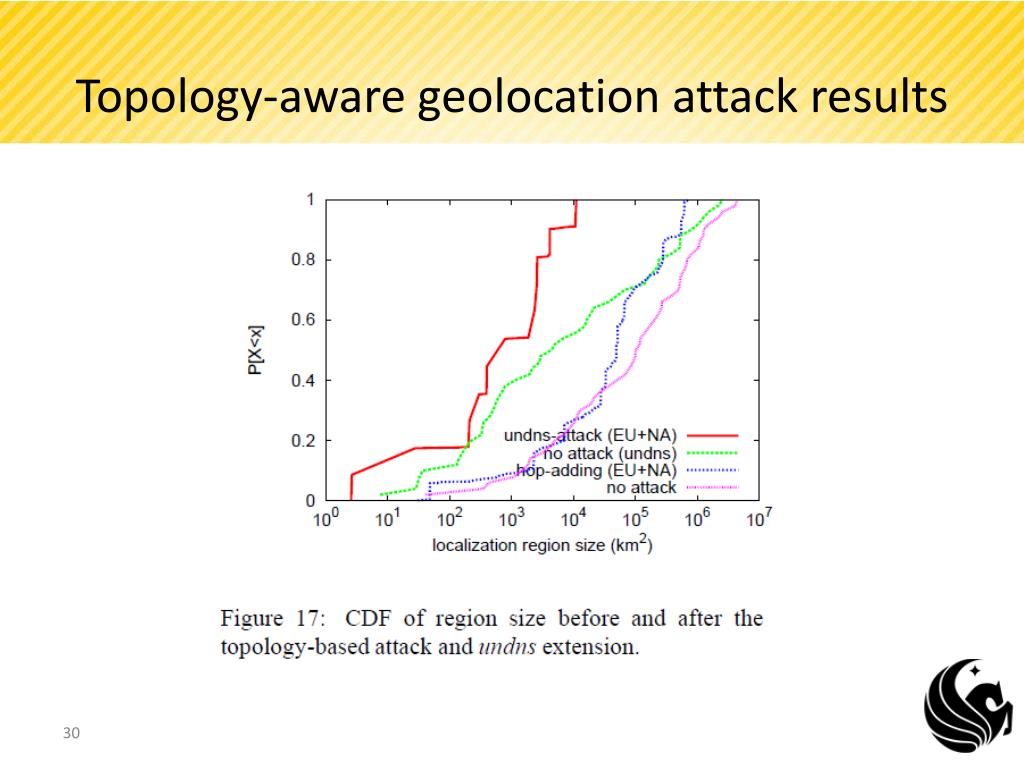

Topology-aware geolocation attack results

Paper Contribution • The paper surveyed that the current IP geolocation algorithms such as (CBG and Octant) accuracies of 35-194 km, making them suitable for geolocation within a country. • Also, the paper illustrated how the above IP geolocation algorithm can be vulnerable. • Then, the paper proposed that a delay based attack can be detected by setting a certain threshold to the size of the localization region.

Paper Weakness • The paper didn’t explain the complexity of gaining access to the best line function. • The paper also didn’t explain the complexity to manipulate undns tool. • Lack of an efficient detection method to catch undnstopology-aware IP geolocationattack. • The scientific reasoning for PlantLab landmarks distribution with the relation to the IP geolocationwas not clear. • Using ping and trace-route to measure the delay time and route information is not recommended since administrator tend to drop theses types of packets.

Paper Improvement • The impact of Landmarks distribution on both attacks. • Study the effect of using a reliable protocols to limit both attacks.

Question and Answer

Thank You
