Presentation Transcript

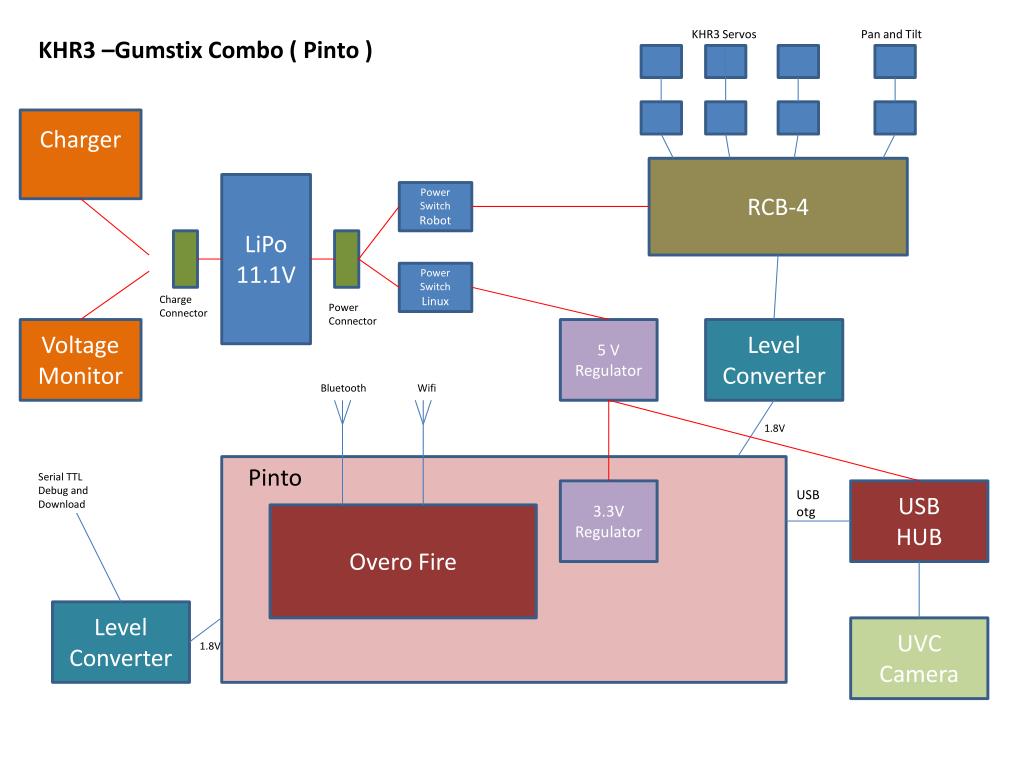

  1. KHR3 Servos Pan and Tilt KHR3 –Gumstix Combo ( Pinto ) Charger RCB-4 LiPo 11.1V Power Switch Robot Power Switch Linux Charge Connector Power Connector Voltage Monitor 5 V Regulator Level Converter Bluetooth Wifi 1.8V Pinto Serial TTL Debug and Download 3.3V Regulator USB otg USB HUB Overo Fire Level Converter UVC Camera 1.8V

  2. KHR3 Servos Pan and Tilt KHR3 –Gumstix Combo ( Summit ) Charger RCB-4 LiPo 11.1V Power Switch Robot Power Switch Linux Charge Connector Power Connector Voltage Monitor LiPo 7.4V Bluetooth Wifi USB to serial USB OTG Summit TPS62111  Regulator (up to 10V input) 3.3V, 5V output Overo Fire USB Debug and Download USB device USB HOST UVC Camera
