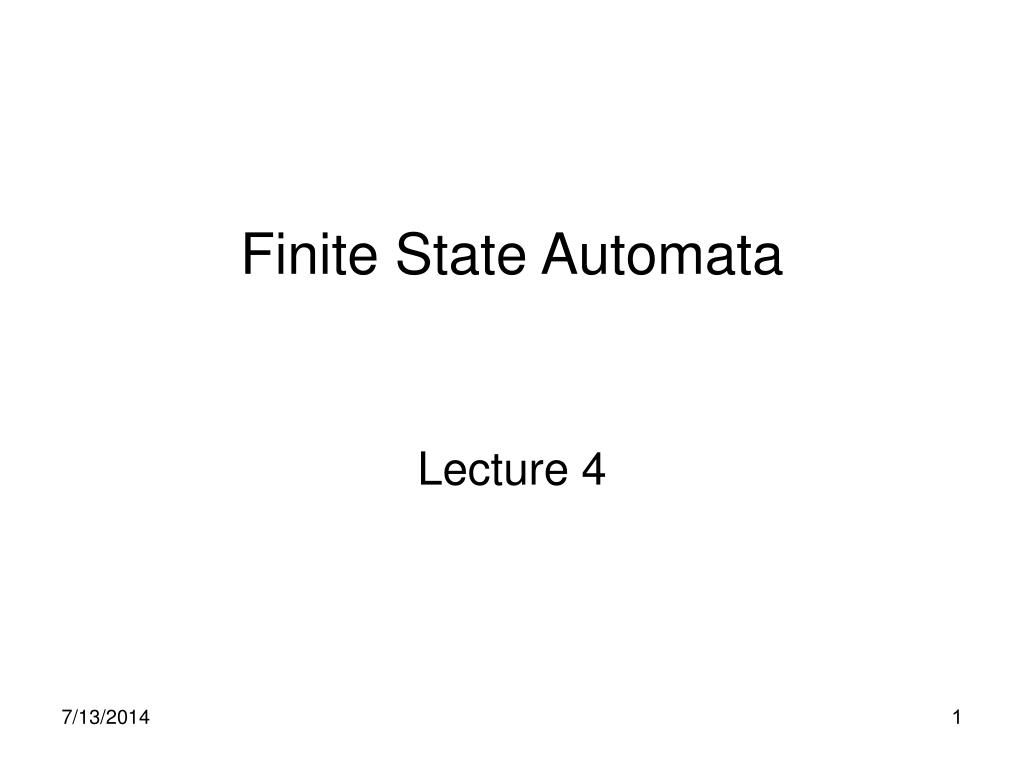

  1. Finite State Automata Lecture 4

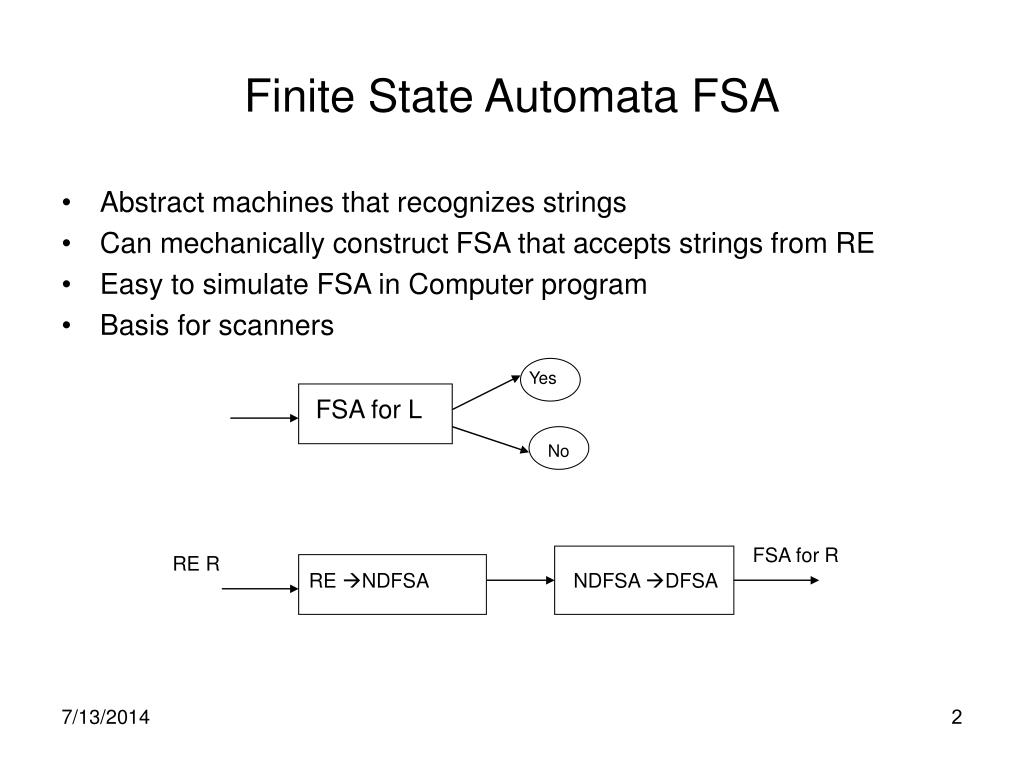

  2. Finite State Automata FSA • Abstract machines that recognizes strings • Can mechanically construct FSA that accepts strings from RE • Easy to simulate FSA in Computer program • Basis for scanners Yes FSA for L No FSA for R RE R RE NDFSA NDFSA DFSA

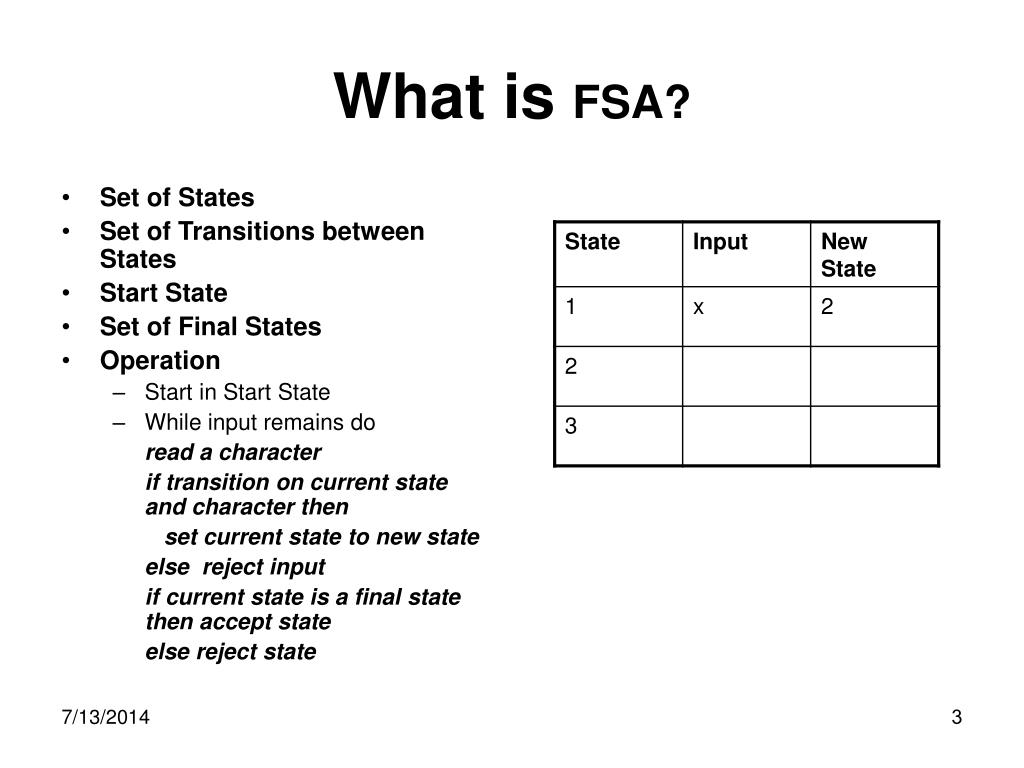

  3. What is FSA? • Set of States • Set of Transitions between States • Start State • Set of Final States • Operation • Start in Start State • While input remains do read a character if transition on current state and character then set current state to new state else reject input if current state is a final state then accept state else reject state

  4. FSA Diagrams • C.A.T • C.A.(T|R) Final State Start State T C A 2 3 4 1 Start State 4 C A T 2 3 1 5 R

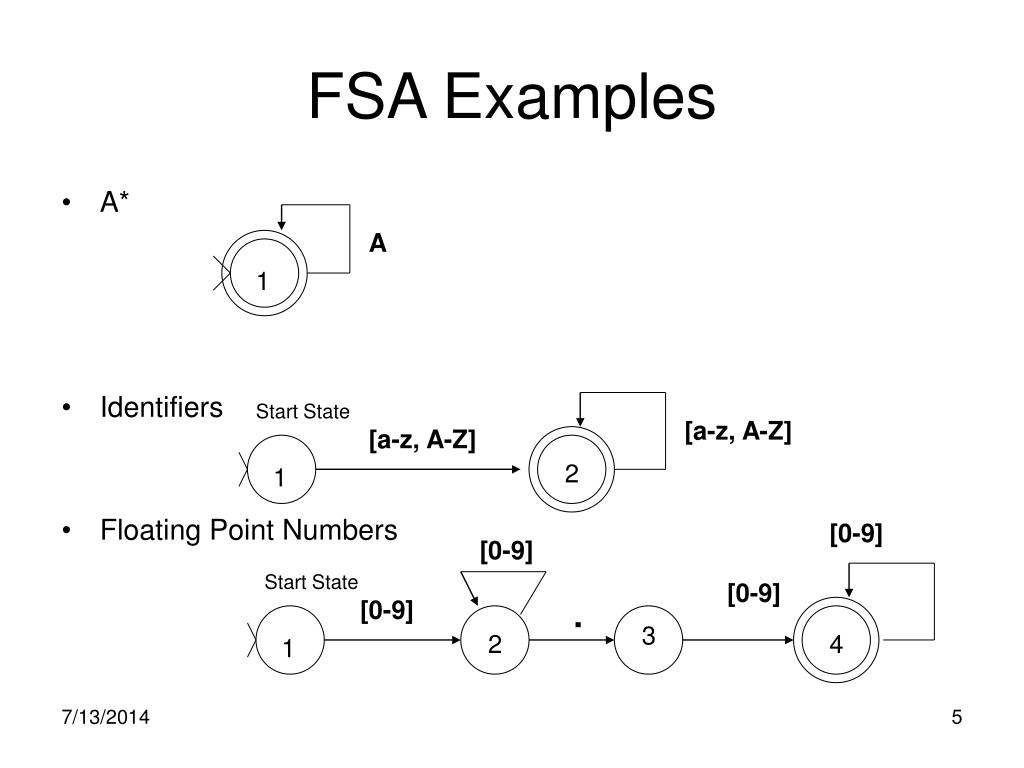

  5. FSA Examples • A* • Identifiers • Floating Point Numbers A 1 Start State [a-z, A-Z] [a-z, A-Z] 2 1 [0-9] [0-9] Start State [0-9] [0-9] . 3 2 4 1

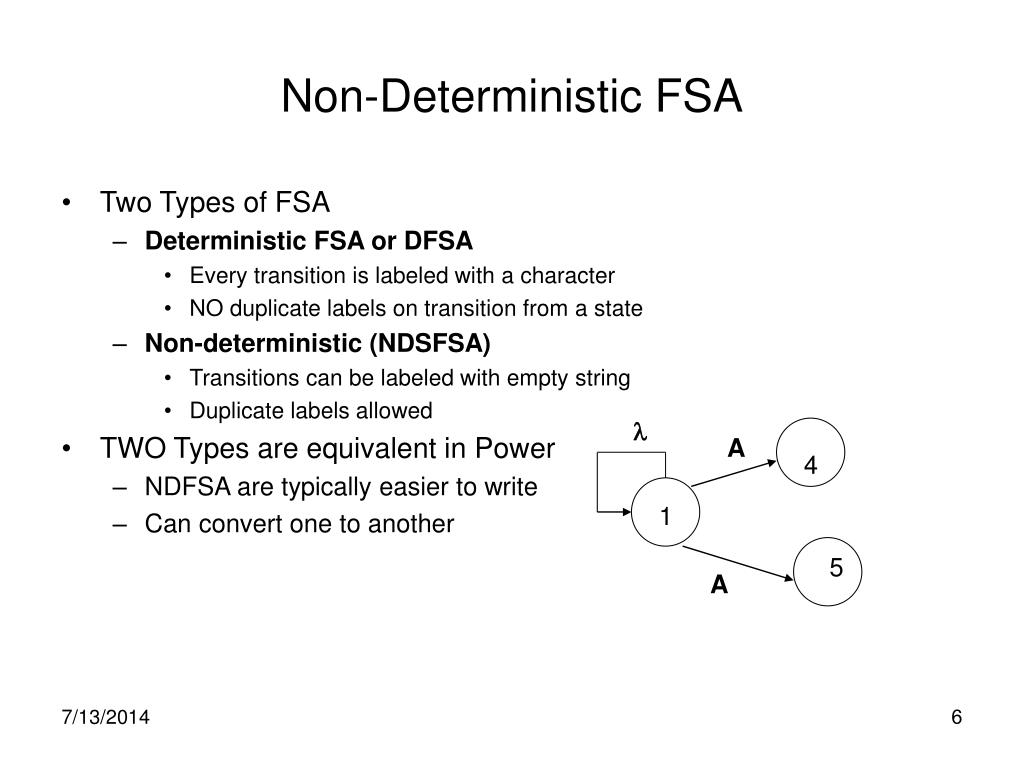

  6. Non-Deterministic FSA • Two Types of FSA • Deterministic FSA or DFSA • Every transition is labeled with a character • NO duplicate labels on transition from a state • Non-deterministic (NDSFSA) • Transitions can be labeled with empty string • Duplicate labels allowed • TWO Types are equivalent in Power • NDFSA are typically easier to write • Can convert one to another l A 4 1 5 A

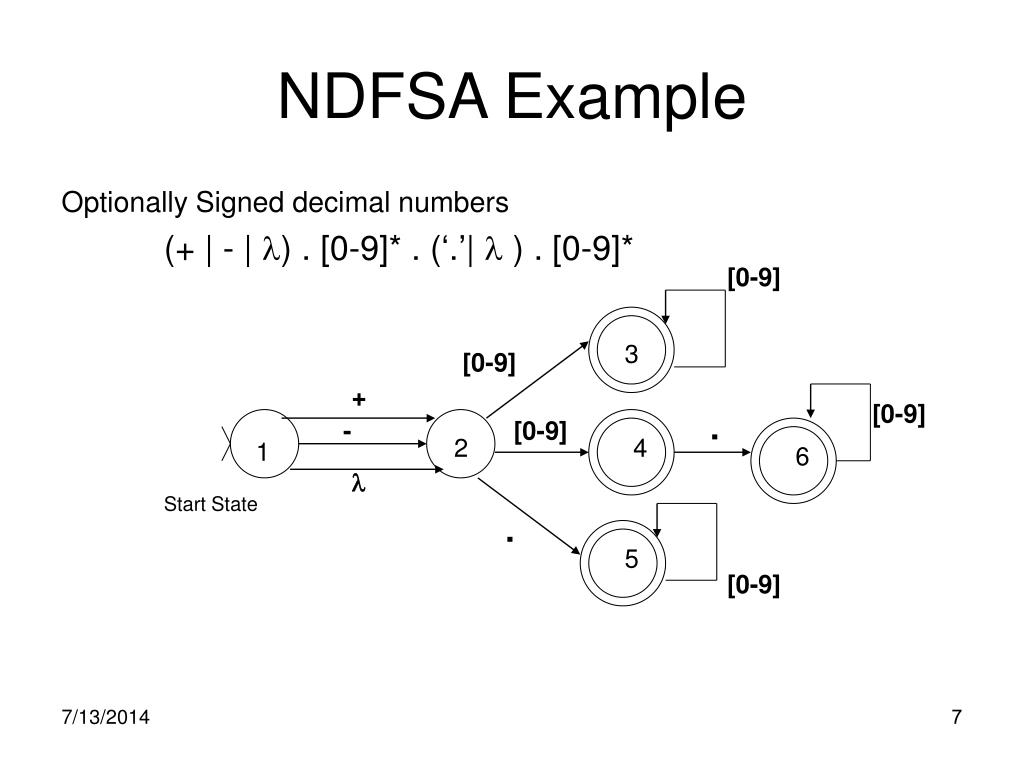

  7. NDFSA Example Optionally Signed decimal numbers (+ | - | l) . [0-9]* . (‘.’| l ) . [0-9]* [0-9] 3 [0-9] + [0-9] . - [0-9] 2 4 1 6 l Start State . 5 [0-9]

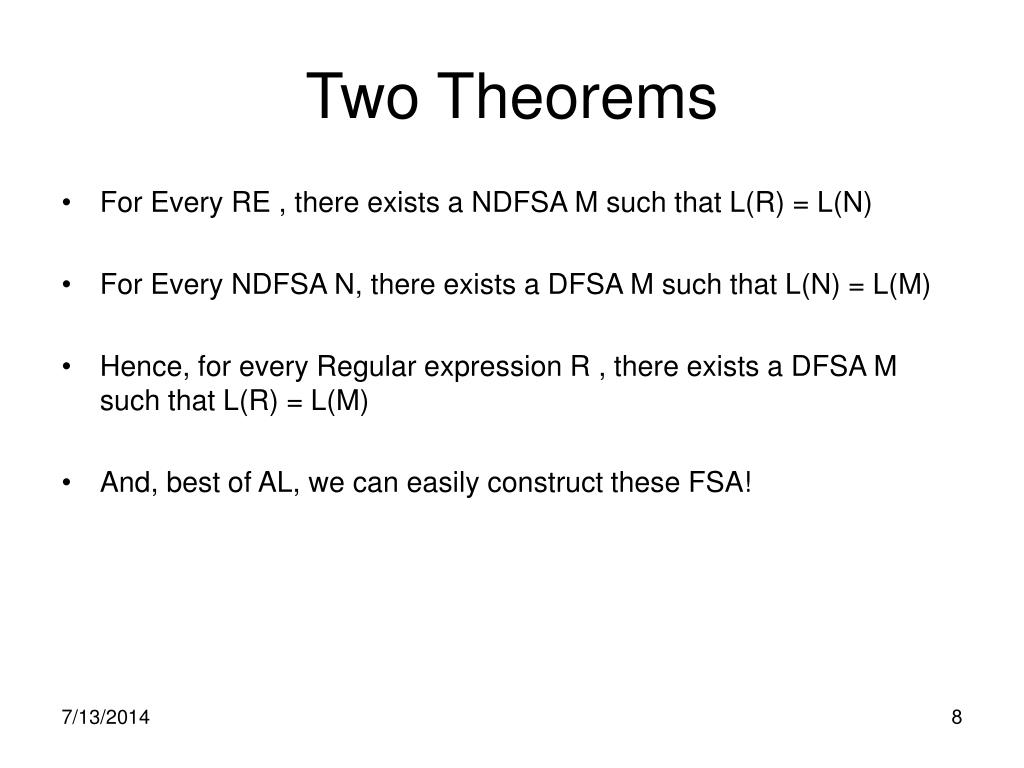

  8. Two Theorems • For Every RE , there exists a NDFSA M such that L(R) = L(N) • For Every NDFSA N, there exists a DFSA M such that L(N) = L(M) • Hence, for every Regular expression R , there exists a DFSA M such that L(R) = L(M) • And, best of AL, we can easily construct these FSA!

  9. Proof of Theorem 1 • Give rules of constructing NDSFA from R a M(a) 1) a a 4) a* M(a) M(b) l l 2) a.b Final state Start state M(a) l l 3) a|b M(b) l l

  10. Example for Constructing NDFSA from RE • (0|1|2 |…|9)* is (…(0|1)| …|9)* l 0 l l l 1 l l l --- 9 l l l

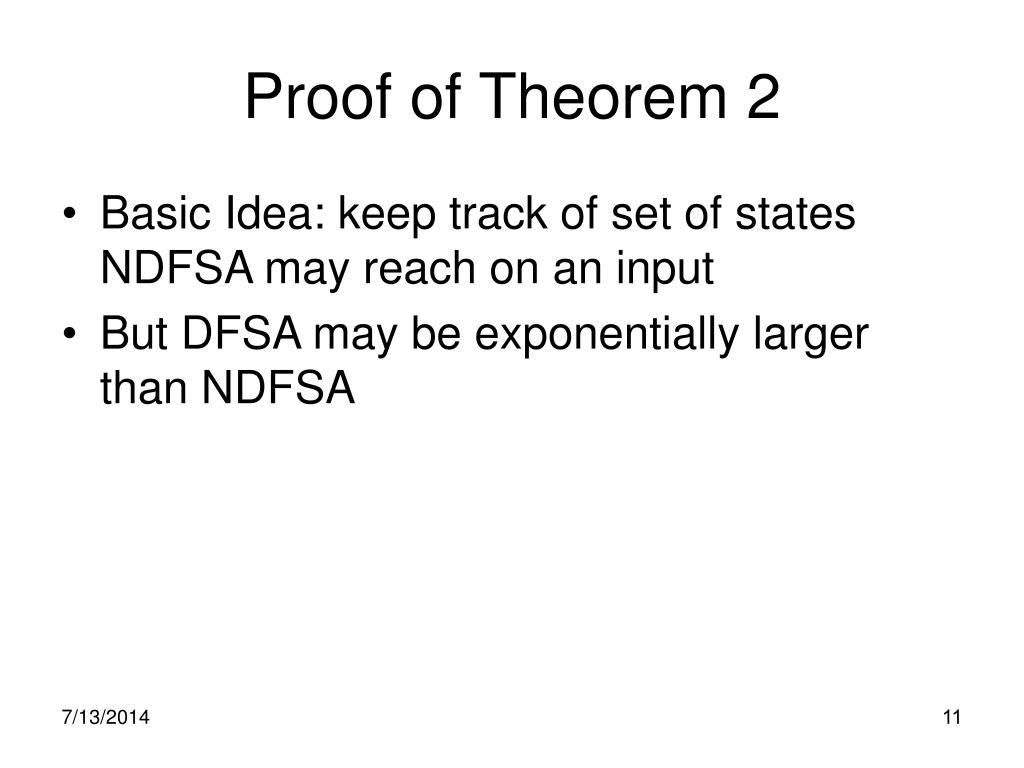

  11. Proof of Theorem 2 • Basic Idea: keep track of set of states NDFSA may reach on an input • But DFSA may be exponentially larger than NDFSA

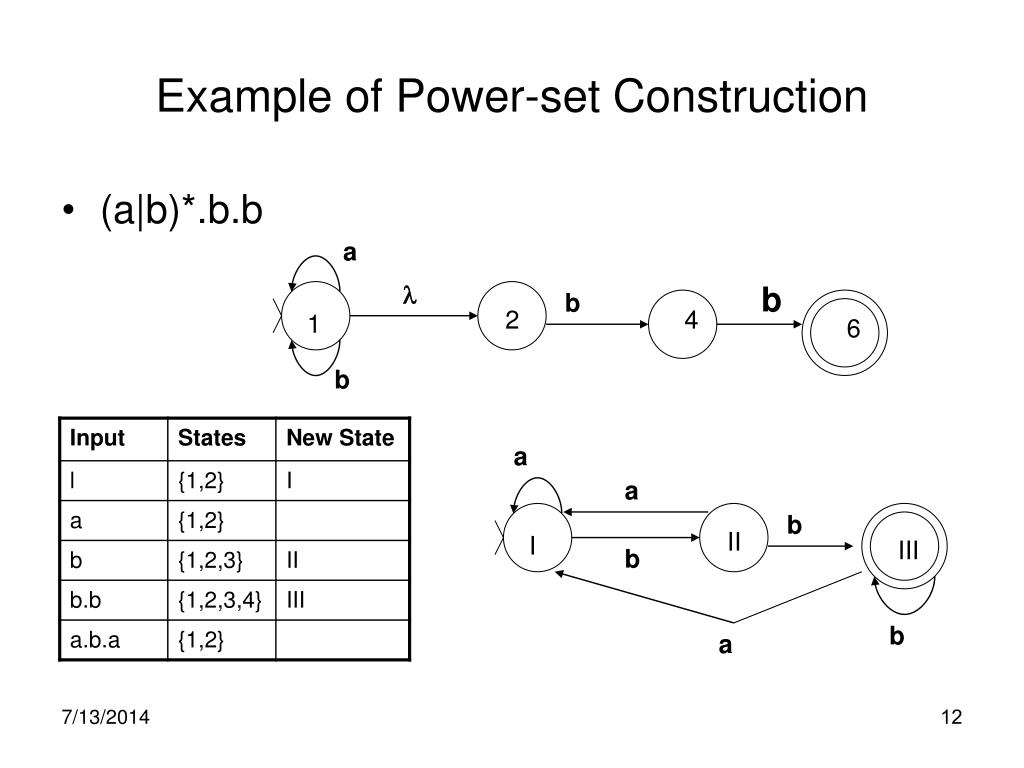

  12. Example of Power-set Construction • (a|b)*.b.b a l b b 2 4 1 6 b a a b II I III b b a
