  1. Module 2 Creating a SharePoint 2010 Intranet

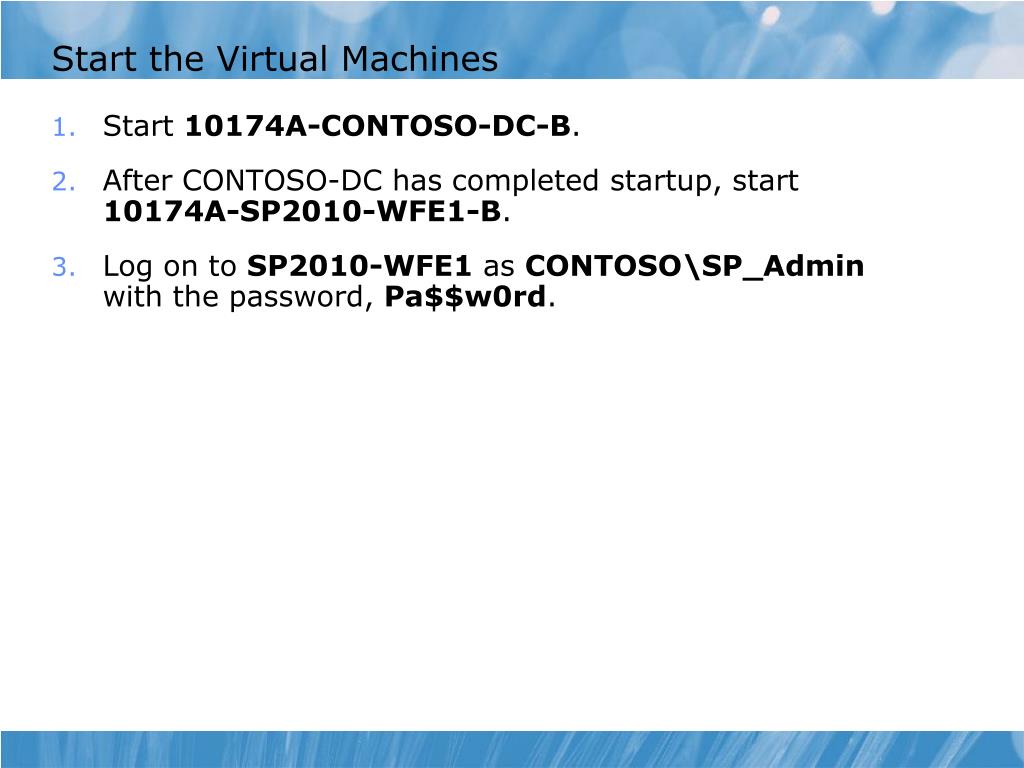

  2. Start the Virtual Machines • Start 10174A-CONTOSO-DC-B. • After CONTOSO-DC has completed startup, start 10174A-SP2010-WFE1-B. • Log on to SP2010-WFE1 as CONTOSO\SP_Adminwith the password, Pa$$w0rd.

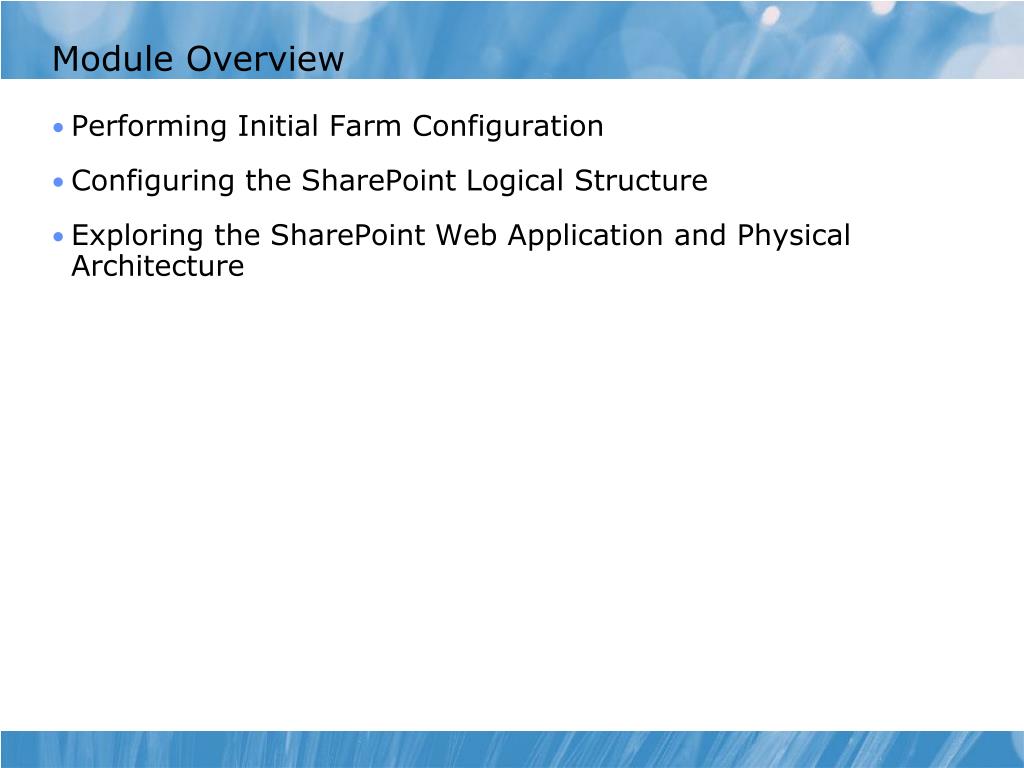

  3. Module Overview • Performing Initial Farm Configuration • Configuring the SharePoint Logical Structure • Exploring the SharePoint Web Application and Physical Architecture

  4. Lesson 1: Performing Initial Farm Configuration • Walkthrough: Farm Configuration Wizard • Farm Configuration Wizard • Service Applications: An Overview • Managed Accounts: An Overview

  5. Walkthrough: Farm Configuration Wizard In this walkthrough you will: • Run the Farm Configuration Wizard • Identify the configuration tasks performed by the Wizard

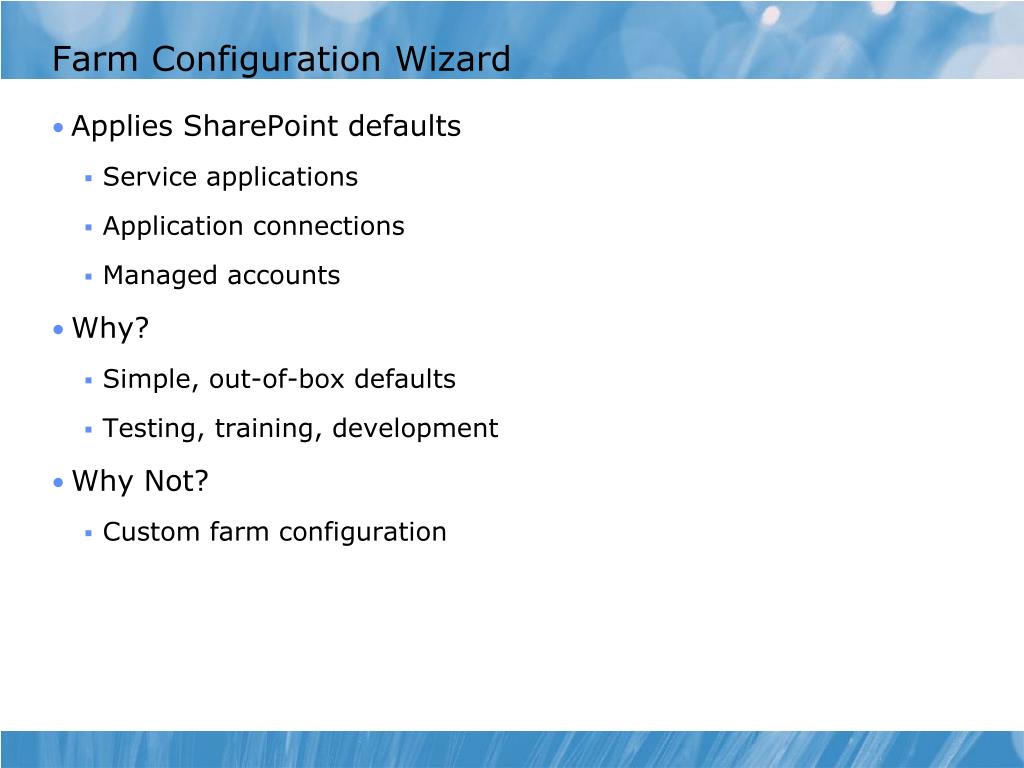

  6. Farm Configuration Wizard • Applies SharePoint defaults • Service applications • Application connections • Managed accounts • Why? • Simple, out-of-box defaults • Testing, training, development • Why Not? • Custom farm configuration

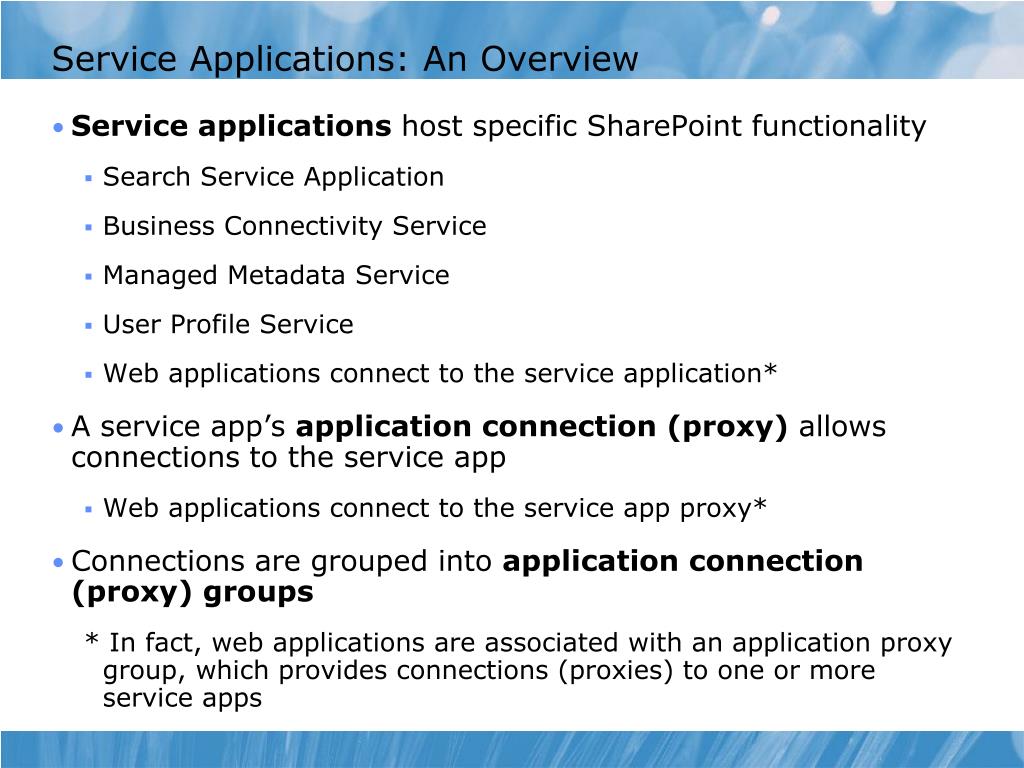

  7. Service Applications: An Overview • Service applications host specific SharePoint functionality • Search Service Application • Business Connectivity Service • Managed Metadata Service • User Profile Service • Web applications connect to the service application* • A service app’s application connection (proxy) allows connections to the service app • Web applications connect to the service app proxy* • Connections are grouped into application connection (proxy) groups * In fact, web applications are associated with an application proxy group, which provides connections (proxies) to one or more service apps

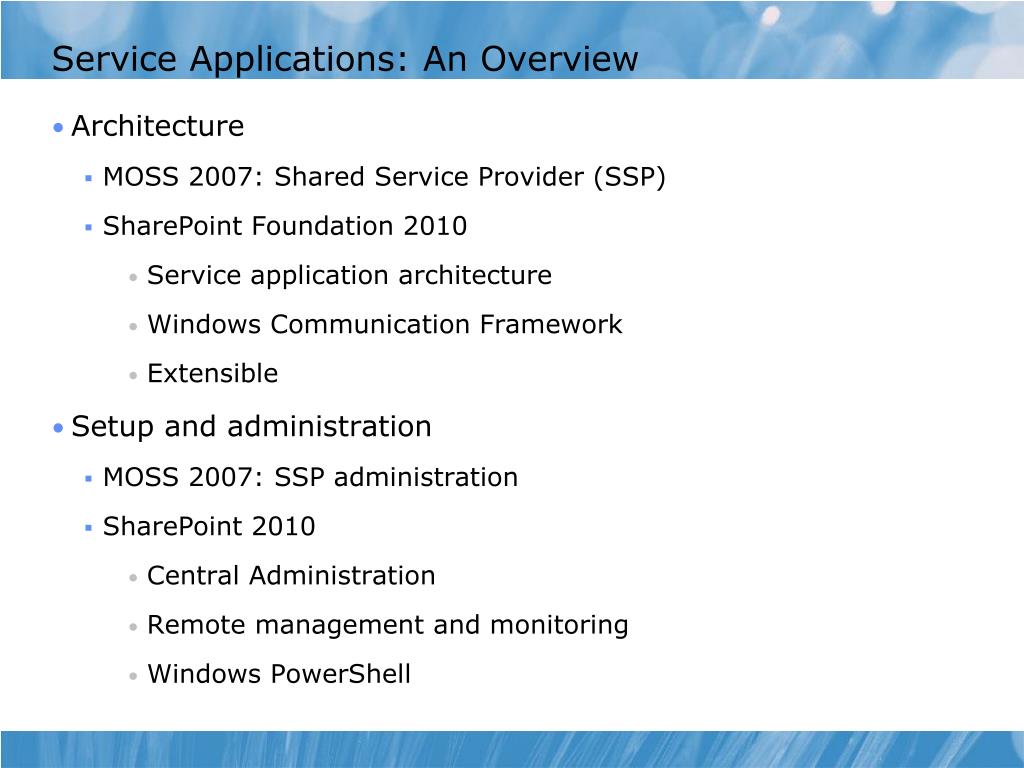

  8. Service Applications: An Overview • Architecture • MOSS 2007: Shared Service Provider (SSP) • SharePoint Foundation 2010 • Service application architecture • Windows Communication Framework • Extensible • Setup and administration • MOSS 2007: SSP administration • SharePoint 2010 • Central Administration • Remote management and monitoring • Windows PowerShell

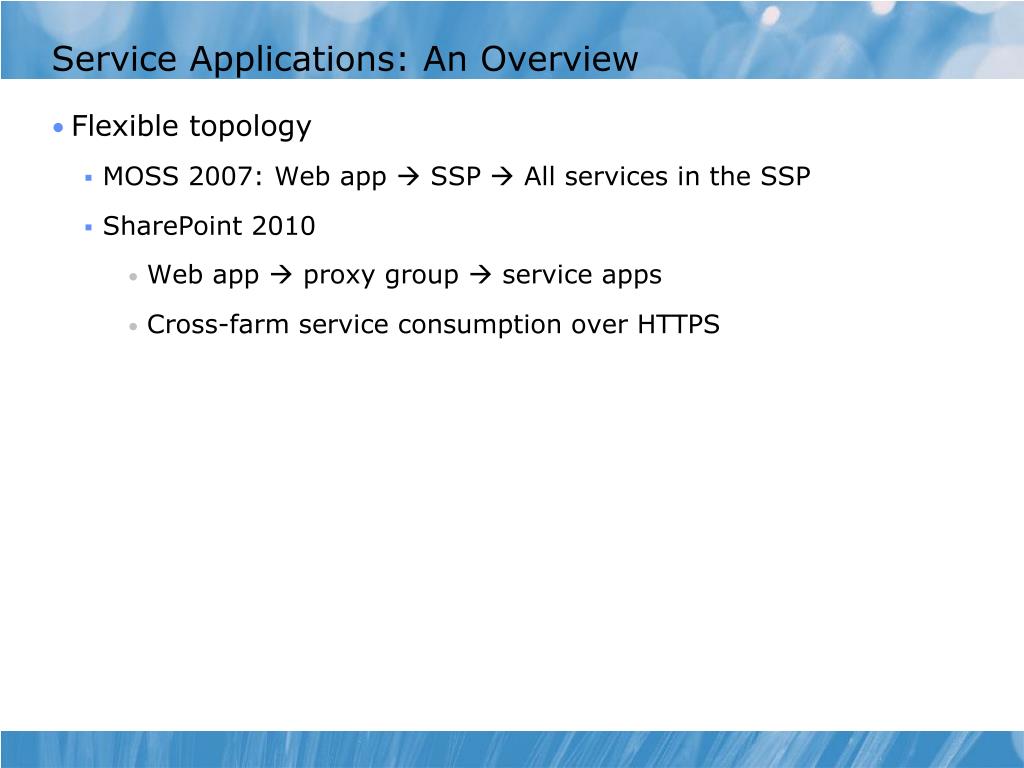

  9. Service Applications: An Overview • Flexible topology • MOSS 2007: Web app  SSP  All services in the SSP • SharePoint 2010 • Web app  proxy group  service apps • Cross-farm service consumption over HTTPS

  10. Service Applications: An Overview (Whiteboard)

  11. Managed Accounts: An Overview • What is the security and management challenge with service accounts in an enterprise? • SharePoint managed accounts • SharePoint can change the password of managed accounts in Active Directory and the password in the service configuration • Managing managed accounts • Registration • Password change • Password expiration and automatic password change

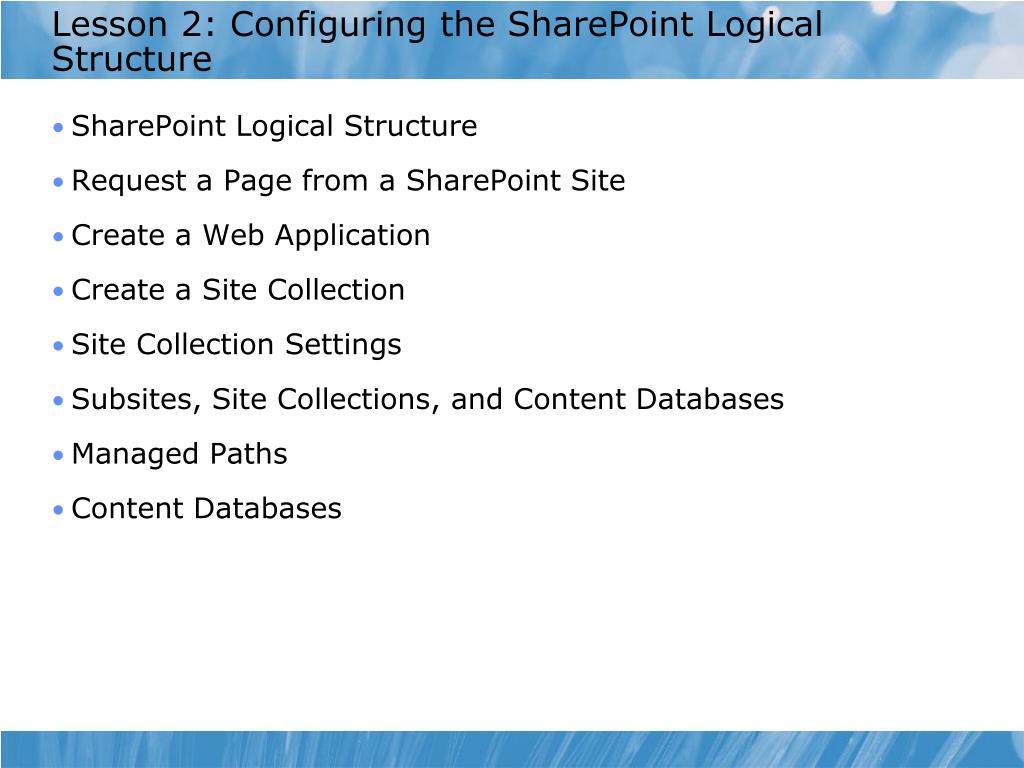

  12. Lesson 2: Configuring the SharePoint Logical Structure • SharePoint Logical Structure • Request a Page from a SharePoint Site • Create a Web Application • Create a Site Collection • Site Collection Settings • Subsites, Site Collections, and Content Databases • Managed Paths • Content Databases

  13. SharePoint Logical Structure Web Application Managed Paths Site CollectionTop-LevelSite Site CollectionTop-LevelSite Site List Library Site [Folder] [Folder] Item Document Content Database(s)

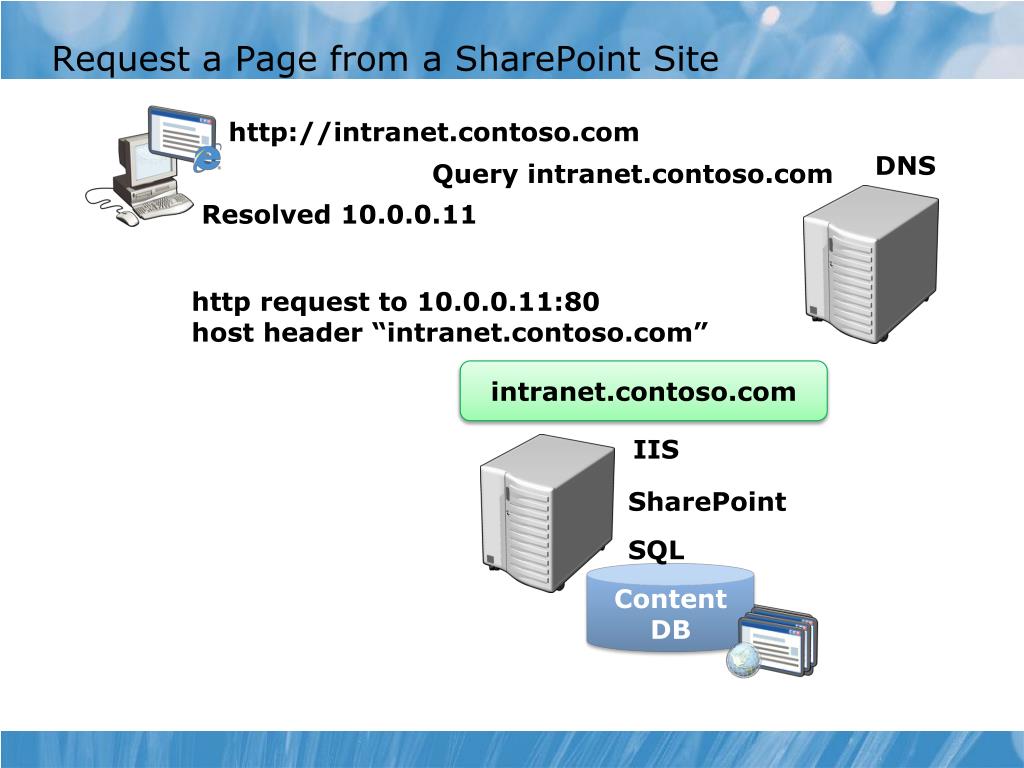

  14. Request a Page from a SharePoint Site http://intranet.contoso.com DNS Query intranet.contoso.com Resolved 10.0.0.11 http request to 10.0.0.11:80host header “intranet.contoso.com” intranet.contoso.com IIS SharePoint SQL Content DB

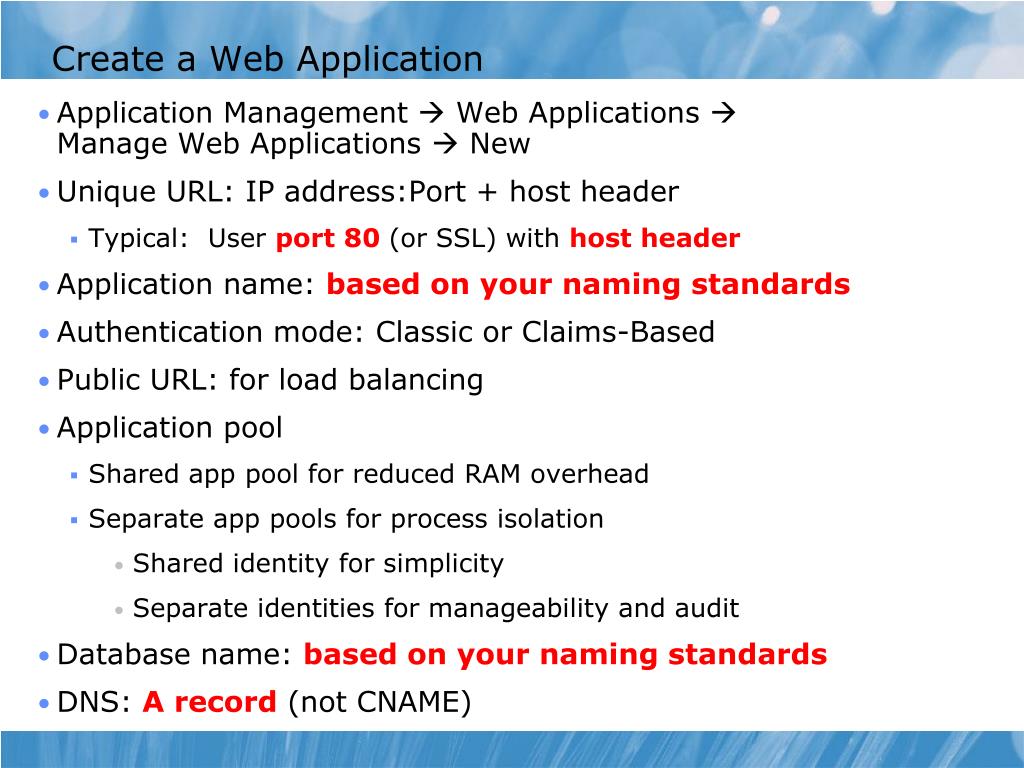

  15. Create a Web Application • Application Management  Web Applications  Manage Web Applications  New • Unique URL: IP address:Port + host header • Typical: User port 80 (or SSL) with host header • Application name: based on your naming standards • Authentication mode: Classic or Claims-Based • Public URL: for load balancing • Application pool • Shared app pool for reduced RAM overhead • Separate app pools for process isolation • Shared identity for simplicity • Separate identities for manageability and audit • Database name: based on your naming standards • DNS: A record (not CNAME)

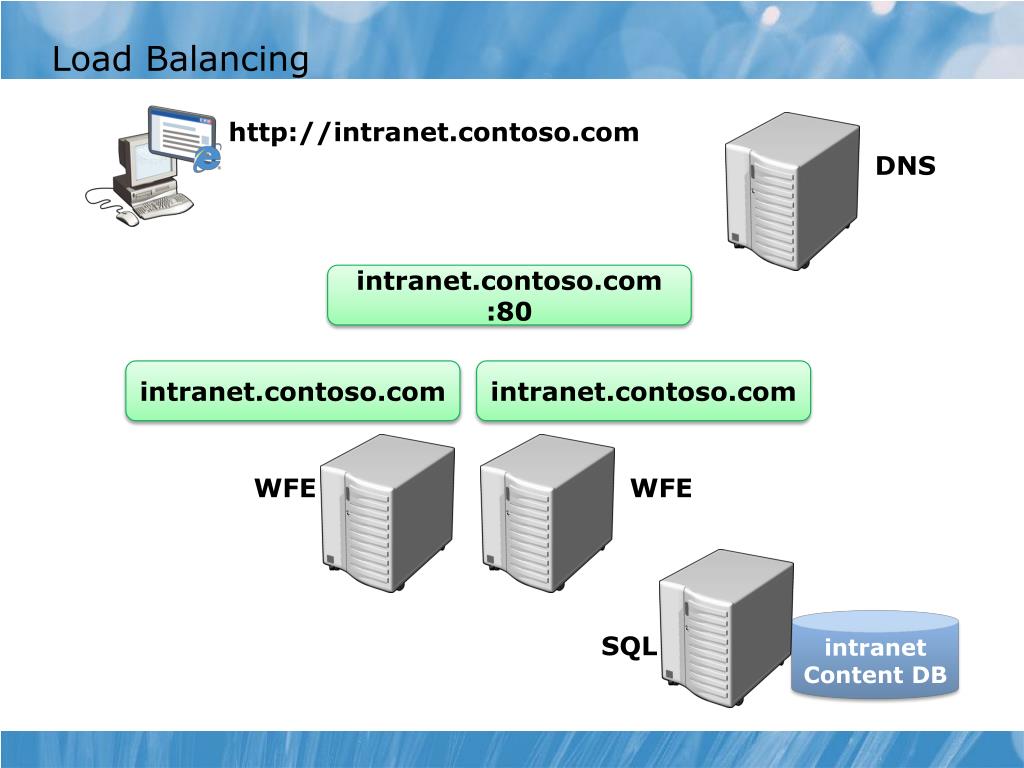

  16. Load Balancing http://intranet.contoso.com DNS intranet.contoso.com :80 intranet.contoso.com intranet.contoso.com WFE WFE intranetContent DB SQL

  17. Create a Site Collection • Application Management  Site Collections  Create site collections • Ensure you’re focused on the correct Web application • Title • URL • Top level: / • Additional site collections: / [managed path /] SiteName • Recommend URLs with no spaces (%20) and MixedCase • Site definition: Template selection • Sub-sites: List is filtered based on parent site settings intranet.contoso.com Site Collection Top-Level Site Content Database

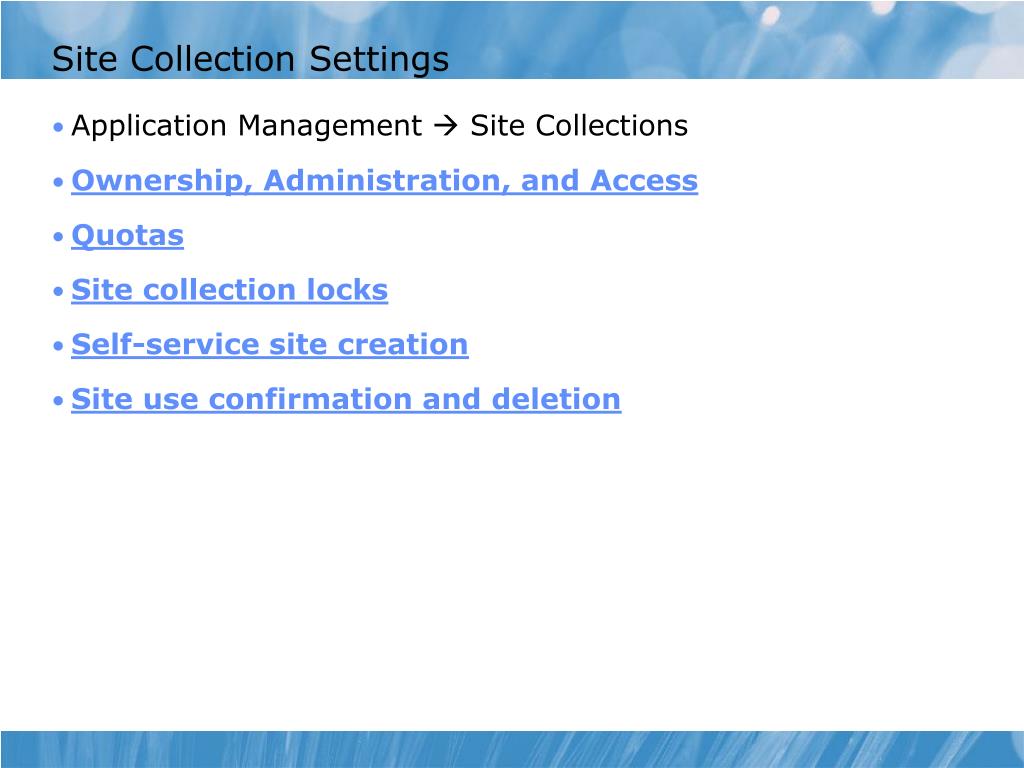

  18. Site Collection Settings • Application Management  Site Collections • Ownership, Administration, and Access • Quotas • Site collection locks • Self-service site creation • Site use confirmation and deletion

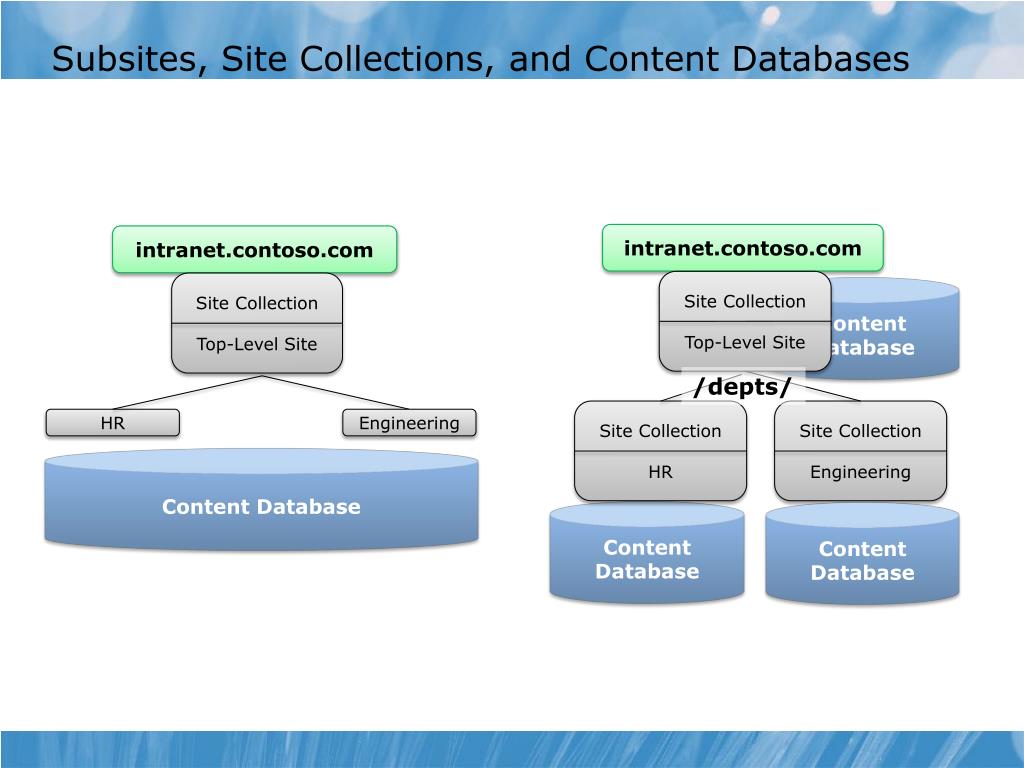

  19. Subsites, Site Collections, and Content Databases intranet.contoso.com intranet.contoso.com Content Database Site Collection Top-Level Site Site Collection Top-Level Site Site Collection HR Site Collection Engineering /depts/ HR Engineering Content Database Content Database Content Database

  20. Subsites Ownership, Quotas intranet.contoso.com Site Collection Top-Level Site HR Engineering Content Database

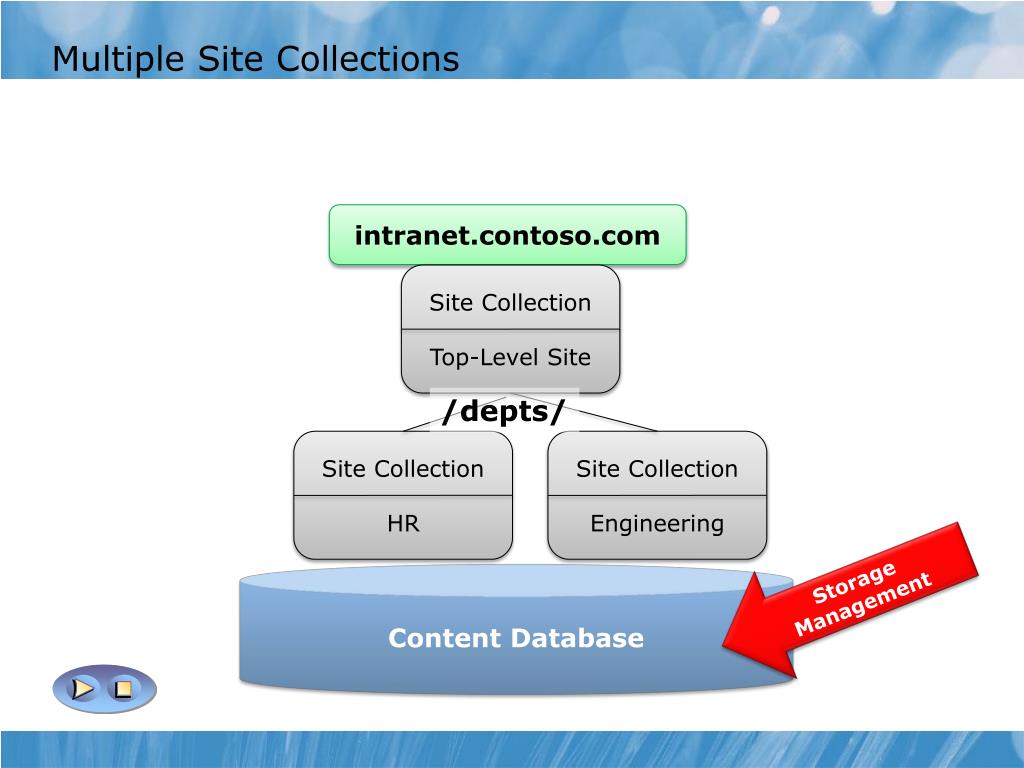

  21. Multiple Site Collections intranet.contoso.com Site Collection Top-Level Site Site Collection HR Site Collection Engineering /depts/ Storage Management Content Database

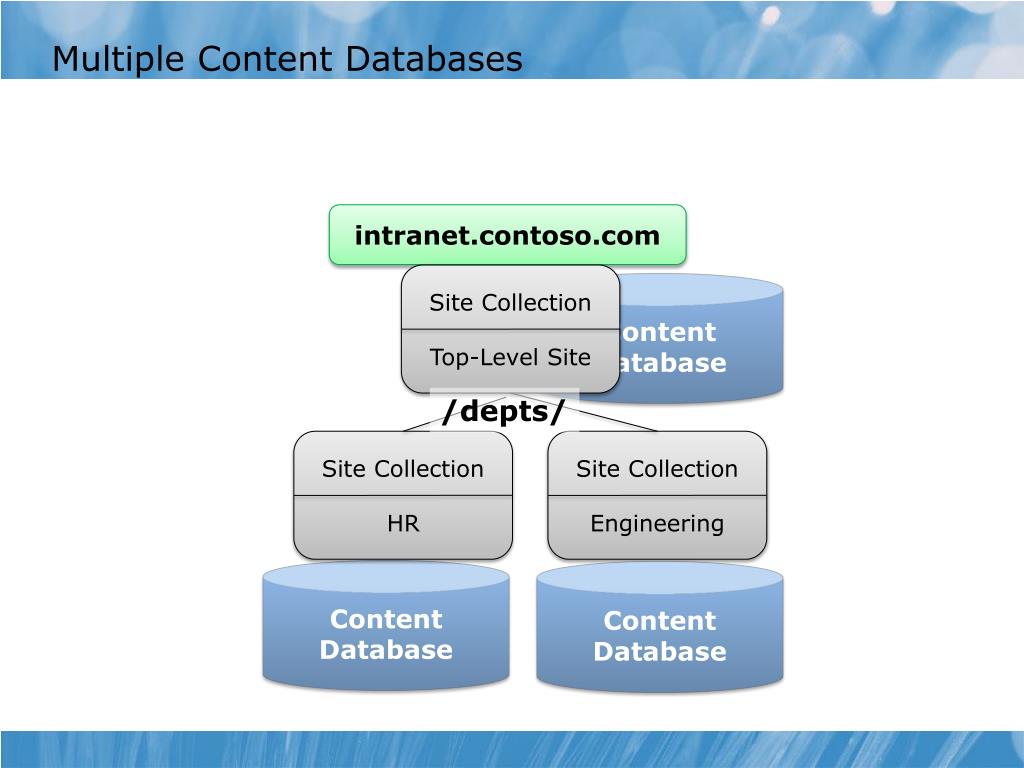

  22. Multiple Content Databases intranet.contoso.com Content Database Site Collection Top-Level Site Site Collection HR Site Collection Engineering /depts/ Content Database Content Database

  23. Managed Paths http://intranet.contoso.com/depts/HR/Pages/benefits.aspx intranet.contoso.com Content Database Site Collection Top-Level Site Site Collection HR Site Collection Engineering Wildcard inclusionManaged path /depts/ Content Database Content Database Pages/benefits.aspx

  24. Content Databases • Site collections and content databases • A site collection cannot span content databases • Out-of-box tools recovery tools require restoration of a content database • Scalability support • 300 CDBs per Web application • CDBs per SQL server dependent on RAM • 200 GB per content database is supported • 100 GB per site collection • 250,000 Web sites per site collection • 2,000 under any one Web site • Create a Content Database • Add a Site Collection to a Content Database

  25. Create a Content Database • Application Management  Databases  Manage content databases • Ensure you’re focused on the correct Web application • Add a content database • Database name: based on your naming standards

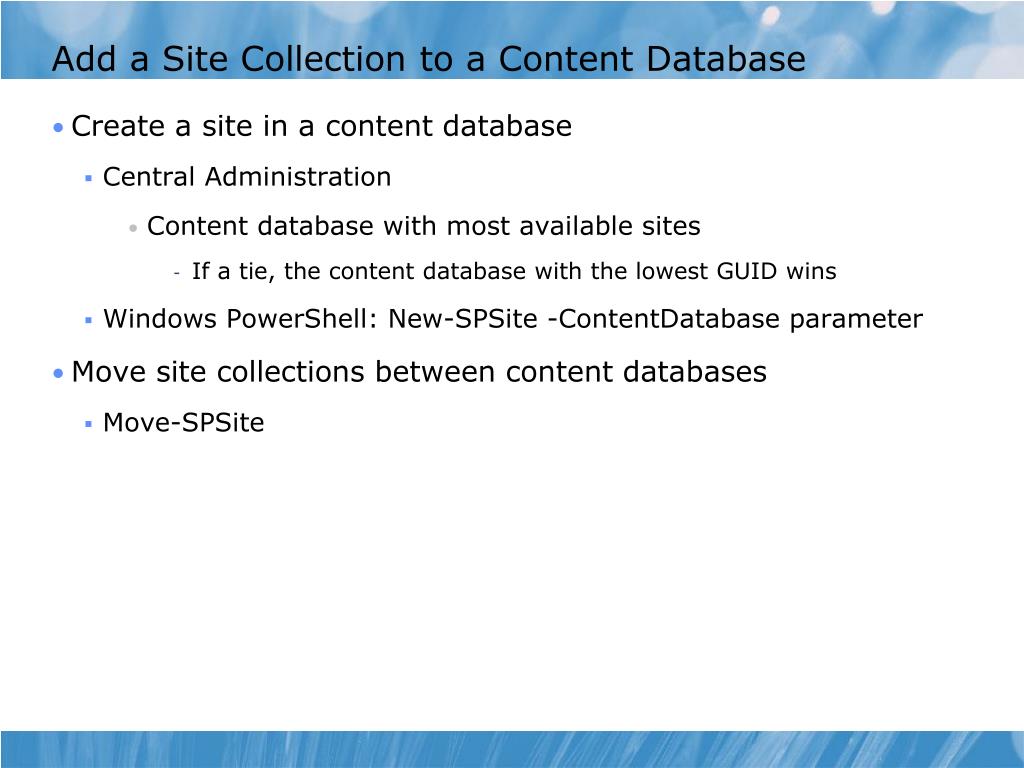

  26. Add a Site Collection to a Content Database • Create a site in a content database • Central Administration • Content database with most available sites • If a tie, the content database with the lowest GUID wins • Windows PowerShell: New-SPSite -ContentDatabase parameter • Move site collections between content databases • Move-SPSite

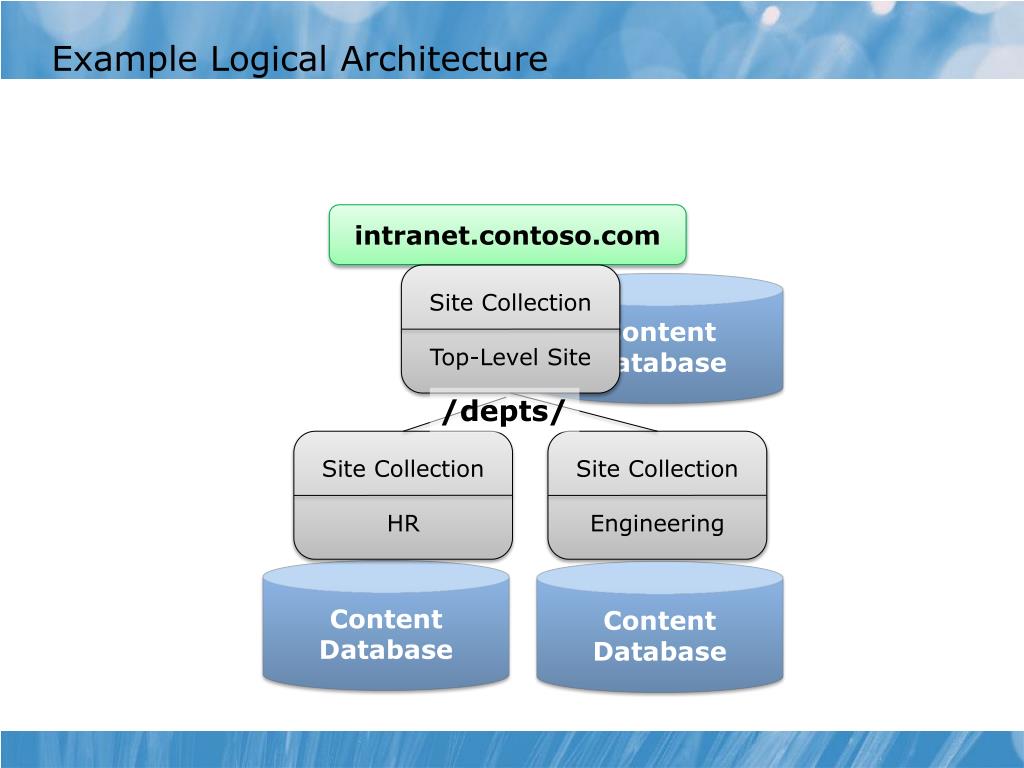

  27. Example Logical Architecture intranet.contoso.com Content Database Site Collection Top-Level Site Site Collection HR Site Collection Engineering /depts/ Content Database Content Database

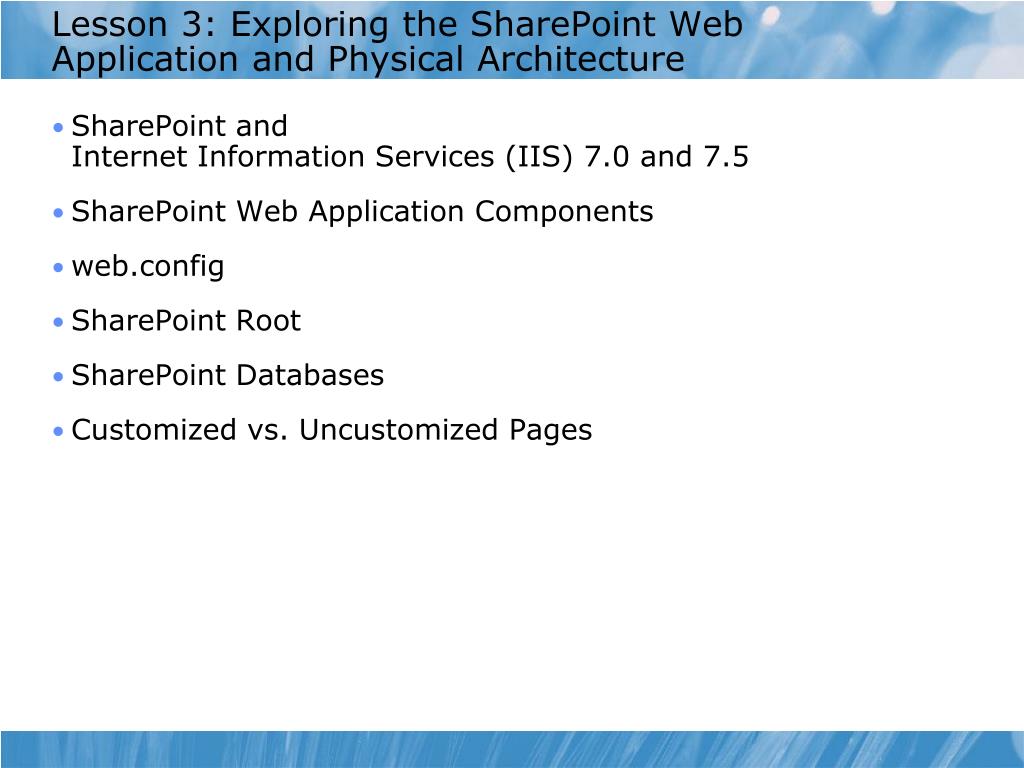

  28. Lesson 3: Exploring the SharePoint Web Application and Physical Architecture • SharePoint and Internet Information Services (IIS) 7.0 and 7.5 • SharePoint Web Application Components • web.config • SharePoint Root • SharePoint Databases • Customized vs. Uncustomized Pages

  29. SharePoint and Internet Information Services (IIS) 7.0 and 7.5 • HttpModules and HttpHandlers participate in all requests to the server • ASP.NET configuration integrated in user interface • Request auditing and error debugging • Request Tracing for 500 errors • .NET API for IIS configuration settings • No Metabase • Configuration stored in applicationHost.config • Delegated configuration and administration

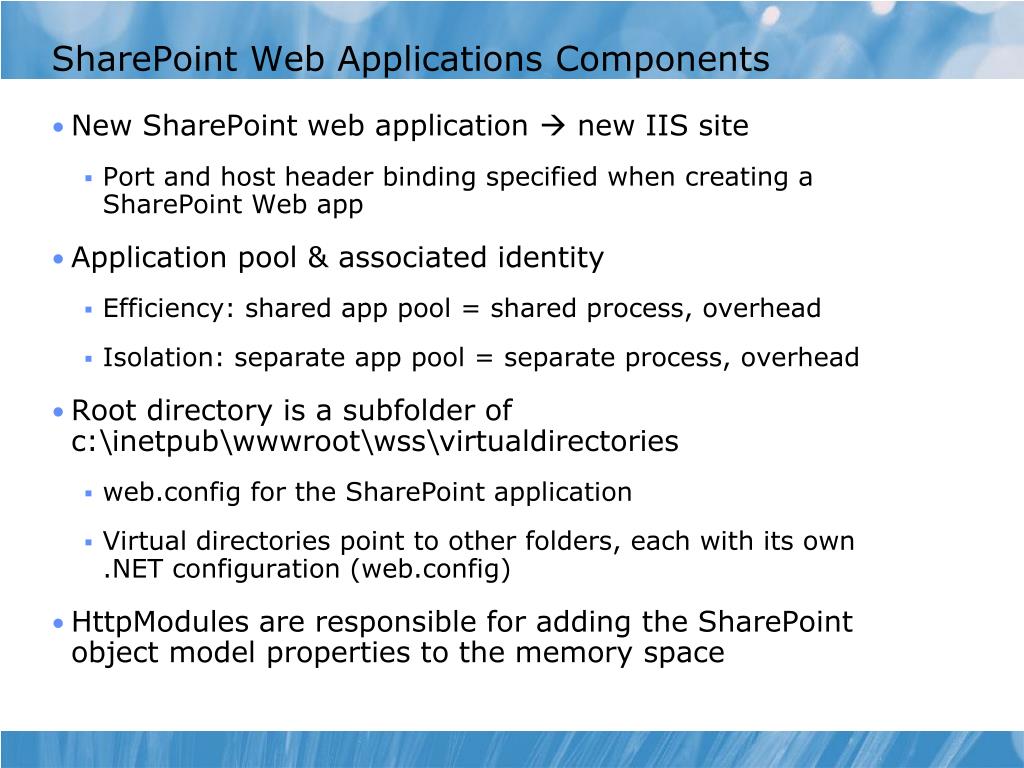

  30. SharePoint Web Applications Components • New SharePoint web application  new IIS site • Port and host header binding specified when creating a SharePoint Web app • Application pool & associated identity • Efficiency: shared app pool = shared process, overhead • Isolation: separate app pool = separate process, overhead • Root directory is a subfolder of c:\inetpub\wwwroot\wss\virtualdirectories • web.config for the SharePoint application • Virtual directories point to other folders, each with its own .NET configuration (web.config) • HttpModules are responsible for adding the SharePoint object model properties to the memory space

  31. web.config • XML-based file in the root folder of each Web application or virtual directory • Sections (XML elements) group the configuration • SafeControls: defines what controls can be used on a SharePoint page. • SafeMode: determines whether pages are allowed to execute in-line .NET code. • MergedActions: allows changes to web.config without actually modifying the file, by merging actions specified in selected and other files. • BlobCache: enables caching various file types in a location on the Web front end, rather than pulling files from the database for each request.

  32. SharePoint Root • Majority of SharePoint files reside in a single directory on the Web server called the SharePoint Root • C:\Program Files\Common Files\Microsoft Shared\web server extensions\14 • Top-level folders • TEMPLATE folder • Synchronization of the SharePoint root

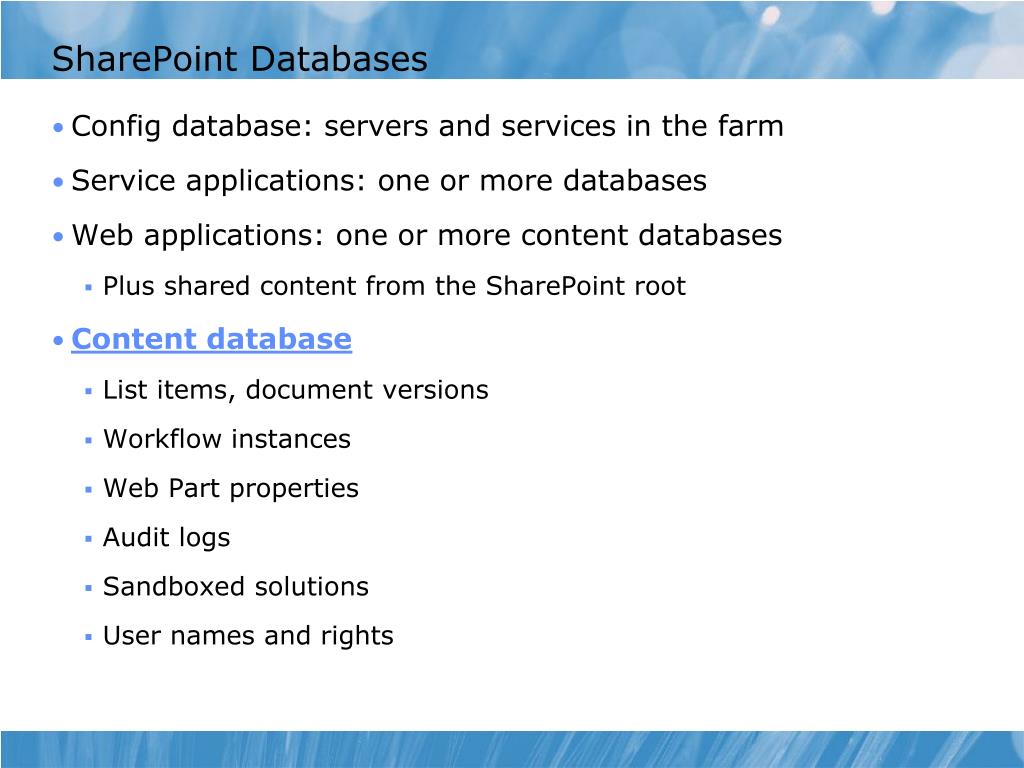

  33. SharePoint Databases • Config database: servers and services in the farm • Service applications: one or more databases • Web applications: one or more content databases • Plus shared content from the SharePoint root • Content database • List items, document versions • Workflow instances • Web Part properties • Audit logs • Sandboxed solutions • User names and rights

  34. Customized vs. Uncustomized Pages • New site: Site definition generates initial content • Some pages are shared across sites, e.g. DEFAULT.ASPX • Page is actually stored in the SharePoint root • Uncustomized page • Resides in SharePoint root • Content of page (e.g., definition of which Web parts appear)is stored in the content database • Customized page • Modify the page itself using a tool: SharePoint Designer 2010 • .aspx page is stored in the content database • HttpModule analyzes URI of request, then gets page from content database or (if page is not there) SharePoint root • Service packs overwrite files in SharePoint root

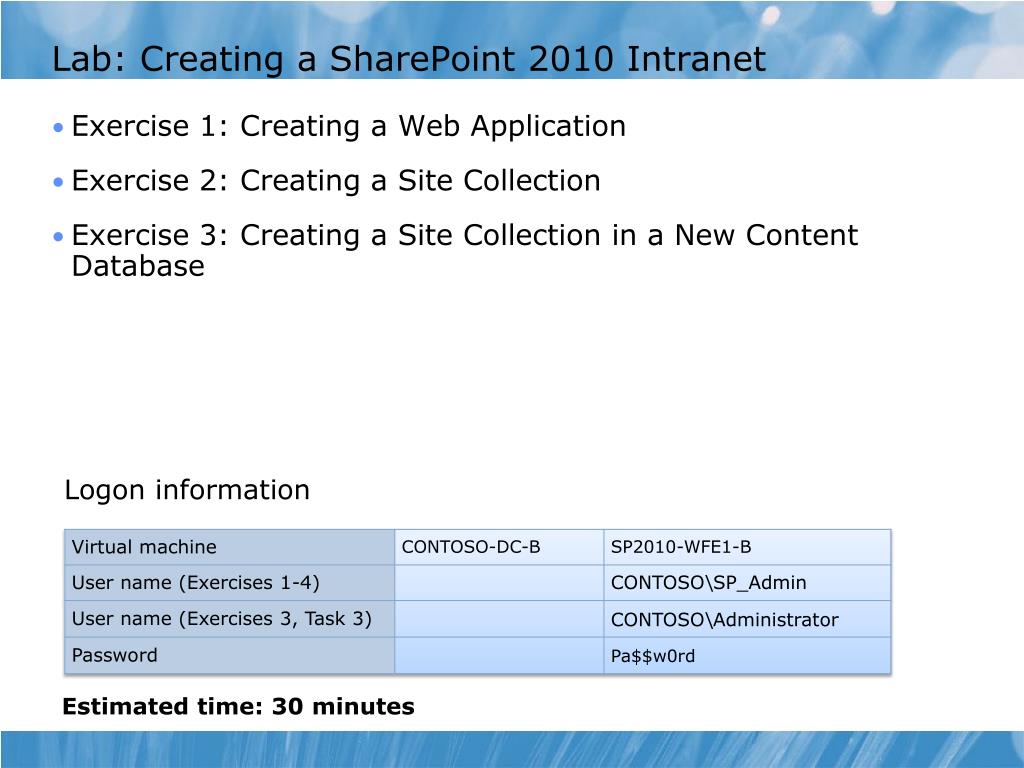

  35. Lab: Creating a SharePoint 2010 Intranet • Exercise 1: Creating a Web Application • Exercise 2: Creating a Site Collection • Exercise 3: Creating a Site Collection in a New Content Database Logon information Estimated time: 30 minutes

  36. Scenario • You have been asked to build an intranet to support communication and collaboration requirements at Contoso, Ltd. You have recently completed the installation of SharePoint 2010. You must now configure the farm using the Farm Configuration Wizard, and create the logical topology to support the initial business requirements. You are tasked with establishing a SharePoint 2010 intranet site so that business users can review the new features of the publishing site definition. Additionally, you have been asked to configure sites to meet the collaboration requirements of several divisions within the organization, so you will begin by creating a site for the Information Technology (IT) department.

  37. Module Review and Takeaways • Review Questions
