Matrix-Matrix Multiplication

Matrix-Matrix Multiplication. An Example.    . 4 0 –2 1. 3 1 1 0. = = = =. 12 0 –2 0. 10. Matrix-Matrix Multiplication. An Example.    . –1 2 0 3. 3 1 1 0. = = = =. –3 2 0 0. –1. Matrix-Matrix Multiplication. An Example.

kynton
Télécharger la présentation

Matrix-Matrix Multiplication

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

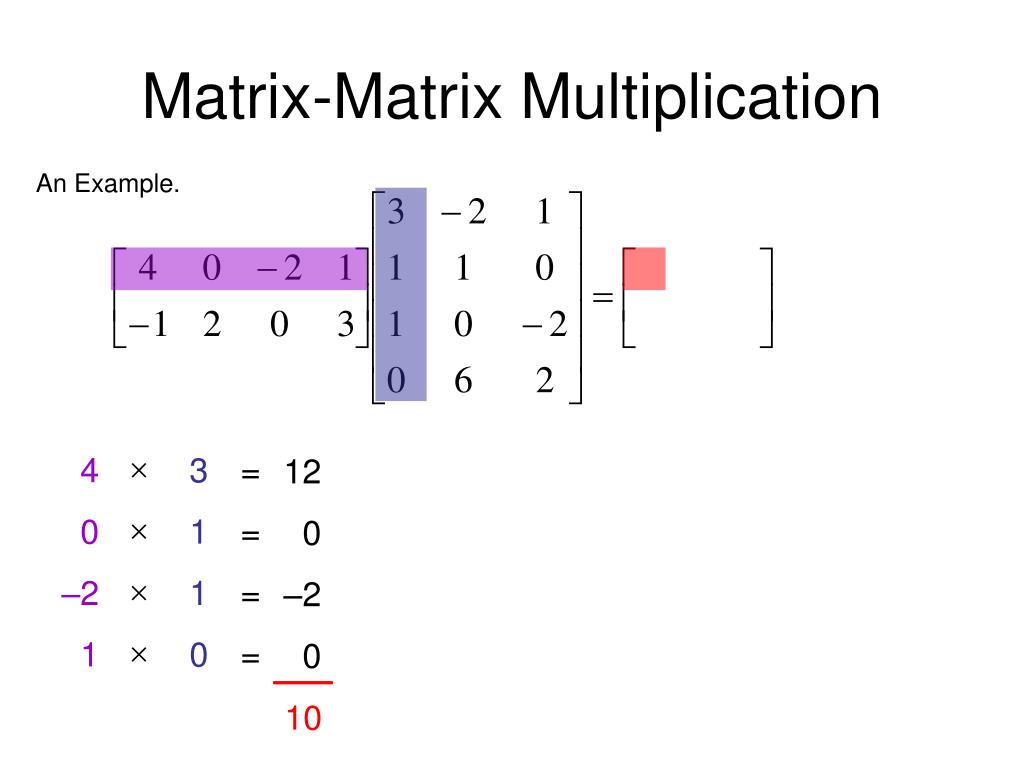

  1. Matrix-Matrix Multiplication An Example.     4 0 –2 1 3 1 1 0 = = = = 12 0 –2 0 10

  2. Matrix-Matrix Multiplication An Example.     –1 2 0 3 3 1 1 0 = = = = –3 2 0 0 –1

  3. Matrix-Matrix Multiplication An Example.     4 0 –2 1 –2 1 0 6 = = = = –8 0 0 6 –2

  4. Matrix-Matrix Multiplication An Example.     –1 2 0 3 –2 1 0 6 = = = = 2 2 0 18 22

  5. Matrix-Matrix Multiplication An Example.     4 0 –2 1 1 0 –2 2 = = = = 4 0 4 2 10

  6. Matrix-Matrix Multiplication An Example.     –1 2 0 3 1 0 –2 2 = = = = –1 0 0 6 5

  7. Matrix-Matrix Multiplication An Example.

  8. Matrix-Matrix Multiplication Another Example. 2x + 3y – 2z –4x + 2y + 3z 5x + 7y + 6z This gives us a simple and elegant way to write a system of linear equations. 2x + 3y – 2z = –2 –4x + 2y + 3z = 1 5x + 7y + 6z = 28 Then the system can be written as

  9. Properties Real-number multiplication is commutative. No! Is matrix multiplication commutative? Real-number multiplication is associative. Yes! Is matrix multiplication commutative? Real-number multiplication has an identity. Yes! Does matrix multiplication have an identity? (but you must use an identity matrix of the proper size for A) Real-number multiplication has inverses. Unless a = 0. Does matrix multiplication have an identity? Yes! Unless det(A) = 0.

  10. Find:

  11. Matrices: Inverses (and Identities) Matrix Equations A system of equations can be written quite simply as AX = C. To solve it like a real-number equation, we will need the multiplicative identity and inverse for matrices. Multiplicative inverses multiply to the multiplicative identity. The multiplicative identity disappears from multiplication. We will have solved the equation.

  12. Matrices: Inverses (and Identities) • Finding The Inverse Of A Matrix • The General Procedure to find the inverse of A. • Write a rectangular augmented matrix [ A | I ]. • Use Gauss-Jordan elimination (row operations on the whole matrix) to change A into the identity. You will now have [ I | A–1 ]. I can demonstrate this process quickly online here. If that link doesn’t work right, try this one and use the “row operation calculator.” A matrix A that has no inverse (because det(A) = 0) is called a singular matrix. A matrix A that has an inverse (because det(A)  0) is called a nonsingular matrix
