  1. Containers, Iterators, Algorithms, Thrust Richard Kelley

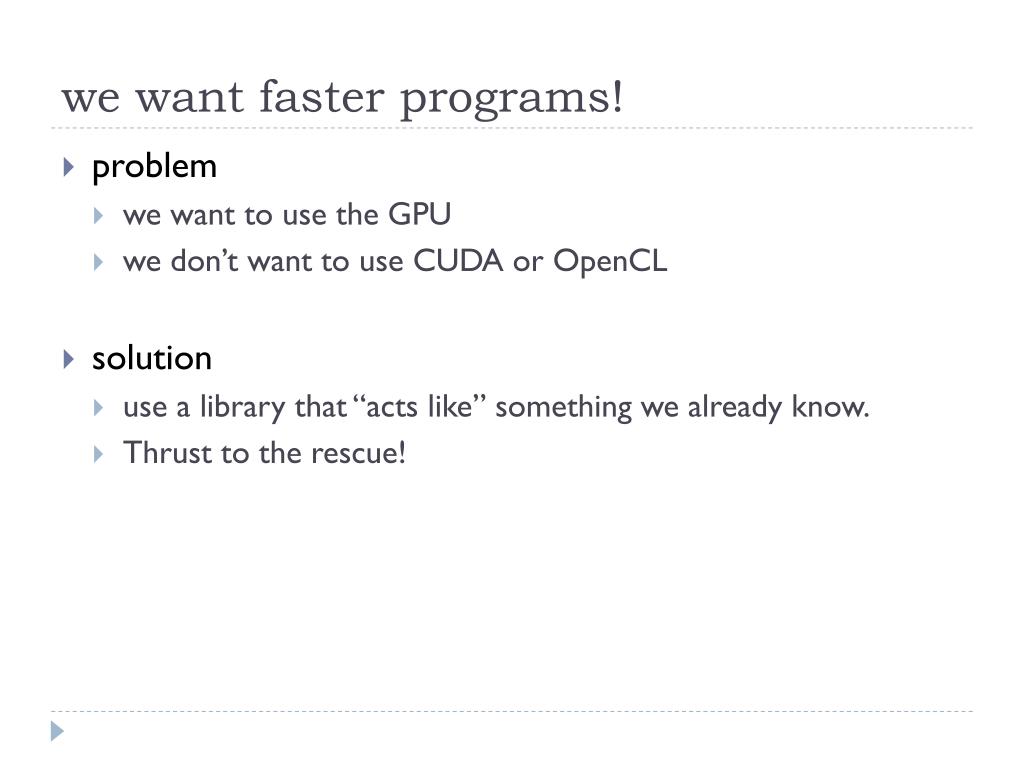

  2. we want faster programs! • problem • we want to use the GPU • we don’t want to use CUDA or OpenCL • solution • use a library that “acts like” something we already know. • Thrust to the rescue!

  3. Thrust • what is it? • from the Thrust webpage: “Thrust is a CUDA library of parallel algorithms with an interface resembling the C++ Standard Template Library (STL). Thrust provides a high-level interface for GPU programming that greatly enhances developer productivity.” • exactly what we want. • but we need to be comfortable with the STL to use thrust.

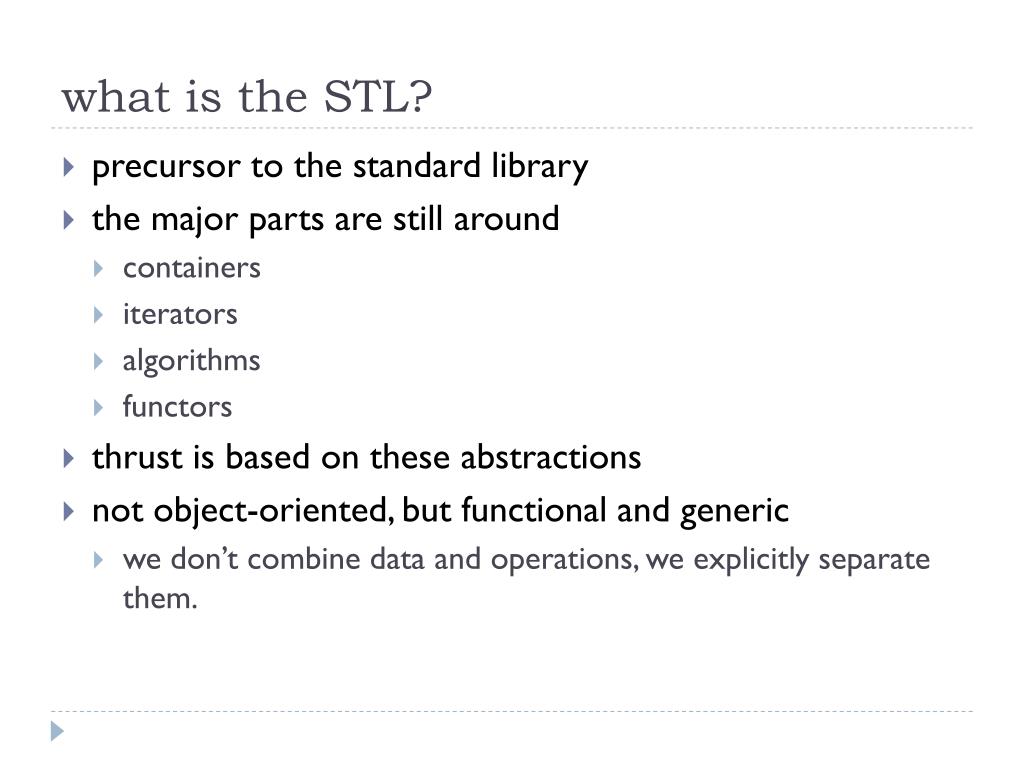

  4. what is the STL? • precursor to the standard library • the major parts are still around • containers • iterators • algorithms • functors • thrust is based on these abstractions • not object-oriented, but functional and generic • we don’t combine data and operations, we explicitly separate them.

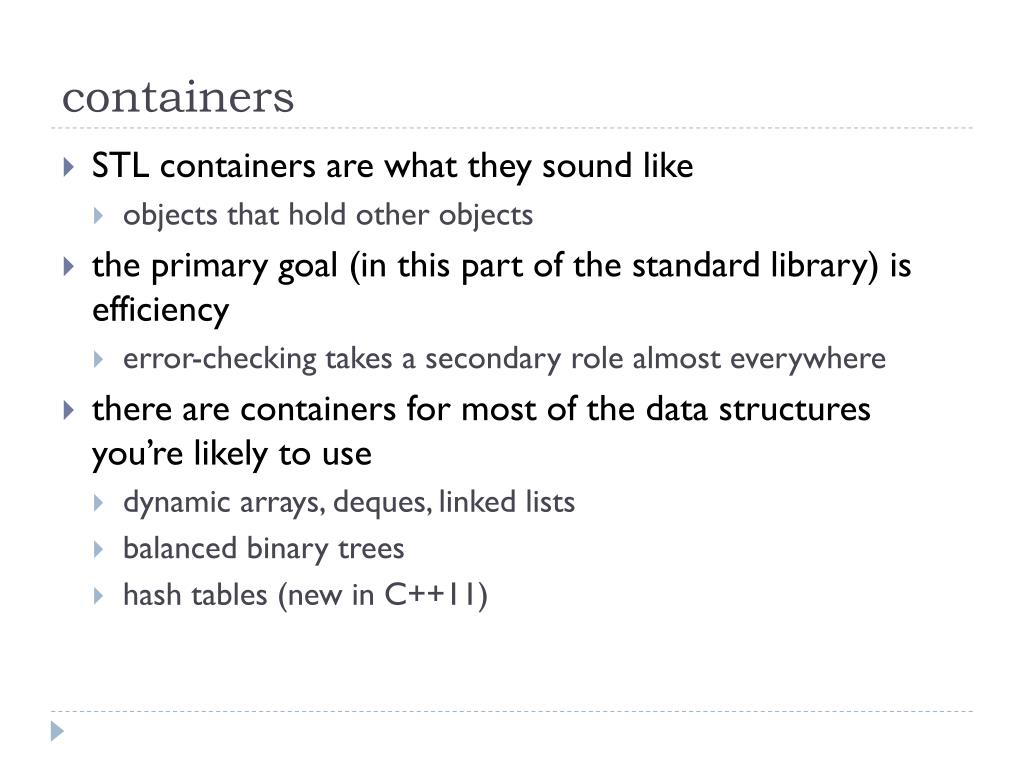

  5. containers • STL containers are what they sound like • objects that hold other objects • the primary goal (in this part of the standard library) is efficiency • error-checking takes a secondary role almost everywhere • there are containers for most of the data structures you’re likely to use • dynamic arrays, deques, linked lists • balanced binary trees • hash tables (new in C++11)

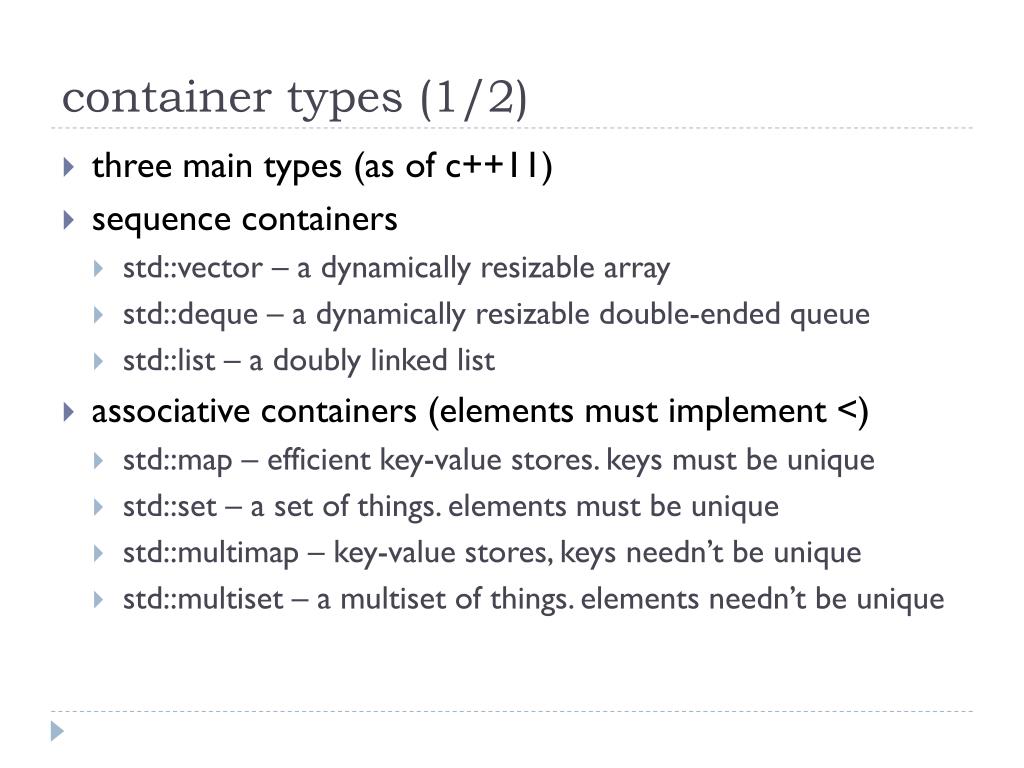

  6. container types (1/2) • three main types (as of c++11) • sequence containers • std::vector – a dynamically resizable array • std::deque – a dynamically resizable double-ended queue • std::list – a doubly linked list • associative containers (elements must implement <) • std::map – efficient key-value stores. keys must be unique • std::set – a set of things. elements must be unique • std::multimap – key-value stores, keys needn’t be unique • std::multiset – a multiset of things. elements needn’t be unique

  7. container types (2/2) • unordered associative containers (hash tables) • std::unordered_set • std::unordered_multiset • std::unordered_map • std::unordered_multimap • they say “unordered” to avoid name conflicts with libraries that made their own “hash_*” • this is new in C++11 – your mileage may vary.

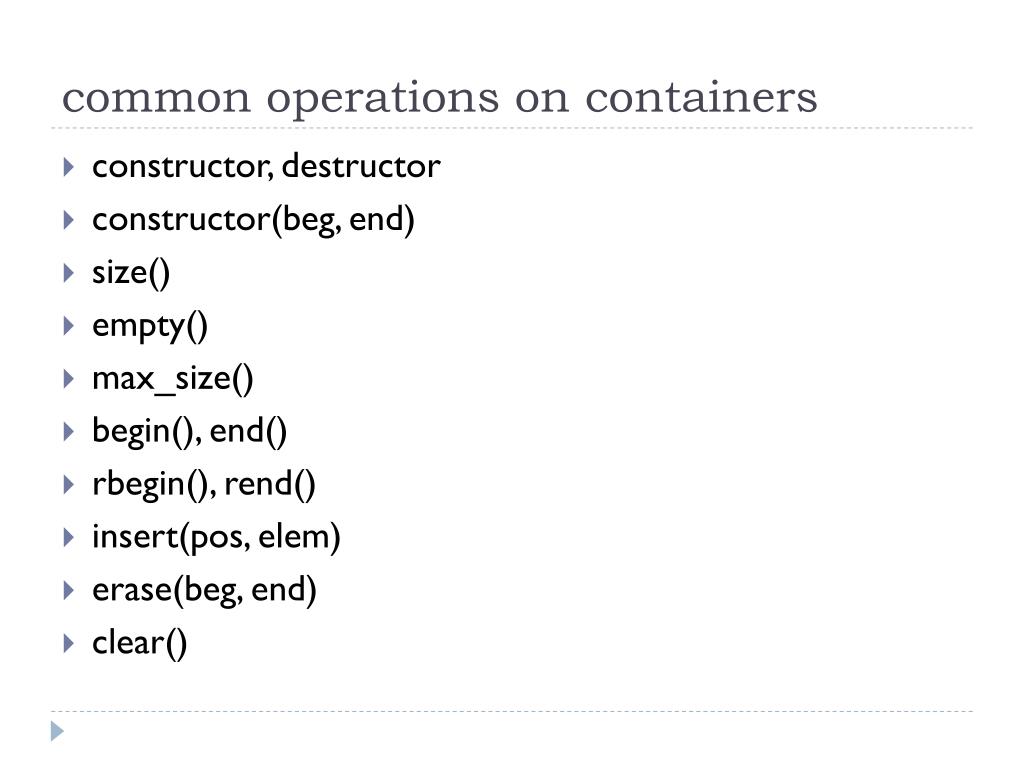

  8. common operations on containers • constructor, destructor • constructor(beg, end) • size() • empty() • max_size() • begin(), end() • rbegin(), rend() • insert(pos, elem) • erase(beg, end) • clear()

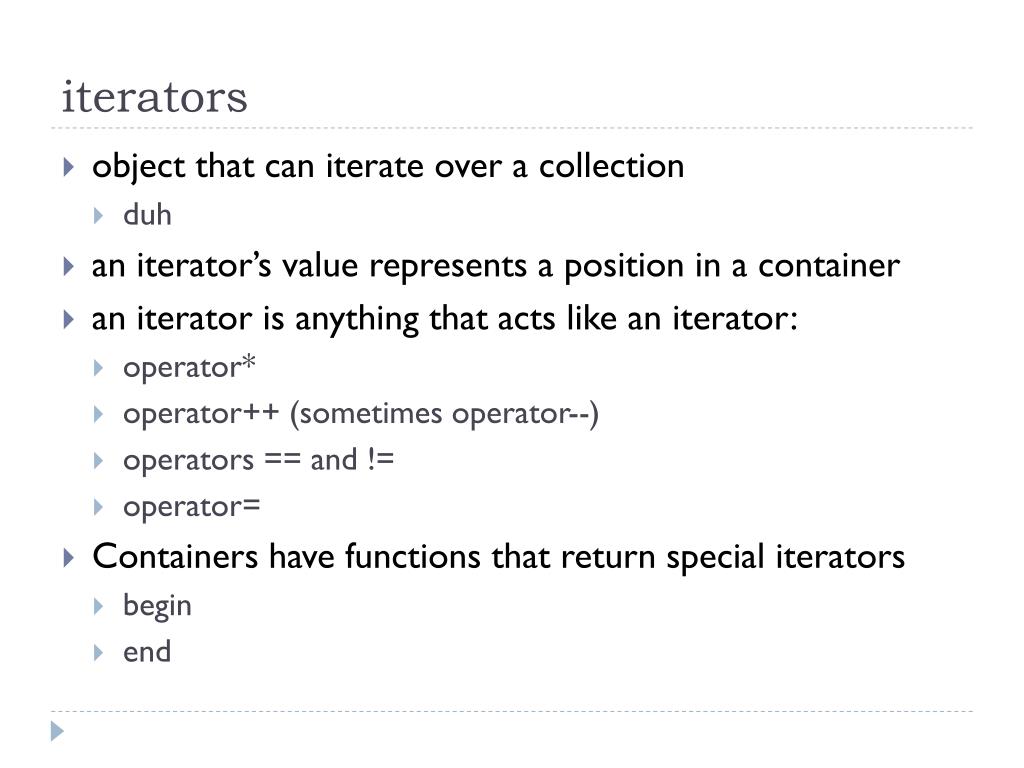

  9. iterators • object that can iterate over a collection • duh • an iterator’s value represents a position in a container • an iterator is anything that acts like an iterator: • operator* • operator++ (sometimes operator--) • operators == and != • operator= • Containers have functions that return special iterators • begin • end

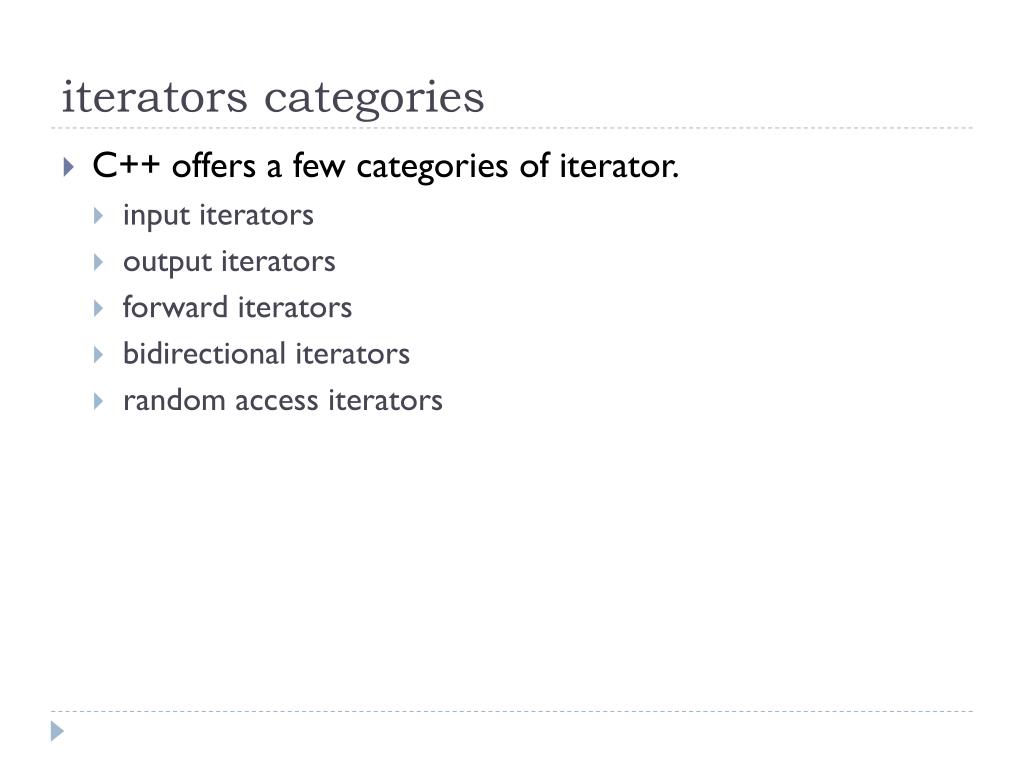

  10. iterators categories • C++ offers a few categories of iterator. • input iterators • output iterators • forward iterators • bidirectional iterators • random access iterators

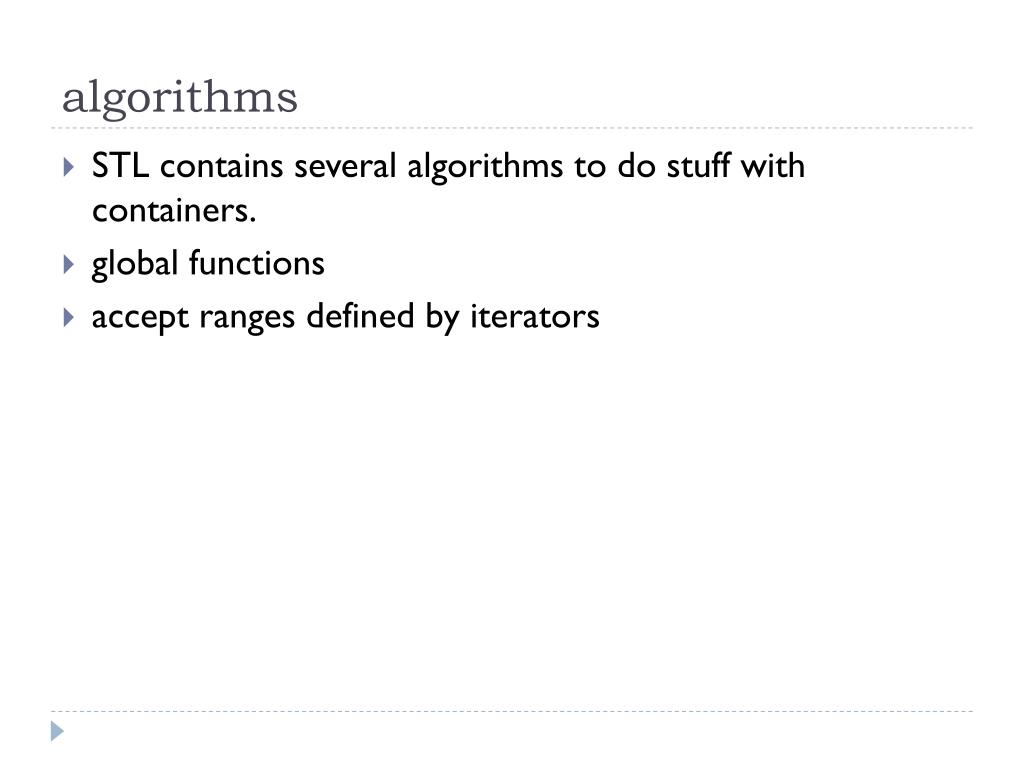

  11. algorithms • STL contains several algorithms to do stuff with containers. • global functions • accept ranges defined by iterators

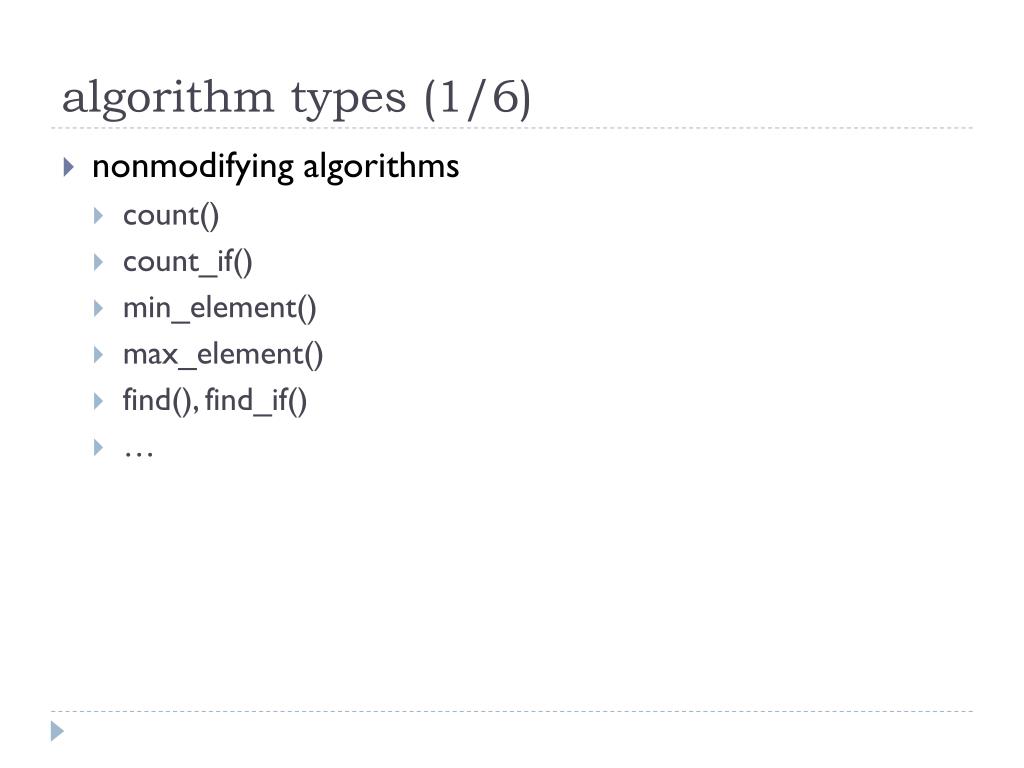

  12. algorithm types (1/6) • nonmodifying algorithms • count() • count_if() • min_element() • max_element() • find(), find_if() • …

  13. algorithm types (2/6) • modifying algorithms • for_each • copy, copy_backward • transform • merge • …

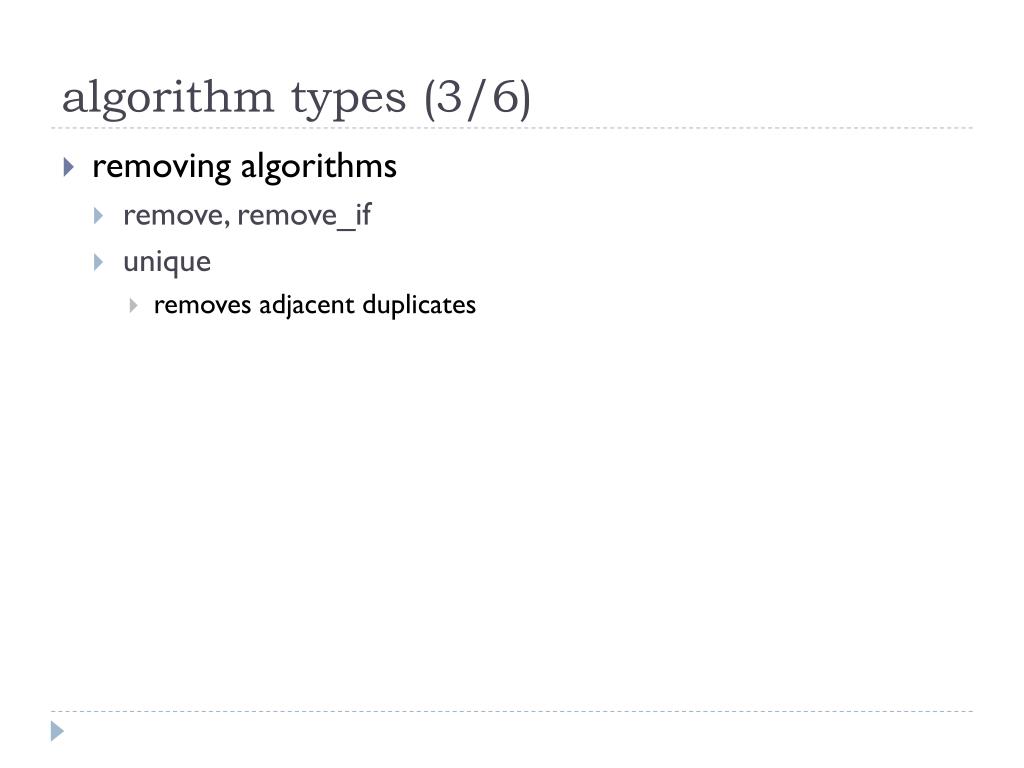

  14. algorithm types (3/6) • removing algorithms • remove, remove_if • unique • removes adjacent duplicates

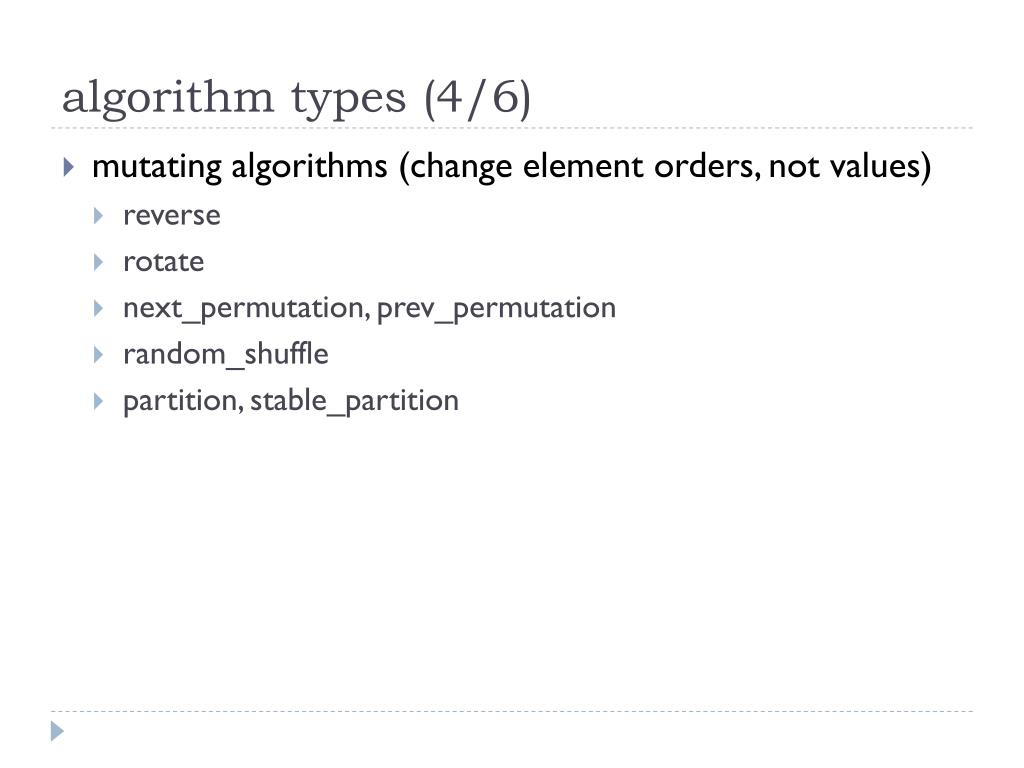

  15. algorithm types (4/6) • mutating algorithms (change element orders, not values) • reverse • rotate • next_permutation, prev_permutation • random_shuffle • partition, stable_partition

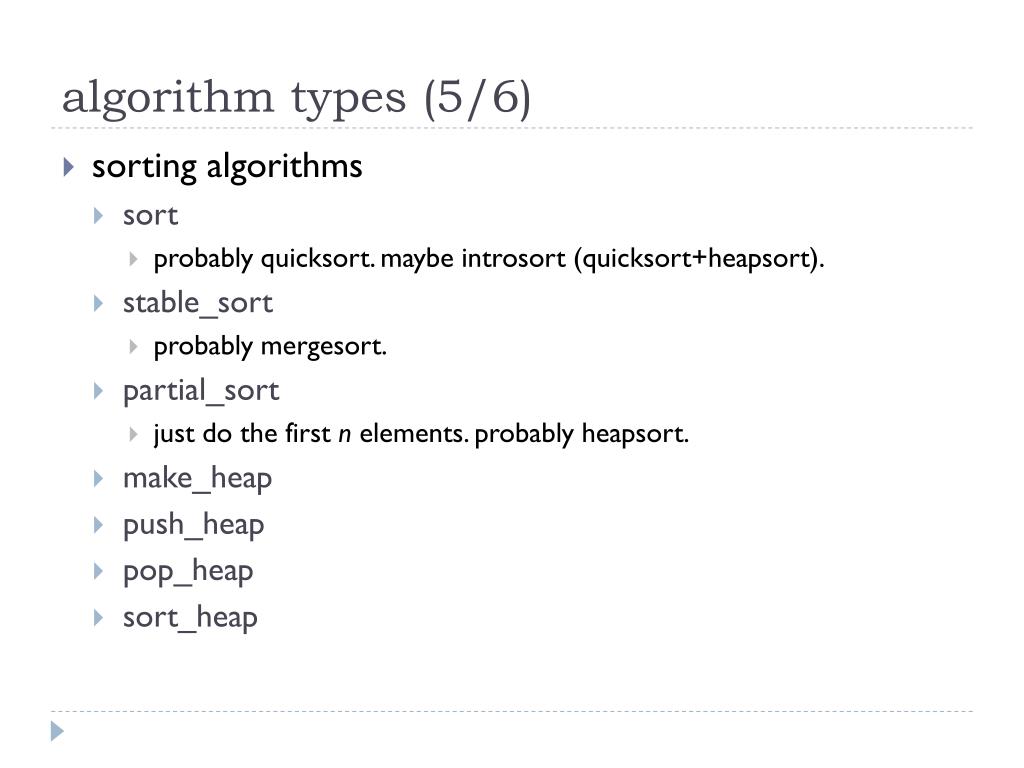

  16. algorithm types (5/6) • sorting algorithms • sort • probably quicksort. maybe introsort (quicksort+heapsort). • stable_sort • probably mergesort. • partial_sort • just do the first n elements. probably heapsort. • make_heap • push_heap • pop_heap • sort_heap

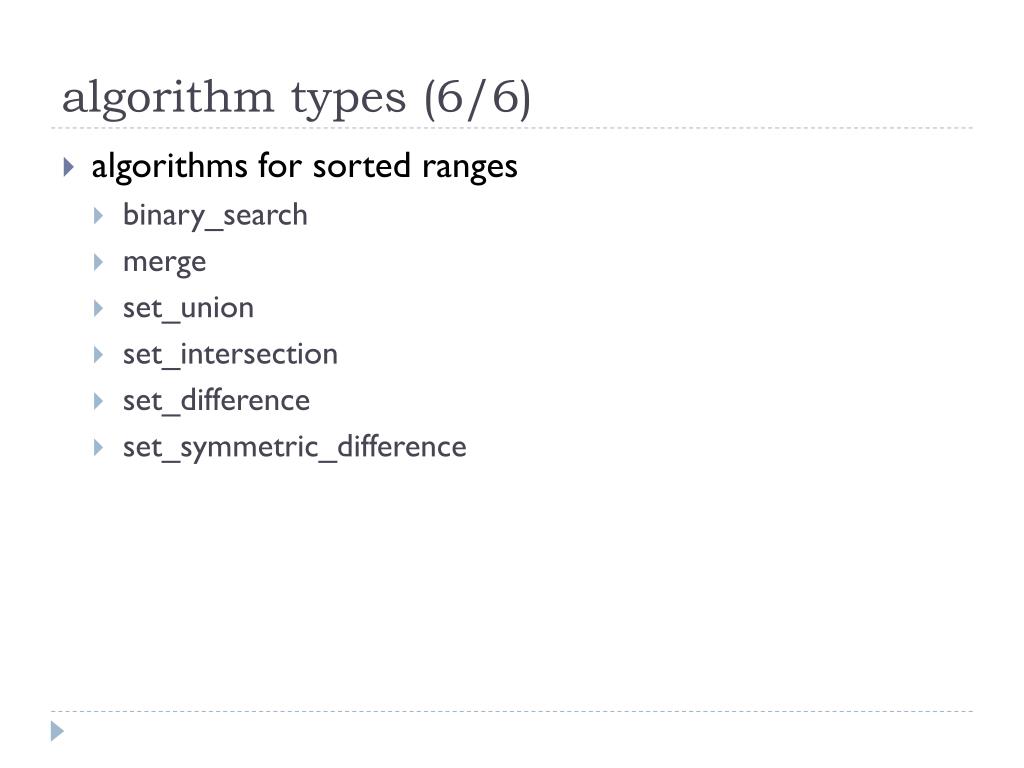

  17. algorithm types (6/6) • algorithms for sorted ranges • binary_search • merge • set_union • set_intersection • set_difference • set_symmetric_difference

  18. functors (function objects) • any object that has overloaded operator() • yes, you can do that • also called “function objects” • can have internal state • (probably) faster than a function pointer • I haven’t checked this

  19. code! • let’s look at some

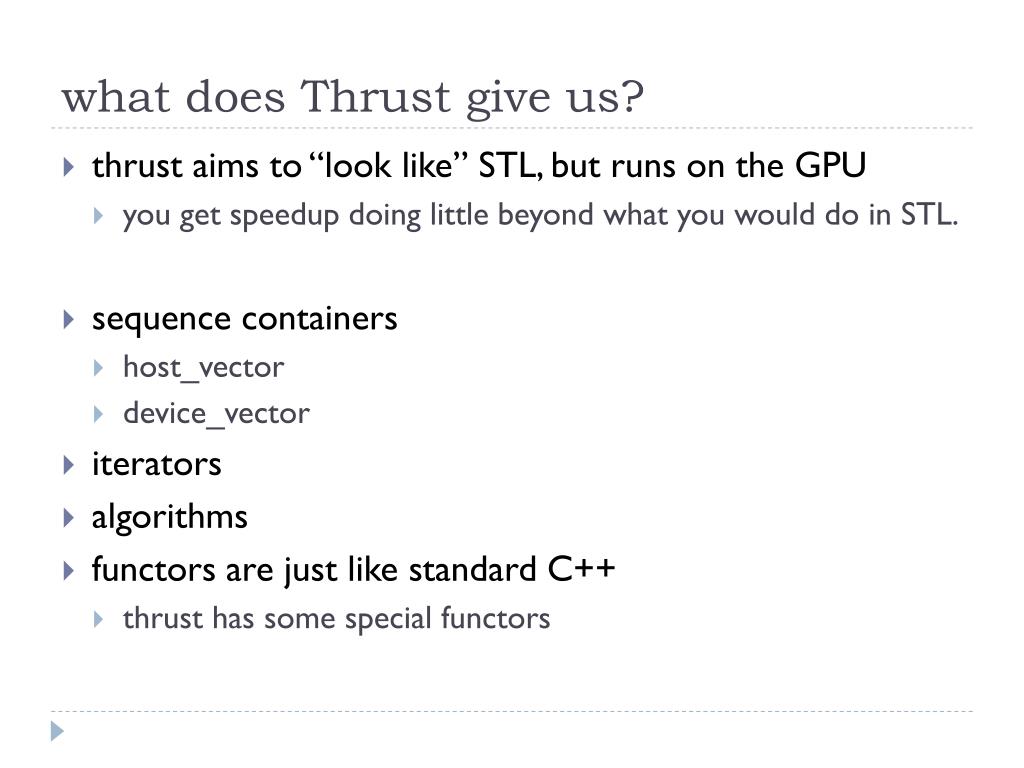

  20. what does Thrust give us? • thrust aims to “look like” STL, but runs on the GPU • you get speedup doing little beyond what you would do in STL. • sequence containers • host_vector • device_vector • iterators • algorithms • functors are just like standard C++ • thrust has some special functors

  21. thrust containers • we get vectors • we have to specify location • thrust::host_vector • resides on the CPU side • thrust::device_vector • resides on the GPU • “host” and “device” are common terms to distinguish between the CPU and the GPU. • we can build thrust containers from std containers

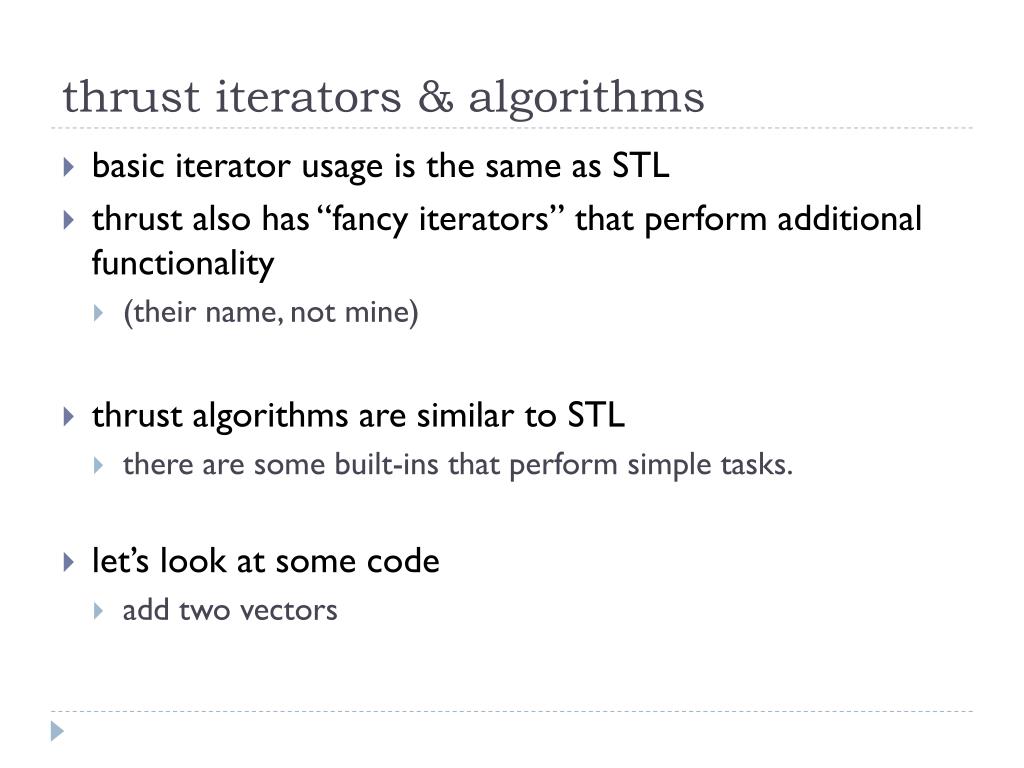

  22. thrust iterators & algorithms • basic iterator usage is the same as STL • thrust also has “fancy iterators” that perform additional functionality • (their name, not mine) • thrust algorithms are similar to STL • there are some built-ins that perform simple tasks. • let’s look at some code • add two vectors
