Automated-Sample-Processing-System

The Automated Sample Processing System LMASP-101 can process 48 sample tubes in one pass, including opening and shutting lids, pouring proteinase, and adding internal controls .for more visit www.labmate.com

labmateequipment
Télécharger la présentation

Automated-Sample-Processing-System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

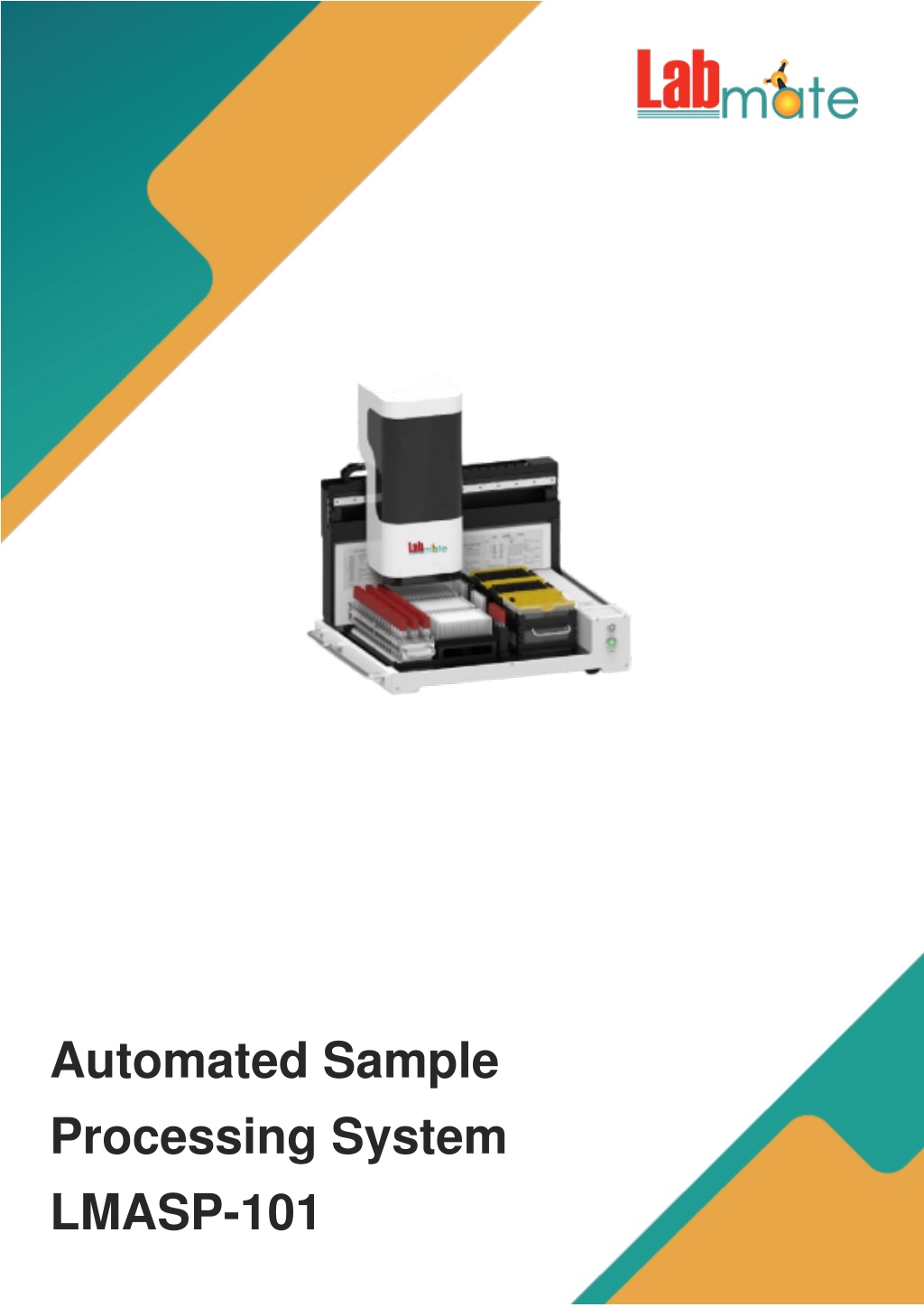

  1. Automated Sample Processing System LMASP-101

  2. www.labmate.com info@labmate.com |

  3. Overview Automated Sample Processing System LMASP-101 can complete lid opening and closing, dispensing and proteinase and internal control addition for 48 sample tubes in one run. Real time monitoring of material and equipment status and alarm if abnormal. All functions are designed to be done within biosafety cabinet with remote control pad to reduce cross contamination. Presence of pressure sensors to detect the liquid level. It is compatible with a variety of pipette tips, deep well plates and sampling tubes. Specifications : Sample Throughput 1 to 48 Sample Type Plasma, serum, whole blood, swab solution, and urine, etc Operation Mode Stand-alone operation, Pad remote control Operating System Android system, user interface in Chinese/English Pipetting Channels 2 Processing Volume 10 to 280μL in one run, multiple repetition available Contamination Control 1. External droplet entrapment; 2. Airtight and drip-proof design; 3. All functions within the biosafety cabinet

  4. Material Control Automatic recognition of deep- well plates, tips and waste boxes Liquid Level Detection Pressure sensors to detect the liquid surface Human-vehicle Interaction 1. Real-time display of instrument status on the LED screen of the host and the Pad user interface; 2. Voice reminders during the operations Size (L×W×H) 570×455×530mm Weight 20 kg Features : - Features droplet entrapment technology - Air tight and drip-proof design - Presence of pressure sensors to detect the liquid surface - Equipped with pad remote control - Automated lid opening and closing - Voice reminders during the process and preset automatic mixing - Stand alone operation Applications : These are widely applied in the field of clinical diagnosis, epidemic surveillance, food safety, forensic identification and virulent infectious diseases

  5. Labmate Scientific | Website: Phone: +1 (765)-665-4943 Email: info@labmate.com www.labmate.com
