  1. Advanced Computer Concepts In this section you will about technical features of computers which may be used when choosing individual components.

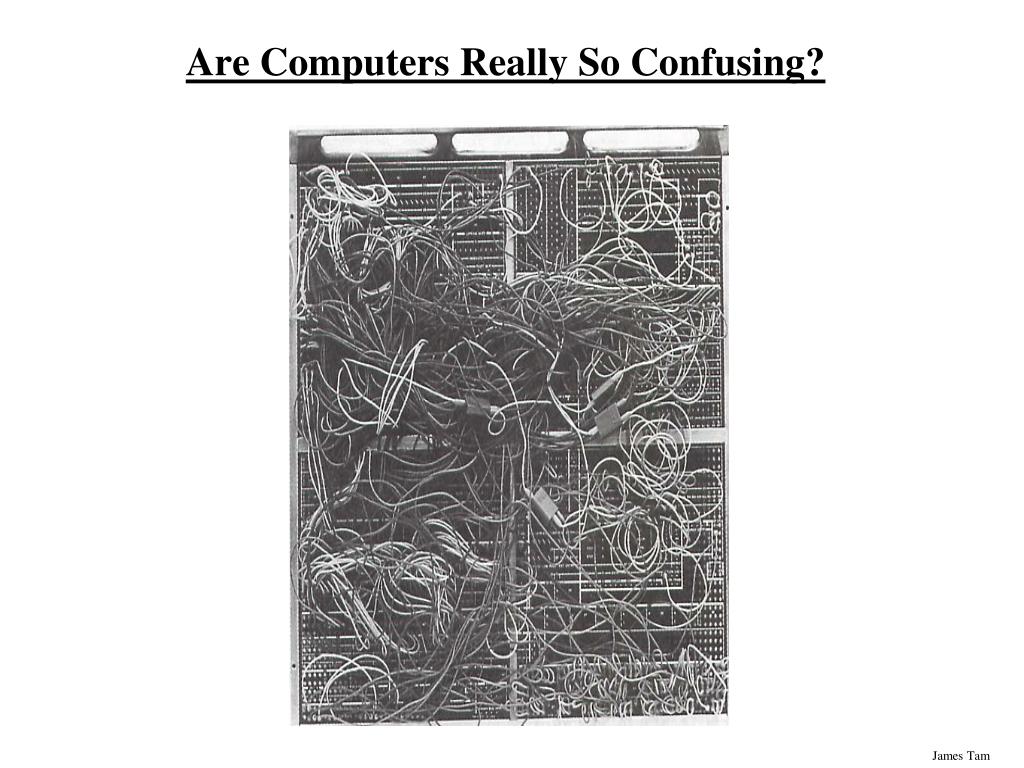

  2. Are Computers Really So Confusing?

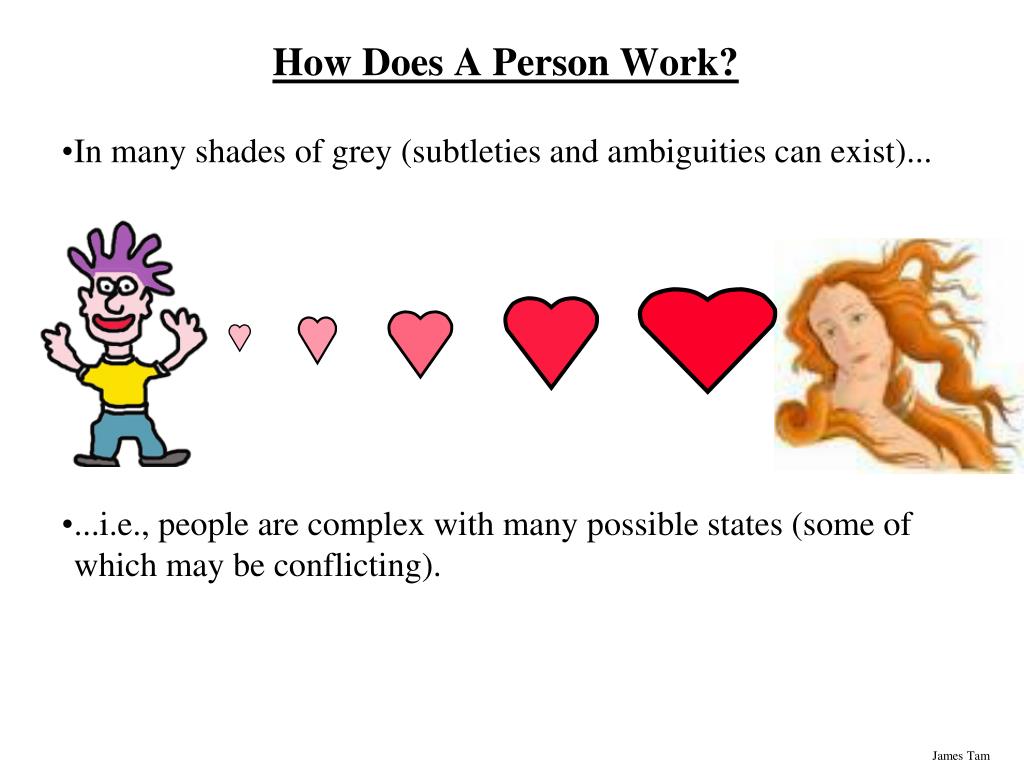

  3. How Does A Person Work? • In many shades of grey (subtleties and ambiguities can exist)... • ...i.e., people are complex with many possible states (some of which may be conflicting).

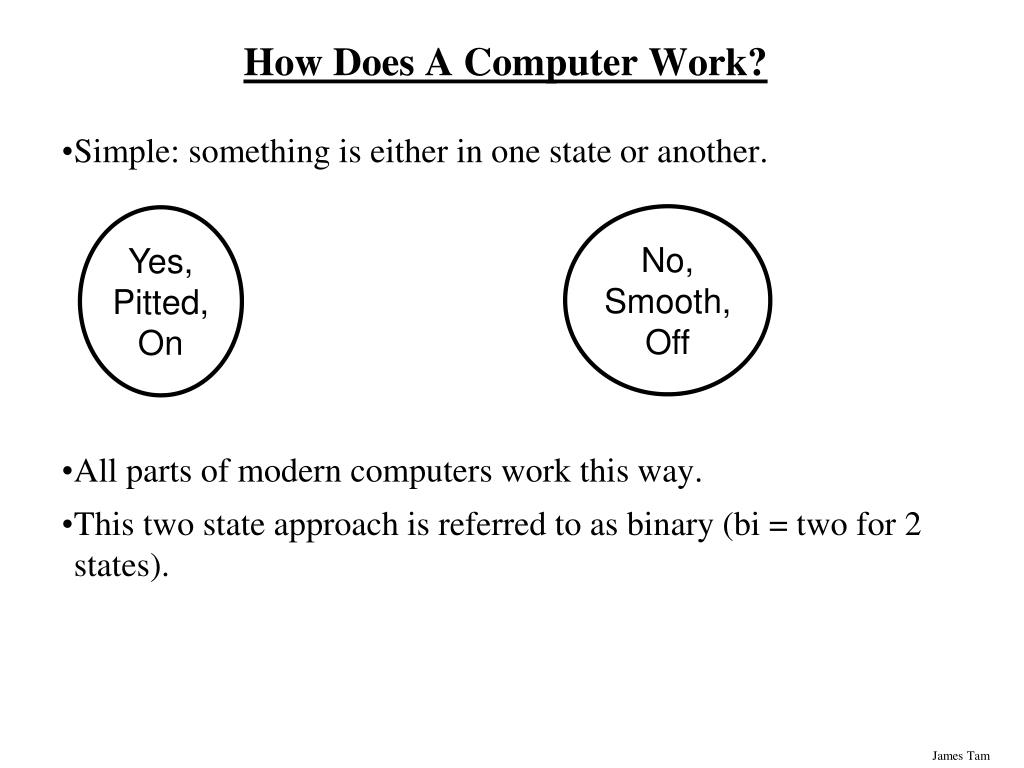

  4. How Does A Computer Work? • Simple: something is either in one state or another. • All parts of modern computers work this way. • This two state approach is referred to as binary (bi = two for 2 states). No, Smooth, Off Yes, Pitted, On

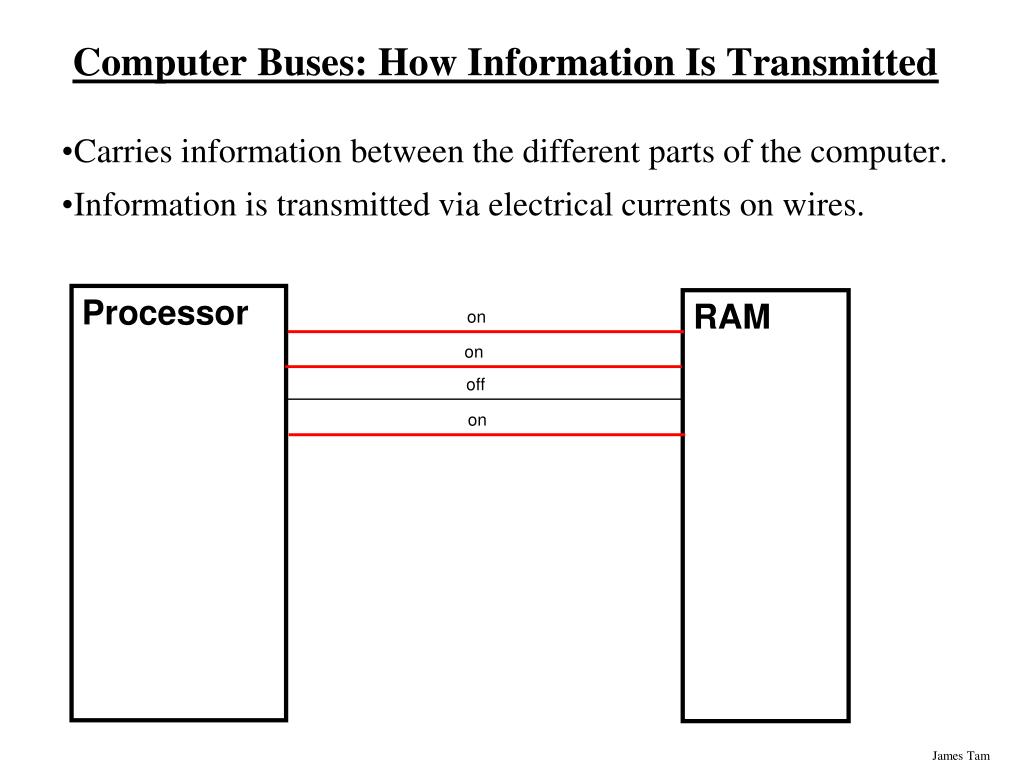

  5. Computer Buses: How Information Is Transmitted • Carries information between the different parts of the computer. • Information is transmitted via electrical currents on wires. Processor RAM on on off on

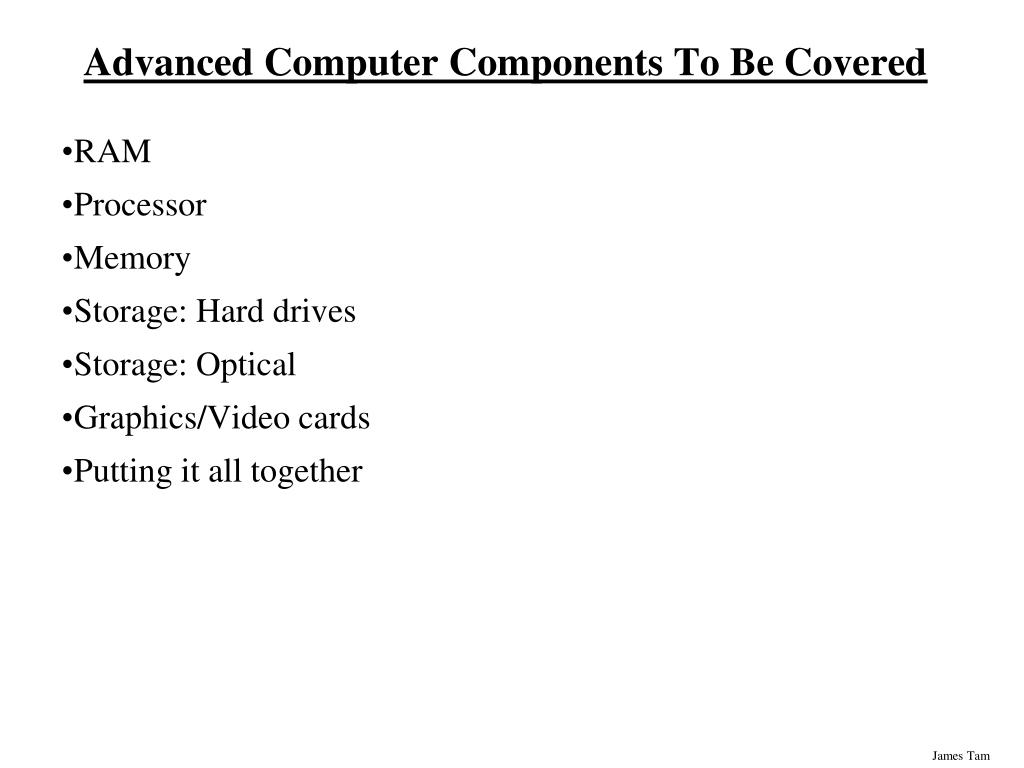

  6. Advanced Computer Components To Be Covered • RAM • Processor • Memory • Storage: Hard drives • Storage: Optical • Graphics/Video cards • Putting it all together

  7. Large Units Of Measurement • Kilo: One thousand 1,000 • Mega: One million 1,000,000 • Giga: One billion 1,000,000,000 • Tera: One trillion 1,000,000,000,000

  8. Small Units Of Measurement • Milli: one thousandth (1 / 1,000) • Micro: one millionth (1 / 1,000,000) • Nano: on billionth (1 / 1,000,000,000)

  9. Transistor Capacitor RAM: Storing Information • Information is stored in RAM based on power levels (on or off) • The smallest unit of storage is a bit (binary digit) • Binary: A bit can have two states (on/off) • On a computer: • Information about a particular bit is stored in a capacitor (stores electricity) • Power to the capacitor is controlled through a transistor DRAM: Dynamic RAM (dynamic because the power must be periodically refreshed).

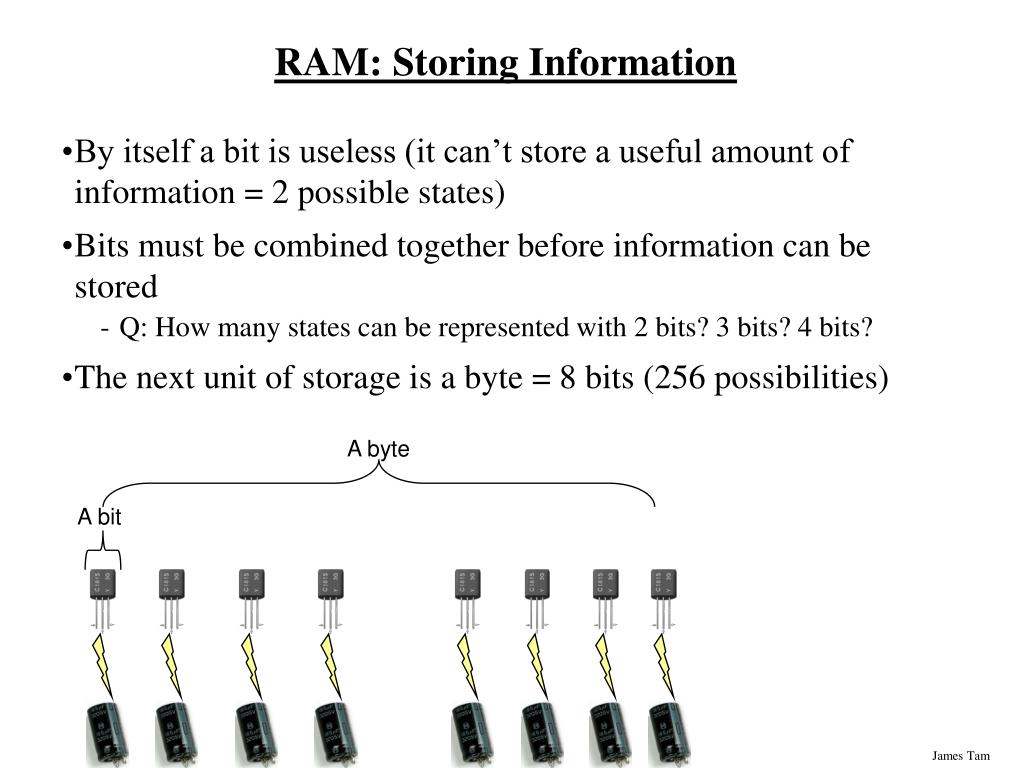

  10. A byte A bit RAM: Storing Information • By itself a bit is useless (it can’t store a useful amount of information = 2 possible states) • Bits must be combined together before information can be stored • Q: How many states can be represented with 2 bits? 3 bits? 4 bits? • The next unit of storage is a byte = 8 bits (256 possibilities)

  11. Large Units Of Measurement On The Computer • Note: powers of two are used because computer memory and storage are based on the basic unit (bit). • Kilobyte (KB) ~ a thousand bytes (1,024 = 210) • Megabyte (MB) ~ a million bytes (1,048,576 = 220) • Gigabyte (GB) ~ a billion bytes (1,073,741,824 = 230) ~ A complete set of encyclopedias requires about 700 MB of storage ~ 30 minutes of video (~1/4 of the information stored on a typical DVD) • Terabyte (TB) ~ a trillion bytes (1,099,511,627,776 = 240) ~ 20 million four-drawer filing cabinets full of text ~ 200 DVD’s of information

  12. RAM: Storing Information • RAM is a collection of ‘slots’ where information is stored. • Each slot is a collection of bits (1 byte) • e.g., a 1 Gigabyte stick of RAM has ~1 billion slots with each slot consisting of a byte.

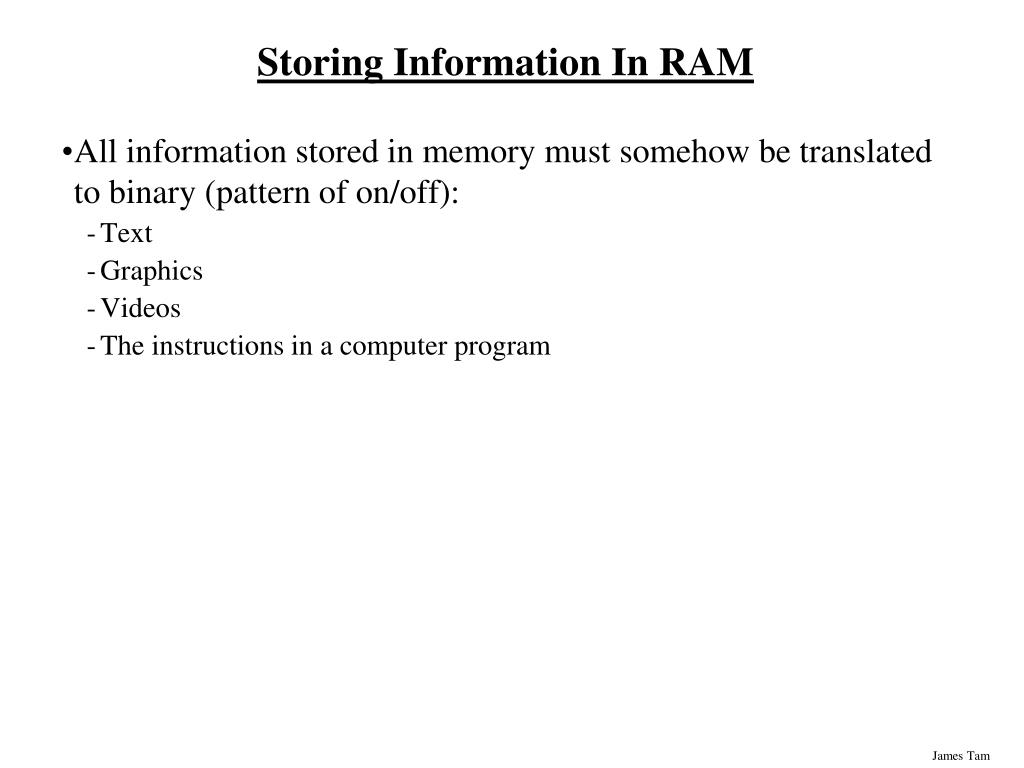

  13. Storing Information In RAM • All information stored in memory must somehow be translated to binary (pattern of on/off): • Text • Graphics • Videos • The instructions in a computer program

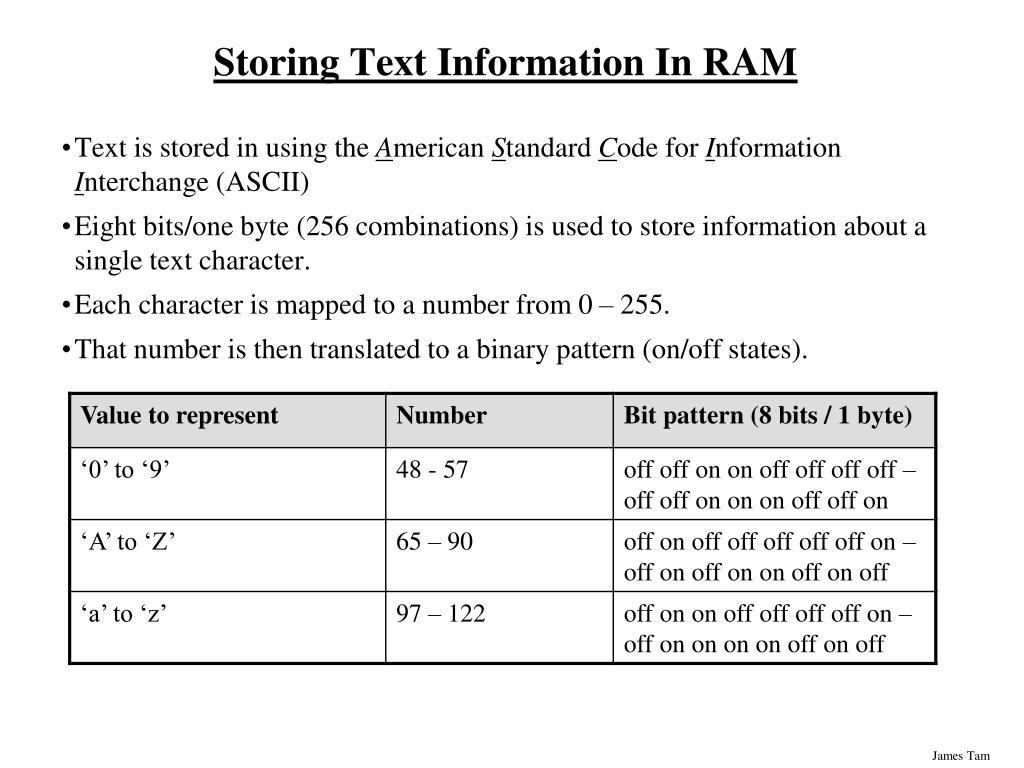

  14. Storing Text Information In RAM • Text is stored in using the American Standard Code for Information Interchange (ASCII) • Eight bits/one byte (256 combinations) is used to store information about a single text character. • Each character is mapped to a number from 0 – 255. • That number is then translated to a binary pattern (on/off states).

  15. Beyond The Byte: The Word • Encoding information that is more complex than simple text requires more than 8 bits (256 combinations) e.g., international languages, images, animations. • Word • The word size of a computer is the number of adjacent bits that can be stored and manipulated as a unit. • Typical word sizes for home computers: 32 or 64 bits, 128 bits for faster machines or specialized systems.

  16. Beyond The Byte: The Word (2) • The data bus and address bus the can have different word sizes. • The size of the data bus limits the amount or size of information that can be sent from one part of the computer to another: • e.g., a computer with an 8 bit address bus can only store text in English (26 upper, 26 lower) • e.g., a computer with a 16 bit address bus may be able store text in Chinese (~65,000 different characters). • The size of the address bus limits the number of locations to store the information: • e.g., older computers (32 bit) on older operating systems (e.g., Windows XP) can only have a maximum of 4 GB of RAM • e.g., newer computers running newer operating systems (e.g., Windows Vista) can go beyond this limit.

  17. Types Of RAM • SD-RAM (Synchronous dynamic random access memory) • Synchronous: Timed with the processor • Widely available since the 1990’s • DDR (Double data rate) SD-RAM • 2001+ • Doubles the transfer rate of regular SD-RAM • DDR2 SD-RAM • 2003+ • Doubles again the transfer rate of DDR SD-RAM • DDR3 SD-RAM • Latter half of 2007 • Doubles again the transfer rate of DDR2 SD-RAM

  18. Memory Speeds: DDR RAM

  19. Memory Speeds: DDR2 RAM

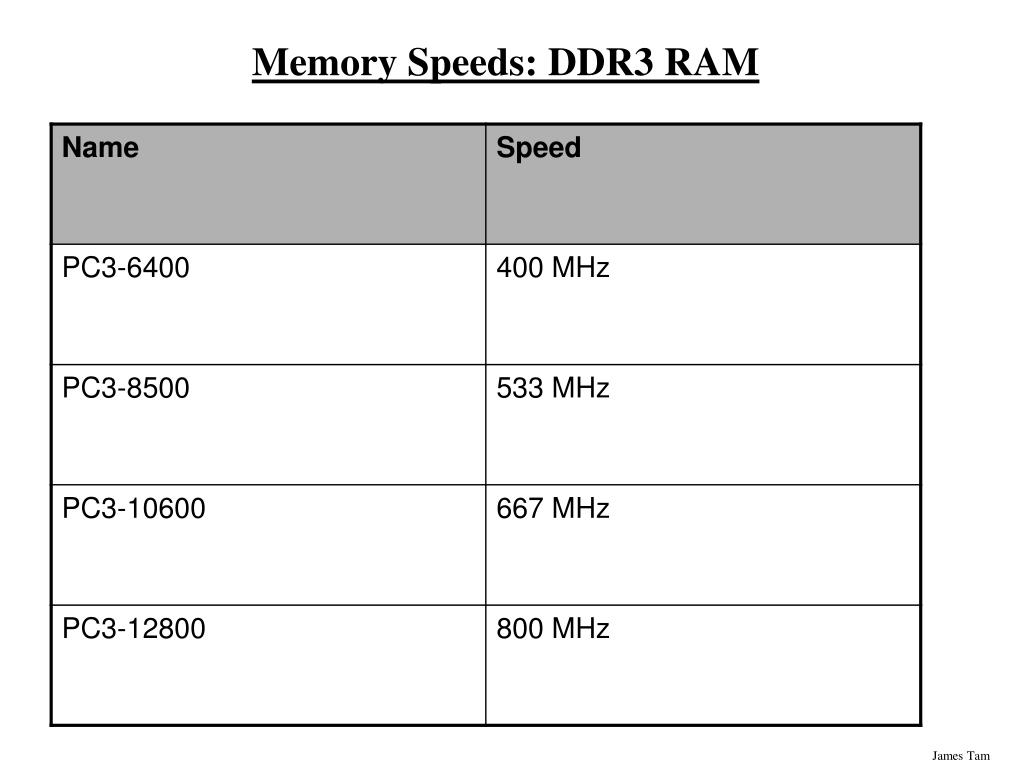

  20. Memory Speeds: DDR3 RAM

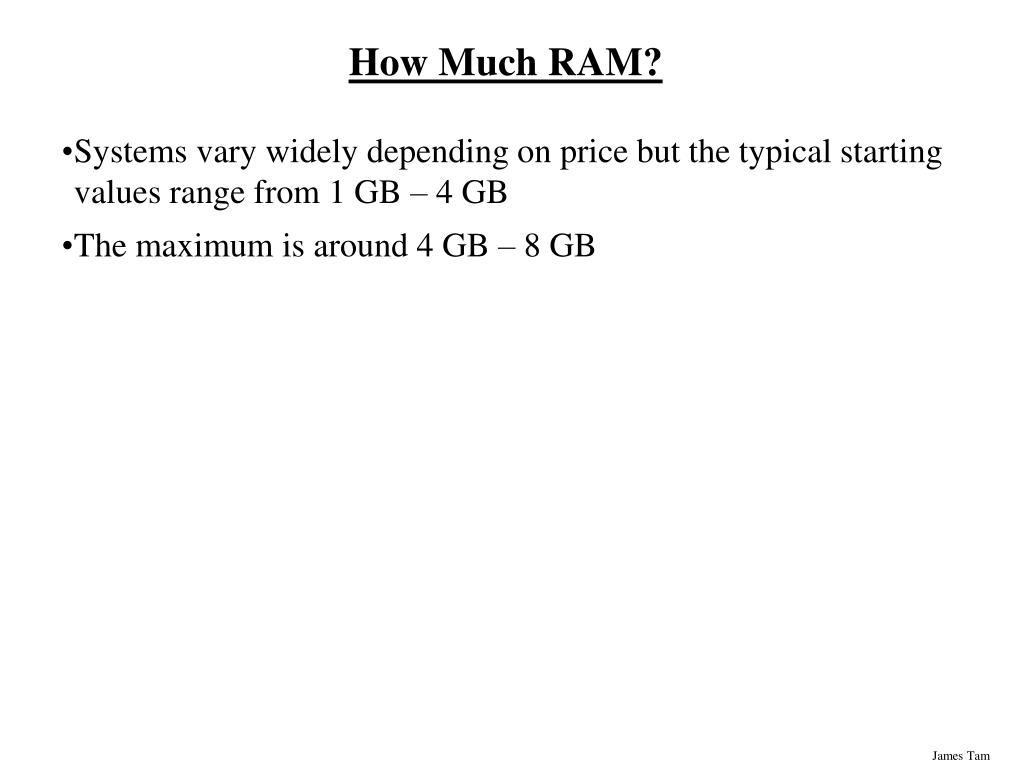

  21. How Much RAM? • Systems vary widely depending on price but the typical starting values range from 1 GB – 4 GB • The maximum is around 4 GB – 8 GB

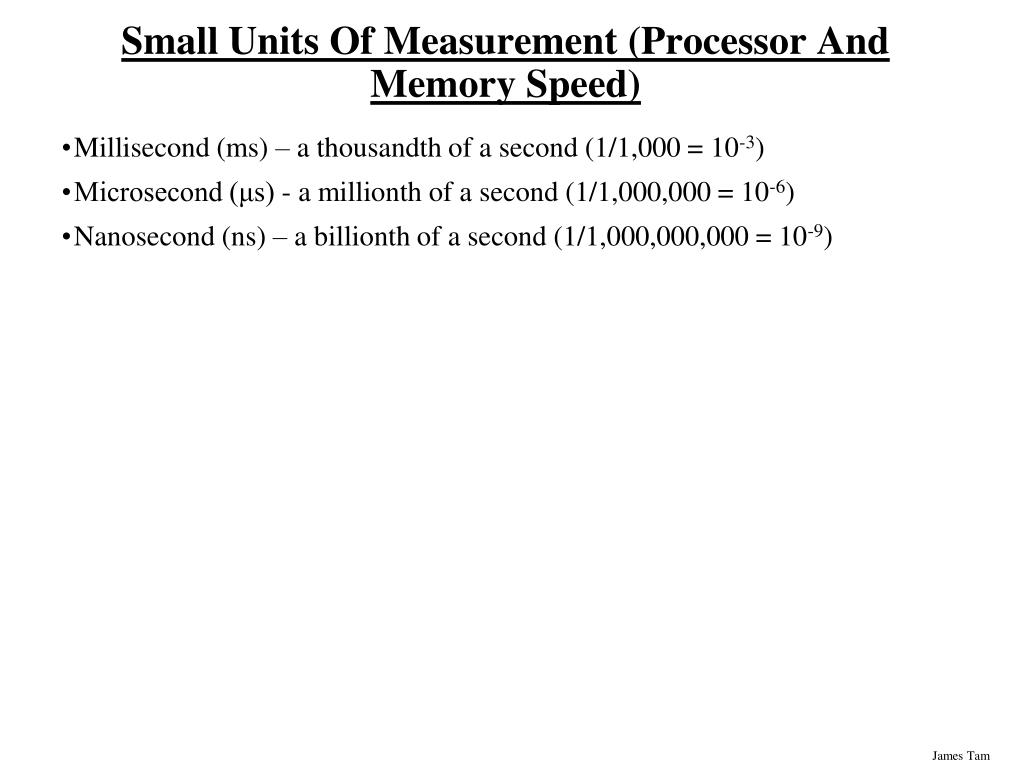

  22. Small Units Of Measurement (Processor And Memory Speed) • Millisecond (ms) – a thousandth of a second (1/1,000 = 10-3) • Microsecond (μs) - a millionth of a second (1/1,000,000 = 10-6) • Nanosecond (ns) – a billionth of a second (1/1,000,000,000 = 10-9)

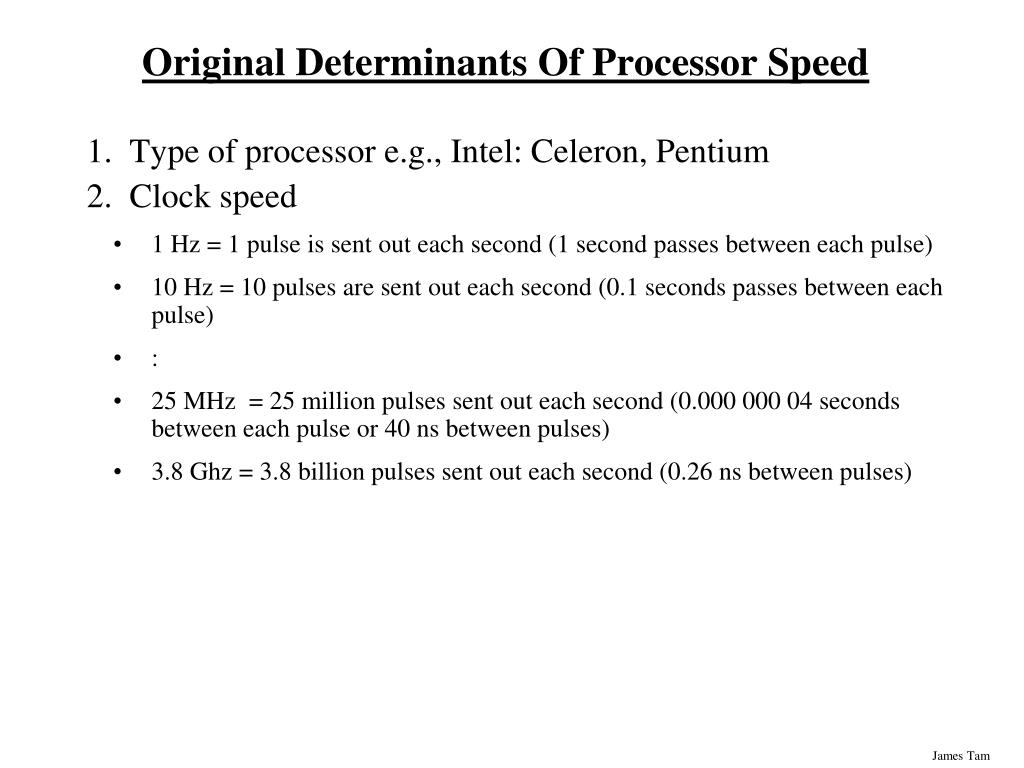

  23. Original Determinants Of Processor Speed • Type of processor e.g., Intel: Celeron, Pentium • Clock speed • 1 Hz = 1 pulse is sent out each second (1 second passes between each pulse) • 10 Hz = 10 pulses are sent out each second (0.1 seconds passes between each pulse) • : • 25 MHz = 25 million pulses sent out each second (0.000 000 04 seconds between each pulse or 40 ns between pulses) • 3.8 Ghz = 3.8 billion pulses sent out each second (0.26 ns between pulses)

  24. Common Processor Clock Speeds • Budget processors • Laptop: 1.06 – 2.6 GHz • Desktop: 1.8 – 3 GHz • Higher end processors • 2.33 – 3 GHz

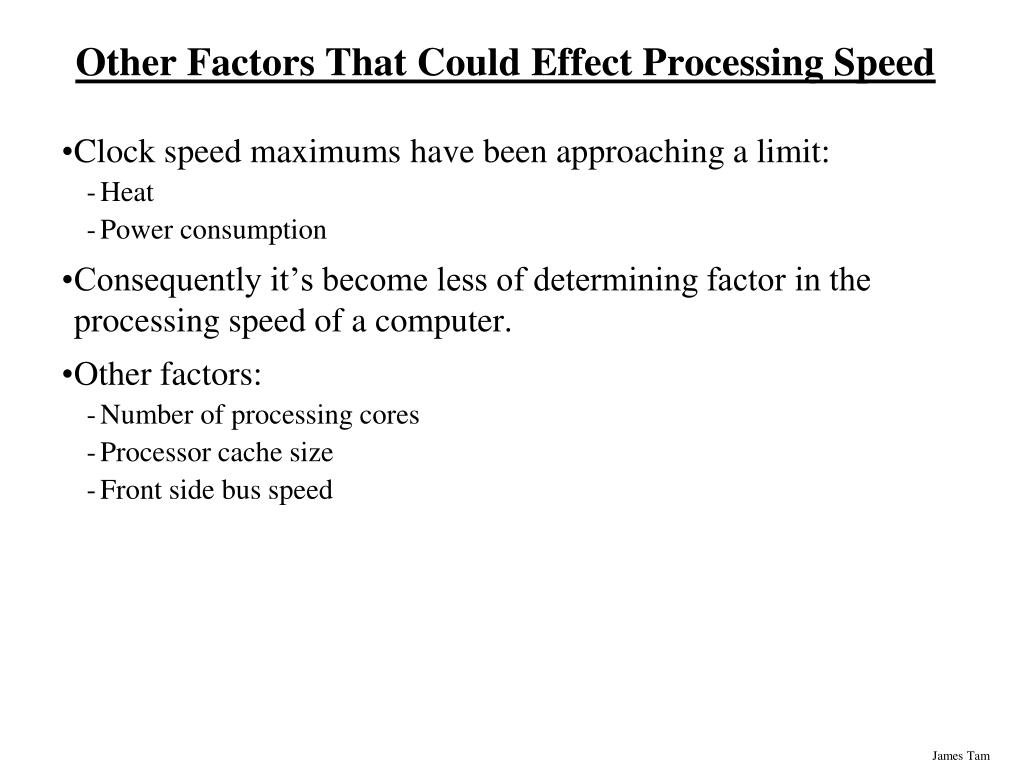

  25. Other Factors That Could Effect Processing Speed • Clock speed maximums have been approaching a limit: • Heat • Power consumption • Consequently it’s become less of determining factor in the processing speed of a computer. • Other factors: • Number of processing cores • Processor cache size • Front side bus speed

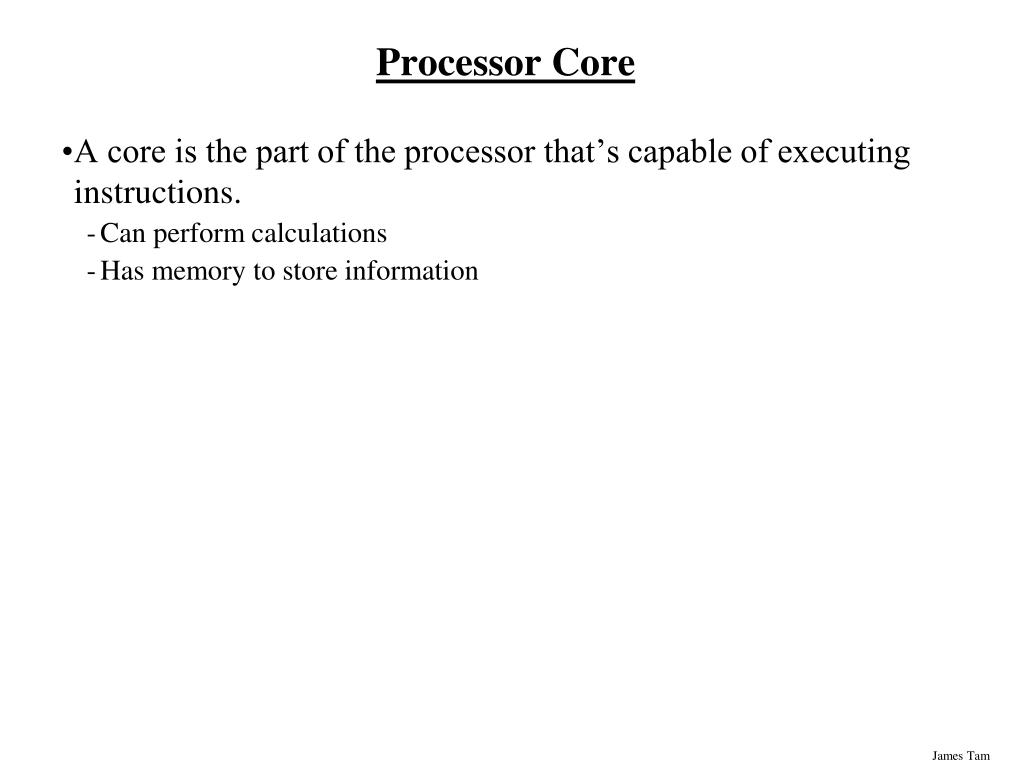

  26. Processor Core • A core is the part of the processor that’s capable of executing instructions. • Can perform calculations • Has memory to store information

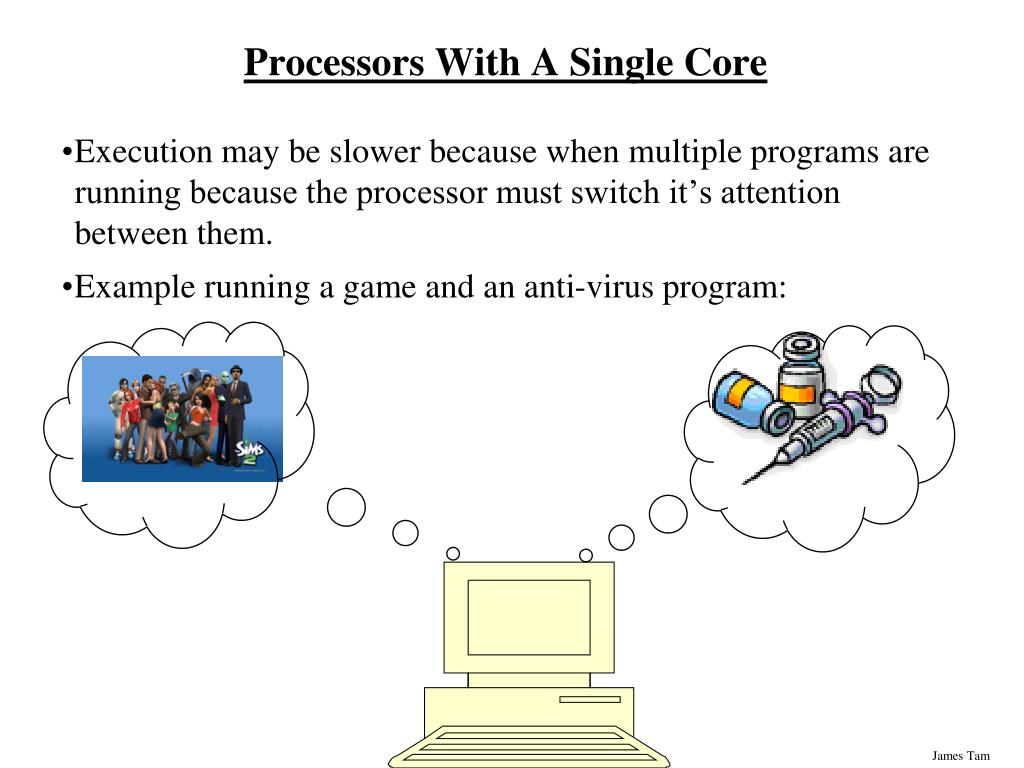

  27. Processors With A Single Core • Execution may be slower because when multiple programs are running because the processor must switch it’s attention between them. • Example running a game and an anti-virus program:

  28. Processors With Multiple Cores • The processor is split into multiple (dual = two, quad = four) cores. • Each core is capable of executing it’s own set of instructions which can speed up processing speed.

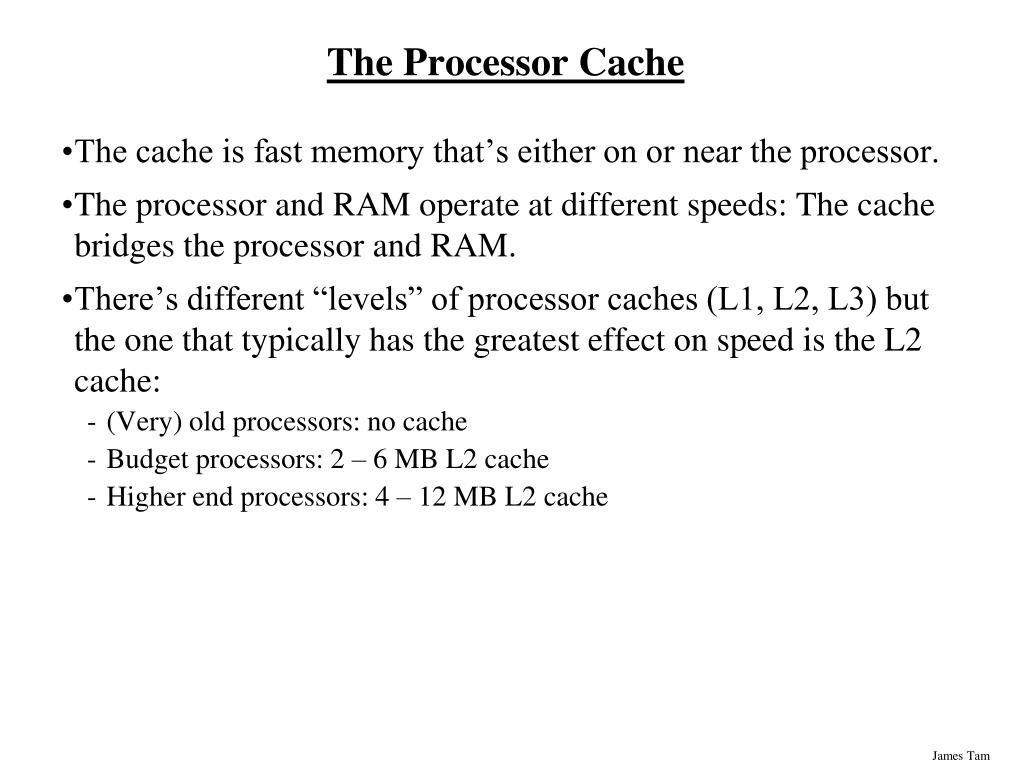

  29. The Processor Cache • The cache is fast memory that’s either on or near the processor. • The processor and RAM operate at different speeds: The cache bridges the processor and RAM. • There’s different “levels” of processor caches (L1, L2, L3) but the one that typically has the greatest effect on speed is the L2 cache: • (Very) old processors: no cache • Budget processors: 2 – 6 MB L2 cache • Higher end processors: 4 – 12 MB L2 cache

  30. RAM Processor Graphics/video Front-Side Bus Speed • Determines how quickly information can be transferred to/from some of the other parts of the computer to the processor. • Measured in MHz

  31. Common Front Side Bus Speeds • Budget processors • (Laptop): 800 – 1033 MHz • (Desktop): 800 – 1333 MHz • Higher-end processors • 1066, 1333, 1600 MHz

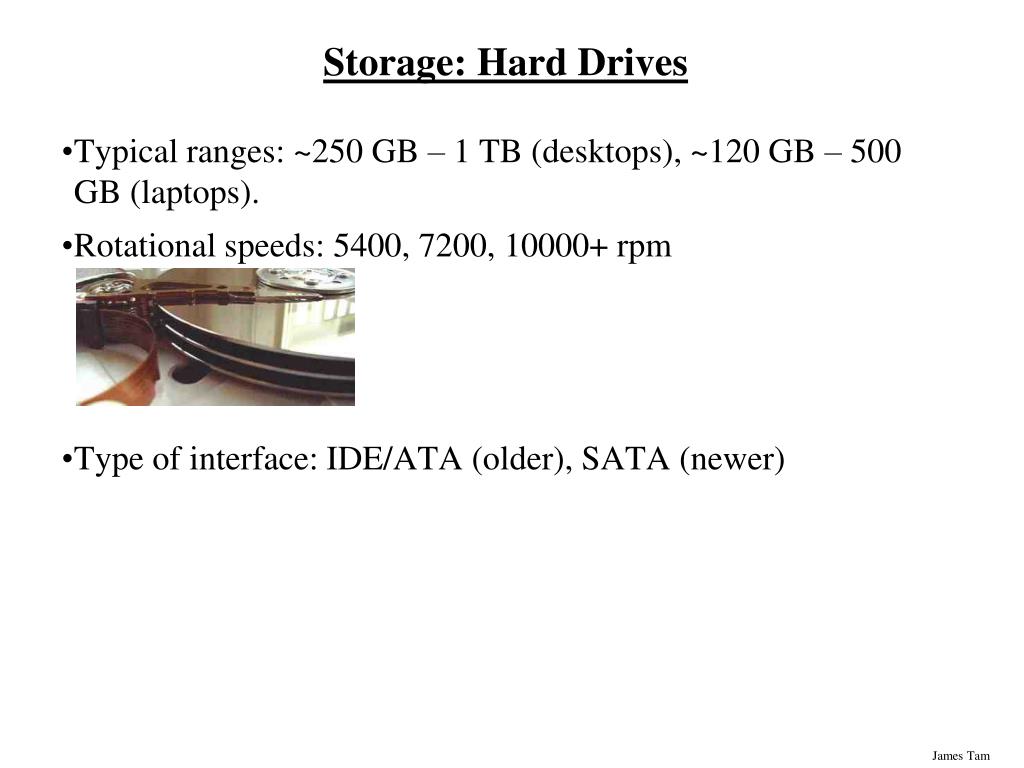

  32. Storage: Hard Drives • Typical ranges: ~250 GB – 1 TB (desktops), ~120 GB – 500 GB (laptops). • Rotational speeds: 5400, 7200, 10000+ rpm • Type of interface: IDE/ATA (older), SATA (newer)

  33. Optical Drives: Reading Information CD-ROM, DVD-ROM A pit Smooth • The disc has already been formatted with a pattern of pits vs. smooth sections. • Pitted sections don’t reflect light. • Smooth sections remain reflective.

  34. Optical Drives: Recording And Reading Information CD-R, DVD-R, DVD+R • Disk starts out smooth, no pits. • The recording laser burns a pit into the disk. • The parts of the disc that’s still smooth are reflective. • The part of the disc that contains a pit is non-reflective.

  35. Optical Drives: Re-Writing CD-RW, DVD-RW, DVD+RW

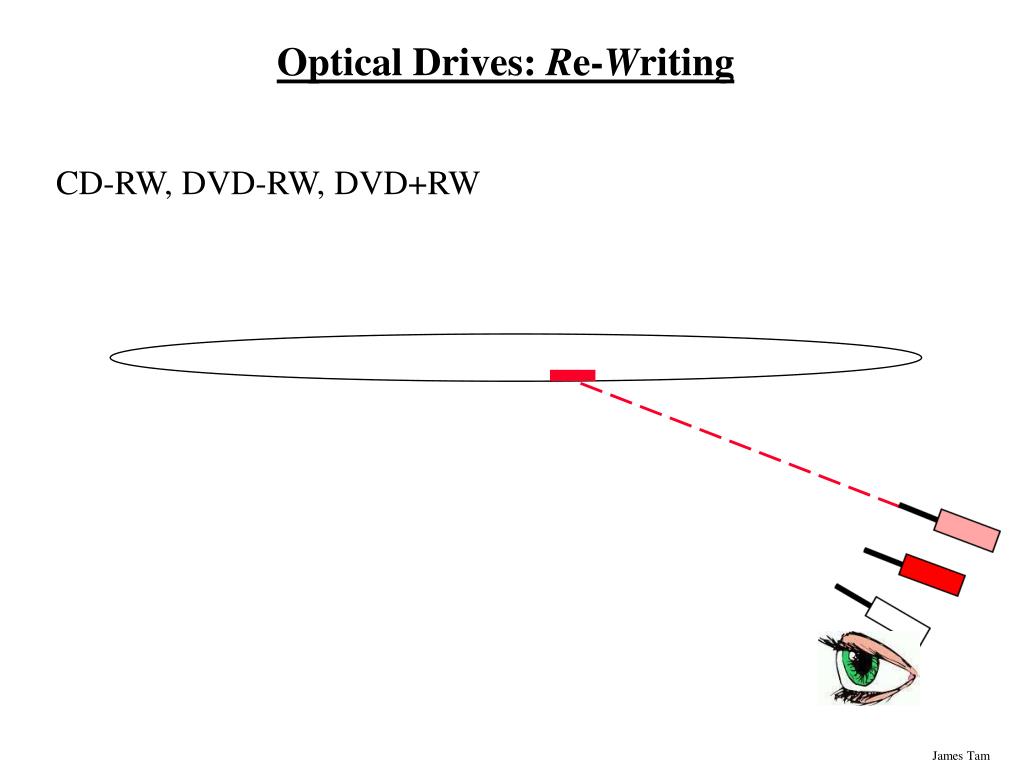

  36. Optical Drives: Re-Writing CD-RW, DVD-RW, DVD+RW • The disk already has some information recorded on it. • As before the smooth parts are reflective and the pitted parts are not. • To erase the disk the pitted parts are made smooth again

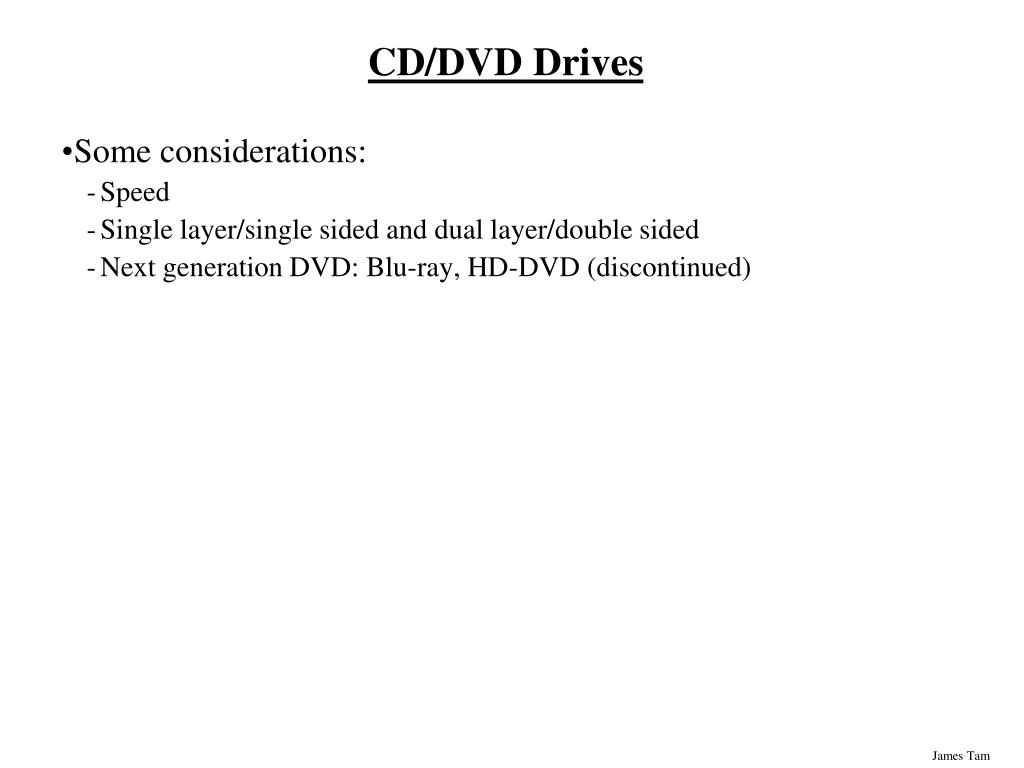

  37. CD/DVD Drives • Some considerations: • Speed • Single layer/single sided and dual layer/double sided • Next generation DVD: Blu-ray, HD-DVD (discontinued)

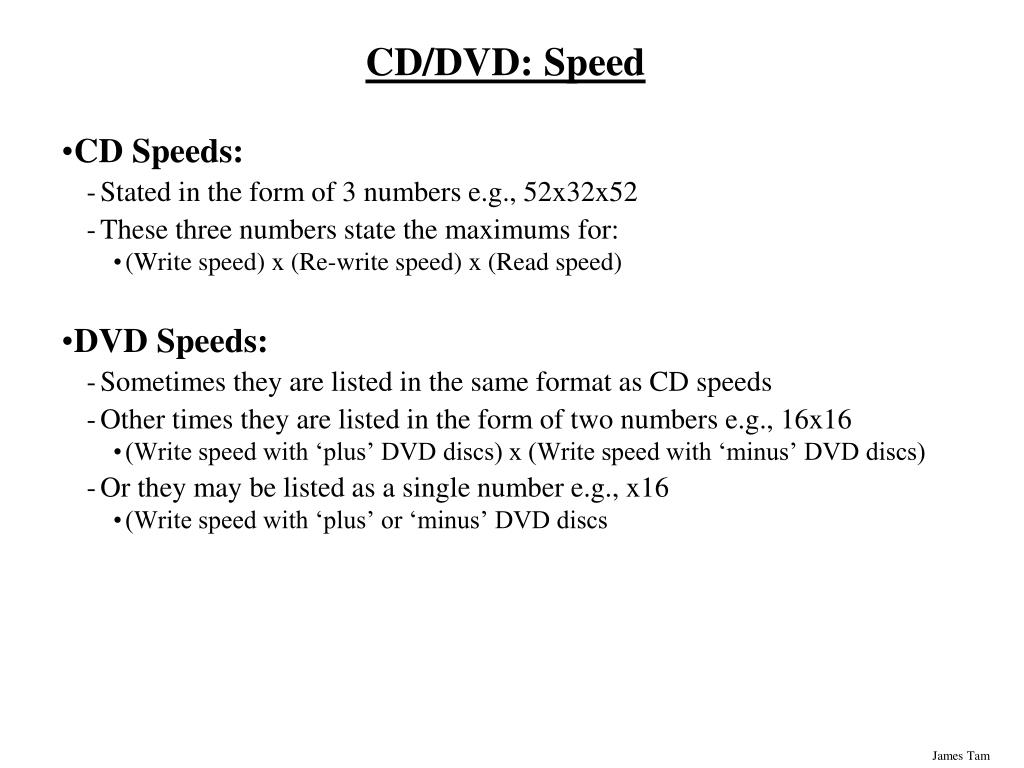

  38. CD/DVD: Speed • CD Speeds: • Stated in the form of 3 numbers e.g., 52x32x52 • These three numbers state the maximums for: • (Write speed) x (Re-write speed) x (Read speed) • DVD Speeds: • Sometimes they are listed in the same format as CD speeds • Other times they are listed in the form of two numbers e.g., 16x16 • (Write speed with ‘plus’ DVD discs) x (Write speed with ‘minus’ DVD discs) • Or they may be listed as a single number e.g., x16 • (Write speed with ‘plus’ or ‘minus’ DVD discs

  39. www.pcmag.com CD/DVD: Multi-Layer, Multi-Sided • Double sided: • Allows information to be written on both sides of the disc • Dual layer (“-DL”) • An extra layer of dye is added to allow for double the amount of information to be written

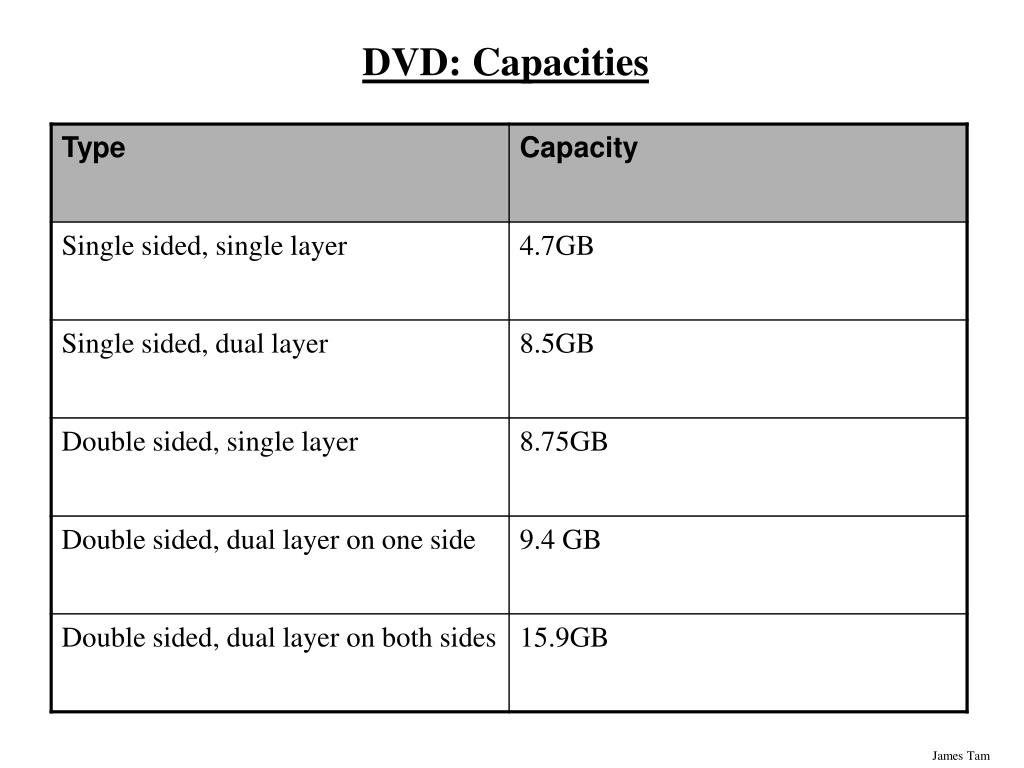

  40. DVD: Capacities

  41. A Next Generation DVD Format: Blu-Ray • Uses a different light frequency for the laser. • Results in high capacity storage: • 25 GB (single layer) • 50 GB (dual layer) • Backward (but not forward) compatibility is possible

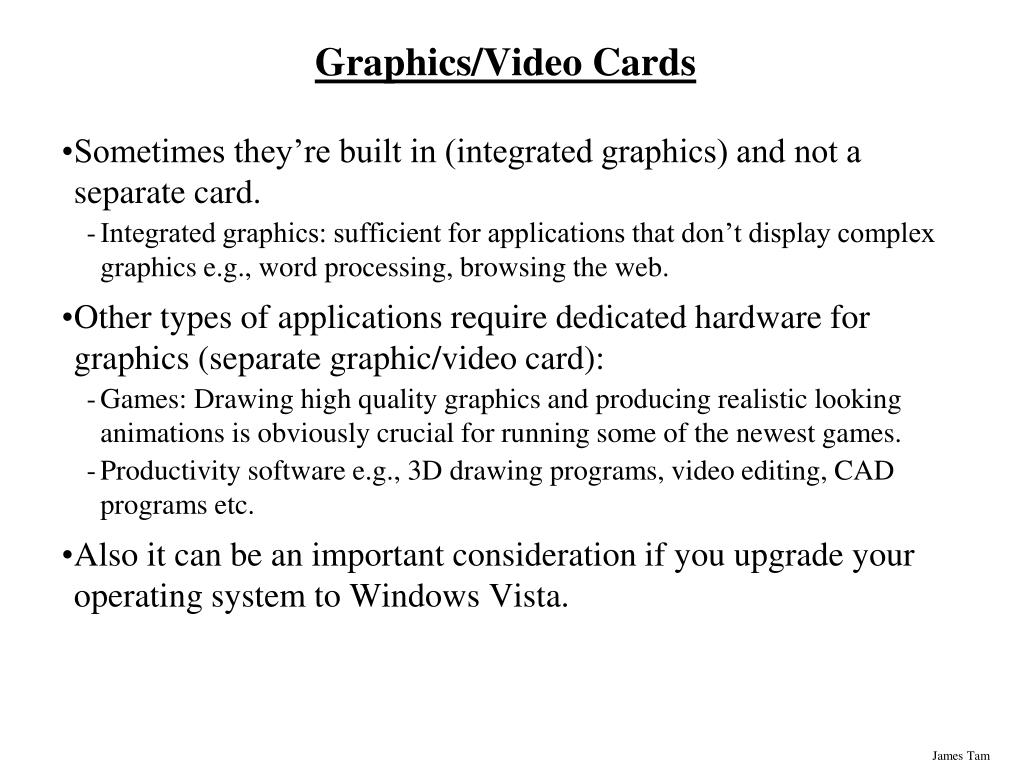

  42. Graphics/Video Cards • Sometimes they’re built in (integrated graphics) and not a separate card. • Integrated graphics: sufficient for applications that don’t display complex graphics e.g., word processing, browsing the web. • Other types of applications require dedicated hardware for graphics (separate graphic/video card): • Games: Drawing high quality graphics and producing realistic looking animations is obviously crucial for running some of the newest games. • Productivity software e.g., 3D drawing programs, video editing, CAD programs etc. • Also it can be an important consideration if you upgrade your operating system to Windows Vista.

  43. Some Considerations When Buying A Graphic/Video Card • It’s mostly about U...The GPU (Graphic Processing Unit) • Typical speeds ~550 – 730 MHz Images from Nvidia

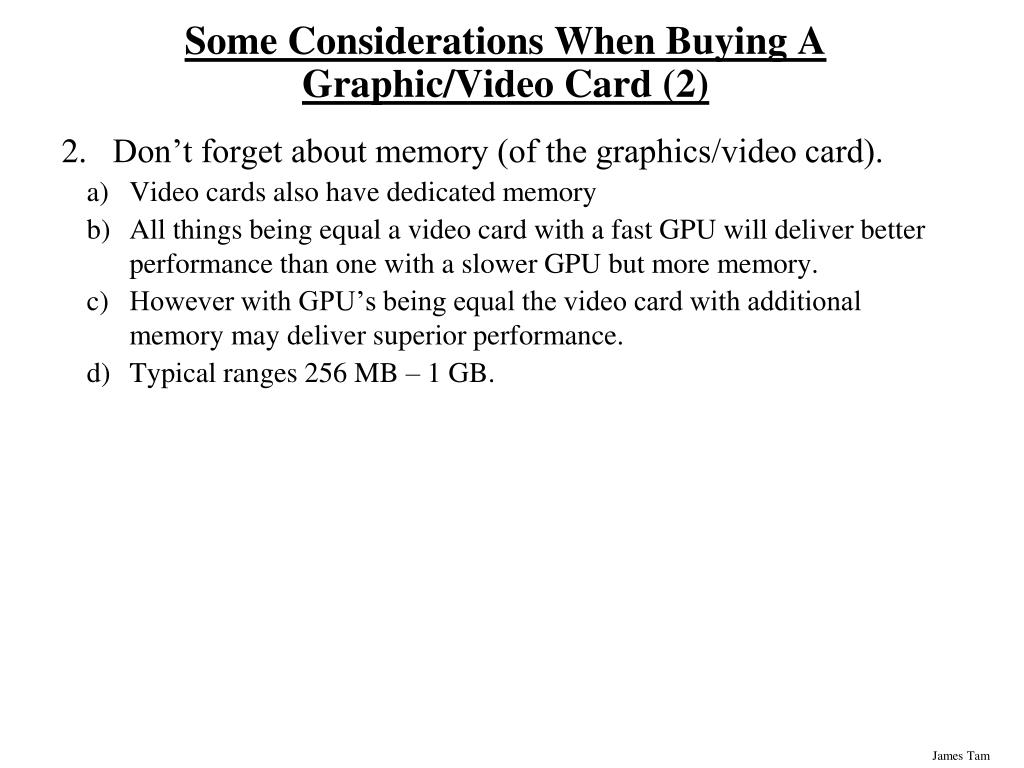

  44. Some Considerations When Buying A Graphic/Video Card (2) • Don’t forget about memory (of the graphics/video card). • Video cards also have dedicated memory • All things being equal a video card with a fast GPU will deliver better performance than one with a slower GPU but more memory. • However with GPU’s being equal the video card with additional memory may deliver superior performance. • Typical ranges 256 MB – 1 GB.

  45. Some Considerations When Buying A Graphic/Video Card (3) • DirectX 10 support...possibly if you have Vista. • Type of interface: PCI (very old), AGP, PCI-E (newest)

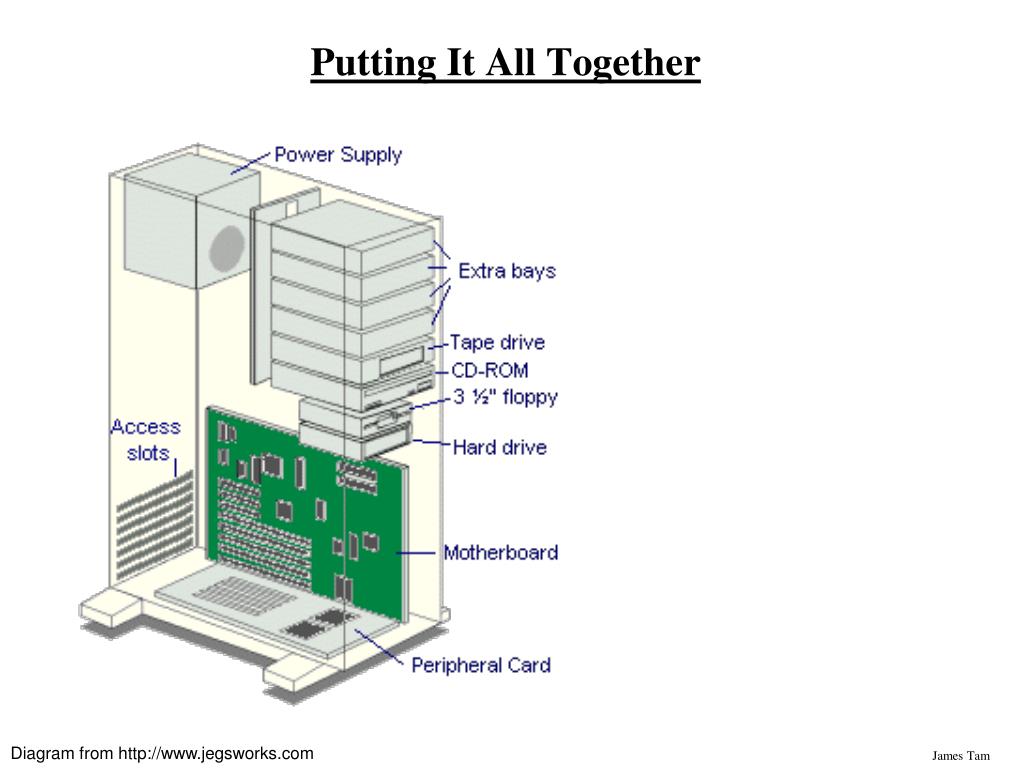

  46. Putting It All Together Diagram from http://www.jegsworks.com

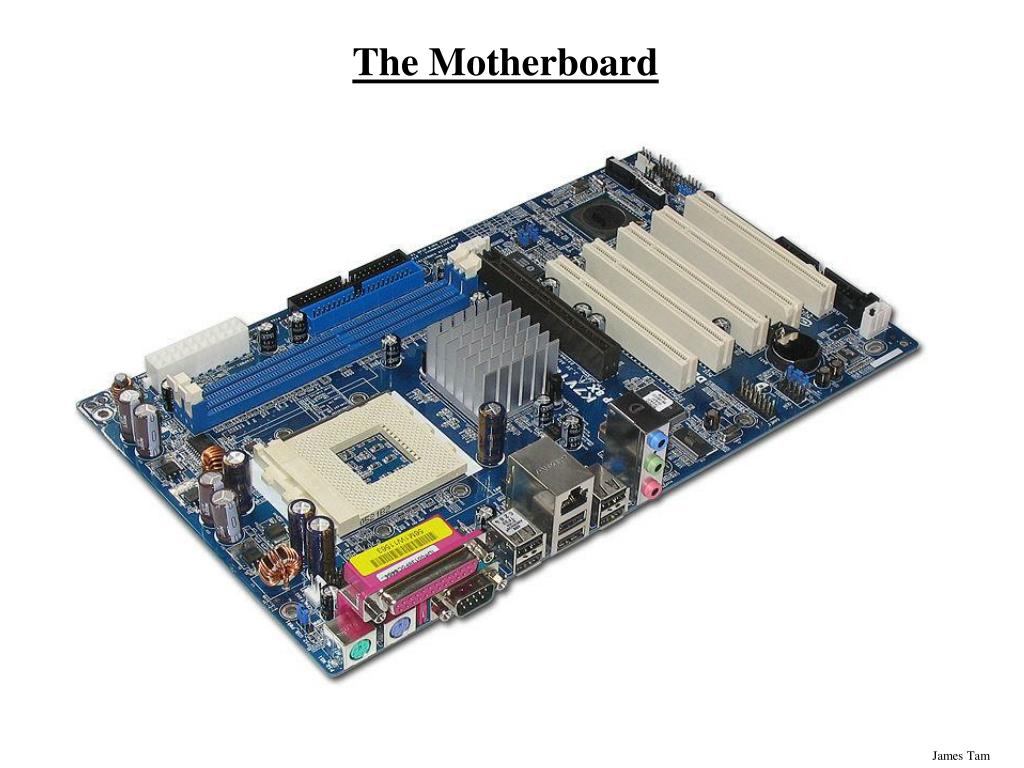

  47. The Motherboard

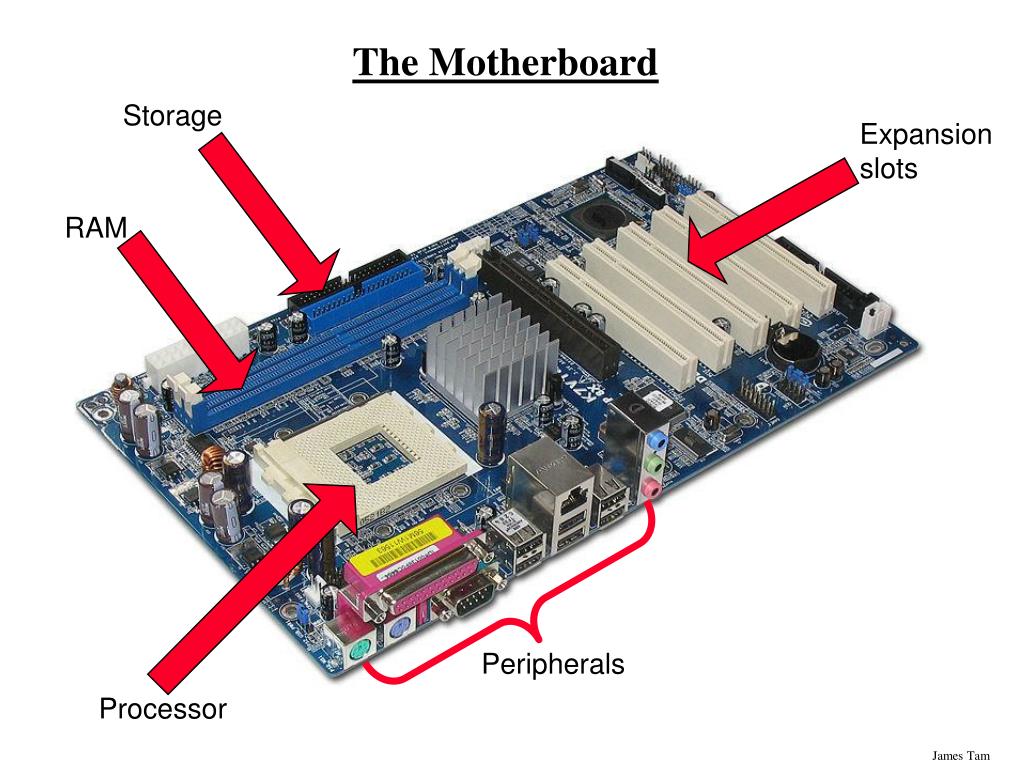

  48. The Motherboard Storage Expansion slots RAM Peripherals Processor

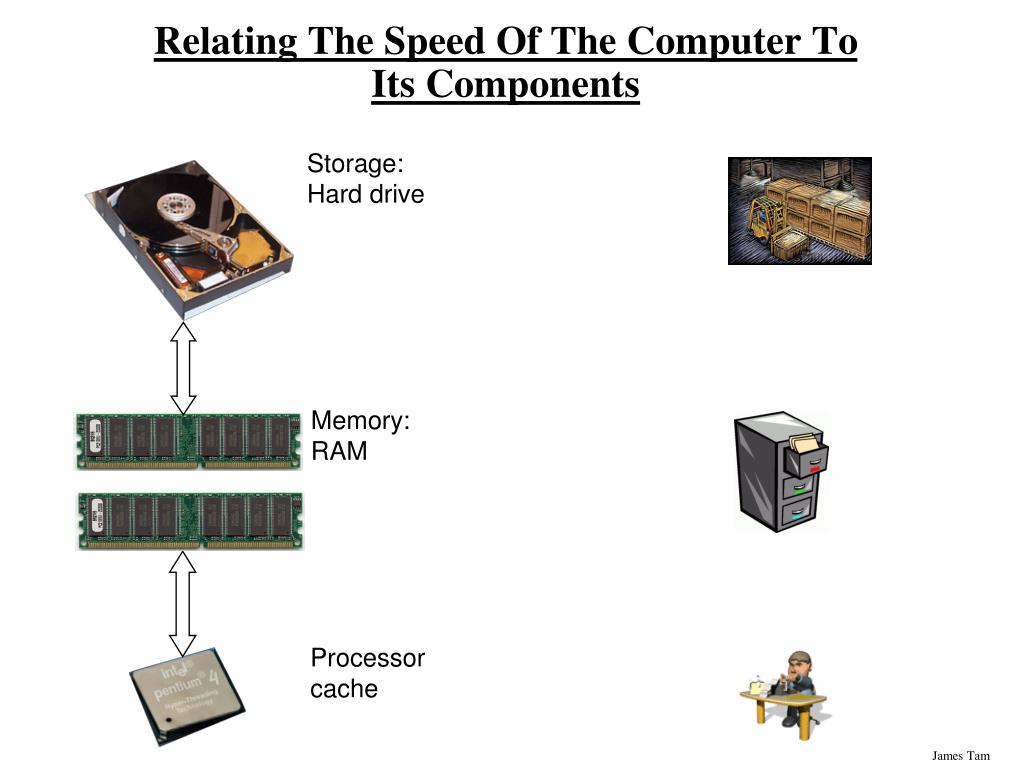

  49. Storage: Hard drive Memory: RAM Processor cache Relating The Speed Of The Computer To Its Components

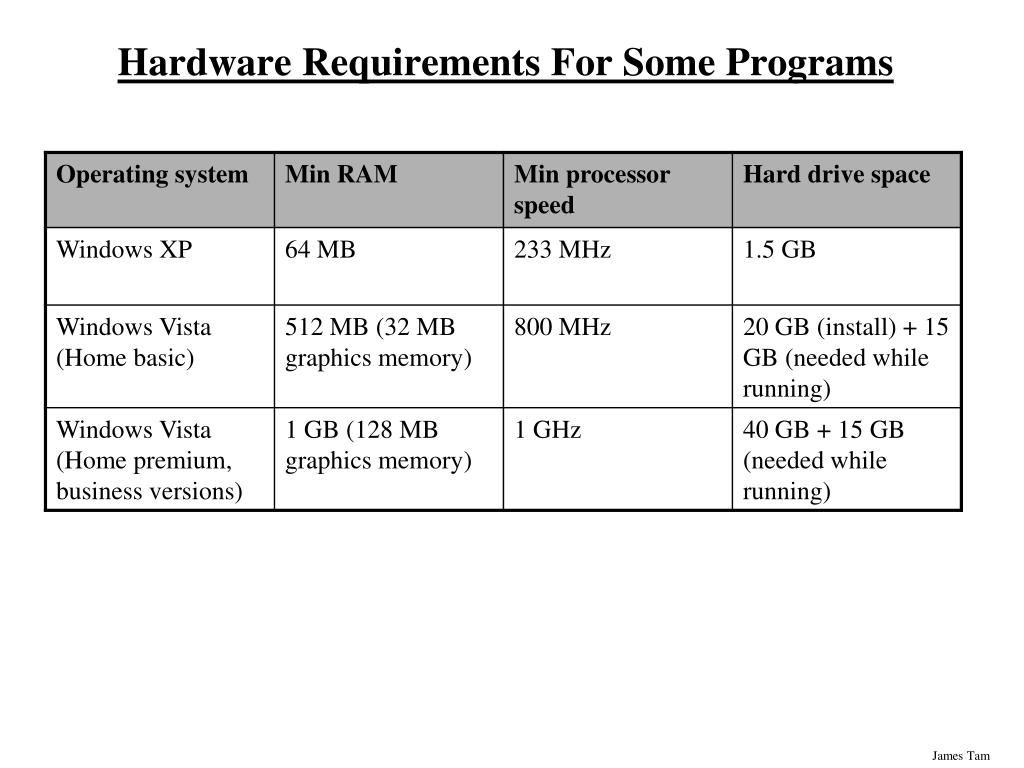

  50. Hardware Requirements For Some Programs
