  1. Introduction to Tables Masters Project CS 490

  2. Tables • Tables are useful for organizing large bodies of information so that the reader can quickly see the overall picture. • Tables on Web pages are similar to spreadsheets or tables in word processing programs. • Tables are organized in columns (vertical) and rows (horizontal). • A cell, where data is placed, is the intersection of a column and a row.

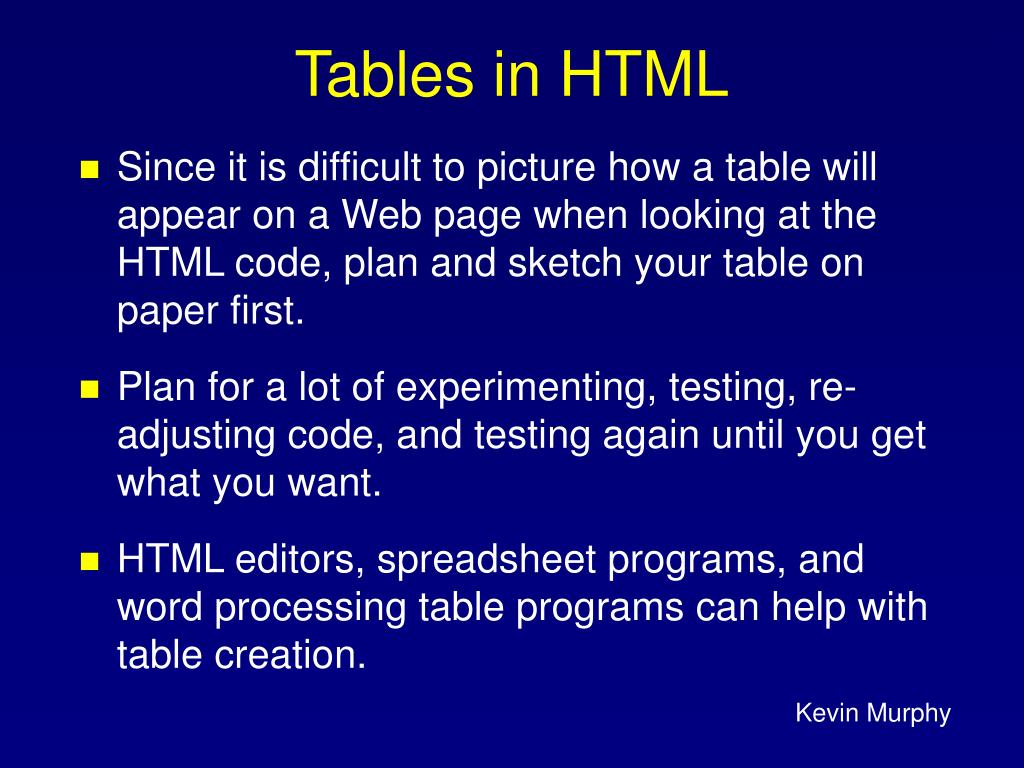

  3. Tables in HTML • Since it is difficult to picture how a table will appear on a Web page when looking at the HTML code, plan and sketch your table on paper first. • Plan for a lot of experimenting, testing, re-adjusting code, and testing again until you get what you want. • HTML editors, spreadsheet programs, and word processing table programs can help with table creation.

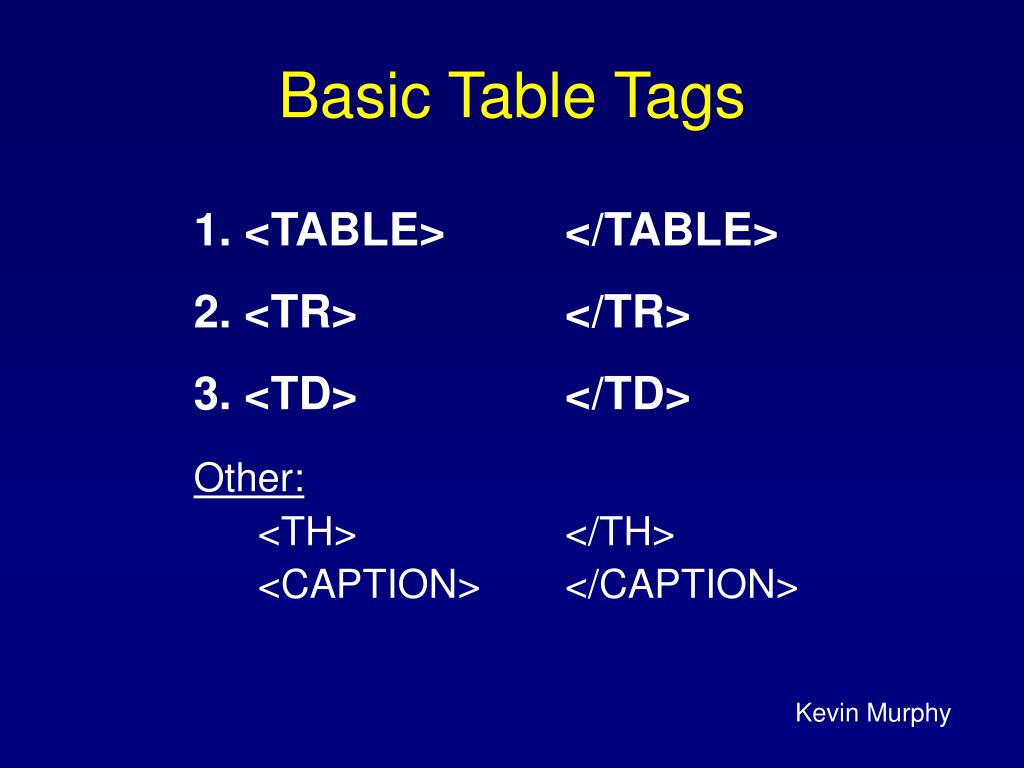

  4. Basic Table Tags 1. <TABLE> </TABLE> 2. <TR> </TR> 3. <TD> </TD> Other: <TH> </TH> <CAPTION> </CAPTION>

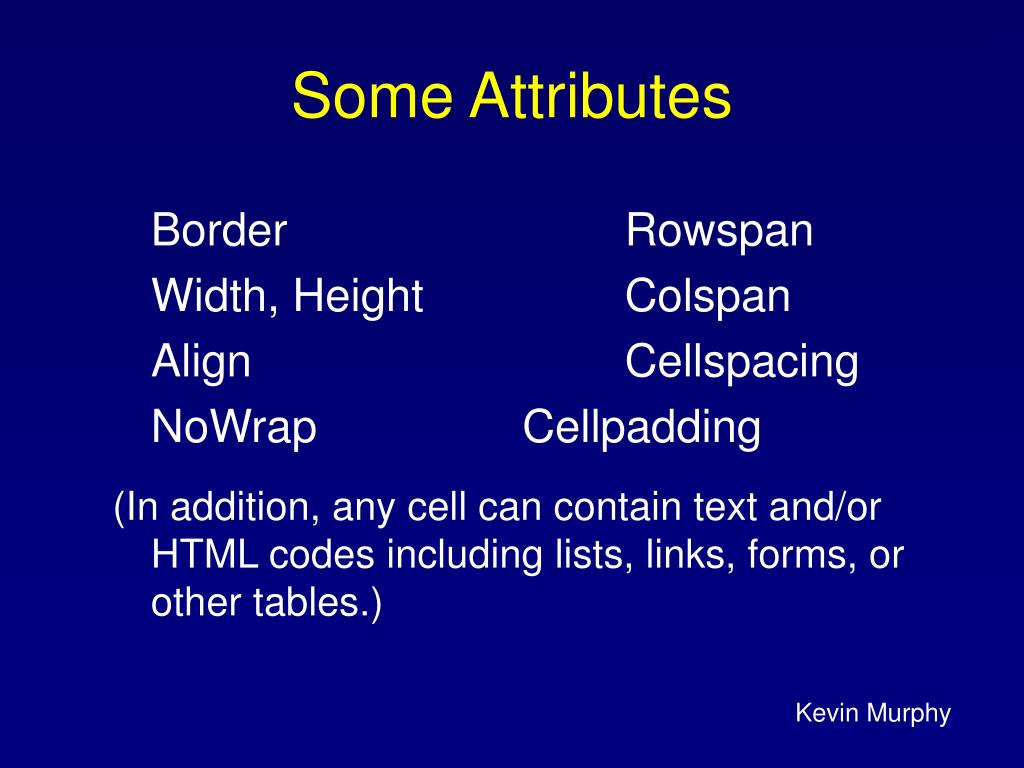

  5. Some Attributes Border Rowspan Width, Height Colspan Align Cellspacing NoWrap Cellpadding (In addition, any cell can contain text and/or HTML codes including lists, links, forms, or other tables.)

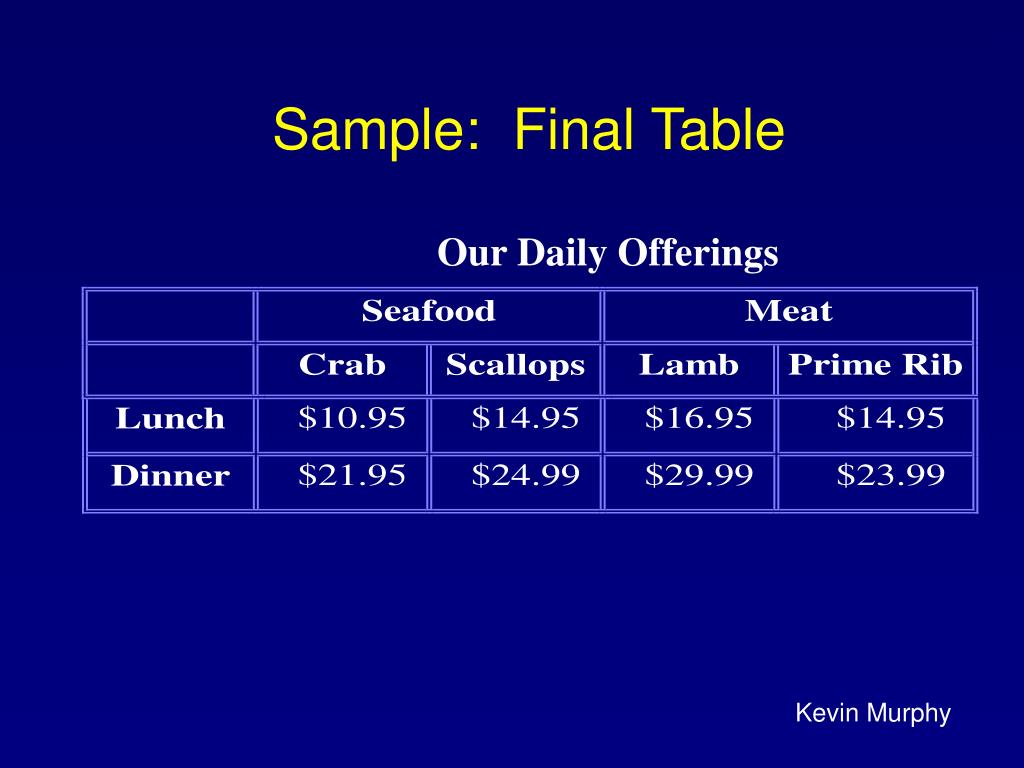

  6. Sample: Final Table Our Daily Offerings

  7. Create the TableFirst, Plan the Table on Paper Our Daily Offerings

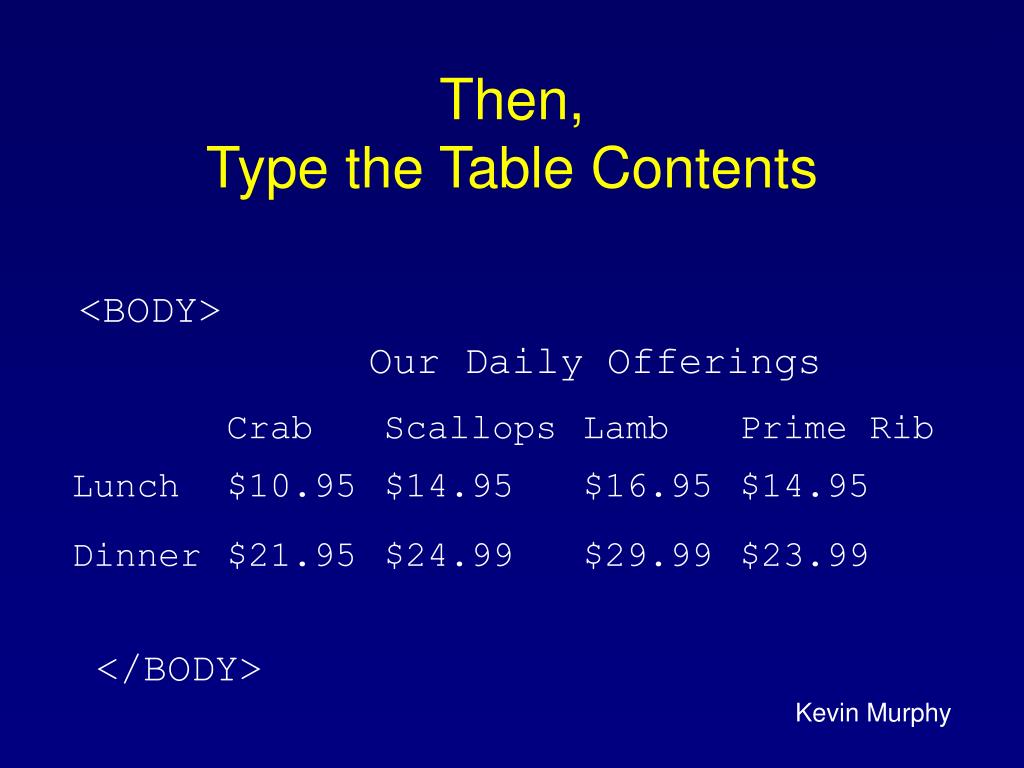

  8. Then,Type the Table Contents <BODY> Our Daily Offerings </BODY>

  9. Add the Tags <TABLE> <TR> <TH><BR></TH><TH>Crab</TH><TH>Scallop</TH><TH>Lamb</TH><TH>Rib</TH> </TR> <TR> <TH>Lunch</TH><TD>$10</TD><TD>$14</TD><TD>$16</TD><TD>$14</TD> </TR> <TR> <TH>Dinner</TH><TD>$21</TD><TD>$24</TD><TD>$29</TD><TD>$23</TD> </TR> </TABLE>

  10. Add a Caption <TABLE> <CAPTION>Our Daily Offerings</CAPTION> OR <CAPTION ALIGN=BOTTOM>Our Daily Offerings</CAPTION> <TR> <TH><BR></TH><TH>Crab</TH><TH>Scallop</TH><TH>Lamb</TH><TH>Rib</TH> </TR>

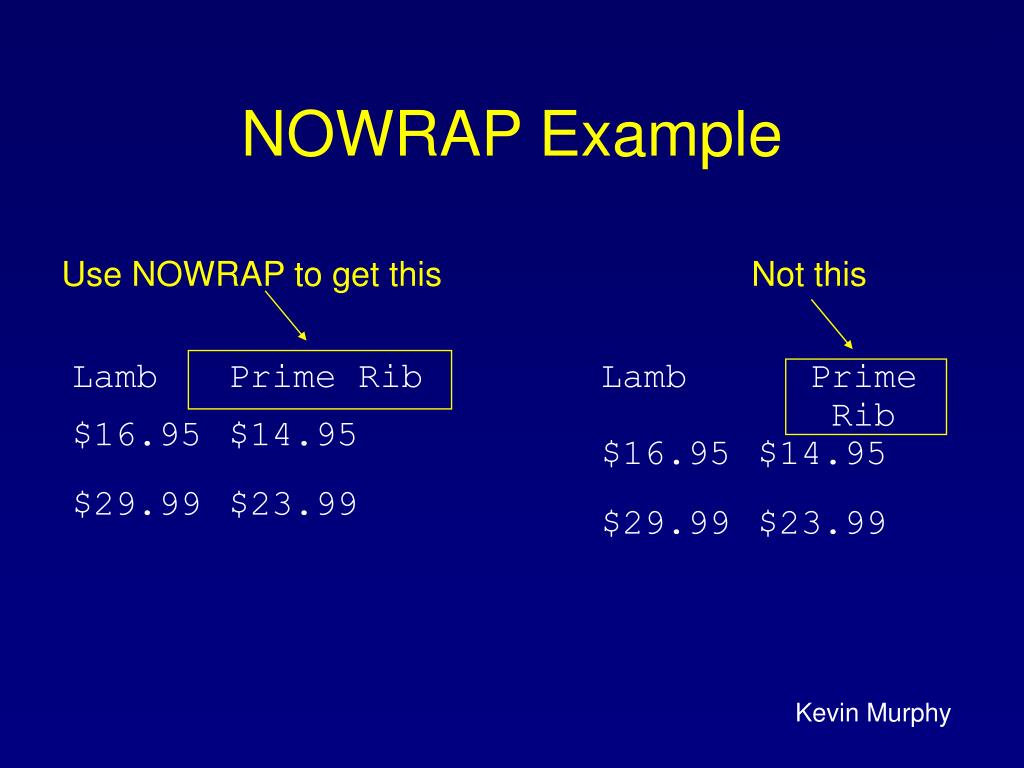

  11. NOWRAP Example Use NOWRAP to get this Not this

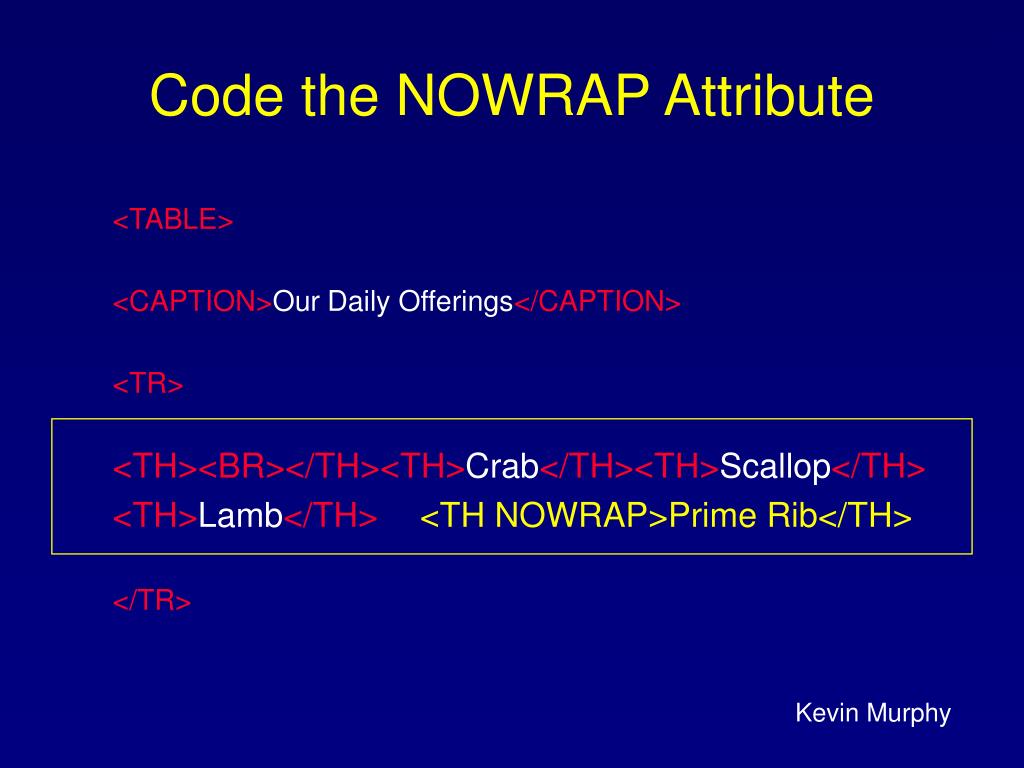

  12. Code the NOWRAP Attribute <TABLE> <CAPTION>Our Daily Offerings</CAPTION> <TR> <TH><BR></TH><TH>Crab</TH><TH>Scallop</TH> <TH>Lamb</TH> <TH NOWRAP>Prime Rib</TH> </TR>

  13. Enhance the TableSpan a heading across 2 columns To get this <TABLE> <CAPTION>Our Daily Offerings</CAPTION> <TR> <TH><BR></TH> <TH COLSPAN=2>Seafood</TH> <TH COLSPAN=2>Meat</TH> </TR> Add this

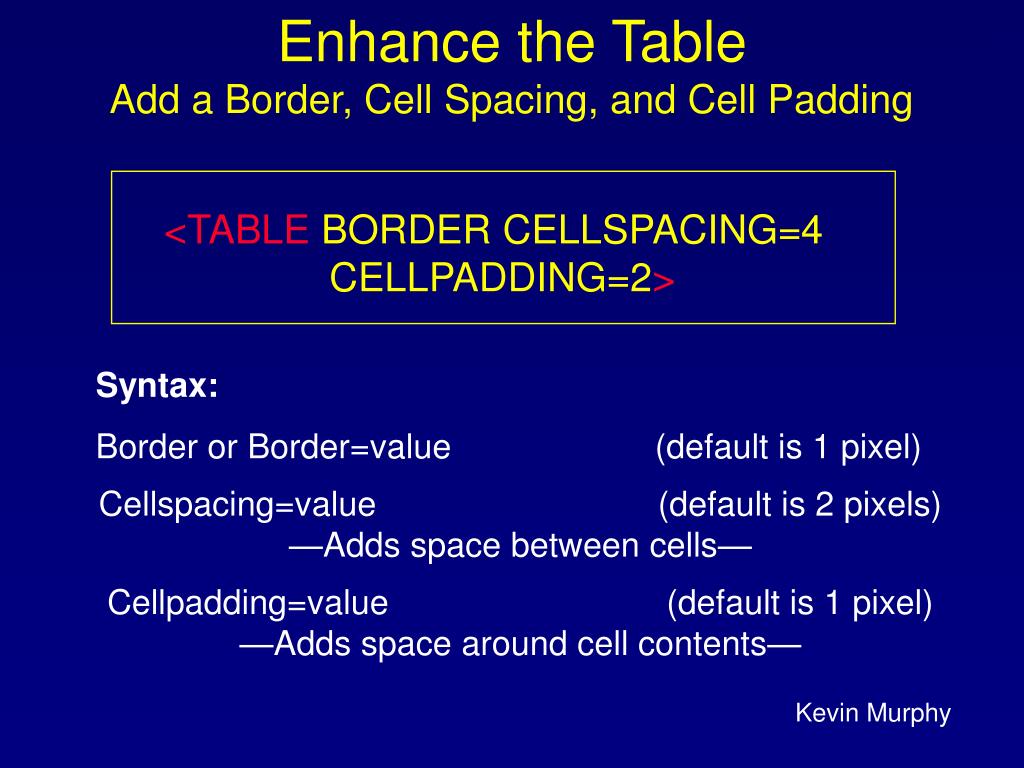

  14. Enhance the TableAdd a Border, Cell Spacing, and Cell Padding <TABLE BORDER CELLSPACING=4 CELLPADDING=2> Syntax: Border or Border=value (default is 1 pixel) Cellspacing=value (default is 2 pixels)—Adds space between cells— Cellpadding=value (default is 1 pixel)—Adds space around cell contents—

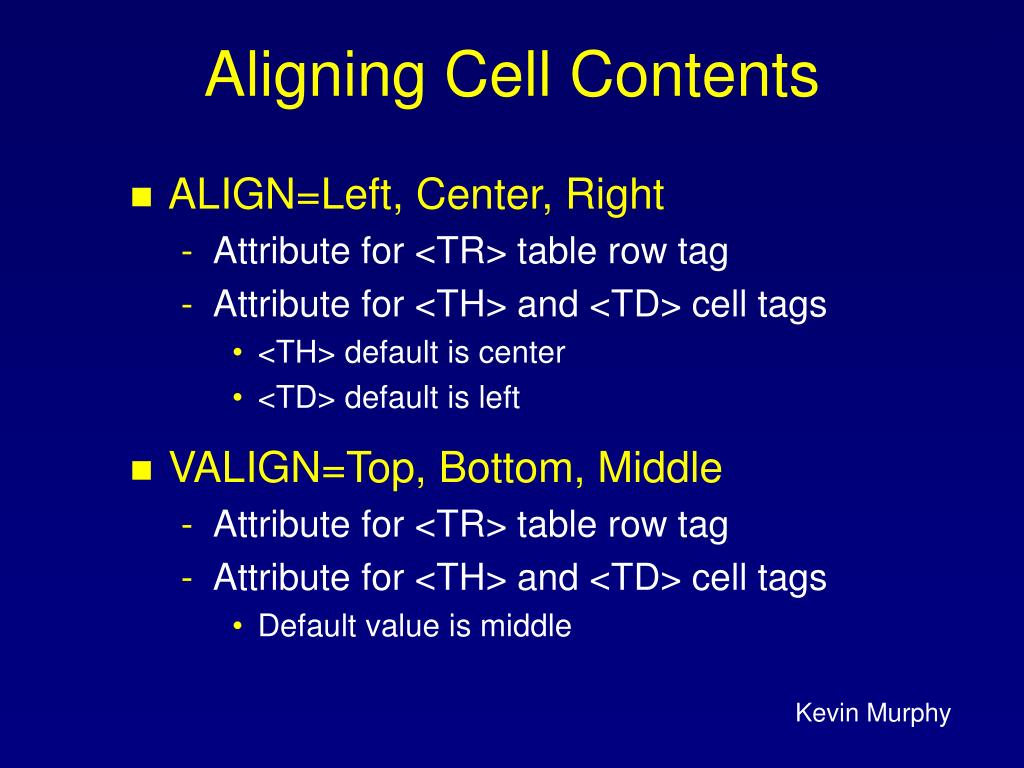

  15. Aligning Cell Contents • ALIGN=Left, Center, Right • Attribute for <TR> table row tag • Attribute for <TH> and <TD> cell tags • <TH> default is center • <TD> default is left • VALIGN=Top, Bottom, Middle • Attribute for <TR> table row tag • Attribute for <TH> and <TD> cell tags • Default value is middle

  16. Width and Height Attributes • Browsers generally display a table as large as it needs to be for the contents. • A column or row is as wide as the widest cell within that column or row. • The size of the table, column, or row can be controlled with attributes expressed in pixels or as a percentage.

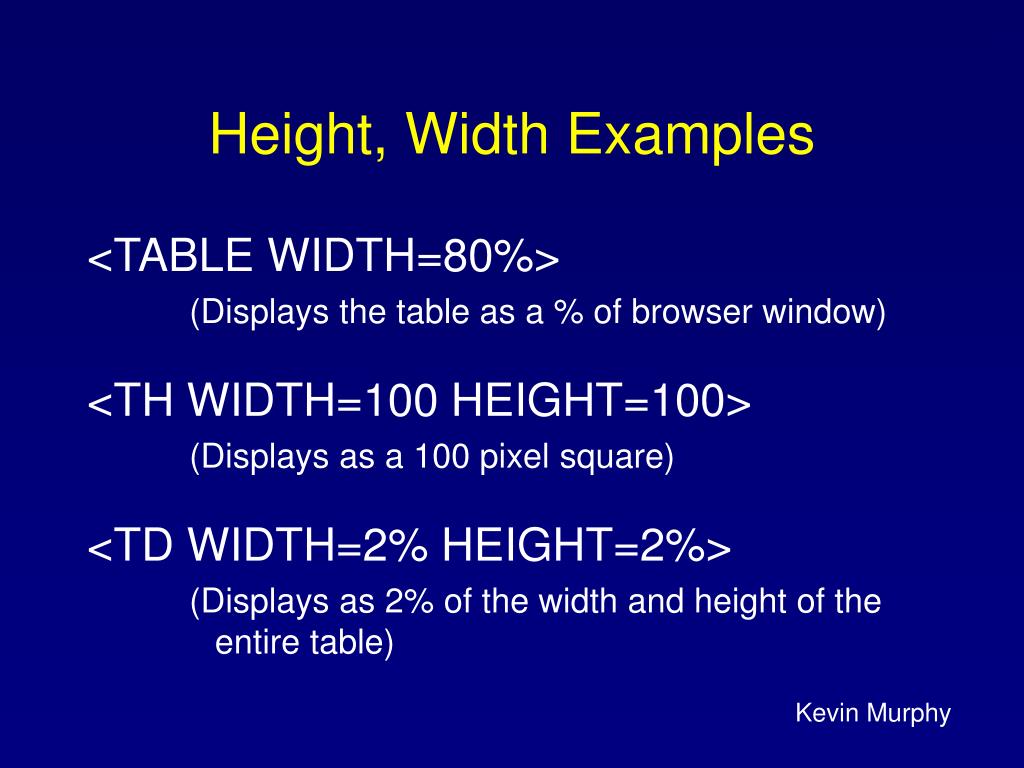

  17. Height, Width Examples <TABLE WIDTH=80%> (Displays the table as a % of browser window) <TH WIDTH=100 HEIGHT=100> (Displays as a 100 pixel square) <TD WIDTH=2% HEIGHT=2%> (Displays as 2% of the width and height of the entire table)
