  1. Optical Phenomena How light can trick us

  2. Naturally Occurring Phenomena • Apparent depth • Flattened sun and sunsets • Mirages • Shimmering • Rainbows

  3. Apparent depth • The depth that an object appears to be due to the refraction of light in a transparent medium • Eg. Looking into water from above • Light will refract away from the normal travelling from water into air because air is faster • Our brains don’t acknowledge that the light is refracted, so we extend the refracted ray straight back, creating a virtual source of the light rays

  4. Apparent Depth objects in water appear closer to the surface pencil in water appears bent

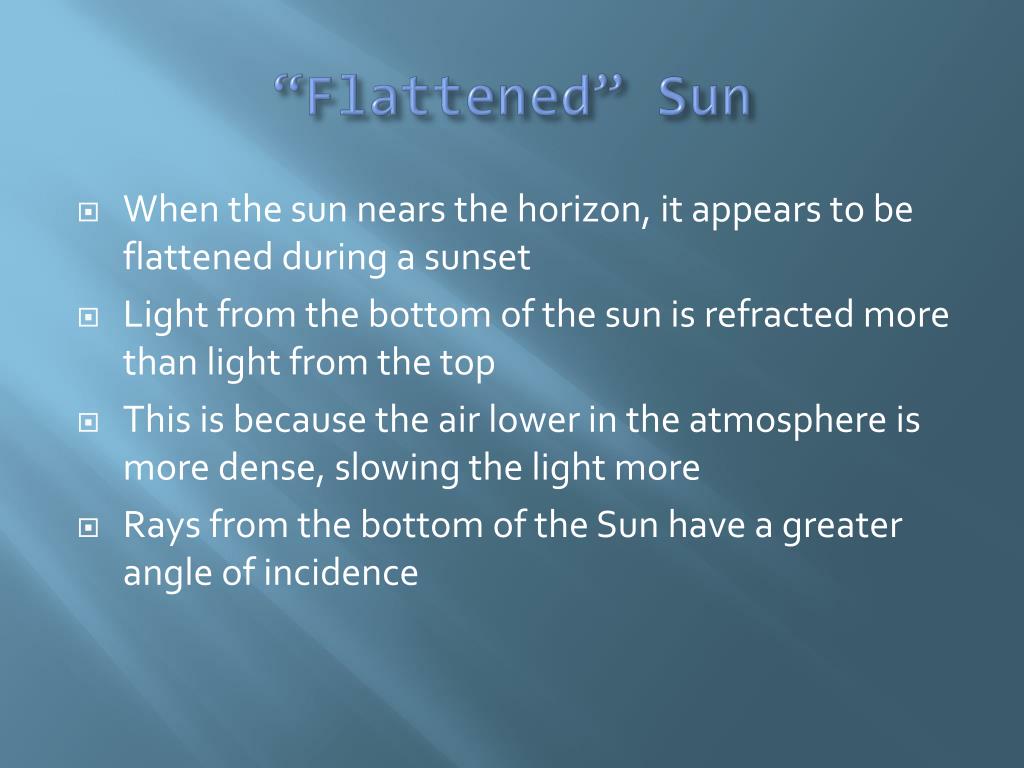

  5. “Flattened” Sun • When the sun nears the horizon, it appears to be flattened during a sunset • Light from the bottom of the sun is refracted more than light from the top • This is because the air lower in the atmosphere is more dense, slowing the light more • Rays from the bottom of the Sun have a greater angle of incidence

  6. Flattened Sun

  7. Mirages • A virtual image that forms as a result of refraction and total internal reflection in Earth’s atmosphere • This is the result of light travelling through different air temperatures • The index of refraction decreases as air gets warmer, causing the light to bend farther away from the normal • Total internal reflection occurs in the hottest layer, usually on the Earth’s surface • The ray travels back through to the cooler air and bends back toward the normal

  8. Mirages • When the light reaches our eyes, we think it travelled in a straight line • This results in an image of the sky appearing to be on the pavement or sand

  9. Mirages

  10. Shimmering • Also caused by light refracting through different air temperatures • Air closer to the lake is warmer, so the light refracts in the same pattern as it does near hot pavement • Total internal refraction occurs in the lowest, warmest layer causing multiple virtual images on the water’s surface

  11. Shimmering

  12. Rainbows • Rainbows are a result of the dispersion of white light into its 7 colour components • Remember: red light is refracted less than violet due to its speed ROYGBIV • Rainbows are produced by water droplets 3 steps: Dispersion of white light by the rain drop Partial internal reflection at the back of the rain drop Refraction of the light exiting the rain drop

  13. Rainbows • Our eyes see the final refraction, and projects these rays backwards to form a virtual image of a rainbow • You can only see a rainbow when the sun is behind you

  14. Rainbow
