  1. Database Research Group Interactive SQL Query Suggestion Making Databases User-Friendly Ju Fan, Guoliang Li, and Lizhu Zhou Database Research Group, Tsinghua University ICDE 2011 – Apr. 13, Hanover

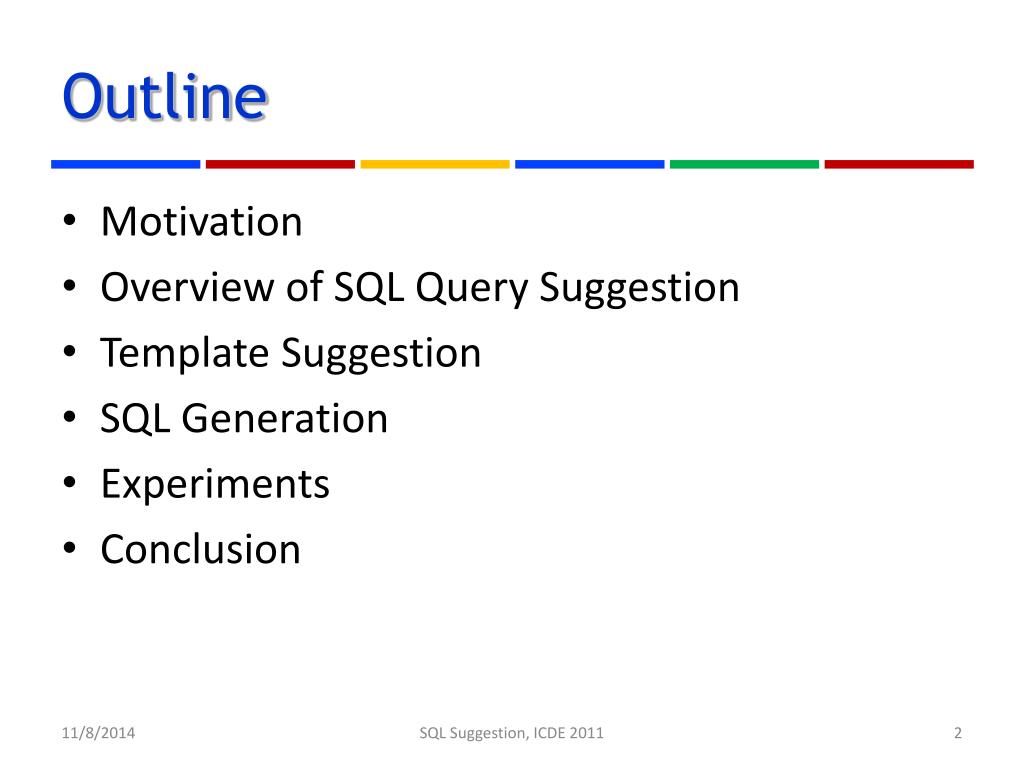

  2. Outline • Motivation • Overview of SQL Query Suggestion • Template Suggestion • SQL Generation • Experiments • Conclusion SQL Suggestion, ICDE 2011

  3. Outline • Motivation • Overview of SQL Query Suggestion • Template Suggestion • SQL Generation • Experiments • Conclusion SQL Suggestion, ICDE 2011

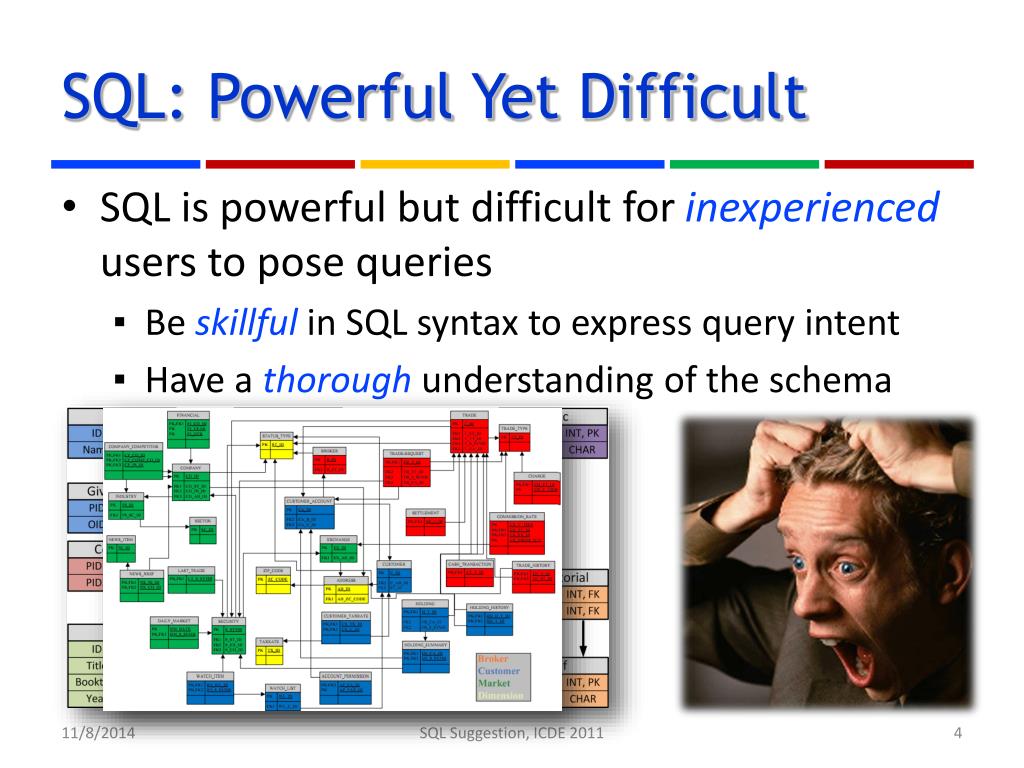

  4. SQL: Powerful Yet Difficult • SQL is powerful but difficult for inexperienced users to pose queries • Be skillful in SQL syntax to express query intent • Have a thorough understanding of the schema SQL Suggestion, ICDE 2011

  5. SQL Assistant Tools • Target Users • The novice users who struggle with the basic SQL syntax or the structure of the schema. • Limitations • Only support metadata and SQL syntax • Require users to manually join multi-tables SQL Suggestion, ICDE 2011

  6. Keyword Search over RDB • Keyword Search over Relational DB • Data: A database with multiple tables • Query: Keywords • Answer: Joined tuples containing the keywords • Limitations • Cannot precisely capture users’ query intent • May involve irrelevant results • Cannot support aggregate functions, range queries, etc. SQL Suggestion, ICDE 2011

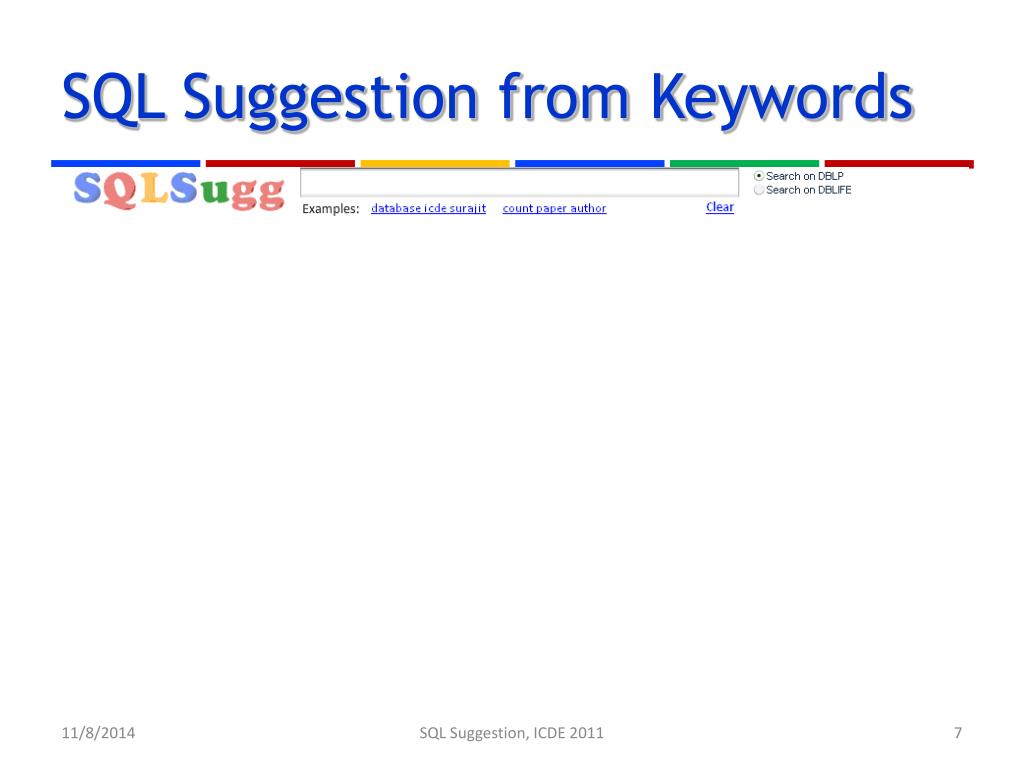

  7. SQL Suggestion from Keywords SQL Suggestion, ICDE 2011

  8. Features of SQL Suggestion • Objective: Assist users to formulate SQL queries using keywords • Main Features • Query intent prediction • Answer grouping • Aggregation queries • Range queries SQL Suggestion, ICDE 2011

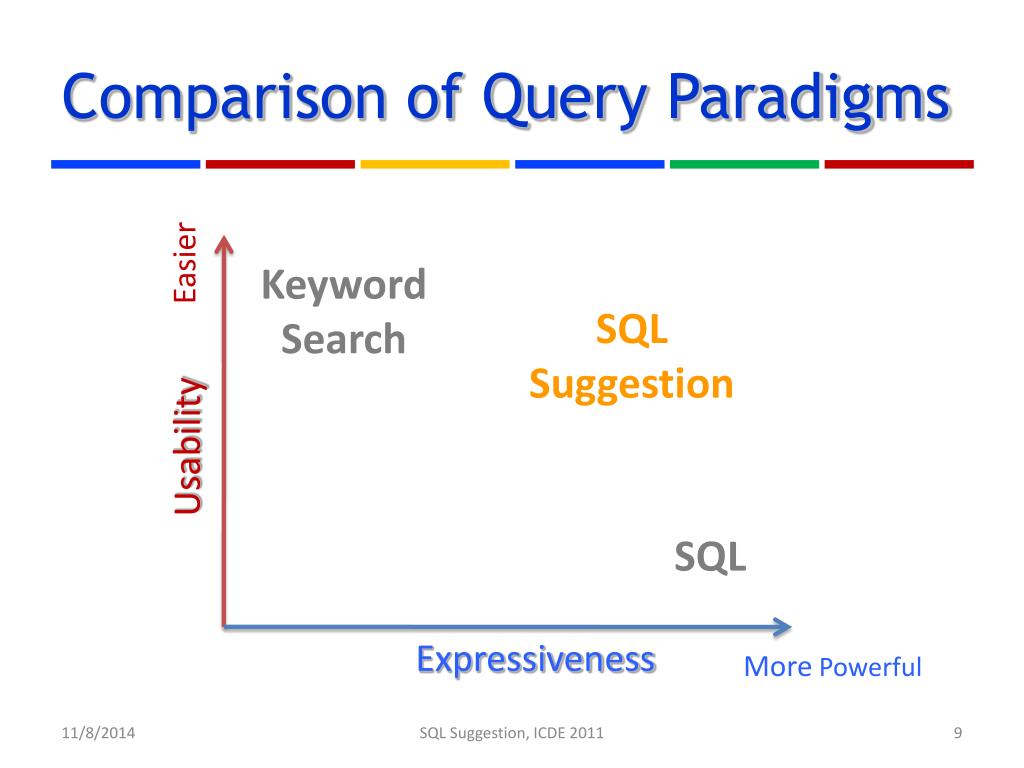

  9. Comparison of Query Paradigms Easier Keyword Search SQL Suggestion Usability SQL Expressiveness More Powerful SQL Suggestion, ICDE 2011

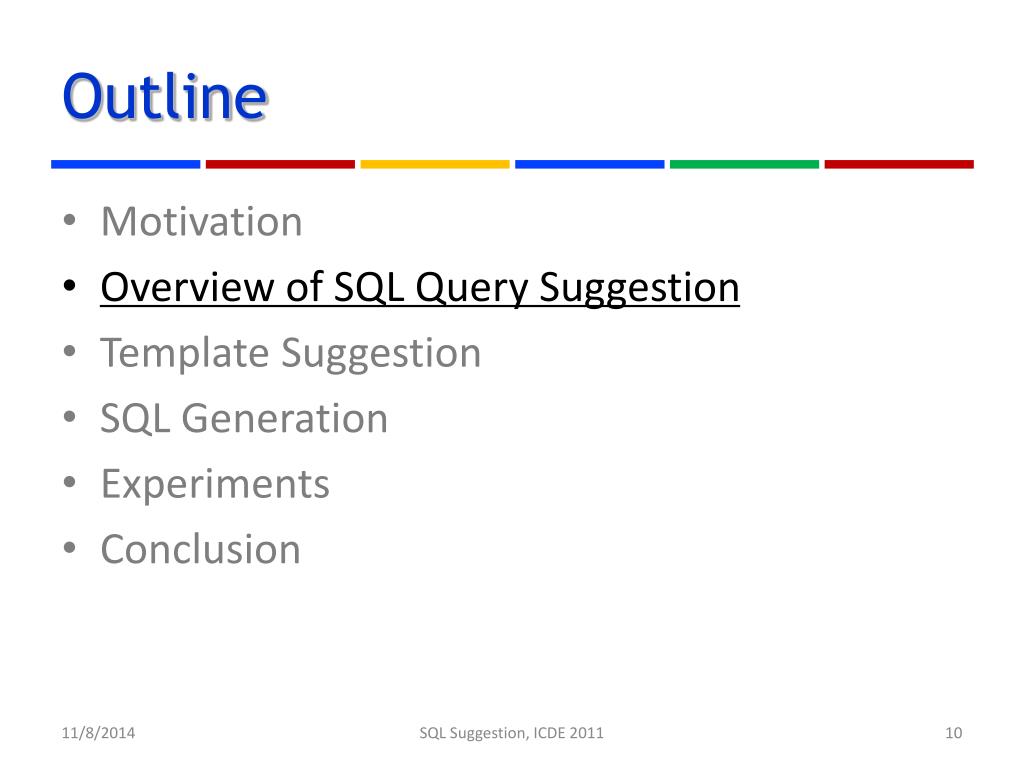

  10. Outline • Motivation • Overview of SQL Query Suggestion • Template Suggestion • SQL Generation • Experiments • Conclusion SQL Suggestion, ICDE 2011

  11. Problem Definition Query: Keywords User Data: A Database with Multiple Tables Answer: SQL Queries … SQL Suggestion, ICDE 2011

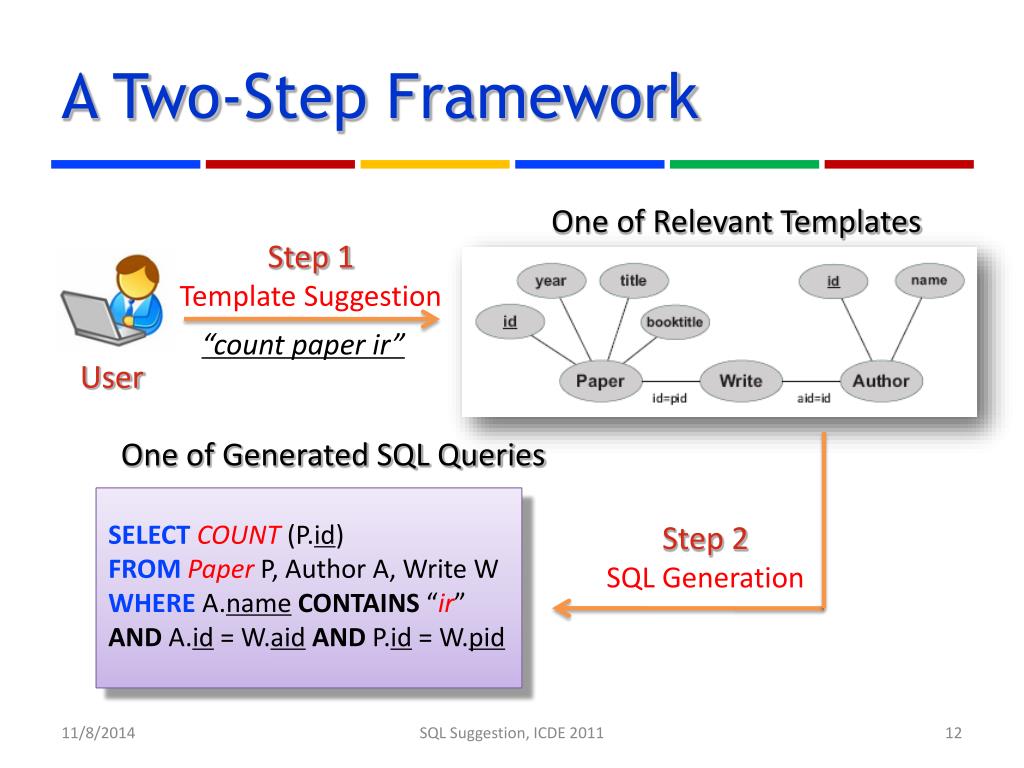

  12. A Two-Step Framework One of Relevant Templates Step 1 Template Suggestion “count paper ir” User One of Generated SQL Queries Step 2 SQL Generation SELECTCOUNT (P.id) FROM Paper P, Author A, Write W WHERE A.nameCONTAINS “ir” AND A.id = W.aidAND P.id = W.pid SQL Suggestion, ICDE 2011

  13. Outline • Motivation • Overview of SQL Query Suggestion • Template Suggestion • SQL Generation • Experiments • Conclusion SQL Suggestion, ICDE 2011

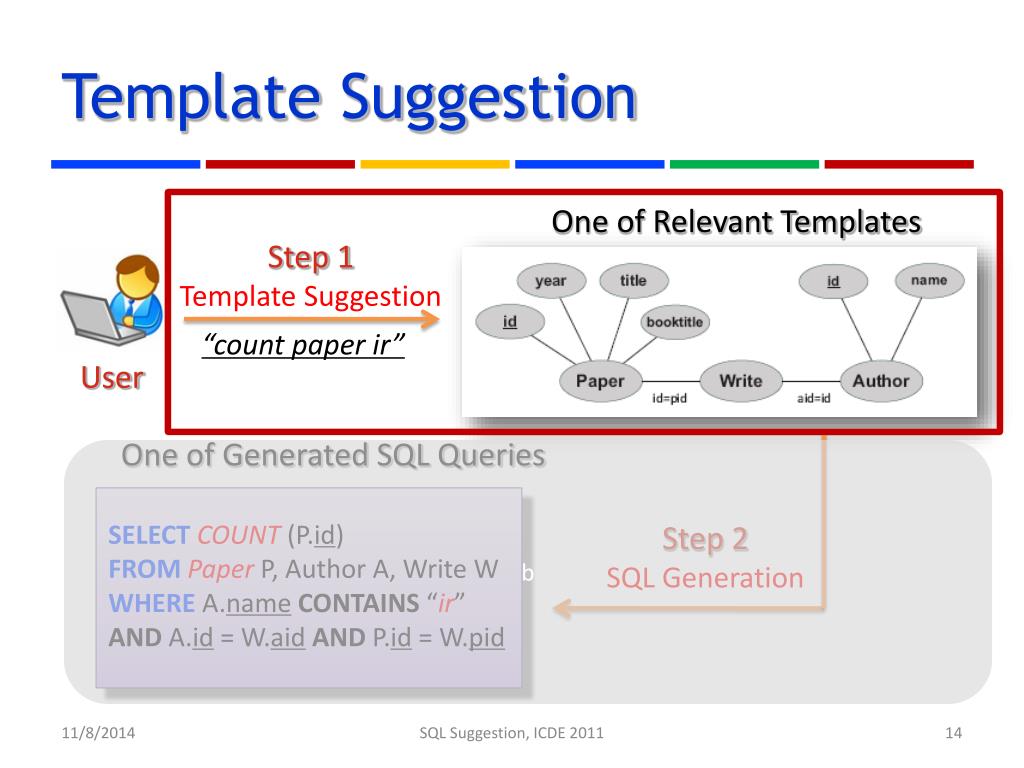

  14. Template Suggestion One of Relevant Templates Step 1 Template Suggestion “count paper ir” User One of Generated SQL Queries b Step 2 SQL Generation SELECTCOUNT (P.id) FROM Paper P, Author A, Write W WHERE A.nameCONTAINS “ir” AND A.id = W.aidAND P.id = W.pid SQL Suggestion, ICDE 2011

  15. Queryable Template • The skeleton of SQL queries that models the joined entities and their attributes. • A template is an undirected graph SQL Suggestion, ICDE 2011

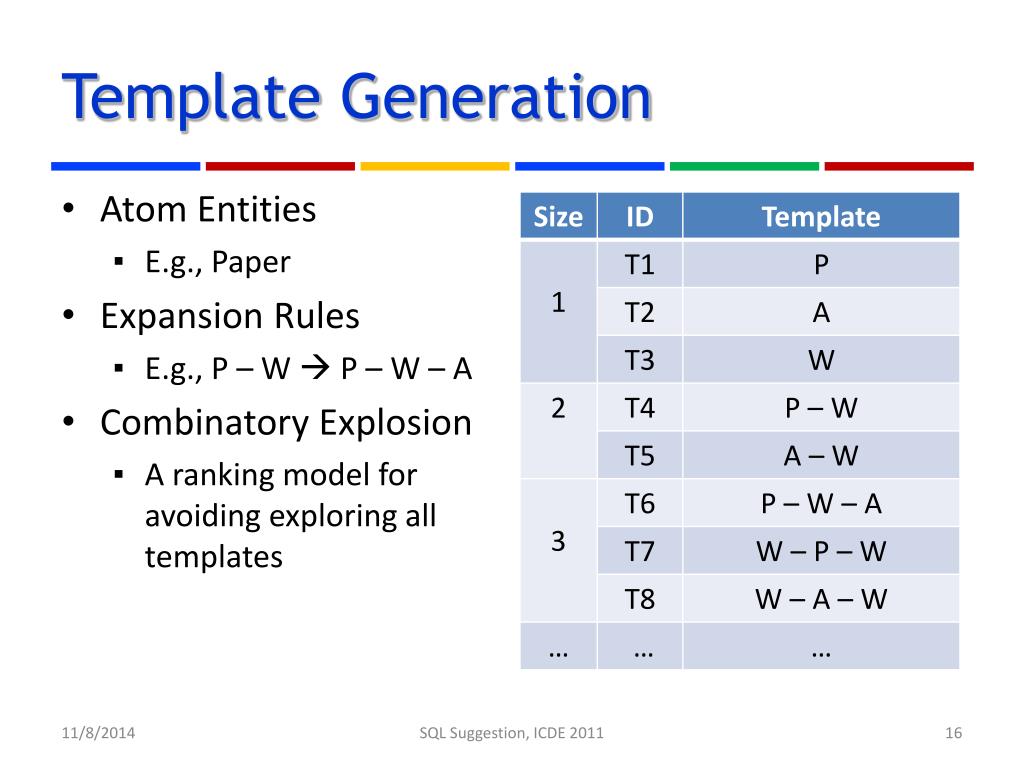

  16. Template Generation • Atom Entities • E.g., Paper • Expansion Rules • E.g., P – W  P – W – A • Combinatory Explosion • A ranking model for avoiding exploring all templates SQL Suggestion, ICDE 2011

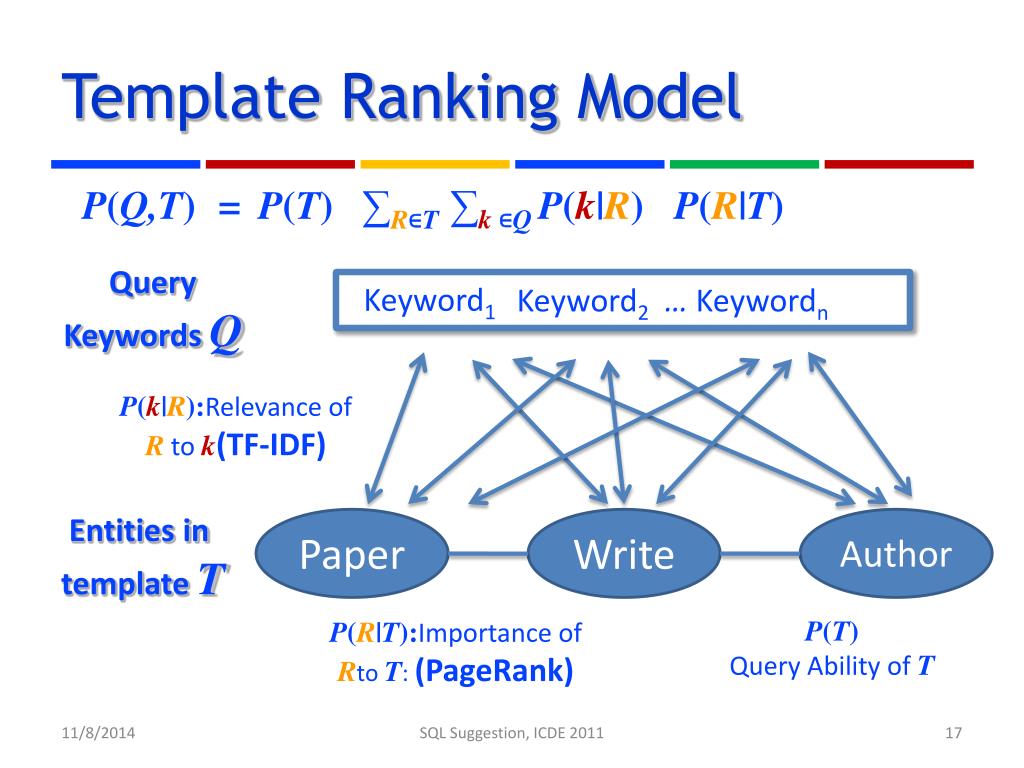

  17. Template Ranking Model = ∑k∈Q P(Q,T) P(T) ∑R∈T P(k|R) P(R|T) Query KeywordsQ Keyword2 … Keywordn Keyword1 P(k|R):Relevance of Rtok(TF-IDF) Entities in template T Paper Write Author P(T) Query Ability of T P(R|T):Importance ofRtoT:(PageRank) SQL Suggestion, ICDE 2011

  18. Top-k Suggestion Algorithm wR = ∑k∈Q P(Q,T) P(T) ∑R∈T P(k|R) P(R|T) • Fagin Algorithm [5] • Lists of templates for all entities ordered by P(R|T) • Indexing • Inverted Index: • Entity-to-Template • Forward Index: • Template-to-Entity wp* wA* wW* P(P|T) P(A|T) P(W|T) SQL Suggestion, ICDE 2011

  19. Outline • Motivation • Overview of SQL Query Suggestion • Template Suggestion • SQL Generation • Experiments • Conclusion SQL Suggestion, ICDE 2011

  20. SQL Generation One of Relevant Templates Step 1 Template Suggestion “count paper ir” User One of Generated SQL Queries Step 2 SQL Generation SELECTCOUNT (P.id) FROM Paper P, Author A, Write W WHERE A.nameCONTAINS “ir” AND A.id = W.aidAND P.id = W.pid SQL Suggestion, ICDE 2011

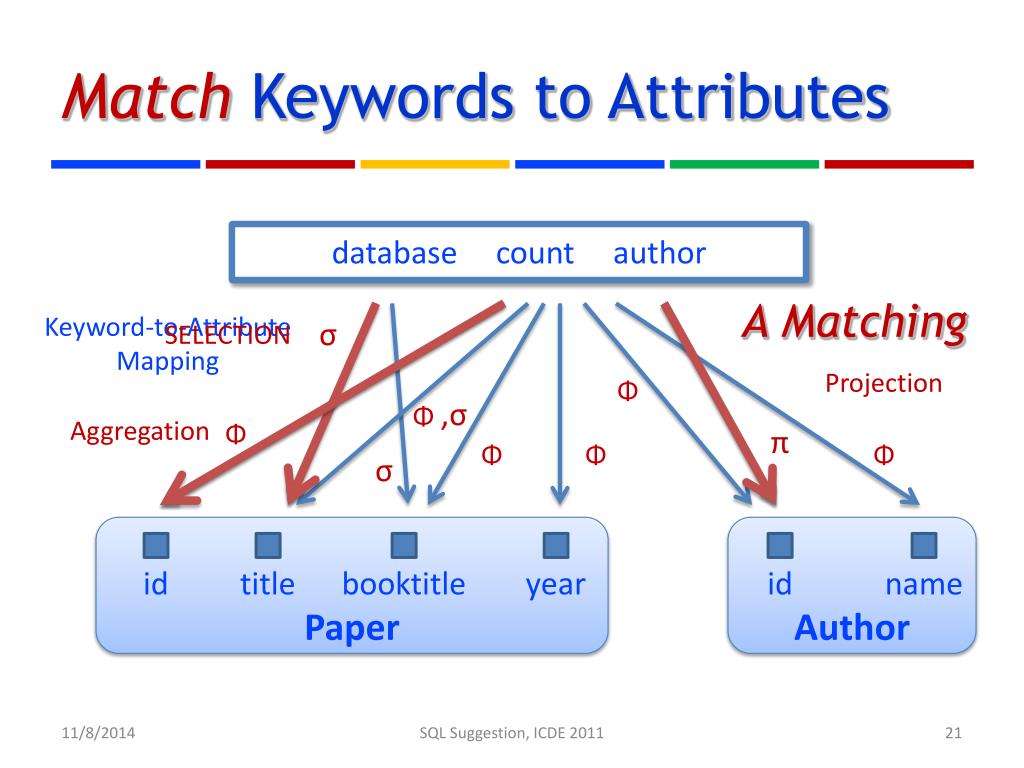

  21. Match Keywords to Attributes database count author A Matching Keyword-to-Attribute Mapping σ SELECTION Projection Φ Φ ,σ Aggregation Φ π Φ Φ Φ σ id id name title booktitle year Paper Author SQL Suggestion, ICDE 2011

  22. SQL Generation Model ∑m∈M ρ(k,A) I(A) S(M)= database count author A Matching σ π ρ(k,A) the degree of a mapping Φ I(A): the importance of mapped attributes (Entropy) id id name title booktitle year Paper Author SQL Suggestion, ICDE 2011

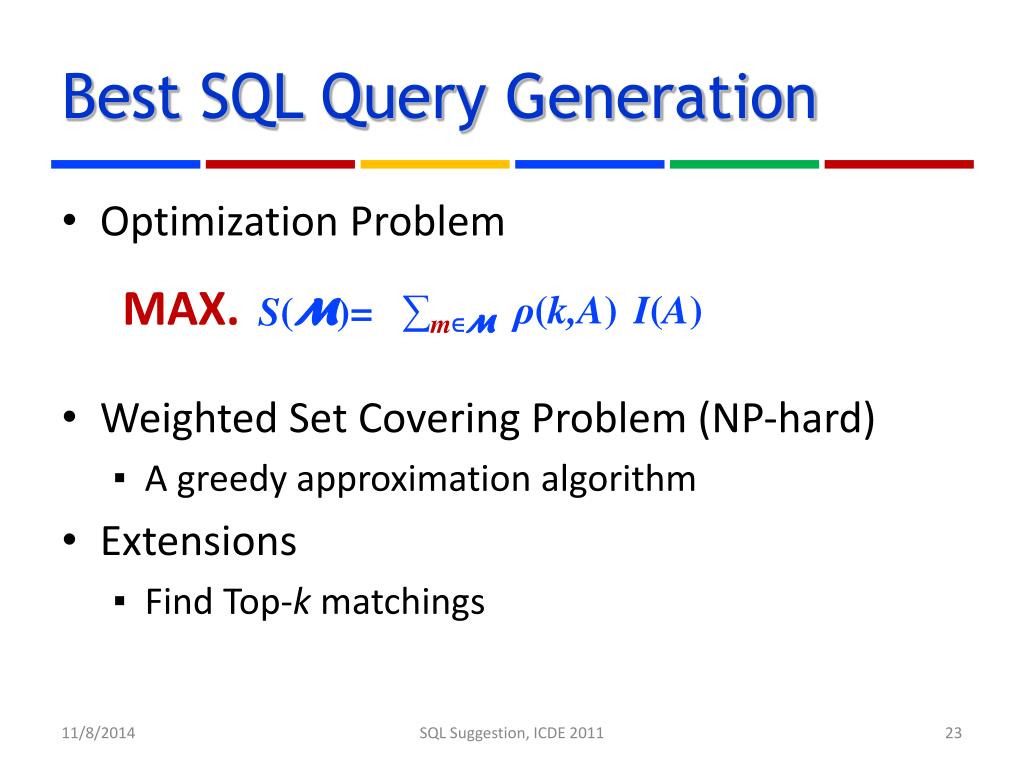

  23. Best SQL Query Generation ∑m∈M ρ(k,A) I(A) S(M)= • Optimization Problem • Weighted Set Covering Problem (NP-hard) • A greedy approximation algorithm • Extensions • Find Top-k matchings MAX. SQL Suggestion, ICDE 2011

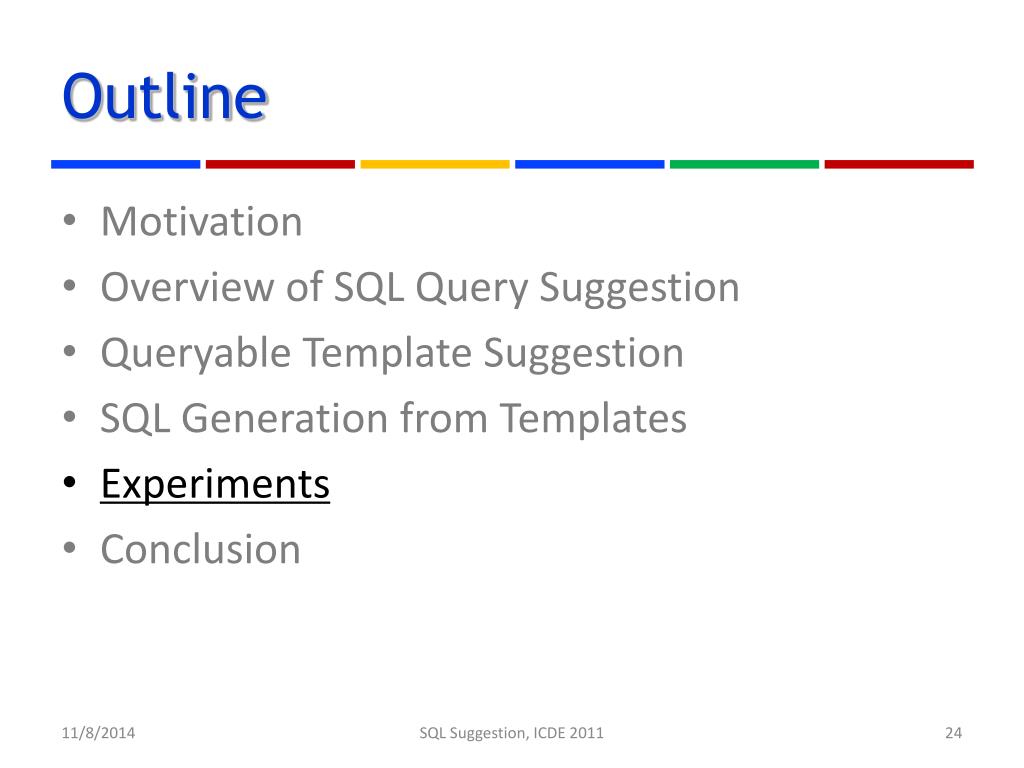

  24. Outline • Motivation • Overview of SQL Query Suggestion • Queryable Template Suggestion • SQL Generation from Templates • Experiments • Conclusion SQL Suggestion, ICDE 2011

  25. Experiment Setup • Data sets • DBLP: More than one million publication records • DBLIFE: Activity information of people in DB comm. • Query sets, E.g., • count author mining (DBLP) • database jim gray (DBLIFE) • Baseline method: DISCOVER-II • User-Study for effectiveness evaluation SQL Suggestion, ICDE 2011

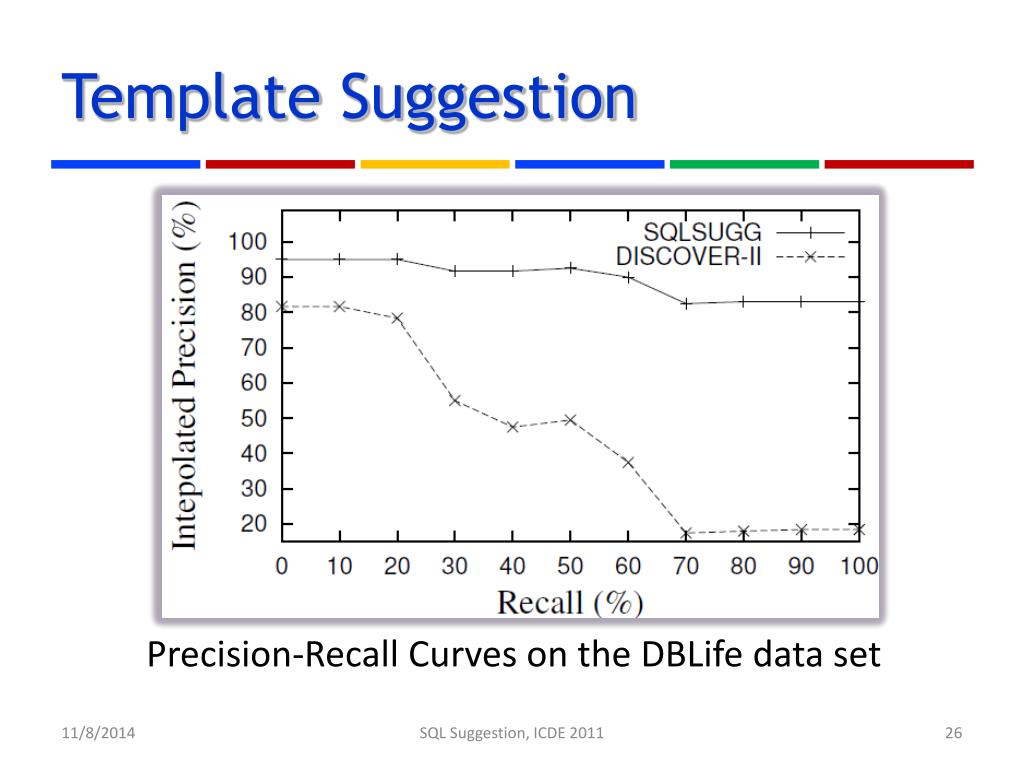

  26. Template Suggestion Precision-Recall Curves on the DBLife data set SQL Suggestion, ICDE 2011

  27. SQL Generation Query: database Jim Gray Precisions on the DBLife data set SQL Suggestion, ICDE 2011

  28. Record Retrieval Query: count author mining • Advantages of SQL Suggestion • Support aggregation functions • Support meta-data matching Precisions on the DBLife data set SQL Suggestion, ICDE 2011

  29. Efficiency Efficiency Comparison (DBLife) SQL Suggestion, ICDE 2011

  30. Scalability Scalability (DBLP) SQL Suggestion, ICDE 2011

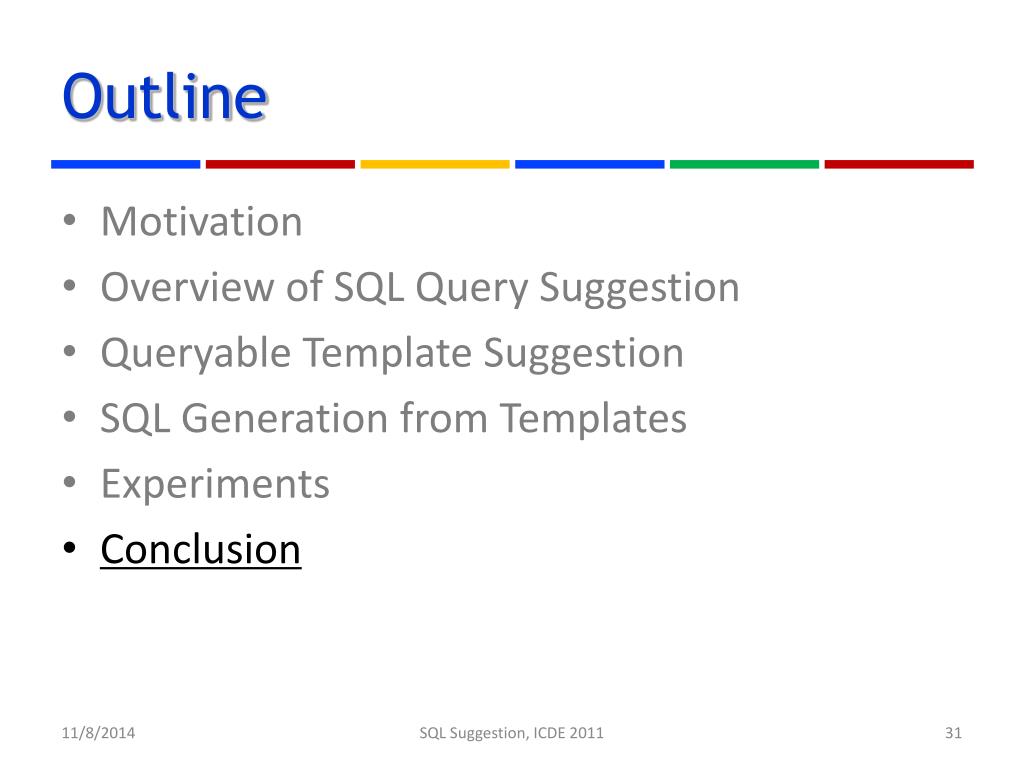

  31. Outline • Motivation • Overview of SQL Query Suggestion • Queryable Template Suggestion • SQL Generation from Templates • Experiments • Conclusion SQL Suggestion, ICDE 2011

  32. Conclusion • An effective and user-friendly keyword-based method • Assist users to formulate SQL queries • Suggest templates relevant to keyword queries • Generate SQL queries from templates • Extensive experiments SQL Suggestion, ICDE 2011

  33. Future Work • This study opens many new interesting and challenging problems • Cardinality estimation of suggested SQL queries • Personalized SQL suggestion SQL Suggestion, ICDE 2011

  34. Thanks Demo: http://tastier.cs.tsinghua.edu.cn/sqlsugg My Homepage: http://dbgroup.cs.tsinghua.edu/fanju SQL Suggestion, ICDE 2011

  35. Comparison with Existing Work • CN-Based Methods • Better template ranking • SQL Generation • Aggregation functions, range queries, etc. SQL Suggestion, ICDE 2011
