Presentation Transcript

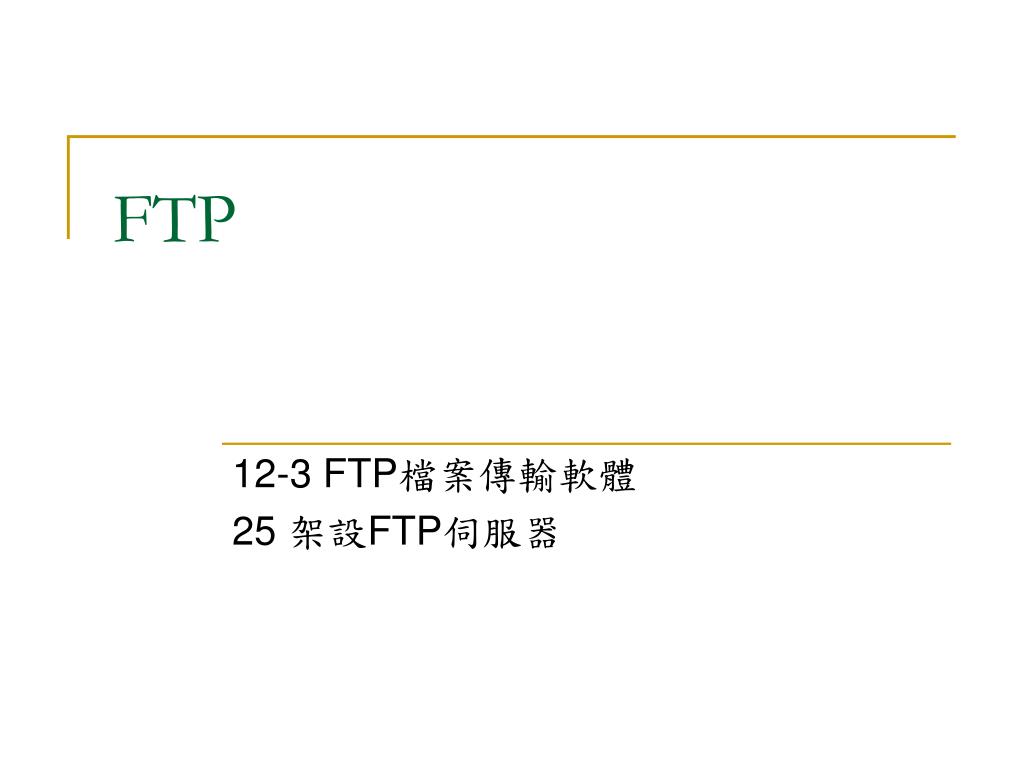

  1. FTP 12-3 FTP檔案傳輸軟體 25 架設FTP伺服器

  2. gFTP • 圖形模式的FTP軟體 • 應用程式/網際網路/gFTP • 遠端/開啟URL

  3. ncftp • 文字模式的FTP指令

  4. ftp(file transfer protocol) • anonymous ftp • open hostname 建立連結 • close 結束連結 • pwd,ls,cd • 執行本地指令加 ! 不適用於cd cd ..(remote) lcd .. (local)

  5. 檔案傳輸型態 • 型態 • 文字模式ascii • 二進位模式binary • 上傳 put mput • 下載 get mget

  6. 使用到的 port: • 命令通道的 ftp (預設為 port 21 ) • 主要是用在接收 Client 端下達的命令之用,例如顯示目錄內的檔案內容 dir 以及上傳下載 (put, get) 等等的指令 • 主要接受來自 Client 端的主動連線 • 資料傳輸的 ftp-data (預設為port 20)。 • 在資料傳輸的時候才會建立的一個連線 • 主動連線至 Client 端呢!

  7. Port 21 上傳、下載檔案 Port 20 FTP Clinet NcFTP CuteFtp WsFtp FTP Server Vsftpd WU-ftpd ProFTPd

  8. 啟動FTP伺服器 • ntsysv • /etc/rec./init.d/vsftpd start • ftp localhost

  9. 安裝FTP伺服器 • mount /mdiea/cdrom • cd /media/cdrom/Fedora/RPMS • rpm –ivh vsftpd-2.0.1-5.i386.rpm • /etc/rc.d/init.d/vsftpd start • http://vsftpd.beasts.org

  10. FTP使用者類別 • Real • 在此伺服器擁有帳號的使用者,並使用他的帳號登入 • 登入後的目錄為其家目錄 • Restricted • 管理者希望某些擁有帳號的使用者登入後,只能存取其家目錄下的檔案 • /etc/vsftpd.chroot_list指定有那些使用者 • Anonymous • 在此伺服器沒有帳號的使用者,可以anonymous 及電子郵件位址作為帳號及密碼登入 • 登入後的目錄為/var/ftp

  11. FTP使用者類別

  12. 設定restricted使用者帳號 • 預設把系統上所有的使用者帳號都設成real類別,若要將某些帳號改為restricted類別,則 • 修改/etc/vsftpd/vsftpd.con chroot_list_enable=YES • 將帳號加入/etc/vsftpd.chroot_list tony mary • 重新啟動 /etc/rc.d/init.d/vsftpd restart 如此tony與mary登入FTP server時,只能存取其家目錄

  13. 拒絶某些帳號使用伺服器 • /etc/vsftpd.user_list預設用來指定”不允許”哪些使用者登入,此檔的預設值是一些系統帳號 • P25-7

  14. 該匿名登入的使用者可以上傳檔案 • 建立上傳目錄 mkdir /var/ftp/upload chown ftp.ftp /var/ftp/uypload chmod 2755 /var/ftp/upload • 修改/etc/vsftpd/vsftpd.conf anonmous_enable=YES (開放anonymous登入) anon_other_write_enable=YES anon_upload_enable=YES (remove #) anon_mkdir_write_enable=YES (remove#) anon_umask=022 (add this line) • /etc/rc.d/init.d/vsftpd restart
