Presentation Transcript

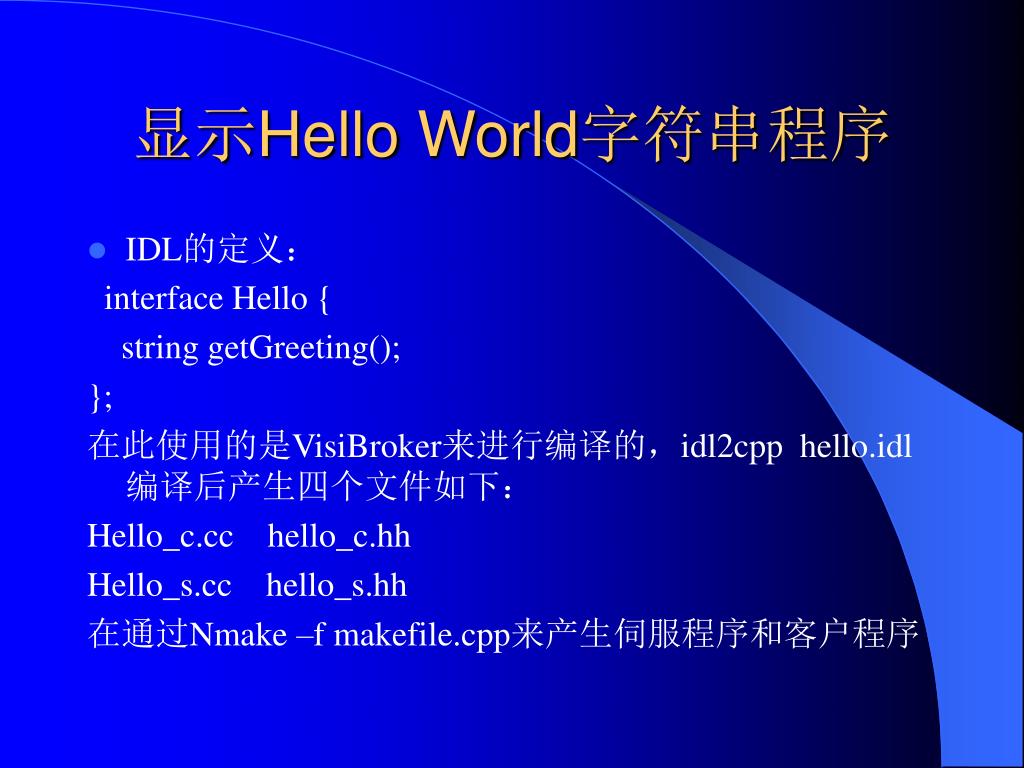

  1. 显示Hello World字符串程序 • IDL的定义： interface Hello { string getGreeting(); }; 在此使用的是VisiBroker来进行编译的，idl2cpp hello.idl编译后产生四个文件如下： Hello_c.cc hello_c.hh Hello_s.cc hello_s.hh 在通过Nmake –f makefile.cpp来产生伺服程序和客户程序

  2. 服务器端程序 #include "stdio.h" #include "hello_s.hh" class HelloImpl: public virtual POA_Hello { public: virtual CORBA::String getGreeting() throw(CORBA::SystemException);}; CORBA::String HelloImpl::getGreeting() throw(CORBA::SystemException) { CORBA::String hel; hel="Hello World!"; return hel; }

  3. int main(int argc, char* const* argv) { try { // 初始化ORB. CORBA::ORB_var orb = CORBA::ORB_init(argc, argv); // 产生一个Root POA的引用 CORBA::Object_var obj = orb->resolve_initial_references("RootPOA"); PortableServer::POA_var rootPOA = PortableServer::POA::_narrow(obj); // 产生一个POA管理 PortableServer::POAManager_var poa_manager = rootPOA->the_POAManager(); //激活POA管理 poa_manager->activate();

  4. //定义一个对象 HelloImpl Hello_servant; //产生对象引用 Hello_var view_str=Hello_servant._this(); //把对象转换为字符串 CORBA::String_var str=orb->object_to_string(view_str); //输出字符串 cout<<str<<endl; //运行服务器程序 orb->run(); //等待请求 } catch(const CORBA::Exception& e) { cerr << e << endl; return 1; } return 0;}

  5. 客户端程序 #include <string.h> #include "hello_c.hh" int main(int argc, char* const* argv) { try { //初始化ORB CORBA::ORB_var orb = CORBA::ORB_init(argc, argv); //定义字符串，接收服务器端的字符串 char string_obj[1000]; cin>>string_obj; string_obj[strlen(string_obj)+1]='\0'; //把得到的字符串转换为对象引用 CORBA::Object_var obj=orb->string_to_object(string_obj);

  6. if(CORBA::is_nil(obj)){ cerr<<"Nil Hello reference"<<endl; throw 0; } //对对象进行安全转换 Hello_var Hel=Hello::_narrow(obj); if(CORBA::is_nil(Hel)){ cerr<<"Argument is not a Hello reference"<<endl; throw 0; } //使用对象调用服务器中的函数，得到结果，并显示 CORBA::String view_H=Hel->getGreeting(); cout<<view_H<<endl; } catch(const CORBA::Exception& e) { cerr << e << endl; return 1; } return 0;}

  7. 运行服务器和客户程序如下： • 打开两个DOS窗口： • 在一个中运行：Server >a.txt • 在另一个中运行：Client <a.txt • 将在客户端显示结果为：Hello World！

  8. 作业中的客户端程序 int main(int argc, char* const* argv) { try { if(argc!=2) { cerr<<"Usage:client IOR_string"<<endl; throw 0; } // Initialize the ORB. CORBA::ORB_var orb = CORBA::ORB_init(argc, argv); CORBA::Object_var obj=orb->string_to_object(argv[1]);
