Lesson 9-6

I can identify the magnitude and direction of a vector. I can add/subtract vectors using the triangle method. I can find the component form of a vector. Lesson 9-6. direction. magnitude. Despicable Me . 17 mm. 27 mm. 34°. 145°. 11 mm. 40 mm. 97°. 11°. a + f. a. f. d. c.

landon
Télécharger la présentation

Lesson 9-6

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. I can identify the magnitude and direction of a vector I can add/subtract vectors using the triangle method I can find the component form of a vector. Lesson 9-6

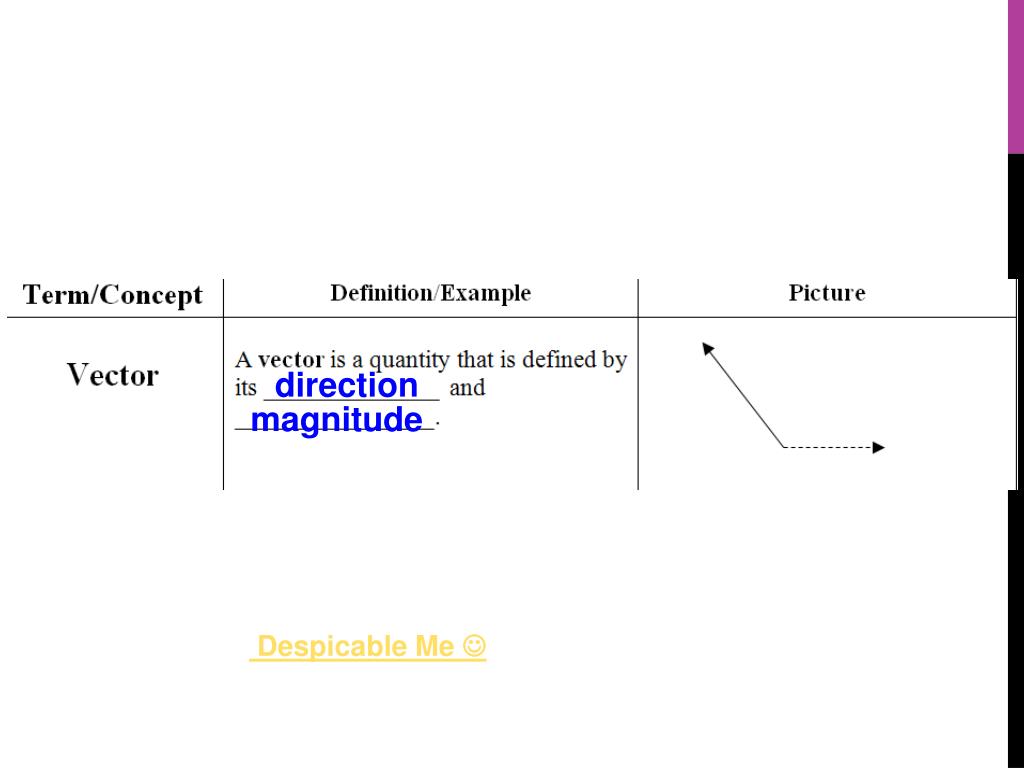

  2. direction magnitude Despicable Me 

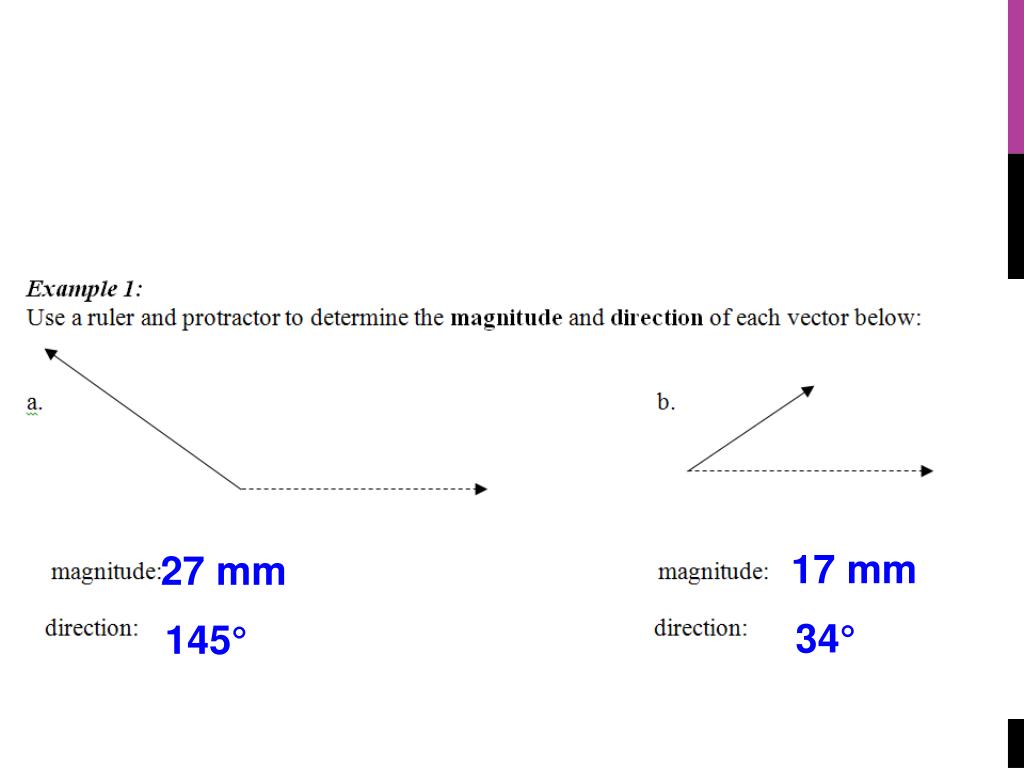

  3. 17 mm 27 mm 34° 145°

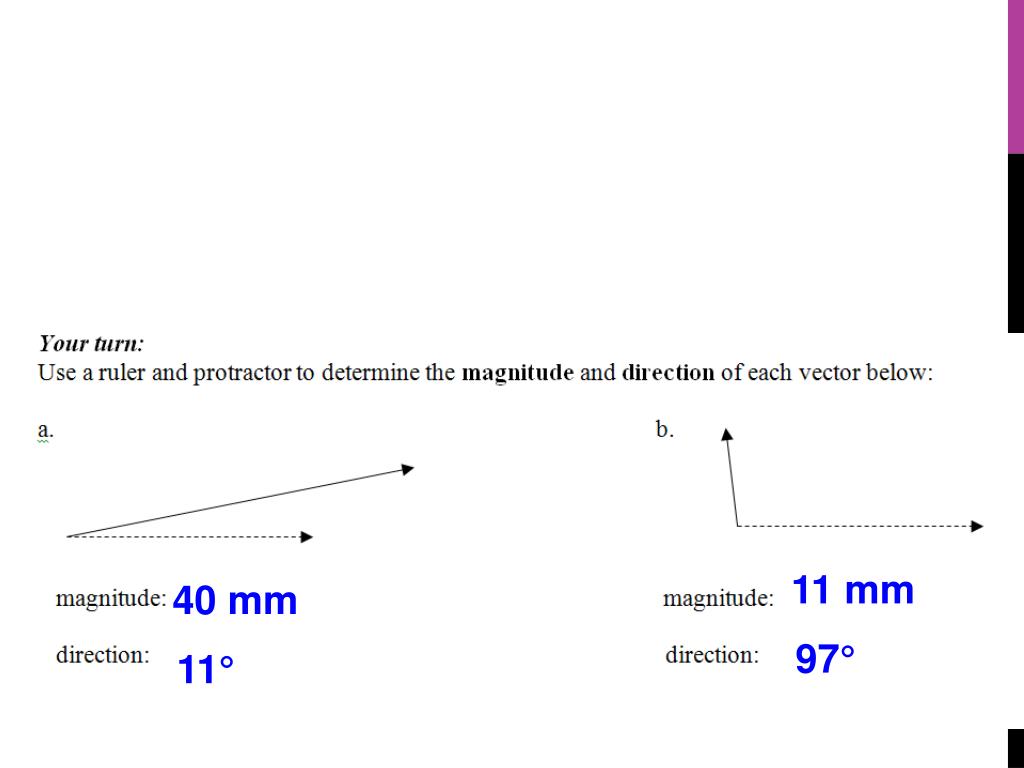

  4. 11 mm 40 mm 97° 11°

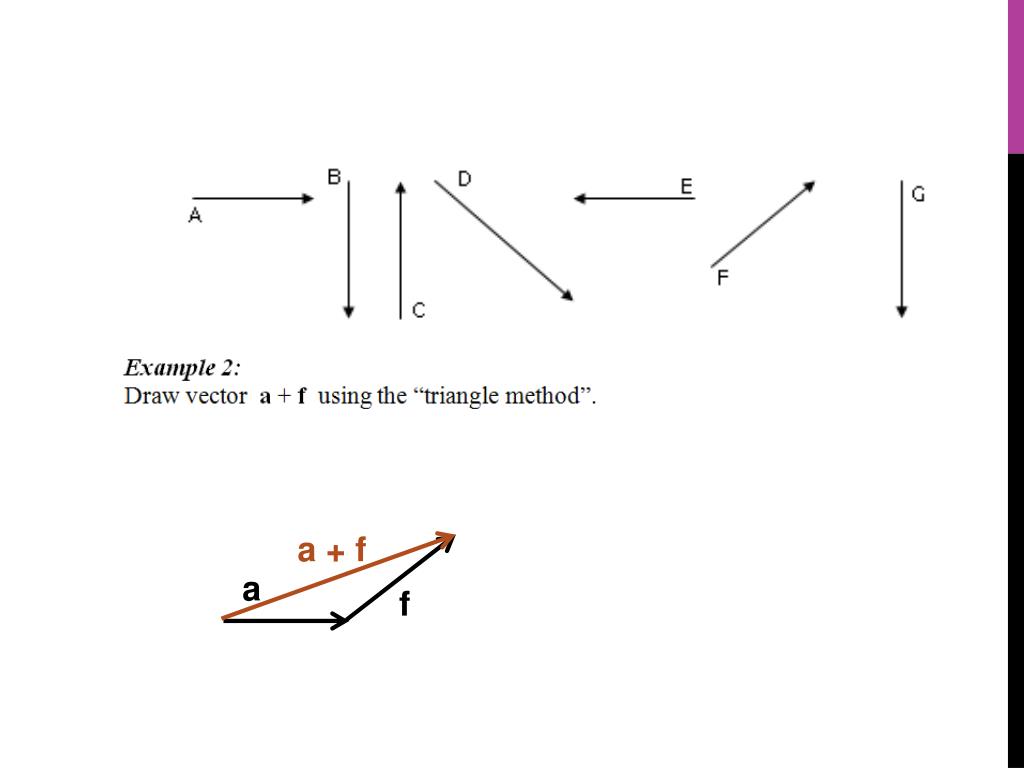

  5. a + f a f

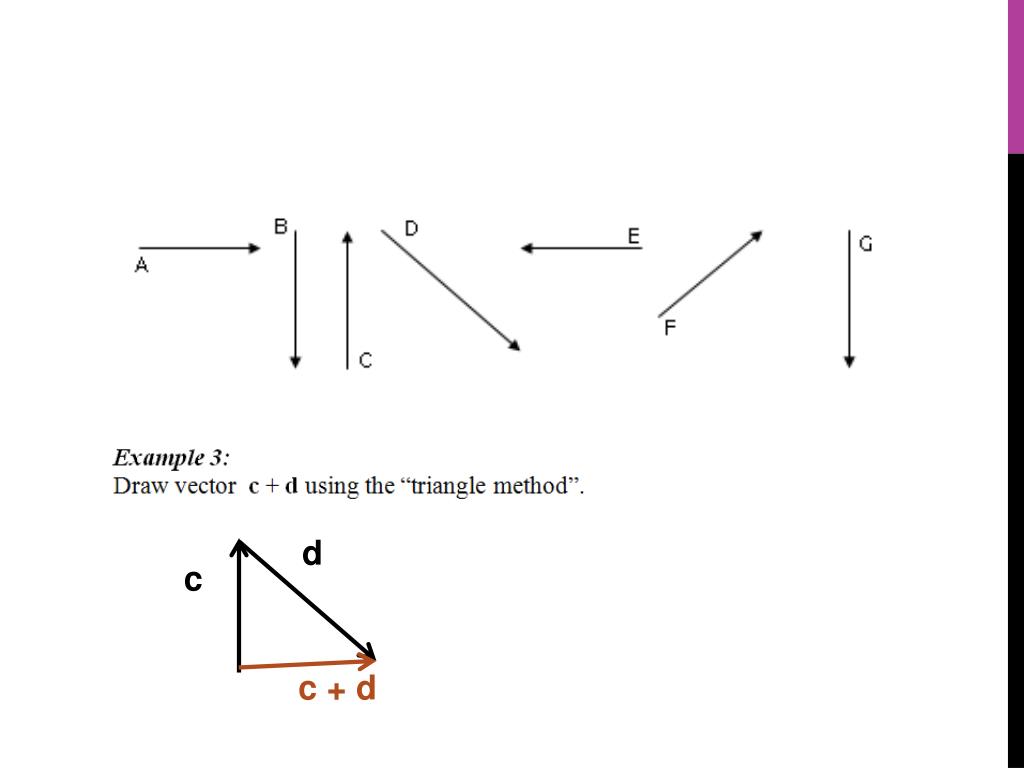

  6. d c c + d

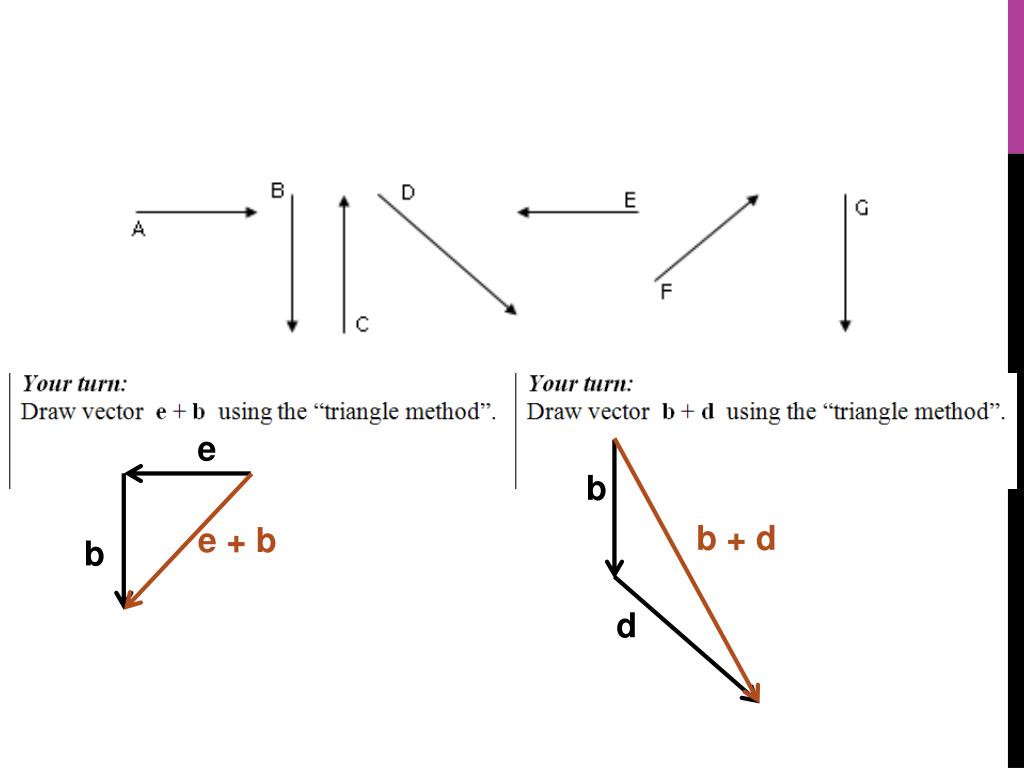

  7. e b b + d e + b b d

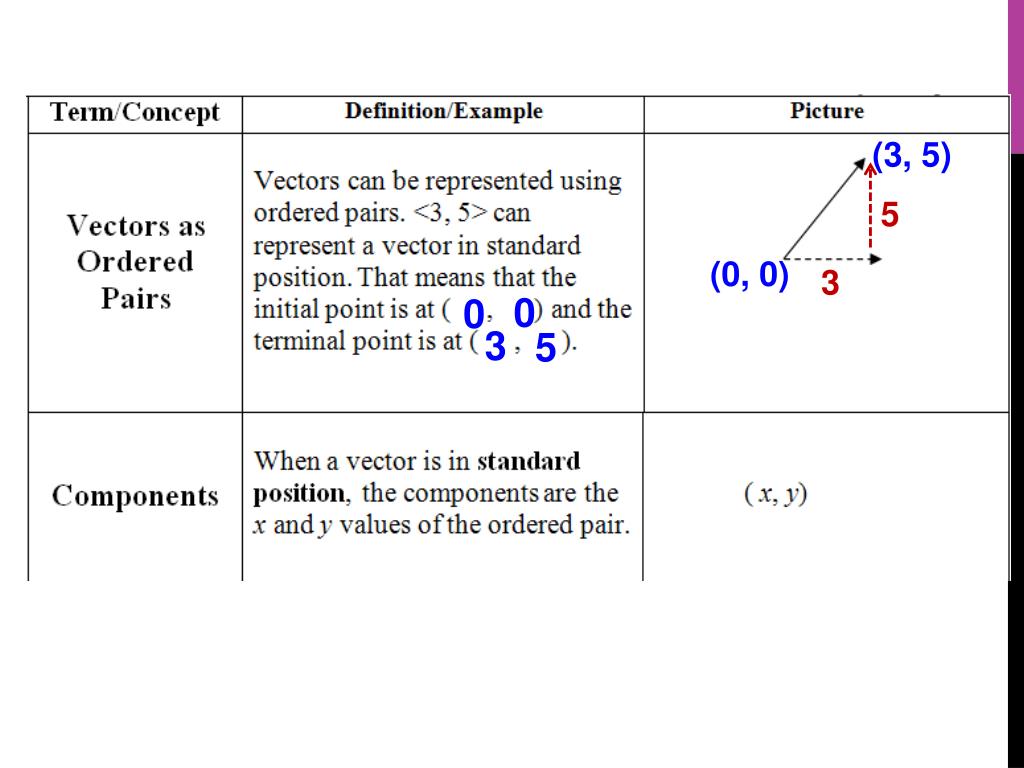

  8. (3, 5) 5 (0, 0) 3 0 0 3 5

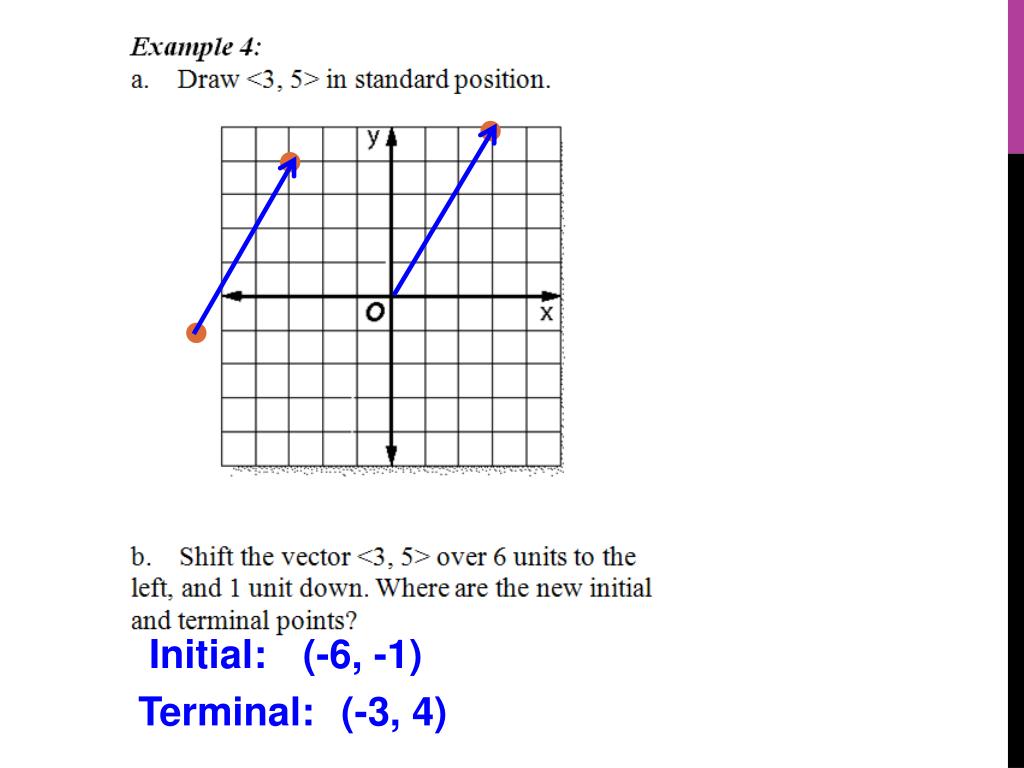

  9. Initial: (-6, -1) Terminal: (-3, 4)

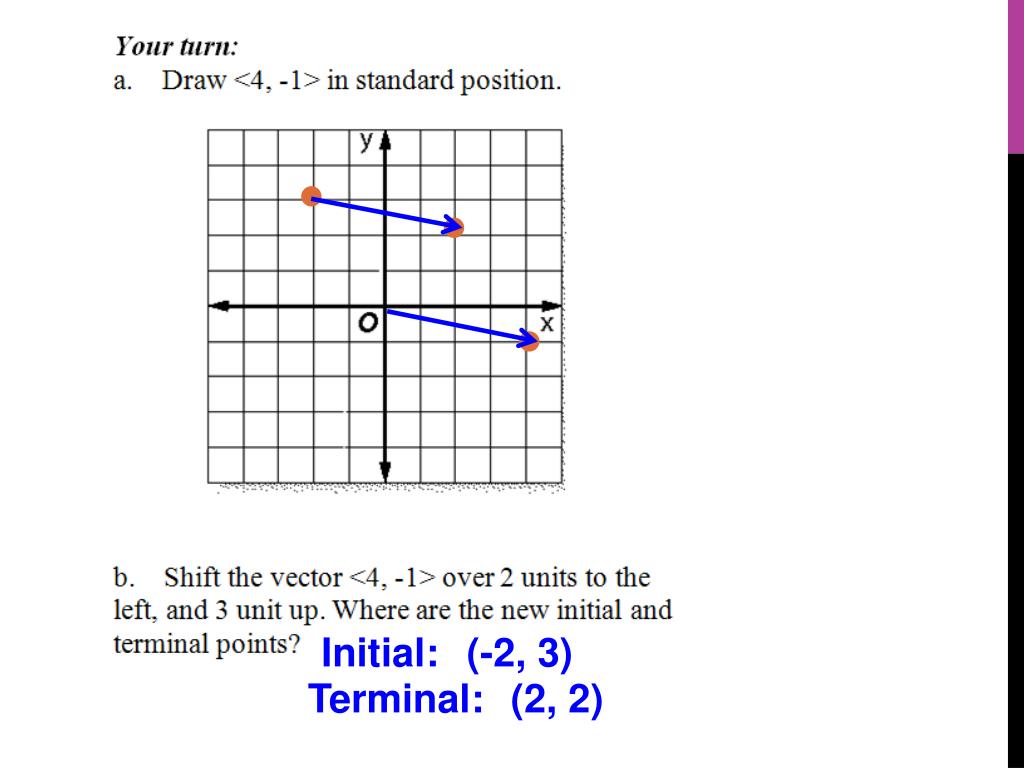

  10. Initial: (-2, 3) Terminal: (2, 2)

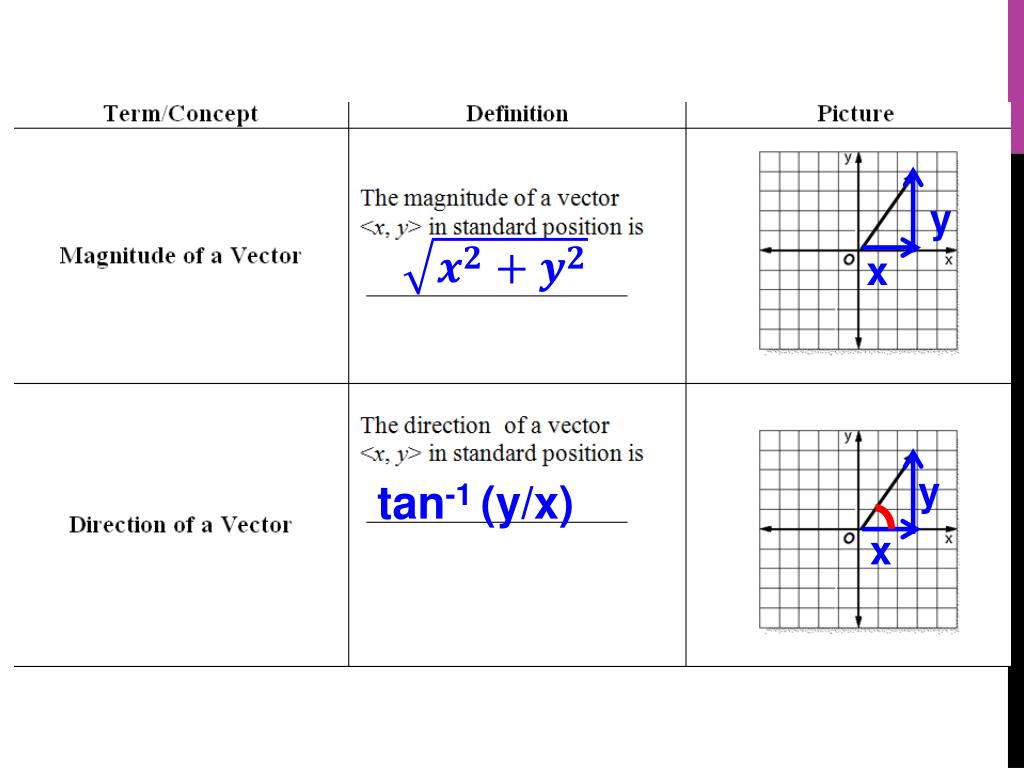

  11. y x y tan-1 (y/x) x

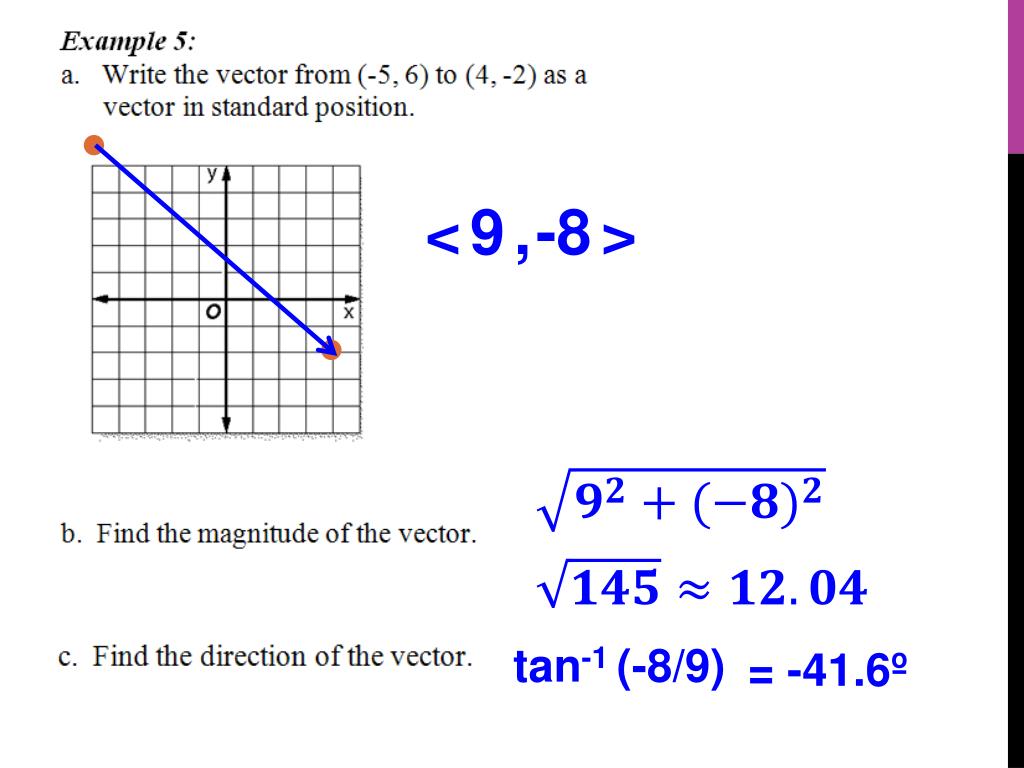

  12. < , > 9 -8 tan-1 (-8/9) = -41.6º

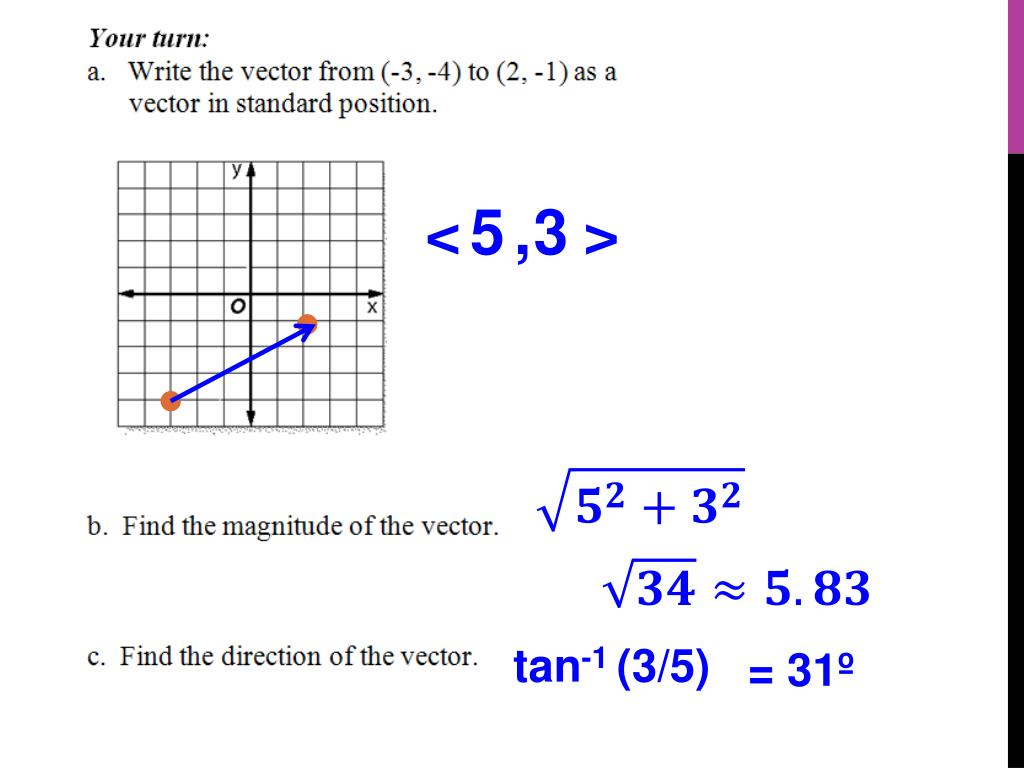

  13. 3 < , > 5 tan-1 (3/5) = 31º

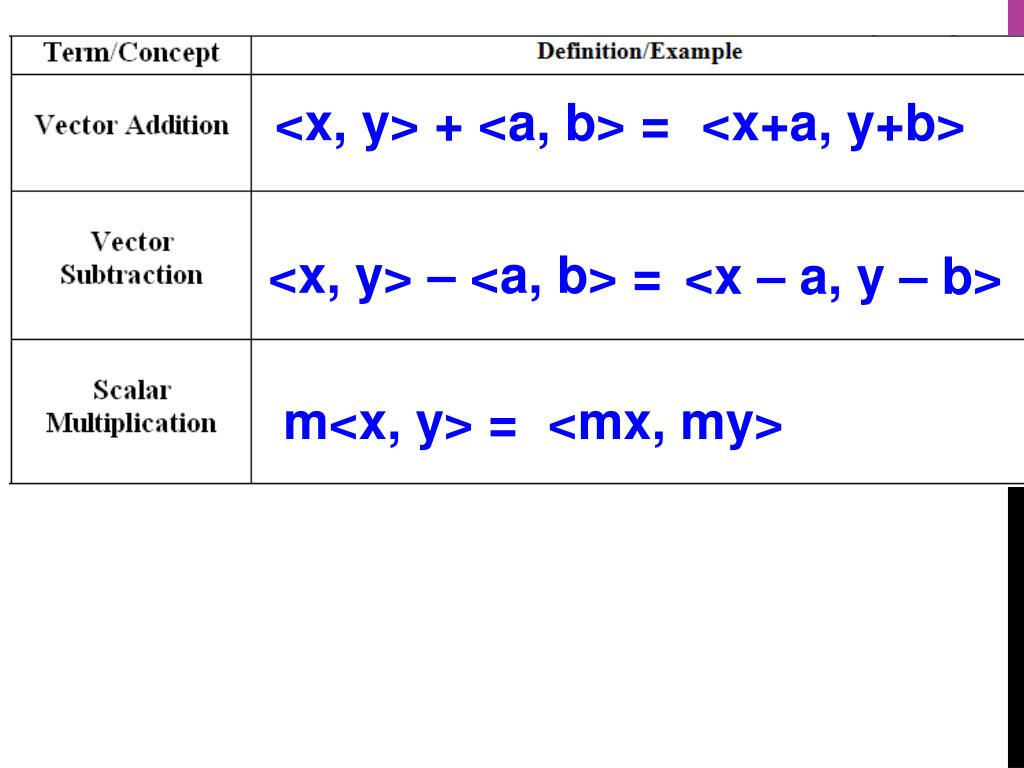

  14. <x, y> + <a, b> = <x+a, y+b> <x, y> – <a, b> = <x – a, y – b> m<x, y> = <mx, my>

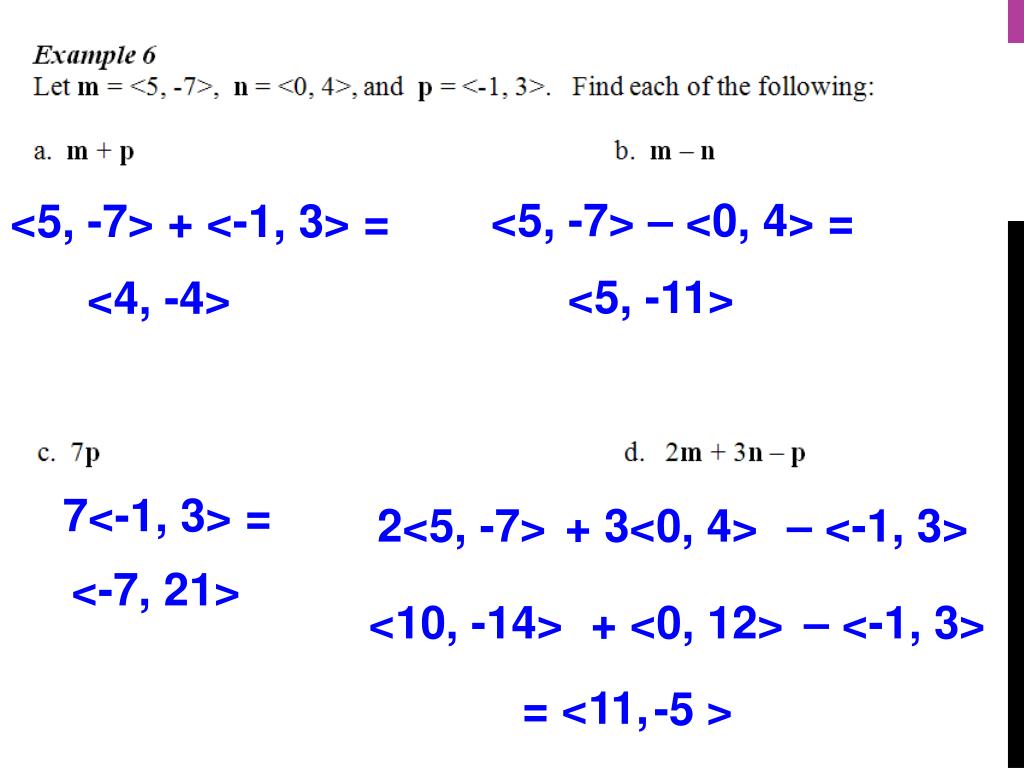

  15. <5, -7> – <0, 4> = <5, -7> + <-1, 3> = <5, -11> <4, -4> 7<-1, 3> = 2<5, -7> + 3<0, 4> – <-1, 3> <-7, 21> <10, -14> + <0, 12> – <-1, 3> = <11, -5 >

  16. ASSIGNMENT 9-6 worksheet
