Probabilistic Ranking of Database Query Results

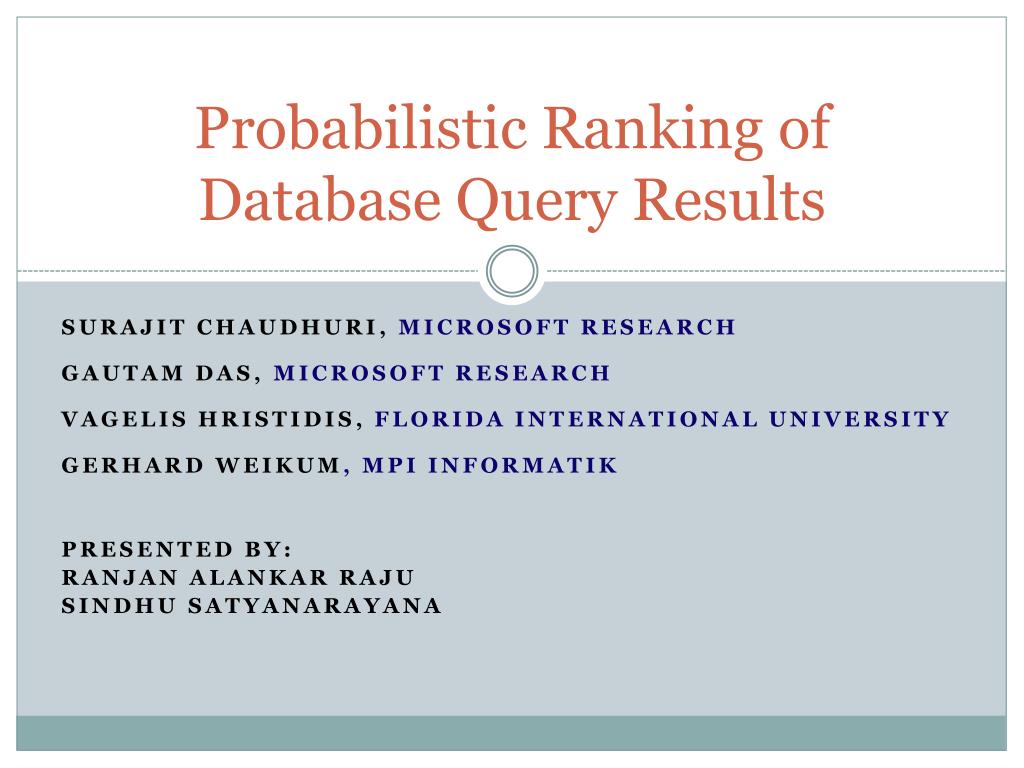

1. Probabilistic Ranking of Database Query Results SurajitChaudhuri, Microsoft Research Gautam Das, Microsoft Research VagelisHristidis, Florida International University Gerhard Weikum, MPI Informatik Presented by: Ranjanalankarraju Sindhusatyanarayana

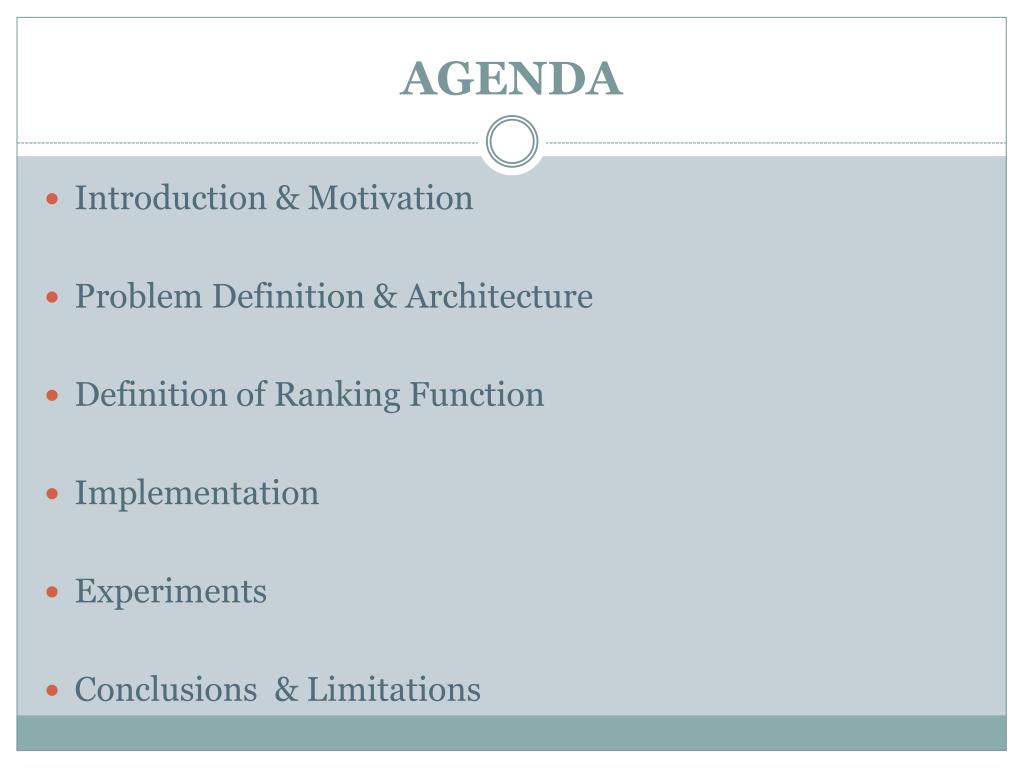

2. AGENDA • Introduction & Motivation • Problem Definition & Architecture • Definition of Ranking Function • Implementation • Experiments • Conclusions & Limitations

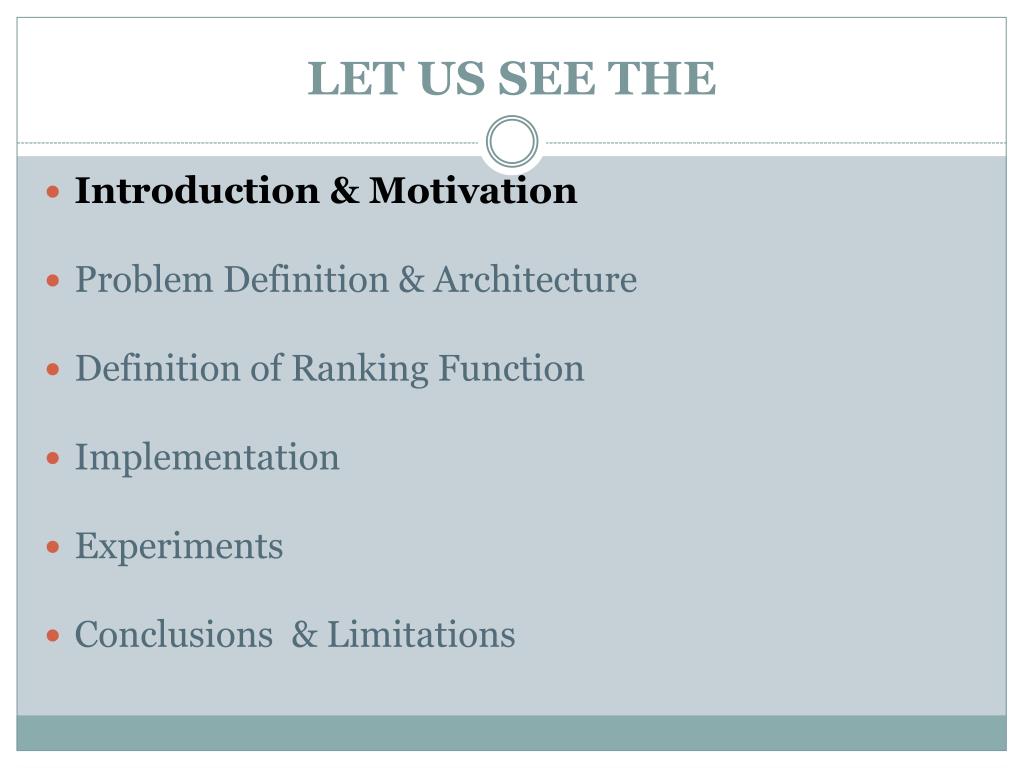

3. LET US SEE THE • Introduction & Motivation • Problem Definition & Architecture • Definition of Ranking Function • Implementation • Experiments • Conclusions & Limitations

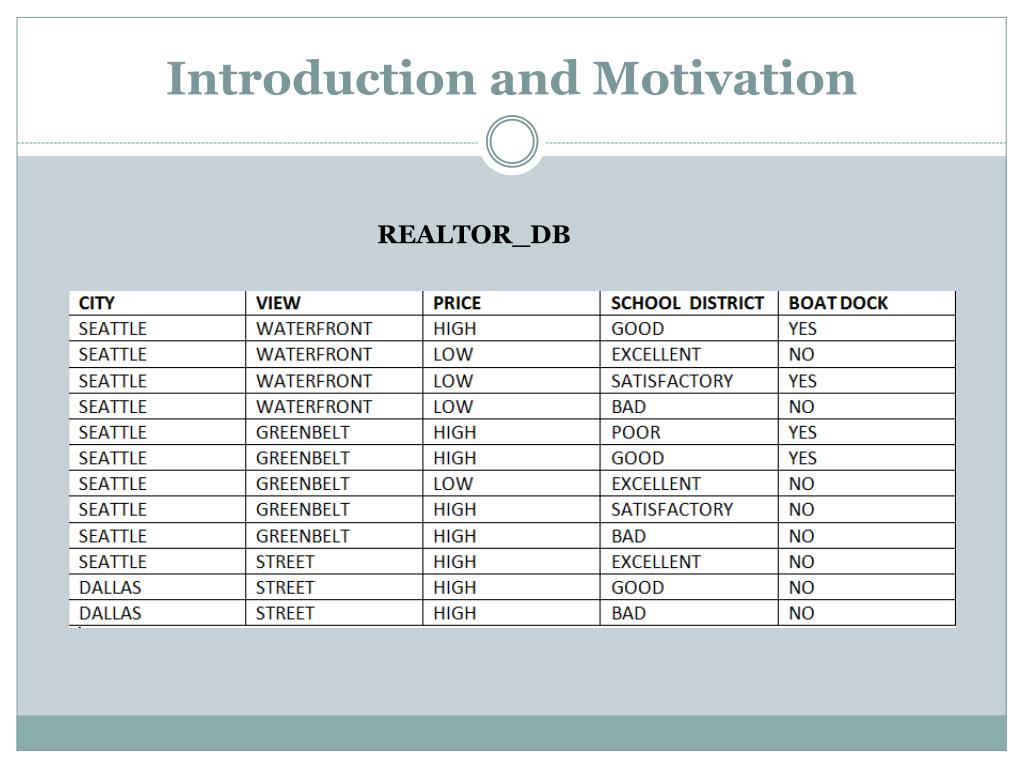

7. Introduction and Motivation REALTOR_DB

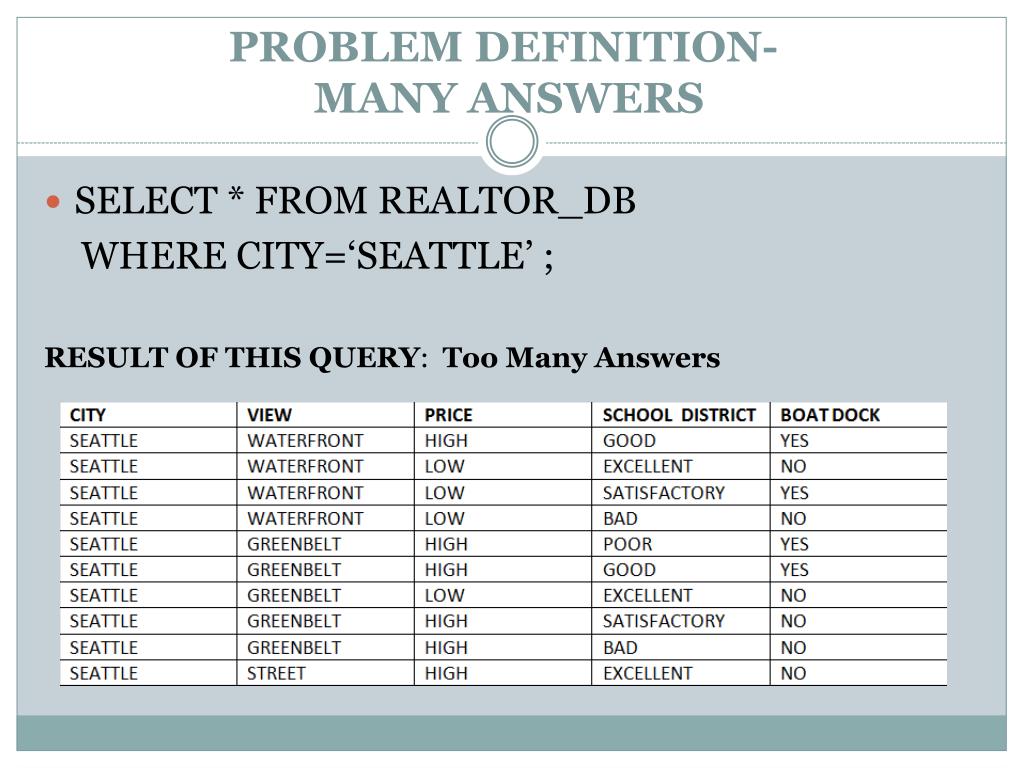

8. PROBLEM DEFINITION- MANY ANSWERS • SELECT * FROM REALTOR_DB WHERE CITY=‘SEATTLE’ ; RESULT OF THIS QUERY: Too Many Answers

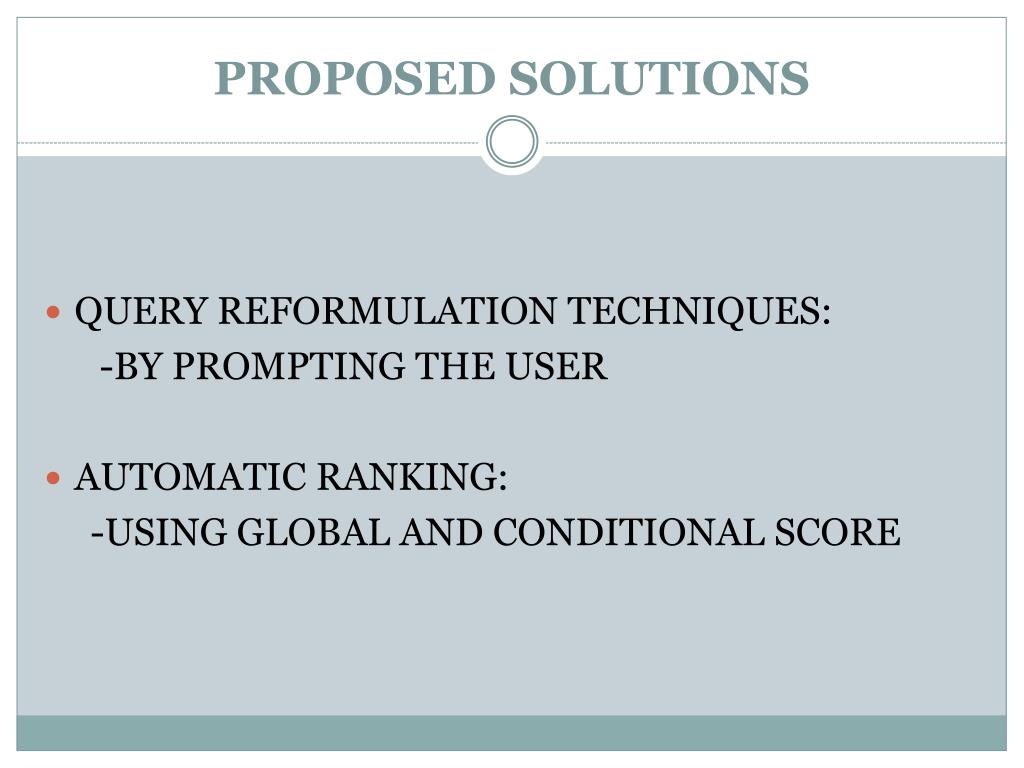

9. PROPOSED SOLUTIONS • QUERY REFORMULATION TECHNIQUES: -BY PROMPTING THE USER • AUTOMATIC RANKING: -USING GLOBAL AND CONDITIONAL SCORE

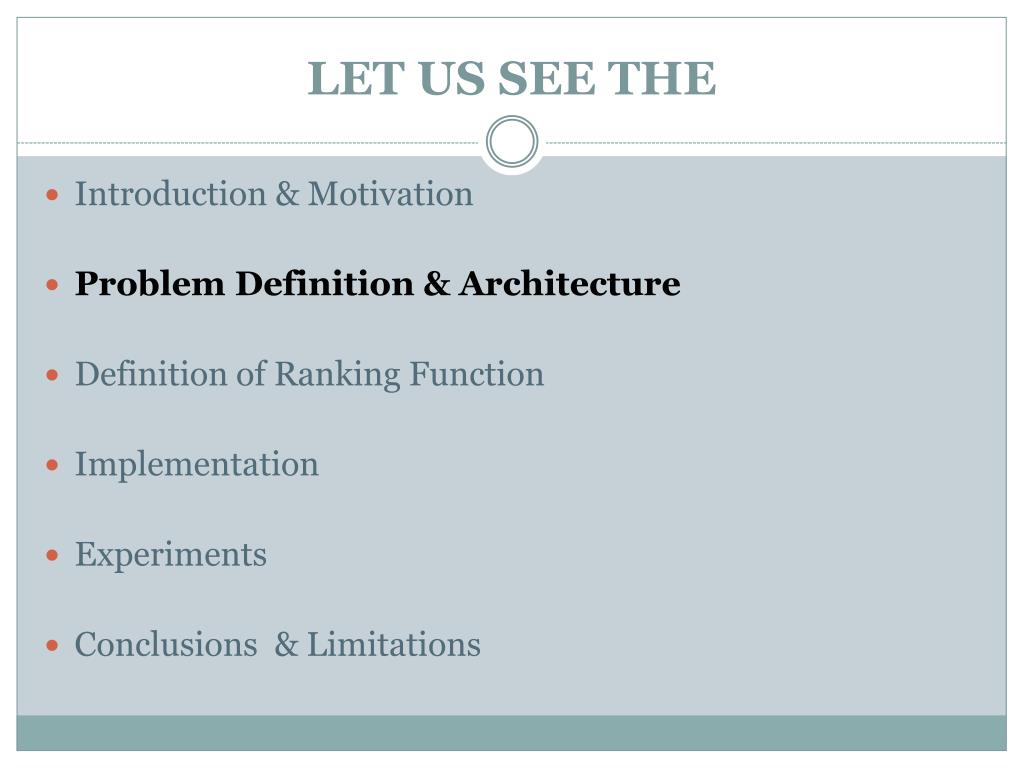

10. LET US SEE THE • Introduction & Motivation • Problem Definition & Architecture • Definition of Ranking Function • Implementation • Experiments • Conclusions & Limitations

11. DEFINITIONS AND SYMBOLS • What are Specified Attributes (Denoted as ‘X’) • City • What are Unspecified Attributes (Denoted as ‘Y’) • View • Price • SchoolDistrict • BoatDock

12. PROPOSED RANKING FUNCTION • Global Score : Global importance of unspecified attributes Eg: VIEW=‘WATERFRONT’ • Conditional Score: Correlations between specified and unspecified attributes Eg: If CITY=‘SEATTLE’ and VIEW=‘WATERFRONT’ Will BOATDOCK=‘YES’ interest him?

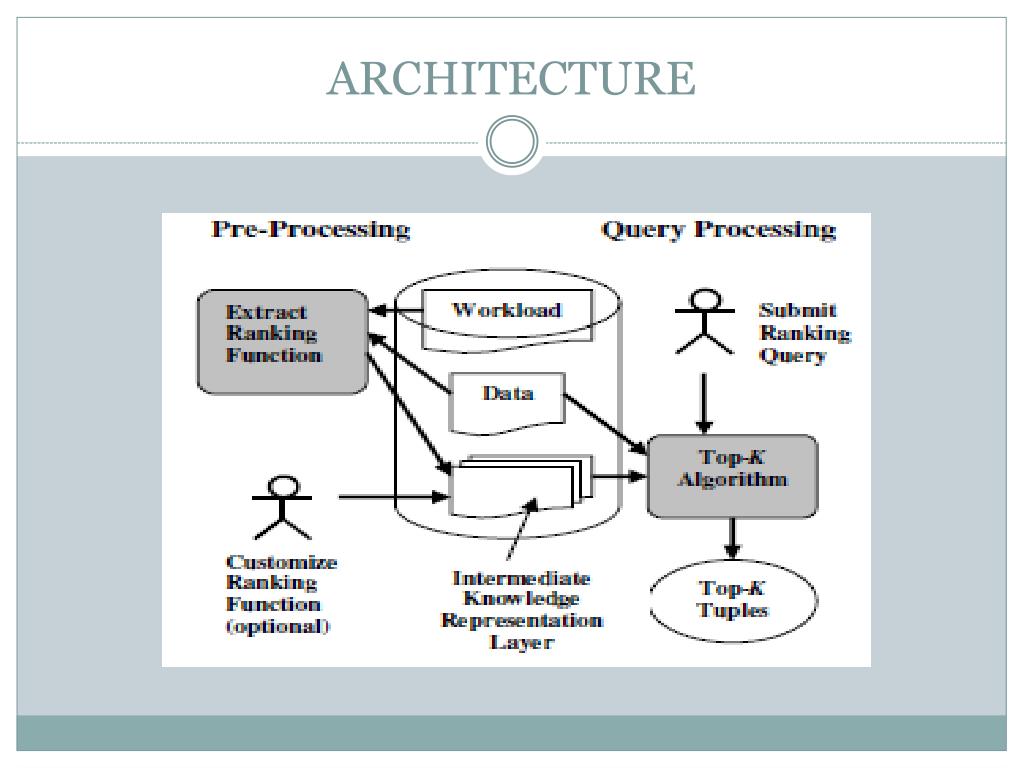

13. ARCHITECTURE

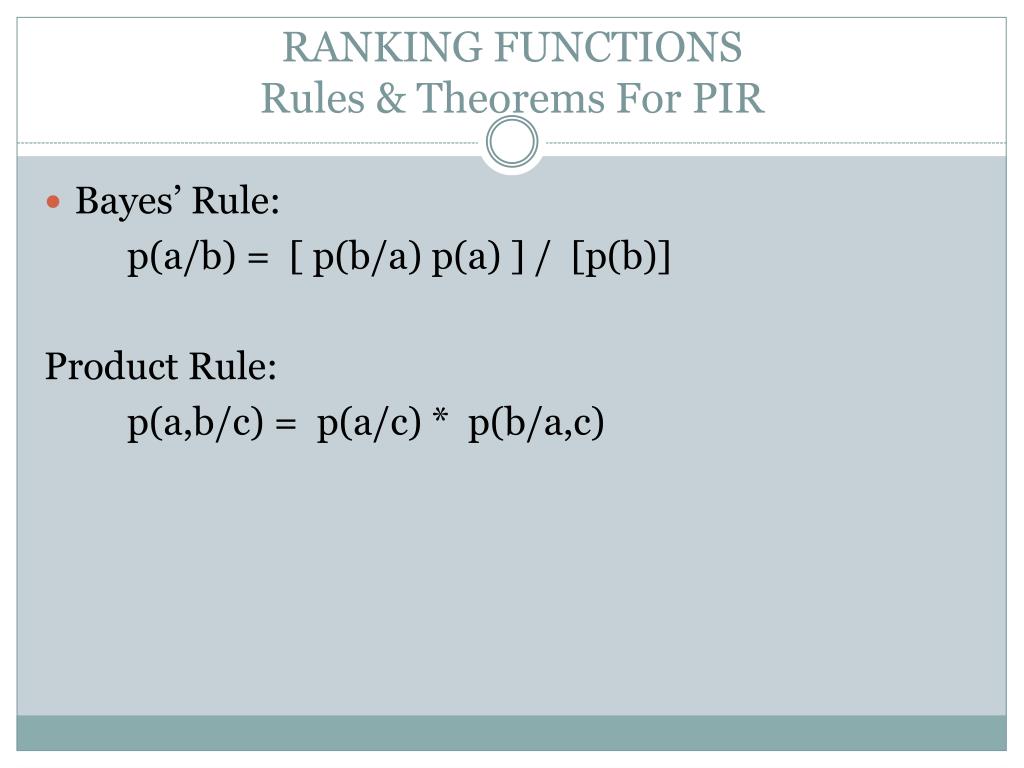

14. RANKING FUNCTIONSRules & Theorems For PIR • Bayes’ Rule: p(a/b) = [ p(b/a) p(a) ] / [p(b)] Product Rule: p(a,b/c) = p(a/c) * p(b/a,c)

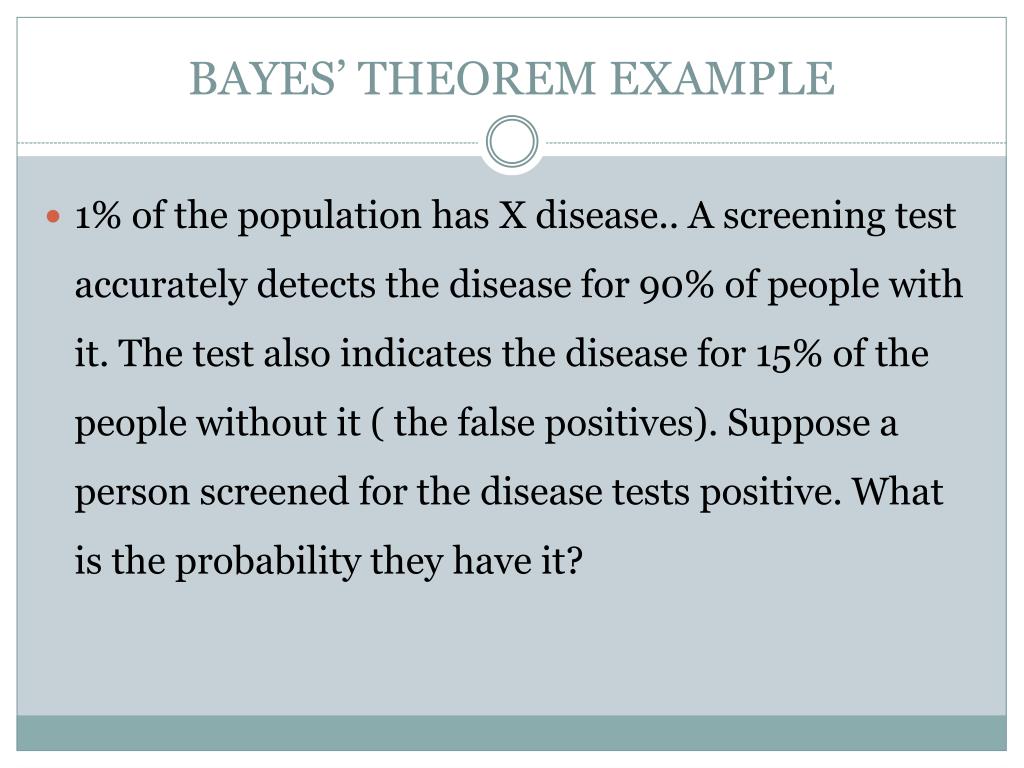

15. BAYES’ THEOREM EXAMPLE • 1% of the population has X disease.. A screening test accurately detects the disease for 90% of people with it. The test also indicates the disease for 15% of the people without it ( the false positives). Suppose a person screened for the disease tests positive. What is the probability they have it?

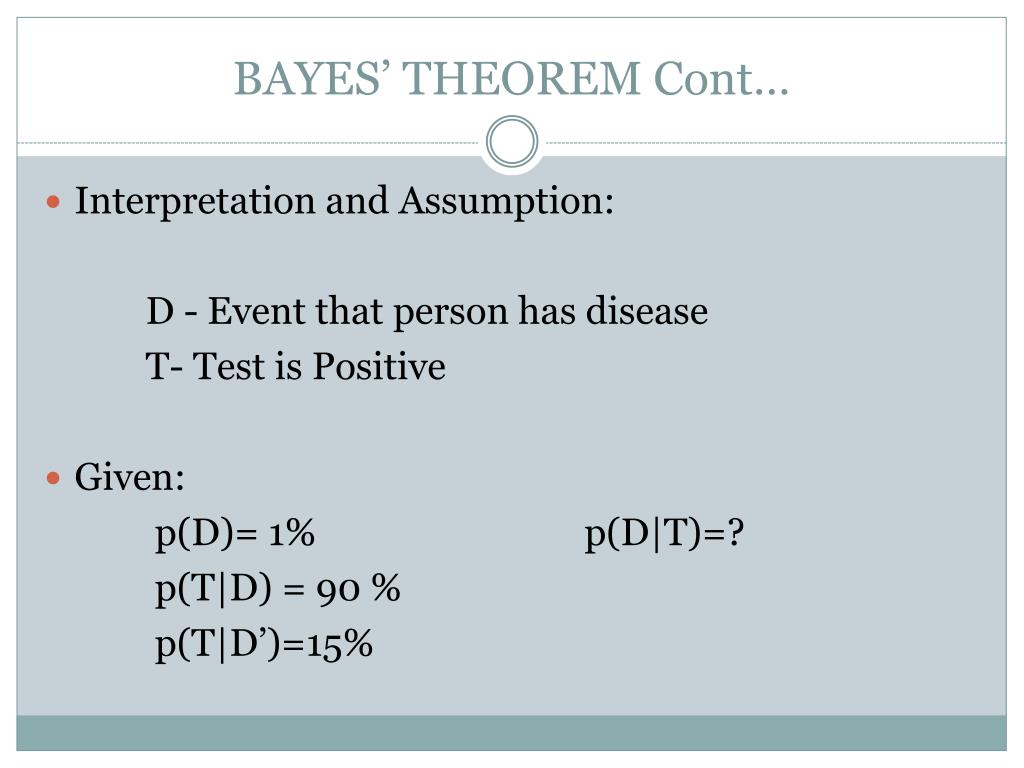

16. BAYES’ THEOREM Cont… • Interpretation and Assumption: D - Event that person has disease T- Test is Positive • Given: p(D)= 1% p(D|T)=? p(T|D) = 90 % p(T|D’)=15%

17. Tree structure Interpretation Four Cases 1. (D n T)-Has disease and test +ve. 3. (D’ n T)- No disease and test +ve. 2. (D n T’)-Has disease and test –ve. 4. (D’ n T’)- No disease and test –ve. 1 D’ D T T T’ T’

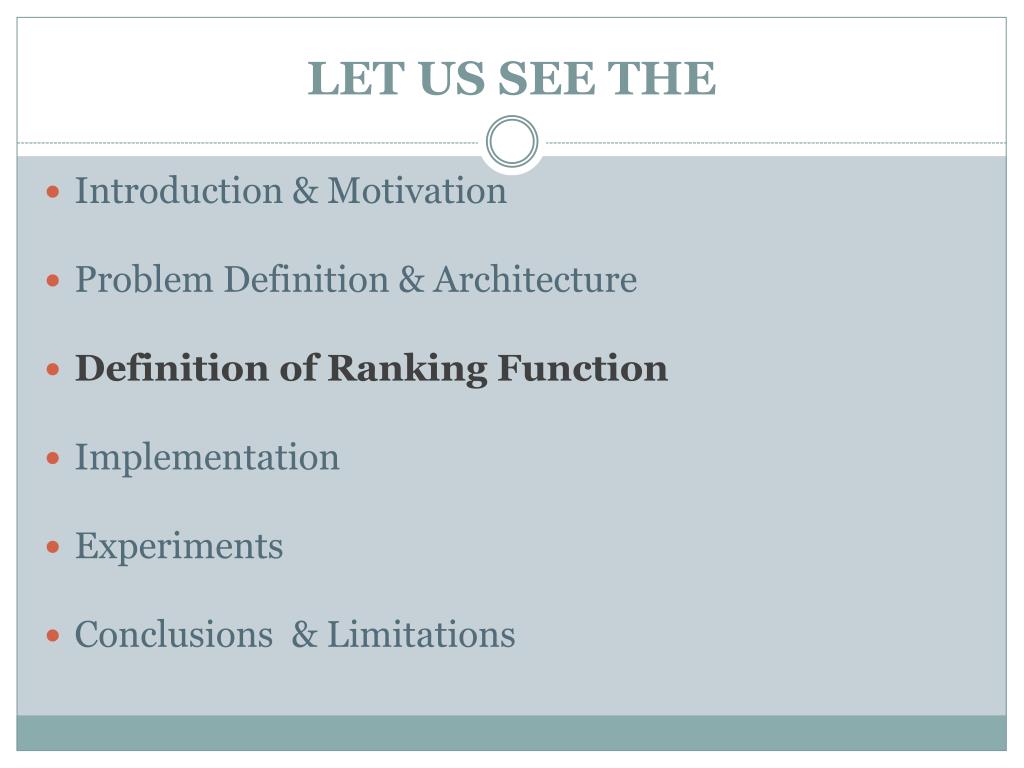

18. LET US SEE THE • Introduction & Motivation • Problem Definition & Architecture • Definition of Ranking Function • Implementation • Experiments • Conclusions & Limitations

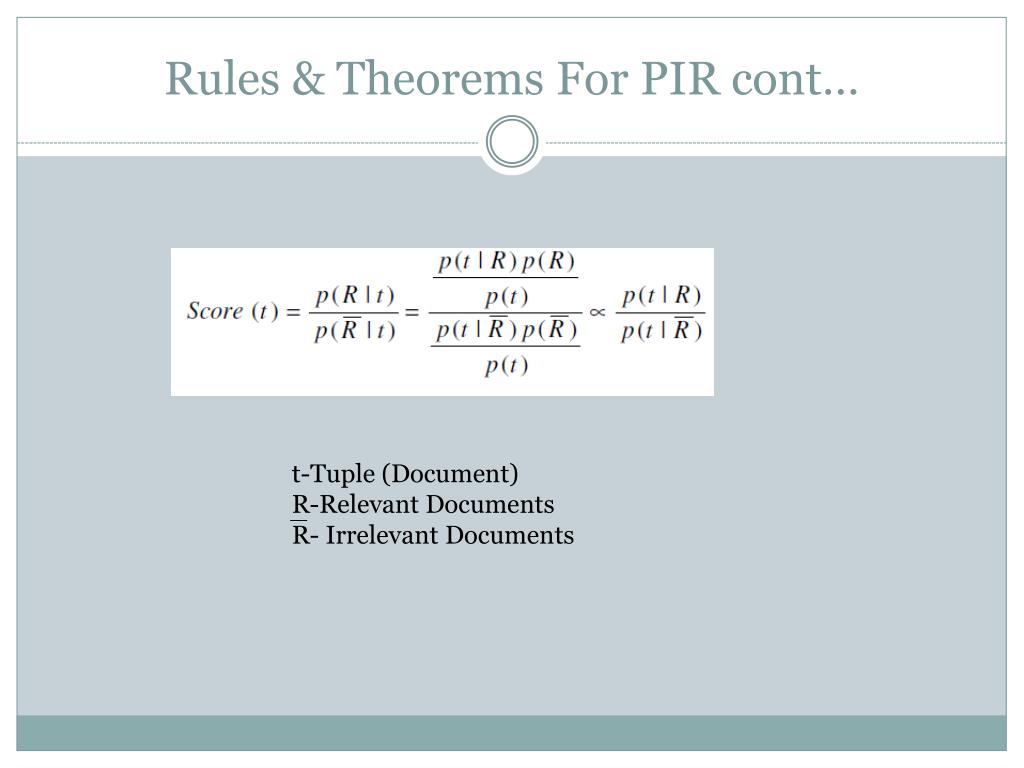

19. Rules & Theorems For PIR cont… t-Tuple (Document) R-Relevant Documents R- Irrelevant Documents

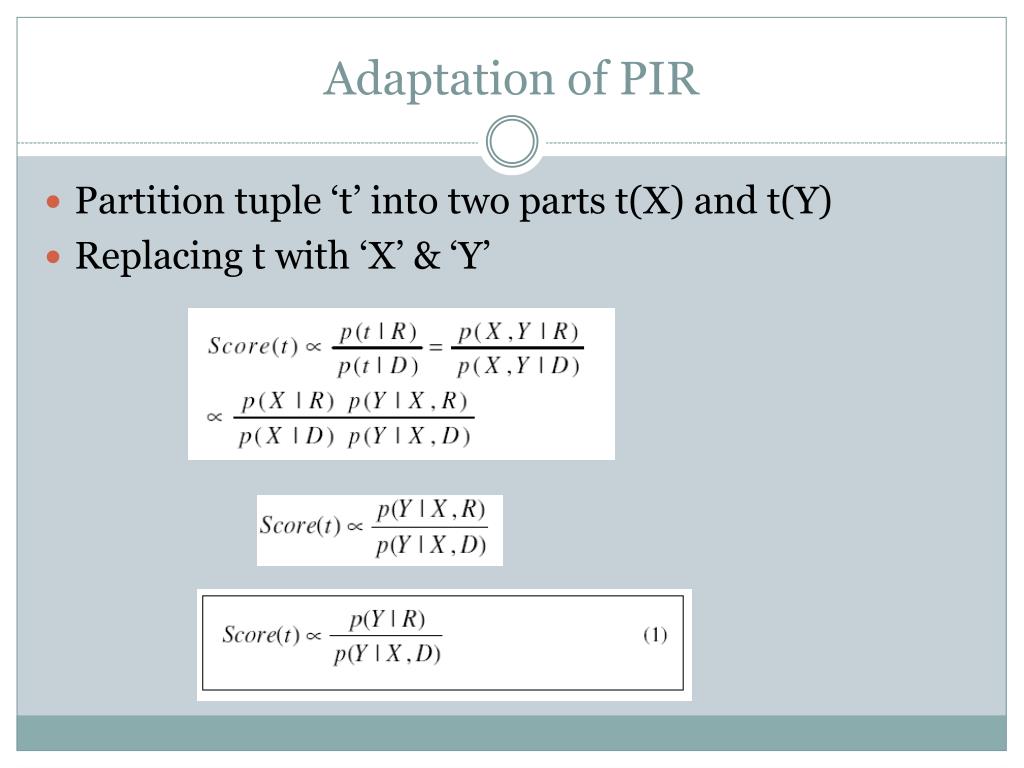

20. Adaptation of PIR • Partition tuple ‘t’ into two parts t(X) and t(Y) • Replacing t with ‘X’ & ‘Y’

21. Adaptation of PIR cont… • QUERY SPECIFIED BY USER: Select * From Realtor_db where City=‘Seattle’ and Price=‘High’; • FINAL RANKING: • Waterfront Views • Greenbelt Views • Street Views

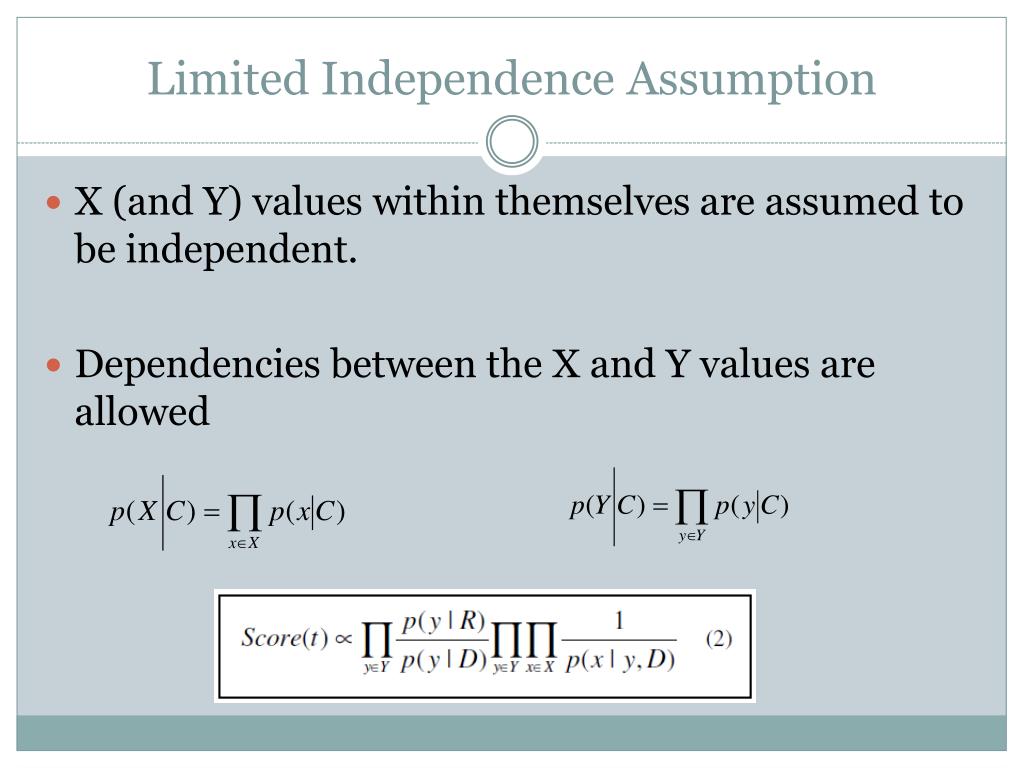

22. Limited Independence Assumption • X (and Y) values within themselves are assumed to be independent. • Dependencies between the X and Y values are allowed

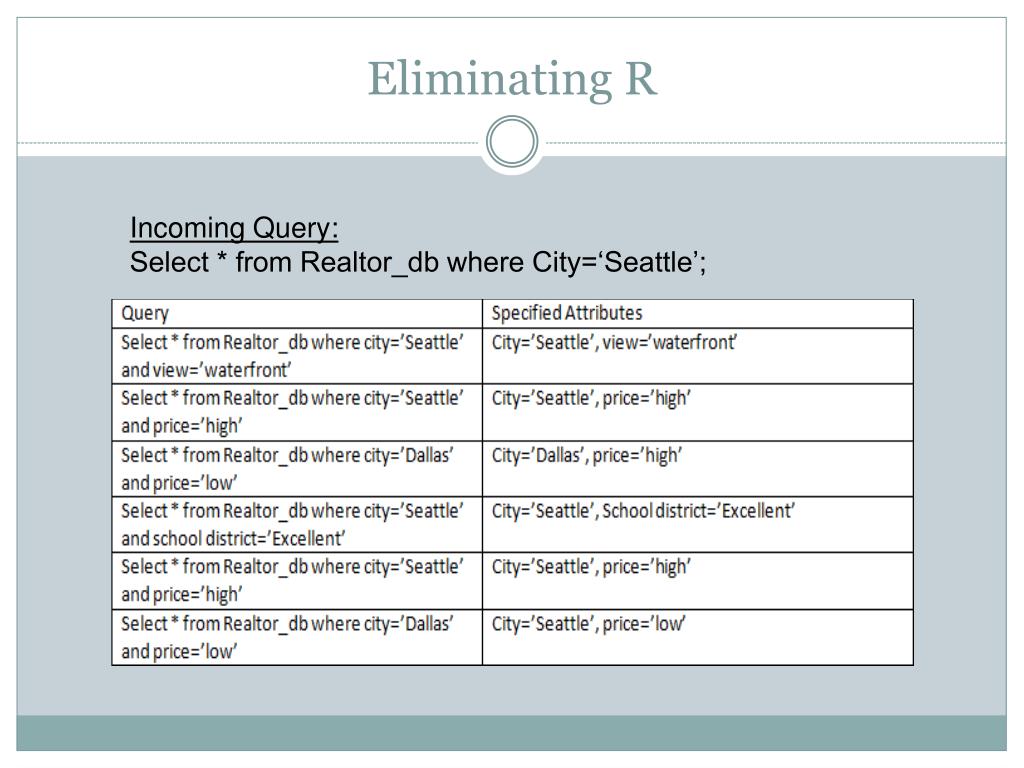

23. Eliminating R Incoming Query: Select * from Realtor_db where City=‘Seattle’;

24. Workload-Based Estimation FINAL RANKING FORMULA Where: p(y|W) = Relative frequency of unspecified attribute ‘y’ given workload ‘W’ p(y|D)= Relative frequency of unspecified attribute ‘y’ given data base ‘D’ p(x|y,W)=Frequency of correlation between x and y in W P(x|y,D)=Frequency of correlation between x and y in D

25. Detailed Process

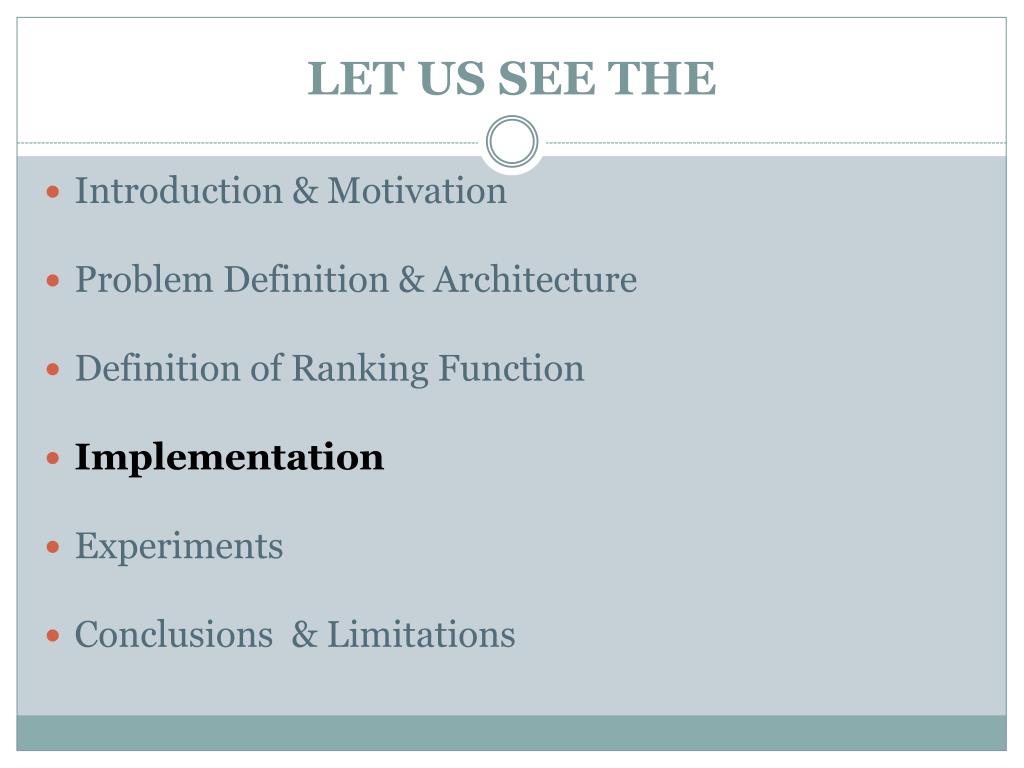

26. LET US SEE THE • Introduction & Motivation • Problem Definition & Architecture • Definition of Ranking Function • Implementation • Experiments • Conclusions & Limitations

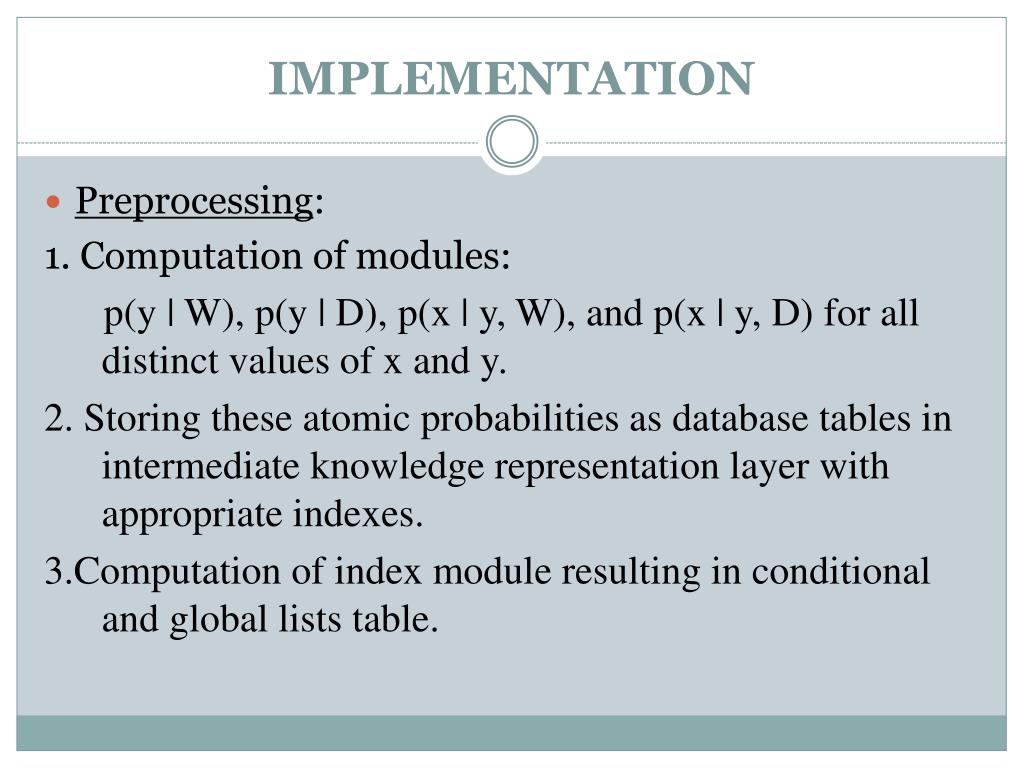

27. IMPLEMENTATION • Preprocessing: 1. Computation of modules: p(y | W), p(y | D), p(x | y, W), and p(x | y, D) for all distinct values of x and y. 2. Storing these atomic probabilities as database tables in intermediate knowledge representation layer with appropriate indexes. 3.Computation of index module resulting in conditional and global lists table.

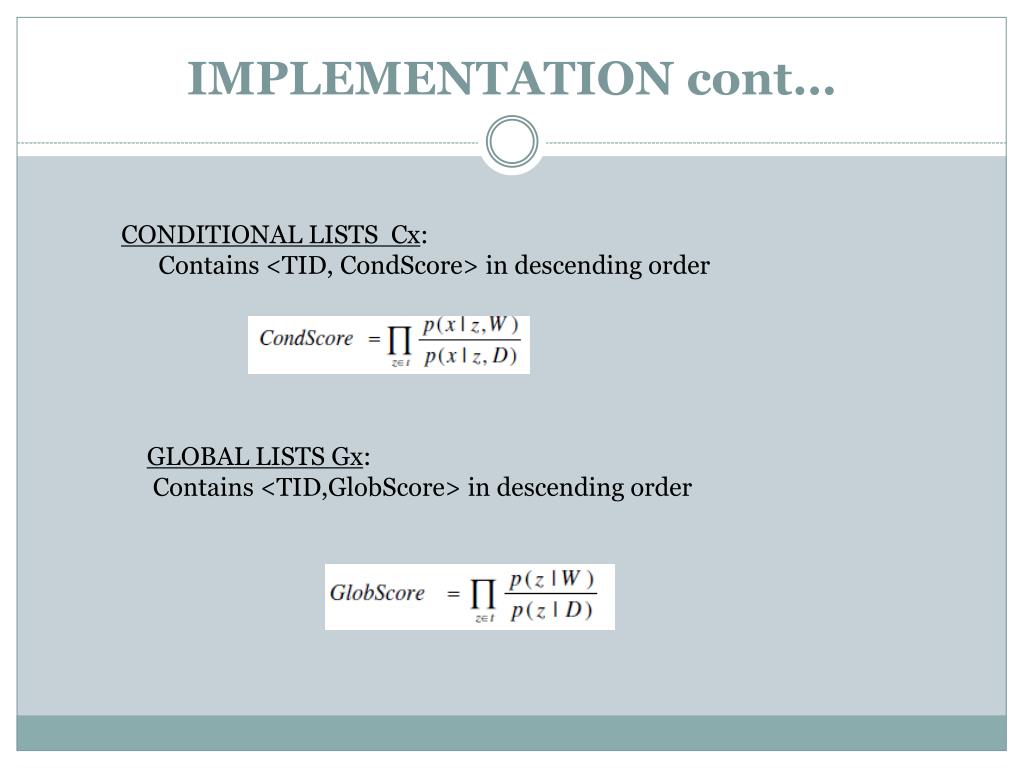

28. IMPLEMENTATION cont… CONDITIONAL LISTS Cx: Contains <TID, CondScore> in descending order GLOBAL LISTS Gx: Contains <TID,GlobScore> in descending order

29. IMPLEMENTATION cont…

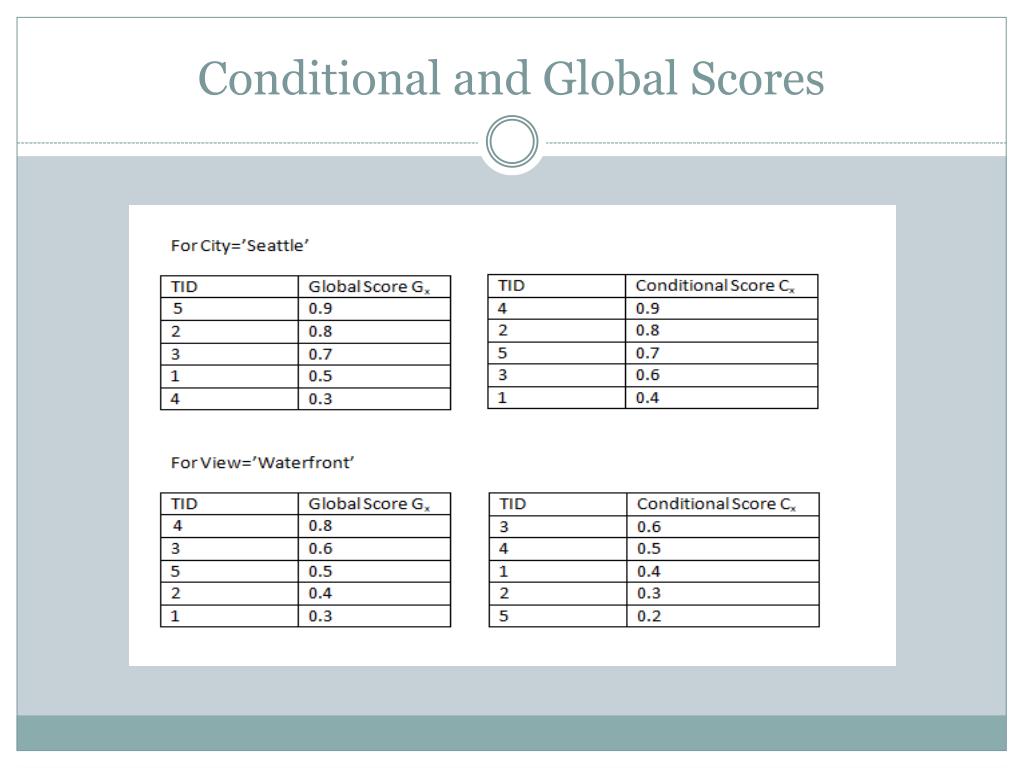

30. Conditional and Global Scores

31. Conditional and Global List tables

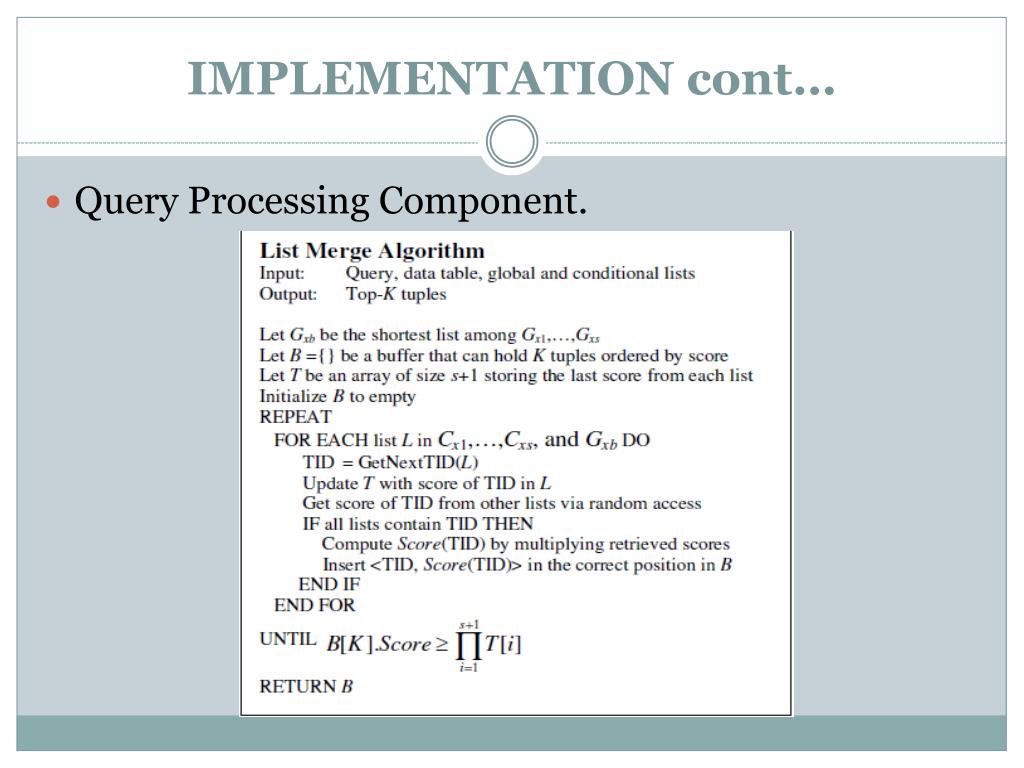

32. IMPLEMENTATION cont… • Query Processing Component.

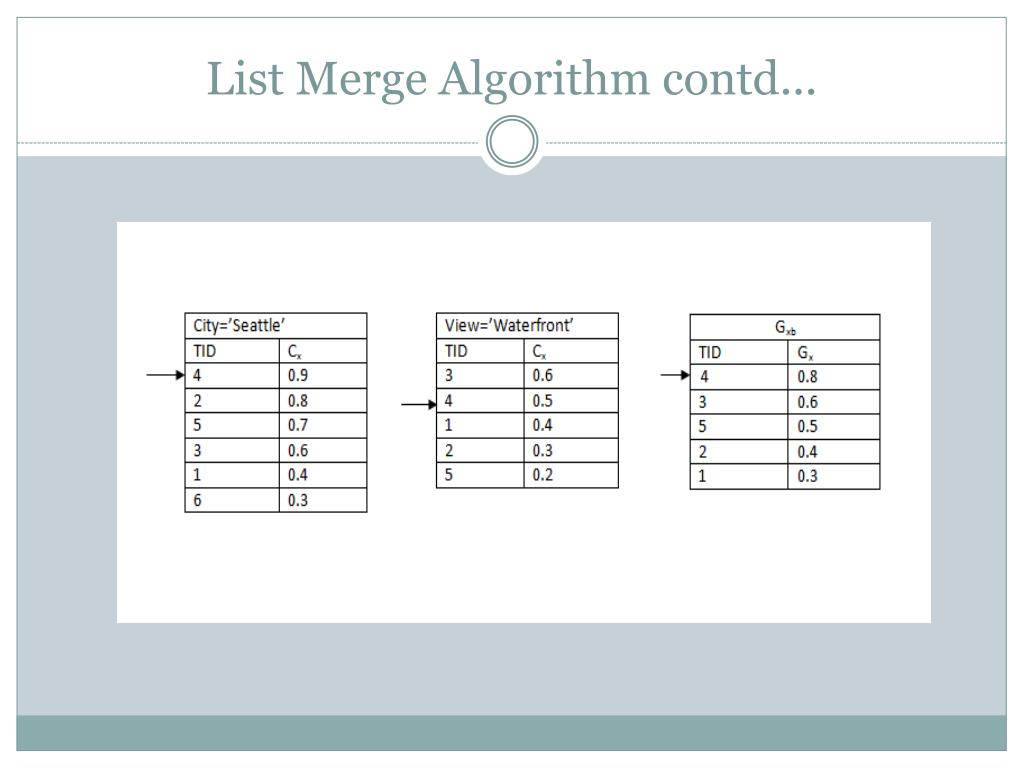

33. List Merge Algorithm contd...

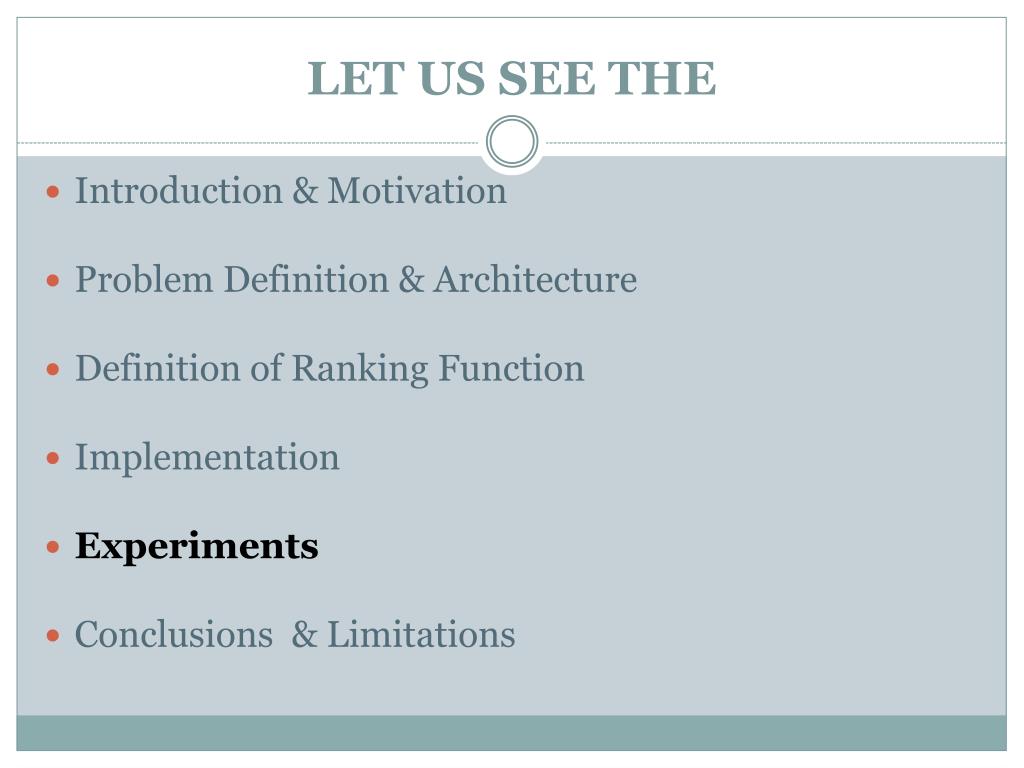

34. LET US SEE THE • Introduction & Motivation • Problem Definition & Architecture • Definition of Ranking Function • Implementation • Experiments • Conclusions & Limitations

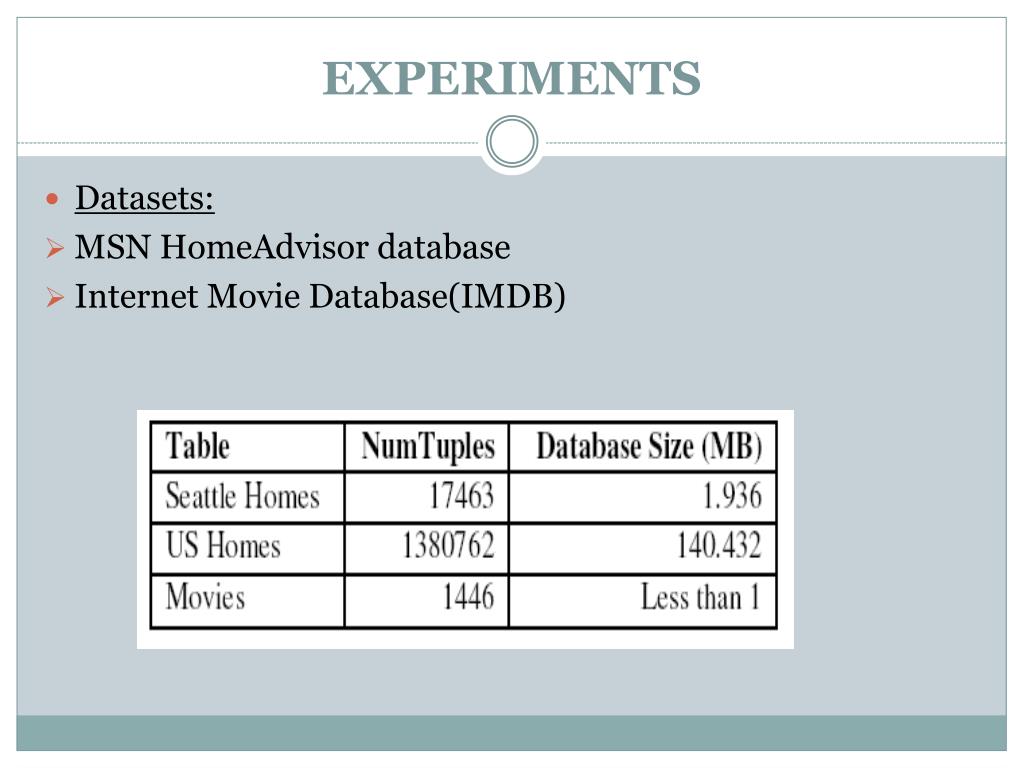

35. EXPERIMENTS • Datasets: • MSN HomeAdvisor database • Internet Movie Database(IMDB)

36. Quality Experiments • Examples of Ranking Results: Query: select * from SeattleHomes where City=‘Seattle’ and Bedroom=1; • Conditional ranked condos with garages the highest • Global failed to recognize importance of the unspecified attribute Garage=‘Y’

37. Quality Experiments • User Preference of Rankings: • Users given top 5 results of rankings for 5 queries • Ranking preferred by users indicated below:

38. LET US SEE THE • Introduction & Motivation • Problem Definition & Architecture • Definition of Ranking Function • Implementation • Experiments • Conclusions & Limitations

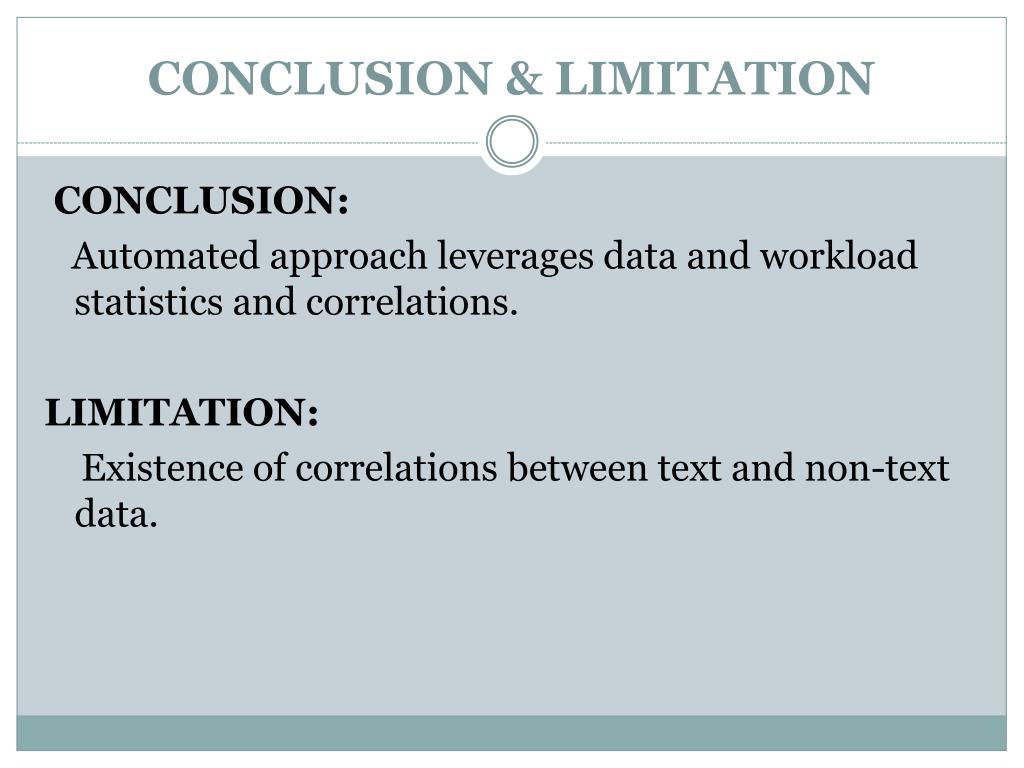

39. CONCLUSION & LIMITATION CONCLUSION: Automated approach leverages data and workload statistics and correlations. LIMITATION: Existence of correlations between text and non-text data.
