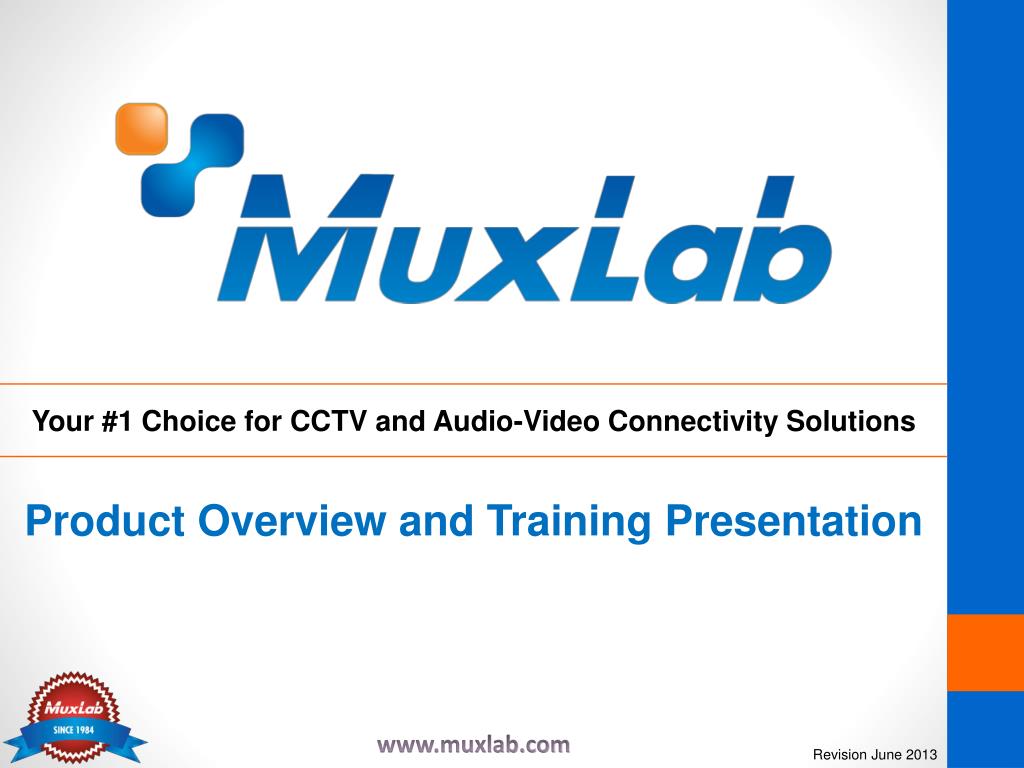

  1. Your #1 Choice for CCTV and Audio-Video Connectivity Solutions Product Overview and Training Presentation www.muxlab.com Revision June 2013

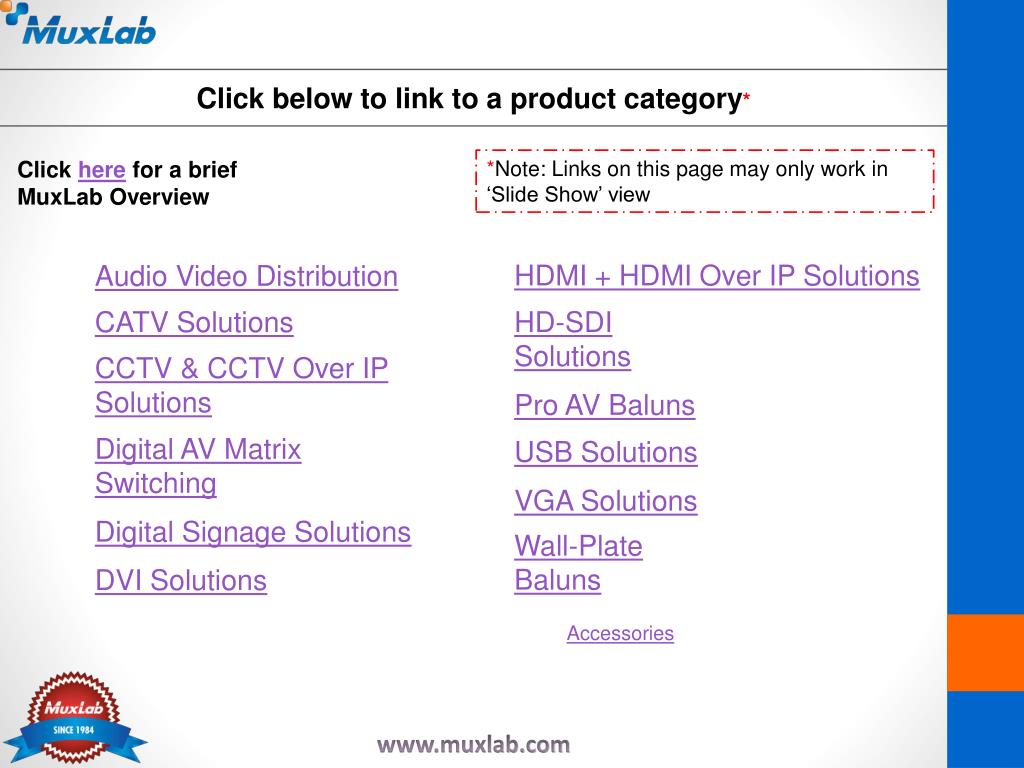

  2. Click below to link to a product category* Click here for a brief MuxLab Overview *Note: Links on this page may only work in ‘Slide Show’ view HDMI + HDMI Over IP Solutions Audio Video Distribution CATV Solutions HD-SDI Solutions CCTV & CCTV Over IP Solutions Pro AV Baluns Digital AV Matrix Switching USB Solutions VGA Solutions Digital Signage Solutions Wall-Plate Baluns DVI Solutions Accessories www.muxlab.com

  3. Solutions for all of your needs • Audio-Video • CATV • CCTV & CCTV IP • HD CCTV • Component Video • Digital AV • DVI • VGA & Digital Signage • HDMI • Pro-AV • HD-SDI • USB • Baluns • Converters • Hubs • Extenders • Switchers • Accessories www.muxlab.com

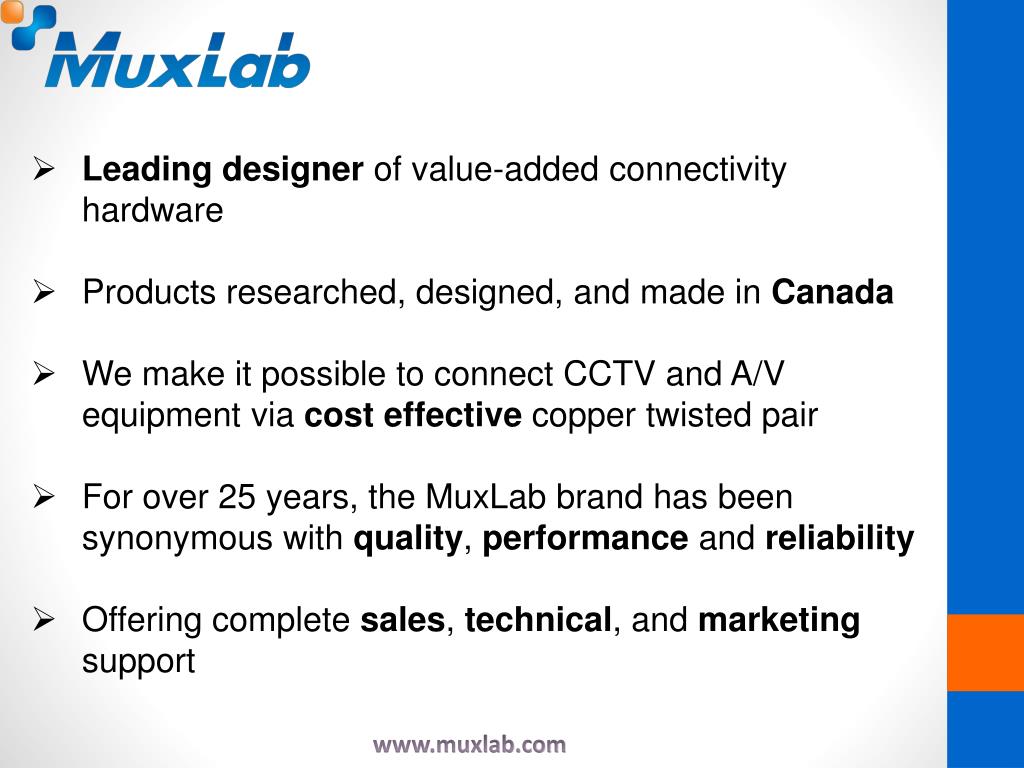

  4. Leading designer of value-added connectivity hardware • Products researched, designed, and made in Canada • We make it possible to connect CCTV and A/V equipment via cost effective copper twisted pair • For over 25 years, the MuxLab brand has been synonymous with quality, performanceand reliability • Offering complete sales, technical, and marketing support www.muxlab.com

  5. Classroom Video CCTV Security and Surveillance Digital Signage Podium Presentation Home Theatre & Guestroom Entertainment Boardroom Projection Systems Medical Imaging www.muxlab.com

  6. Your #1 Choice for CCTV and Audio-Video Connectivity Solutions CCTV & CCTV Over IP Solutions www.muxlab.com Revision June 2013

  7. CCTV Solutions Passive CCTV Baluns (500000, 500007, 500009, 500023, 500031, 500037) • Allows a CCTV camera to be connected to a DVR or multiplexer via Cat5 twisted pair instead of coax • Up to 2,200 ft (670m)* 500009 500000 500037 500023 www.muxlab.com * Less distance with DVR. Typical 1,000-1,500ft

  8. CCTV Solutions Passive Pass-Thru Solution (500022, 500024, 50013x) CCTV Power-Thru Converter Balun (500024-CNV) • Combines video, power and PTZ control under one 4-pair Cat 5 cable • Video up to 2,200 ft (670m) via Cat 5 UTP* • 24VAC/5W via 2 pairs up to 350 ft (105m)** • Compact - fits dome cameras, back boxes • Built-in leads - fewer points of failure • Video and remote power via one 4-pair Cat 5e/6 cable • Converts 24VAC to 12VDC/400mA at the camera • Video up to 2,200 ft (670m) via Cat 5e/6 UTP* • Transmits 24VAC up to 795 ft (242m) @ 400mA max • Installed at the camera side • Works with 500024/130/124/126/127/136 500024 www.muxlab.com *Shorter distances with DVR equipment ** Greater distances achievable @ 28VAC

  9. CCTV Solutions CCTV Power-Thru Converter Balun (500024-CNV) Application Diagram www.muxlab.com *Shorter distances with DVR equipment ** Greater distances achievable @ 28VAC

  10. CCTV Solutions Passive CCTV Power Integrator Hub, 24VAC (500136-US) Active CCTV Transmitter Balun (500100) • Built-in 16-channel 350VA PSU • Voltage selector switch per port: 24VAC or 28VAC • Port configuration: Power-Thru or Pass-Thru mode • 2U rack height • Auto-resettable fuses on each port • Supports up to 3,000 ft via Cat5 • Derives less than 0.7W power from camera • Fits inside dome cameras and back boxes • Compatible with MuxLab CCTV baluns • Ground loop isolation • Gain compensation • Cable strain relief www.muxlab.com

  11. CCTV Solutions LongReach II Active CCTV Balun (500124) LongReach II Active CCTV Receiver Hub (500126, 500127) • Up to 5,000 feet (1.5 km) via Cat5e/6 • Up to 7,000 feet (2.1 km) via Cat5e/6 with 500100/101 at camera • Auto Gain Control (AGC) • Video, power and PTZ over one Cat5e/6 • Supports MuxLab mounting accessories (500900/902/910/915) • Auto Polarity Correction • Ground Loop Isolation (GLI) • LED diagnostics • 8 or 16 channel analog CCTV hub • Up to 5,000 feet (1.5 km) via Cat5e/6 • Up to 7,000 feet (2.1 km) via Cat5e/6 with 500100/101 at camera • Video, power and PTZ over one Cat5e/6 • Auto Gain Control (AGC) • Auto Polarity Correction • Ground Loop Isolation (GLI) • LED diagnostics 500127 www.muxlab.com

  12. CCTV Solutions LongReach II Active CCTV Balun (500124) Application Diagram www.muxlab.com

  13. CCTV Over IP Solutions Preserve investment in coax infrastructure CCTV IP Extender Kit (500110) CCTV IP PoE Extender (500111) Available in a 2-Pack • Extend distance between CCTV IP camera and 10/100BaseT LAN • Supports up to two (2) IP cameras • Cat5e/6 or coax link • Up to 650 ft (200m) @ 100Mbps • Up to 1 mile (1.6 km) @ 25Mbps • Includes Tx/Rx, 2 psu • Allows one IP camera (14 Watts) to be connected up to 1600 ft (500 m) via a single 75-ohm coax cable in a point-to-point configuration • Used in pairs (sold separately) • Connects IP PoE camera to 10/100BaseT PoE • Switch via single coax cable • Up to 330 ft (100m) @ 100Mbps @ 14W • Does not require external PSU • Works with MuxLab mounting accessories www.muxlab.com

  14. CCTV Over IP Solutions Preserve investment in coax infrastructure CCTV IP Econo PoE Extender (500111) Aplpication Diagrams www.muxlab.com

  15. CCTV Over IP Solutions Up to 1000 ft (300m) via coax @ 100Mbps/15.4W LongReach CCTV IP PoE Extender Kit (500112) • Supports one IP PoE camera via one coax cable • Supports CCTV IP PoE cameras up to 15.4W • Up to 330 ft (100m) on the LAN connection • LED indicators for power, IP traffic, 100Mbps • Optional 48VDC power supply (500113) • Includes wall-mount brackets www.muxlab.com

  16. CCTV Over IP Solutions Up to 1000 ft (300m) via coax @ 100Mbps/15.4W LongReach CCTV IP PoE Extender Kit (500112) www.muxlab.com

  17. Your #1 Choice for CCTV and Audio-Video Connectivity Solutions HDMI Solutions www.muxlab.com Revision June 2013

  18. HDMI Solutions HDMI Extender Kit, 110-220V (500401) HDMI Passive Extender Kit (500402) • Upgrade replacement for 500400 • Improved distance/resolution • HDMI 1.3 • Up to 150 ft (45m) @ 1080p via Cat5e • Up to 90 ft (27m) @ 1080p Deep Color via Cat6 • Connect via two (2) Cat5e/6 cables • Supports both HDMI and DVI • HDMI 1.4 • Up to 100 ft (30m) @ 1080p via Cat5e • Up to 150 ft (45m) @ 1080p via Cat6 • Connect via two (2) Cat5e/6 cables • No external power required • Supports HDMI 3D • Works with Deep Color equipment www.muxlab.com

  19. HDMI Solutions HDMI Econo Plus Extender Kit (500401) Application Diagram HDMI Passive Extender Kit (500402) www.muxlab.com

  20. HDMI Solutions HDMI Wall-Plate Extender Kit (500401-WP-US/UK) HDMI IR/Extender Kit (500405) • HDMI 1.3a • IR source control • Up to 150 ft (46m) @ 1080p Deep Color via Cat6 • Up to 300 ft (91m) @ 1080i via Cat5e/6 • Connect via two (2) Cat5e/6 cables • Includes IR Emitter and IR Sensor • HDMI 1.3a • Up to 150 ft (45m) @ 1080p via 2 Cat5e • Up to 90 ft (27m) @ 1080p/12-bit via 2 Cat6 • Connect via two (2) Cat5e/6 cables • US version: Decora™ comp • UK version available www.muxlab.com

  21. HDMI Solutions HDMI Mono Extender Kit Plus (500450) HDMI 3x1 Switcher Kit (500410, 500411) • HDMI 1.3a • IR source control • Up to 330 ft (100m) @ 1080p Deep Color via Cat5e/6 • Connect via one (1) Cat5e/6 cable • Includes IR Emitter and IR Sensor • Ideal for pre-existing SCS • Switch between up to three (3) HDMI sources and one (1) display via Cat5e/6 • Up to 130 ft (40m) @ 1080p via Cat6 • Up to 250 ft (75m) @ 1080i via Cat5e • Connect via two (2) Cat5e/6 cables • Pushbutton control • FCC Class A • Supports HDMI and DVI 500410 www.muxlab.com

  22. HDMI Solutions HDMI 1x4 Distribution Hub (500420) HDMI 4x4 Matrix Switch (500415) • Distributes one HDMI source to up to 4 displays • Supports Cat5e/6 on input and output sides • Up to 150 ft (46m) @ 1080p via two Cat5e • Up to 300 ft (91 m) @ 1080i via two Cat5e • Cascadable • Local HDMI output • Includes one (1) IR Emitter for IR source control • EDID configuration switch • HDMI 1.3a 4x4 matrix via two (2) Cat5e/6 • Control options: manual, IR, USB, GUI • Up to 150 ft (45m) @ 1080p Deep Color via Cat6 • Up to 300 ft (90m) @ 1080I via Cat5e/6 • Supports IR matrix and source control • Includes four IR emitters plus wireless remote • EDID handling options • Works with 500407 or 500417 www.muxlab.com

  23. HDMI Solutions HDMI 4x4 Matrix Switch (500415) Application Diagram www.muxlab.com

  24. HDMI Solutions HDMI IR Receiver with Source Control (500417) HDMI Fiber Extender Kit (500460) • Works with 500415 • Pushbutton HDMI source select • Includes IR remote for matrix/source control • Up to 3,280 ft (1km) via a single mm fiber • IR Control (IR Sensor and IR Emitter incl.) • SC connector mm fiber 62.5 um/125 um • Supports RS232 control • Includes two (2) power supplies Rear View www.muxlab.com

  25. HDMI Solutions HDMI Fiber Extender Kit (500460) Application Diagram www.muxlab.com

  26. HDMI Solutions HDMI Mono Extender Kit (500451) HDMI/LAN Mono Extender Kit (500453) • Supports 3D feature of HDMI 1.4 • Up to 230 ft (70m) at all resolutions up to 1080p Deep Color via single Cat5e/6 • Up to 115 ft (35m) @ 4K resolution • Supports all digital audio modes • Supports bi-directional IR remote control • Includes IR Emitter and IR Sensor • Locking screw for HDMI connector • HDMI 1.3a • Up to 330 ft (100m) at all resolutions up to 1080p Deep Color via single Cat5e/6 • Supports Ethernet • Supports IR remote source control • Includes IR Emitter (500998) and IR Sensor (500999) www.muxlab.com

  27. HDMI Solutions HDMI Econo Mono Extender Kit (500451) Application Diagram www.muxlab.com

  28. HDMI Solutions HDMI/RS232 Extender Kit (500454) • Supports 3D of HDMI 1.4 • Up to 230 ft (70m) at all resolutions up to 1080p via single Cat5e/6 • PoE version (coming soon) • Supports all digital audio modes • Supports RS232 • Supports bi-directional IR remote source control • Includes IR Emitter (500998) and IR Sensor (500999) www.muxlab.com

  29. HDMI Solutions HDMI/RS232 Extender Kit (500454) www.muxlab.com

  30. HDMI Solutions HDMI Over Coax Extender Kit (500465) • Allows an HDMI source to be connected to an HDMI receiver at 1080p resolution via one coax cable in a point-to-point configuration • Supports HDMI over one RG59 coax cable • Ideal for harsh electrical environments • Up to 250 ft (76m) at 1080p resolution • Up to 500 ft (152m) at 1080i/720p resolution • TX: Converts HDMI to SDI • RX: Converts SDI to HDMI • Cascadable on the TX and RX side • HDCP compliant www.muxlab.com

  31. HDMI Over IP Solutions HDMI over IP Extender with PoE (500752) • Extends 1080P HDMI signals up to 330ft (100m) • Supports up 16 transmitters and 200 receivers • Supports multicasting and broadcasting • Supports PoEIRControl • HDCP compliant www.muxlab.com

  32. Your #1 Choice for CCTV and Audio-Video Connectivity Solutions HD-SDI Solutions www.muxlab.com Revision June 2013

  33. HD-SDI Solutions HD-SDI Extender Kit (500700) HD-SDI Fiber Extender Kit (500710) • Supports SDI-SMPTE 259M-C (270Mbps) HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps) HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps) • Up to 330 ft (100m) via Cat5e • Up to 400 ft (122m) via Cat6 • Supports SDI-SMPTE 259M-C (270Mbps) HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps) HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps) • Up to 1,000ft (300m) via one multimode fiber • Up to 19 mi (30km) one singlemode fiber • Includes Hirose power cable for HD cams • Includes hard plastic case www.muxlab.com

  34. HD-SDI Solutions Available in a 2-Pack HD-SDI Balun (500701) HD-SDI to HDMI Extender Kit (500715) • Supports SD, HD and 3G resolutions • Up to 150 ft (45m) via Cat5e cable @ HD • Up to 400 ft (120m) via Cat5e cable @ SD • Supports Cat5e/6 cable • Cast aluminum enclosure for EMI/RFI shielding • Up to 330 ft (100m) via Cat5e cable • Up to 400 ft (122m) via Cat6 cable • Supports SDI-SMPTE 259M-C (270Mbps) HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps) HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps) • LED diagnostics: sync, SDI detect www.muxlab.com

  35. HD-SDI Solutions HD-SDI Balun (500701) Application Diagram HD-SDI to HDMI Extender Kit (500715) www.muxlab.com

  36. Your #1 Choice for CCTV and Audio-Video Connectivity Solutions VGA Solutions www.muxlab.com Revision June 2013

  37. VGA Solutions Available in a Kit Available in a Kit VGA Balun (500010, 500011, 500014) VGA Balun II (500040, 500041, 500042, 500043) • Up to 350 ft (107m) @ 800x600 • Up to 250 ft (76m) @ 1024x768 • Maximum resolution 1280x1024 • PC/Laptops, LCD, plasmas, projectors • Classrooms, digital signage • Saves conduit space • STP highly recommended (for common signal ground) • Fully supports UTP: No need for STP • Up to 350 ft (107m) @ 800x600 • Maximum resolution 1280x1024 • PC/Laptops, LCD, plasmas, projectors • Classrooms, digital signage • Saves conduit space • Reset button for sync-sensitive screens 500010 500040 www.muxlab.com

  38. VGA Solutions VGA Balun II (500040, 500041, 500042, 500043) Application Diagram www.muxlab.com

  39. VGA Solutions Active VGA Balun Kit (500035, 500036) Active VGA Balun II Kit (500140) • Up to 500 ft (152m) via Cat5 @ 1600x1200 • Up to 400 ft (123m) via Cat5 @ 1920x1440 • Manual Gain Adjust based on cable length • Local monitor port • Compact form factor • Supports UTP or STP • 500035: 110V (North America Kit) • 500036: 220-240V (International Kit) • Requires VGA cables (not included) • Up to 600 ft (183m) via Cat5e @ 1920x1440 • Up to 600 ft (183m) via Cat5e @ 1080p • DDC Compliant for plug-and-play • Remote power up to 150 ft (50m) @ Cat5e • Manual Gain Compensation • Ground Loop Isolation • Local monitor port • Supports VGA and RGB/YPbPr • Requires VGA cables (not included) • Includes two (2) PSU 500035 www.muxlab.com

  40. VGA Solutions Active VGA Balun II Kit (500140) Application Diagram www.muxlab.com

  41. VGA Solutions Active VGA/Audio Balun Kit (500145) VGA 1x4 Hub (500150) • Up to 600 ft (180m) via Cat5e/6 @ 1920 x 1440 • Supports analog stereo or digital audio • Supports RS232 and IR source control • DDC1/DDC2 (Plug-and-Play) Compliant • Manual gain and skew compensation • Local VGA/Audio monitor output • Ground loop isolation • Plug and Play - DDC Compliant • Remote power up to 150 ft (46m) • Modular RJ45 on input and output • Supports up to 1920 x 1440, 1080p • Requires at least one (1) 500140 • Additional ports; use 500142 • Extended distance; add 500144 PSU • Ground loop isolation • Cascadable to 4 levels www.muxlab.com

  42. VGA Solutions VGA 4x1 Switcher 500160 • Auto and Manual Modes • Boardroom and classroom systems • Control: pushbutton, IR, RS232, USB • Includes MuxLab Control Center Software and IR • Remote power up to 150 ft (46 m) • Works w/500140/141/142 • DDC Compliant • Ideal for • Digital signage • Boardroom systems • Classroom training • Retail systems • Electronic billboards • Video kiosks • Point-of-sale displays • and more… www.muxlab.com

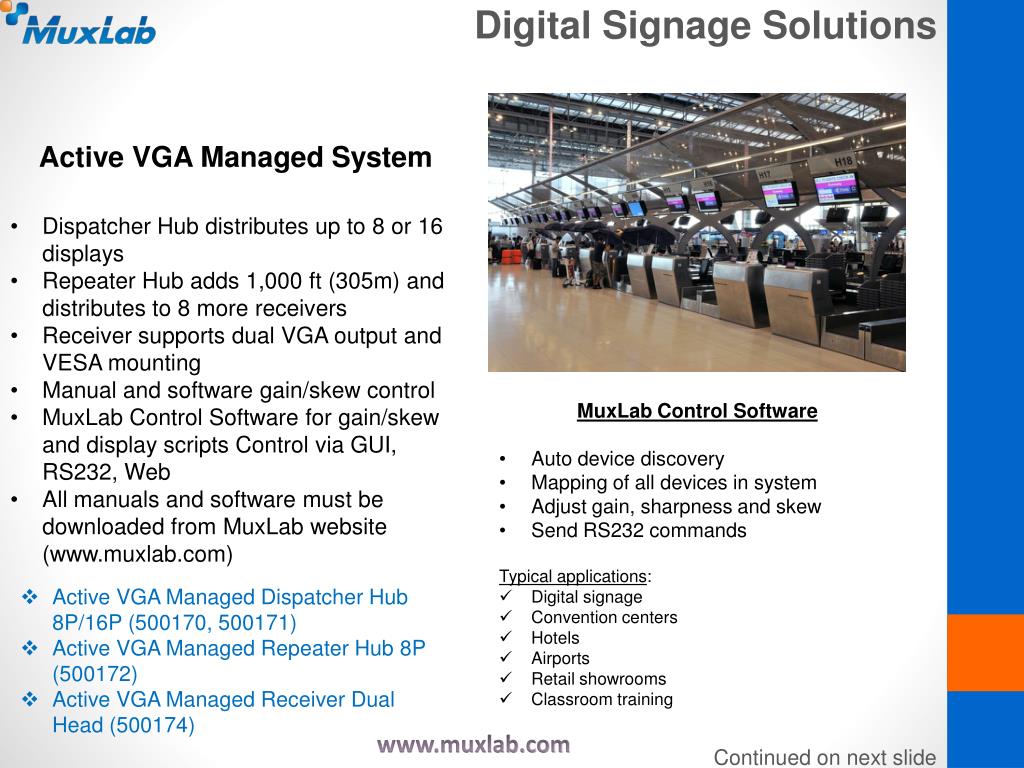

  43. Digital Signage Solutions Active VGA Managed System • Dispatcher Hub distributes up to 8 or 16 displays • Repeater Hub adds 1,000 ft (305m) and distributes to 8 more receivers • Receiver supports dual VGA output and VESA mounting • Manual and software gain/skew control • MuxLab Control Software for gain/skew and display scripts Control via GUI, RS232, Web • All manuals and software must be downloaded from MuxLab website (www.muxlab.com) • MuxLab Control Software • Auto device discovery • Mapping of all devices in system • Adjust gain, sharpness and skew • Send RS232 commands • Typical applications: • Digital signage • Convention centers • Hotels • Airports • Retail showrooms • Classroom training • Active VGA Managed Dispatcher Hub 8P/16P (500170, 500171) • Active VGA Managed Repeater Hub 8P (500172) • Active VGA Managed Receiver Dual Head (500174) www.muxlab.com Continued on next slide

  44. Digital Signage Solutions Active VGA Managed System Active VGA Managed Dispatcher (500170/171) Active VGA Managed Repeater (500172) • Distributes VGA/Audio to up to 8 or 16 displays • Up to 1,000 ft (305m) via Cat5e/6 • Gain/sharpness/skew adjustment via pushbutton, RS232 • Cascadable with Active Repeater Hub (500172) • Works with Active Managed Receiver (500174) • GUI software controls gain, sharpness, skew • Local VGA and audio output • Distributes VGA/Audio to up to 8 displays • Extends distance additional 1,000 ft (305m) • Gain, sharpness, skew adjustment via pushbutton, RS232 • Works with the Active VGA Managed Dispatcher Hub (500170/171) and Active VGA Managed Receiver (500174) www.muxlab.com Continued on next slide

  45. Digital Signage Solutions Active VGA Managed System Active VGA Managed Receiver (500174) • Converts Cat5e/6 to VGA/audio • Up to 1,000 ft (305m) via Cat5e/6 @ 1920 x 1200 • Supports VGA, stereo audio and RS232 • Gain, sharpness, skew adjust via manual, GUI, RS232 • Dual -VGA outputs • Works with 500170/171 and 500172 • VESA 75/100mm mounting flanges • Ideal for • Digital signage • Convention centers • Hotels • Airports • Retail showrooms • Classroom training www.muxlab.com

  46. Digital Signage Solutions Active VGA Managed System Application Diagram www.muxlab.com

  47. Your #1 Choice for CCTV and Audio-Video Connectivity Solutions Digital AV Solutions www.muxlab.com Revision June 2013

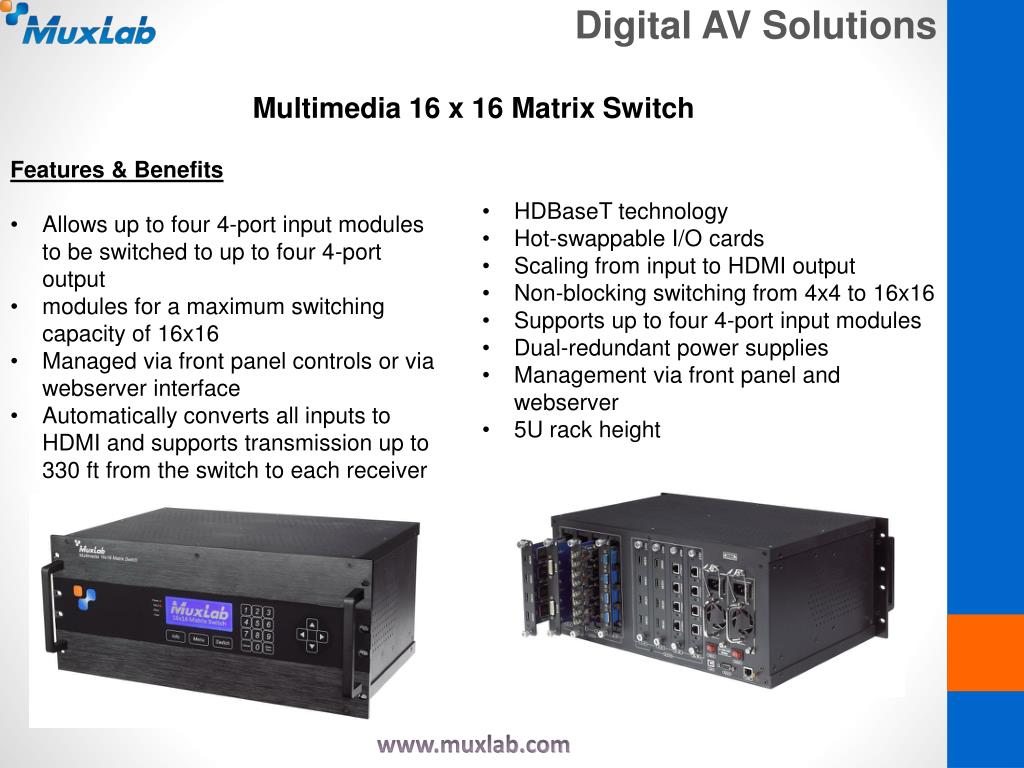

  48. Digital AV Solutions Multimedia 16 x 16 Matrix Switch • Features & Benefits • Allows up to four 4-port input modules to be switched to up to four 4-port output • modules for a maximum switching capacity of 16x16 • Managed via front panel controls or via webserver interface • Automatically converts all inputs to HDMI and supports transmission up to 330 ft from the switch to each receiver • HDBaseT technology • Hot-swappable I/O cards • Scaling from input to HDMI output • Non-blocking switching from 4x4 to 16x16 • Supports up to four 4-port input modules • Dual-redundant power supplies • Management via front panel and webserver • 5U rack height www.muxlab.com

  49. Digital AV Solutions Multimedia 16 x 16 Matrix Switch Input modules: HDMI, HD-SDI, DVI, and VGA Output modules: HDMI, HDBaseT • Control Management Options • Front Panel Control • RS232, USB • Built-in Webserver • 3rd party drivers (i.e. Control4) www.muxlab.com

  50. Digital AV Solutions • Multimedia 16 x 16 Matrix Switch • Ideal for a wide variety of applications • Digital signage • Retail and residential AV signal • routing • Boardroom projector systems • Classroom training • Professional video editing • Medical imaging • Courtroom systems • Rental and staging • Video kiosks • Airport video information systems • Emergency operations centres • Multimedia entertainment centres Digital AV Matrix Switching That Adapts to Your needs www.muxlab.com
