OFDM Physical Layer -- Fundamentals, Standards, & AdvancesK. GiridharAssociate Professor of Electrical EngineeringTelecom and Computer Networks (TeNeT) GroupIIT Madras, Chennai 600036http://www.tenet.res.in Instructional Workshop on Wireless Networks : Physical Layer Aspects DRDO-IISc Program on Mathematical Engineering, Feb. 14, 2003 IIT Madras

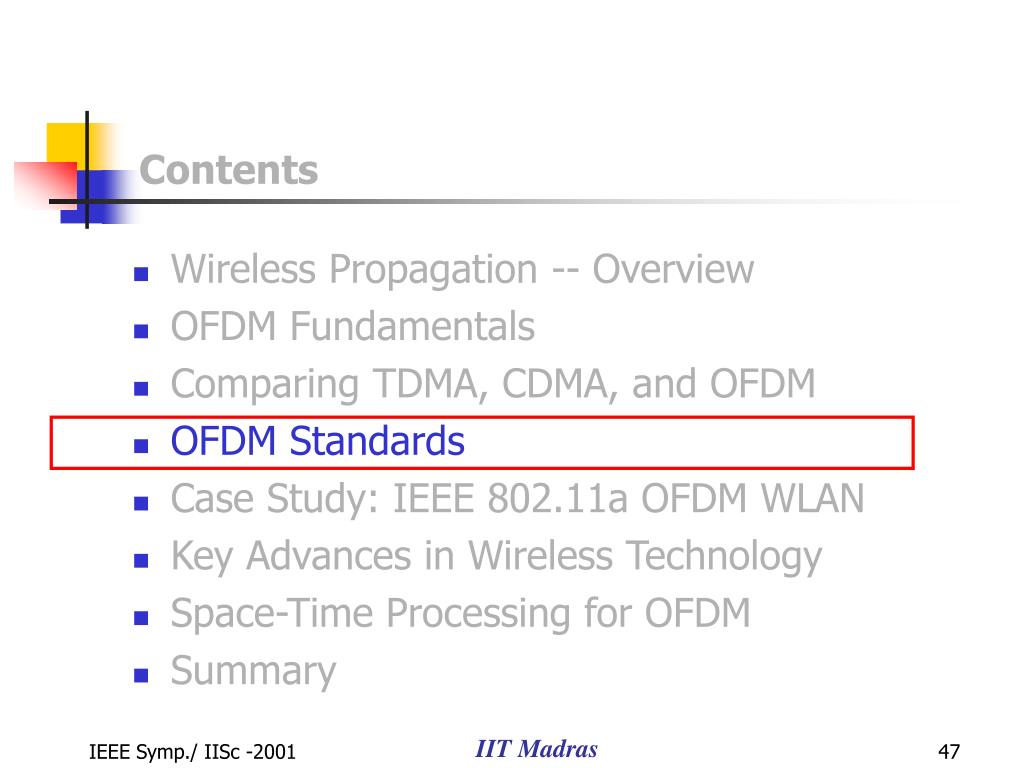

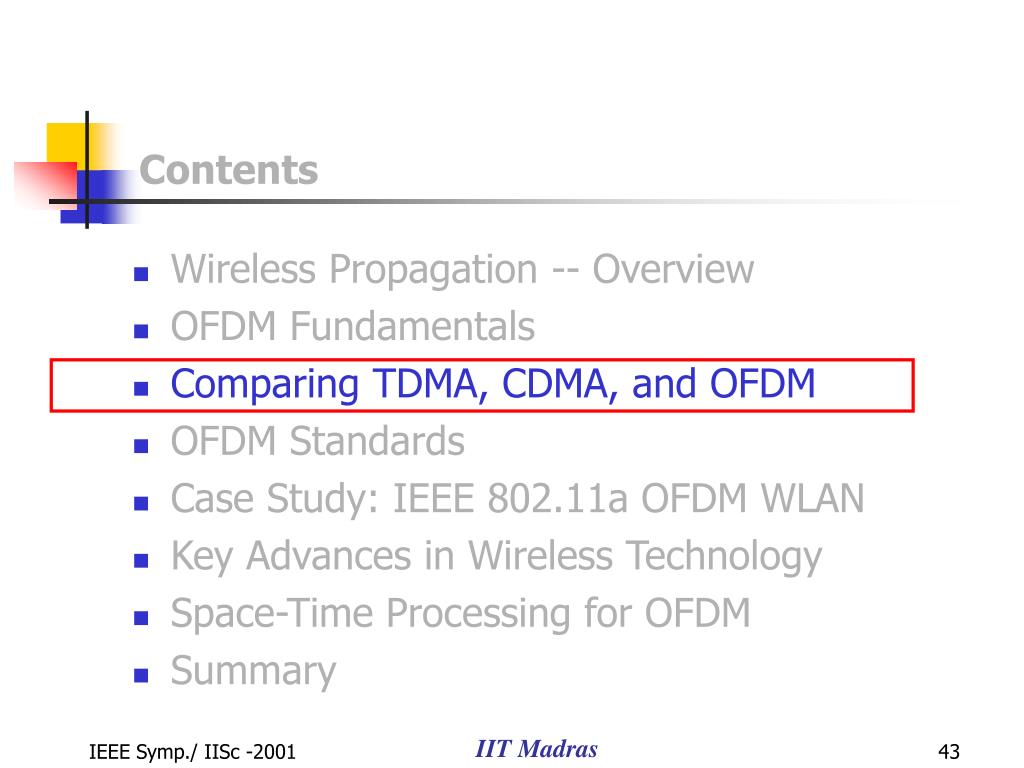

Contents • Wireless Propagation -- Overview • OFDM Fundamentals • Comparing TDMA, CDMA, and OFDM • OFDM Standards • Case Study: IEEE 802.11a OFDM WLAN • Key Advances in Wireless Technology • Space-Time Processing for OFDM • Summary IIT Madras

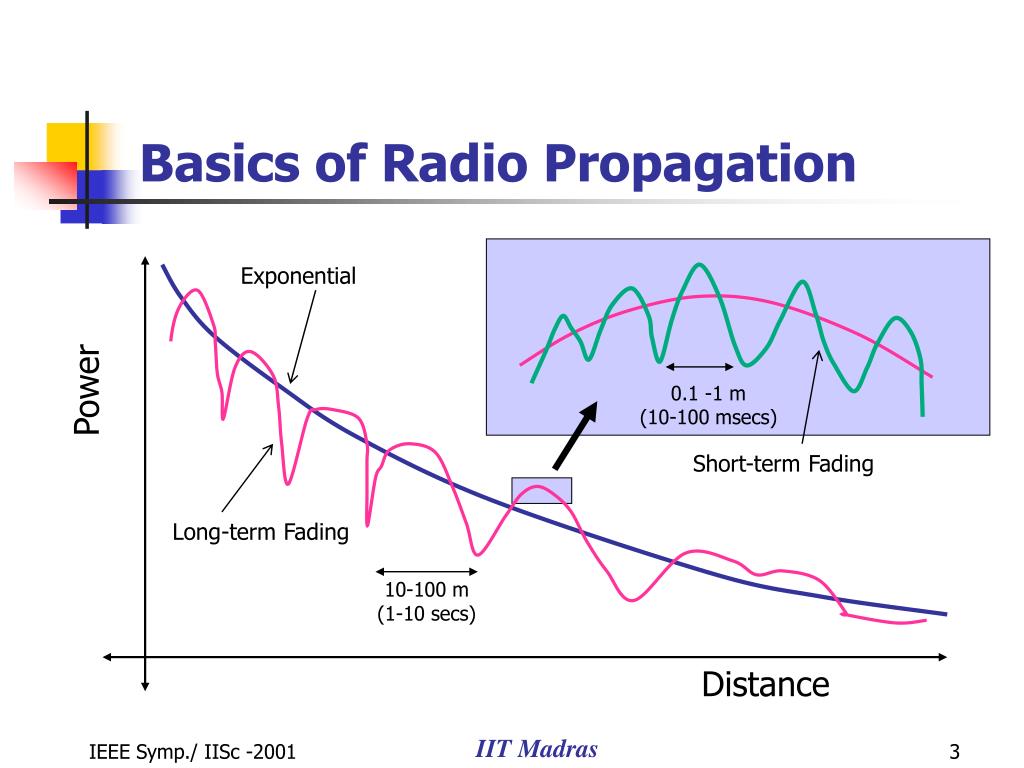

Basics of Radio Propagation Exponential Power 0.1 -1 m (10-100 msecs) Short-term Fading Long-term Fading 10-100 m (1-10 secs) Distance IIT Madras

Multi-path Propagation r(t) = a0 s(t-t0) + a1 s(t-t1) + a2 s(t-t2) + a3 s(t-t3) IIT Madras

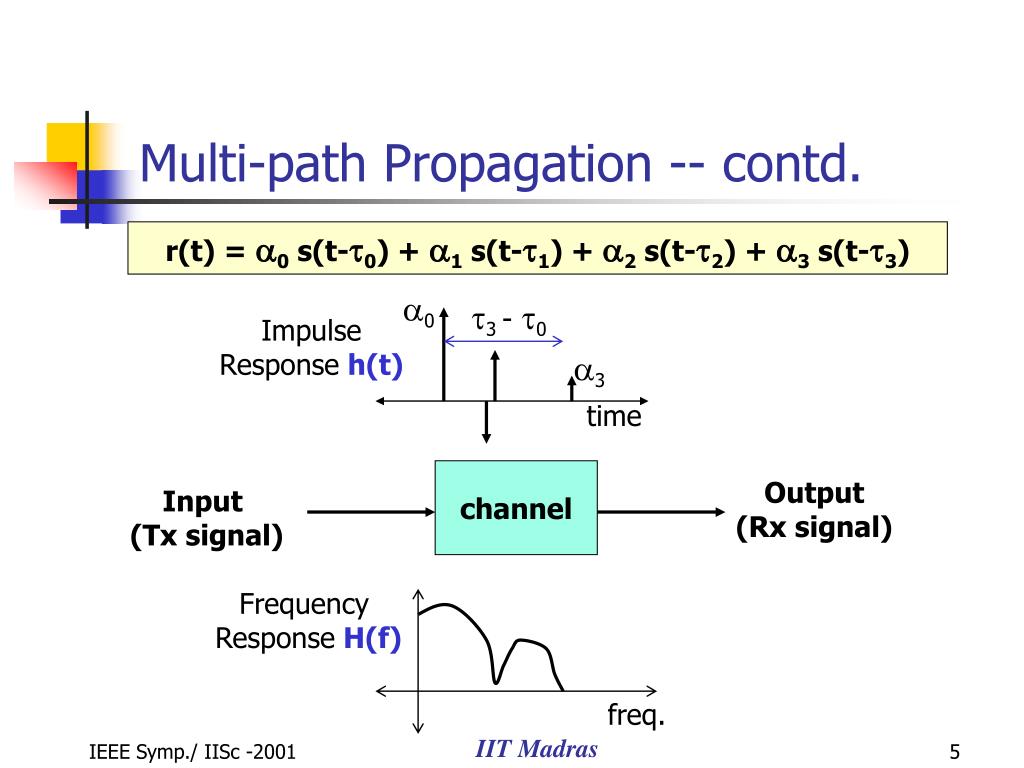

Multi-path Propagation -- contd. r(t) = a0 s(t-t0) + a1 s(t-t1) + a2 s(t-t2) + a3 s(t-t3) a0 t3 - t0 Impulse Response h(t) a3 time channel Output (Rx signal) Input (Tx signal) Frequency Response H(f) freq. IIT Madras

Gain (in volts) Fading Delay Spread rms = 5msecs Time 3.0 secs 2.0 secs 2.5 secs Frequency Selective Fading Frequency Selective Fading Channels can provide -- time diversity (can be exploited in DS-CDMA) -- frequency diversity (can be exploited in OFDM) IIT Madras

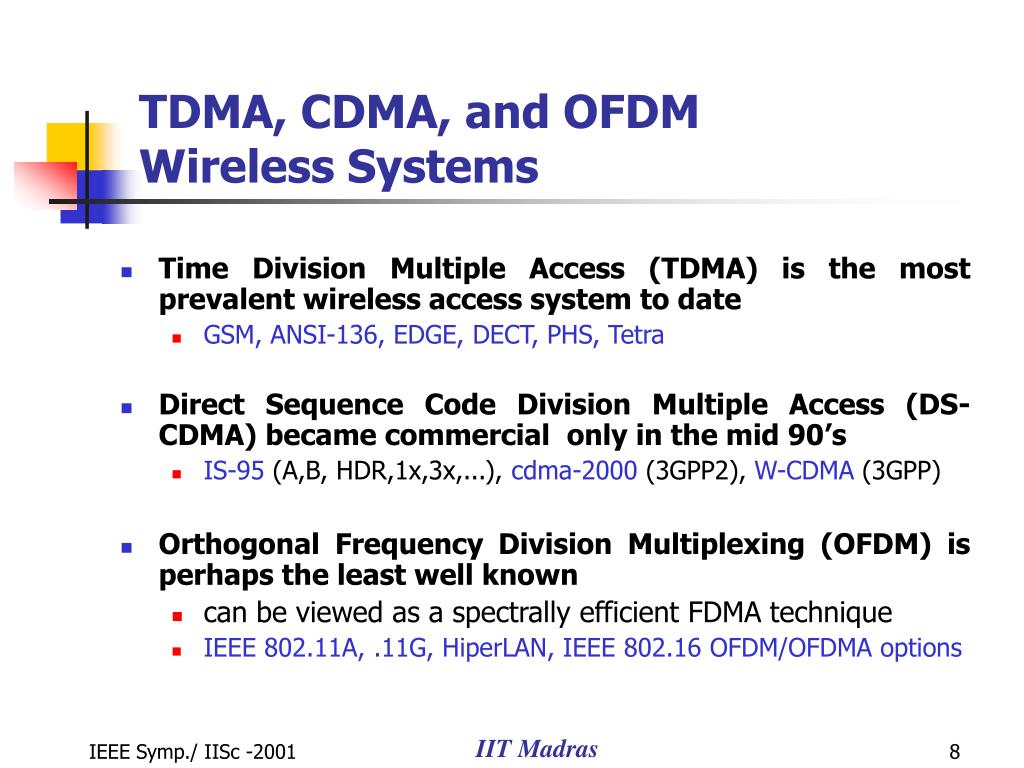

TDMA, CDMA, and OFDM Wireless Systems • Time Division Multiple Access (TDMA) is the most prevalent wireless access system to date • GSM, ANSI-136, EDGE, DECT, PHS, Tetra • Direct Sequence Code Division Multiple Access (DS-CDMA) became commercial only in the mid 90’s • IS-95 (A,B, HDR,1x,3x,...), cdma-2000 (3GPP2), W-CDMA (3GPP) • Orthogonal Frequency Division Multiplexing (OFDM) is perhaps the least well known • can be viewed as a spectrally efficient FDMA technique • IEEE 802.11A, .11G, HiperLAN, IEEE 802.16 OFDM/OFDMA options IIT Madras

TDMA (with FDMA) Principle Carriers Power Freq. Time-slots Time IIT Madras

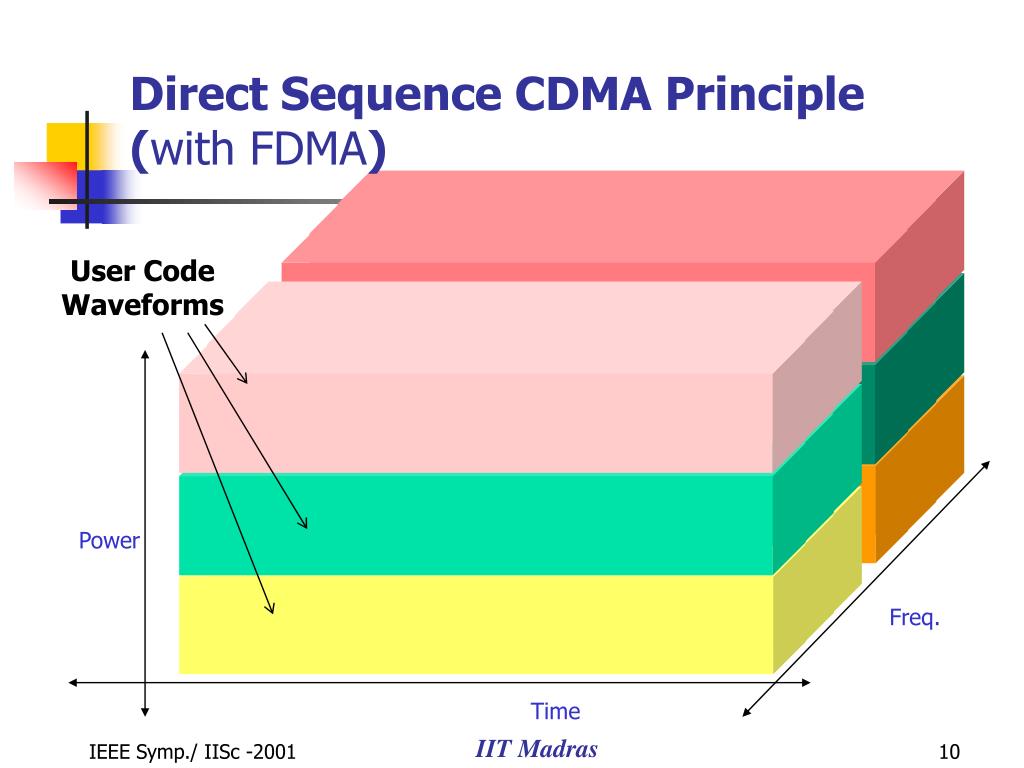

Direct Sequence CDMA Principle(with FDMA) User Code Waveforms Power Freq. Time IIT Madras

OFDM (with TDMA & FDMA) Principle Tones Carriers Power Freq. Time-slots Time IIT Madras

Other Multiple Access Techniques • Multi-Carrier TDMA • DECT, PACS • Frequency Hopped Spread Spectrum • Bluetooth • CSMA/CA • IEEE 802.11 (1 or 2 Mbps standard) • DS-CDMA with Time Slotting • 3GPP W-CDMA TDD (Time Division Duplex) Packet Switched Air Interface is vital for high bit-rates and high capacity (for data users) -- GPRS, DPRS, etc. IIT Madras

What is an OFDM System ? • Data is transmitted in parallel on multiple carriers that overlap in frequency IIT Madras

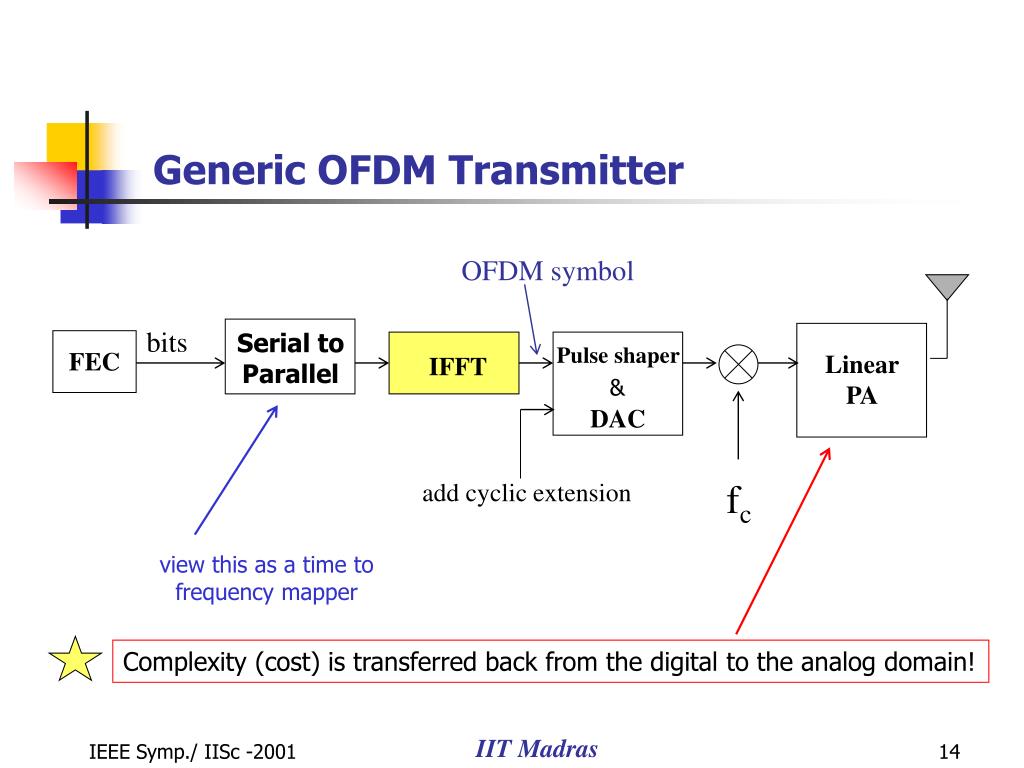

Generic OFDM Transmitter OFDM symbol bits Serial to Parallel Pulse shaper FEC LinearPA IFFT & DAC fc add cyclic extension view this as a time to frequency mapper Complexity (cost) is transferred back from the digital to the analog domain! IIT Madras

Add Cyclic Prefix Parallel/ Serial Serial/ Parallel IFFT OFDM Transmitter -- contd. • S/P acts as Time/Frequency mapper • IFFT generates the required Time domain waveform • Cyclic Prefix acts like guard interval and makes equalization easy (FFT-cyclic convolution vs channel-linear convolution) IIT Madras

Remove Cyclic Prefix Parallel/ Serial Serial/ Parallel FFT OFDM Receiver • Cyclic Prefix is discarded • FFT generates the required Frequency Domain signal • P/S acts like a Frequency/Time Mapper IIT Madras

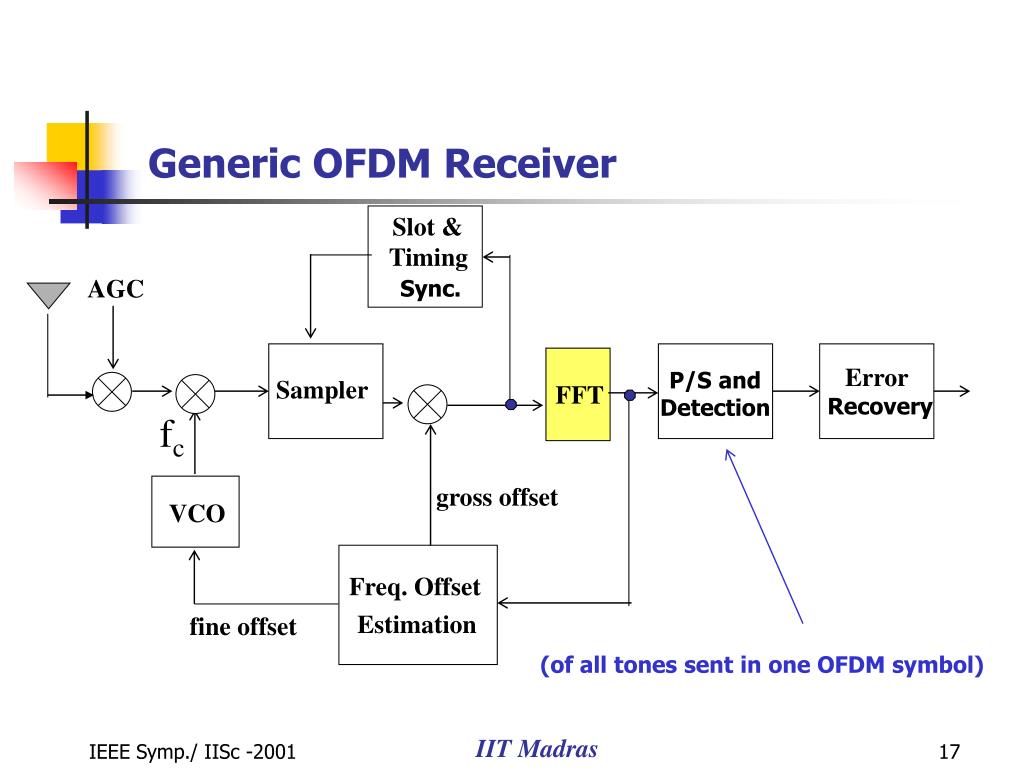

Generic OFDM Receiver Slot & Timing AGC Sync. Error P/S and Detection Sampler FFT Recovery fc gross offset VCO Freq. Offset Estimation fine offset (of all tones sent in one OFDM symbol) IIT Madras

OFDM Basics • To maintain orthogonality where • = sub-carrier spacing • = symbol duration • If N-point IDFT (or FFT) is used • Total bandwidth (in Hz) = • = symbol duration after CP addition IIT Madras

Time T Condition for Orthogonality Base frequency = 1/T T= symbol period IIT Madras

OFDM Basics -- contd. • If the Cyclic Prefix > Max. Delay Spread, then the received signal after FFT, at the nth tone for the kth OFDM block can be expressed as • where • is additive noise • is channel frequency response IIT Madras

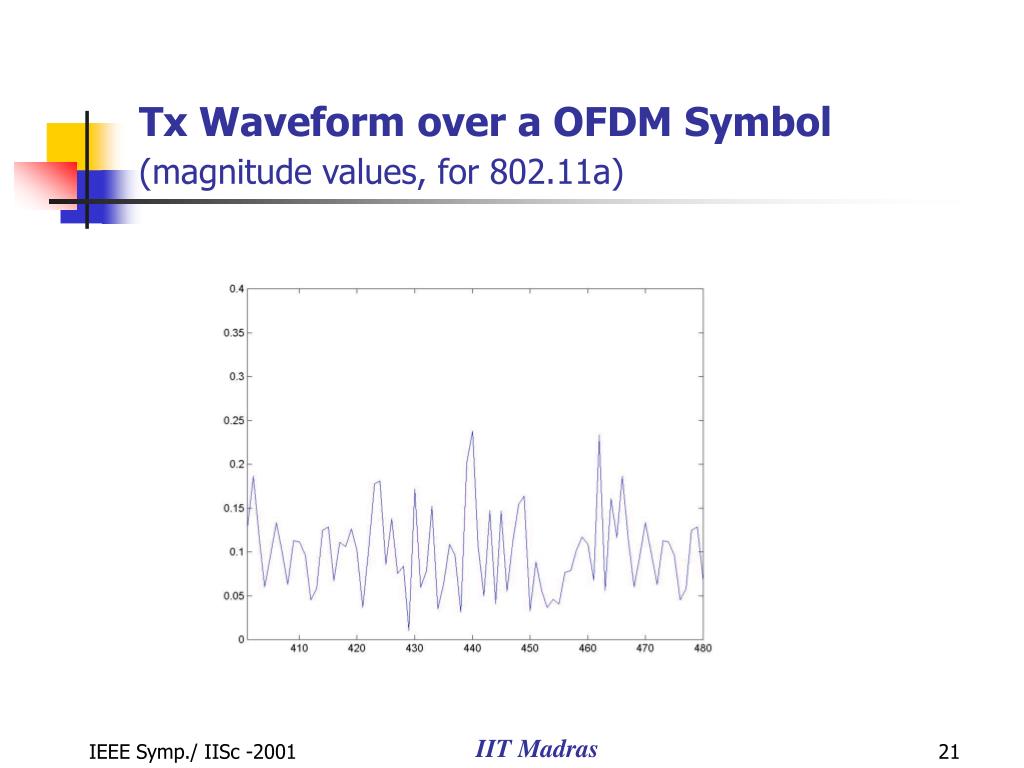

Tx Waveform over a OFDM Symbol(magnitude values, for 802.11a) IIT Madras

Sync Basis Functions(of equal height for single-ray channel) Shape gets upset by (a) Fine Frequency Offset (b) Fading IIT Madras

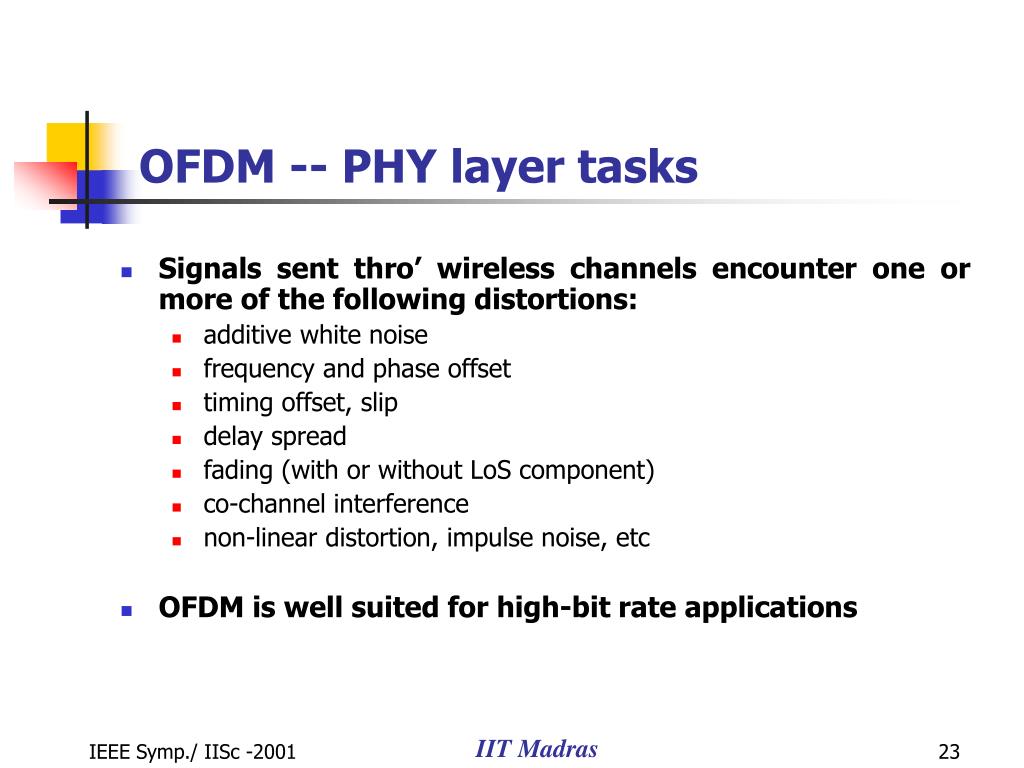

OFDM -- PHY layer tasks • Signals sent thro’ wireless channels encounter one or more of the following distortions: • additive white noise • frequency and phase offset • timing offset, slip • delay spread • fading (with or without LoS component) • co-channel interference • non-linear distortion, impulse noise, etc • OFDM is well suited for high-bit rate applications IIT Madras

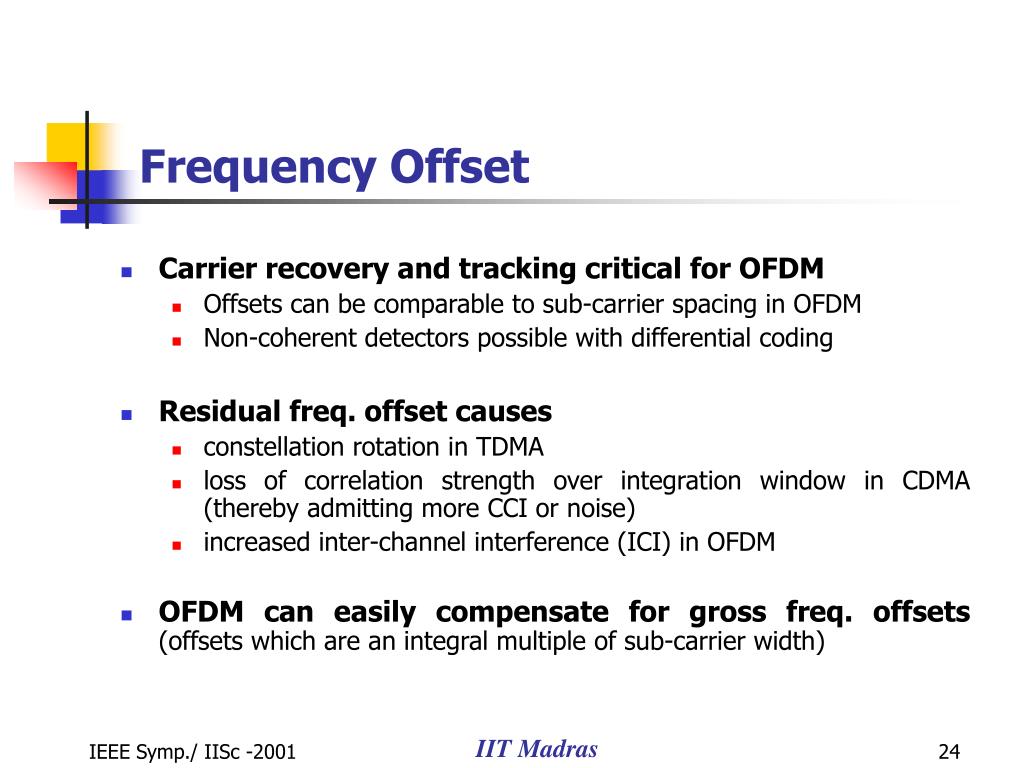

Frequency Offset • Carrier recovery and tracking critical for OFDM • Offsets can be comparable to sub-carrier spacing in OFDM • Non-coherent detectors possible with differential coding • Residual freq. offset causes • constellation rotation in TDMA • loss of correlation strength over integration window in CDMA (thereby admitting more CCI or noise) • increased inter-channel interference (ICI) in OFDM • OFDM can easily compensate for gross freq. offsets (offsets which are an integral multiple of sub-carrier width) IIT Madras

Timing Synchronisation • Timing recovery (at symbol level) is easily achieved in OFDM systems • Can easily overcome distortions from delay spread • Can employ non-coherent timing recovery techniques by introducing self-similarity • => very robust to uncompensated frequency offsets • If cyclic prefix is larger than the rms delay spread, range of (equally good) timing phases become available • => robust to estimation errors IIT Madras

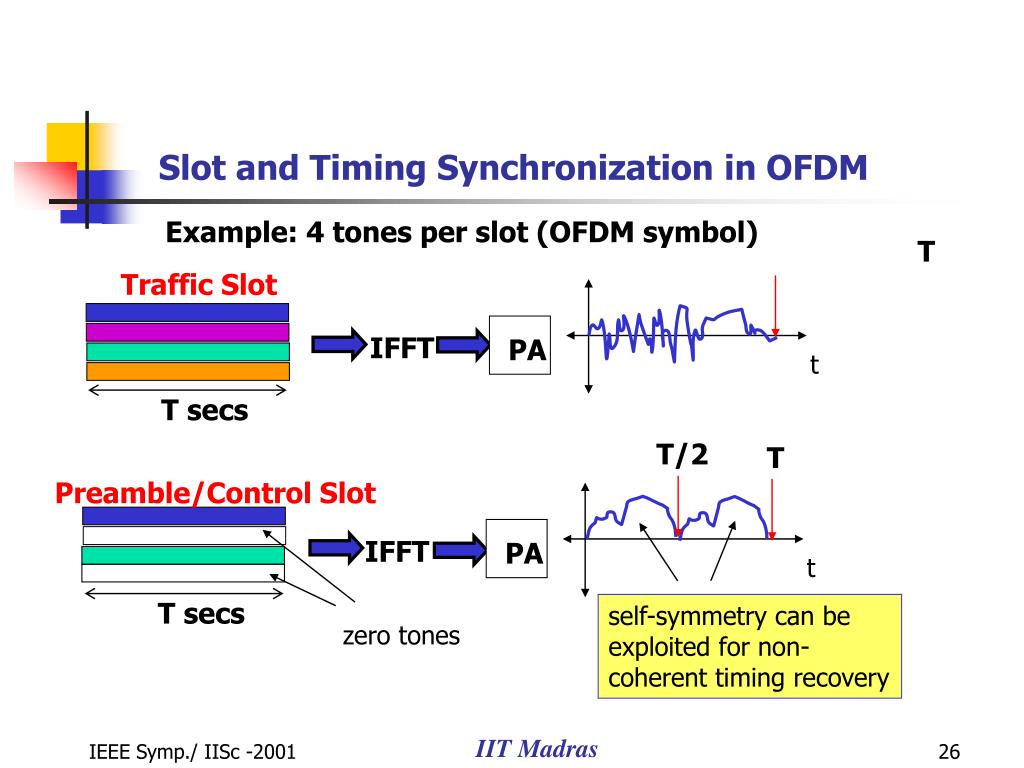

Slot and Timing Synchronization in OFDM Example: 4 tones per slot (OFDM symbol) T Traffic Slot IFFT PA t T secs T/2 T Preamble/Control Slot IFFT PA t T secs self-symmetry can be exploited for non- coherent timing recovery zero tones IIT Madras

Effect of Delay Spread • Typical rms delay spread in macro-cells • Urban : 1-4 msecs, Sub-urban : 3-6 msecs • Rural (plain, open country) : 3-10 msecs • Hilly terrain : 5-15 msecs • TDMA requires equalization (even if rms delay spread is only 20-30% of symbol duration) • higher bit-rates would imply more Inter-Symbol Interference (ISI) • therefore, equalization complexity increases with bit rate IIT Madras

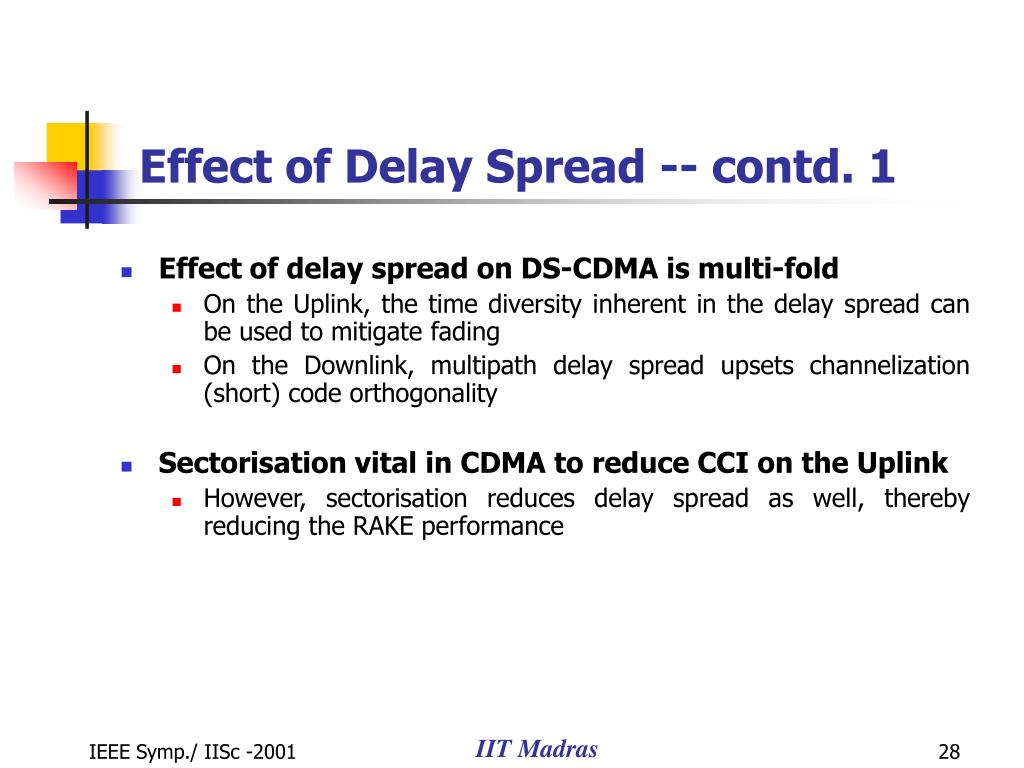

Effect of Delay Spread -- contd. 1 • Effect of delay spread on DS-CDMA is multi-fold • On the Uplink, the time diversity inherent in the delay spread can be used to mitigate fading • On the Downlink, multipath delay spread upsets channelization (short) code orthogonality • Sectorisation vital in CDMA to reduce CCI on the Uplink • However, sectorisation reduces delay spread as well, thereby reducing the RAKE performance IIT Madras

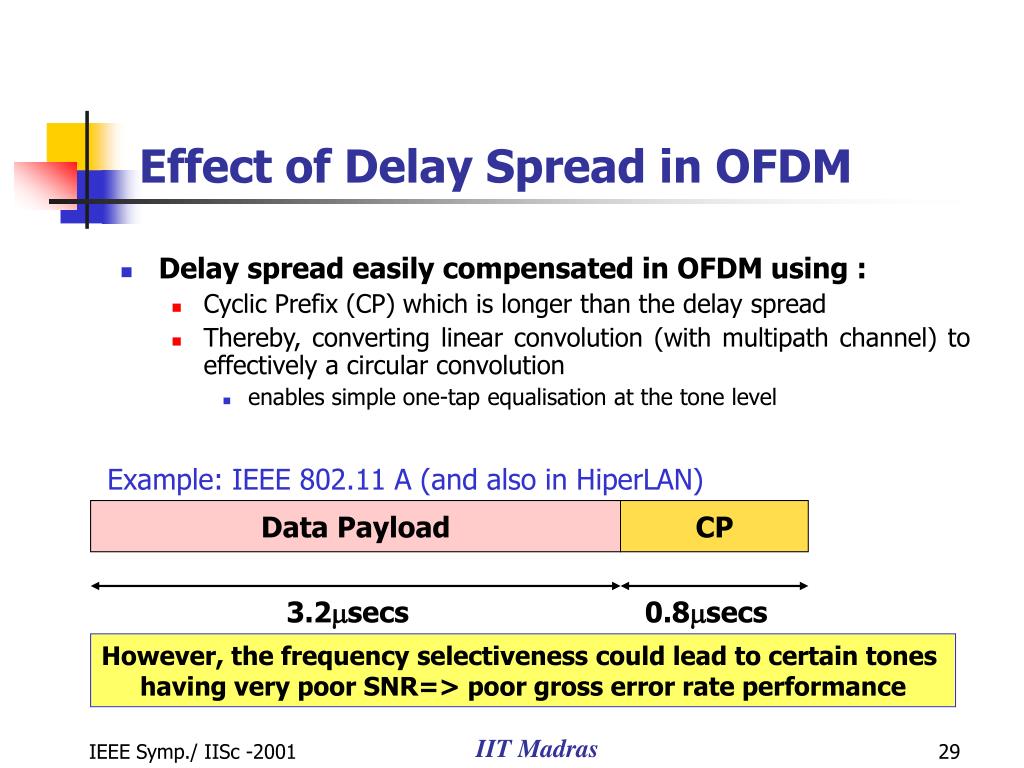

Effect of Delay Spread in OFDM • Delay spread easily compensated in OFDM using : • Cyclic Prefix (CP) which is longer than the delay spread • Thereby, converting linear convolution (with multipath channel) to effectively a circular convolution • enables simple one-tap equalisation at the tone level Example: IEEE 802.11 A (and also in HiperLAN) Data Payload CP 3.2msecs 0.8msecs However, the frequency selectiveness could lead to certain tones having very poor SNR=> poor gross error rate performance IIT Madras

Delay Spread Compensation in OFDM • Two basic ideas to combat freq. selectivity in OFDM • Feed-forward only techniques • Temporal FEC and interleaving • Transmit diversity and space-time coding • Feed-back based techniques (similar to approaches used in Multi-Carrier Modulation in the ADSL modems) • Water-pouring (bit-loading) • Pre-equalisation or pre-distortion • Sectorisation in macro-cell OFDM can help reduce delay spread IIT Madras

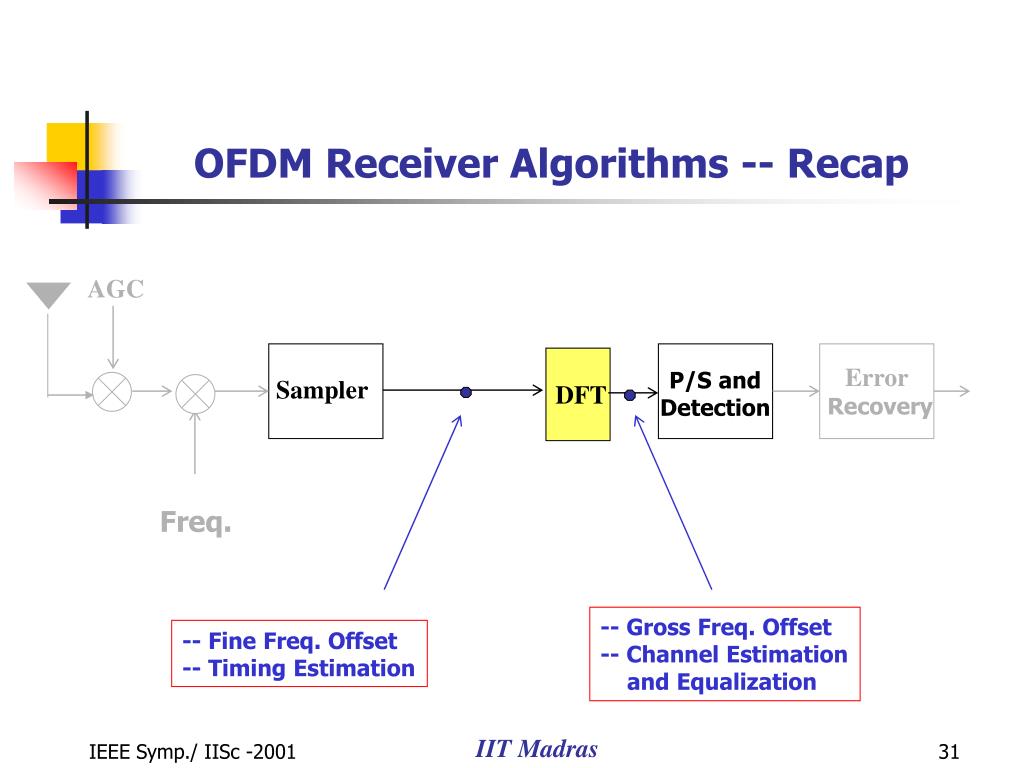

OFDM Receiver Algorithms -- Recap AGC Error P/S and Detection Sampler DFT Recovery Freq. -- Gross Freq. Offset -- Channel Estimation and Equalization -- Fine Freq. Offset -- Timing Estimation IIT Madras

Frequency Domain Equalisation -- Conventional OFDM Add CP Symbol Mapping & S/P Tx Mod. Conventional OFDM IDFT Frequency Domain Equaliser Remove CP Rx Algos. Detection & P/S DFT IIT Madras

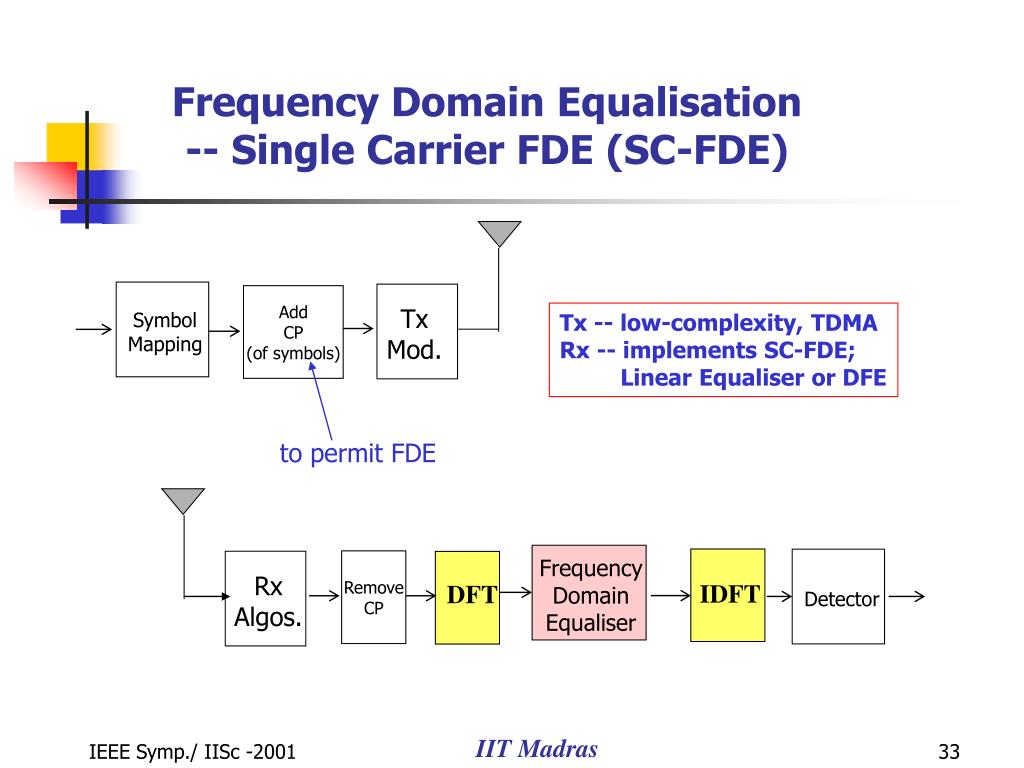

Frequency Domain Equalisation -- Single Carrier FDE (SC-FDE) Add CP (of symbols) Tx Mod. Symbol Mapping Tx -- low-complexity, TDMA Rx -- implements SC-FDE; Linear Equaliser or DFE to permit FDE Frequency Domain Equaliser Remove CP Rx Algos. IDFT DFT Detector IIT Madras

Time & Frequency Domain Equalisation -- for OFDM in large delay spread channels Add CP Symbol Mapping & S/P Tx Mod. TDE + FDE for OFDM IDFT Frequency Domain Equaliser Remove CP Time- Domain Equaliser Detection & P/S Rx Algos. DFT IIT Madras

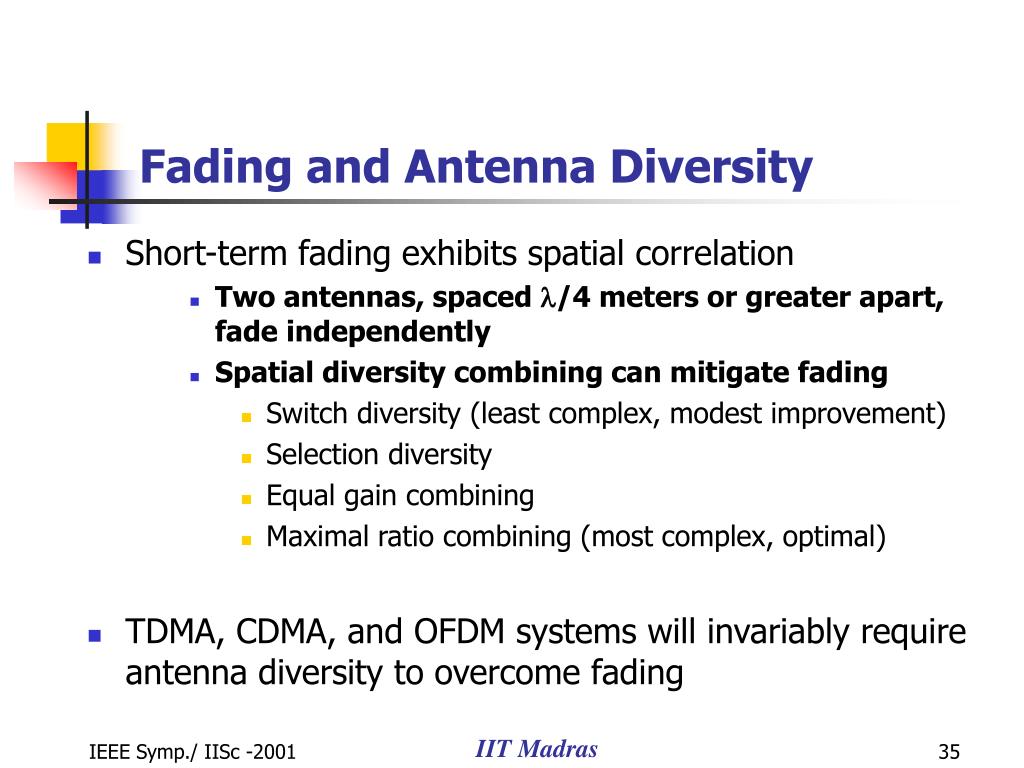

Fading and Antenna Diversity • Short-term fading exhibits spatial correlation • Two antennas, spaced l/4 meters or greater apart, fade independently • Spatial diversity combining can mitigate fading • Switch diversity (least complex, modest improvement) • Selection diversity • Equal gain combining • Maximal ratio combining (most complex, optimal) • TDMA, CDMA, and OFDM systems will invariably require antenna diversity to overcome fading IIT Madras

Fading and Channel Estimation • Use of midamble in GSM and EDGE to avoid channel tracking within the slot duration • Unlike in TDMA and OFDM, fading affects not only signal quality, but alsosystem capacity in DS-CDMA • Fast closed-loop power control required which can track short-term fading • For RAKE combining, multipath delays and gains are required to be estimated and tracked • By using orthogonal signaling, IS-95 uplink does not need gain estimation, but requires delay estimation • In OFDM systems, the long symbol duration makes channel estimation and tracking very important IIT Madras

Channel Estimation in OFDM -- Example Frame (say, 4 slots) • Traffic slots may contain a few equally spaced tones for phase correction (due to residual freq. offset, phase noise, fading) • Control slot may also contain MAC messages Control + Training Slot Control + Training Slot Traffic Slot 3 Traffic Slot 2 Traffic Slot 1 Training Tones (for channel identification) Phase Correction Tones MAC message (broadcast) IIT Madras

Fading Compensation in OFDM • OFDM using a FDE, observes only “flat” fading at the sub-carrier level • Fading manifests as ICI terms in the Frequency Domain • In OFDM Phy Layer, two basic ways to reduce ICI • Reduce OFDM symbol duration (increase sub-carrier width) • 802.16 has FFT sizes ranging from 256 to 4096 • Transmit pulse shaping can reduce ICI • (by providing excess “time-width”) IIT Madras

Other PHY Issues in OFDM • High peak-to-average ratio of the signal envelope • Linear Power Amp., with 5-8dB back-off required (costly) • To support mobility (fast fading) it will require • More training tones per symbol and also in every slot • Tx diversity and/or ST coding support • Exploit time, frequency, and space diversity / processing IIT Madras

Phy Layer Issues in Macro-cell OFDM • Macrocells will require larger cyclic extensions / prefix • Microcells may not be economical during initial deployment • GPS locked base stations required • To control ACI from neighbor BS sites (at cell edge) • CCI can be estimated / controlled only if it is tone-aligned • Strict power control required may be required on uplink • To minimize cross-talk between tones of different users sharing the same OFDM symbol (time slot) • To avoid uplink power control • allocate only one user per uplink slot • or, make uplink a pure TDMA (not OFDM) IIT Madras

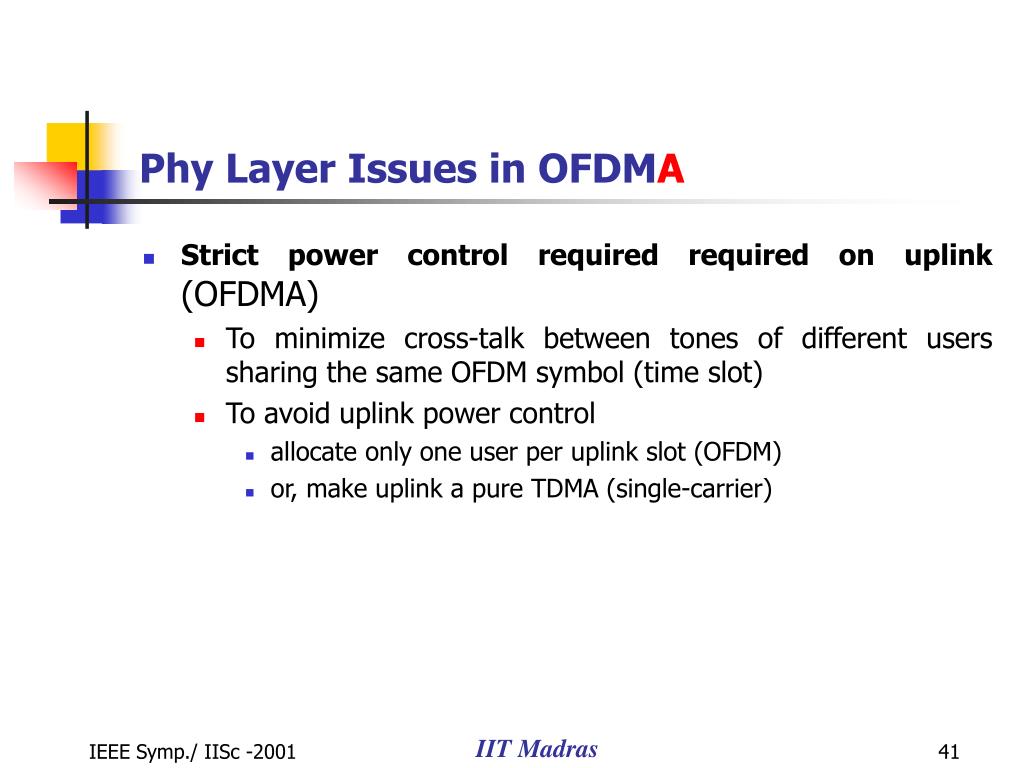

Phy Layer Issues in OFDMA • Strict power control required required on uplink(OFDMA) • To minimize cross-talk between tones of different users sharing the same OFDM symbol (time slot) • To avoid uplink power control • allocate only one user per uplink slot (OFDM) • or, make uplink a pure TDMA (single-carrier) IIT Madras

MAC Layer Issues in Macro-Cell OFDM • Many proprietary broad-band FWA based on OFDM are configured as primarily data networks providing • Bridging functionality (Ethernet packets on air) • Routing functionality (IP packets on air) • Some of the key issues then are • How many modes (scheduling options) should MAC support? • How is voice and other streaming data to be handled? • Indeed, mixing of voice and data not good for statistical multiplexing • CDMA example – the new cdma2000 / HDR standard, where distinct voice-only and data-only base stations are proposed IIT Madras

Output (Rx signal) Input (Tx signal) channel DS-CDMA versus OFDM DS-CDMA can exploit time-diversity a0 Impulse Response h(t) a3 time Frequency Response H(f) OFDM can exploit freq. diversity freq. IIT Madras

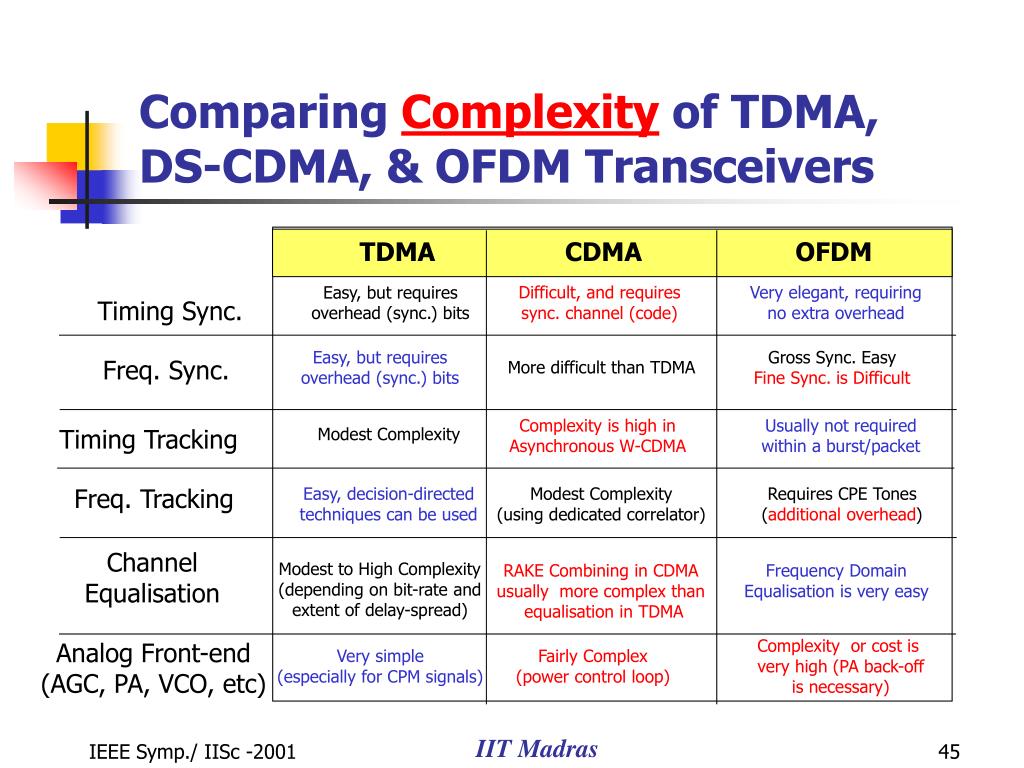

Comparing Complexity of TDMA, DS-CDMA, & OFDM Transceivers TDMA CDMA OFDM Difficult, and requires sync. channel (code) Very elegant, requiring no extra overhead Easy, but requires overhead (sync.) bits Timing Sync. Easy, but requires overhead (sync.) bits Gross Sync. Easy Fine Sync. is Difficult Freq. Sync. More difficult than TDMA Complexity is high in Asynchronous W-CDMA Usually not required within a burst/packet Timing Tracking Modest Complexity Freq. Tracking Easy, decision-directed techniques can be used Modest Complexity (using dedicated correlator) Requires CPE Tones (additional overhead) Channel Equalisation Modest to High Complexity (depending on bit-rate and extent of delay-spread) RAKE Combining in CDMA usually more complex than equalisation in TDMA Frequency Domain Equalisation is very easy Complexity or cost is very high (PA back-off is necessary) Analog Front-end (AGC, PA, VCO, etc) Very simple (especially for CPM signals) Fairly Complex (power control loop) IIT Madras

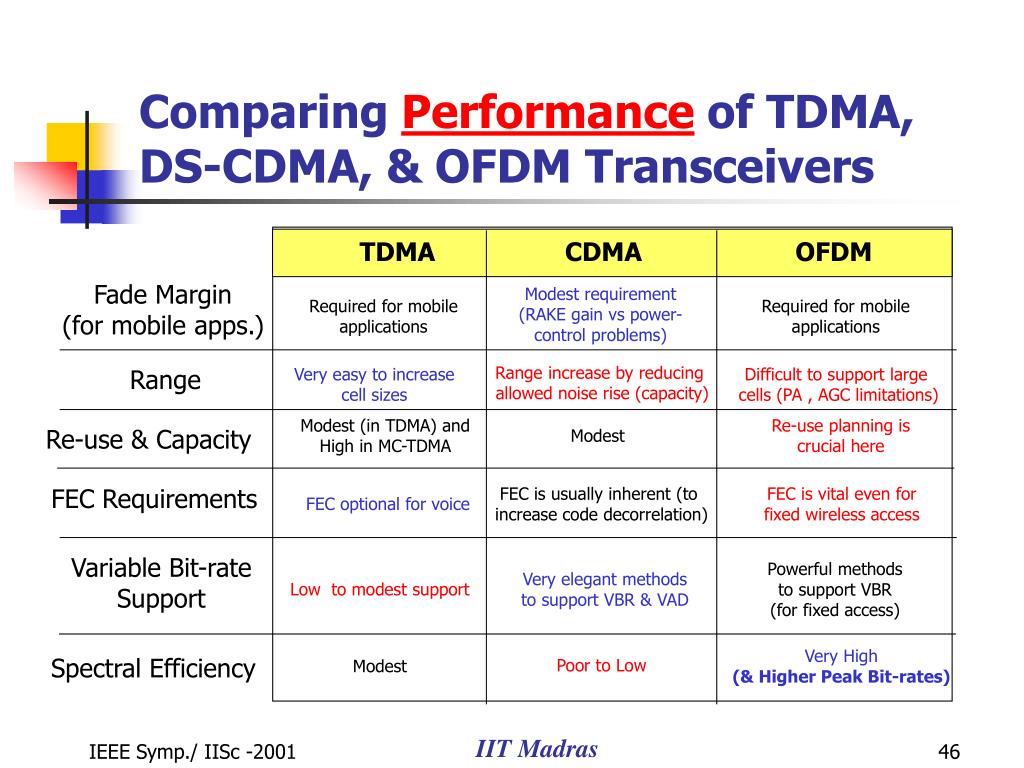

Comparing Performance of TDMA, DS-CDMA, & OFDM Transceivers TDMA CDMA OFDM Fade Margin (for mobile apps.) Modest requirement (RAKE gain vs power- control problems) Required for mobile applications Required for mobile applications Range increase by reducing allowed noise rise (capacity) Range Very easy to increase cell sizes Difficult to support large cells (PA , AGC limitations) Modest (in TDMA) and High in MC-TDMA Re-use planning is crucial here Re-use & Capacity Modest FEC Requirements FEC is usually inherent (to increase code decorrelation) FEC is vital even for fixed wireless access FEC optional for voice Variable Bit-rate Support Powerful methods to support VBR (for fixed access) Very elegant methods to support VBR & VAD Low to modest support Very High (& Higher Peak Bit-rates) Spectral Efficiency Poor to Low Modest IIT Madras

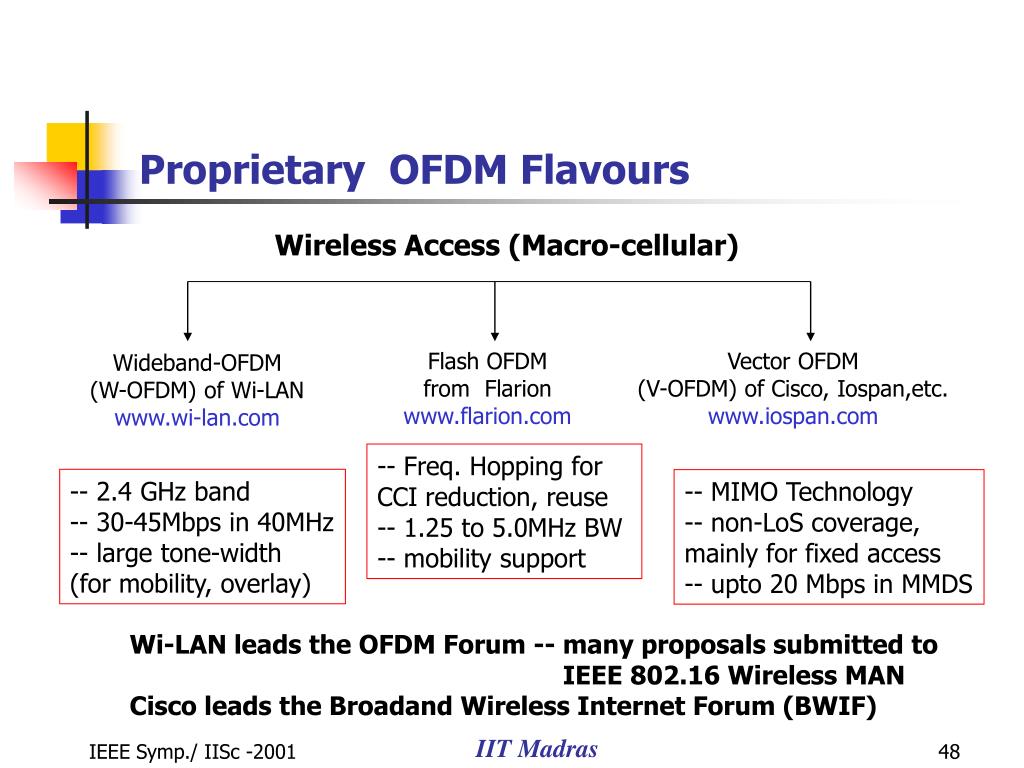

Proprietary OFDM Flavours Wireless Access (Macro-cellular) Flash OFDM from Flarion www.flarion.com Vector OFDM (V-OFDM) of Cisco, Iospan,etc. www.iospan.com Wideband-OFDM (W-OFDM) of Wi-LAN www.wi-lan.com -- Freq. Hopping for CCI reduction, reuse -- 1.25 to 5.0MHz BW -- mobility support -- 2.4 GHz band -- 30-45Mbps in 40MHz -- large tone-width (for mobility, overlay) -- MIMO Technology -- non-LoS coverage, mainly for fixed access -- upto 20 Mbps in MMDS Wi-LAN leads the OFDM Forum -- many proposals submitted to IEEE 802.16 Wireless MAN Cisco leads the Broadand Wireless Internet Forum (BWIF) IIT Madras

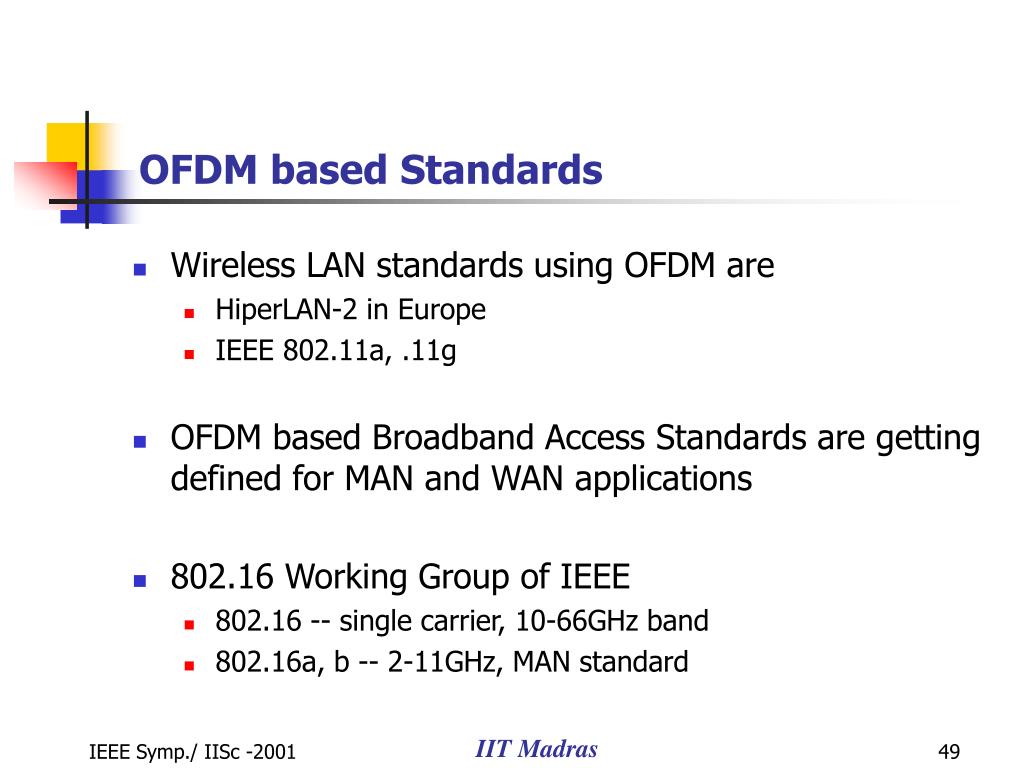

OFDM based Standards • Wireless LAN standards using OFDM are • HiperLAN-2 in Europe • IEEE 802.11a, .11g • OFDM based Broadband Access Standards are getting defined for MAN and WAN applications • 802.16 Working Group of IEEE • 802.16 -- single carrier, 10-66GHz band • 802.16a, b -- 2-11GHz, MAN standard IIT Madras

Key Parameters of 802.16a Wireless MAN • Operates in 2-11 GHz • SC-mode, OFDM, OFDMA, and Mesh support • Bandwidth can be either 1.25/ 2.5/ 5/ 10/ 20 MHz • FFT size is 256 = (192 data carriers+ 8 pilots +56 Nulls) • RS+Convolutional coding • Block Turbo coding (optional) • Convolutional Turbo coding(optional) • QPSK, 16QAM, 64QAM • Two different preambles for UL and DL IIT Madras
