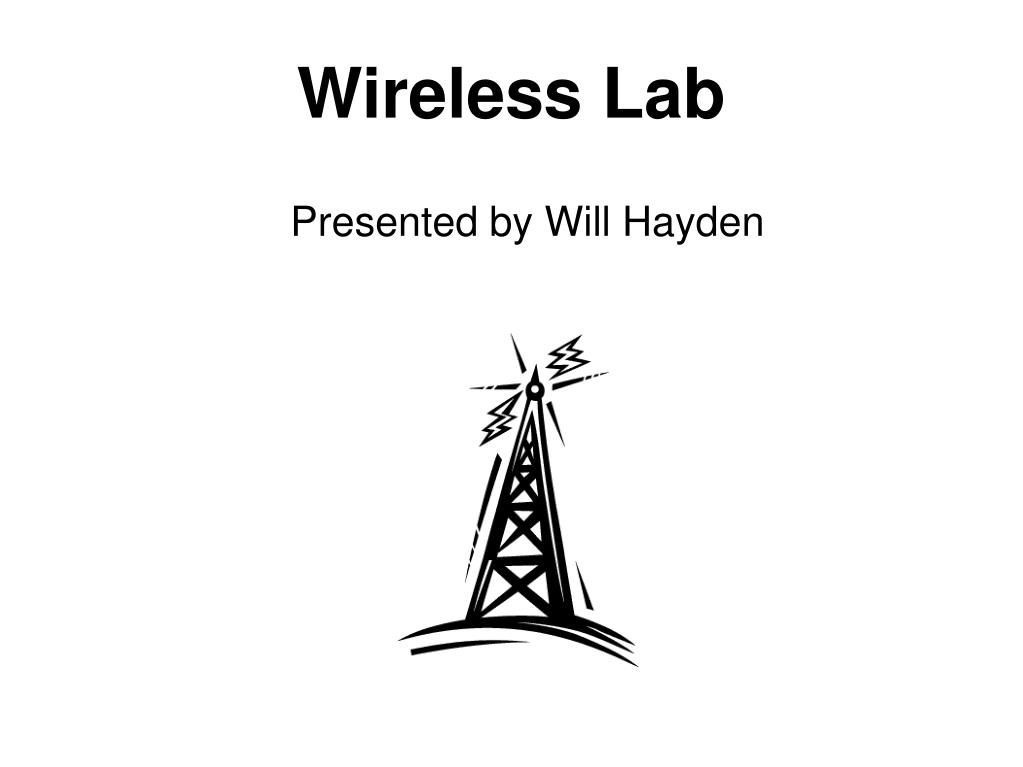

  1. Wireless Lab Presented by Will Hayden

  2. Design • Wireless Control System Server – 192.168.2.8 • Windows • Wireless Control System Server – 192.168.2.9 • Linux • Laptop – 192.168.2.6 • 1130 LWAP – 192.168.2.3 • 1240 LWAP - 192.168.2.4 • Wireless LAN Controller • Management – 192.168.2.10 • AP Management – 192.168.2.11

  3. Objectives • Configure a Wireless LAN Controller • Join a LWAP to the Controller • Convert a AP to LWAP • WLAN Configuration • Public • Private • Code Upgrade • Install and Configure WCS

  4. Configure a Wireless LAN Controller • Initial Configuration • Console connection • WLC 2006

  5. Configure a Wireless LAN Controller • clear config • Removes configuration • reset system • Reboots WLC

  6. Configure a Wireless LAN Controller • System Name [Cisco_33:45:40]: wlc01 • host name • Enter Administrative User Name (24 characters max): cisco • Administrator account • Enter Administrative Password (24 characters max): ***** • Administrator password

  7. Configure a Wireless LAN Controller • Management Interface IP Address: 192.168.2.10 • Address for management • Management Interface Netmask: 255.255.255.0 • Management Interface Default Router: 192.168.2.1 • Management Interface VLAN Identifier (0 = untagged): • Management Interface Port Num [1 to 4]: 4

  8. Configure a Wireless LAN Controller • Management Interface DHCP Server IP Address: 192.168.2.1 • AP Manager Interface IP Address: 192.168.2.11 • Address that AP communicate with • AP-Manager is on Management subnet, using same values • AP Manager Interface DHCP Server (192.168.2.1): • Virtual Gateway IP Address: 1.1.1.1

  9. Configure a Wireless LAN Controller • Mobility/RF Group Name: rf01 • Network Name (SSID): public • Allow Static IP Addresses [YES][no]: no • Configure a RADIUS Server now? [YES][no]: no

  10. Configure a Wireless LAN Controller • Enter Country Code (enter 'help' for a list of countries) [US]: • Enable 802.11b Network [YES][no]: yes • Enable 802.11a Network [YES][no]: yes • Enable 802.11g Network [YES][no]: yes • Enable Auto-RF [YES][no]: yes

  11. Configure a Wireless LAN Controller • WLC Rebooting

  12. Configure a Wireless LAN Controller • WLC services starting

  13. Configure a Wireless LAN Controller • Open Internet Explorer • https://192.168.2.10 • Login • Username: cisco • Password: cisco

  14. Join a LWAP to the Controller • 1130 and 1240 access point (already converted to LWAP)‏ • Connect access point to same layer 2 network as WLC (192.168.2.0)‏ • In this lab everything is on vlan1 (untagged)‏ • The access point will automatically associate with the WLC • This controller supports six access points

  15. Convert a AP to LWAP • AP before conversion

  16. AP1131AG-A-K9 • Product/Model Number: AIR-AP1131AG-A-K9 • Top Assembly Serial Number: FTX1117T0Y8 • System Software Filename: c1130-k9w7-tar.123-8.JEA • System Software Version: 12.3(8)JEA • Bootloader Version: 12.3(8)JEA

  17. Convert a AP to LWAP • AP before conversion

  18. AP1242AG-A-K9 • Product/Model Number: AIR-AP1242AG-A-K9 • Top Assembly Serial Number: FTX1038B3GJ • System Software Filename: c1240-k9w7-tar.123-8.JA2 • System Software Version: 12.3(8)JA2 Bootloader Version: 12.3(7)JA1

  19. Upgrade Tool • Upgrade Tool v3.2 • Download from Cisco • LWAP Recovery Image • Download from Cisco • Use to covert AP to LWAP

  20. Convert a AP to LWAP • Upgrade Tool

  21. Convert a AP to LWAP • IP File • IP Address of AP • User Name • Telnet password • Enable password

  22. Convert a AP to LWAP • Image loading onto AP

  23. Convert a AP to LWAP • LWAP associating to WLC

  24. Convert a AP to LWAP • LWAP downloading WLC code

  25. Convert a AP to LWAP • LWAP fully associated with WLC

  26. WLAN Configuration • Public WLAN • Private WLAN

  27. Public WLAN • Creating a new WLAN called “Public

  28. Public WLAN • Profile Name • WLAN SSID

  29. Public WLAN • Enabling “Public WLAN” • Allowable Radios • Network • Broadcast

  30. Public WLAN • Web Authentication

  31. Public WLAN • DHCP Required • P2P Blocking

  32. Public WLAN • AP configuration • WLAN Override

  33. Public WLAN • Connecting to “Public”

  34. Public WLAN • Web login

  35. Private WLAN • Creating “Private”

  36. Private WLAN • Enabling “Private WLAN” • Limiting Radios • Network • Broadcast

  37. Private WLAN • Layer 2 Encryption • WPA2+PSK

  38. Private WLAN • DHCP Required • P2P Blocking

  39. Private WLAN • Limiting WLAN's on AP radio

  40. Code Upgrade • SolarWinds TFTP server • Code stored here • GUI • Download file to Controller

  41. Code Upgrade • Upgrade started

  42. Code Upgrade • TFTP Server showing transmission

  43. Code Upgrade • Upgrade completed

  44. Code Upgrade • Reboot WLC to complete upgrade

  45. Install and Configure WCS • Windows Server 2003 • WCS 5.1.64.0 • WCS Password • Cisco101 • Server IP Address • 192.168.2.8

  46. Install and Configure WCS • Installation • Java • Apache • DB • WCS

  47. Install and Configure WCS • WCS Service • Starting

  48. Install and Configure WCS • WCS not running • Start Service • Reboot server

  49. Install and Configure WCS • Installing WCS on Linux • Chmod +x on .bin file • Make excutable • /WCS-STANDARD-K9-5.1.64.0.bin

  50. Install and Configure WCS • Login through web browser • Once WCS, Apache, DB are running
