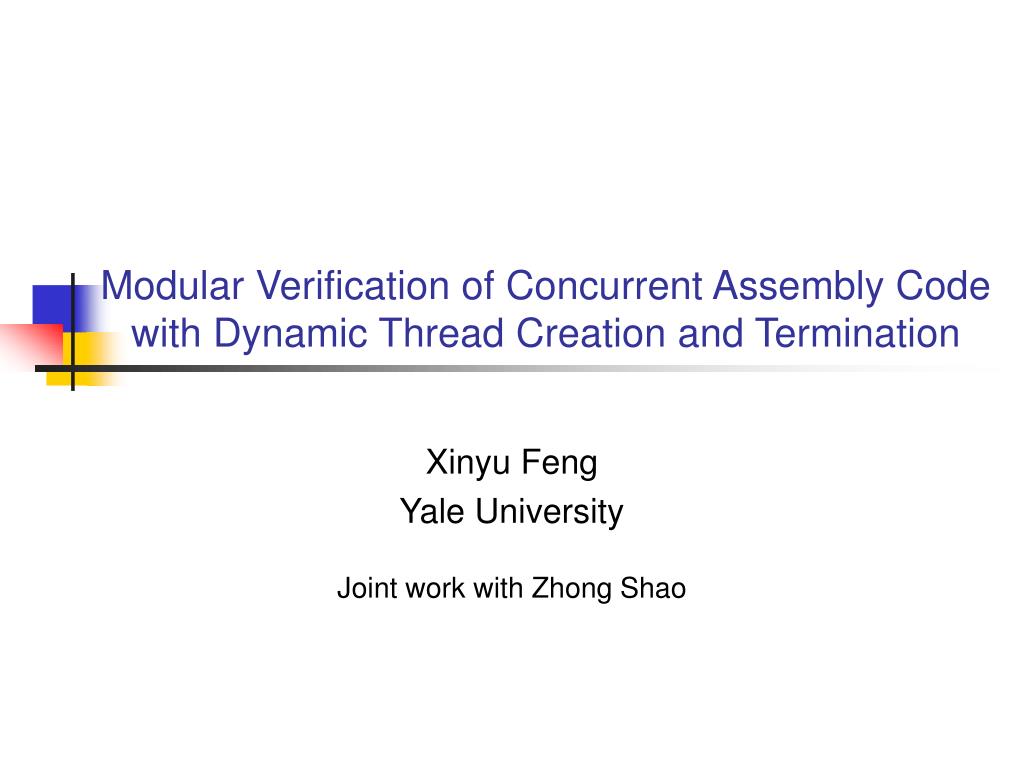

  1. Modular Verification of Concurrent Assembly Codewith Dynamic Thread Creation and Termination Xinyu Feng Yale University Joint work with Zhong Shao

  2. Motivation • Proof-carrying code (PCC) • In principle: verify any property on any code • Real binaries & no loss of efficiency • Embedded OS, device drivers… • All safety & liveness properties… • Formal, machine-checkable proofs • In reality: only works for sequential code Can concurrent code ever be supported by the PCC framework ? NJPLS@Stevens

  3. Challenges • Challenges for Proof-carrying concur. code • A general framework for concurrent assembly code verification • Lack of structures (e.g. cobegin/coend blocks) • Specification/proof generation • Spec inference, proof assistant, theorem prover • Concurrent assembly code verification • No directly applicable logic • Traditional Hoare-logic: only sequential code • Type Systems: no Concurrent Typed Assembly Language (TAL) NJPLS@Stevens

  4. Previous work • Rely-Guarantee (R-G) Method • Shared memory concurrency • Thread modular verification • Only for higher-level code: cobegin/coend • CCAP[Yu&Shao, ICFP’04] • The first PCC framework supporting concurrent assembly code • R-G method • Only support static threads • P1 || … || Pn NJPLS@Stevens

  5. Concurrency Programming • cobegin/coend • S::=…| cobegin P1 || P2 codend | … • Higher-level, well-structured • Only support properly nested concurrent code • fork/join • S::=…| tid := fork f(a) | join tid | … • More flexible: improperly nested code • OSes/Java/… NJPLS@Stevens

  6. Our Contributions • A new PCC framework: CMAP • Verification of general properties • Dynamic thread creation/termination • Generalize the Rely-Guarantee method • Modular verification • Realistic features • Multiple instantiations of thread code • Thread argument passing, thread-local data NJPLS@Stevens

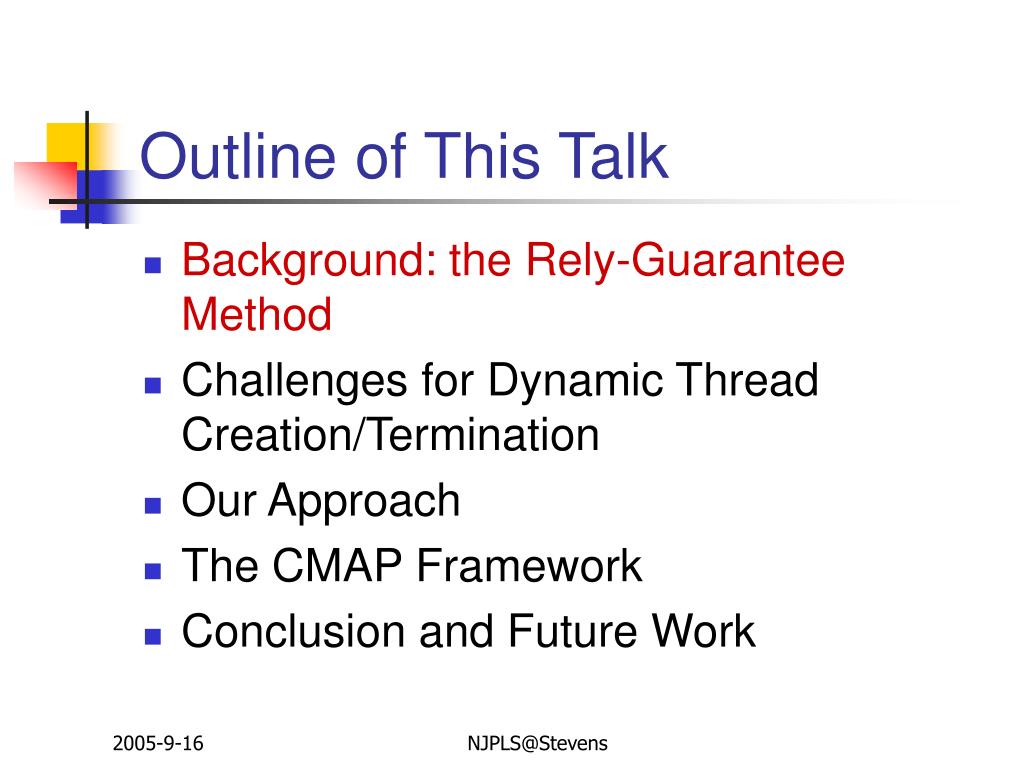

  7. Outline of This Talk • Background: the Rely-Guarantee Method • Challenges for Dynamic Thread Creation/Termination • Our Approach • The CMAP Framework • Conclusion and Future Work NJPLS@Stevens

  8. G1  A2 G2  A1 S1 S2 S3 S4 S5 The Rely-Guarantee Method Thread 1 (A1,G1) Shared Memory Thread 2 (A2,G2) A1: S2 – S3, S4 – S5,… G1: S1 – S2, S3 – S4,… A2: S1 – S2, S3 – S4,… G2: S2 – S3, S4 – S5,… NJPLS@Stevens

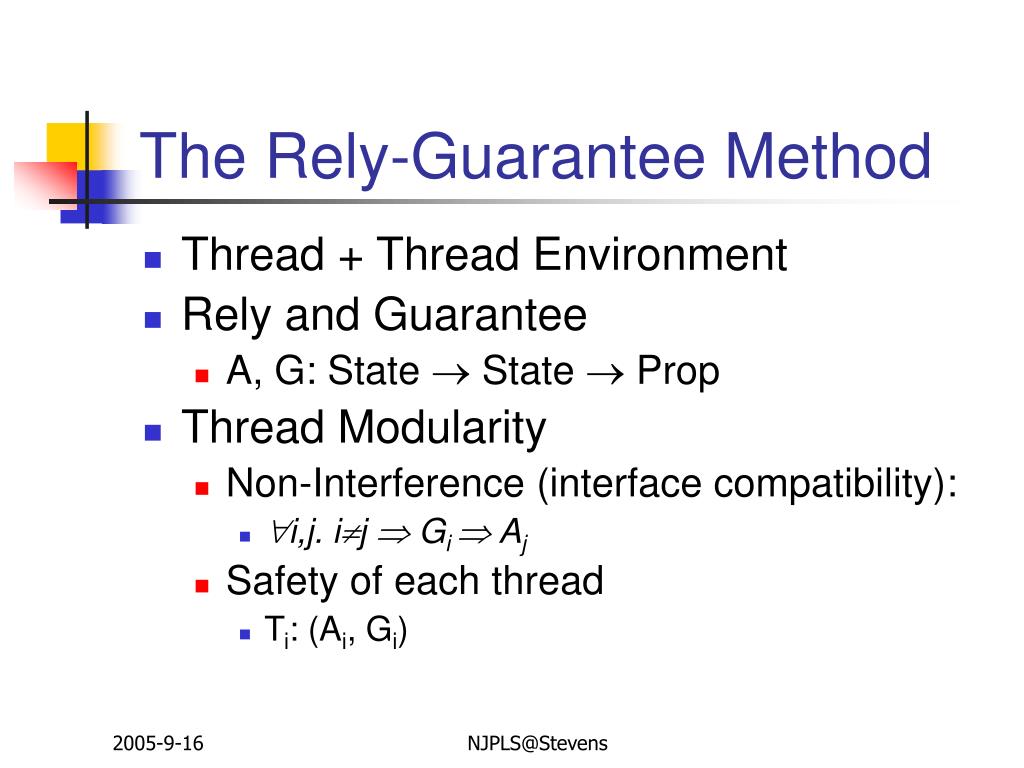

  9. The Rely-Guarantee Method • Thread + Thread Environment • Rely and Guarantee • A, G: State  State  Prop • Thread Modularity • Non-Interference (interface compatibility): • i,j. ij  Gi  Aj • Safety of each thread • Ti: (Ai, Gi) NJPLS@Stevens

  10. GCD Example [Yu&Shao’04] Thread1: while(a<>b){ if(a > b) a := a-b; } Thread2: while(a<>b){ if(b > a) b := b-a; } NJPLS@Stevens

  11. Outline of This Talk • Background: the Rely-Guarantee Method • Challenges for Dynamic Thread Creation/Termination • Our Approach • The CMAP Framework • Conclusion and Future Work NJPLS@Stevens

  12. Concurrency Programming • cobegin/coend • S::=…| cobegin P1 || P2 codend | … • Higher-level, well-structured • Only support properly nested concurrent code • fork/join • S::=…| tid := fork f(a) | join tid | … • More flexible: improperly nested code • OSes/Java/… NJPLS@Stevens

  13. Static and Dynamic Threads f(a) . . . “Static Threads” fork f(a1) fork f(an) fork f(a2) … “Dynamic Threads” NJPLS@Stevens

  14. Challenges • First attempt • Check NI between all static threads • Ti: (Ai, Gi) • i,j. ij  Gi  Aj • Too rigid to handle changing env. NJPLS@Stevens

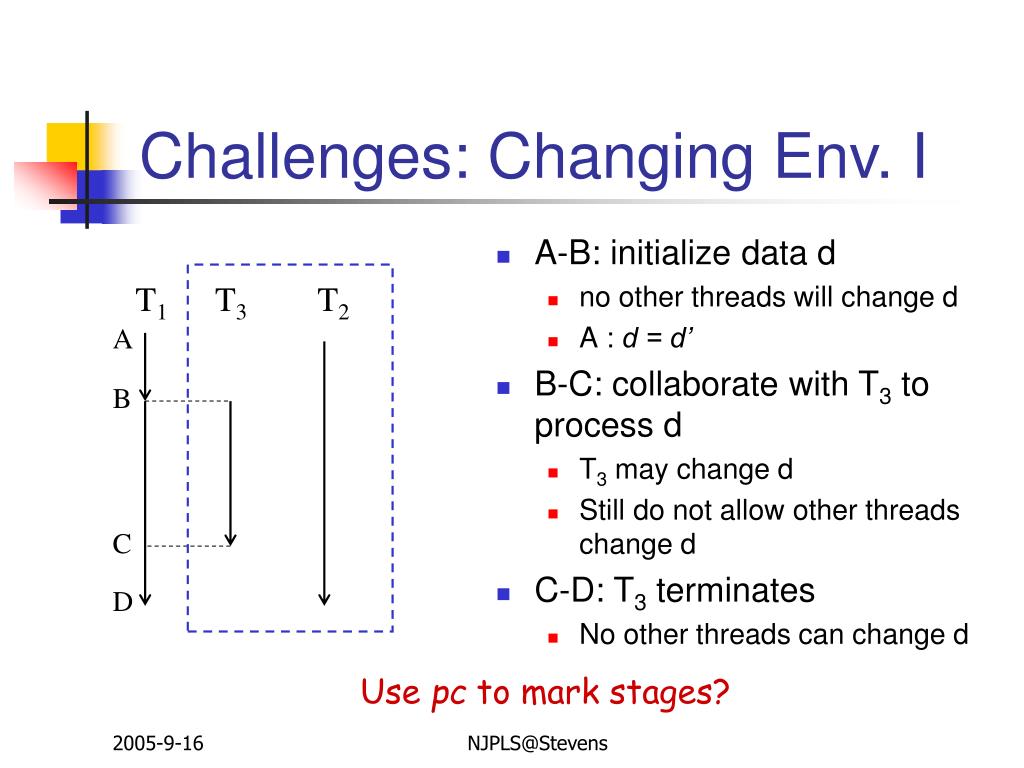

  15. T3 C D Challenges: Changing Env. I • A-B: initialize data d • no other threads will change d • A: d = d’ • B-C: collaborate with T3 to process d • T3 may change d • Still do not allow other threads change d • C-D: T3 terminates • No other threads can change d T1 T2 A B Use pc to mark stages? NJPLS@Stevens

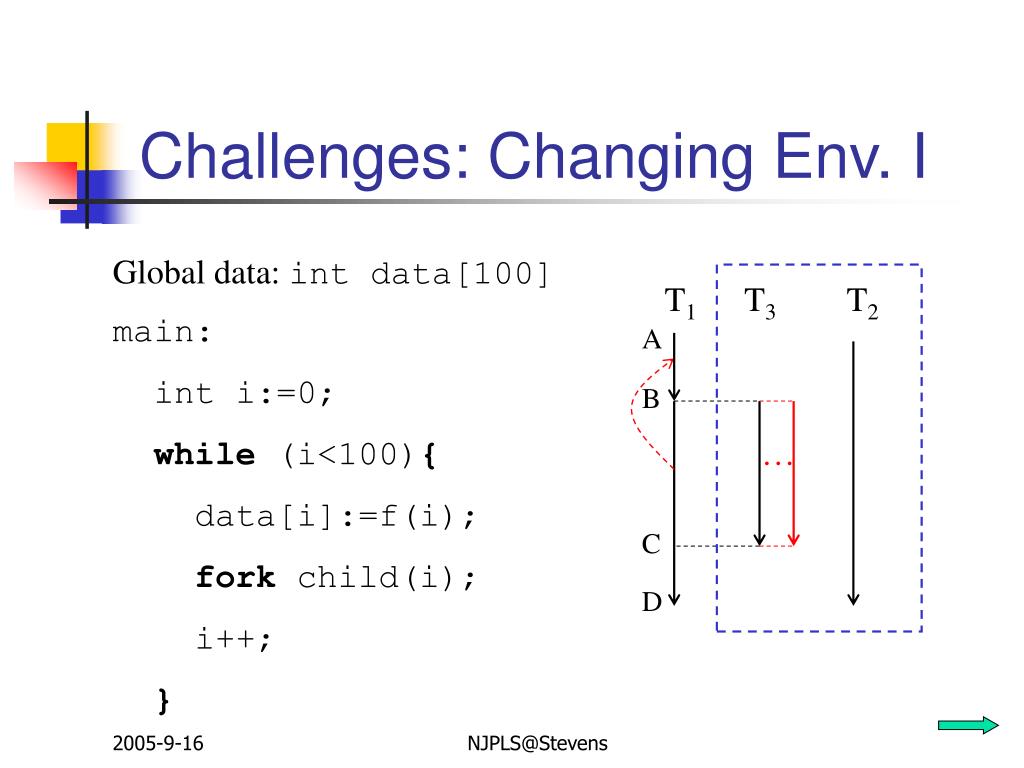

  16. T3 … C D Challenges: Changing Env. I Global data: int data[100] T1 T2 main: int i:=0; while (i<100){ data[i]:=f(i); fork child(i); i++; } A B NJPLS@Stevens

  17. Challenges: Changing Env. II • T2 and T3 have no overlap in their lifetime • non-interference between all threads? • Only check those that overlap? • How to specify the overlapping? T1 T2 T3 NJPLS@Stevens

  18. Challenges: multiple instantiations (Aa, Ga) f(a) . . . GaiAaj GaAa? fork f(a1) fork f(an) fork f(a2) (Aa1, Ga1) (Aa2, Ga2) (Aan, Gan) NJPLS@Stevens

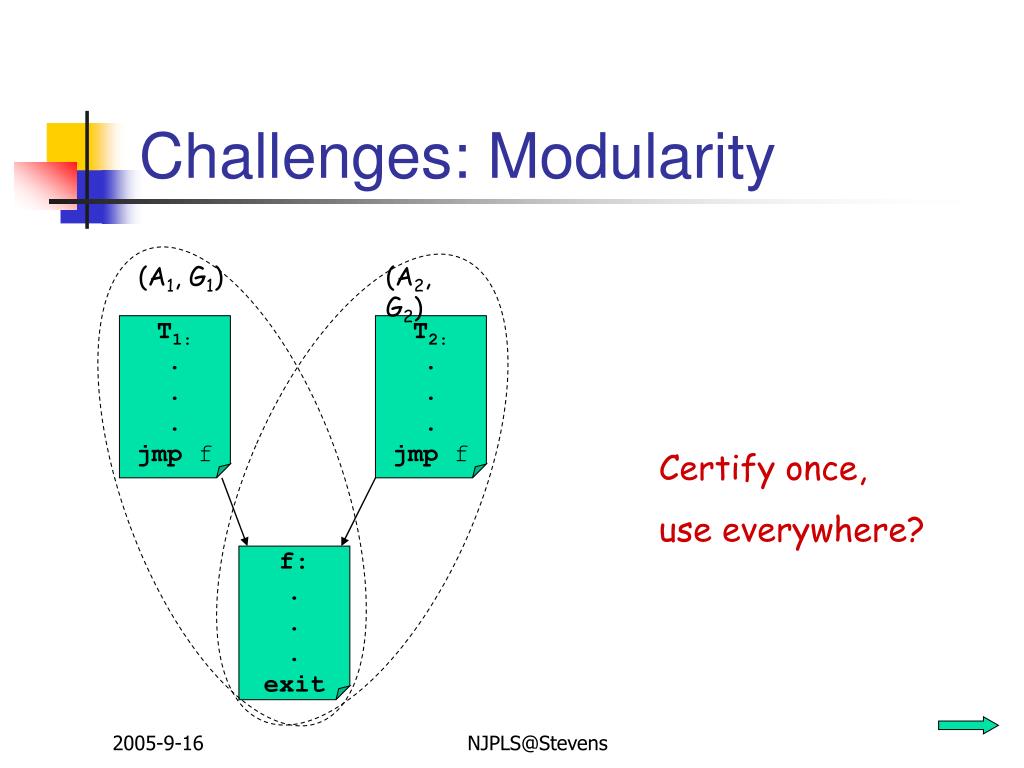

  19. Challenges: Modularity (A1, G1) (A2, G2) T1: . . . jmp f T2: . . . jmp f Certify once, use everywhere? f: . . . exit NJPLS@Stevens

  20. Outline of This Talk • Background: the Rely-Guarantee Method • Challenges for Dynamic Thread Creation/Termination • Our Approach • The CMAP Framework • Conclusion and Future Work NJPLS@Stevens

  21. Our Approach (1) • Problems for checking NI of static threads • Changing environment • Multiple instantiations • Modularity issues • CMAP: “lazy checking” • At each step, all live (dynamic) threads do not interfere NJPLS@Stevens

  22. …  (A0, G0) (An, Gn) each ti satisfies (Ai, Gi) WF(Q, ): Our Approach (2) … Q t0 tn How to track the changing thread queue? NJPLS@Stevens

  23. Q WF WF   Our Approach (3) • Borrow ideas from typechecking data heaps (as in TAL): Initial condition: 0 . WF(Q0, 0) Q'  ::=add | sub | jd f |… | exit | fork | yield ' NJPLS@Stevens

  24. exit ti Q\{ti} Q WF! (Ai,Gi) \{(Ai, Gi)}  Our Approach (4) • Thread Termination: exit t Q WF (A,G)  NJPLS@Stevens

  25. Our Approach (5) • Thread Creation: fork f(a) fork t’ t t Q Q WF WF ? (A,G)  • t'does not interfere with Q • tdoes not interfere with the new env. NJPLS@Stevens

  26.    fork t Q{t’} WF? ? {A’’,G’’} (A’,G’) Our Approach (6) G  i Aii Gi  A t Q WF (A,G)  G'' i Aii Gi  A'' G A G'  (i Ai)A'' (i Gi)G'' A' A G NJPLS@Stevens

  27. Our Approach (7) • Queue Extension WF(Q{t}, {(A, G)}) WF(Q{t',t},{(A’’, G’’), (AG’’, GA’’)}) fork f(a) A  A’’, G’’  G NJPLS@Stevens

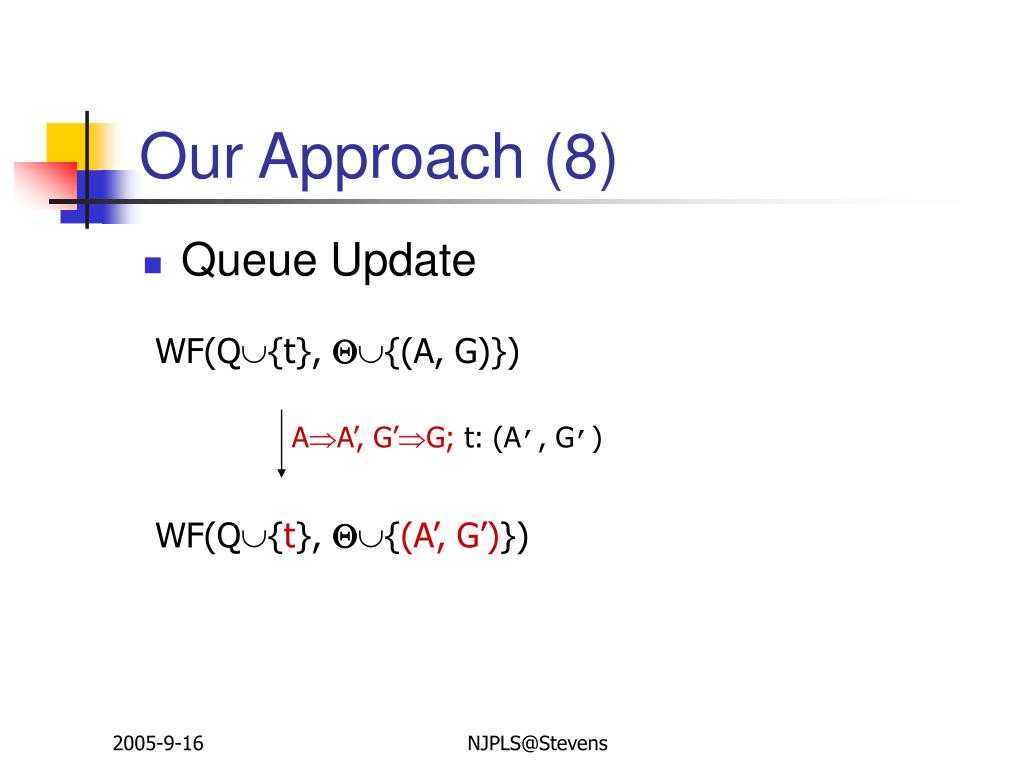

  28. Our Approach (8) • Queue Update WF(Q{t}, {(A, G)}) WF(Q{t}, {(A’, G’)}) AA’, G’G; t: (A’, G’) NJPLS@Stevens

  29. Our Approach (9) (A1, G1) (A2, G2) Certify once, use everywhere? T1: . . . jmp f T2: . . . jmp f AiA, GGi (A, G) f: . . . exit NJPLS@Stevens

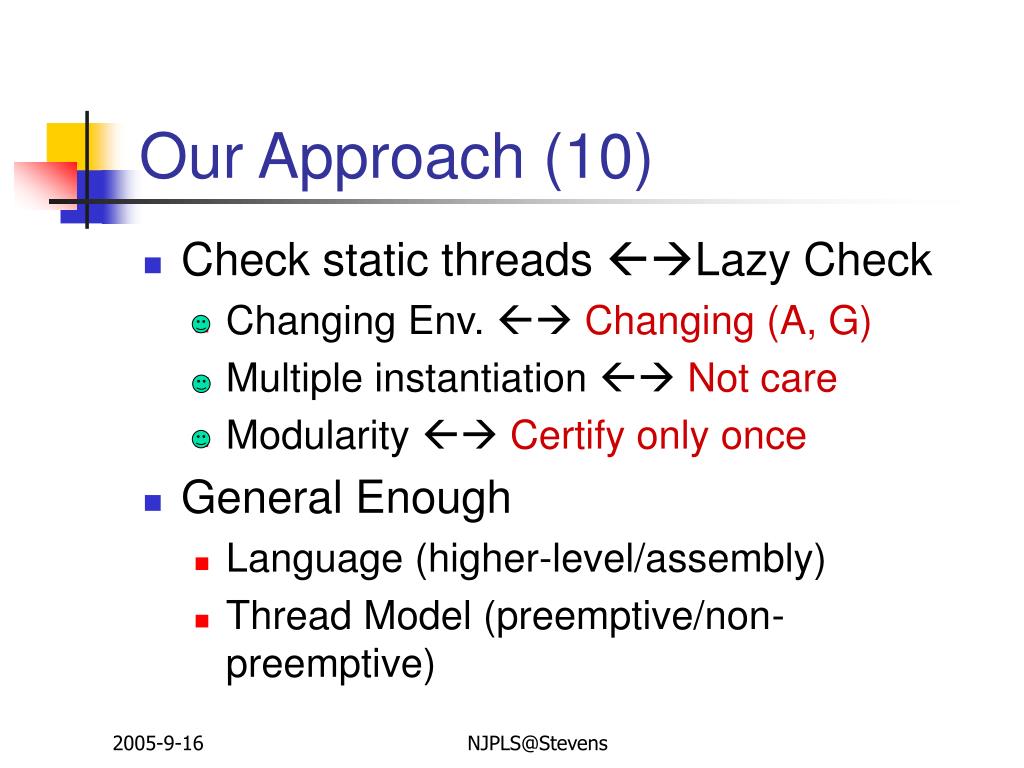

  30. Our Approach (10) • Check static threads Lazy Check • Changing Env.  Changing (A, G) • Multiple instantiation  Not care • Modularity  Certify only once • General Enough • Language (higher-level/assembly) • Thread Model (preemptive/non-preemptive) NJPLS@Stevens

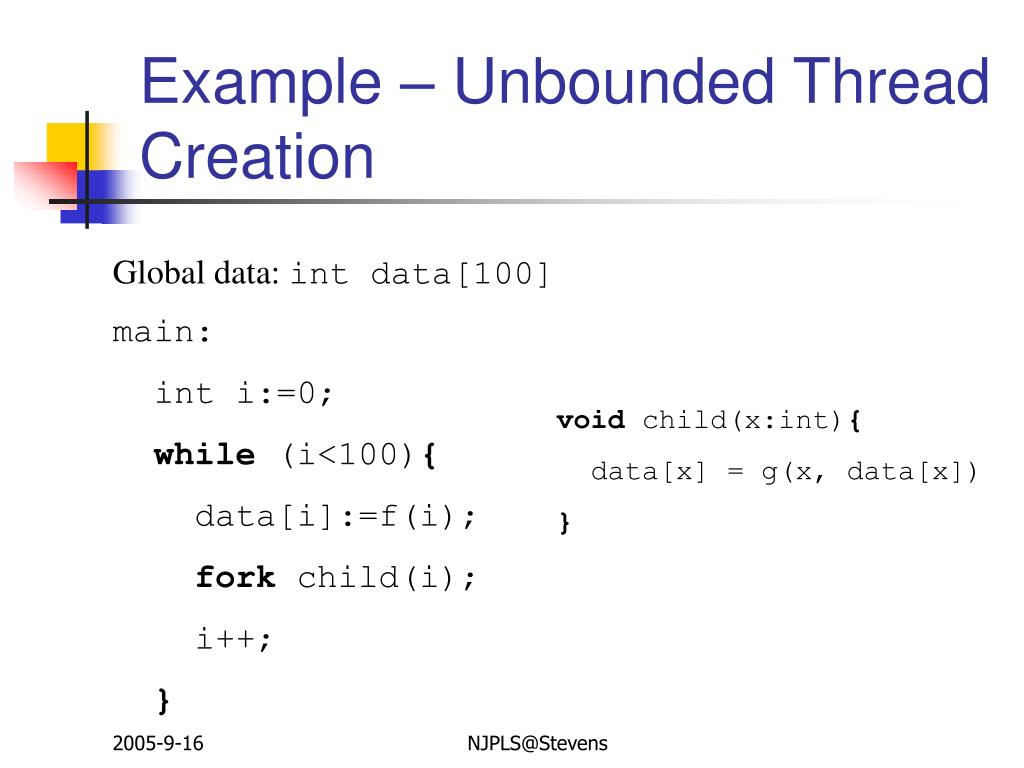

  31. Example – Unbounded Thread Creation Global data: int data[100] main: int i:=0; while (i<100){ data[i]:=f(i); fork child(i); i++; } void child(x:int){ data[x] = g(x, data[x]) } NJPLS@Stevens

  32. Example – Unbounded Thread Creation • Specification of Child: • Ax: • Gx: • Non-interference between children: NJPLS@Stevens

  33. Example – Unbounded Thread Creation • How to specify the main thread? main: int i:=0; while (i<100){ data[i]:=0; fork(child, i); i++ } Do we need a G such that: But main cannot satisfy such a G! NJPLS@Stevens

  34. (A, G) (A, G) (A, G) (A’, G’) (A, G) main: int i:=0; while (i<100){ data[i]:=0; fork(child, i); i++ } NJPLS@Stevens

  35. Outline of This Talk • Background: the Rely-Guarantee Method • Challenges for Dynamic Thread Creation/Termination • Our Approach • The CMAP Framework • Conclusion and Future Work NJPLS@Stevens

  36. The CMAP Framework • The abstract machine • The verification logic • Specification language • Inference rules • Soundness proof • Example programs • Unbounded dynamic thread creation • Readers/Writers problem • Lock-free program • All implemented in Coq! NJPLS@Stevens

  37. f1: I1 … (data heap) H R R R f2: I2 I I I (dyn. queue) Q … 0 1 2 … (code heap) C add … fork h yield exit r1 r2 r3 … rn h1: I1 (register file) R h2: I2 … (state) S ::=(H,R) (thrd entries) T (instr. seq.) I (program) P ::=(C,T,S,Q,I) The CMAP Framework - Machine NJPLS@Stevens

  38. The CMAP Framework The paper on CMAP (Feng&Shao ICFP’05): http://flint.cs.yale.edu/publications/cmap.html NJPLS@Stevens

  39. Conclusion • Problems for unbounded dynamic thread creation • Changing environment (fork/exit) • Multiple instantiation of thread code • No previously known modular verification method • Our approach • INV: active threads in the system do not interfere • Combine the type-based proof technique with R-G method • Unify thread’s assumption/guarantee with env.’s guarantee/assumption • Thread modularity + code/proof reuse • The CMAP framework and its Coq implementation NJPLS@Stevens

  40. Future Work • Certified Thread Libraries • fork, yield, exit • join, lock, monitors • Surface language • Higher-level specifications • Partially infer A and G • Certifying compilation to CMAP Where is the threads ? User-level thread + thread lib. NJPLS@Stevens

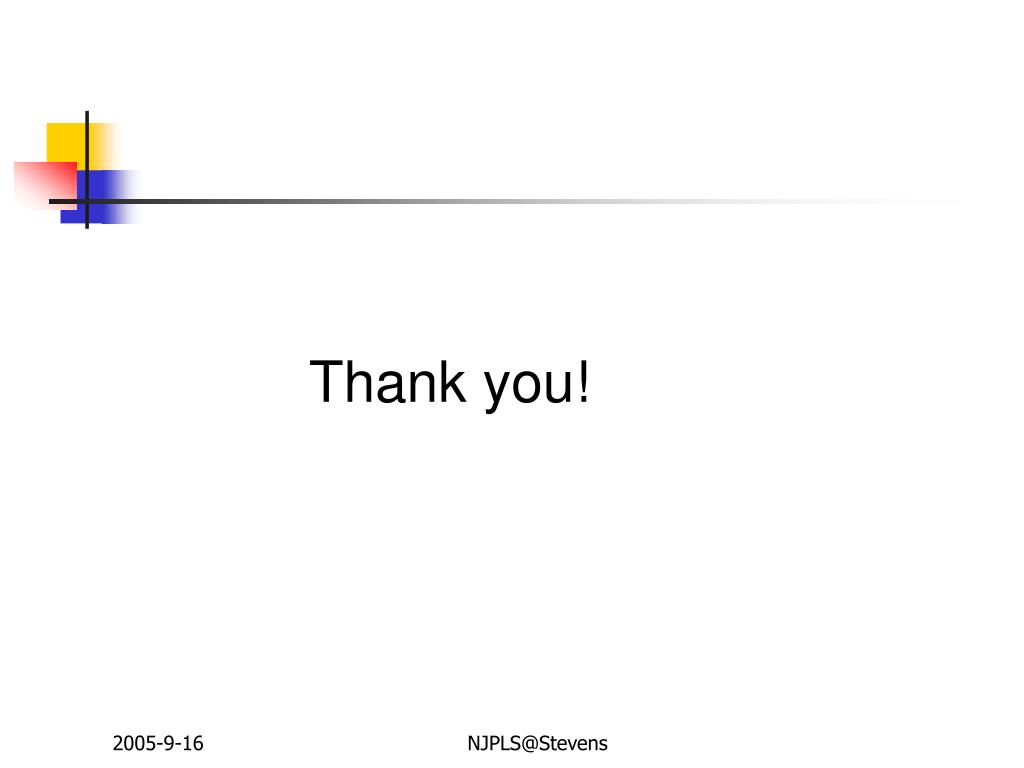

  41. Thank you! NJPLS@Stevens
