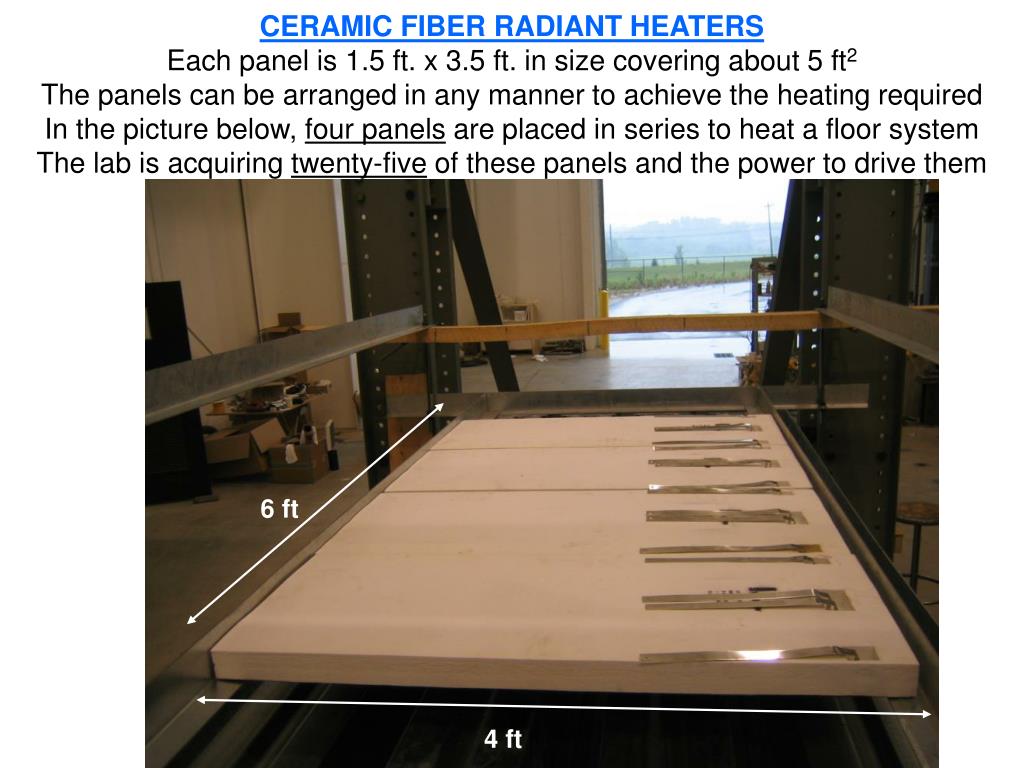

  1. CERAMIC FIBER RADIANT HEATERSEach panel is 1.5 ft. x 3.5 ft. in size covering about 5 ft2The panels can be arranged in any manner to achieve the heating requiredIn the picture below, four panels are placed in series to heat a floor systemThe lab is acquiring twenty-five of these panels and the power to drive them 6 ft 4 ft

  2. CERAMIC FIBER RADIANT HEATERSEach panel is 1.5 ft. x 3.5 ft. in size covering about 5 ft2In the picture below, four panels are placed to surround a column 5 ft.

  3. EXPERIMENTAL INVESTIGATIONSThe heaters can provide surface temperatures of 1000oC and follow the specified T-t curves using PID controllers and Thermocouples PID Controllers Heater in Action HEATERS
