  1. Calendaring and Scheduling(C & S) Branch HendrixSr. Principal Technology SpecialistCentral Region - USMicrosoft Corporation

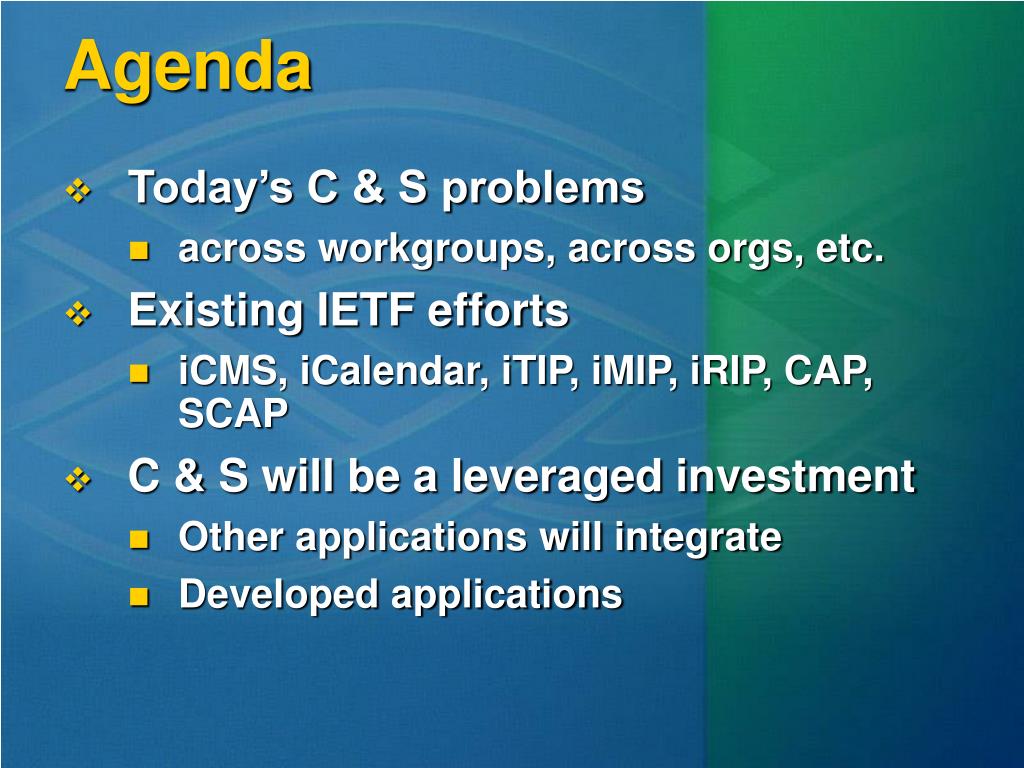

  2. Agenda • Today’s C & S problems • across workgroups, across orgs, etc. • Existing IETF efforts • iCMS, iCalendar, iTIP, iMIP, iRIP, CAP, SCAP • C & S will be a leveraged investment • Other applications will integrate • Developed applications

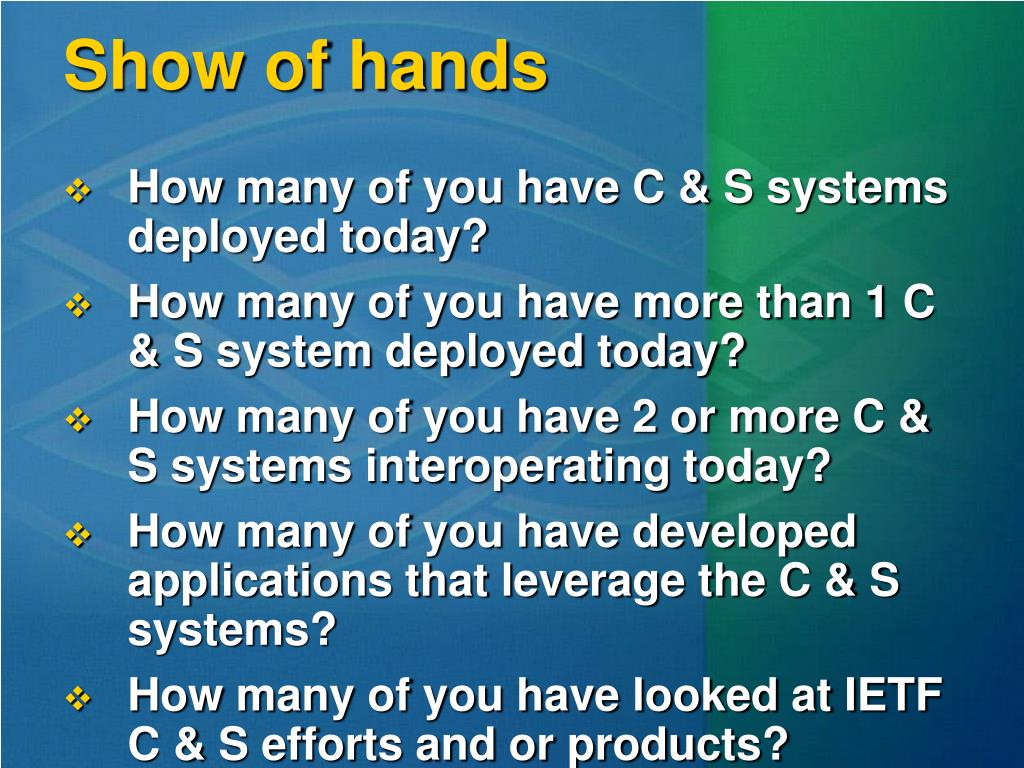

  3. Show of hands • How many of you have C & S systems deployed today? • How many of you have more than 1 C & S system deployed today? • How many of you have 2 or more C & S systems interoperating today? • How many of you have developed applications that leverage the C & S systems? • How many of you have looked at IETF C & S efforts and or products?

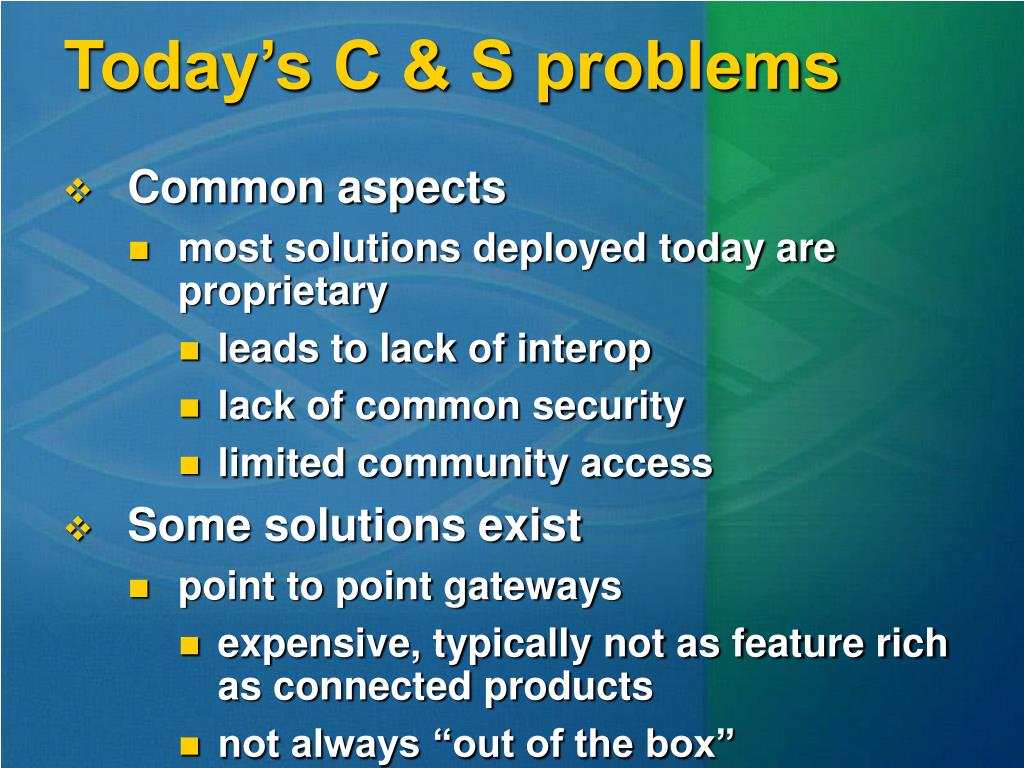

  4. Today’s C & S problems • Common aspects • most solutions deployed today are proprietary • leads to lack of interop • lack of common security • limited community access • Some solutions exist • point to point gateways • expensive, typically not as feature rich as connected products • not always “out of the box”

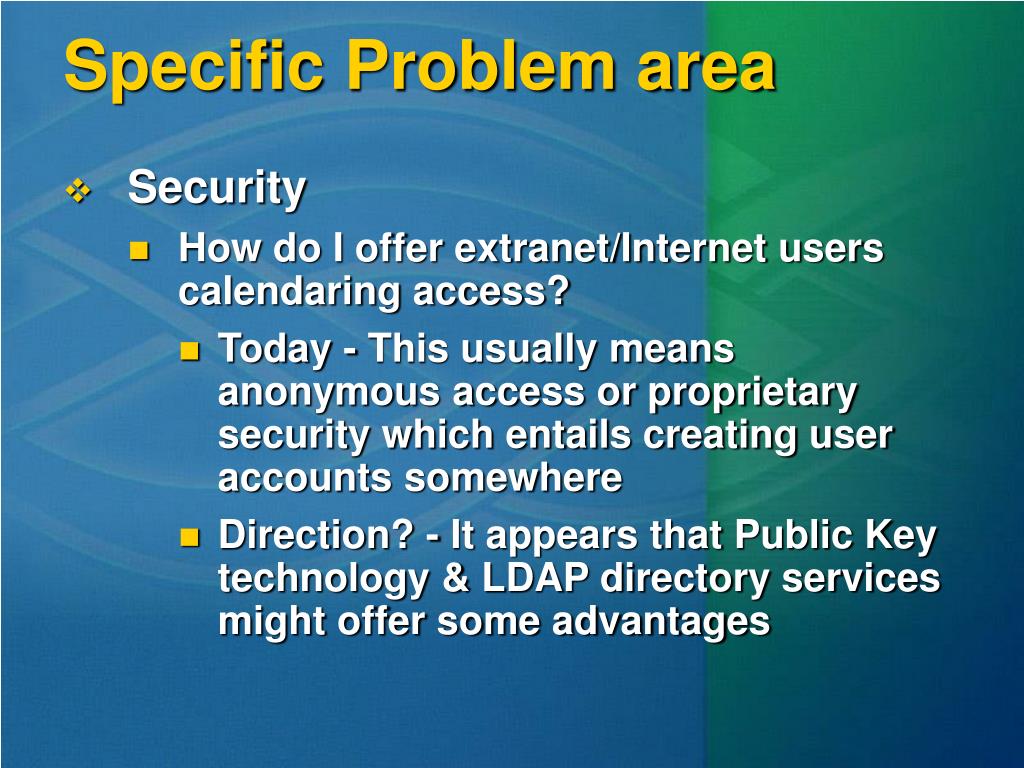

  5. Specific Problem area • Security • How do I offer extranet/Internet users calendaring access? • Today - This usually means anonymous access or proprietary security which entails creating user accounts somewhere • Direction? - It appears that Public Key technology & LDAP directory services might offer some advantages

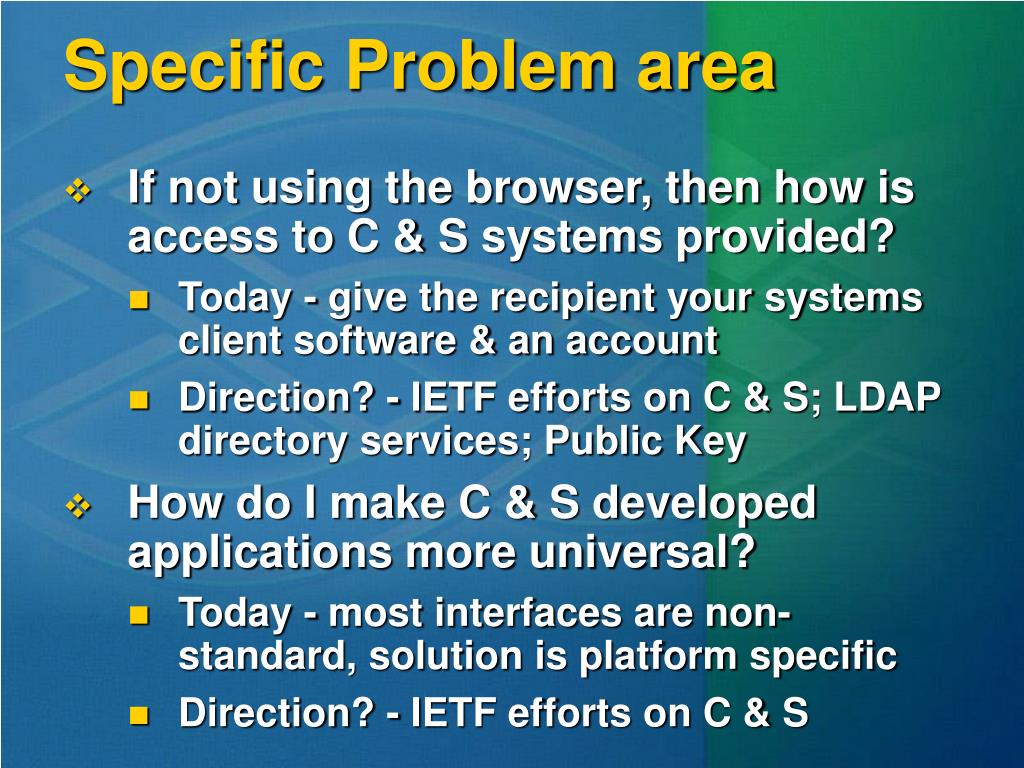

  6. Specific Problem area • If not using the browser, then how is access to C & S systems provided? • Today - give the recipient your systems client software & an account • Direction? - IETF efforts on C & S; LDAP directory services; Public Key • How do I make C & S developed applications more universal? • Today - most interfaces are non-standard, solution is platform specific • Direction? - IETF efforts on C & S

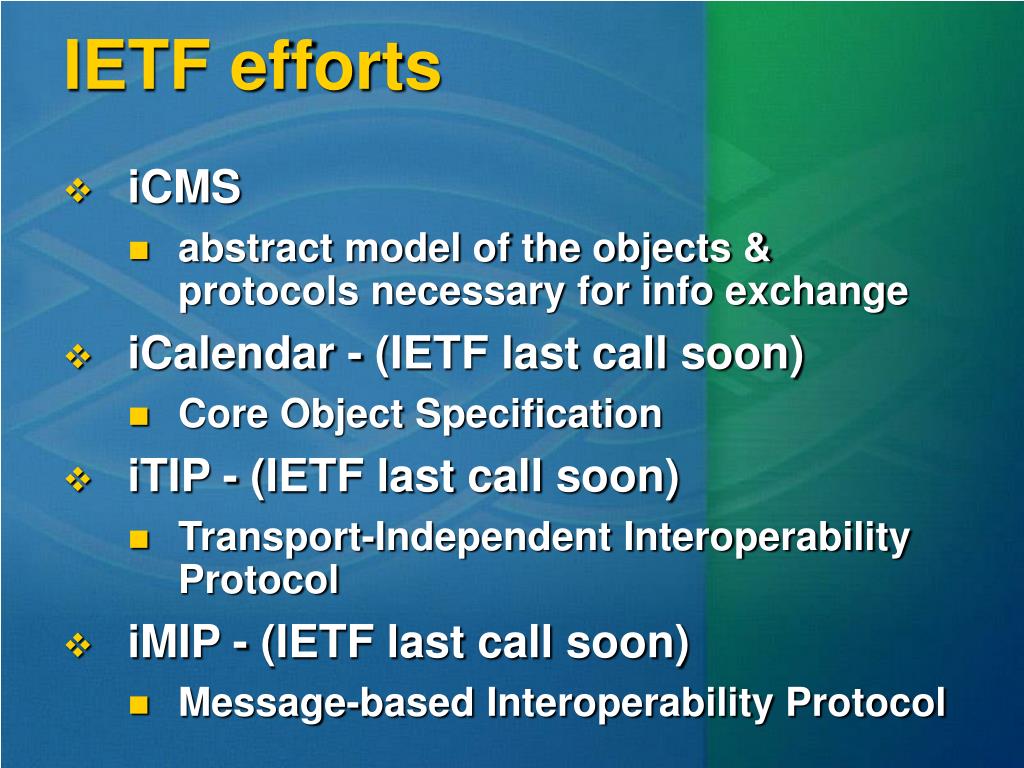

  7. IETF efforts • iCMS • abstract model of the objects & protocols necessary for info exchange • iCalendar - (IETF last call soon) • Core Object Specification • iTIP - (IETF last call soon) • Transport-Independent Interoperability Protocol • iMIP - (IETF last call soon) • Message-based Interoperability Protocol

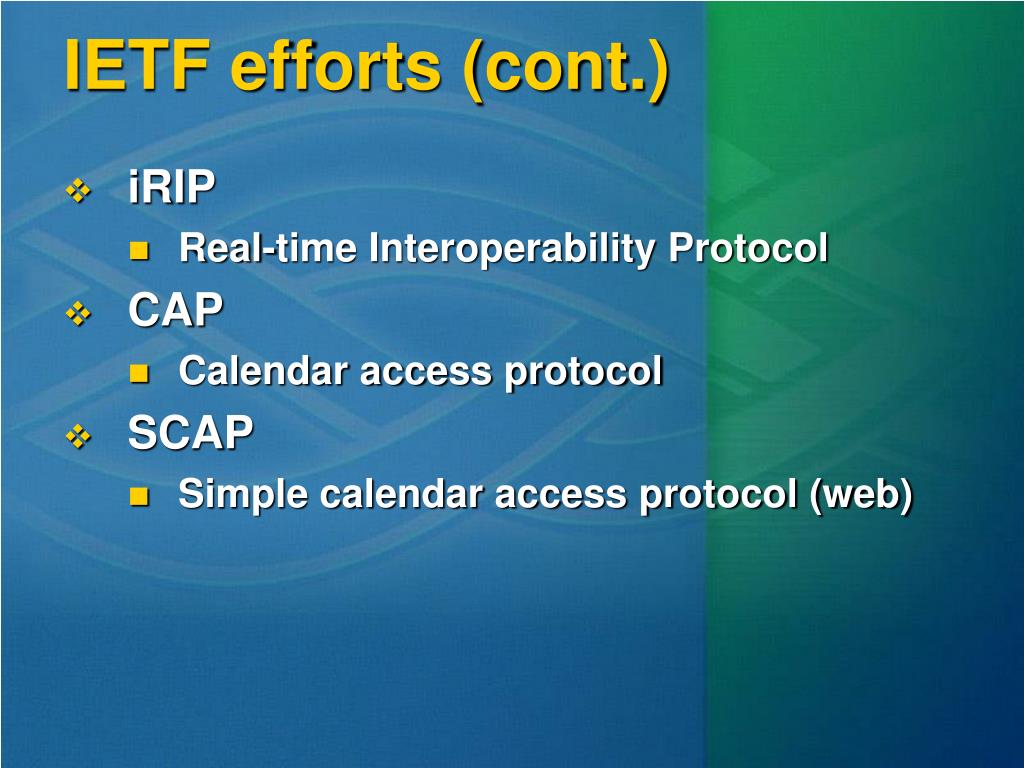

  8. IETF efforts (cont.) • iRIP • Real-time Interoperability Protocol • CAP • Calendar access protocol • SCAP • Simple calendar access protocol (web)

  9. iCMS - Calendar Model Spec iCalendar Object Model Transport to Other systems and clients iTIP iCAP Client & Admin to Server iRIP iMIP Session E-mail based

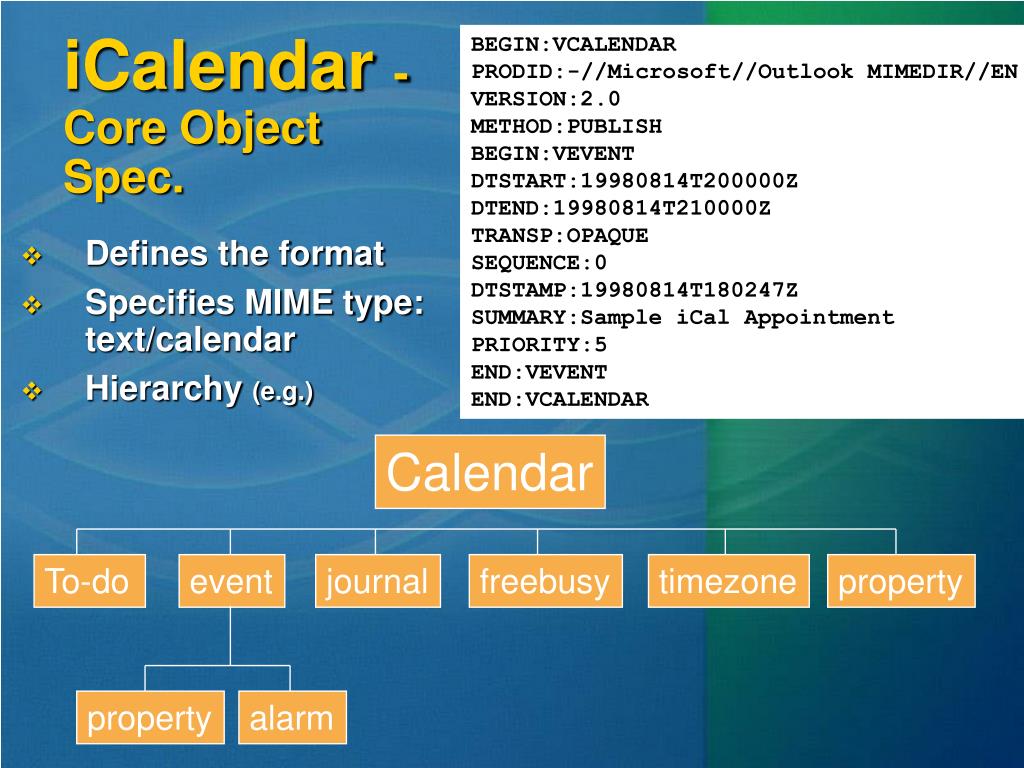

  10. Calendar To-do event journal freebusy timezone property property alarm iCalendar - Core Object Spec. BEGIN:VCALENDAR PRODID:-//Microsoft//Outlook MIMEDIR//EN VERSION:2.0 METHOD:PUBLISH BEGIN:VEVENT DTSTART:19980814T200000Z DTEND:19980814T210000Z TRANSP:OPAQUE SEQUENCE:0 DTSTAMP:19980814T180247Z SUMMARY:Sample iCal Appointment PRIORITY:5 END:VEVENT END:VCALENDAR • Defines the format • Specifies MIME type: text/calendar • Hierarchy (e.g.)

  11. iTIP - Transport-Independent Interoperability Protocol • “Specifies how calendaring systems use iCalendar objects to interoperate with other calendar systems” • Application Protocol • defines the content of the iCalendar objects being exchanged • Transport Protocol • defines how the iCalendar objects are sent between sender and receiver • Defined methods • Publish, Request, Reply, Add, Cancel, Refresh, Counter, Decline-Counter

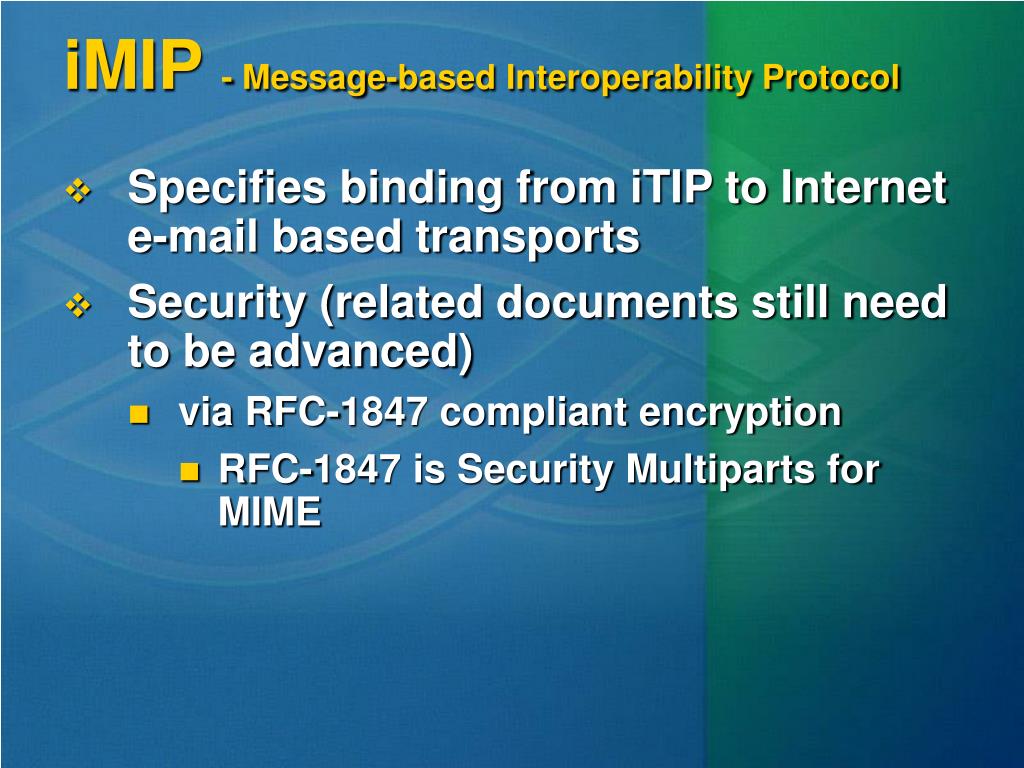

  12. iMIP - Message-based Interoperability Protocol • Specifies binding from iTIP to Internet e-mail based transports • Security (related documents still need to be advanced) • via RFC-1847 compliant encryption • RFC-1847 is Security Multiparts for MIME

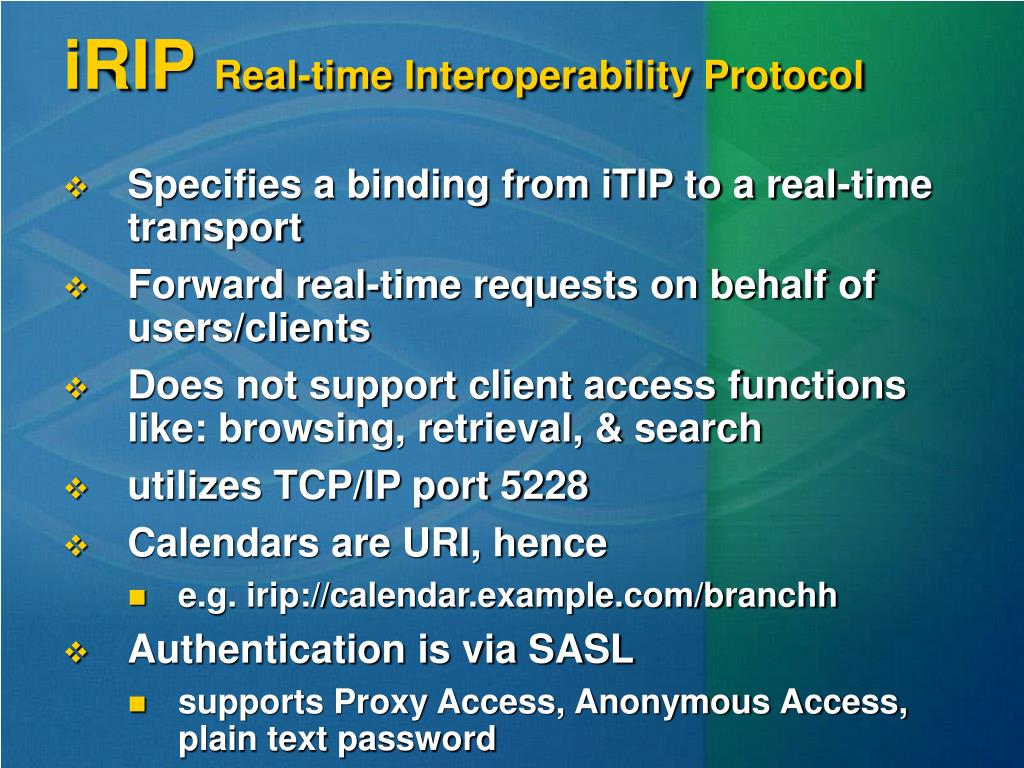

  13. iRIP Real-time Interoperability Protocol • Specifies a binding from iTIP to a real-time transport • Forward real-time requests on behalf of users/clients • Does not support client access functions like: browsing, retrieval, & search • utilizes TCP/IP port 5228 • Calendars are URI, hence • e.g. irip://calendar.example.com/branchh • Authentication is via SASL • supports Proxy Access, Anonymous Access, plain text password

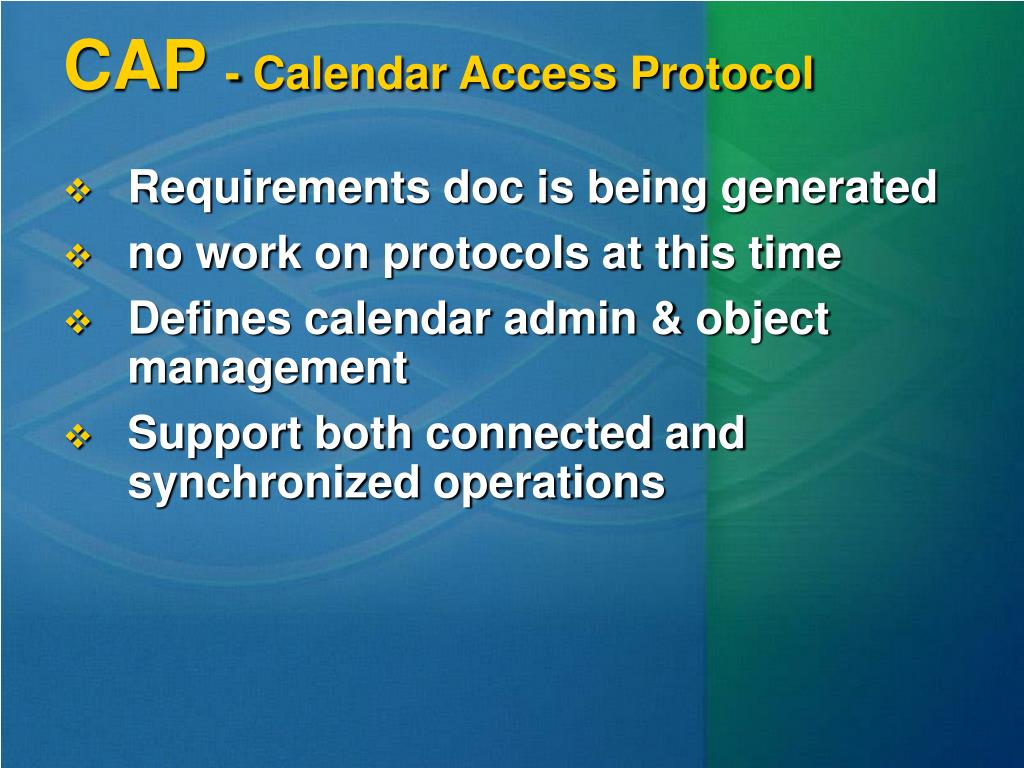

  14. CAP - Calendar Access Protocol • Requirements doc is being generated • no work on protocols at this time • Defines calendar admin & object management • Support both connected and synchronized operations

  15. SCAP - Simple Calendar Access Protocol • Individual submission currently, not a workgroup effort • HTTP as transport • XML to encode calendar objects

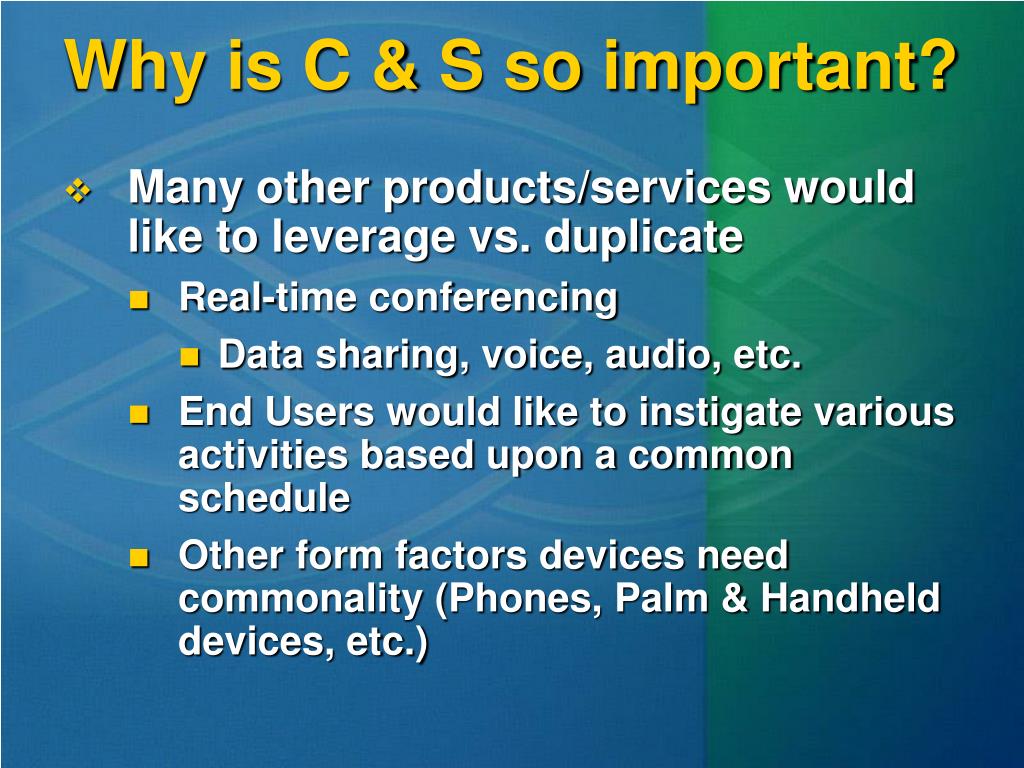

  16. Why is C & S so important? • Many other products/services would like to leverage vs. duplicate • Real-time conferencing • Data sharing, voice, audio, etc. • End Users would like to instigate various activities based upon a common schedule • Other form factors devices need commonality (Phones, Palm & Handheld devices, etc.)

  17. Why is C & S so Important? • Lots of in-house built applications can leverage • Events publishing • Resource booking

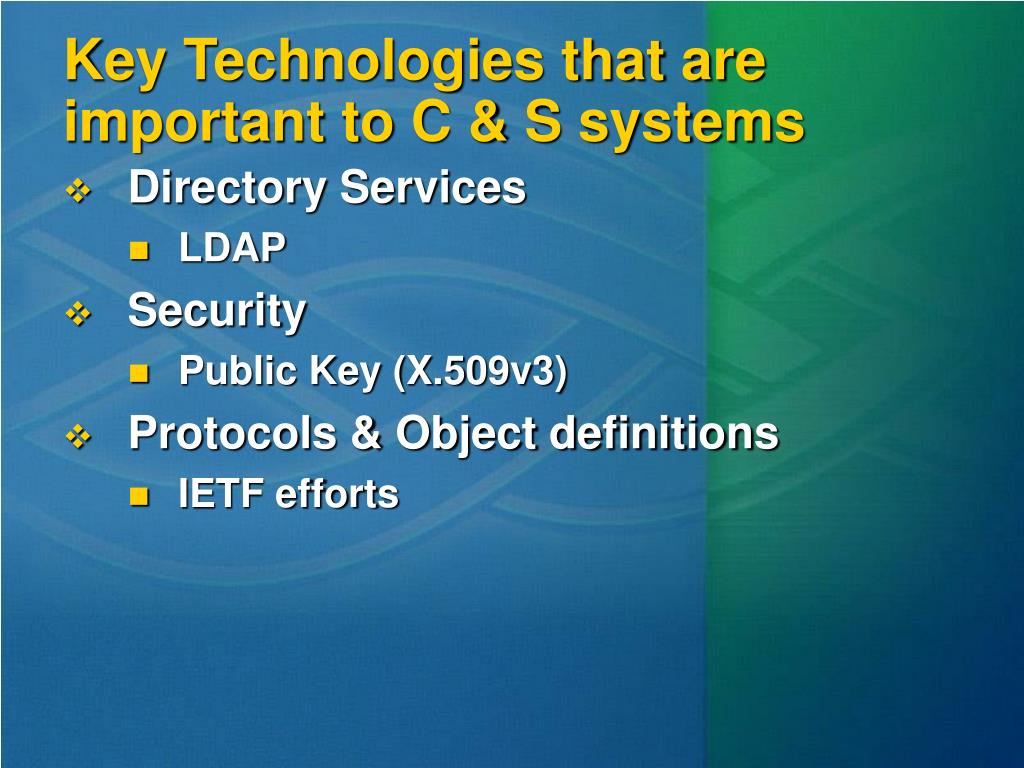

  18. Key Technologies that are important to C & S systems • Directory Services • LDAP • Security • Public Key (X.509v3) • Protocols & Object definitions • IETF efforts

  19. Discussion
