PARTITIONAL CLUSTERING

1. PARTITIONAL CLUSTERING ACM Student Chapter, Heritage Institute of Technology 17th February, 2012 SIGKDD Presentation by MeghaNangia J. M. Mansa KoustavMullick

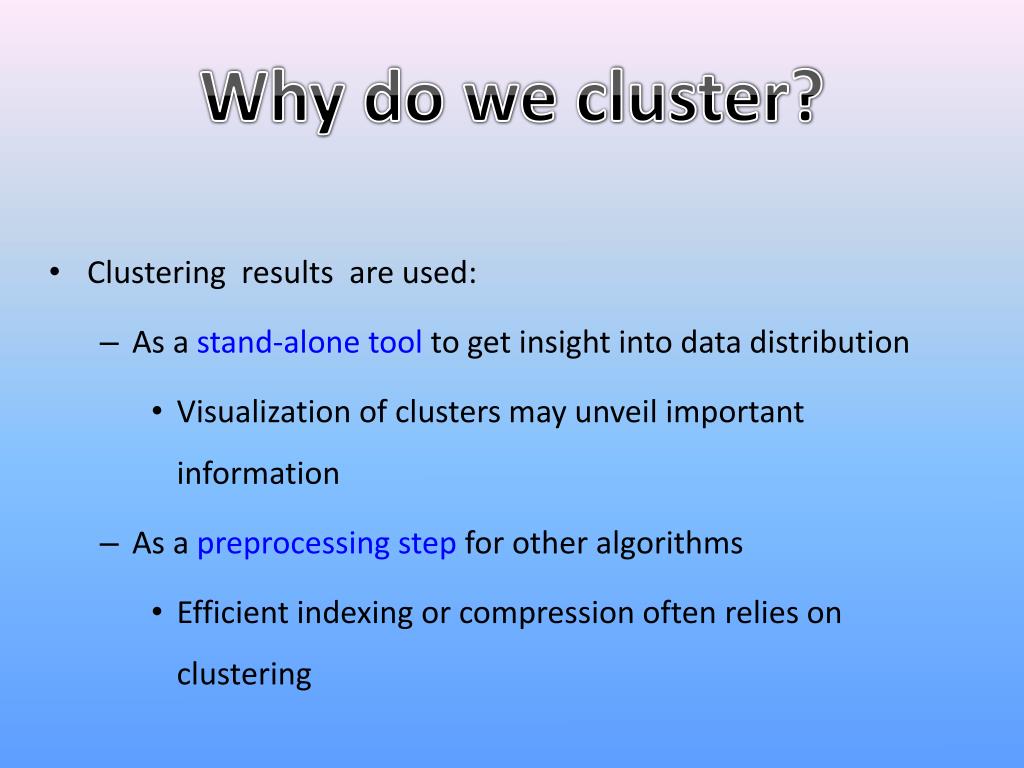

2. Why do we cluster? Clustering results are used: As a stand-alone tool to get insight into data distribution Visualization of clusters may unveil important information As a preprocessing step for other algorithms Efficient indexing or compression often relies on clustering

3. What is Cluster Analysis? Cluster analysis or clustering is the task of assigning a set of objects into groups (called clusters) so that the objects in the same cluster are more “similar” (in some sense or another) to each other than to those in other clusters. Cluster analysis itself is not one specific algorithm. But the general task to be solved is forming similar clusters. It can be achieved by various algorithms.

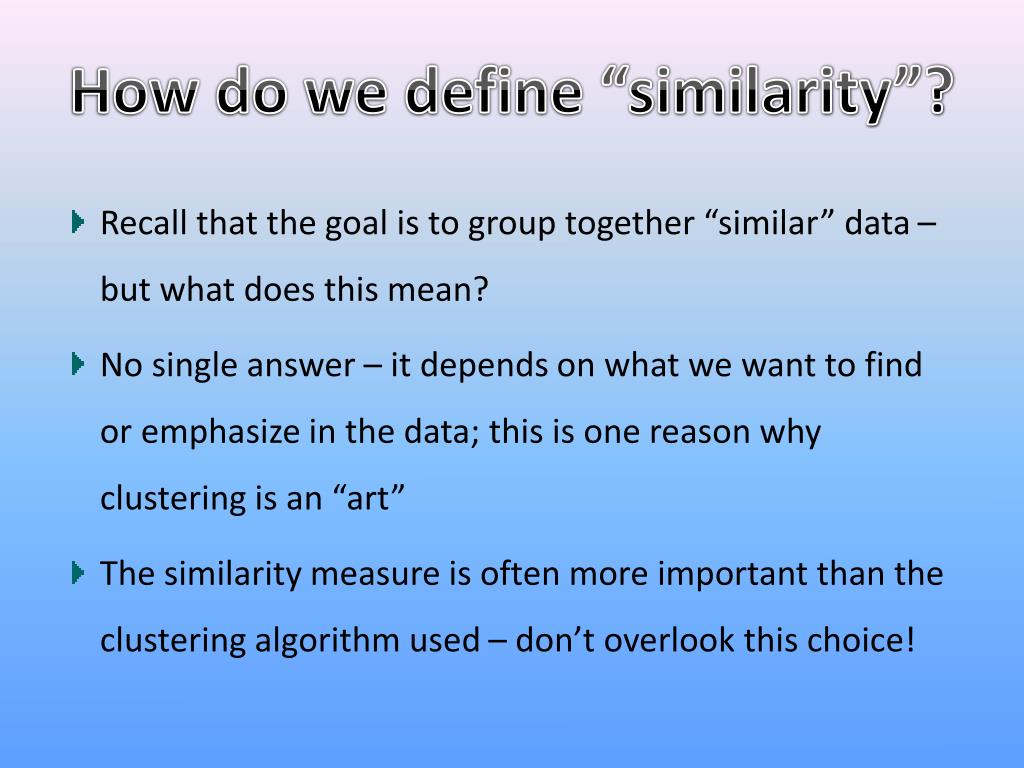

4. How do we define “similarity”? Recall that the goal is to group together “similar” data – but what does this mean? No single answer – it depends on what we want to find or emphasize in the data; this is one reason why clustering is an “art” The similarity measure is often more important than the clustering algorithm used – don’t overlook this choice!

5. Clustering: Minimize Intra-cluster distance Maximize Inter-cluster distance

6. Applications: • Clustering is a main task of explorative data mining to reduce the size of large data sets. Its a common technique for statistical data analysis used in many fields, including : • Machine learning • Pattern recognition • Image analysis • Information retrieval • Bioinformatics. • Web applications such as social network analysis, grouping of shopping items, search result grouping etc.

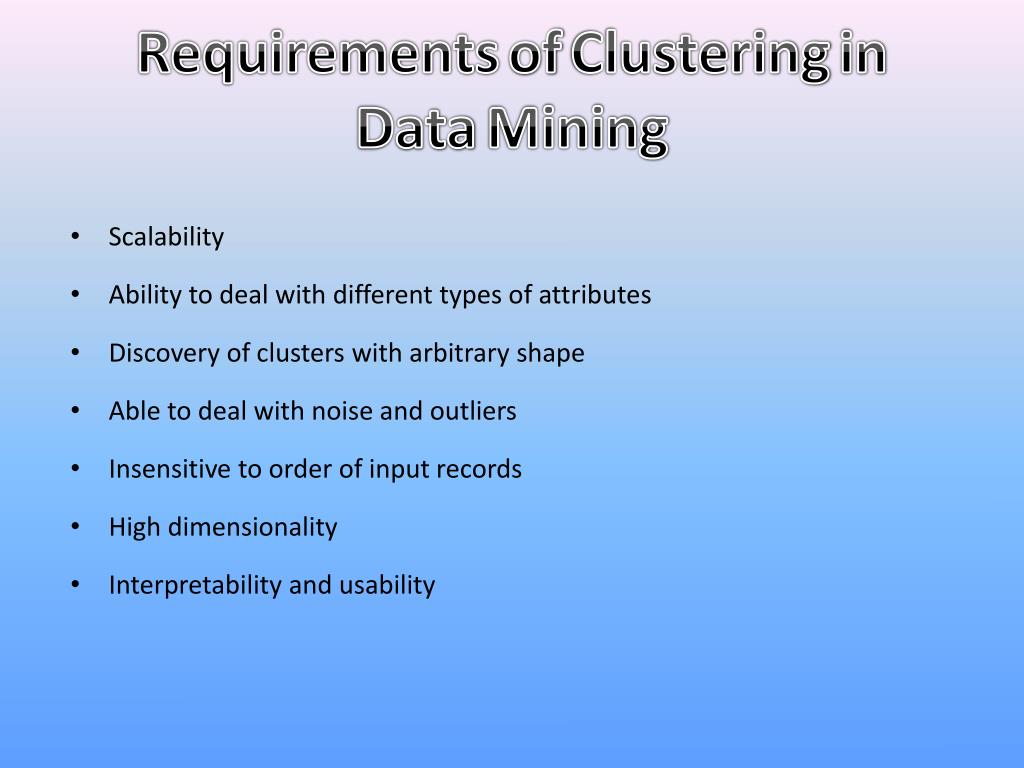

7. RequirementsofClusteringinDataMining Scalability Ability to deal with different types of attributes Discovery of clusters with arbitrary shape Able to deal with noise and outliers Insensitive to order of input records High dimensionality Interpretability and usability

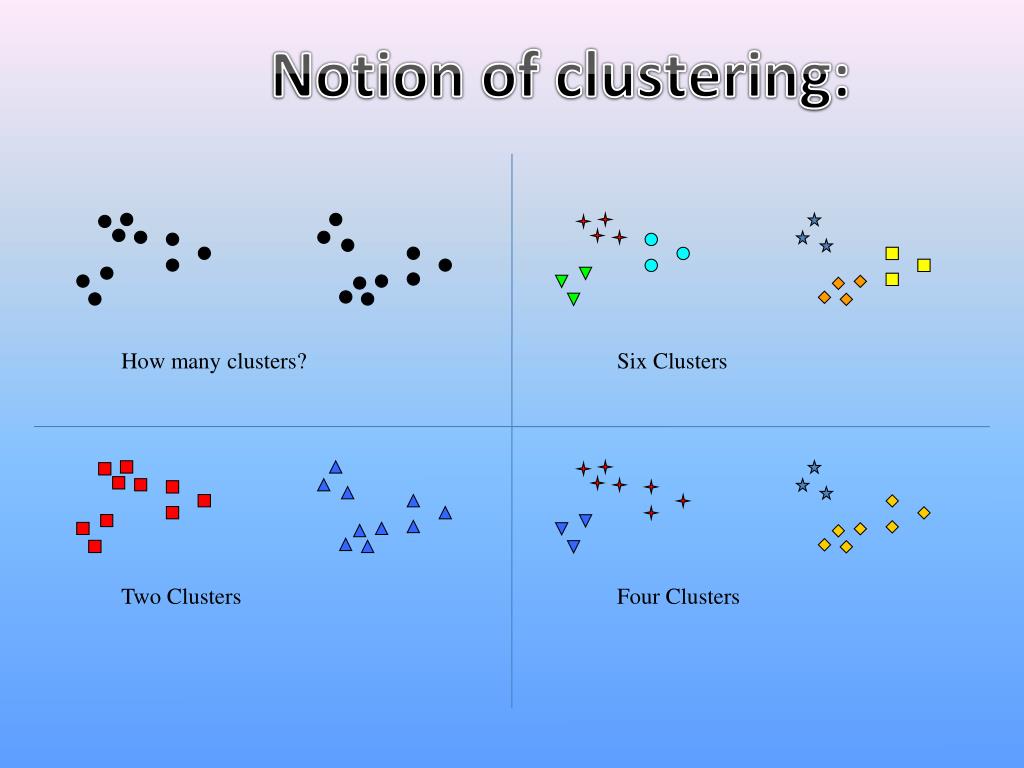

8. Notion of clustering: How many clusters? Six Clusters Two Clusters Four Clusters

9. Clustering Algorithms: Clustering algorithms can be categorized Some of the major algorithms are: Hierarchical or connectivity based clustering Partitional clustering (K-means or centroid-based clustering) Density based Grid based Model based

10. Mammals

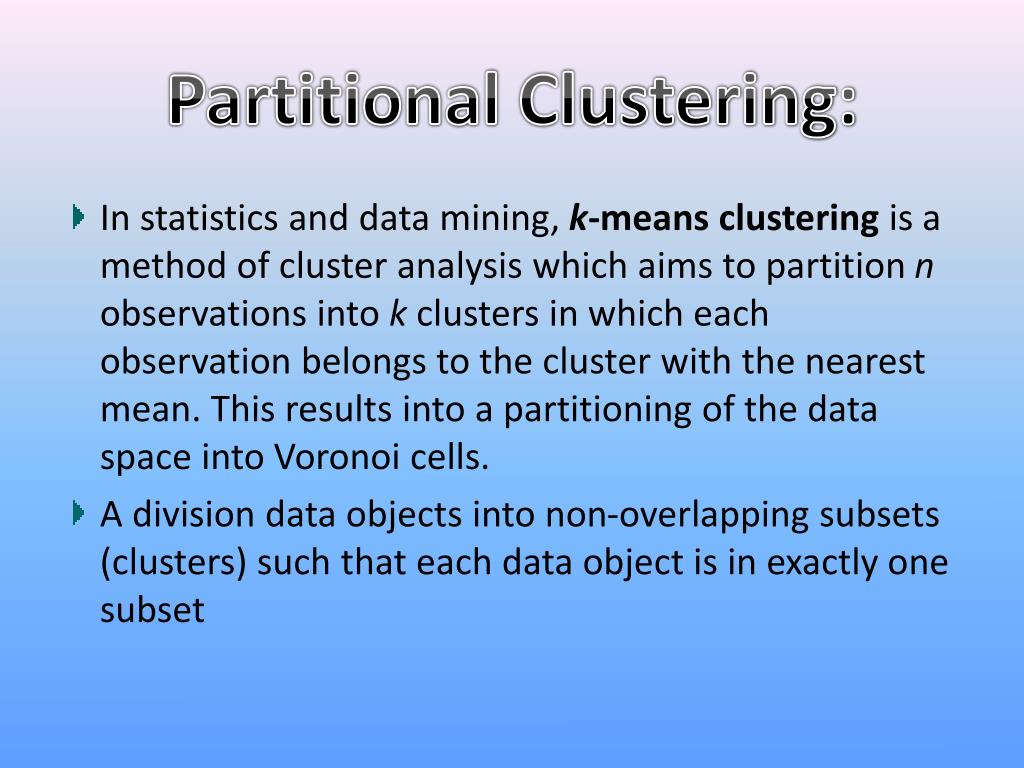

12. Partitional Clustering: • In statistics and data mining, k-means clustering is a method of cluster analysis which aims to partition n observations into k clusters in which each observation belongs to the cluster with the nearest mean. This results into a partitioning of the data space into Voronoi cells. • A division data objects into non-overlapping subsets (clusters) such that each data object is in exactly one subset

13. Partitional Clustering : A Partitional Clustering Original Points

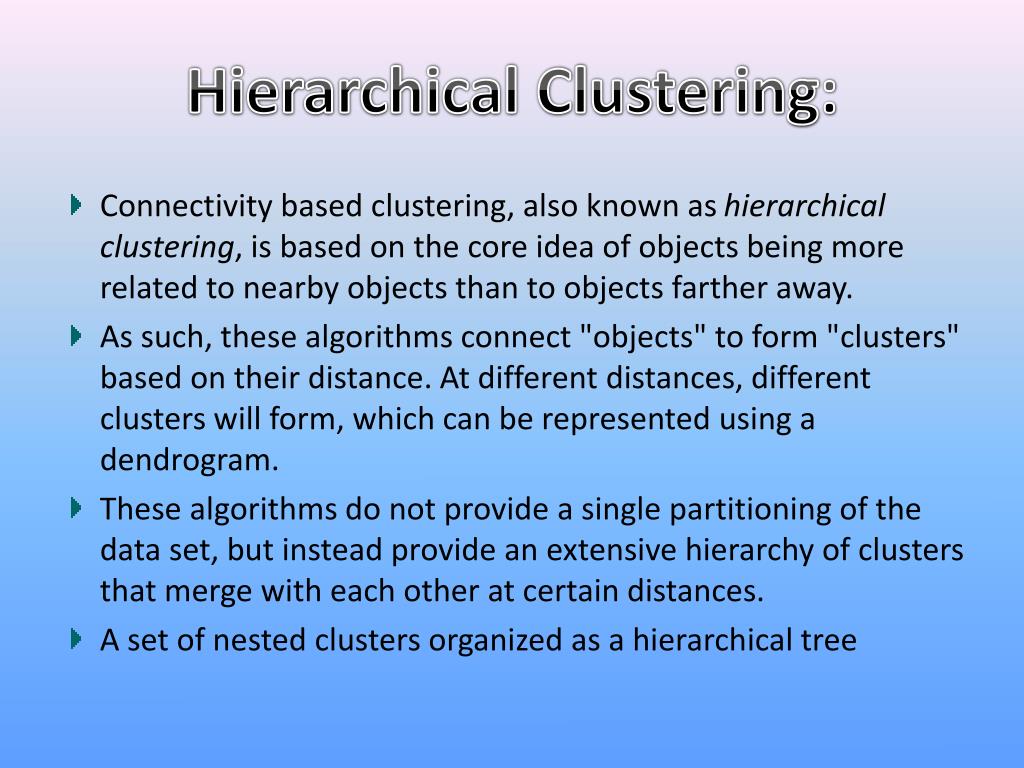

14. Hierarchical Clustering: Connectivity based clustering, also known as hierarchical clustering, is based on the core idea of objects being more related to nearby objects than to objects farther away. As such, these algorithms connect "objects" to form "clusters" based on their distance. At different distances, different clusters will form, which can be represented using a dendrogram. These algorithms do not provide a single partitioning of the data set, but instead provide an extensive hierarchy of clusters that merge with each other at certain distances. A set of nested clusters organized as a hierarchical tree

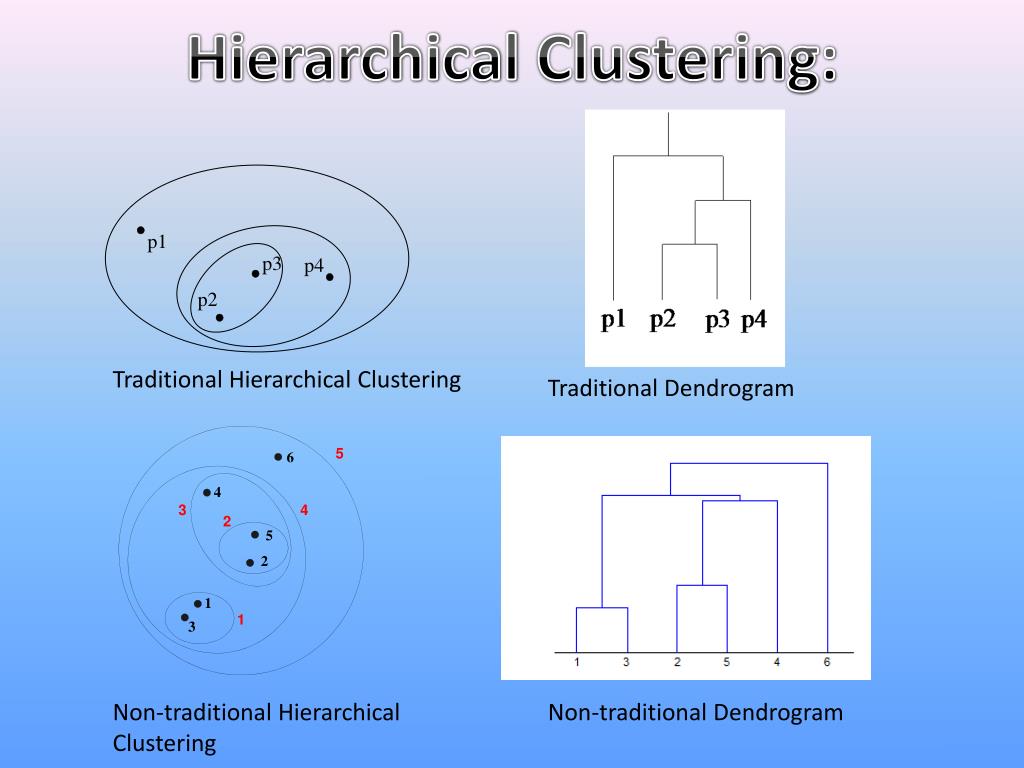

15. Hierarchical Clustering: Traditional Hierarchical Clustering Traditional Dendrogram Non-traditional Hierarchical Clustering Non-traditional Dendrogram

16. Hierarchical Clustering. Partitional Clustering.

17. Partitioning Algorithms: Partitioning method: Construct a partition of n objects into a set of Kclusters Given: a set of objects and the number K Find: a partition of K clusters that optimizes the chosen partitionin`g criterion Effective heuristic methods: K-means and K-medoids algorithms

18. Common choices for Similarity/ Distance measures: Euclidean distance: City block or Manhattan distance: Cosine similarity: Jaccard similarity:

19. K-means Clustering: Partitional clustering approach Each cluster is associated with a centroid (center point) Each point is assigned to the cluster with the closest centroid Number of clusters, K, must be specified The basic algorithm is very simple

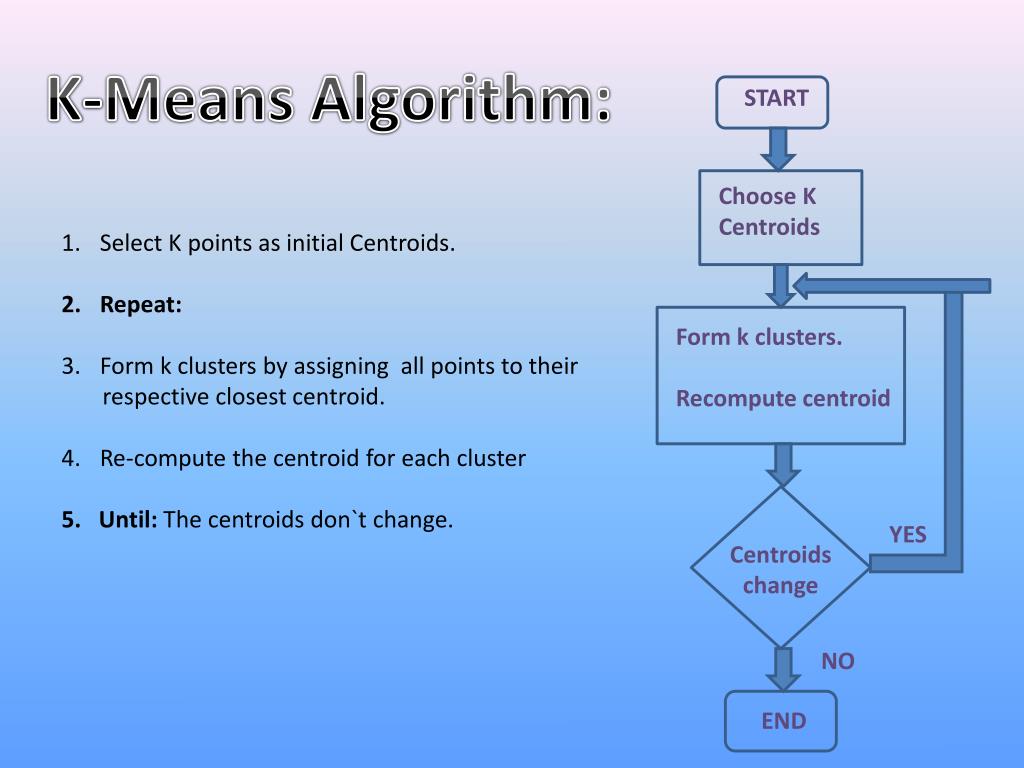

20. K-Means Algorithm: START Choose K Centroids Select K points as initial Centroids. Repeat: Form k clusters by assigning all points to their respective closest centroid. Re-compute the centroid for each cluster 5. Until: The centroids don`t change. Form k clusters. Recomputecentroid YES Centroids change NO END

21. Time Complexity Assume computing distance between two instances is O(m) where m is the dimensionality of the vectors. Reassigning clusters: O(kn) distance computations, or O(knm). Computing centroids: Each instance vector gets added once to some centroid: O(nm). Assume these two steps are each done once for I iterations: O(Iknm).

22. K-means Clustering: Step 1 Algorithm: k-means, Distance Metric: Euclidean Distance

23. K-means Clustering: Step 2 Algorithm: k-means, Distance Metric: Euclidean Distance

24. K-means Clustering: Step 3 Algorithm: k-means, Distance Metric: Euclidean Distance

25. K-means Clustering: Step 4 Algorithm: k-means, Distance Metric: Euclidean Distance

26. k1 k2 k3 K-means Clustering: Step 5 Algorithm: k-means, Distance Metric: Euclidean Distance

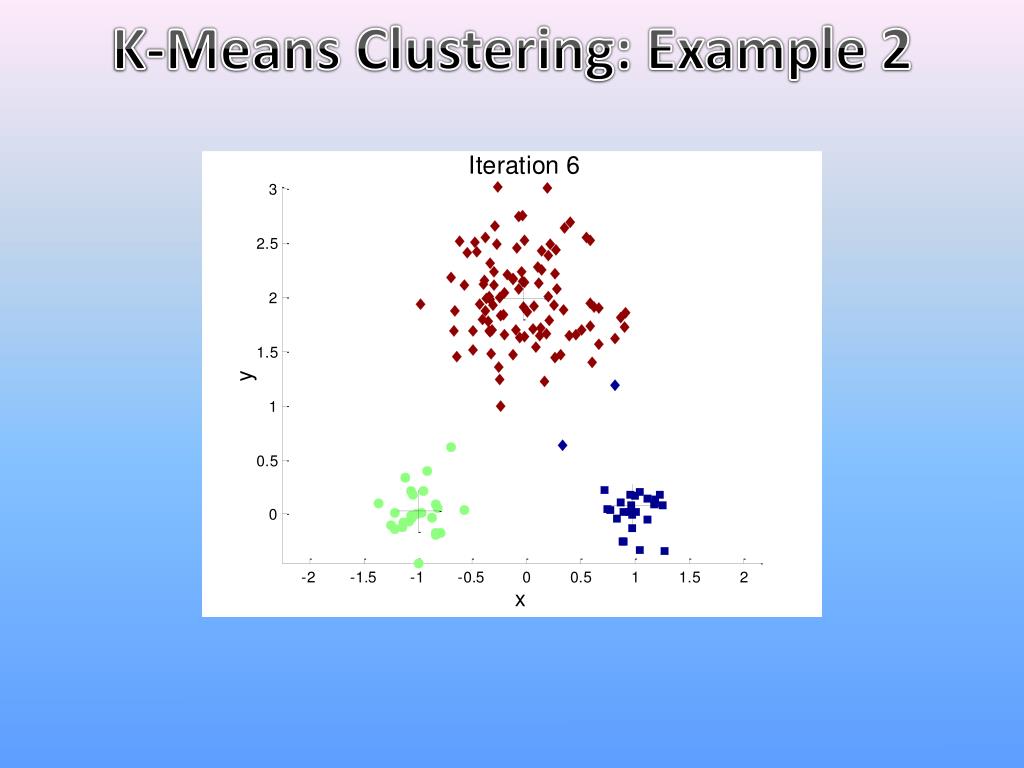

27. K-Means Clustering: Example 2

28. K-Means Clustering: Example 2

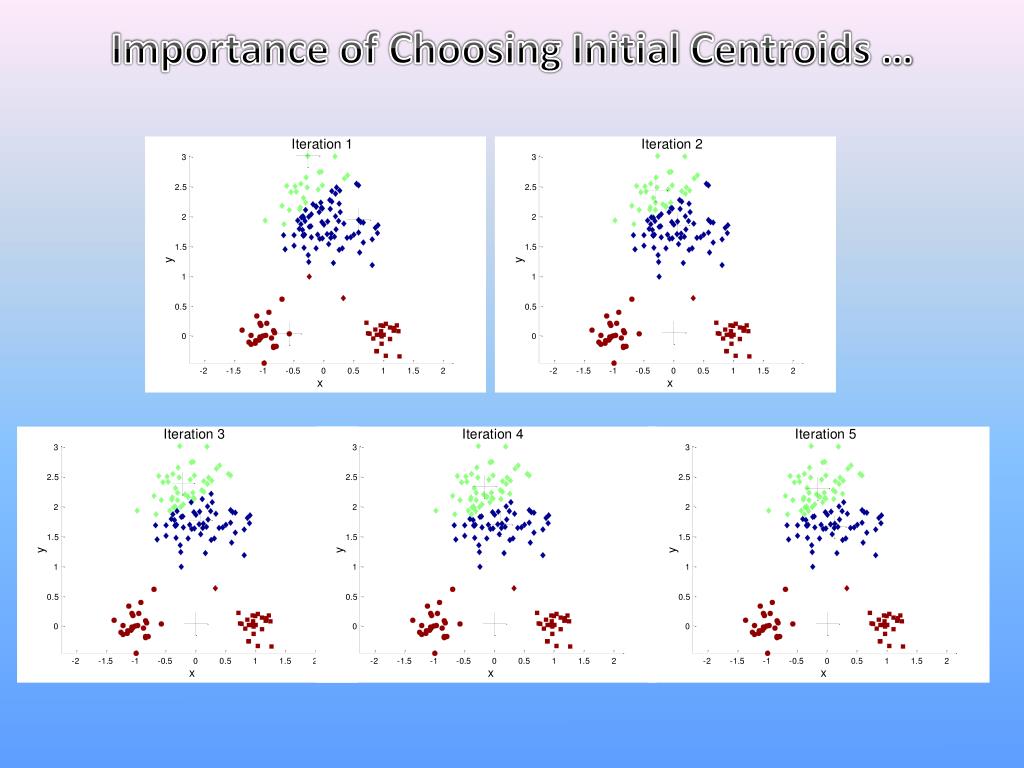

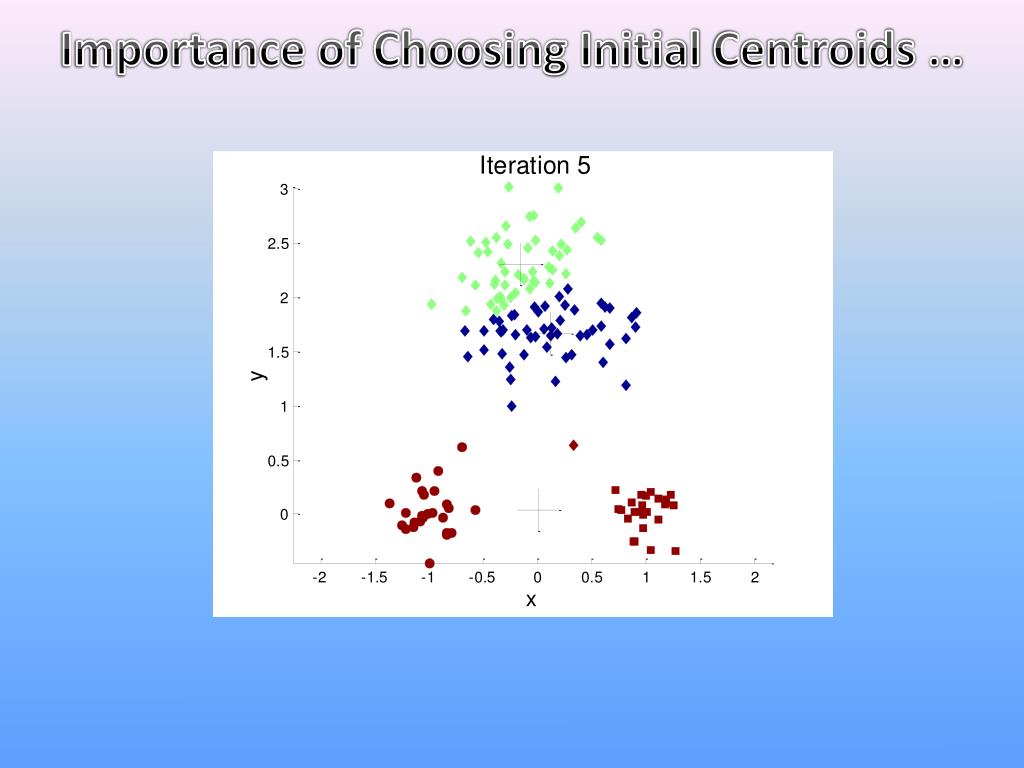

29. Importance of Choosing Initial Centroids …

30. Importance of Choosing Initial Centroids …

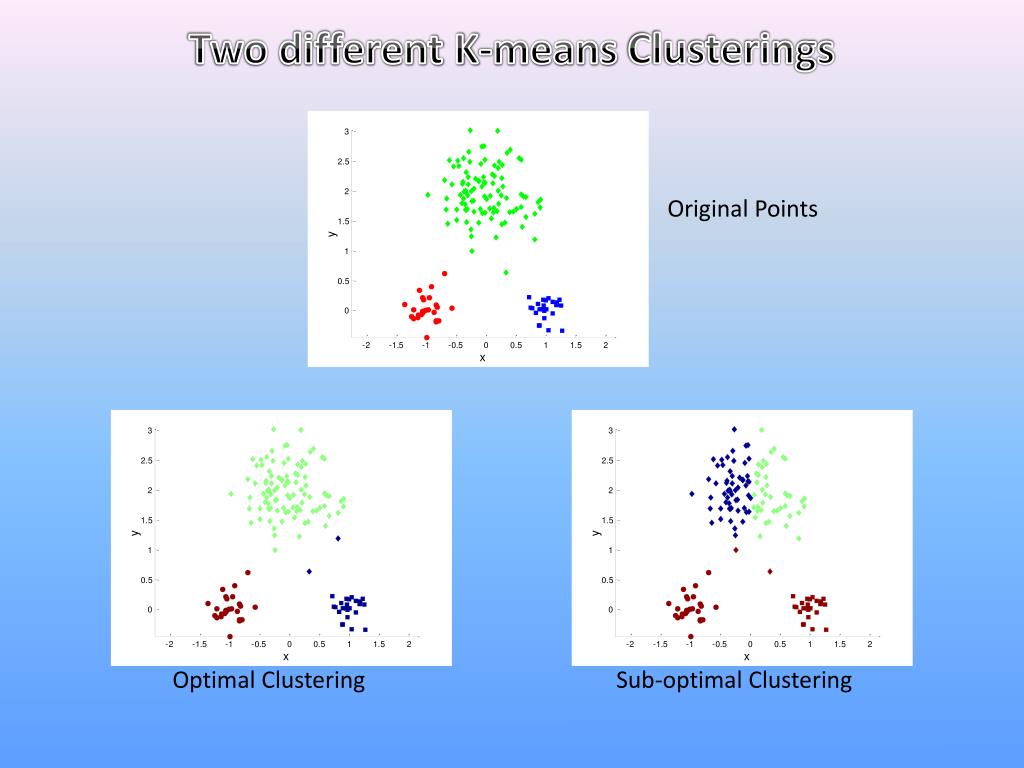

31. Two different K-means Clusterings Optimal Clustering Sub-optimal Clustering Original Points

32. Solutions to Initial Centroids Problem Multiple runs Helps, but probability is not on your side Sample and use hierarchical clustering to determine initial centroids Select more than k initial centroids and then select among these initial centroids Select most widely separated Postprocessing Bisecting K-means Not as susceptible to initialization issues

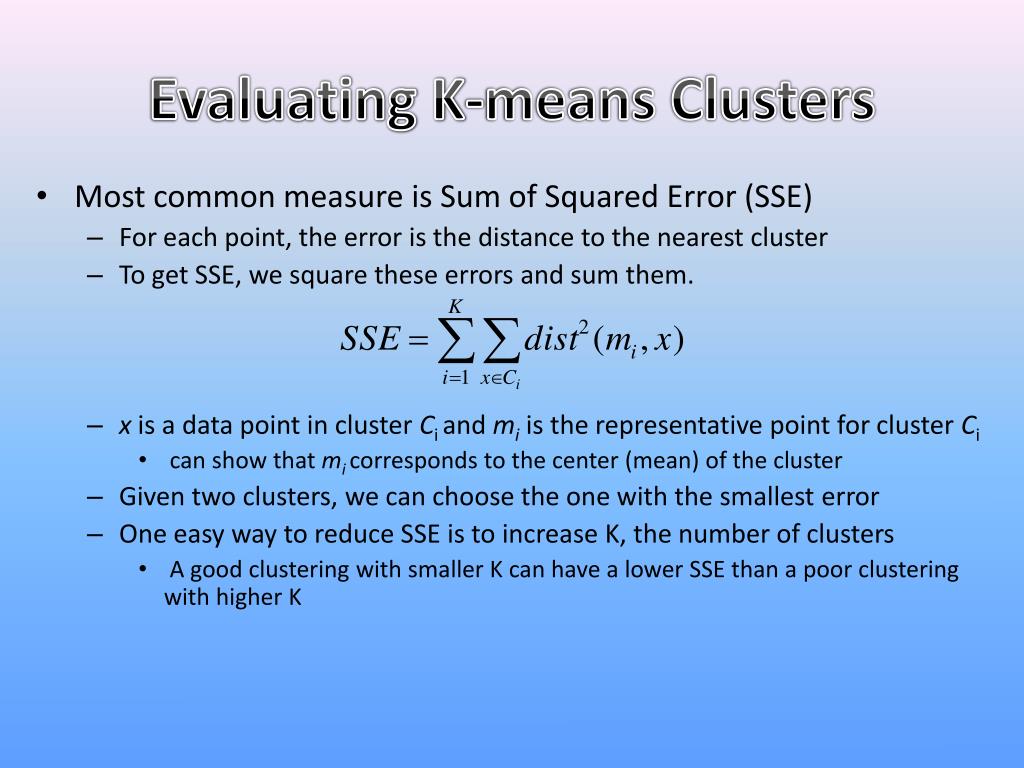

33. EvaluatingK-meansClusters Most common measure is Sum of Squared Error (SSE) For each point, the error is the distance to the nearest cluster To get SSE, we square these errors and sum them. x is a data point in cluster Ciand mi is the representative point for cluster Ci can show that micorresponds to the center (mean) of the cluster Given two clusters, we can choose the one with the smallest error One easy way to reduce SSE is to increase K, the number of clusters A good clustering with smaller K can have a lower SSE than a poor clustering with higher K

34. Strength • Relatively efficient: O(ikn), where n is # objects, k is # clusters, and iis # iterations. Normally, k, i << n. • Often terminates at a local optimum. The global optimum may be found using techniques such as: deterministic annealing and genetic algorithms • Weakness • Applicable only when mean is defined, then what about categorical data? • Need to specify k, the number of clusters, in advance • Unable to handle noisy data and outliers • Not suitable to discover clusters with non-convex shapes • Also may give rise to Empty-clusters.

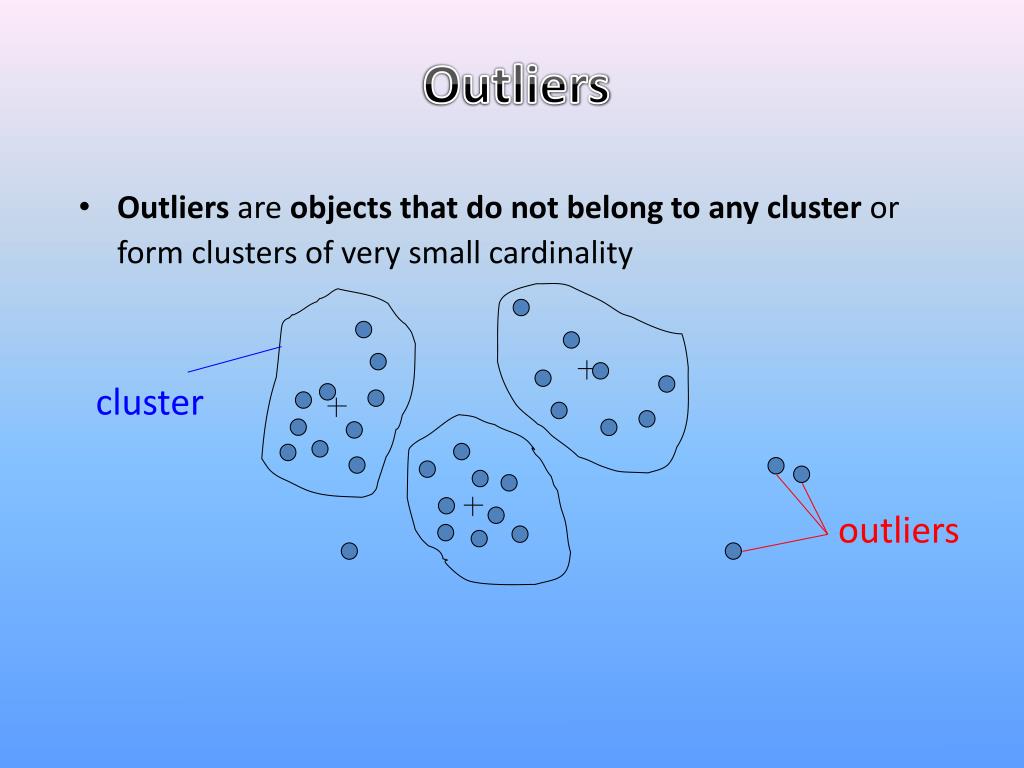

35. Outliers Outliers are objects that do not belong to any cluster or form clusters of very small cardinality cluster outliers

36. Bisecting K-Means: A variant of k-means, that can produce a partitional or heirarchical clustering. Which cluster to be picked for bisection ? Can pick the largest Cluster , or The cluster With lowest average similarity, or Cluster with the largest SSE.

37. START Bisecting K-Means Algorithm: Initialize clusters Initialize the list of clusters. Repeat: Select a cluster from the list of clusters. Fori=1 to number_of_iterations Bisect the cluster using k-means algorithm End for Select two clusters having the lowest SSE Add the two clusters from the bisection to the list of clusters 9. Until: The list contains k clusters. Select a cluster NO i < no. of iterations YES Bisect the cluster. i++ Add the two bisected clusters, having lowest SSE, to list of clusters NO K clusters YES END

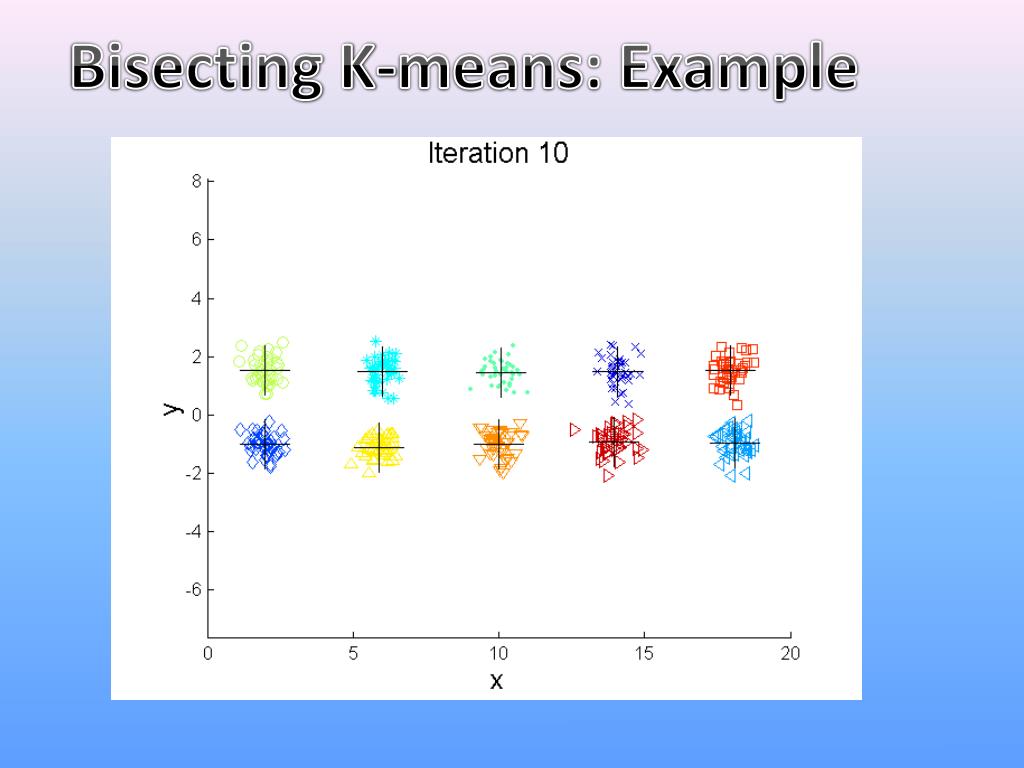

38. Bisecting K-means: Example

39. Why bisecting K-means works better than regular K-means? • –Bisecting K-means tends to produce clusters of relatively uniform size. • –Regular K-means tends to produce clusters of widely different sizes. • –Bisecting K-means beats Regular K-means in Entropy measurement

40. Limitations of K-means: K-means has problems when clusters are of differing Sizes Densities Non-globular shapes K-means has problems when the data contains outliers.

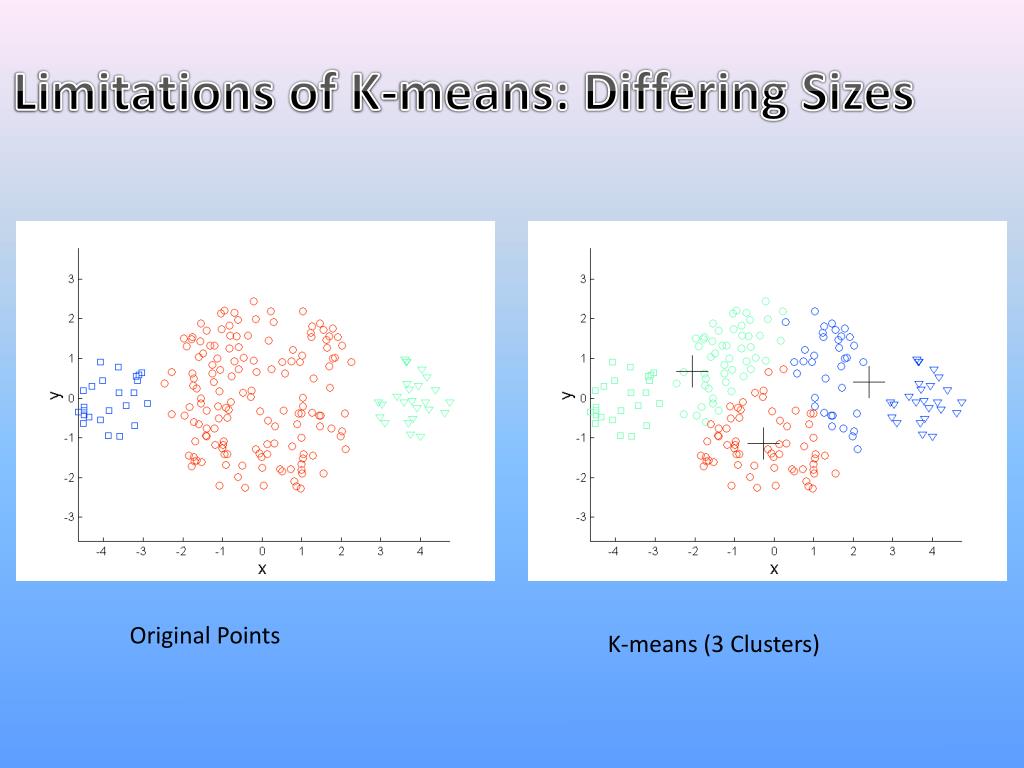

41. Limitations of K-means: Differing Sizes Original Points K-means (3 Clusters)

42. Limitations of K-means: Differing Density Original Points K-means (3 Clusters)

43. Limitations of K-means: Non-globular Shapes Original Points K-means (2 Clusters)

44. Overcoming K-means Limitations Original Points K-means Clusters • One solution is to use many clusters. • Find parts of clusters, but need to put together.

45. Overcoming K-means Limitations Original Points K-means Clusters

46. Overcoming K-means Limitations Original Points K-means Clusters

47. K-Medoids Algorithm What is a medoid? A medoid can be defined as the object of a cluster, whose average dissimilarity to all the objects in the cluster is minimal, i.e, it is a most centrally located point in the cluster. In contrast to the k-means algorithm, k-medoids chooses datapoints as centers(medoids or exemplars) The most common realisation of k-medoid clustering is the Partitioning Around Medoids (PAM) algorithm.

48. Partitioning around medoids(PAM) algorithm 1. Initialize: randomly select k of the n data points as the medoids. 2. Associate each data point to the closest medoid. 3. For each medoid m 1. For each non-medoid data point o 1. Swap m and o and compute the total cost of the configuration. 4. Select the configuration with the lowest cost. 5. Repeat steps 2 to 5 until there is no change in the medoid.

49. Demonstration of PAM Cluster the following set of ten objects into two clusters i.e. k=2. Consider a data set of ten objects as follows:

50. Distribution of the data
