ADT for Map:

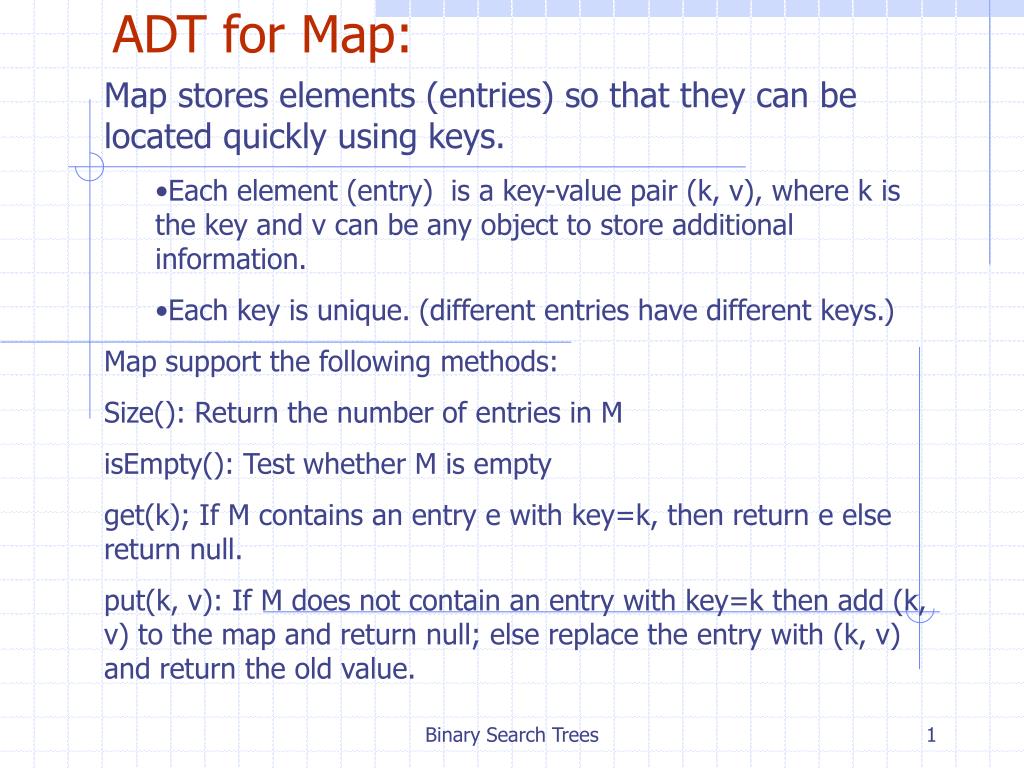

Map stores elements (entries) so that they can be located quickly using keys. Each element (entry) is a key-value pair (k, v), where k is the key and v can be any object to store additional information. Each key is unique. (different entries have different keys.)

leoma
Télécharger la présentation

ADT for Map:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Map stores elements (entries) so that they can be located quickly using keys. • Each element (entry) is a key-value pair (k, v), where k is the key and v can be any object to store additional information. • Each key is unique. (different entries have different keys.) • Map support the following methods: • Size(): Return the number of entries in M • isEmpty(): Test whether M is empty • get(k); If M contains an entry e with key=k, then return e else return null. • put(k, v): If M does not contain an entry with key=k then add (k, v) to the map and return null; else replace the entry with (k, v) and return the old value. ADT for Map: Binary Search Trees

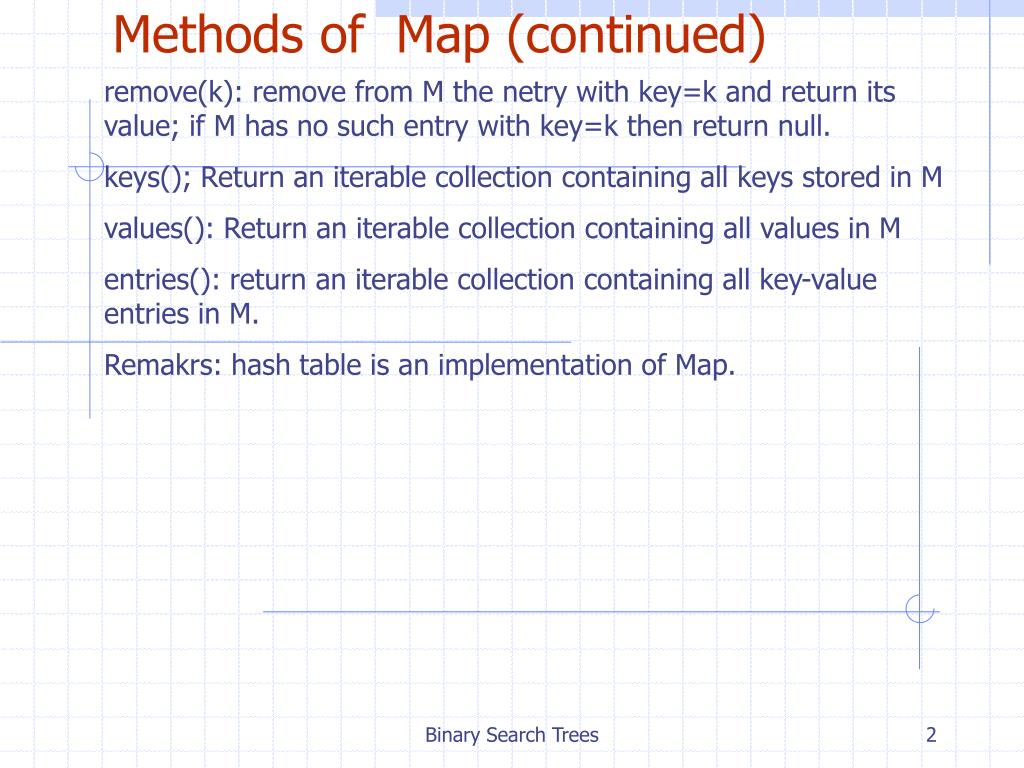

  2. remove(k): remove from M the netry with key=k and return its value; if M has no such entry with key=k then return null. keys(); Return an iterable collection containing all keys stored in M values(): Return an iterable collection containing all values in M entries(): return an iterable collection containing all key-value entries in M. Remakrs: hash table is an implementation of Map. Methods of Map (continued) Binary Search Trees

  3. A Dictionary stores elements (entries). • Each element (entry) is a key-value pair (k, v), where k is the key and v can be any object to store additional information. • The key is NOT unique. • Dictionary support the following methods: • size(): Return the number of entries in D • isEmpty(): Test whether D is empty • find(k): If D contains an entry e with key=k, then return e else return null. • findAll(k): Return an iterable collection containing all entries with key=k. • insert(k, v): Insert an entry into D, returning the entry created. • remove(e): remove from D an enty e, returing the removed entry or null if e was not in D. • entries(): return an iterable collection of the key-value entries in D. ADT for Dictionary: Binary Search Trees

  4. Part-F1Binary Search Trees 6 < 2 9 > = 8 1 4 Binary Search Trees

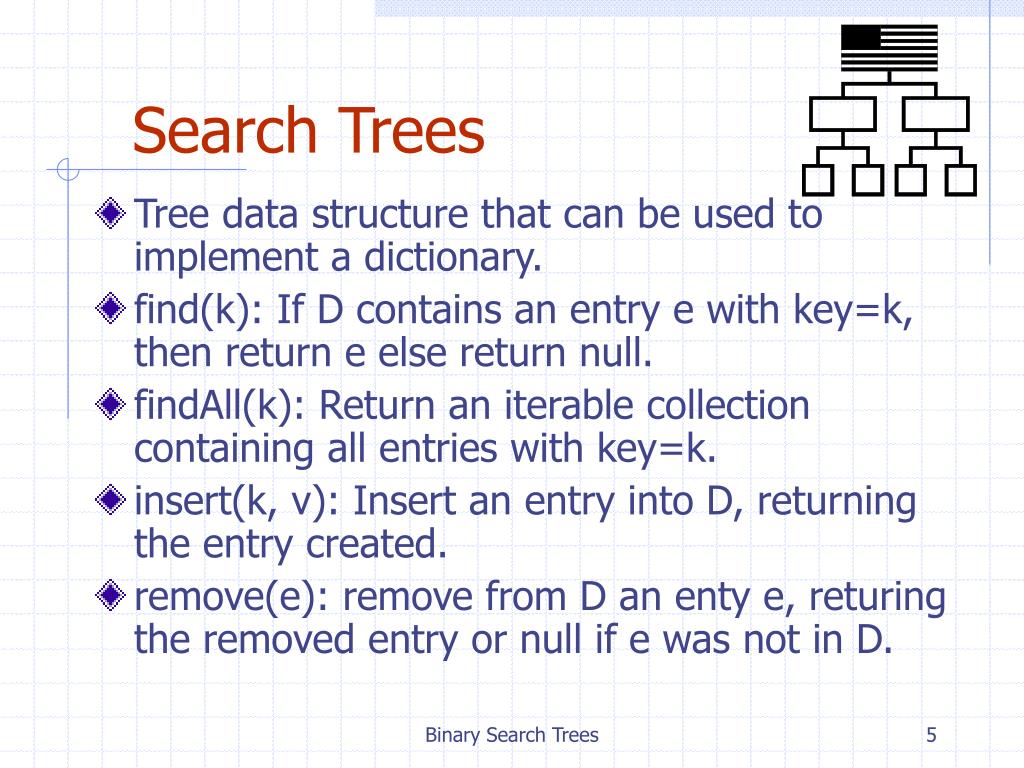

  5. Tree data structure that can be used to implement a dictionary. find(k): If D contains an entry e with key=k, then return e else return null. findAll(k): Return an iterable collection containing all entries with key=k. insert(k, v): Insert an entry into D, returning the entry created. remove(e): remove from D an enty e, returing the removed entry or null if e was not in D. Search Trees Binary Search Trees

  6. A binary search tree is a binary tree storing keys (or key-value entries) at its internal nodes and satisfying the following property: Let u, v, and w be three nodes such that u is in the left subtree of v and w is in the right subtree of v. We have key(u)key(v) key(w) Different nodes can have the same key. External nodes do not store items An inorder traversal of a binary search trees visits the keys in increasing order 6 2 9 1 4 8 Binary Search Trees Binary Search Trees

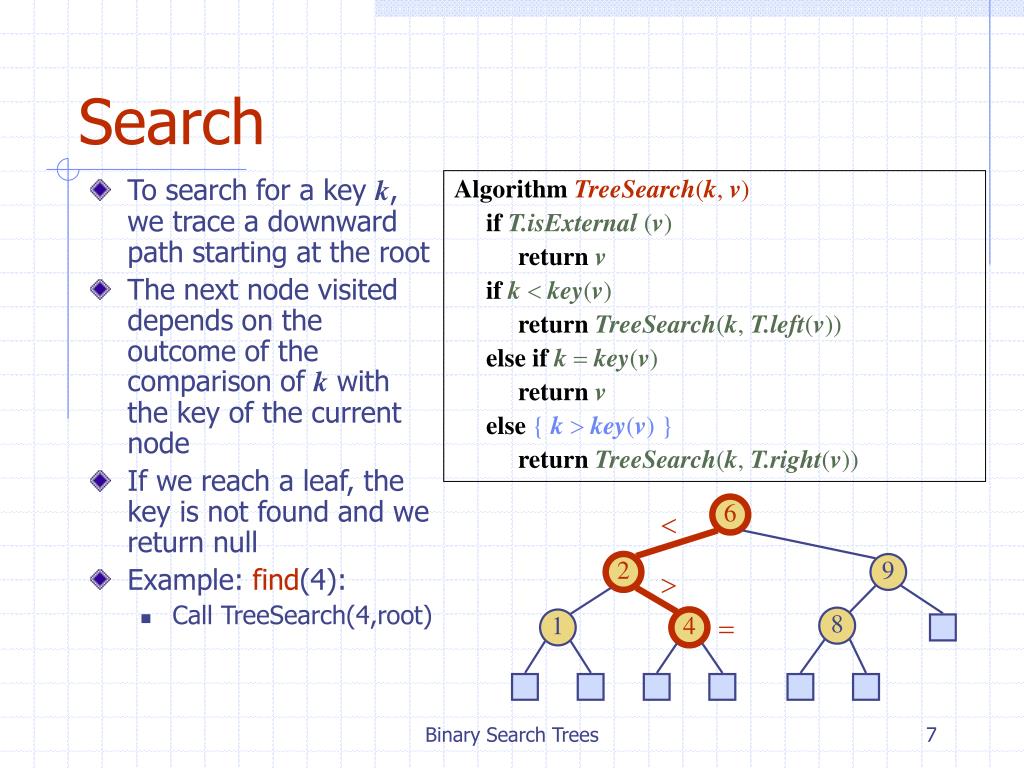

  7. Search AlgorithmTreeSearch(k, v) ifT.isExternal (v) returnv if k<key(v) returnTreeSearch(k, T.left(v)) else if k=key(v) returnv else{ k>key(v) } returnTreeSearch(k, T.right(v)) • To search for a key k, we trace a downward path starting at the root • The next node visited depends on the outcome of the comparison of k with the key of the current node • If we reach a leaf, the key is not found and we return null • Example: find(4): • Call TreeSearch(4,root) 6 < 2 9 > = 8 1 4 Binary Search Trees

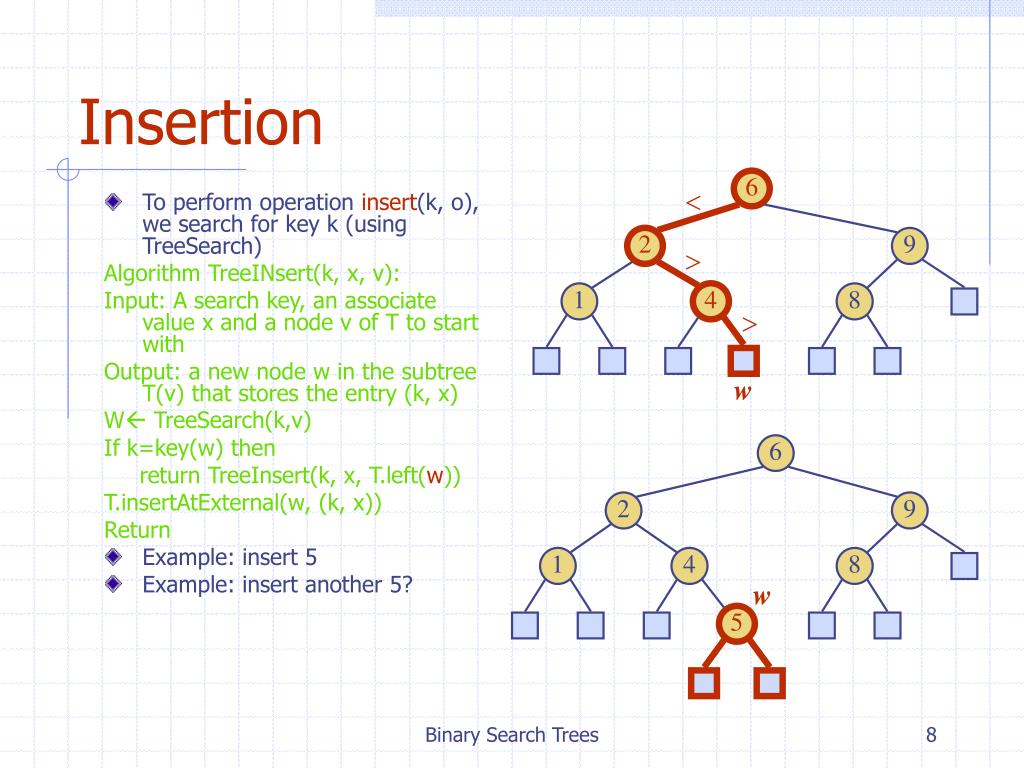

  8. Insertion 6 < • To perform operation insert(k, o), we search for key k (using TreeSearch) Algorithm TreeINsert(k, x, v): Input: A search key, an associate value x and a node v of T to start with Output: a new node w in the subtree T(v) that stores the entry (k, x) W TreeSearch(k,v) If k=key(w) then return TreeInsert(k, x, T.left(w)) T.insertAtExternal(w, (k, x)) Return • Example: insert 5 • Example: insert another 5? 2 9 > 1 4 8 > w 6 2 9 1 4 8 w 5 Binary Search Trees

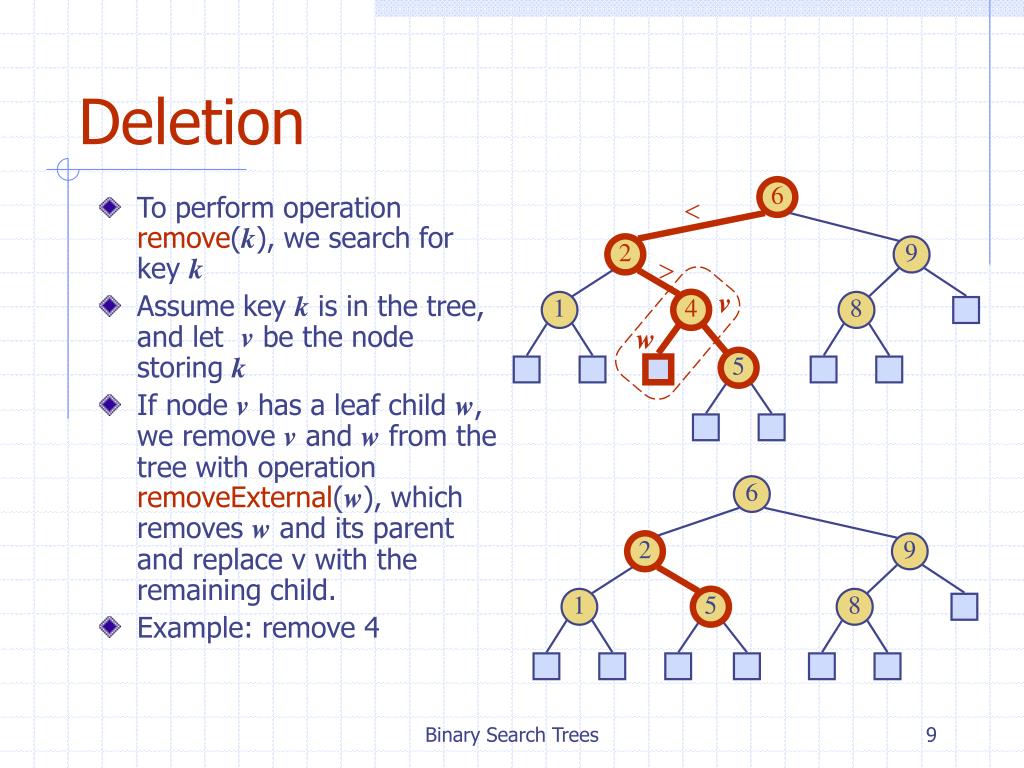

  9. Deletion 6 < • To perform operation remove(k), we search for key k • Assume key k is in the tree, and let v be the node storing k • If node v has a leaf child w, we remove v and w from the tree with operation removeExternal(w), which removes w and its parent and replace v with the remaining child. • Example: remove 4 2 9 > v 1 4 8 w 5 6 2 9 1 5 8 Binary Search Trees

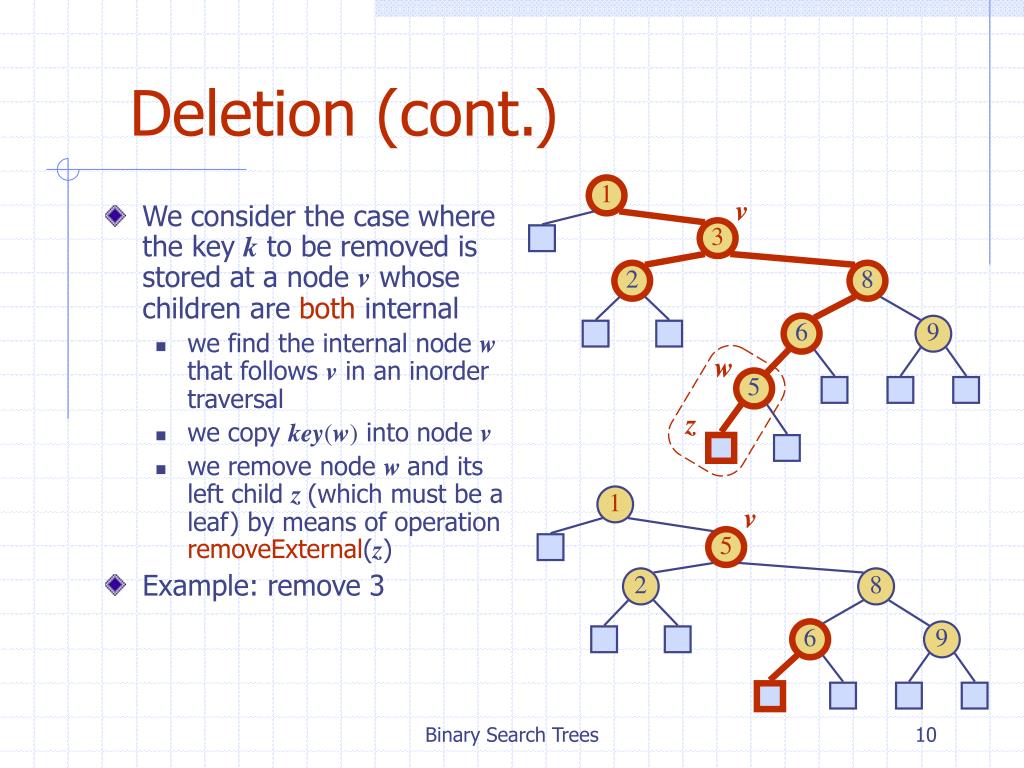

  10. Deletion (cont.) 1 v • We consider the case where the key k to be removed is stored at a node v whose children are both internal • we find the internal node w that follows v in an inorder traversal • we copy key(w) into node v • we remove node w and its left child z (which must be a leaf) by means of operation removeExternal(z) • Example: remove 3 3 2 8 6 9 w 5 z 1 v 5 2 8 6 9 Binary Search Trees

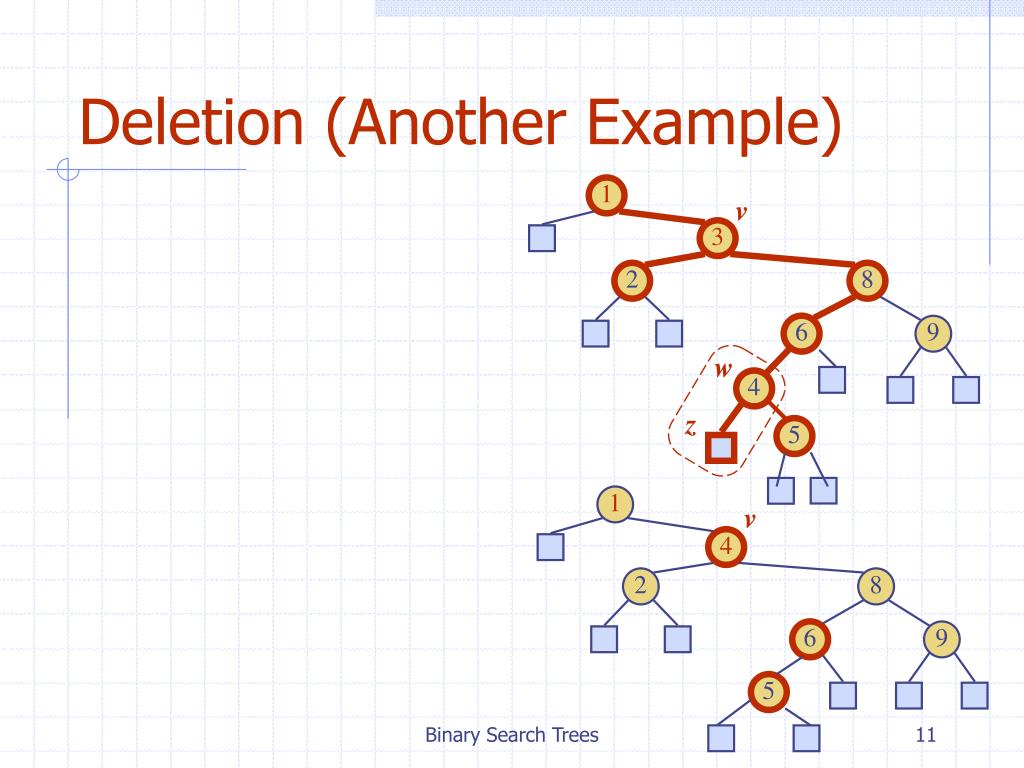

  11. Deletion (Another Example) 1 v 3 2 8 6 9 w 4 z 5 1 v 4 2 8 6 9 5 Binary Search Trees

  12. Performance • Consider a dictionary with n items implemented by means of a binary search tree of height h • the space used is O(n) • methods find, insert and remove take O(h) time • The height h is O(n) in the worst case and O(log n) in the best case Later, we will try to keep h =O(log n). Review the past Binary Search Trees

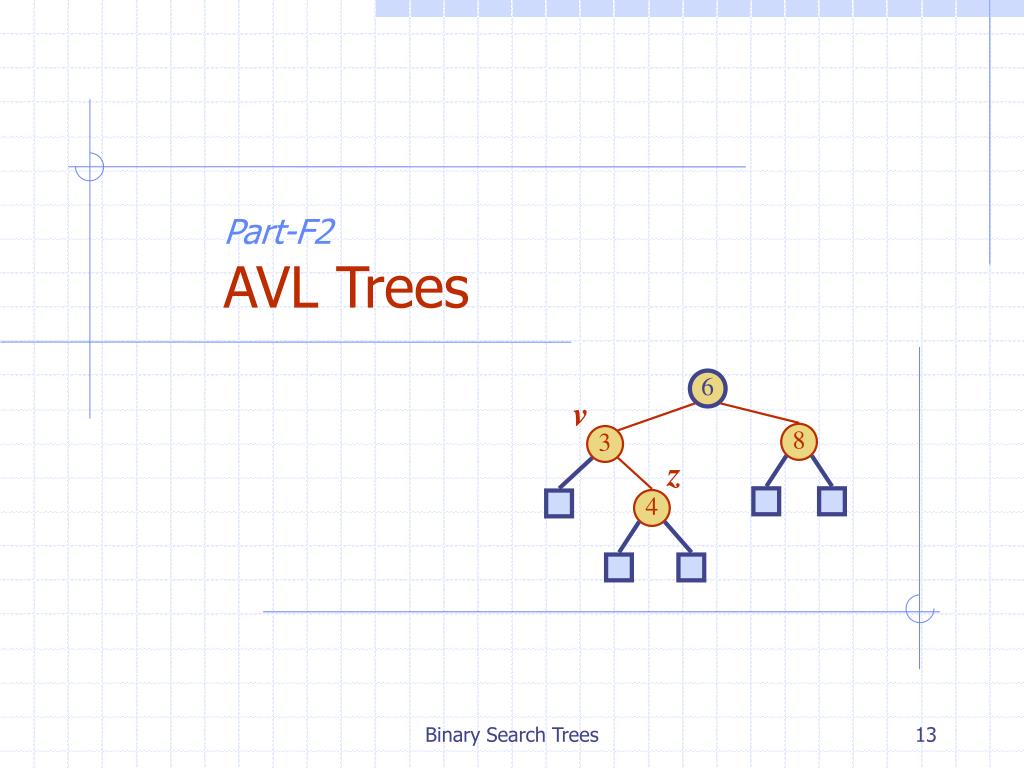

  13. 6 v 8 3 z 4 Part-F2AVL Trees Binary Search Trees

  14. AVL Tree Definition (§ 9.2) • AVL trees are balanced. • An AVL Tree is a binary search tree such that for every internal node v of T, the heights of the children of v can differ by at most 1. An example of an AVL tree where the heights are shown next to the nodes: Binary Search Trees

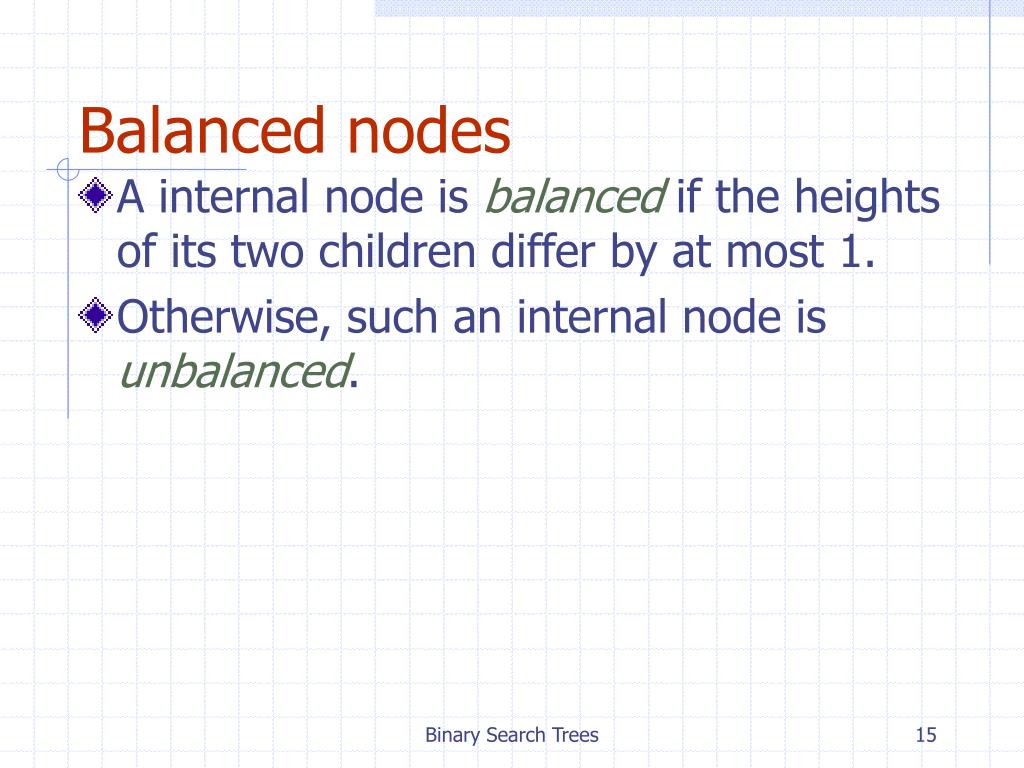

  15. Balanced nodes • A internal node is balanced if the heights of its two children differ by at most 1. • Otherwise, such an internal node is unbalanced. Binary Search Trees

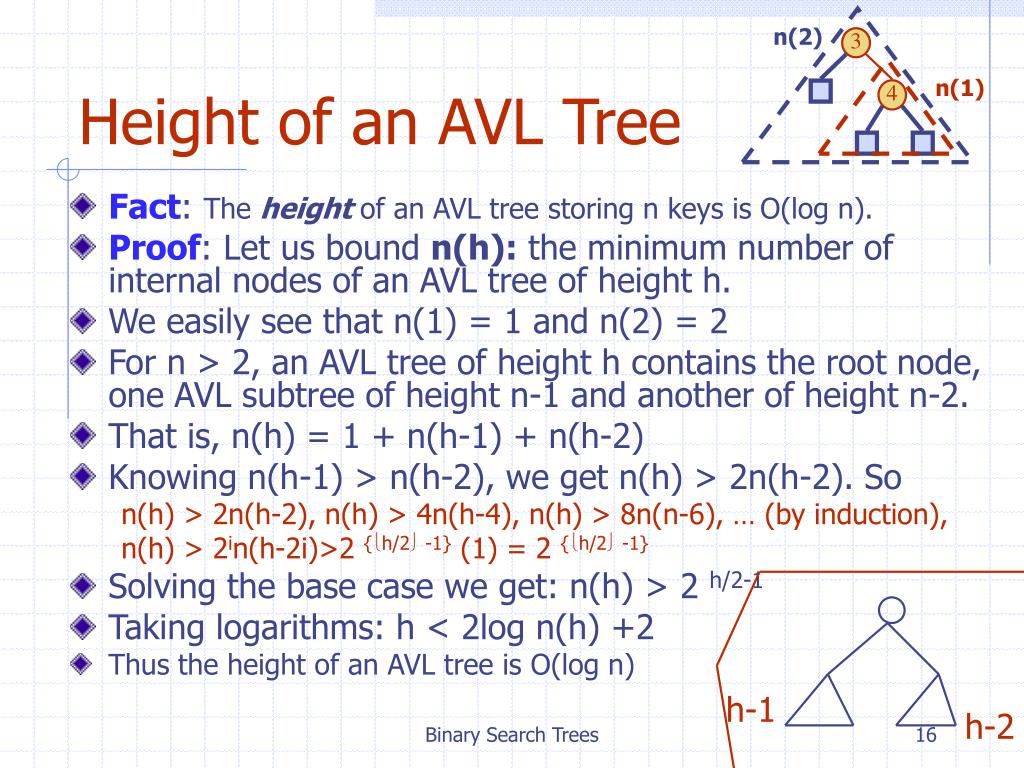

  16. n(2) 3 n(1) 4 Height of an AVL Tree • Fact: The height of an AVL tree storing n keys is O(log n). • Proof: Let us bound n(h): the minimum number of internal nodes of an AVL tree of height h. • We easily see that n(1) = 1 and n(2) = 2 • For n > 2, an AVL tree of height h contains the root node, one AVL subtree of height n-1 and another of height n-2. • That is, n(h) = 1 + n(h-1) + n(h-2) • Knowing n(h-1) > n(h-2), we get n(h) > 2n(h-2). So n(h) > 2n(h-2), n(h) > 4n(h-4), n(h) > 8n(n-6), … (by induction), n(h) > 2in(h-2i)>2 {h/2 -1} (1) = 2 {h/2 -1} • Solving the base case we get: n(h) > 2 h/2-1 • Taking logarithms: h < 2log n(h) +2 • Thus the height of an AVL tree is O(log n) h-1 Binary Search Trees h-2

  17. 44 17 78 44 32 50 88 17 78 48 62 32 50 88 54 48 62 Insertion in an AVL Tree • Insertion is as in a binary search tree • Always done by expanding an external node. • Example: c=z a=y b=x w before insertion after insertion It is no longer balanced Binary Search Trees

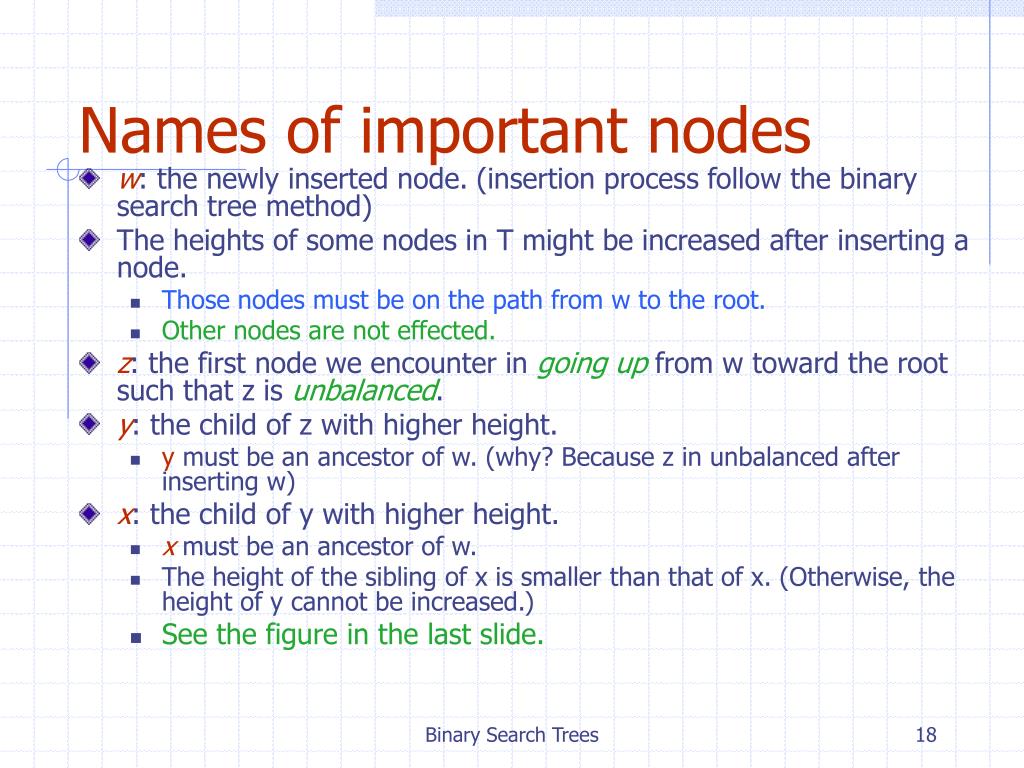

  18. Names of important nodes • w: the newly inserted node. (insertion process follow the binary search tree method) • The heights of some nodes in T might be increased after inserting a node. • Those nodes must be on the path from w to the root. • Other nodes are not effected. • z: the first node we encounter in going up from w toward the root such that z is unbalanced. • y: the child of z with higher height. • y must be an ancestor of w. (why? Because z in unbalanced after inserting w) • x: the child of y with higher height. • x must be an ancestor of w. • The height of the sibling of x is smaller than that of x. (Otherwise, the height of y cannot be increased.) • See the figure in the last slide. Binary Search Trees

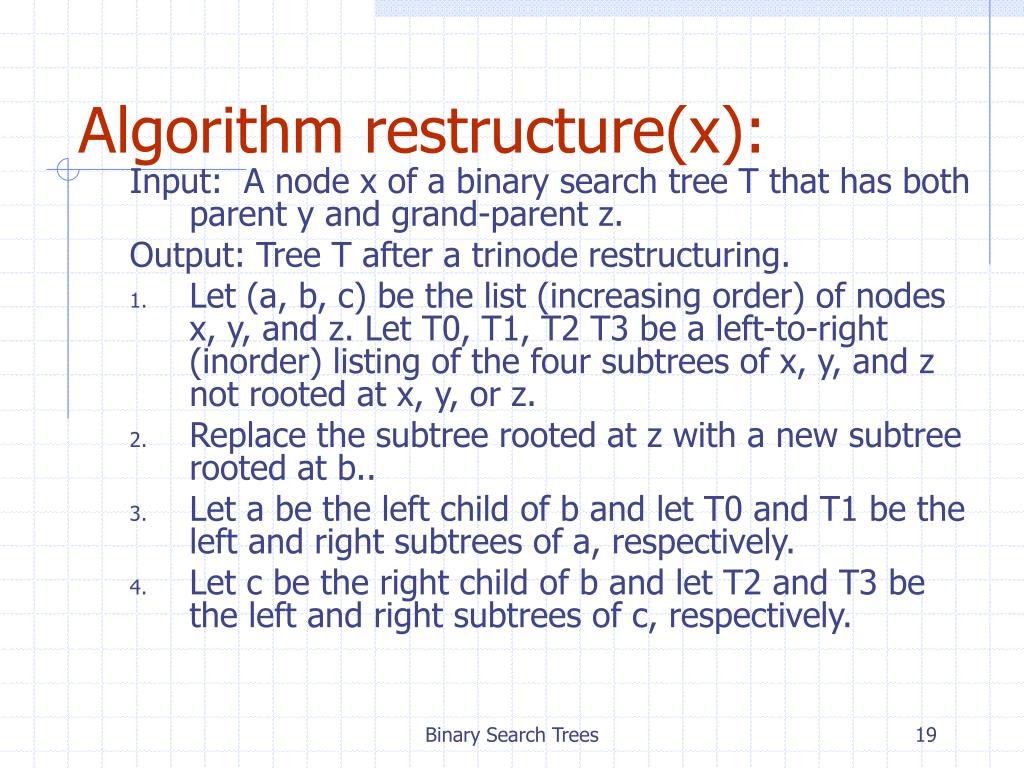

  19. Algorithm restructure(x): Input: A node x of a binary search tree T that has both parent y and grand-parent z. Output: Tree T after a trinode restructuring. • Let (a, b, c) be the list (increasing order) of nodes x, y, and z. Let T0, T1, T2 T3 be a left-to-right (inorder) listing of the four subtrees of x, y, and z not rooted at x, y, or z. • Replace the subtree rooted at z with a new subtree rooted at b.. • Let a be the left child of b and let T0 and T1 be the left and right subtrees of a, respectively. • Let c be the right child of b and let T2 and T3 be the left and right subtrees of c, respectively. Binary Search Trees

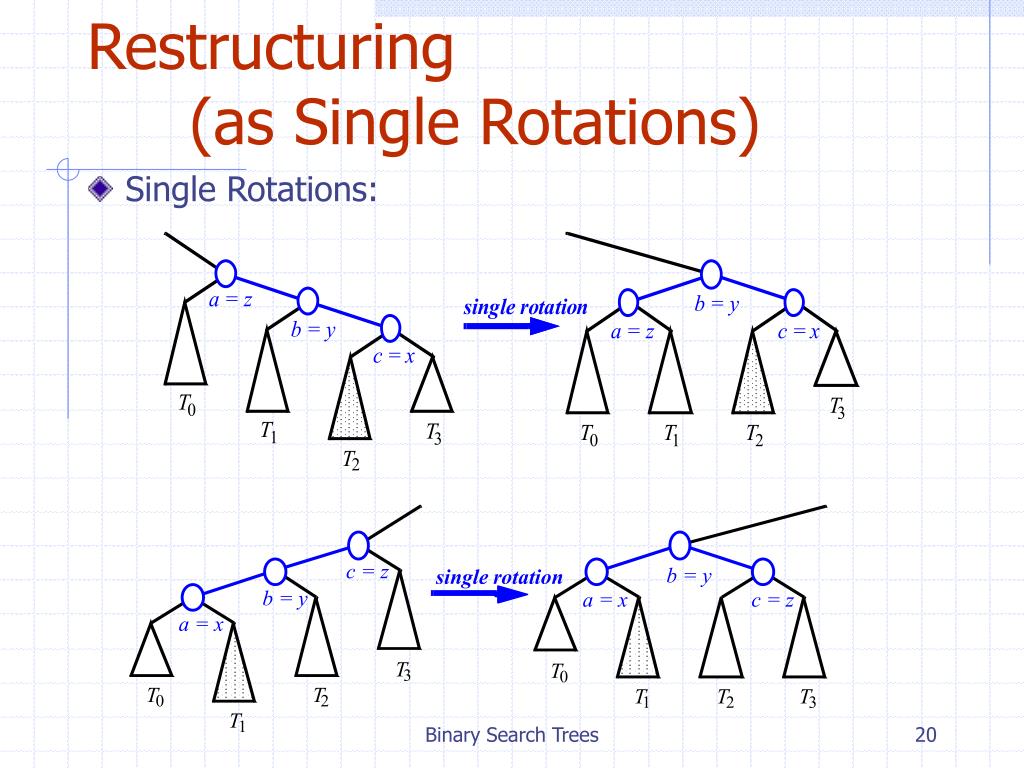

  20. c = z b = y single rotation b = y a = x c = z a = x T T 3 0 T T T T T 0 2 1 2 3 T 1 Restructuring (as Single Rotations) • Single Rotations: Binary Search Trees

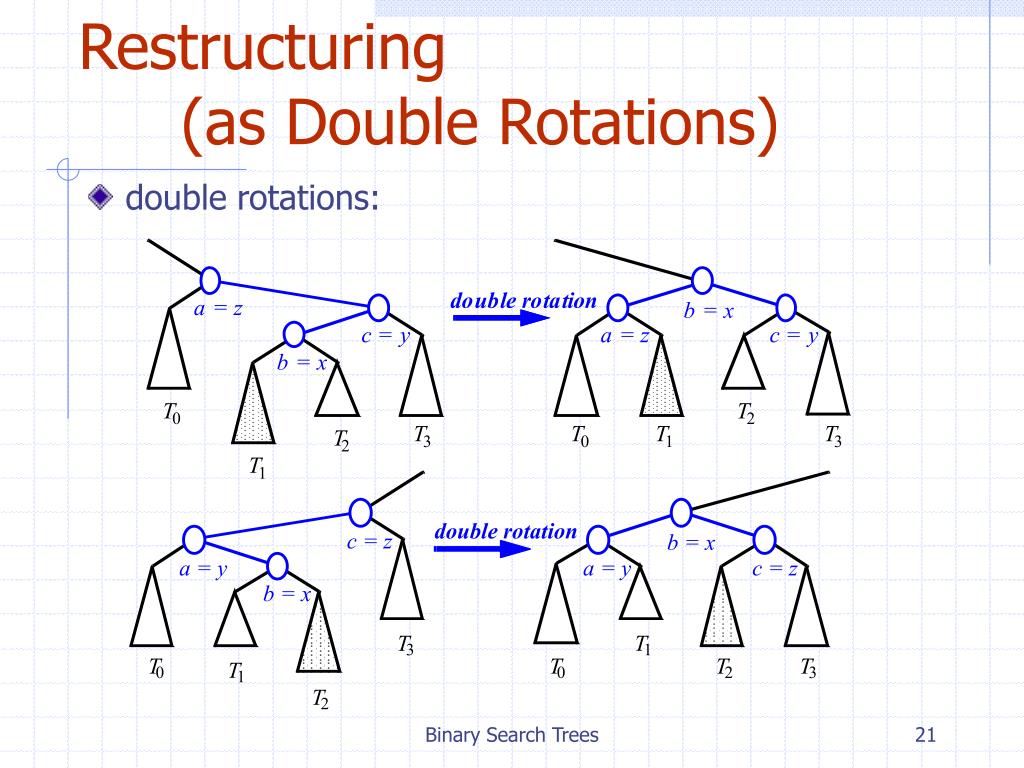

  21. double rotation c = z b = x a = y a = y c = z b = x T T 3 1 T T T T T 0 0 2 3 1 T 2 Restructuring (as Double Rotations) • double rotations: Binary Search Trees

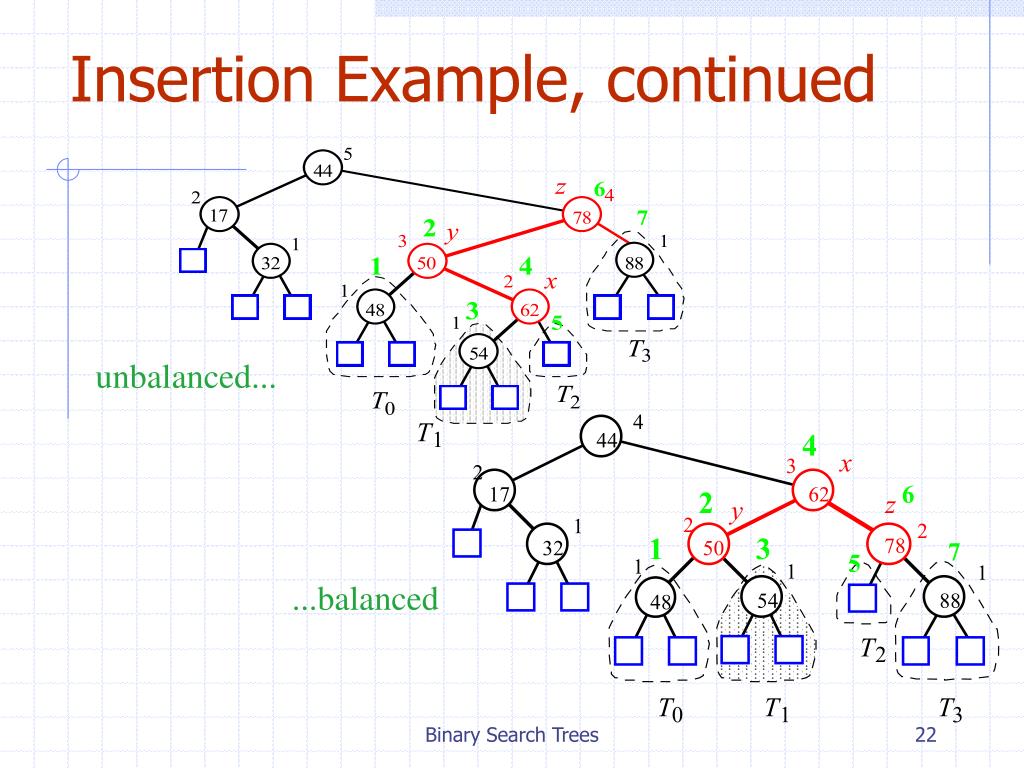

  22. T T 1 1 Insertion Example, continued unbalanced... 4 44 x 3 2 17 62 z y 2 1 2 78 32 50 1 1 1 ...balanced 54 88 48 T 2 T T Binary Search Trees 0 3

  23. Theorem: • One restructure operation is enough to ensure that the whole tree is balanced. • Proof: Look at the four cases on slides 20 and 21. Binary Search Trees

  24. 44 17 62 32 50 78 88 48 54 Removal in an AVL Tree • Removal begins as in a binary search tree by calling removal(k) for binary tree. • may cause an imbalance. • Example: 44 w 17 62 50 78 88 48 54 before deletion of 32 after deletion Binary Search Trees

  25. Rebalancing after a Removal • Let z be the first unbalanced node encountered while travelling up the tree from w. w-parent of the removednode (in terms of structure, not the name) • let y be the child of z with the larger height, • let x be the child of y defined as follows; • If one of the children of y is taller than the other, choose x as the taller child of y. • If both children of y have the same height, select x be the child of y on the same side as y (i.e., if y is the left child of z, then x is the left child of y; and if y is the right child of z then x is the right child of y.) • The way to obtain x, y and z are different from insertion. Binary Search Trees

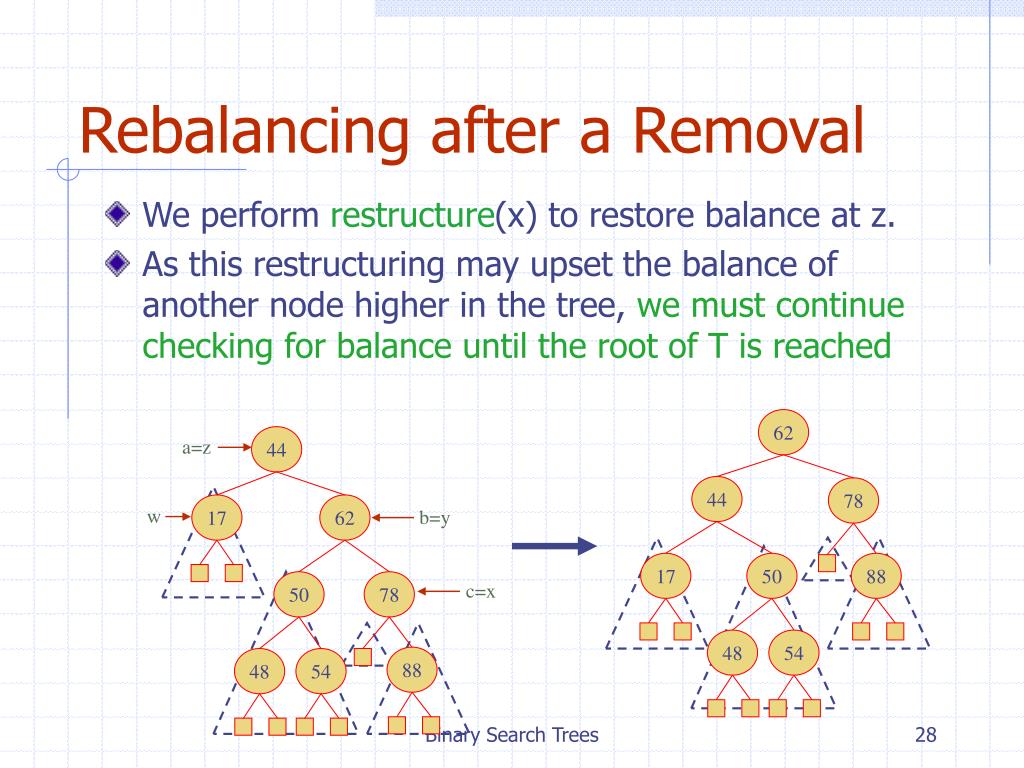

  26. Rebalancing after a Removal • We perform restructure(x) to restore balance at z. • As this restructuring may upset the balance of another node higher in the tree, we must continue checking for balance until the root of T is reached 62 44 a=z 44 78 w 17 62 b=y 17 50 88 50 78 c=x 48 54 88 48 54 Binary Search Trees

  27. Unbalanced after restructuring Unbalanced balanced 1 1 62 h=3 44 h=4 h=5 a=z h=5 44 78 17 62 w b=y 17 50 88 32 50 78 c=x 88 Binary Search Trees

  28. Rebalancing after a Removal • We perform restructure(x) to restore balance at z. • As this restructuring may upset the balance of another node higher in the tree, we must continue checking for balance until the root of T is reached 62 44 a=z 44 78 17 62 w b=y 17 50 88 50 78 c=x 48 54 88 48 54 Binary Search Trees

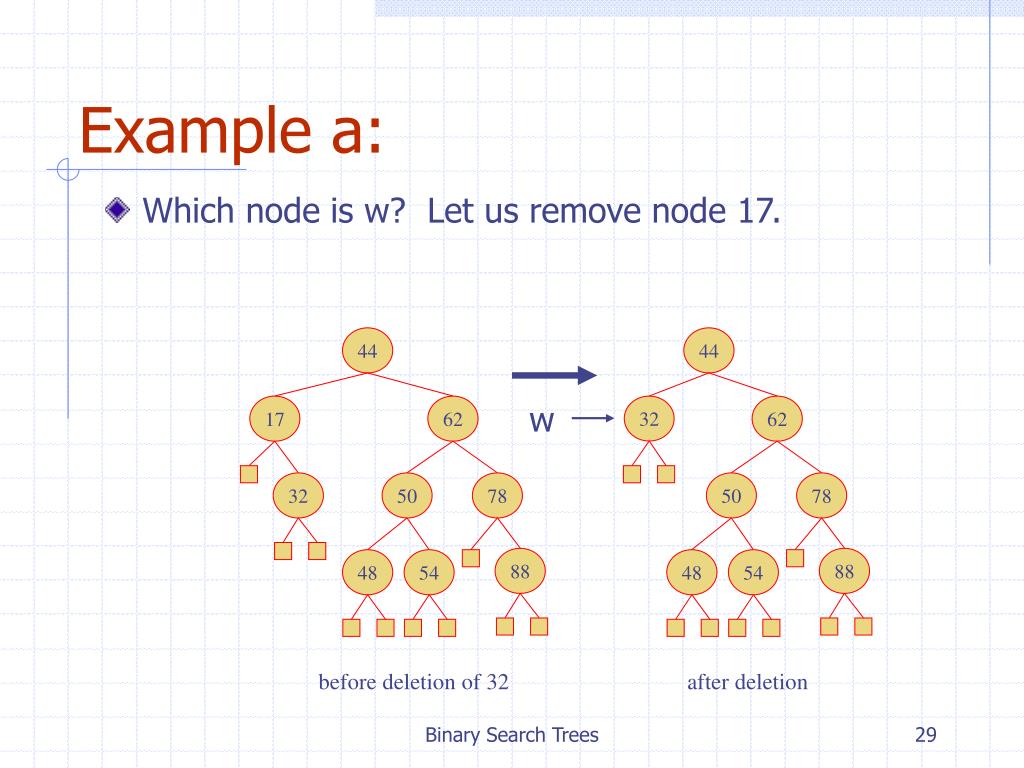

  29. 44 17 62 32 50 78 88 48 54 Example a: • Which node is w? Let us remove node 17. 44 w 32 62 50 78 88 48 54 before deletion of 32 after deletion Binary Search Trees

  30. Rebalancing: • We perform restructure(x) to restore balance at z. • As this restructuring may upset the balance of another node higher in the tree, we must continue checking for balance until the root of T is reached 62 44 a=z 44 78 w 32 62 b=y 32 50 88 50 78 c=x 48 54 88 48 54 Binary Search Trees

  31. Running Times for AVL Trees • a single restructure is O(1) • using a linked-structure binary tree • find is O(log n) • height of tree is O(log n), no restructures needed • insert is O(log n) • initial find is O(log n) • Restructuring up the tree, maintaining heights is O(log n) • remove is O(log n) • initial find is O(log n) • Restructuring up the tree, maintaining heights is O(log n) Binary Search Trees
