  1. Routing Architecture and Algorithms for a superconductivity circuits-based Computing Hardware FarhadMehdipour,Hiroaki Honda, Hiroshi Kataoka, Koji Inoue, Kazuaki Murakami Kyushu University, Japan CCECE 2011

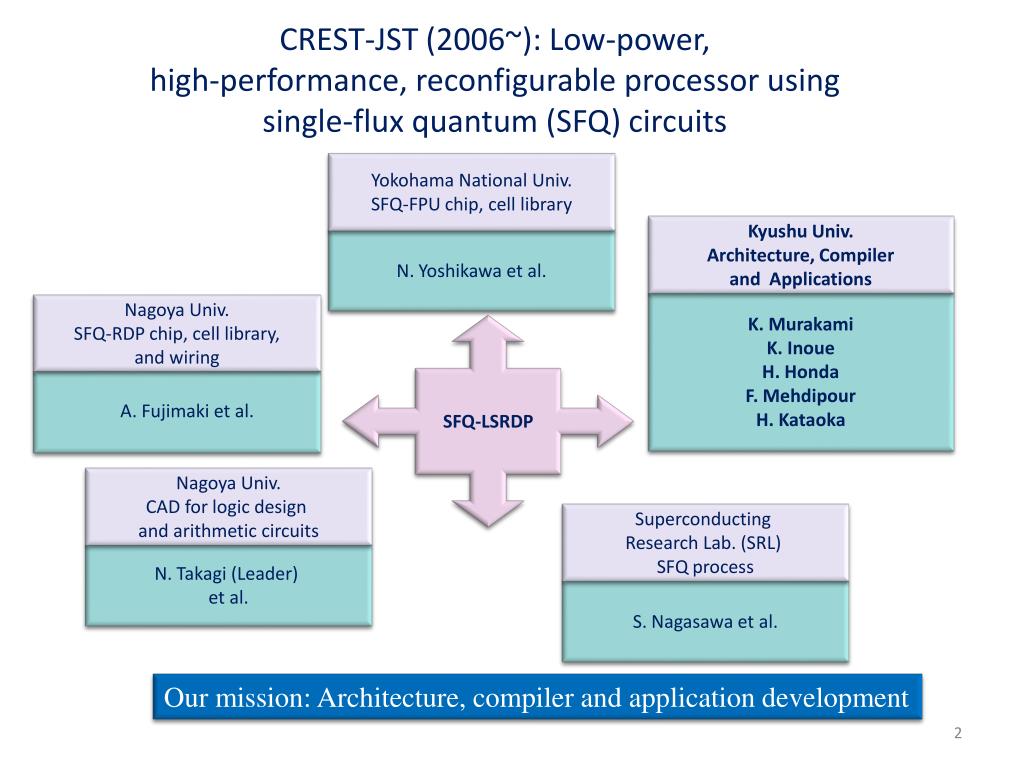

  2. CREST-JST (2006~): Low-power,high-performance, reconfigurable processor using single-flux quantum (SFQ) circuits Superconducting Research Lab. (SRL) SFQ process Yokohama National Univ. SFQ-FPU chip, cell library Nagoya Univ. SFQ-RDP chip, cell library, and wiring Nagoya Univ. CAD for logic design and arithmetic circuits S. Nagasawa et al. N. Yoshikawa et al. A. Fujimaki et al. N. Takagi (Leader) et al. Kyushu Univ. Architecture, Compiler and Applications K. Murakami K. Inoue H. Honda F. Mehdipour H. Kataoka SFQ-LSRDP Our mission: Architecture, compiler and application development

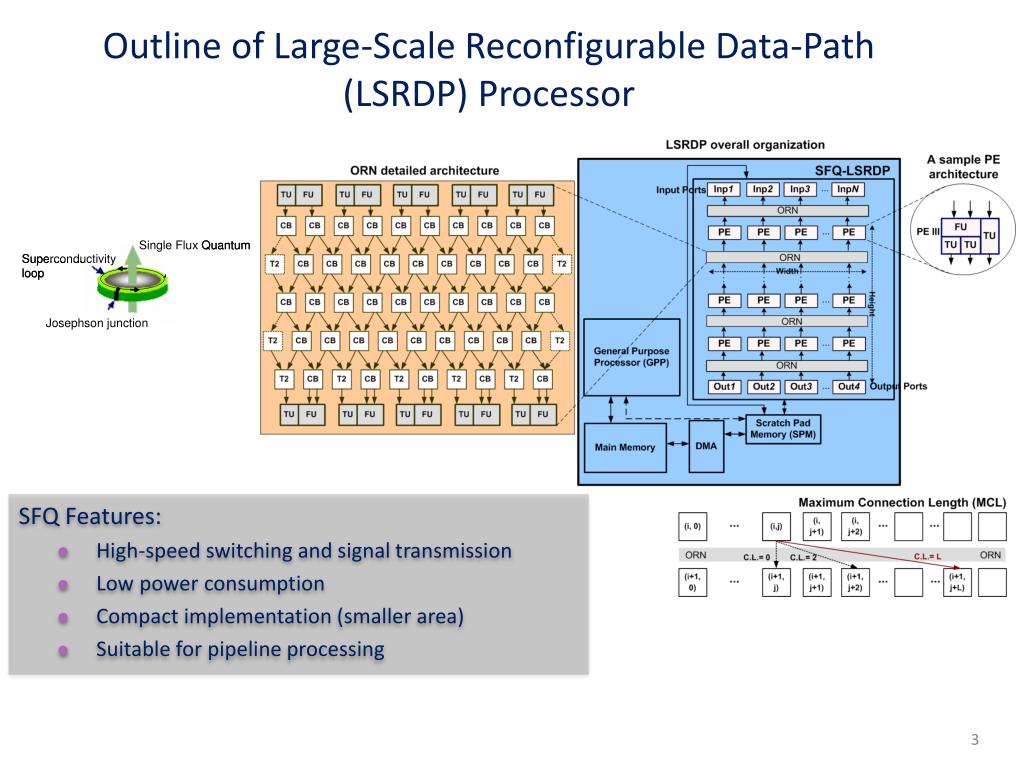

  3. Outline of Large-Scale Reconfigurable Data-Path (LSRDP) Processor SFQ Features: • High-speed switching and signal transmission • Low power consumption • Compact implementation (smaller area) • Suitable for pipeline processing

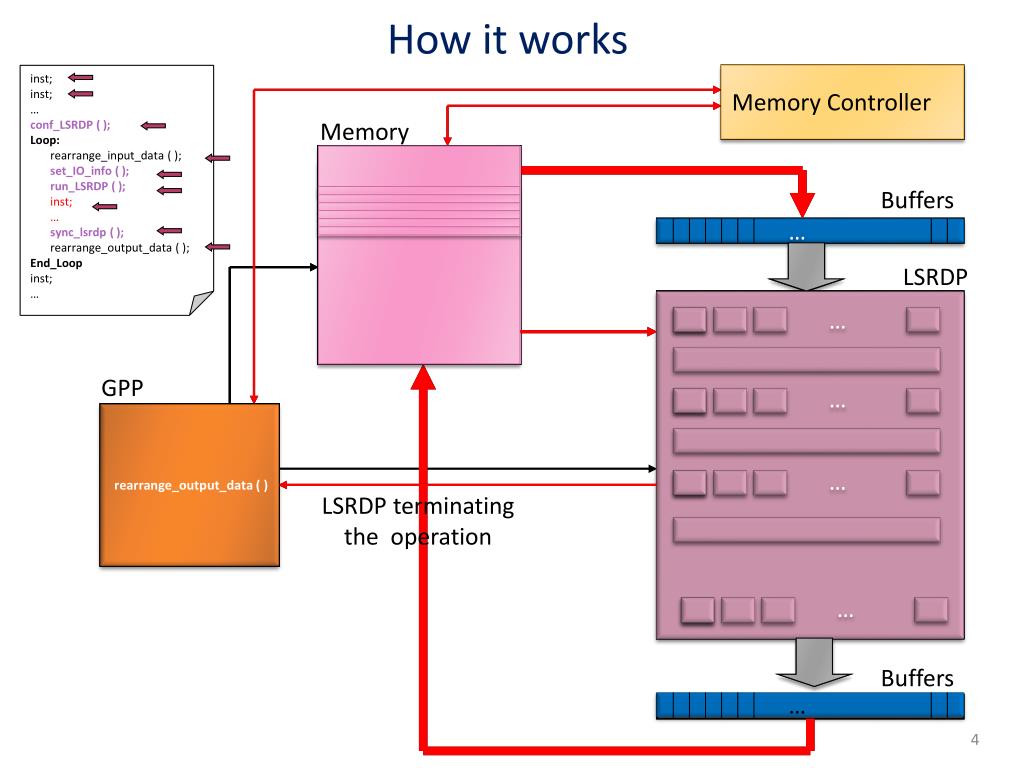

  4. … … … … … … conf. bit-stream … … … … … … GPP GPP GPP … … … … How it works inst; inst; … conf_LSRDP ( ); Loop: rearrange_input_data ( ); set_IO_info ( ); run_LSRDP ( ); inst; … sync_lsrdp ( ); rearrange_output_data ( ); End_Loop inst; … Memory Controller Memory Controller Memory Buffers LSRDP GPP rearrange_input_data () inst set_IO_info ( ); conf_LSRDP(); inst Waiting for the LSRDP run_LSRDP ( ); sync_lsrdp ( ); rearrange_output_data ( ) inst LSRDP terminating the operation Buffers

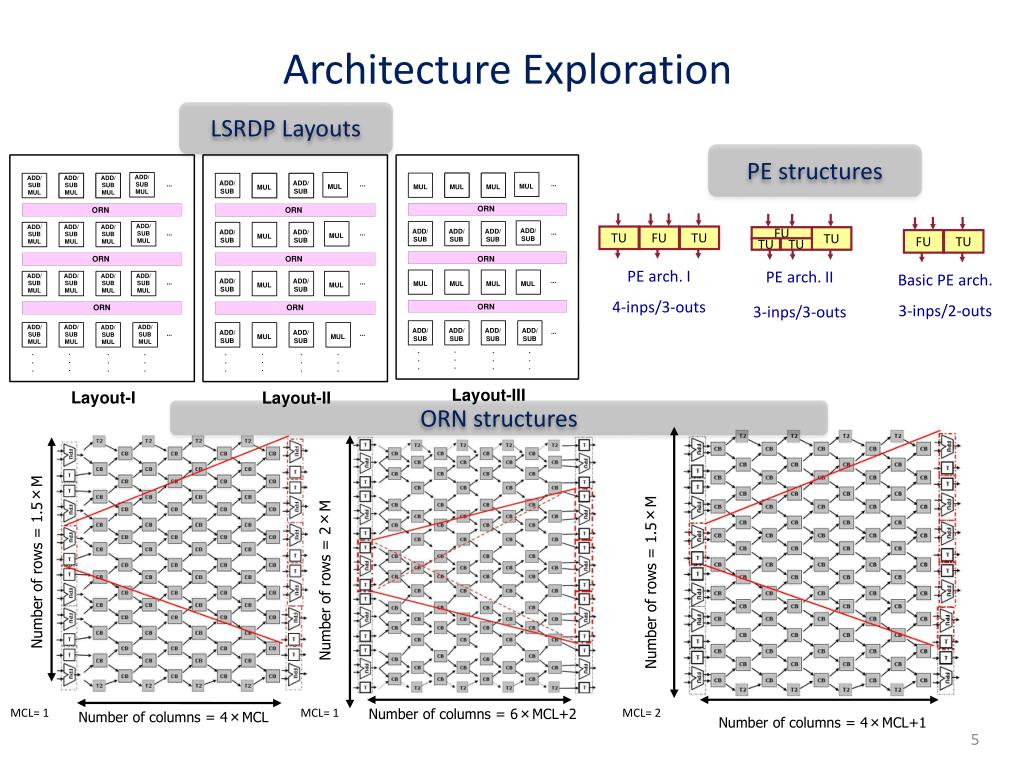

  5. TU FU TU FU TU FU TU TU TU PE arch. I 4-inps/3-outs PE arch. II 3-inps/3-outs Basic PE arch. 3-inps/2-outs Architecture Exploration LSRDP Layouts PE structures ORN structures Number of rows = 2×M Number of rows = 1.5×M Number of rows = 1.5×M MCL= 1 MCL= 1 Number of columns = 6×MCL+2 MCL= 2 Number of columns = 4×MCL Number of columns = 4×MCL+1

  6. LSRDP Tool Chain Modifying application code Inserting LSRDP instructions in the code Application C code Modified application code 1 1 2 1 LSRDP architecture description LSRDP library file Function definitions & declarations DFG Extraction 1 ISAcc or COINS compiler 2 2 1 Placing and Routing Tool Data flow graphs 2 .asm code for MIPS-based GPP 2 1: flow of the assembly code generation for GPP 2: flow of configuration bit-stream generation for the LSRDP Configuration file + various text & schematic reports Simulator Performance evaluation

  7. DFG Placing Input Nodes LSRDP Architecture Description Placing Operational & Output Nodes Routing Nets Routing IO Nets Final Map Mapping DFGs onto LSRDP Longest connections

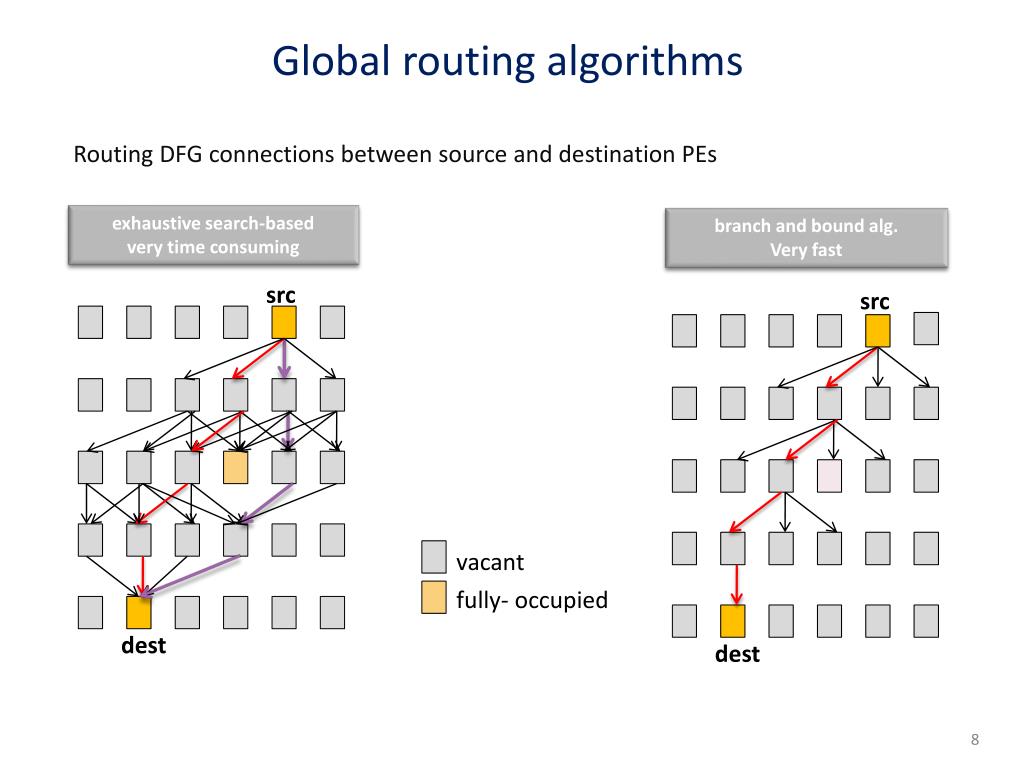

  8. Global routing algorithms Routing DFG connections between source and destination PEs exhaustive search-based very time consuming branch and bound alg. Very fast src src vacant fully- occupied dest dest

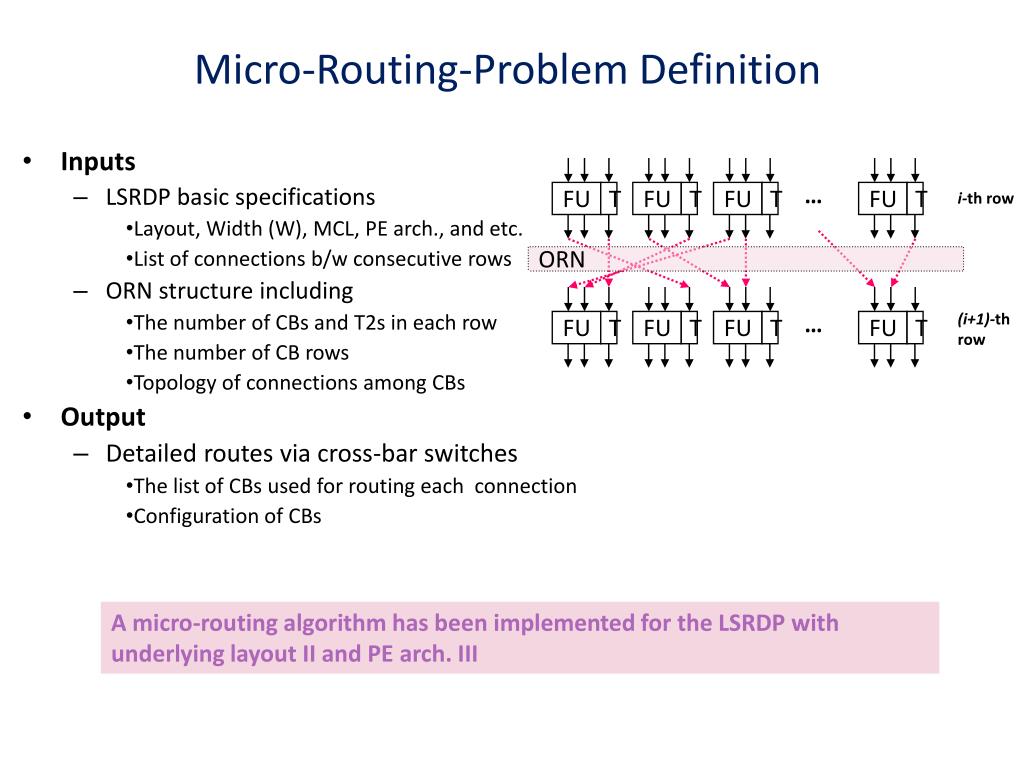

  9. … FU FU FU FU FU FU FU FU T T T T T T T T i-th row ORN … (i+1)-th row Micro-Routing-Problem Definition • Inputs • LSRDP basic specifications • Layout, Width (W), MCL, PE arch., and etc. • List of connections b/w consecutive rows • ORN structure including • The number of CBs and T2s in each row • The number of CB rows • Topology of connections among CBs • Output • Detailed routes via cross-bar switches • The list of CBs used for routing each connection • Configuration of CBs A micro-routing algorithm has been implemented for the LSRDP with underlying layout II and PE arch. III

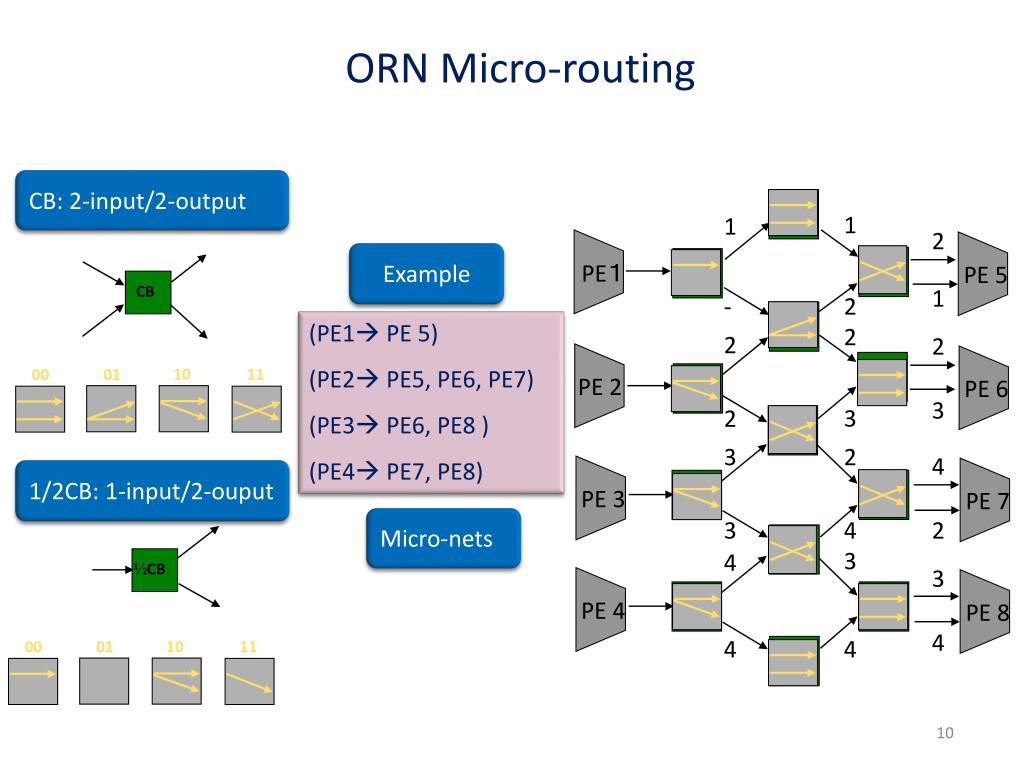

  10. ORN Micro-routing CB: 2-input/2-output 2 Example PE１ PE 5 CB 1 (CB) 1 1 (PE1 PE 5) (PE2 PE5, PE6, PE7) (PE3 PE6, PE8 ) (PE4 PE7, PE8) 2 CB ½CB PE 2 - 2 PE 6 3 CB 2 2 CB 4 ½CB 1/2CB: 1-input/2-ouput PE 3 2 3 PE 7 CB Micro-nets 2 3 2 ½CB 3 ½CB CB 10 11 00 01 10 11 00 01 PE 4 PE 8 3 4 CB 4 3 4 ½CB CB 4 4 (CB)

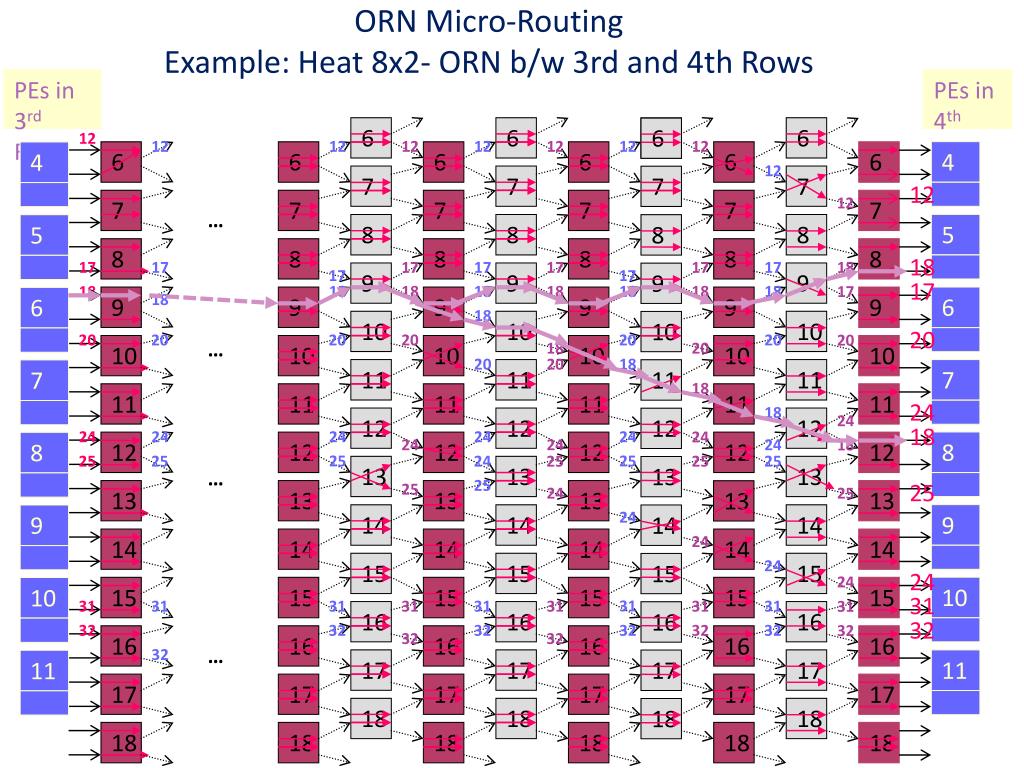

  11. 6 6 6 6 6 7 6 5 8 4 9 8 10 5 6 4 7 9 10 11 11 12 12 12 12 12 12 12 12 6 6 6 6 6 6 12 7 7 7 7 12 7 7 7 7 7 7 12 … 8 8 8 8 8 8 8 8 8 8 18 17 17 17 17 17 17 17 18 9 9 9 17 17 9 18 18 18 18 18 18 18 17 18 17 9 18 9 9 9 9 9 18 10 10 10 10 20 20 20 20 20 20 20 20 … 10 10 10 10 10 10 18 20 20 20 18 11 11 11 11 18 11 11 11 11 11 11 18 24 12 12 12 12 24 24 24 24 24 24 24 18 12 12 24 12 24 12 12 24 12 18 25 25 25 25 24 25 25 25 13 13 13 13 … 25 25 13 13 13 24 13 13 25 13 25 24 14 14 14 14 14 14 14 14 24 14 14 15 15 24 15 15 24 24 15 15 15 15 15 15 31 31 31 31 31 31 31 31 31 31 31 16 16 16 16 32 32 32 32 32 32 32 32 16 16 16 16 16 16 32 32 … 32 17 17 17 17 17 17 17 17 17 17 18 18 18 18 18 18 18 18 18 18 ORN Micro-Routing Example: Heat 8x2- ORN b/w 3rd and 4th Rows PEs in 3rd Row PEs in 4th row

  12. Specifications of Attempted DFGs CCECE 2011

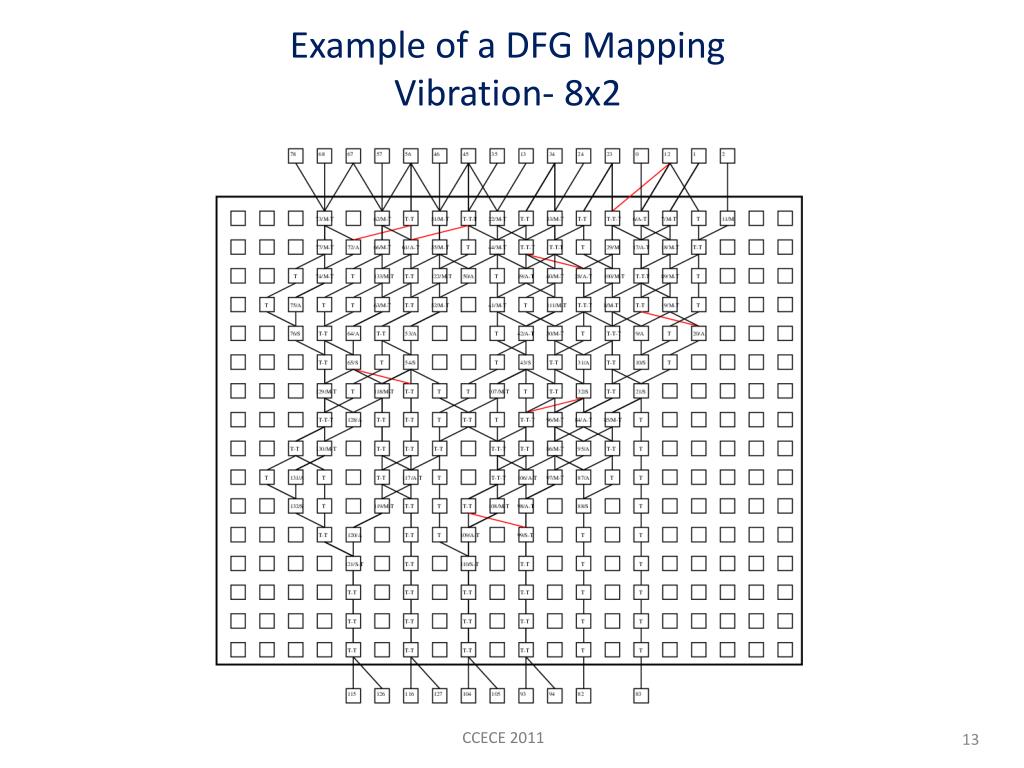

  13. Example of a DFG MappingVibration- 8x2 CCECE 2011

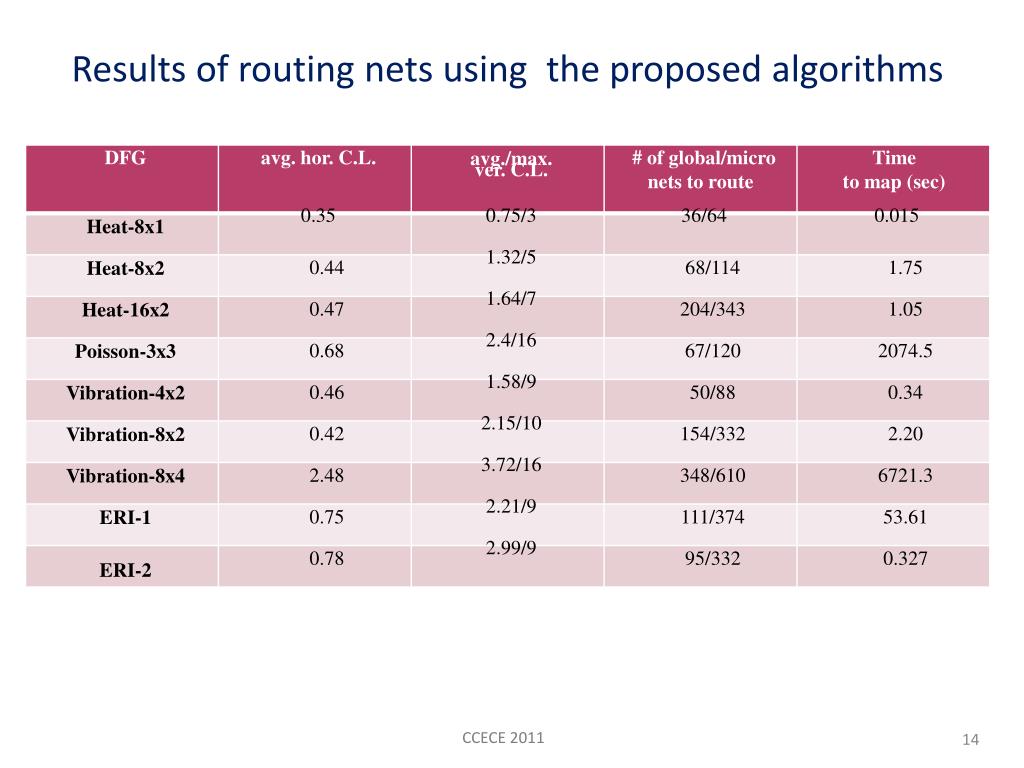

  14. Results of routing nets using the proposed algorithms CCECE 2011

  15. Thank you for your attention!
