  1. Zio™ TR70LCD Wall Module Customer Training

  2. Zio™ TR70LCD Wall Module Feature Brief • Used with the enhanced Spyder ™ Controller with Sylk™ • Two-wire polarity-insensitive bus interface • Very large backlit display • Pull down and view almost any point in the Spyder controller • Customizable home screens • Balance systems from the wall module • Use Spyder tool to customize your configurations and home screen • Multiple override options • Easy to use, borrows from Honeywell homes thermostat design • Only two models do it all (one offers humidity)

  3. Zio™ TR70 Customizable Home Screens • Customizable Home screen: • Home screen choices are created in the S-Bus Wall Module function block in the newest Spyder tool and downloaded to the TR70. Multiple home screens can be downloaded with one set as default. • From the Home screen, the Tenant can change the setpoint, fan speed and/or initiate override, if configured. They can also view or view/change other parameters using the View More key if desired. View More parameters are configurable. • Some sample home screens shown below: Mix and match options for the home screen as desired

  4. Zio™ TR70 Contractor Mode • A contractor mode can be accessed. • In the contractor mode, you can choose the home screen, select parameter access to tenant (Yes or No as desired), and view/change parameters. • Parameters may include virtually any point in the controller. Scheduling is not accessible. • Some sample parameter screens below. Use the tool to set up how you want the parameter displayed

  5. Wiring and Address Dial of Zio Sylk™Bus Address Dial Leave setting at 1 (Currently the bus can accept only 1 device at a time) Four Terminals 1 and 2 for network jack (optional) 3 and 4 for Sylk Bus (to controller S-bus terminals)

  6. Configuration of Zio • All configuration of the Zio Wall Modules is done through the S-bus Wall Module Configuration tool • This tool is embedded in the Sylk Enhanced Spyder Tool, Version 2.0.0 as of the date of product release in Oct 2008. • Download the latest version at the Honeywell Buildings Forum. Download here

  7. Drag S-Bus WM block onto wire sheet

  8. Wizard General Settings Tab

  9. Wizard Categories and Parameters Tab

  10. Wizard Categories and Parameters Tab

  11. Wizard Categories and Parameters Tab

  12. Wizard Memory Usage

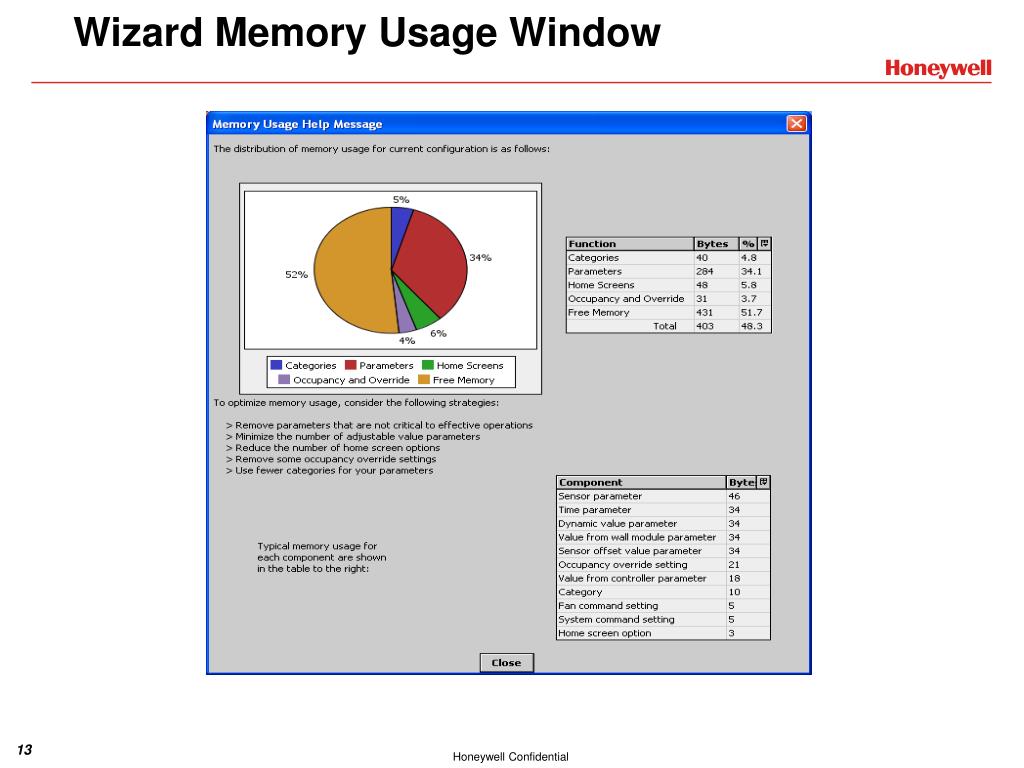

  13. Wizard Memory Usage Window

  14. Wizard Home Screen Options

  15. Wizard Occupancy and Override

  16. Wizard Occupancy Time Interval

  17. Wizard Fan Command

  18. Wizard System Status and Command

  19. Wizard System Status and Command

  20. Wizard Preview

  21. Wizard Preview

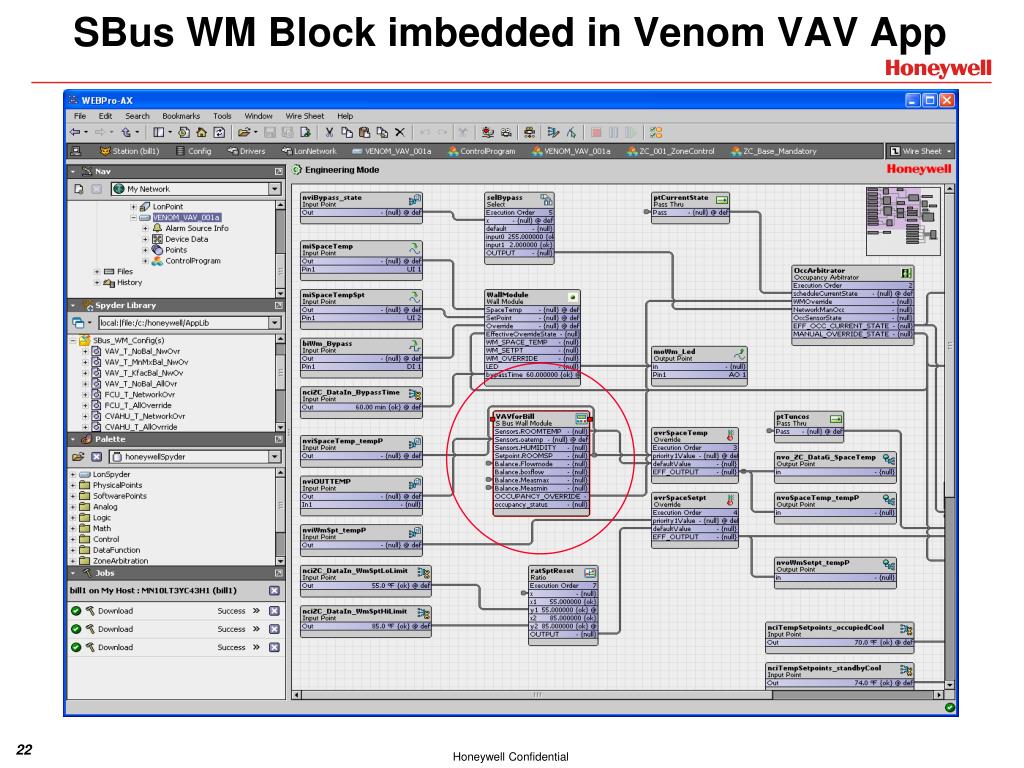

  22. SBus WM Block imbedded in Venom VAV App

  23. TR70 Wall Model
