Presentation Transcript

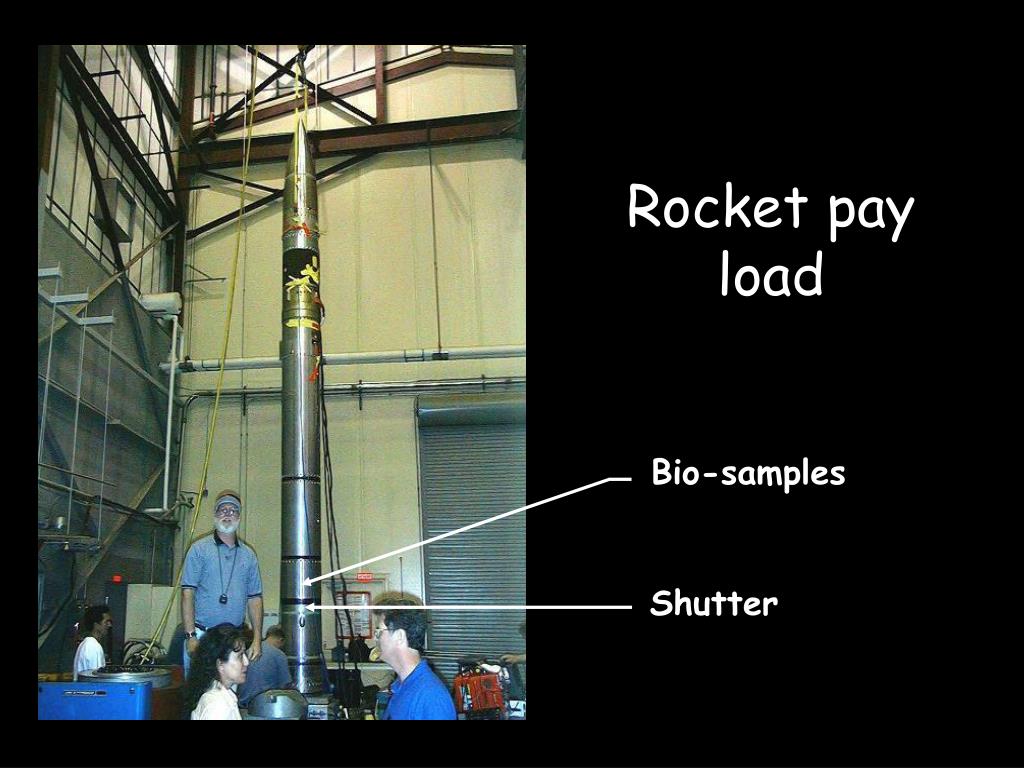

  1. Rocket pay load Bio-samples Shutter

  2. PAYLOAD BLACK BRANT VC TERRIER Mk-70

  3. The Flight White Sand Missile Range, New Mexico SERTS telescope on a Terrier Black Brant Rocket Altitude of 304 km in 283.5s Shutters stayed open for 441s Irradiation dose: 6 1012 photons/cm2 at 30.4 nm

  4. Synchrotron studies - SURF III at NIST - 6.1 1011 photons/s/cm2/mAmp of beam current, typically 100 mAmp - sun exposure with SERTS will be achieved in 1 second
