  1. The Core SVPcompiler Thomas A.M. Bernard t.bernard@science.uva.nl University of Amsterdam September 3rd, 2008

  2. What is the SVP compiler ? Core SVP Compiler Applications Architecture How to program multi-core processors efficiently ? • Black box…

  3. The SVP tool chain - DRISC

  4. µTC • µTC is a C-based language that captures the concurrency creation and management of SVP: • - The constructs reflect machine instructions added to DRISC* cores in order to support SVP+ at the ISA level. • - We use µTC as an intermediate language - compiler target • also useful in understanding the model from a programming perspective.

  5. DRISC ISA cre – create a family of microthreads brk – break from a family sqz – squeeze pre-empts a family kill – kill the family from outside end – end finishes the code of microthread swch – context switch Pseudo- instructions encoded by control stream DRISC = RISC instruction set + µT instructions New instructions to handle the concepts of the model:

  6. µTC keywords Function specifiers thread squeezable Types index family place Constructs create sync kill squeeze break µTC Type qualifiers shared

  7. Implementation of µTC • Based on the GCC compiler framework • This parses µTC and generates assembler for DRISC processors - currently based on Alpha ISA, • the GCC compiler is retargettable with a backend compiler generating compilers for arbitrary processors.

  8. GCC 4.1 Compiler Structure Front-end Middle-end Back-end C Machine description GIMPLE - Rules of ASM - Memory def. - Lexical/Syntax - Type checking - Semantic GIMPLE-SSA GIMPLE - IR Generation (tree based) - SSA Generation - Optimizations (target independent) RTL - IR Generation - RTL Generation (list of objects) - Low-level optimizations ASM - Code Generation - Register allocator - Instruction Sched.

  9. Design of µT Compiler Front-end Middle-end Back-end µTC Machinedescription GIMPLE New keywords: - Lexical extended - Syntax definitions - Semantics rules - New rules (using new ISA-µT) - New memory features (class of registers) GIMPLE-SSA New nodes in the tree. GIMPLE Optimizations upgraded upon the new information (explicit concurrency) RTL New nodes in the tree. New objects ASM-µT We keep the concurrency captured in the µTC language all along the compilation stages. - Code generator extended with the new rules. - Register allocator updated

  10. µTC Compilation threadvoid foo (int a, float b) { int local_a = a; float local_b = b; … } threadvoid main() { int a_g =0; float b_g = 5.6; familyfid; … create(fid;;0;9;1;;) foo (a_g,b_g); sync(fid); … }

  11. .align 2 .globl main .ent main $main..ng: main: .registers 0 0 0 0 0 0 #GI,SI,LI,GF,SF,LF .prologue 0 stl $31,24($15) ldah $1,$LC0($29) !gprelhigh lds $f10,$LC0($1) !gprellow sts $f10,20($15) ldq $1,32($15) allocate $1 #TCB_INSTRUCTIONS setstart $1,0 #TCB_INSTRUCTIONS swch #CONTEXT SWITCHING setlimit $1,9 #TCB_INSTRUCTIONS setstep $1,1 #TCB_INSTRUCTIONS ldq $1,32($15) cred $1,foo #CREATE_D ldq $1,32($15) bis $1,$31,$31 #SYNC addl $31,$1,$1 stl $1,16($15) end #END_THREAD .end main .ident "--University of Amsterdam, Extended by CSA group-- GCC: (GNU) 4.1.0" .section .note.GNU-stack,"",@progbits µT-ASM .set noreorder .set volatile .set noat .set nomacro .arch ev4 .text .align 2 .globl foo .ent foo $foo..ng: foo: .registers 0 0 0 0 0 0 #GI,SI,LI,GF,SF,LF .prologue 0 mov $16,$1 sts $f17,36($15) stl $1,32($15) ldl $1,32($15) stl $1,20($15) lds $f10,36($15) sts $f10,16($15) end #END_THREAD .end foo .section .rodata .align 2

  12. GCC registers requirement analysis 32 0 $2 $f2 $1 $L0 $f1 $LF0 local_a local_b Dependents $0 $G0 $f0 $GF0 a b Locals Integer Register Window FP Register Window Thread function: foo $2 Shared a_g $L1 $1 $f1 $0 $L0 $f0 $LF0 Globals fid b_g 0 Integer Register Window FP Register Window Virtual register window Thread function: main Reference: T.A.M. Bernard, C.R. Jesshope, Compile-time register requirements analysis for μTC using the GCC framework, Submitted to HiPEAC 2009.

  13. Area of research (1) Reference: T.A.M. Bernard, C.R. Jesshope, and P.M.W. Knijnenburg, Strategies for Compiling μTC to Novel Chip Multiprocessors, S. Vassiliadis et al. (Eds.): SAMOS 2007, LNCS 4599, pp. 127-138, 2007. • Register allocation: • Allocate two sets of 32 registers ($G,$L,$S,$D) per microthread. • Allocate the registers on the right variables following explicit declarations done at µTC level. • “dynamic allocation” (similar to ia64): • Problem: number of register classes know only at compile-time • Those numbers vary from one family to another.

  14. Area of research (2) • Code generation: • Schedule/Emit the new µT-ISA instructions. • Data dependencies: Discover the dependencies between instructions in order to add the ‘swch’ instruction. • Investigating register spilling strategies. (c.f. Rustam’s talk)

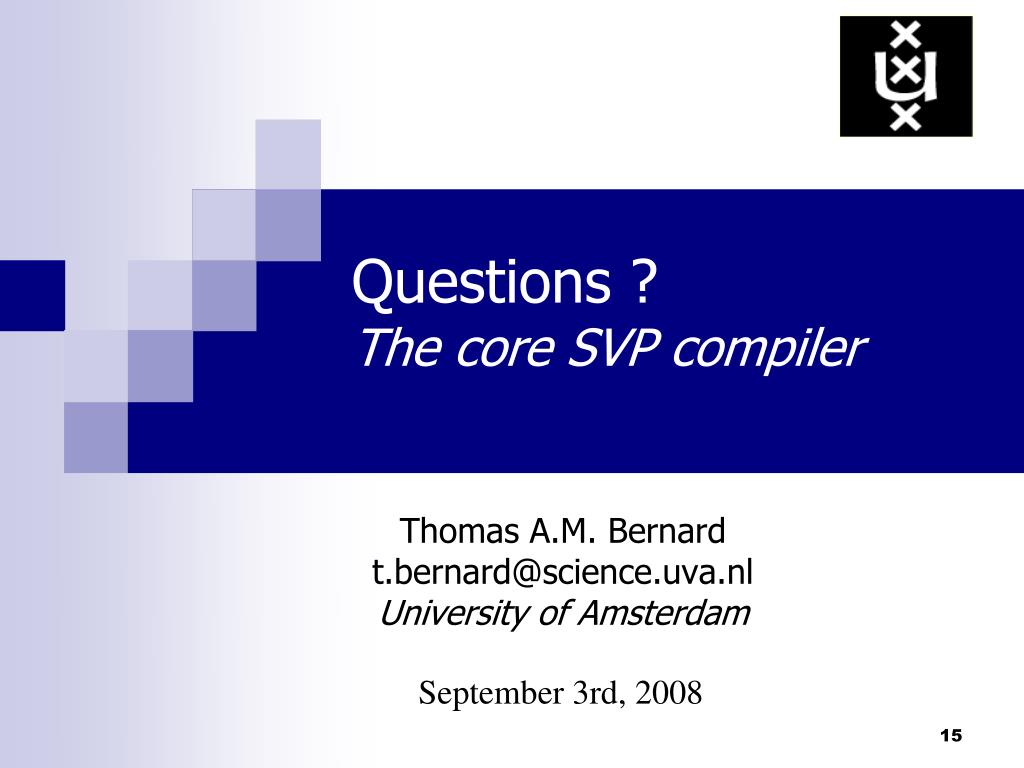

  15. Questions ?The core SVP compiler Thomas A.M. Bernard t.bernard@science.uva.nl University of Amsterdam September 3rd, 2008
