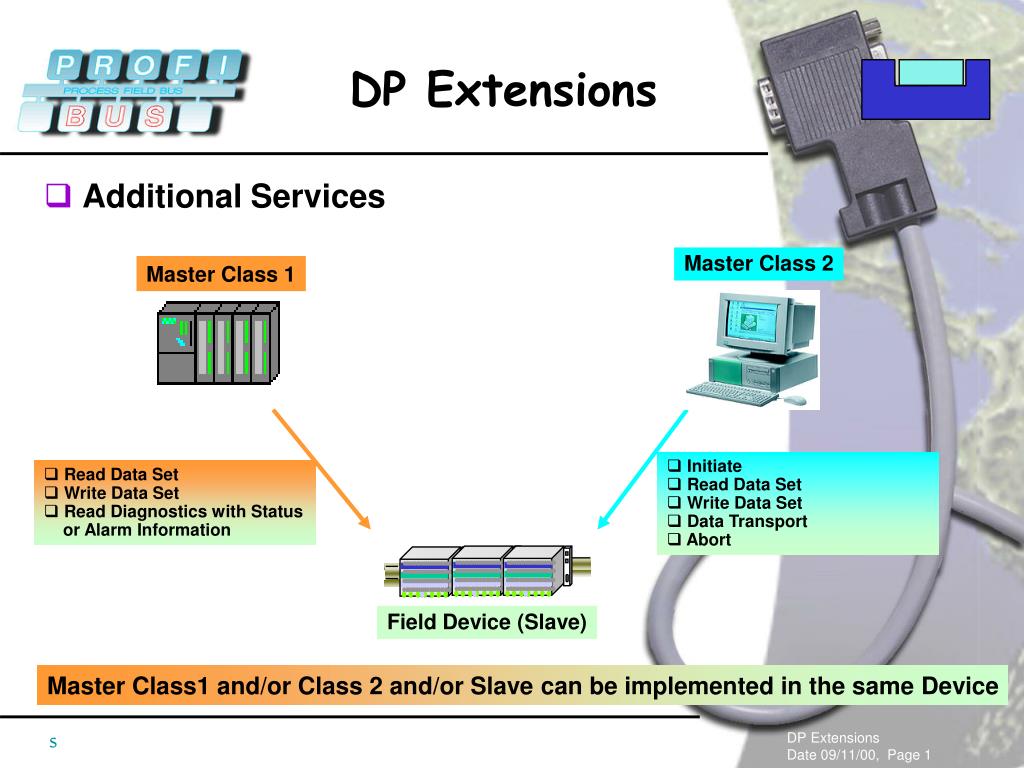

  1. Additional Services Master Class 2 Master Class 1 • Initiate • Read Data Set • Write Data Set • Data Transport • Abort • Read Data Set • Write Data Set • Read Diagnostics with Status or Alarm Information Field Device (Slave) Master Class1 and/or Class 2 and/or Slave can be implemented in the same Device

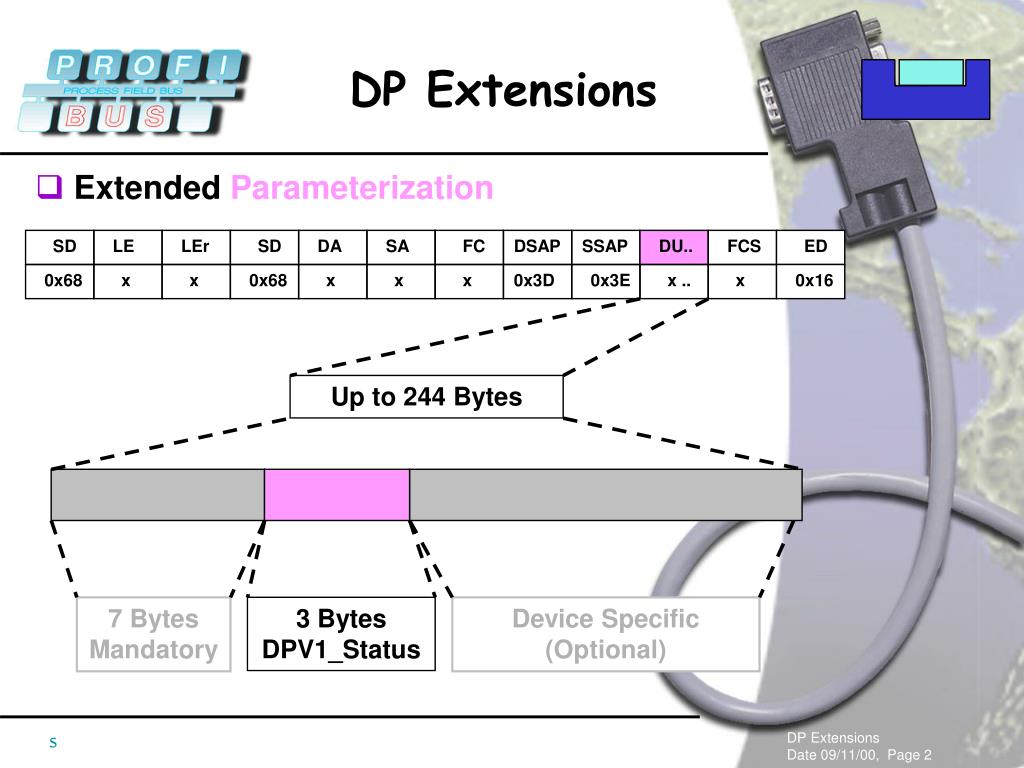

  2. Extended Parameterization SD LE LEr SD DA SA FC DSAP SSAP DU.. FCS ED 0x68 x x 0x68 x x x 0x3D 0x3E x .. x 0x16 Up to 244 Bytes 7 Bytes Mandatory 3 Bytes DPV1_Status Device Specific (Optional)

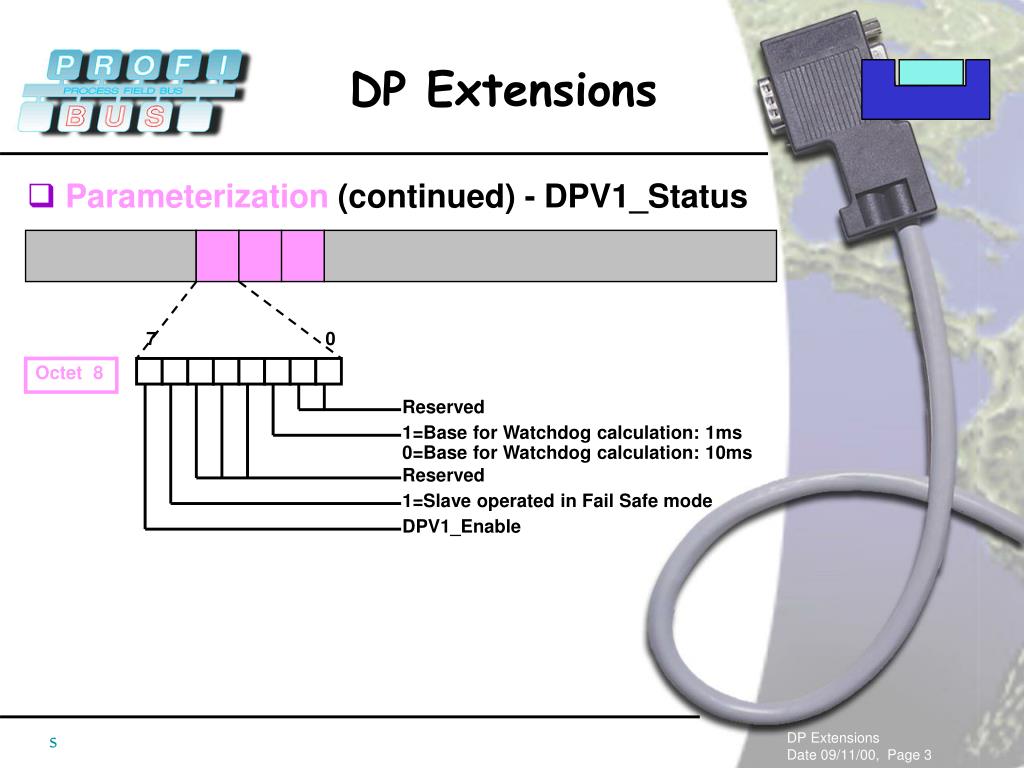

  3. Parameterization (continued) - DPV1_Status 7 0 Octet 8 Reserved 1=Base for Watchdog calculation: 1ms 0=Base for Watchdog calculation: 10ms Reserved 1=Slave operated in Fail Safe mode DPV1_Enable

  4. Parameterization - DPV1_Status (continued) 7 0 Octet 9 1=Application specific behavior for configuration check Reserved Enable alarms (under construction) Octet 10 Alarm_Mode (specifies alarm capabilities) (under construction) Reserved

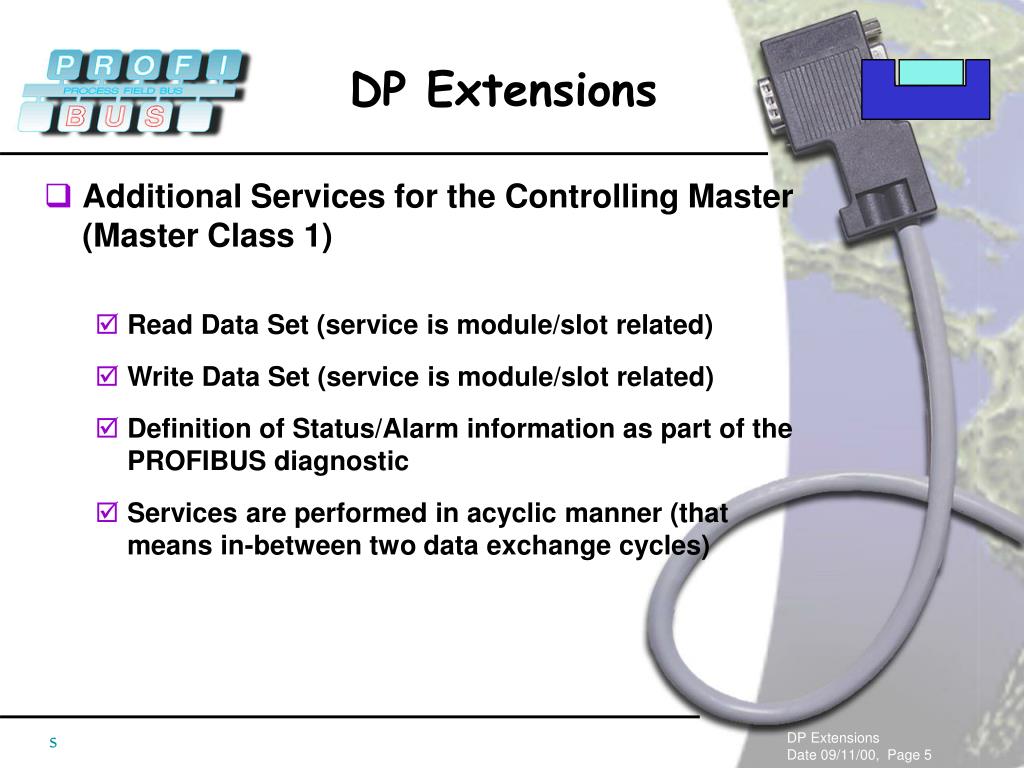

  5. Additional Services for the Controlling Master (Master Class 1) • Read Data Set (service is module/slot related) • Write Data Set (service is module/slot related) • Definition of Status/Alarm information as part of the PROFIBUS diagnostic • Services are performed in acyclic manner (that means in-between two data exchange cycles)

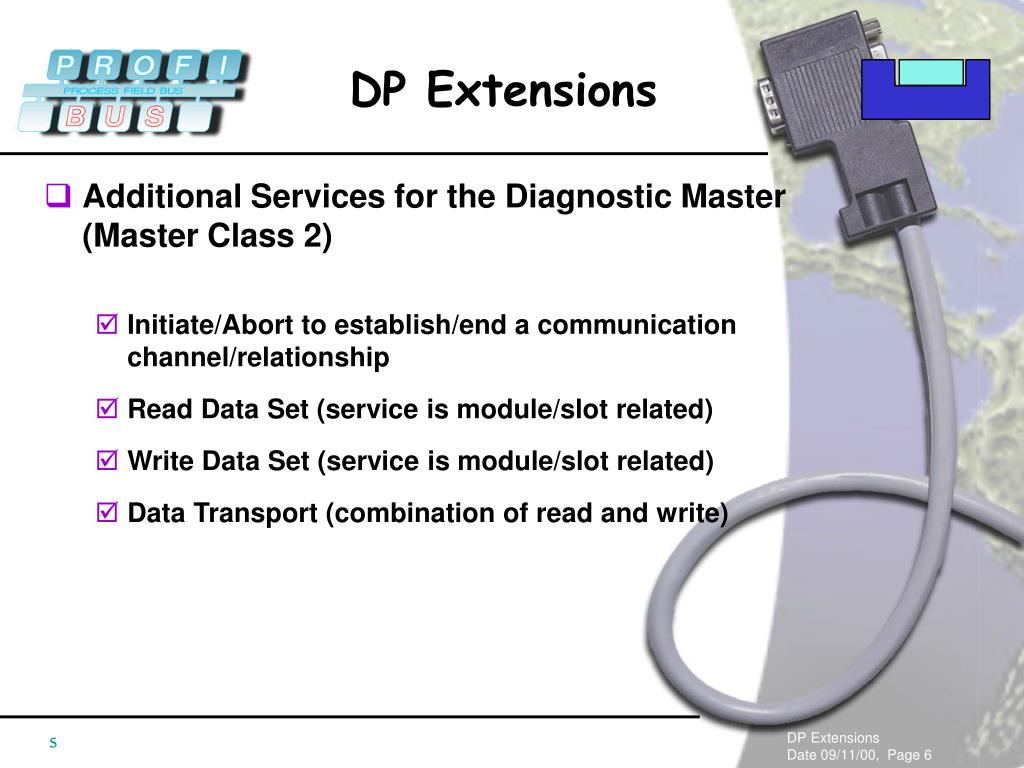

  6. Additional Services for the Diagnostic Master (Master Class 2) • Initiate/Abort to establish/end a communication channel/relationship • Read Data Set (service is module/slot related) • Write Data Set (service is module/slot related) • Data Transport (combination of read and write)

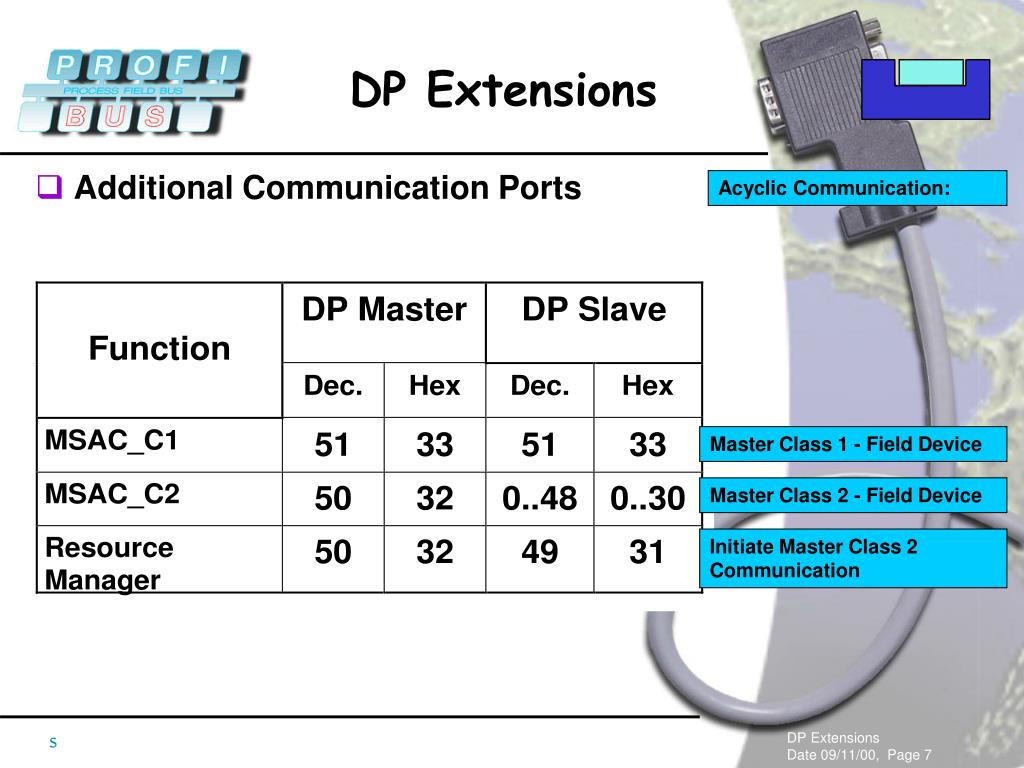

  7. Additional Communication Ports Acyclic Communication: Master Class 1 - Field Device Master Class 2 - Field Device Initiate Master Class 2 Communication

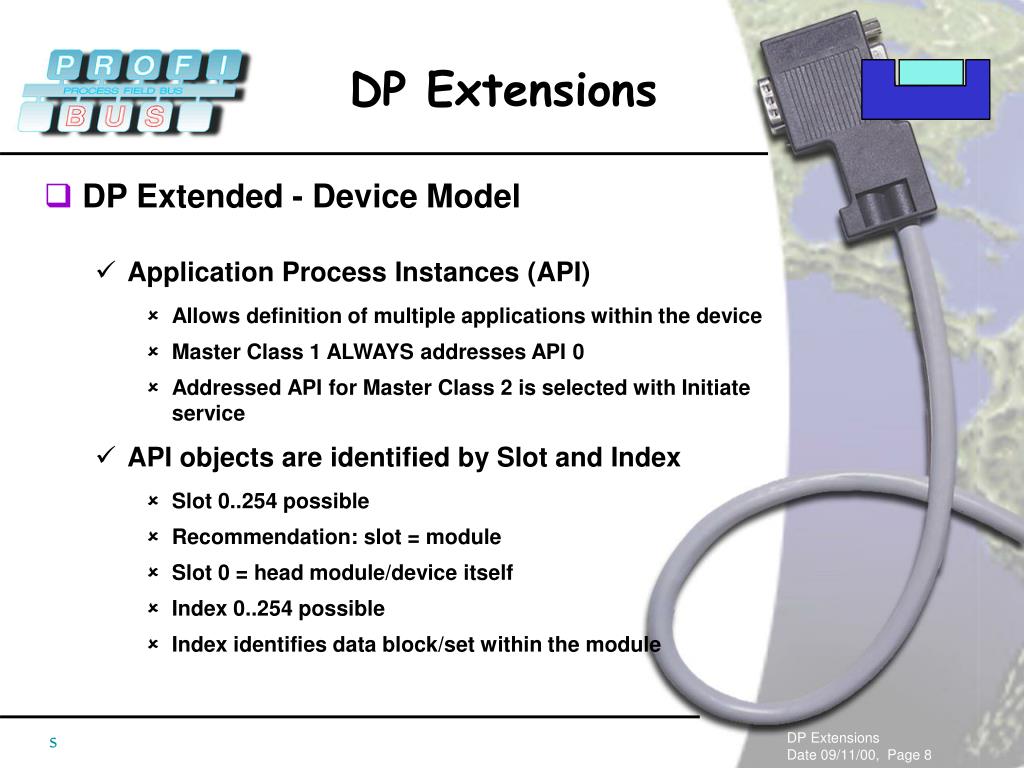

  8. DP Extended - Device Model • Application Process Instances (API) • Allows definition of multiple applications within the device • Master Class 1 ALWAYS addresses API 0 • Addressed API for Master Class 2 is selected with Initiate service • API objects are identified by Slot and Index • Slot 0..254 possible • Recommendation: slot = module • Slot 0 = head module/device itself • Index 0..254 possible • Index identifies data block/set within the module

  9. DP Extended - Device Model (continued) Module 4 2 AI Base Module Module 1 8 DO Module 2 16 DO Module 3 8 DI API 0 Slot 0 Index 0 API 0 Slot 0 Index 1 API 0 Slot 2 Index 4 API 0 Slot 4 Index 1 API 1 Slot 0 Index 2 API 2 Slot 4 Index 16

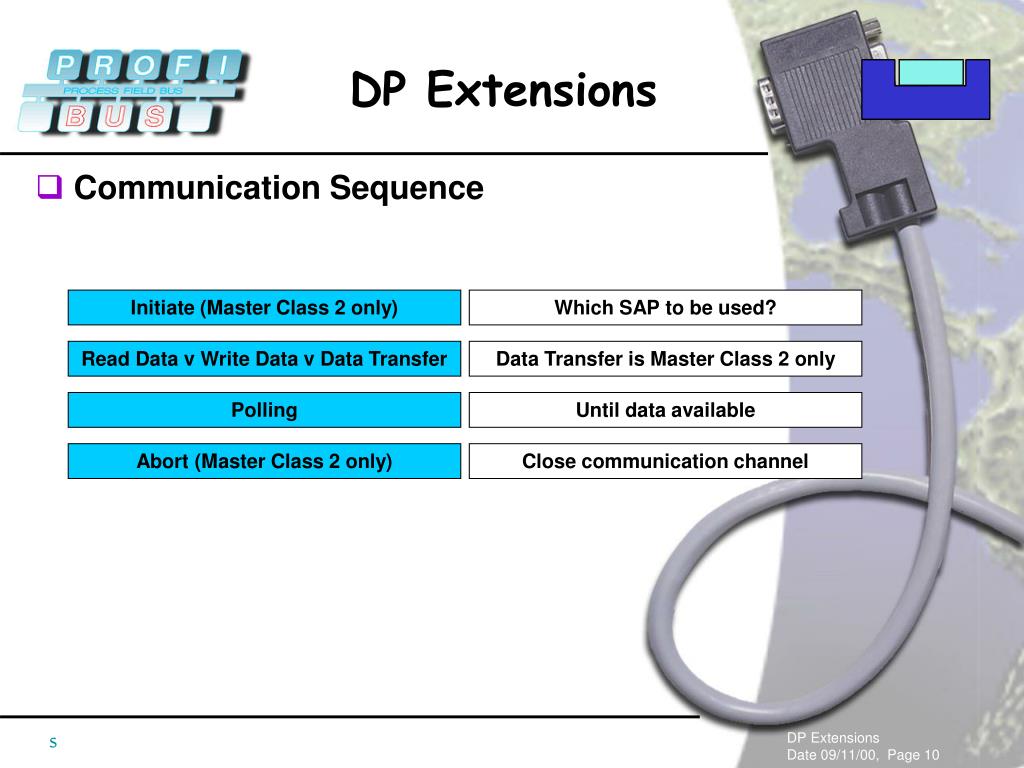

  10. Communication Sequence Initiate (Master Class 2 only) Which SAP to be used? Read Data v Write Data v Data Transfer Data Transfer is Master Class 2 only Polling Until data available Abort (Master Class 2 only) Close communication channel

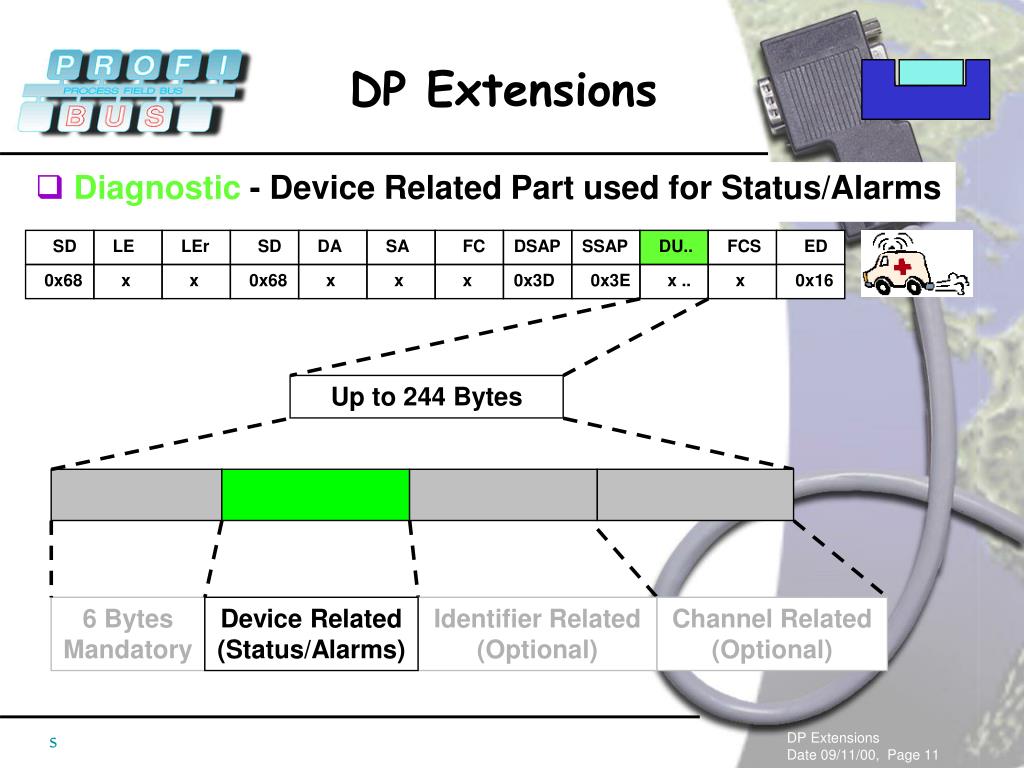

  11. Diagnostic - Device Related Part used for Status/Alarms • Startup Sequence - Parameterization SD LE LEr SD DA SA FC DSAP SSAP DU.. FCS ED 0x68 x x 0x68 x x x 0x3D 0x3E x .. x 0x16 Up to 244 Bytes 6 Bytes Mandatory Device Related (Status/Alarms) Identifier Related (Optional) Channel Related (Optional)

  12. Diagnostic (continued) - Alarm Coding • Startup Sequence - Parameterization Alarms are under Construction

  13. Diagnostic (continued) - Coding Status Up to 59 bytes additional status information Octet 1 Data length (including header) - 4 to 63 “00” 0-Reserved 1-Status Message 2-Module Status 3..31-Reserved 32..126-Manufacturer Specific 127-Reserved Octet 2 Status Type 1 (= Status) Octet 3 Slot Number Octet 4 Status Specifier 00=No further differentiation 10=Status disappears 01=Status appears 11=Reserved Reserved

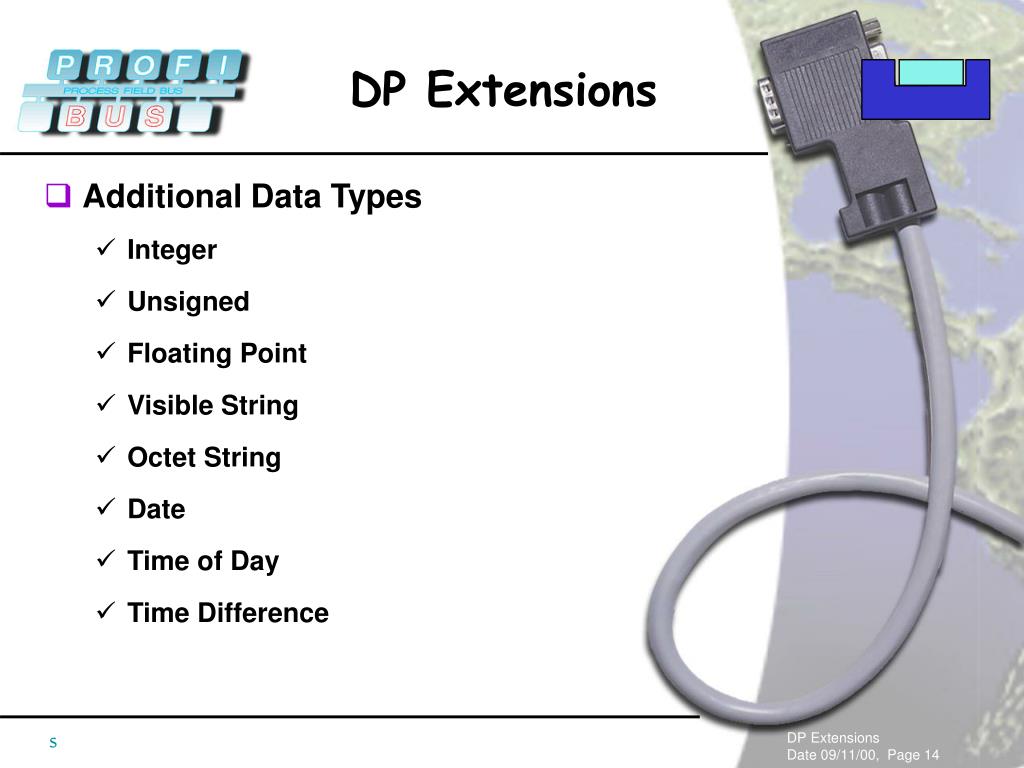

  14. Additional Data Types • Integer • Unsigned • Floating Point • Visible String • Octet String • Date • Time of Day • Time Difference

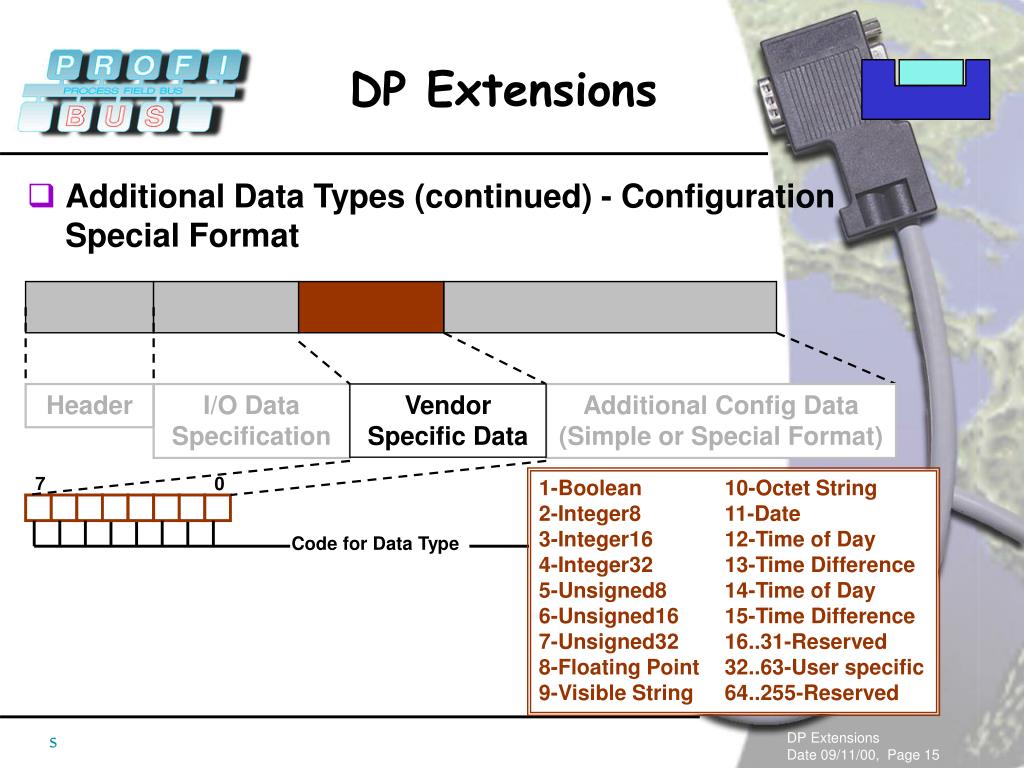

  15. Additional Data Types(continued) - Configuration Special Format Header I/O Data Specification Vendor Specific Data Additional Config Data (Simple or Special Format) 7 0 1-Boolean 10-Octet String 2-Integer8 11-Date 3-Integer16 12-Time of Day 4-Integer32 13-Time Difference 5-Unsigned8 14-Time of Day 6-Unsigned16 15-Time Difference 7-Unsigned32 16..31-Reserved 8-Floating Point 32..63-User specific 9-Visible String 64..255-Reserved Code for Data Type

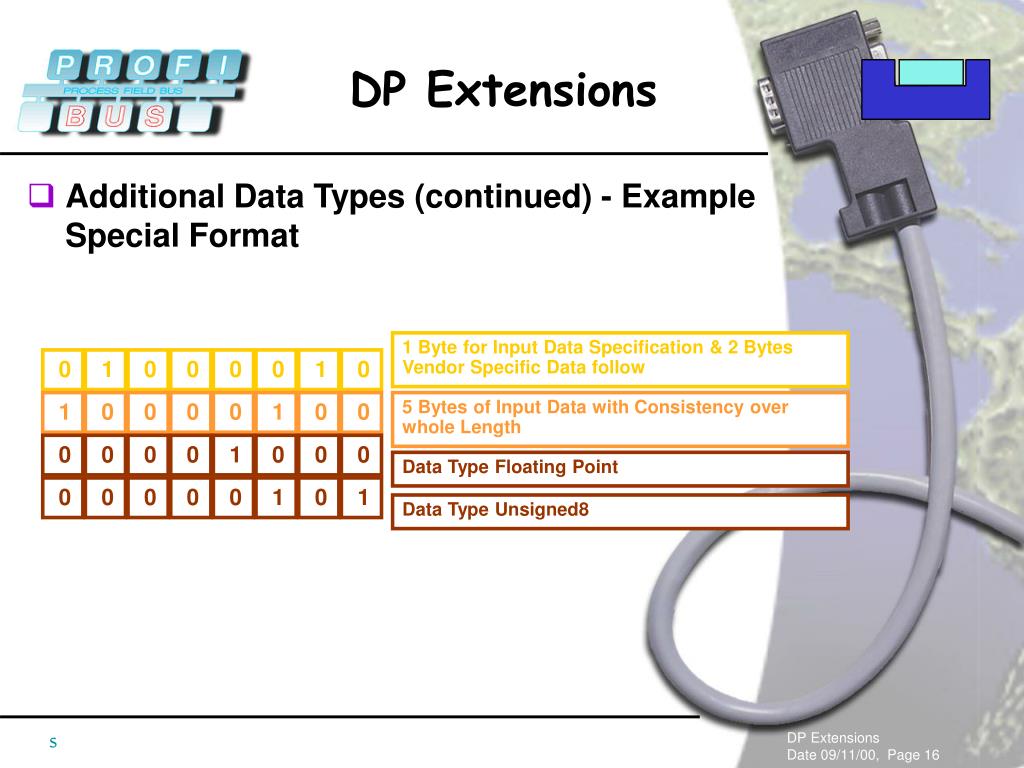

  16. Additional Data Types(continued) - Example Special Format 1 Byte for Input Data Specification & 2 Bytes Vendor Specific Data follow 0 1 0 0 0 0 1 0 1 0 0 0 0 1 0 0 5 Bytes of Input Data with Consistency over whole Length 0 0 0 0 1 0 0 0 Data Type Floating Point 0 0 0 0 0 1 0 1 Data Type Unsigned8

  17. Application Example PROFIBUS (up to 12 Mbaud) Engineering Tool (Diagnostic Master) Direct access to field device via DP Extensions (e.g. to change range of measurement) PROFIBUS-PA (31.25 kbaud)
