  1. HWg-PDMS: New software Poseidon & Damocles Monitoring System Included on every HWg DVD since September 2009

  2. HWg-PDMS: Description Windows software for logging data from all HWg devices. Logged data are periodically exported to MS Excel in reports. Month report can be loaded and printed within less than 90 seconds. • Periodic logging data from IP devices. (Polling / Email download) • Data stored into PDMS database • Graph overview to logged data • REPORTsTemplate: MS Excel file with data import macros • Data: Periodically export selected sensor’s datafor every report to XML files.

  3. HWg-PDMS: Overview HWgPDMS Logged data graphoverview Devices& sensors Periodic data export to MS Excel templates

  4. Who is the User? • Typical PDMS user needs simple application. • Nagios or other SNMP software is too big and complicated • Typical usage • History values archivewith manual Excel export • Servicesquality monitoring & reporting • Audit reports generator • Other usage

  5. HWg-PDMS: Features • MS Windows application • NT Service (Works on background) • Compatible with: Poseidon XXXX, Damocles XXXX, HWg-STE • Data input modes • Periodic polling via HTTP (definable period) • Downloading data from the Email Pop3 account .(Supported by Poseidon 2251 with internal logger) • Support up to 250 sensors from 100 devices • Graph data overview • MS Excel data export manually or periodical • Free trial for 3 sensors • Included in HWg-STE installation & standard HWg DVD • Registered version is free up to 1 year

  6. HWg-PDMS: Licence • Trial version3 sensors for 3 months after installation full free • Registered Trial3 sensors for 1 year after installationBased on free form registration on HWg website • PDMS 8 8 sensors 99 € RWP • PDMS 20 20 sensors 199 € RWP • PDMS unlimited399 € RWP

  7. Functions: Graph • Graph overview to logged data • Cursor function with data details

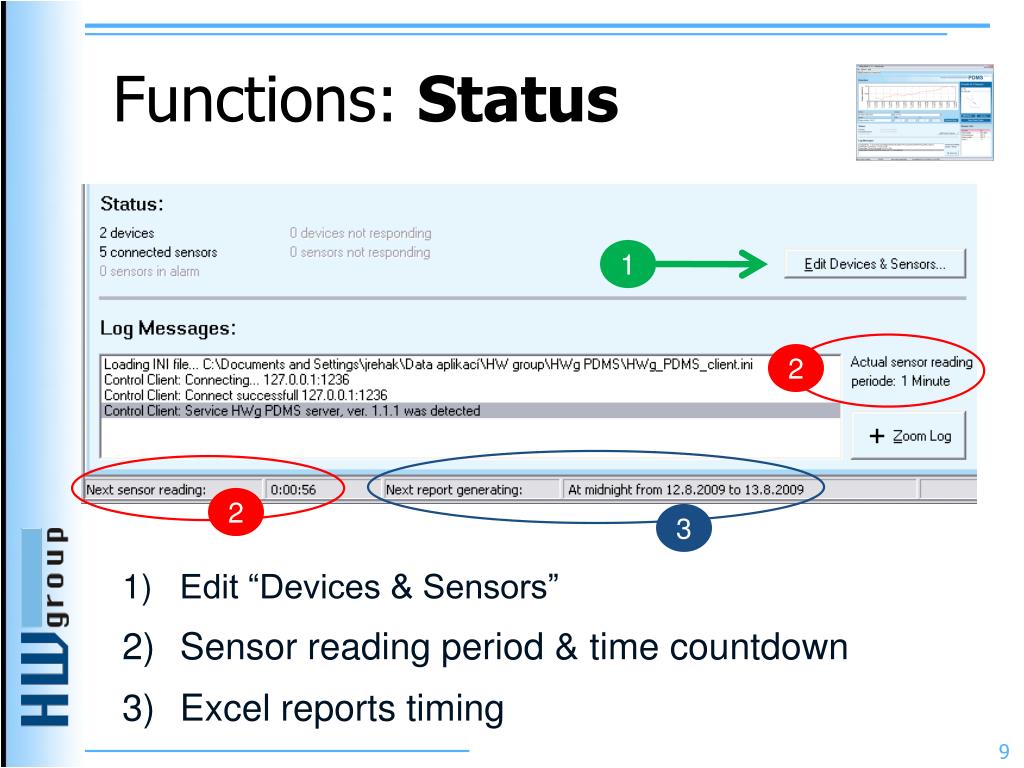

  8. Functions: Status • Edit “Devices & Sensors” • Sensor reading period & time countdown • Excel reports timing 1 2 2 3

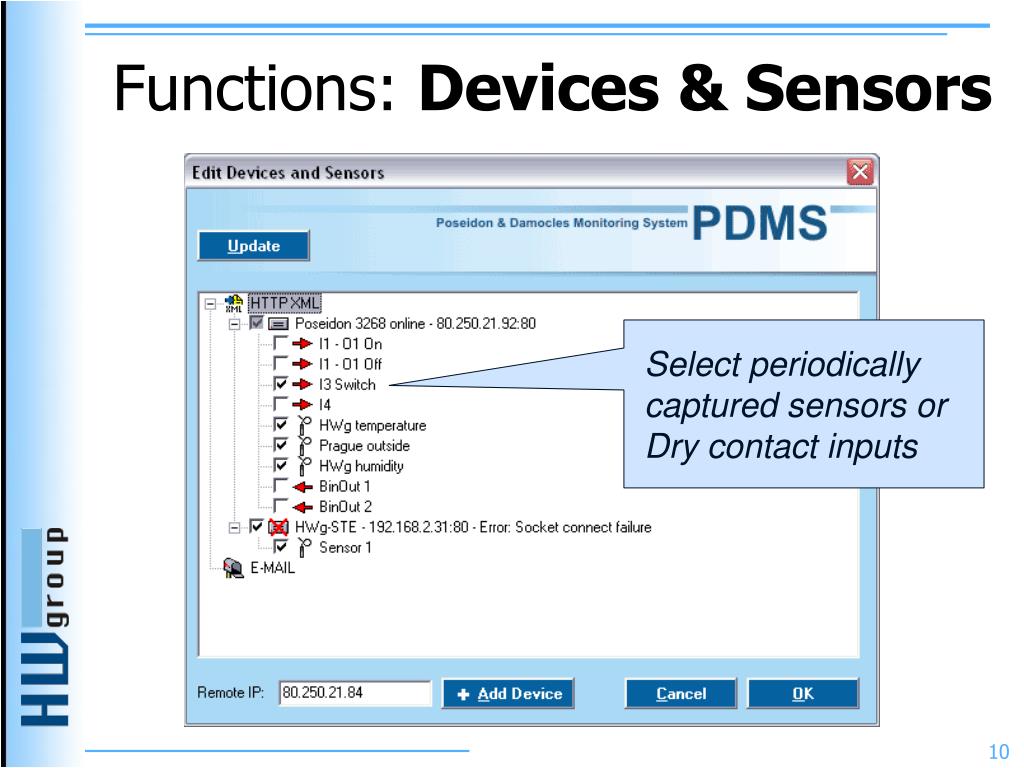

  9. Functions: Devices & Sensors Select periodically captured sensors or Dry contact inputs

  10. Functions: XLS Reports 1 • Add Report open reports Wizard. • Preview create Excel overview for currently logged data. • Use right click for extended menu.

  11. Functions: XLS Reports 2 Create Report: • Selected sensors to report • Define samples period in report • Define period of report (Weekly) Save & Preview Report: MS Excel 2002 or 2007 required

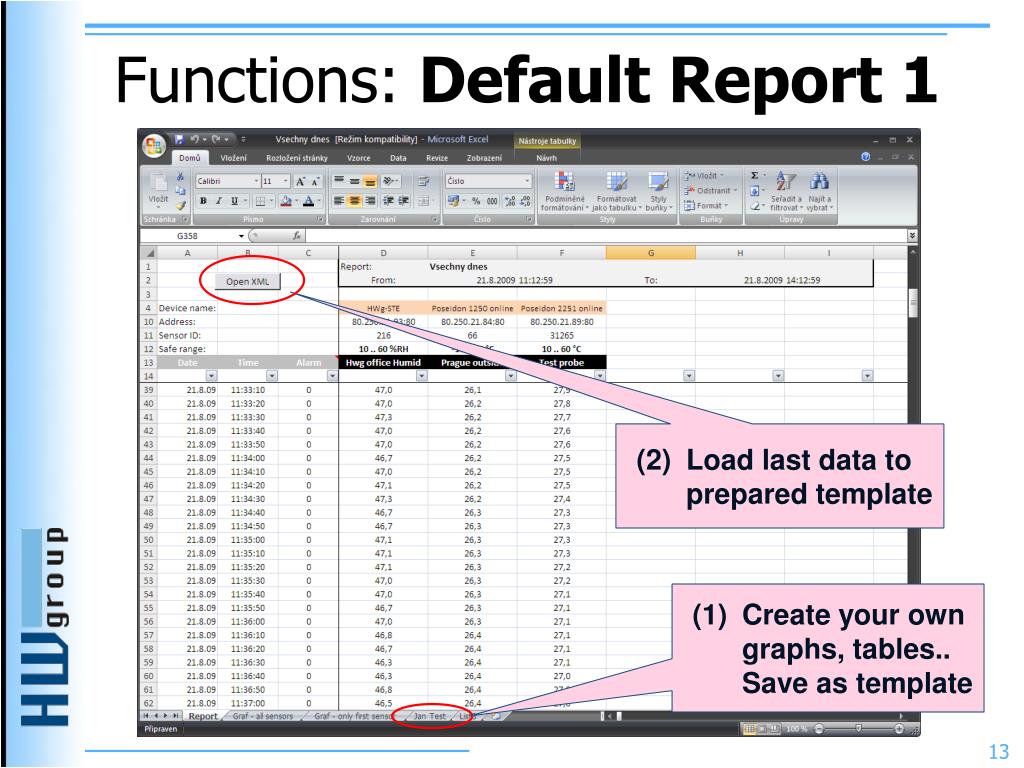

  12. Functions: Default Report 1 (2) Load last data to prepared template (1) Create your own graphs, tables.. Save as template

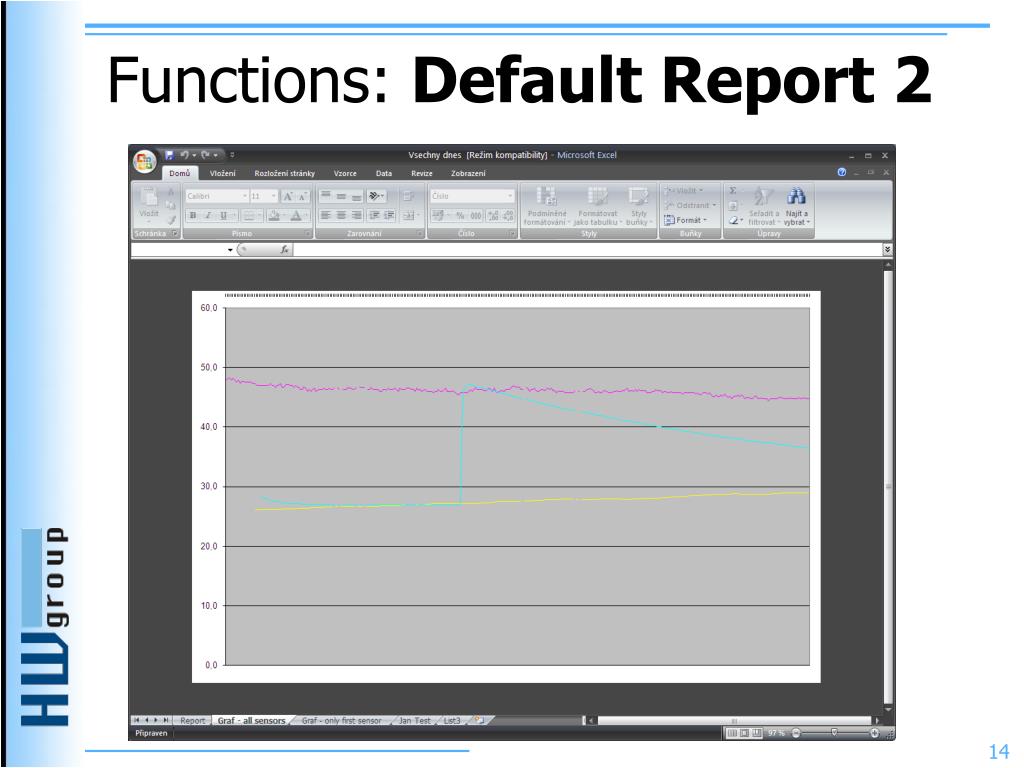

  13. Functions: Default Report 2

  14. Excel report in 90seconds • Install devices & sensors • Install HWg-PDMS to any server or PC • Add the sensors to HWg-PDMS • Create Periodic Report with related sensors • Modify the Report template (sheet2, sheet3..)(Graphs, Min/Max, Average values, A4 print page) • Report in 90 seconds: • Next month open the Report template XLS file • Load last stored XML data • Print & finished

  15. Your own Report

  16. HWg-PDMS: Smart Excel Reporting HWg-PDMS: Excel report in 90 seconds every month. HWgPDMS Devices & sensors
